Zhixing Machine
Zhixing Machine
| Model NO. | ZDJ-V18 | Control System | Automatic, PLC, Touch Screen Control |
|---|---|---|---|
| Glass Thickness Range | 3 mm - 19 mm | Warranty | 12 Months for Free, Lifetime Warranty |
| Type | Insulating Glass Production Line | Structure | Vertical |
| Name | Double Glazed Unit Sealing Machine | Max. Sealing Size | 2500*1800mm |
| Sealing Speed | 5-35m/Min | Min. Processing Size | 350*200mm |
| Power Supply | 380V/50Hz | Total Power | 9.4kw |
| Air Pressure | 0.6-0.8MPa | Max Weight of IG Unit | 200kgs |
| Material | Silicone Sealant, Black Glue, White Glue | HS Code | 8464901900 |

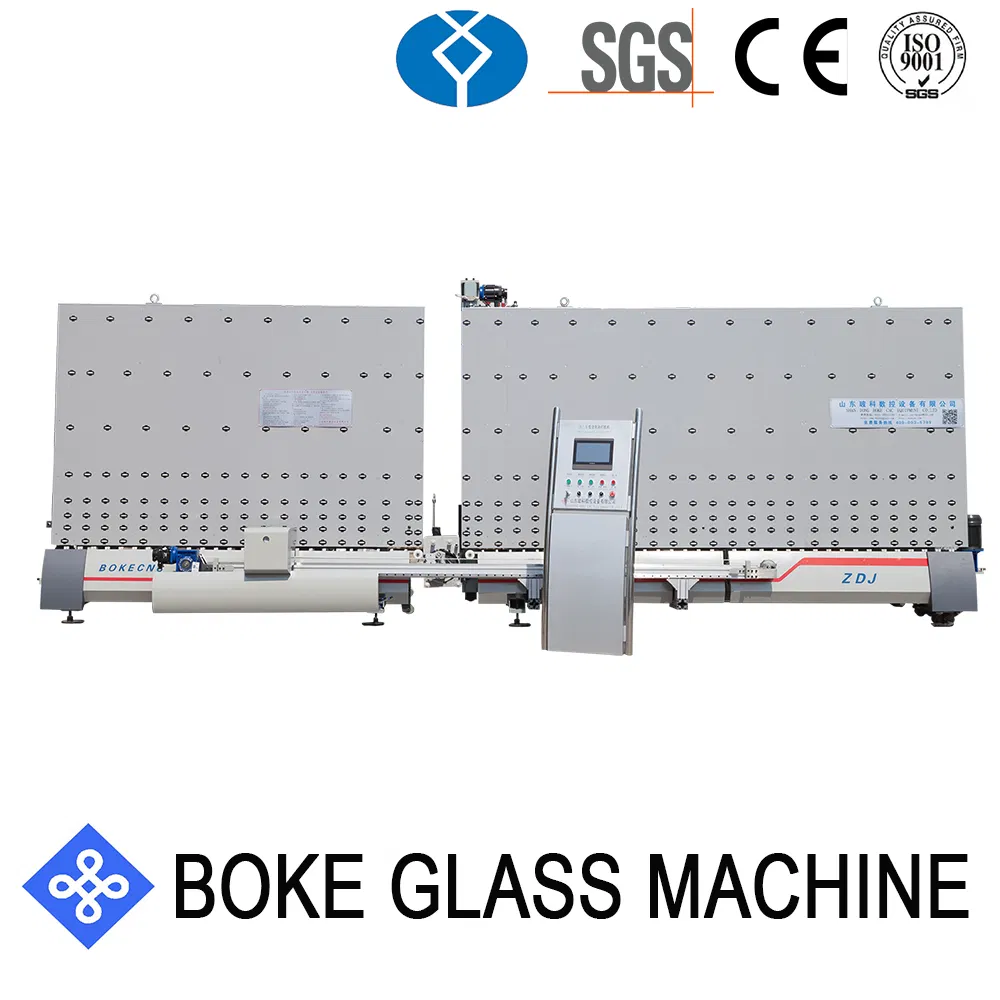

1. Brief Introduction of ZDJ-V18 Sealing Robot

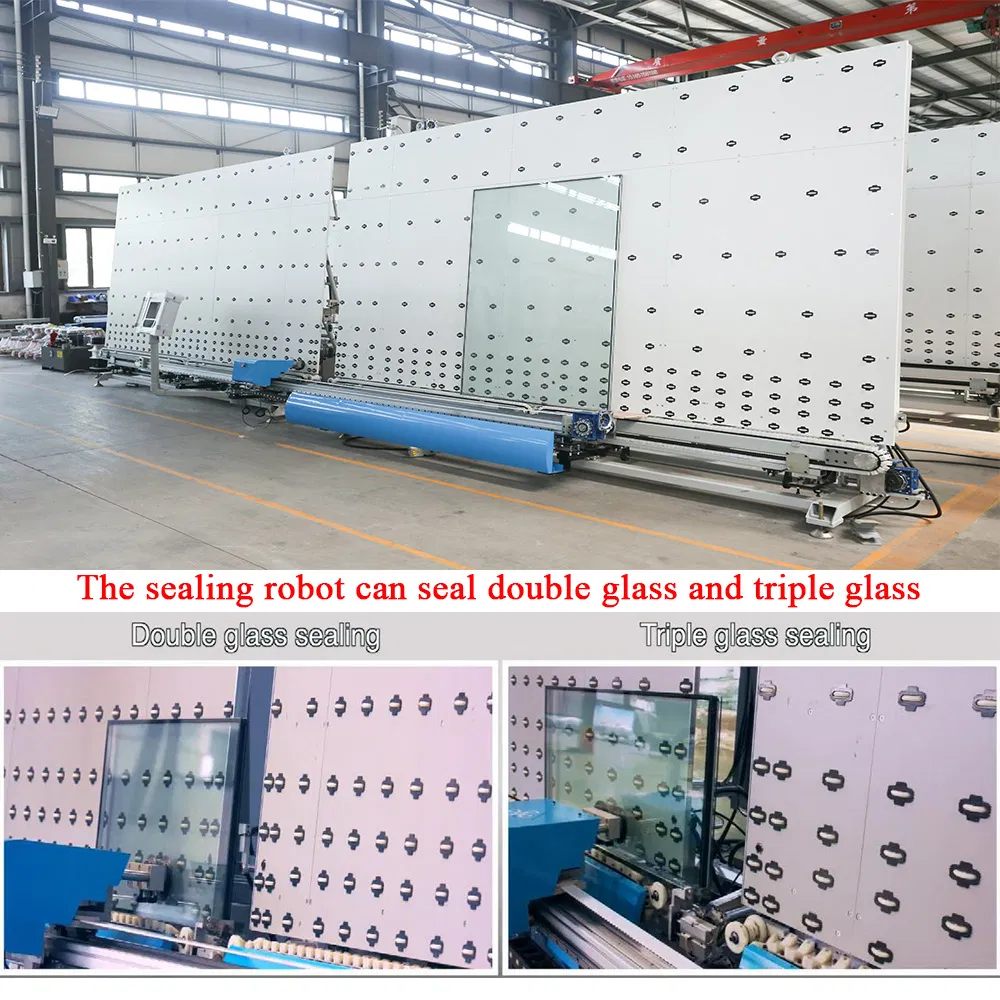

This sealing robot ZDJ-V18 is the glue applicator for the second sealing of insulating glass. After sealing by the sealing robot, the insulating glass completes all production procedures from glass original sheet cleaning to the final plate pressing and sealing.
| Parameter Item | Specification (ZDJ-V18) |
|---|---|
| Sealing speed (m/min) | 5-35 |
| Sealing depth (mm) | <18 |
| Thickness of IG unit (mm) | 12-50 |
| Min. IG unit size (mm) | 350*200 |
| Max. IG unit size (mm) | 2500*1800 |
| Glue supply pressure (MPa) | <30MPa |
| Standard Elevation | 400mm |
| Angle of inclination | 6° |
| Total power (Kw) | 9.4 |
| Outline Dimension (L*W*H) | 6830*3500*2500mm |

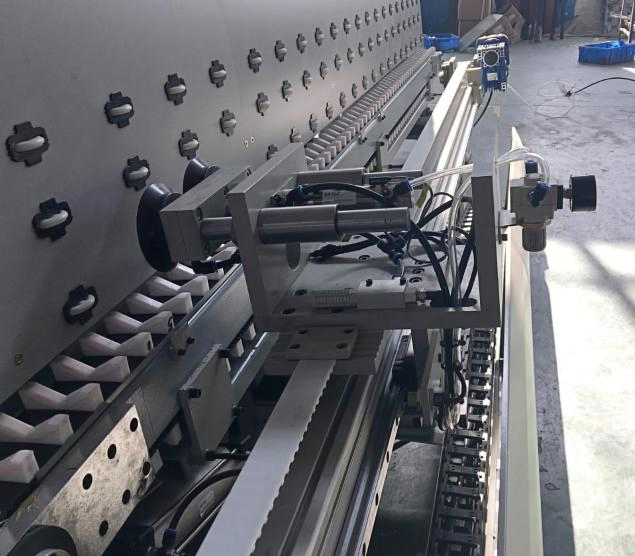

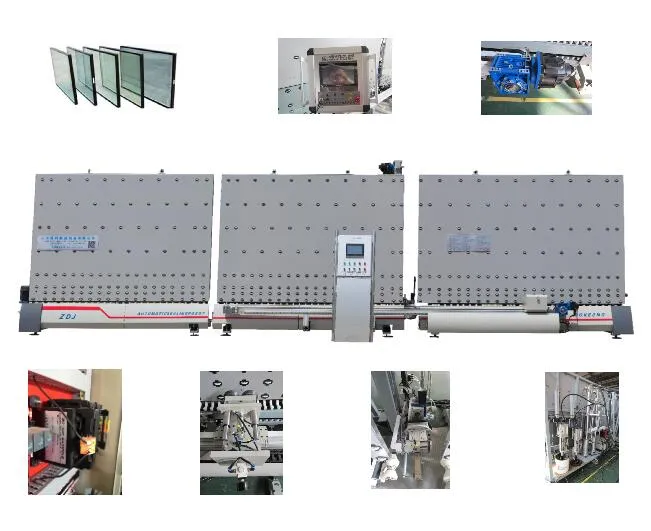

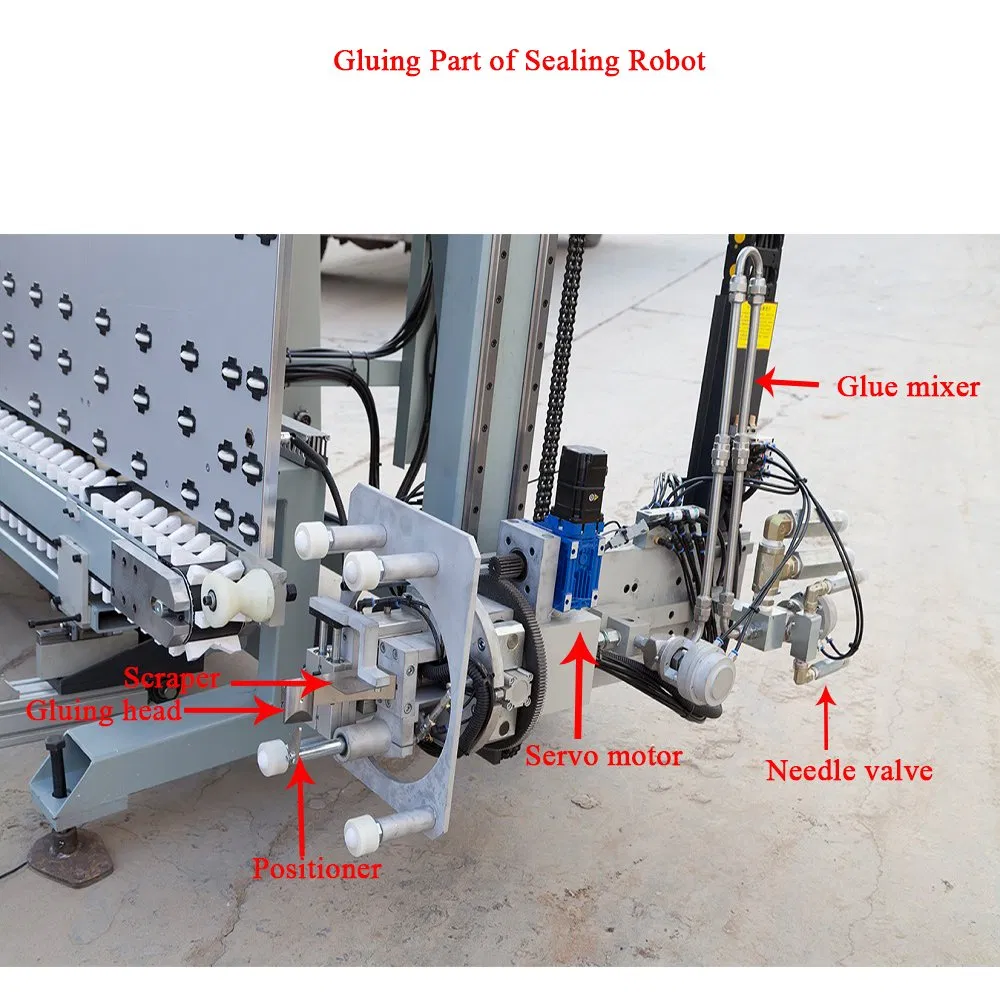

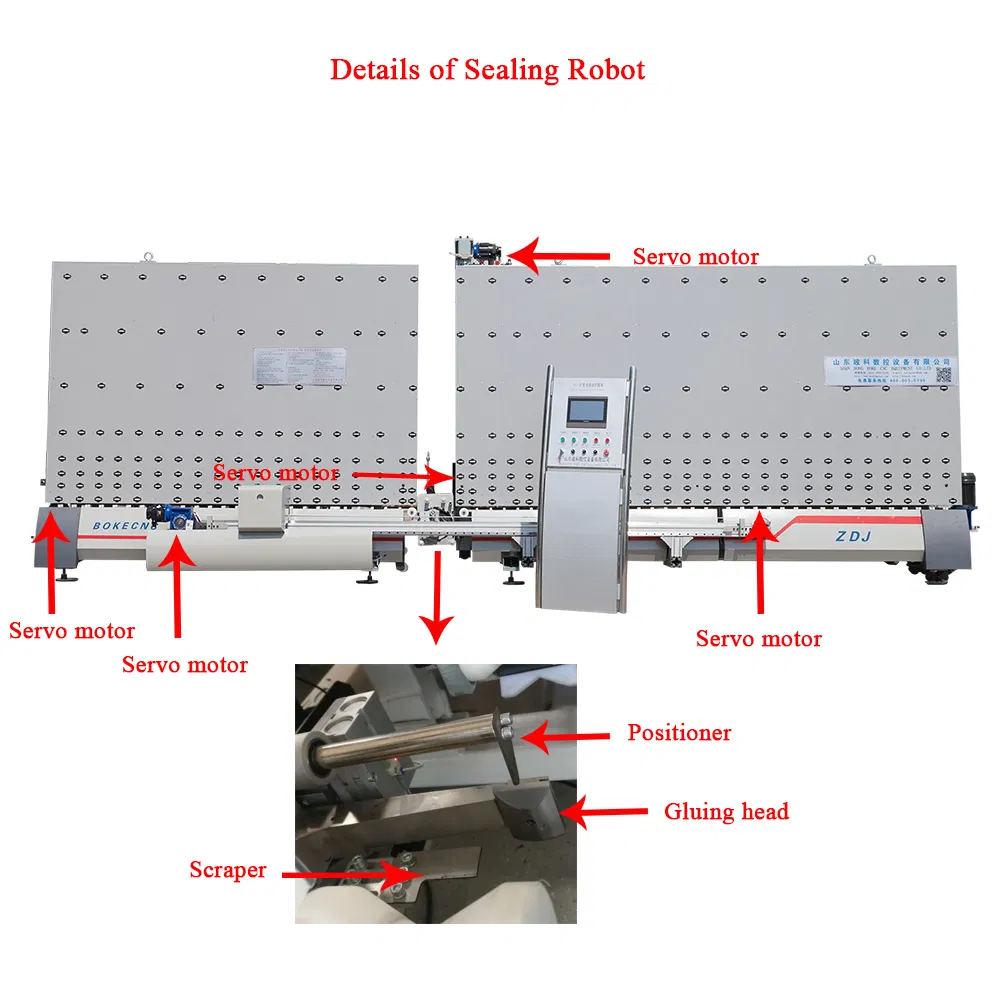

Relocation Gluing Mechanism

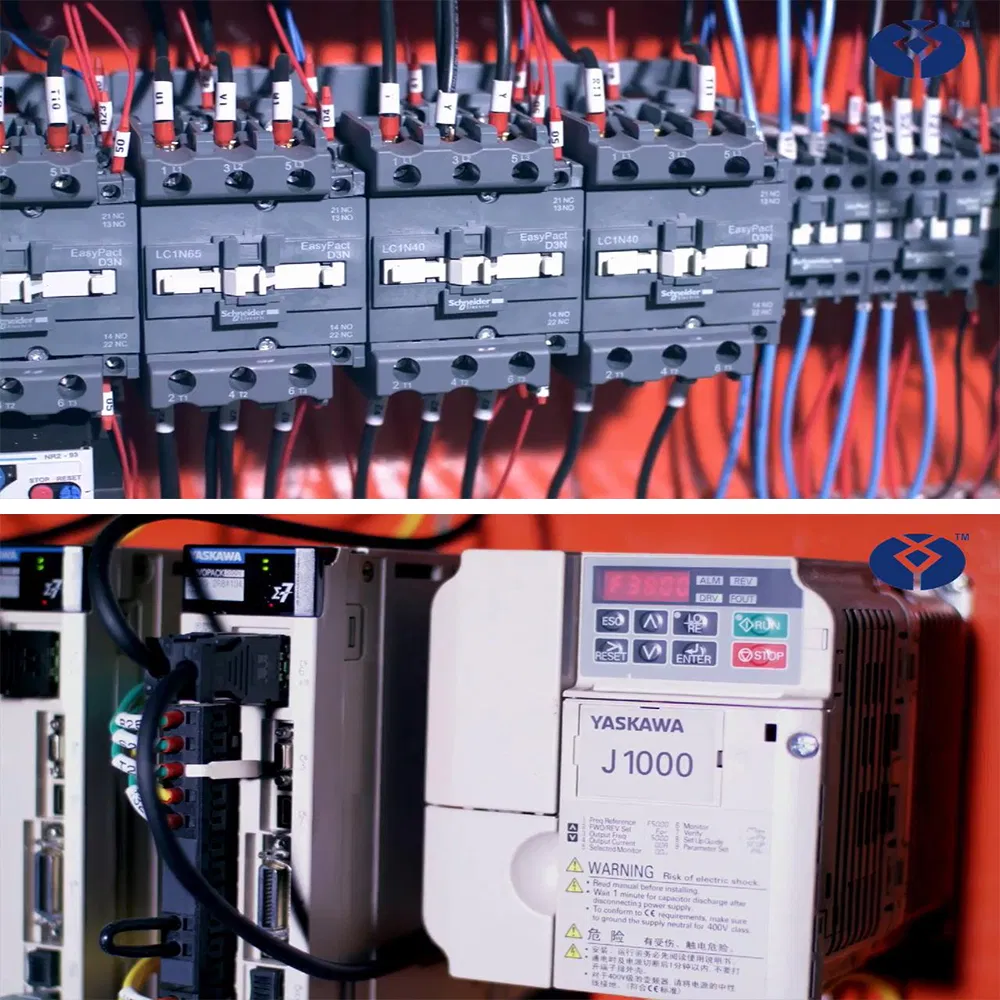

Imported Electrical Components

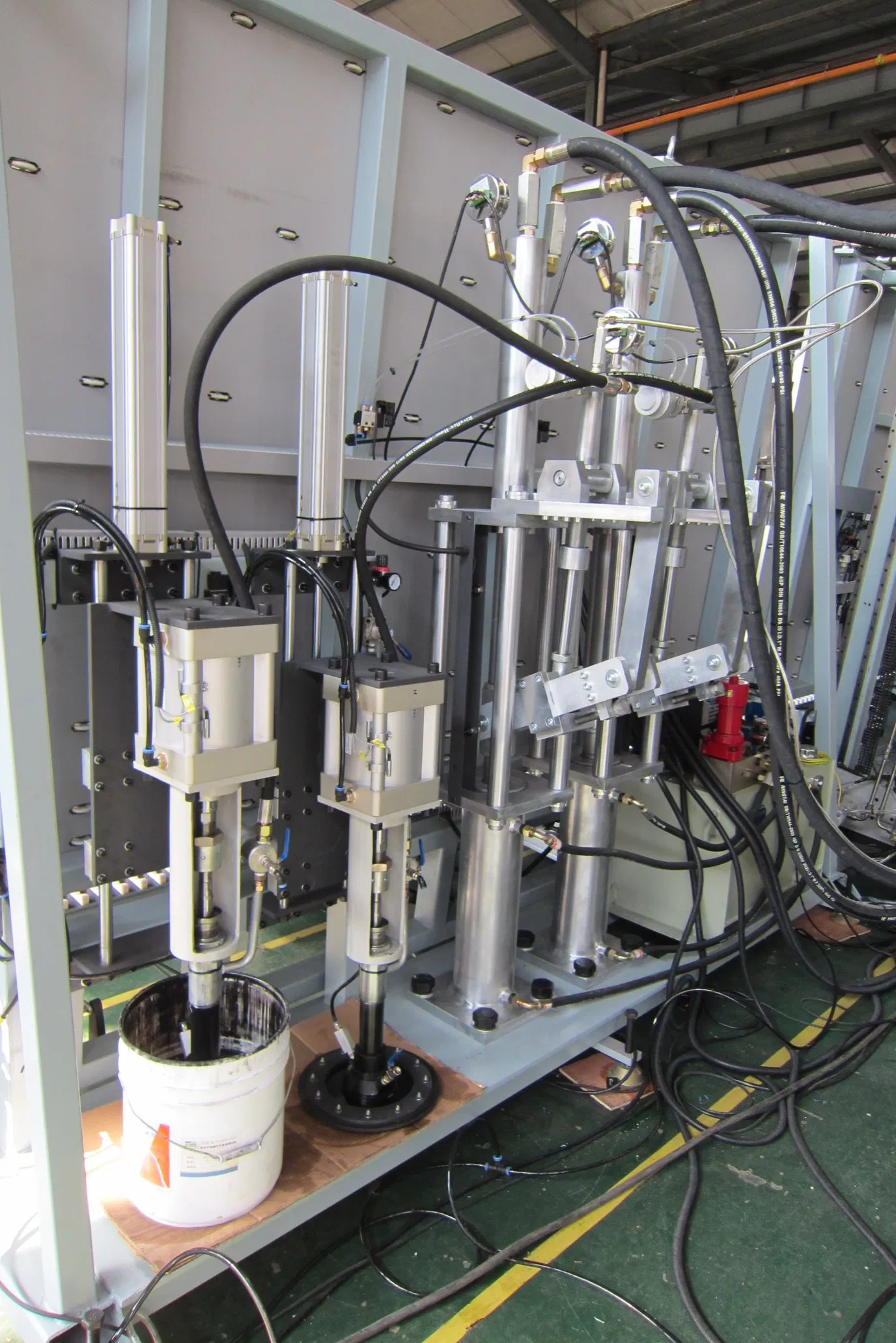

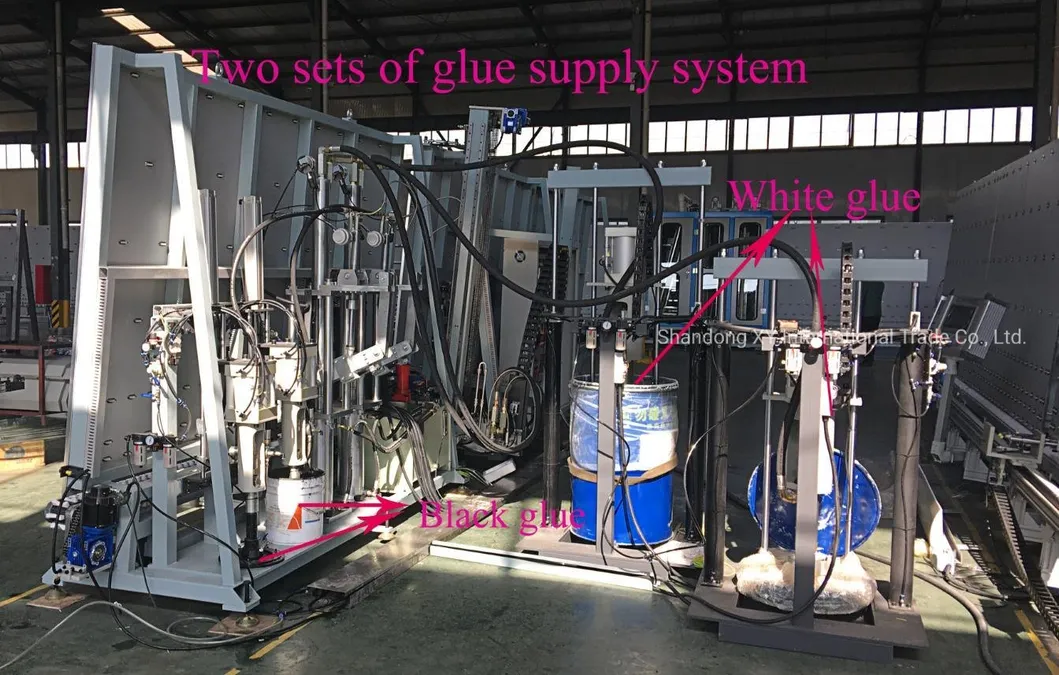

Hydraulic Quantitative Supply
High Precision Roller Chain
NC Machined Wheel Combination

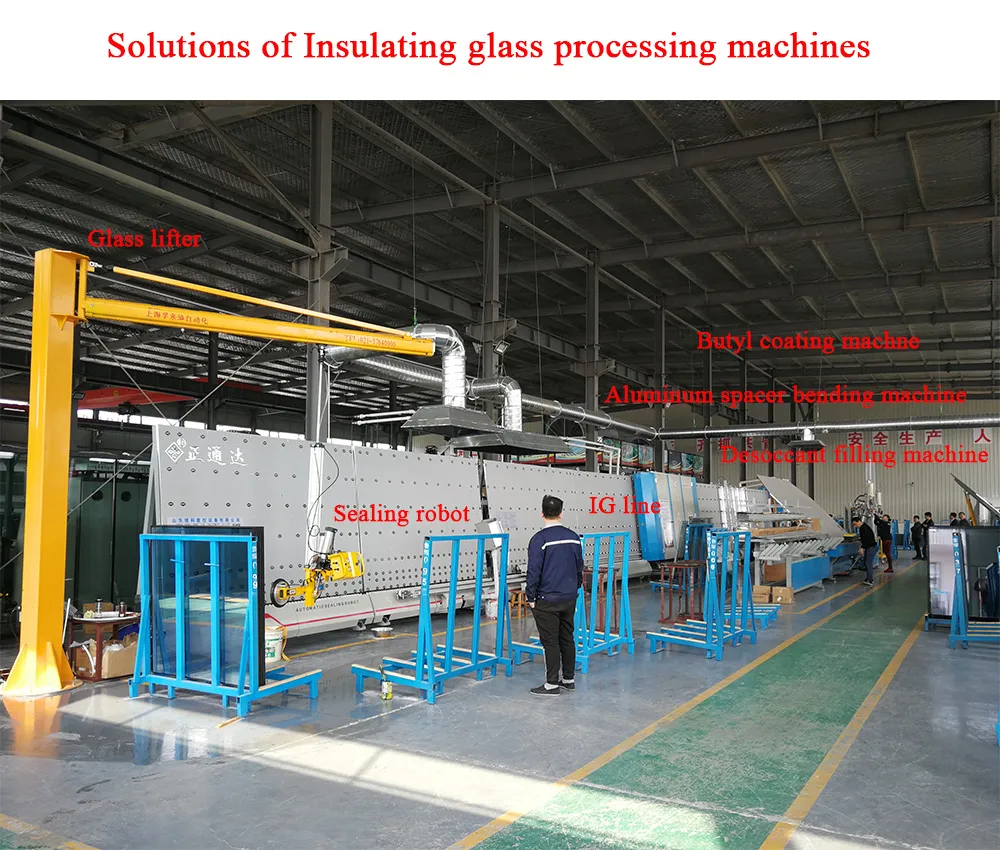

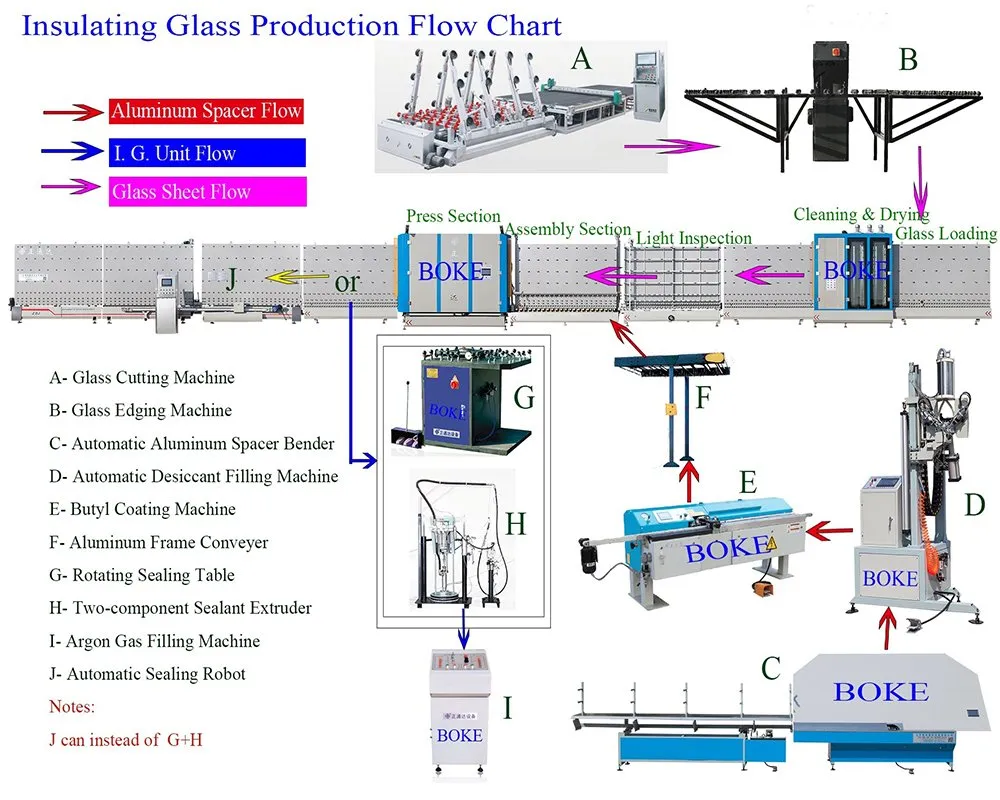

This equipment can work independently or be integrated into an IG unit production line including butyl coating machines, desiccant filling machines, and automatic aluminum spacer bending machines.
CE Certified Equipment
Founded in July 2000, we are a high-tech enterprise integrating production, scientific research, development, and sales. We specialize in high-grade insulating glass processing equipment with a 20,000 square meter production plant. Through ISO9001 quality system certification and CE certification, we have obtained numerous national invention and utility model patents.
