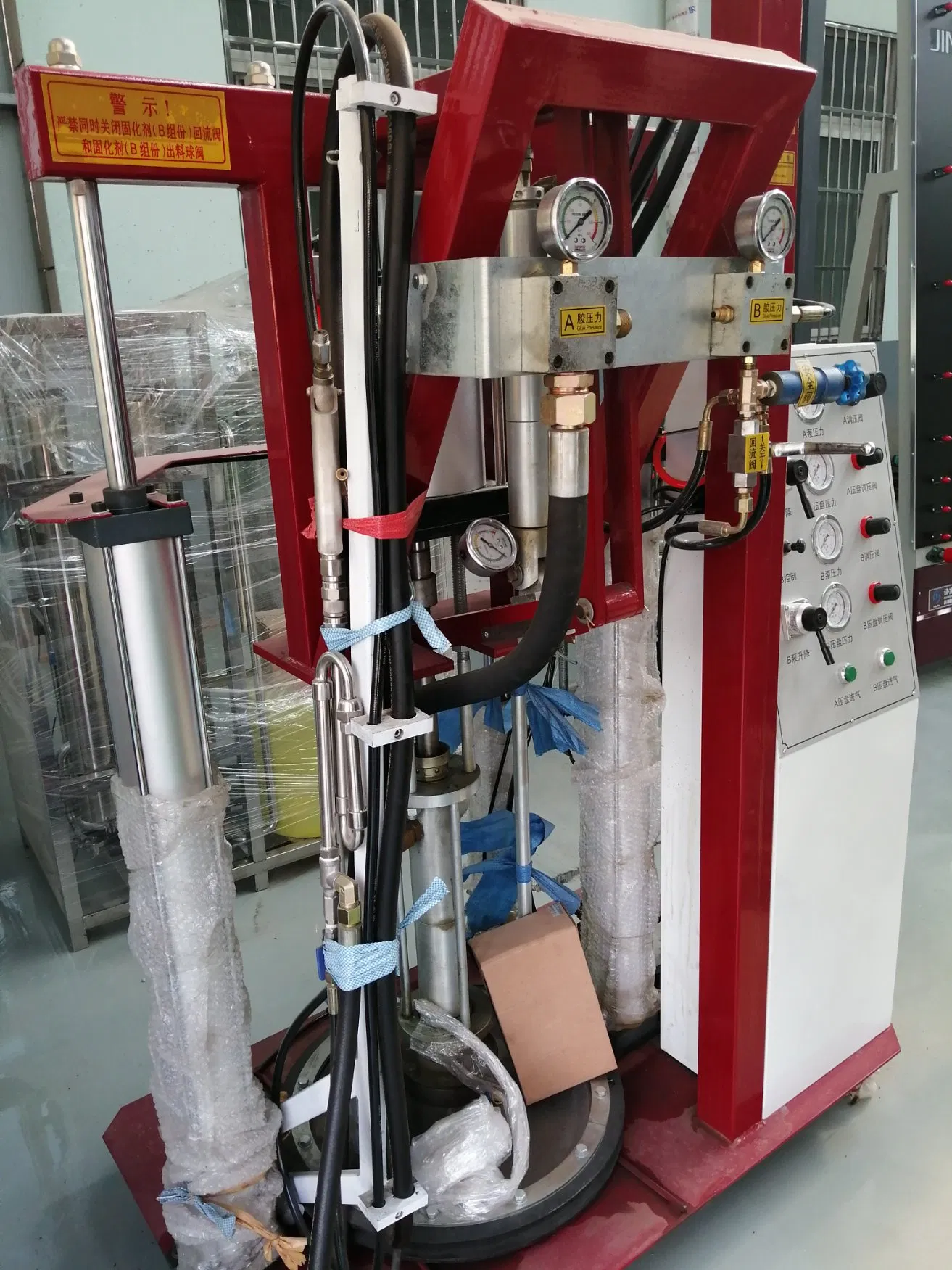

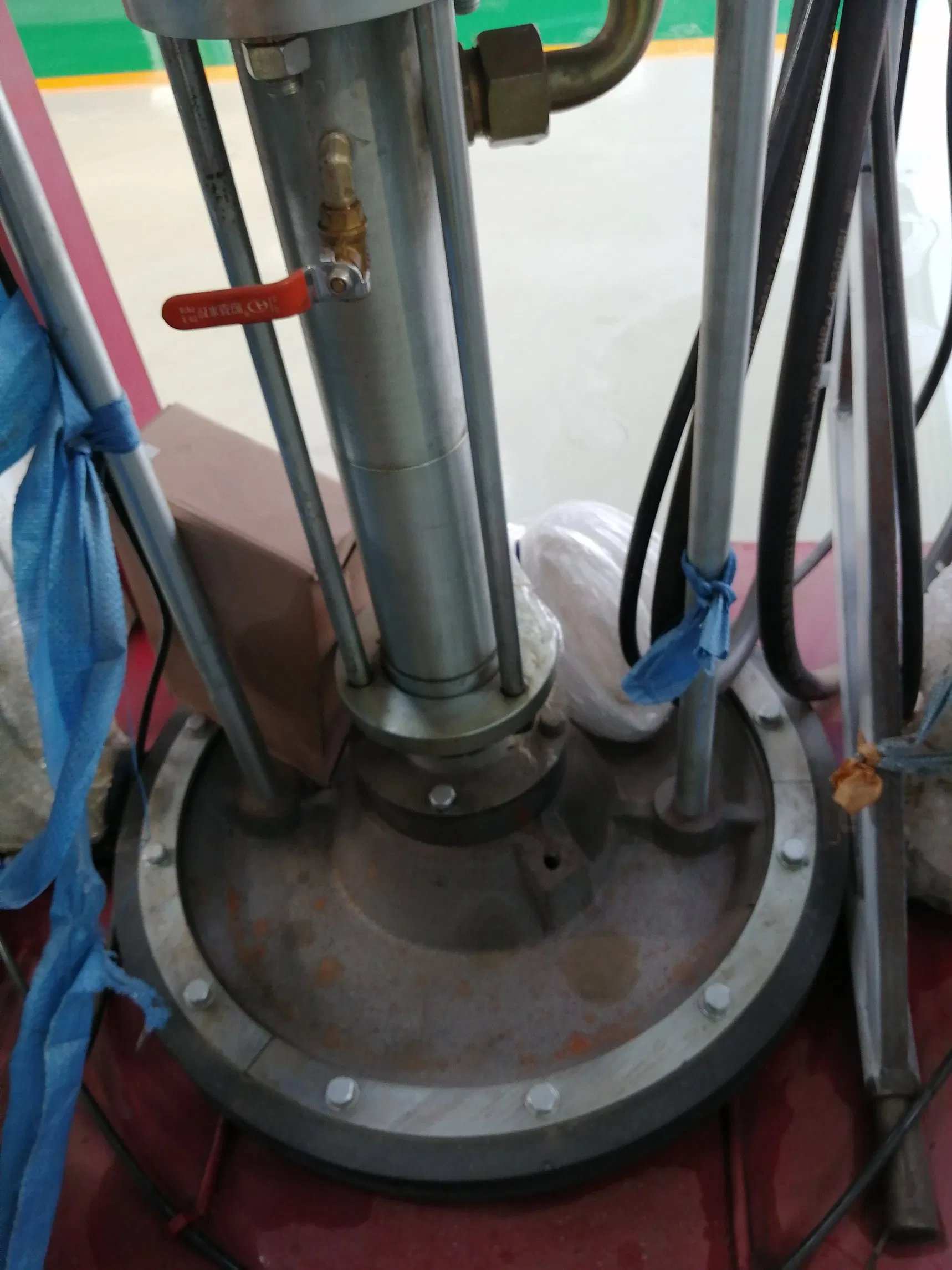

Insulated Glass Butyl Sealant Extruder Two Component Sealing Machine

1 / 5

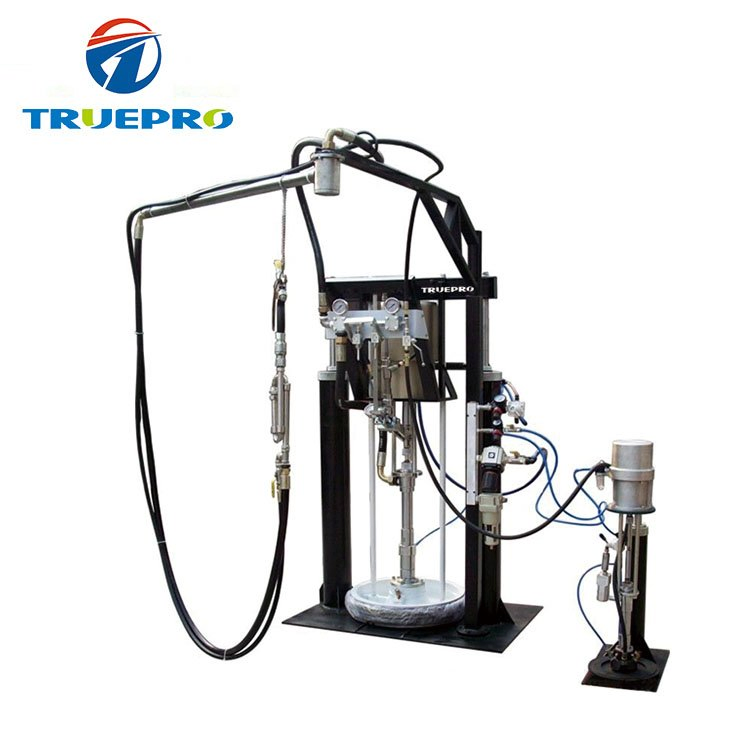

Insulated Glass Butyl Sealant Extruder Two Component Sealing Machine

Customization:	Available
After-sales Service:	All Using Life
Warranty:	12 Month

Send Inquiry

Product Description

📊 Basic Information

Model NO.

JYT-03

Condition

New

Certification

Automatic Grade

Semi-Automatic

Air Pressure

0.8MPa

Pump A Volume

200L

Pump B Volume

20L

Ratio Range

6:1 - 14:1

Weight

650kg

Production Capacity

200 Sets/Year

⚙️ Product Description

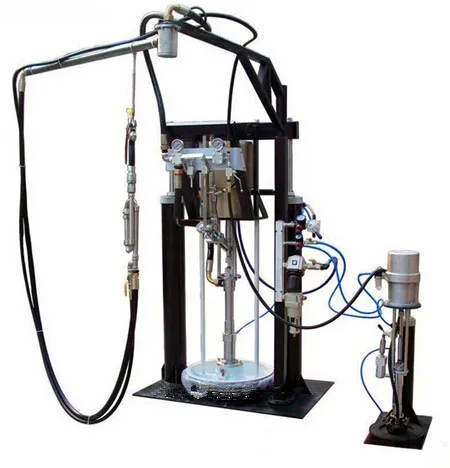

Double Glazing Glass Silicone Extruder Machine

Machine Features:

The synchronizing linkage match structure can be adjusted conveniently.
The acicular one-way value ensures mixture not to reflow, avoiding rohrinnere solidification.
Totally-enclosed firming agent glue-way system, preventing firming agent from meeting air.
Sensitive high-pressure protective value makes the operation in safe condition.
Gas boost drive has the performance of stable pressure and evenly glue extruding.
Adopt international popular static reciprocating-type mixer to mix more evenly.

📋 Technical Parameters

Category	Item	Specification
Pump A	Barrel diameter	570mm
Pump A	Volume	200L
Pump B	Barrel diameter	280/295mm
Pump B	Volume	20L
Ratio Range	A glue : B glue	6:1 - 14:1
Output	L/min	4-10
Pneumatic System	Work pressure	0.6-1.0MPa
Pneumatic System	Quantity of gas	0.8m³/min
Dimensions	L×W×H	1100×950×1980mm
Total weight	-	650kg

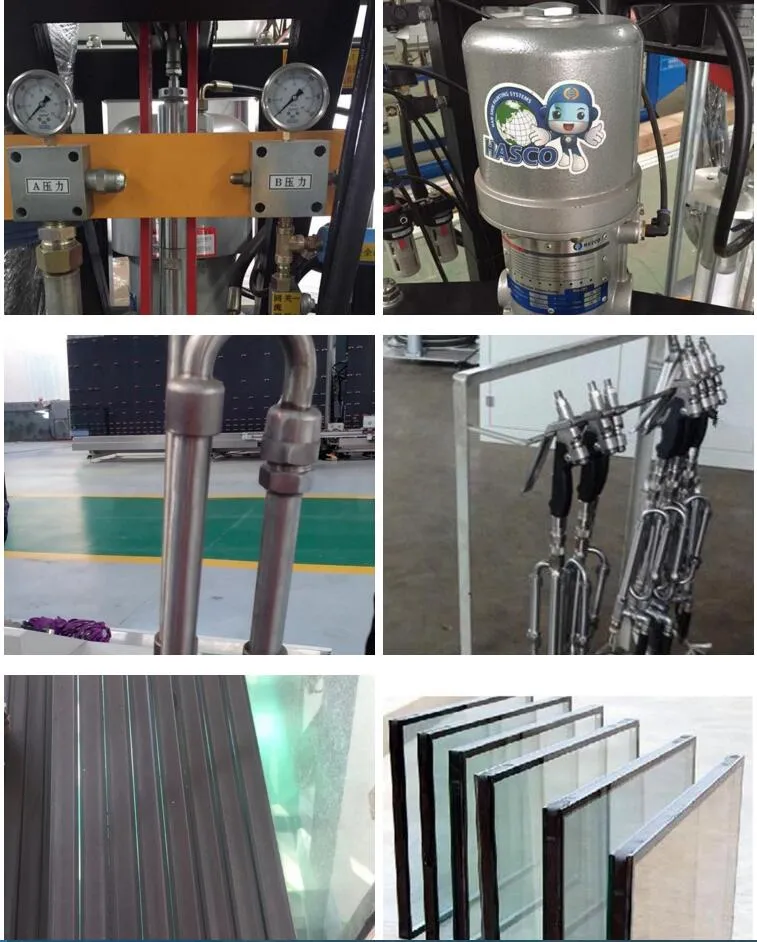

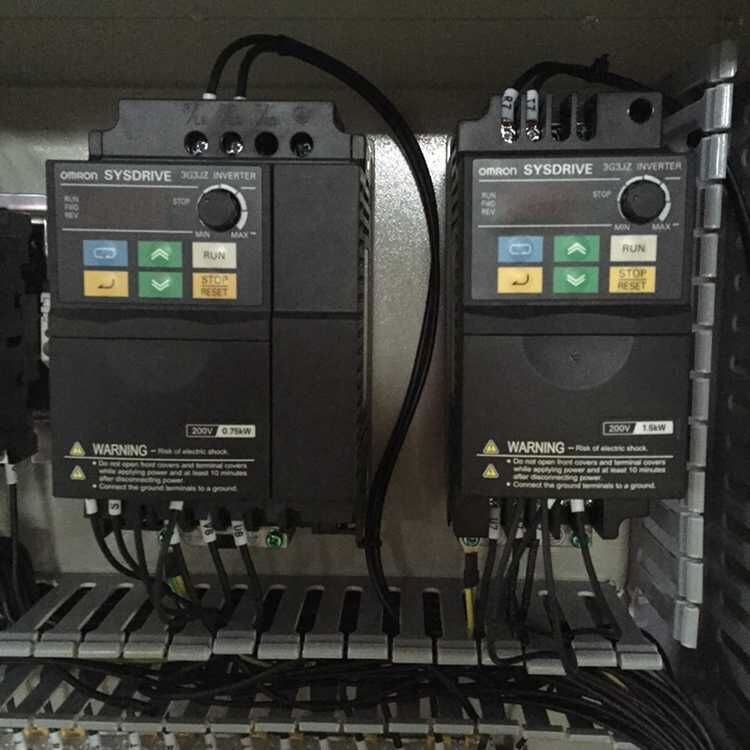

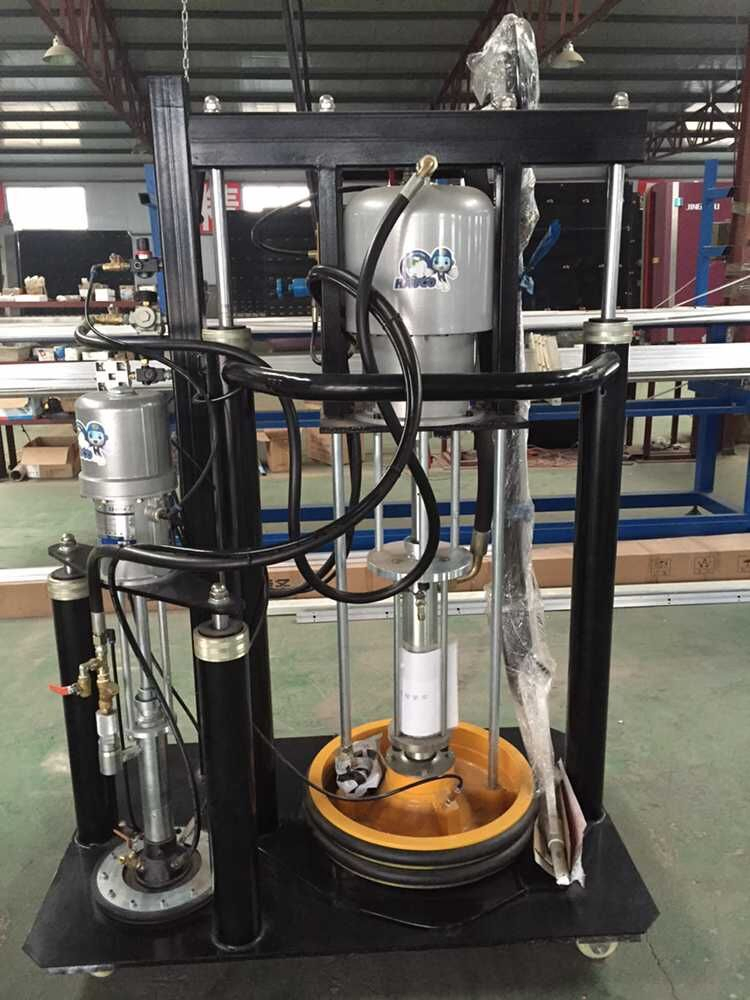

🔍 Machine Details

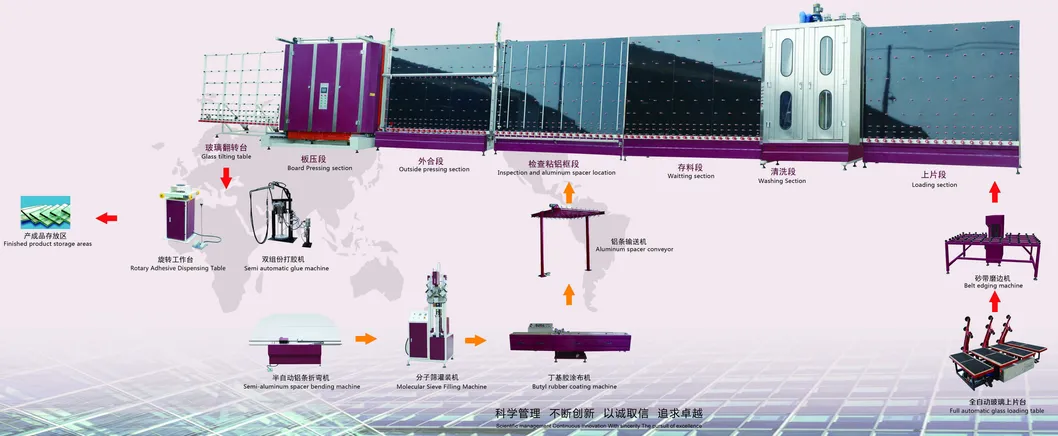

🏗️ Production Line

❓ Frequently Asked Questions

1. When can the shipment be arranged?

Shipment is usually arranged within 15 days after receiving the deposit. However, customized machines may require more than 25 days.

2. What support is provided if the machine has problems?

If the machine is within the guarantee period, free components can be sent. Additionally, engineers can be dispatched to repair the machinery if necessary.

3. Do you provide training for equipment operation?

Yes. Professional engineers can be sent to the working site for installation, adjustment, and comprehensive operation training. All engineers are equipped with passports for international travel.

4. What is the mixing ratio range for this extruder?

The machine offers a versatile ratio range for A glue and B glue between 6:1 and 14:1.

5. What is the production capacity of this model?

The JYT-03 model has a production capacity of approximately 200 sets per year.

6. Is this machine fully automatic or CNC controlled?

The machine is a semi-automatic model and is not CNC controlled, designed for stable pressure and even glue extruding.
