Broach Automatic UPVC Window Corner Welding Cleaning PVC Window and Door Fabrication Machine

Customization:	Available
After-sales Service:	Remote Guidance, Door-to-Door Service, Operation V
Warranty:	18 Months

Send Inquiry

Product Description

📊 Basic Information

Model NO.

AWCL-200C

Condition

New

Certification

ISO, CE, BV

Automatic Grade

Automatic

CNC or Not

CNC

Voltage

380V

Function

CNC Four Corner Welding and Cleaning

Application

PVC Window Making Machine

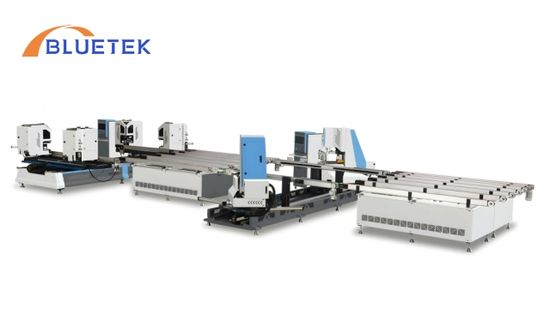

Product Operation Showcase

🛠️ Product Description

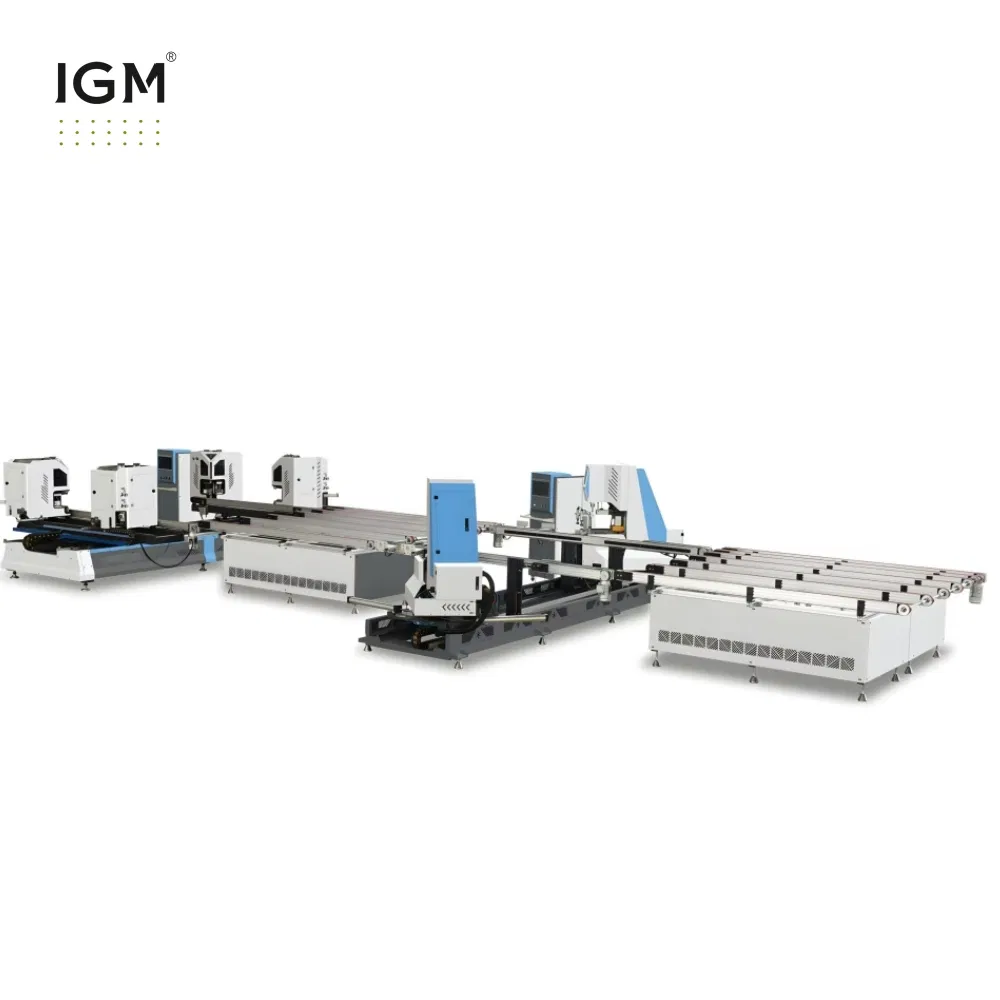

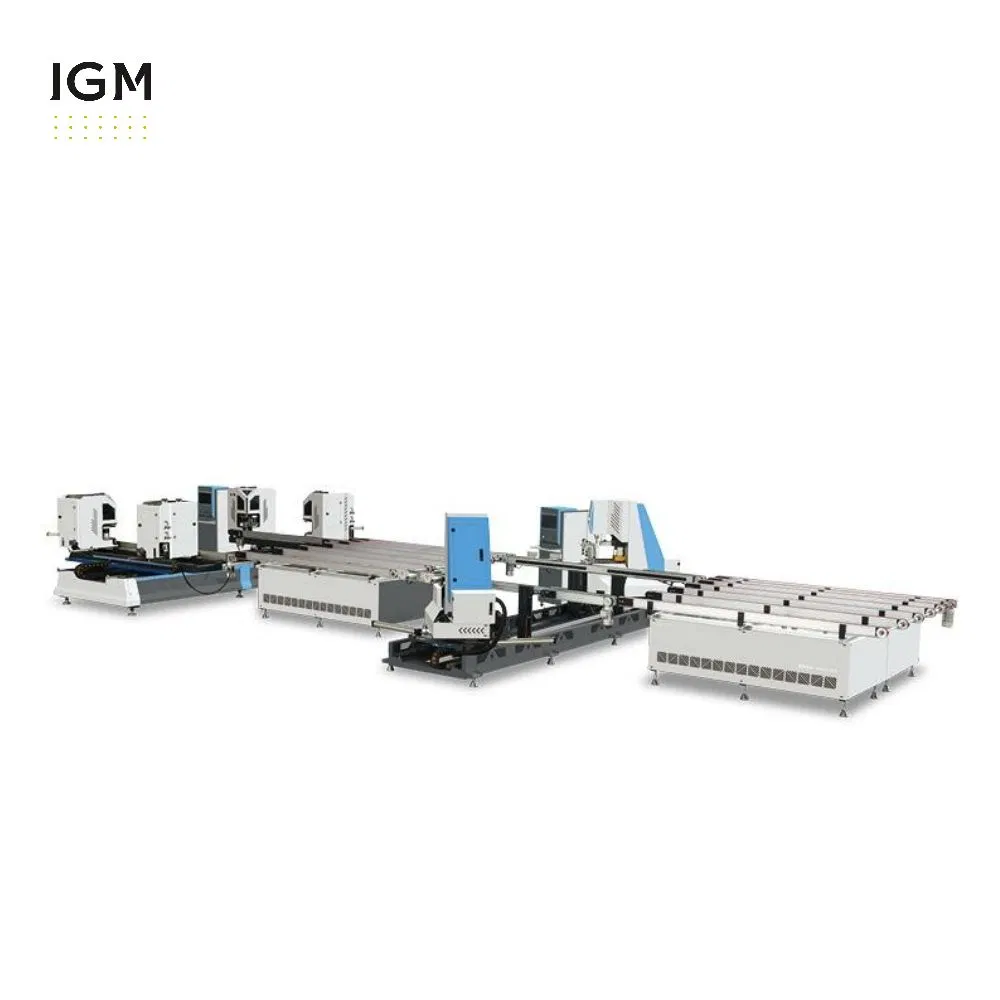

Broach Automatic UPVC Window Corner Welding Cleaning Machine

Model: AWCL-200C

Application: Making UPVC PVC Window Door

Function: CNC four corners welding and seam cleaning

✨ Main Features

All-in-One Line: Automatic welding, conveying, positioning, corner cleaning, and unloading functions.
Versatile Modes: Normal welding mode and Broach cleaning mode for various finish requirements.
Micro-Slit Welding: Broach cleaning mode creates a beautiful 1-3 mm gap while maintaining high corner strength.
Durable Components: Upper and lower knives are made of quenched hard alloy for wear resistance.
Precision Control: Equipped with well-known control systems, servo motors, and precision linear guides.
Intelligent Integration: Connects with mainstream optimization and ERP management software.

📋 Technical Parameters

Parameter	Detail
Input Power	20kw
Working Air Pressure	0.6 -0.8 Mpa
Electric Power	380V / 415V 50 /60Hz
Welding Profile Height	20 - 120mm
Welding Profile Width	120mm
Corner Cleaning Profile Height	20-120mm
Max. Welding Range	1800*3000mm
Min. Welding Range	500*700mm
Machine Size	1350055001850mm
Gross Weight	5000kgs

📸 Detailed Components

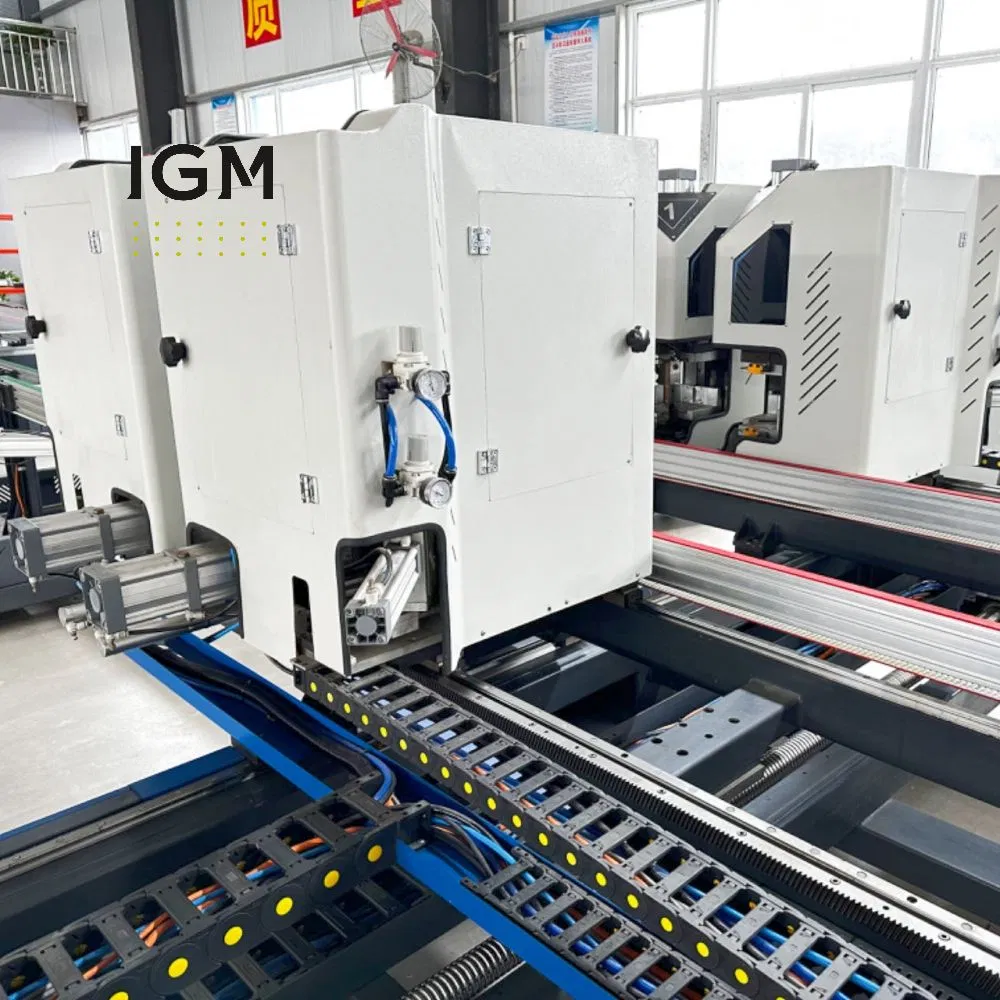

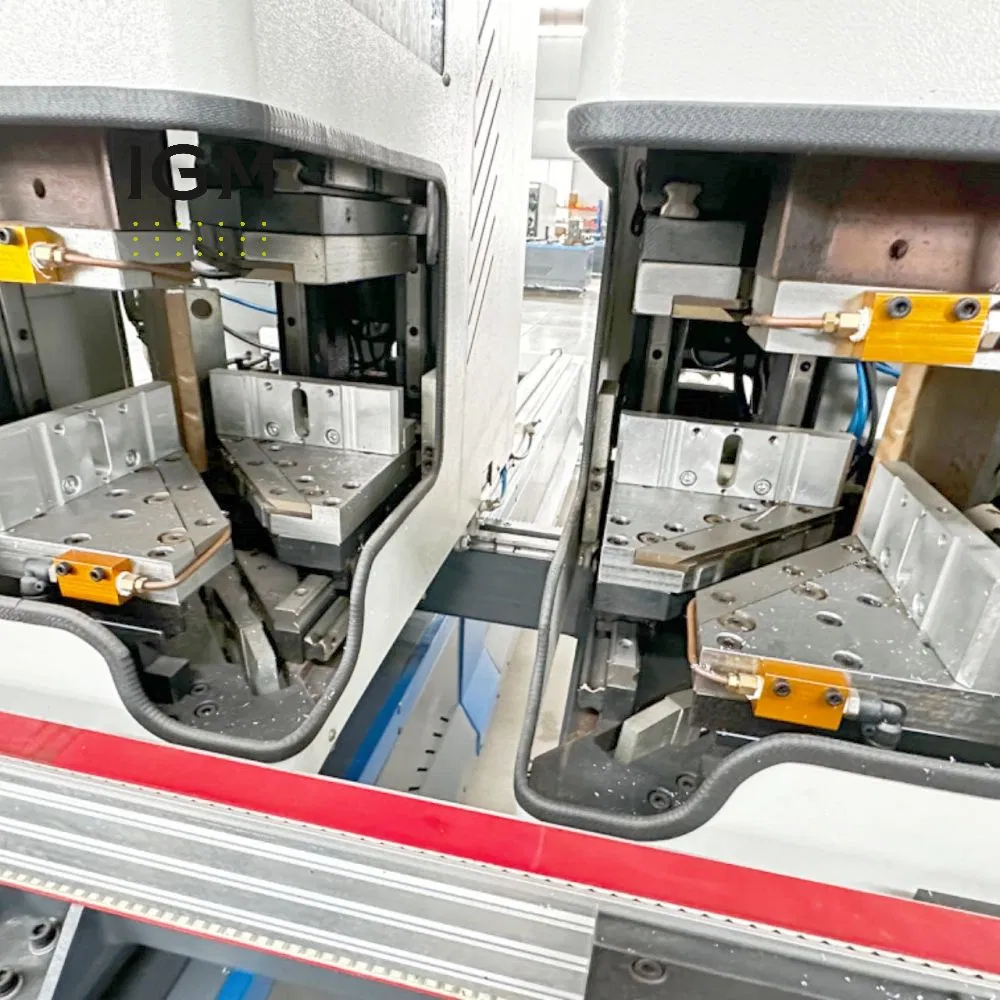

Four Head Welding CNC

High quality alloy cutting tools

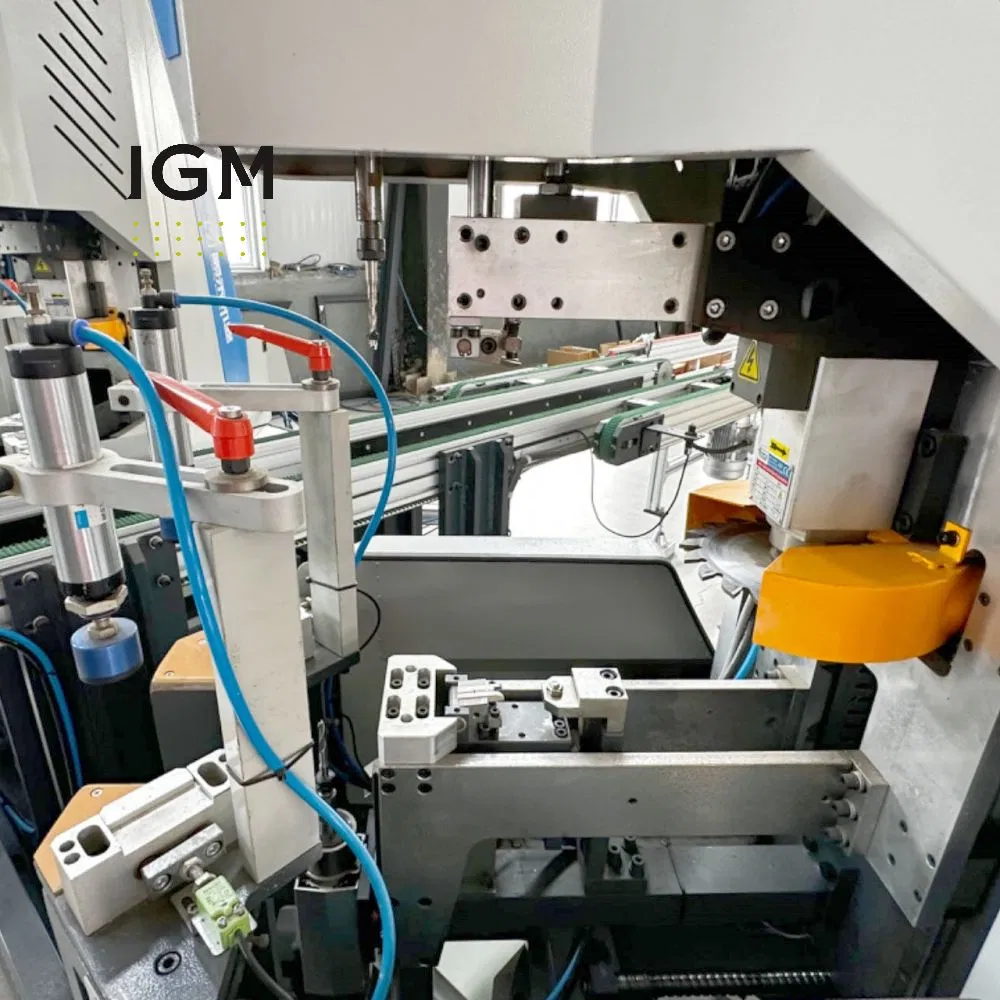

CNC corner cleaning units

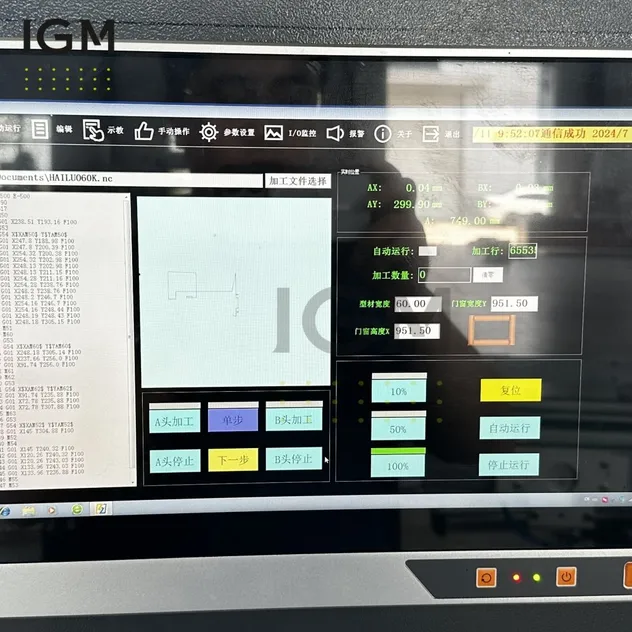

Delta Control System

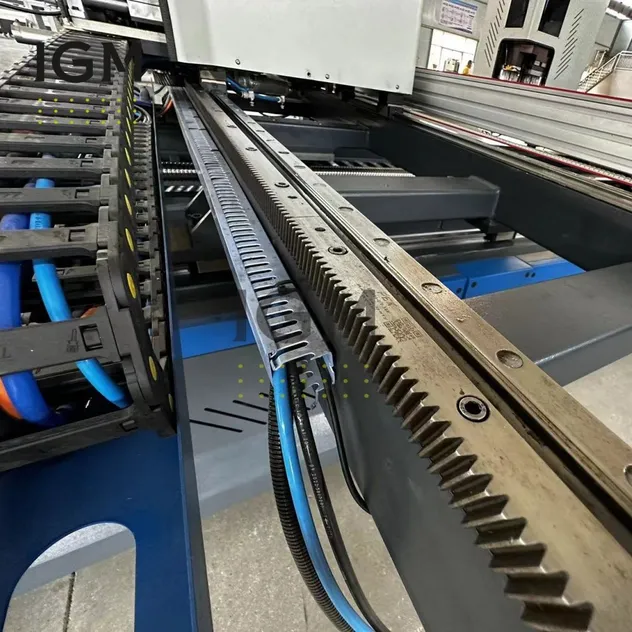

Linear square rails

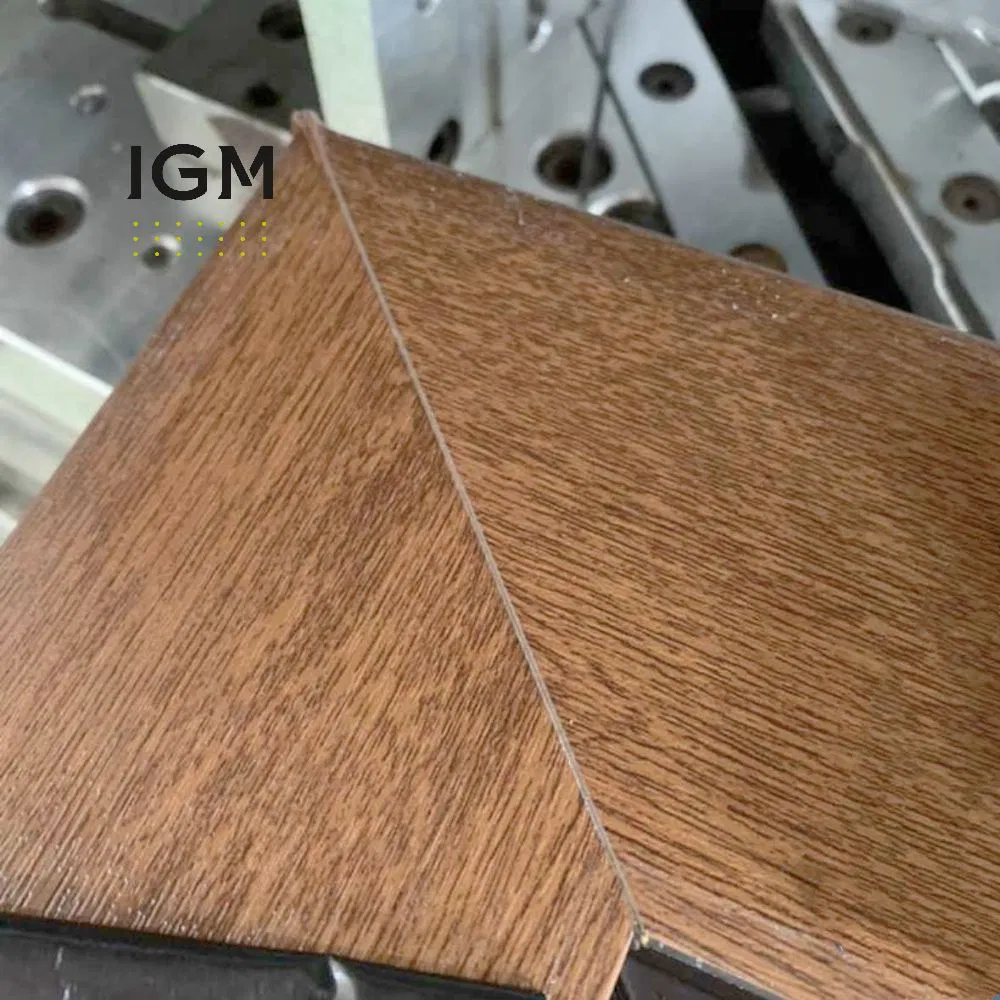

Welding Effect

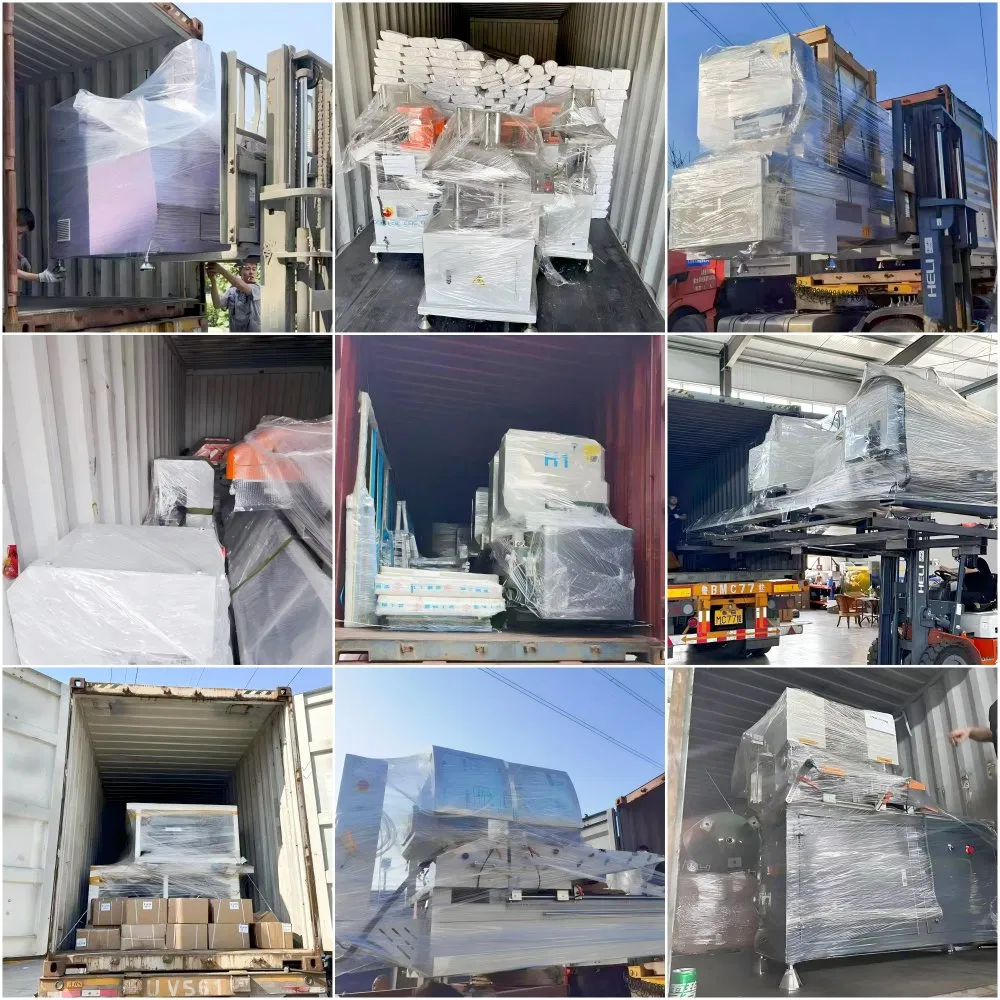

📦 Packaging & Shipping

LCL: Packed in fumigation-free plywood with thickened and raised pallets. The machine base is securely fixed with steel wire.

FCL: Wrapped in plastic film and fixed in 20/40-foot containers. Optional fumigation-free wooden boxes are available upon request.

📜 Certifications & Profile

Products have passed EU CE certification and US UL certification, exported to more than 50 countries including USA, Canada, Spain, France, and Russia.

About Our Expertise

We specialize in the design and manufacturing of high-quality Aluminum and UPVC window door machines and glass processing solutions. Our advanced machinery is engineered for precision, efficiency, and durability, catering to global international standards.

🛠️ Professional Services

Installation: On-site professional technician support.
Technical Training: Comprehensive operation and maintenance training.
Maintenance: Regular inspections and preventive maintenance suggestions.
Technical Support: 24/7 remote support and quick response mechanism.
Warranty: 18-month warranty with lifelong after-sales service.

❓ Frequently Asked Questions

Q1: What are the primary functions of the AWCL-200C?

It is a CNC-controlled machine designed for the automatic four-corner welding and seam cleaning of UPVC/PVC window and door frames.

Q2: What is the maximum and minimum welding size?

The maximum welding range is 3000*1800mm, and the minimum welding range is 700*500mm.

Q3: How does the "Broach Cleaning Mode" work?

In this mode, upper and lower knives use micro-slit welding, then cut away welding slag to form a customizable 1-3 mm gap, ensuring both beauty and strength.

Q4: Does the machine support integration with manufacturing software?

Yes, it can connect with mainstream window optimization software and ERP systems to facilitate intelligent production management.

Q5: What kind of warranty and after-sales service do you provide?

We offer an 18-month warranty period and provide lifelong after-sales service, including on-site installation and 24/7 technical support.

Q6: Are the machines certified for international markets?

Yes, our equipment has passed both EU CE certification and US UL certification, meeting high safety and quality standards.
