Automatic PLC Servo Controlled Sealant Spreading Machine for Insulated Glass Secondary Sealing - Smooth& Easy Operation

Customization:	Available

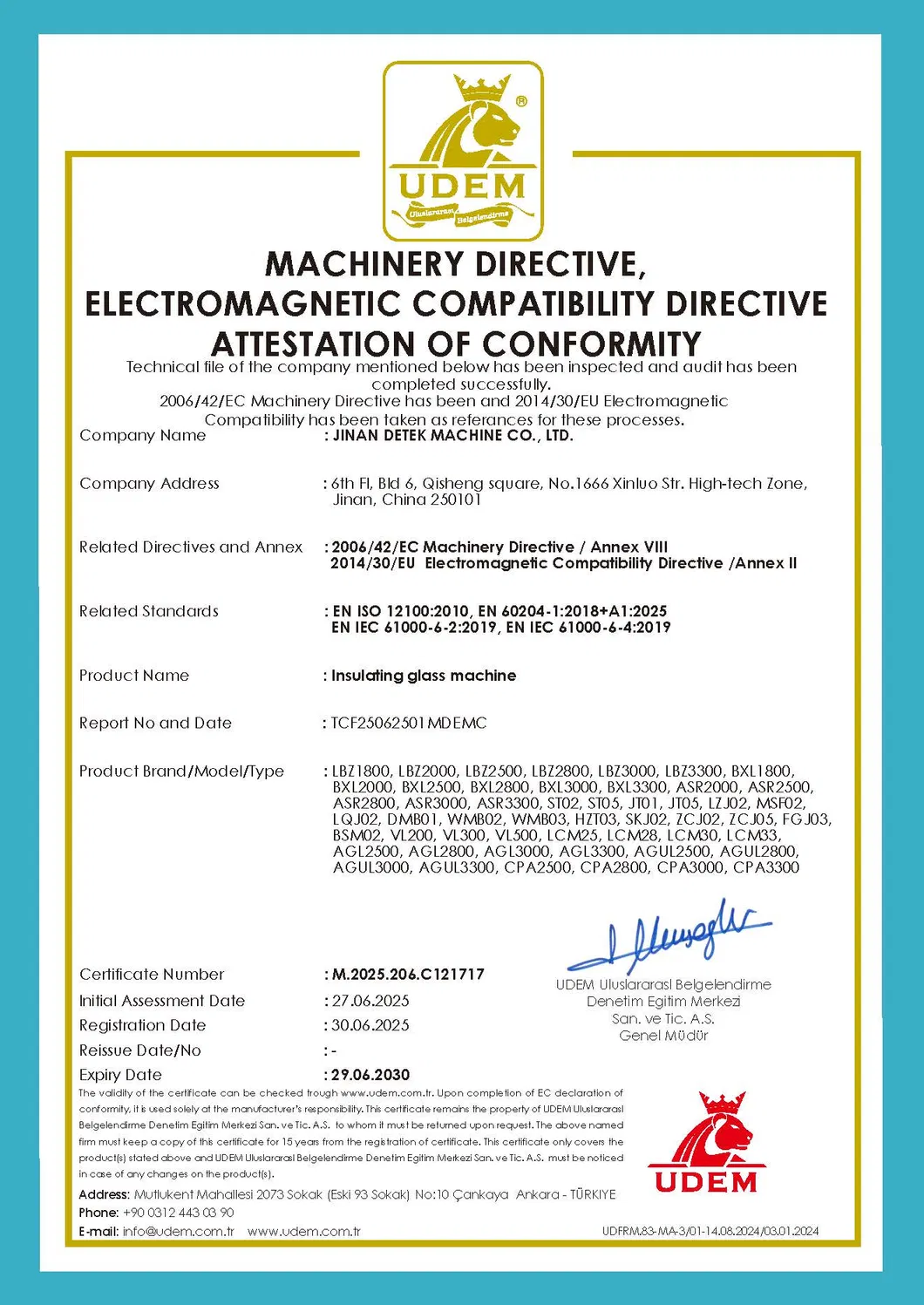

Certification:	CE
Control System:	PLC

Send Inquiry

Product Description

Basic Specifications

Model NO.

ASR3300

Shaped Igu

Option

Stepped Igu

Option

Triple Igu

Option

Corner Wiper

Option

4 V Belt

Option

Type

Insulating Glass Production Line

Structure

Vertical

Condition

New

Warranty

One Year

After-Sales

One Year Guarantee, All Life Long After Service

Package

Seaworthy Package

Specification

3300*6000mm

Origin

China

HS Code

84649019

Capacity

500sets/Year

Product Overview

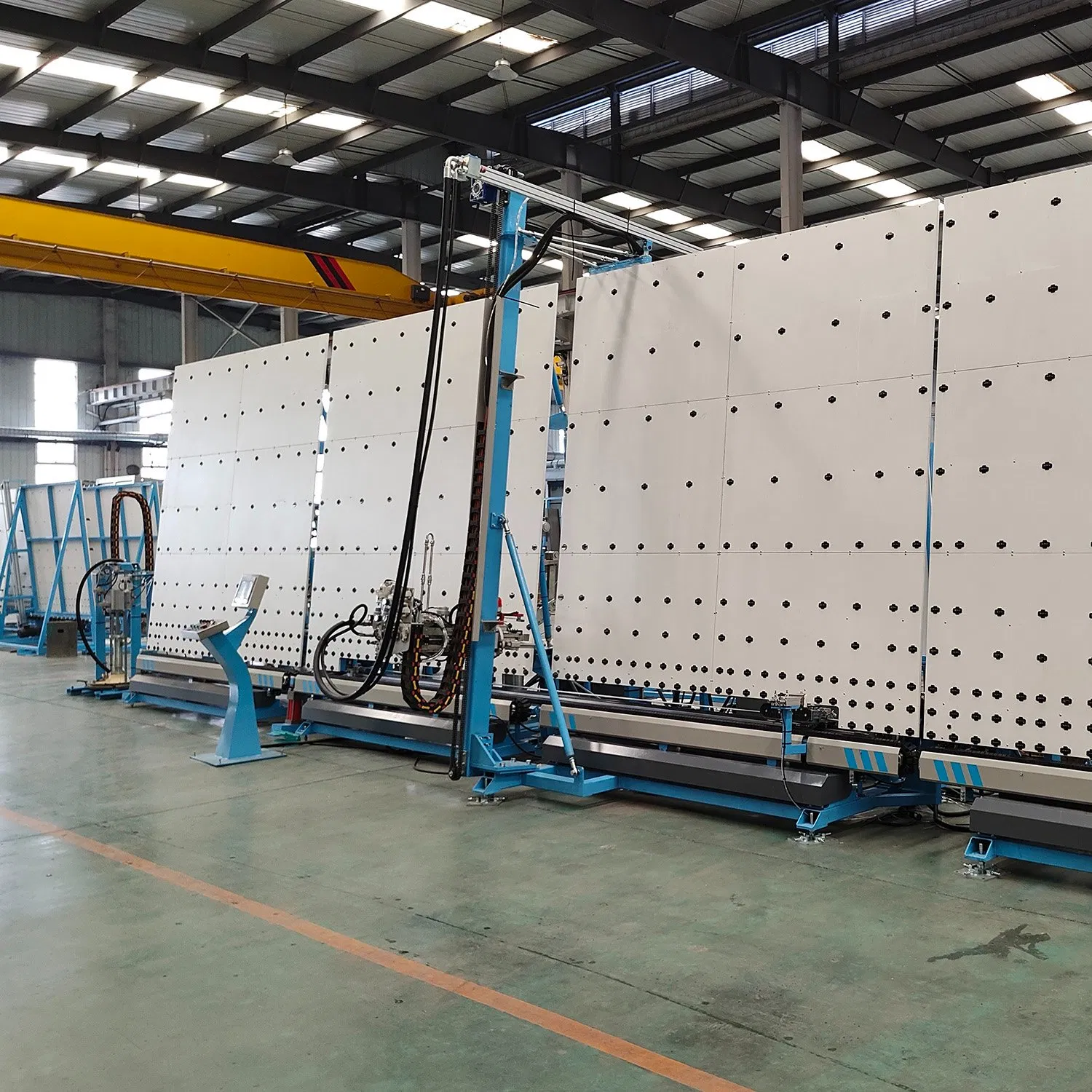

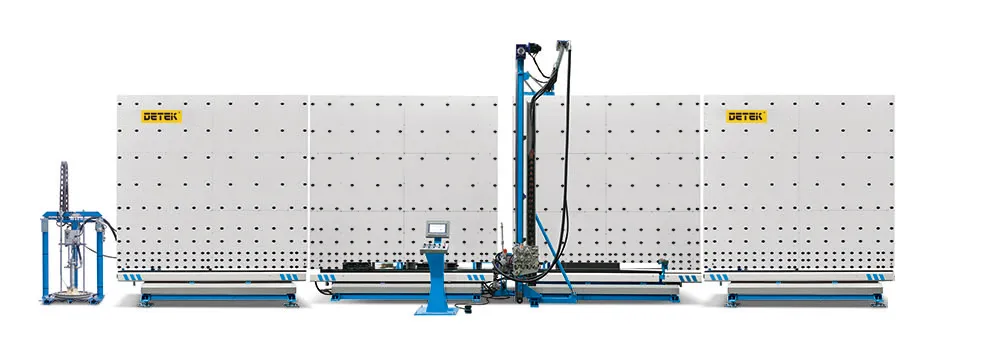

Application: The ASR3300 is a highly automatic silicone or polysulfide sealant sealing robot designed for secondary sealant sealing in Insulating Glass Units (IGU). It guarantees high-quality results for glass processing companies by automating the sealing process.

Key Features

Two separate dosing systems with one-key switch.
Automatic corner wiper for precise finishing.
Economical and practical for deep processing.
Intelligent touch screen with Ethernet communication.
High sealing performance and reduced labor costs.
Bubble-free sealing with smooth surface finish.
Equipped with anti-blocking device in the mixer.
YASKAWA Servo control system for stable precision.
Special V-type transmission belt to prevent sticking.
Supports Triple, Stepped, and Shaped IGU.
High-speed positioning for accurate glass location.
Standardized parts for reliable long-term performance.

Technical Parameters

Max. IGU Size	3300×6000mm
Min. IGU Size	300×300mm
IGU Thickness	12-56mm
Sealing Depth	3-18mm
Power Supply	3P 380V 50HZ 13KW
Air Pressure	0.6-0.8Mpa
Max. Squeeze Pressure	32Mpa
Sealing Speed	5-40m/min
A/B Pressing Plate	570mm / 285mm

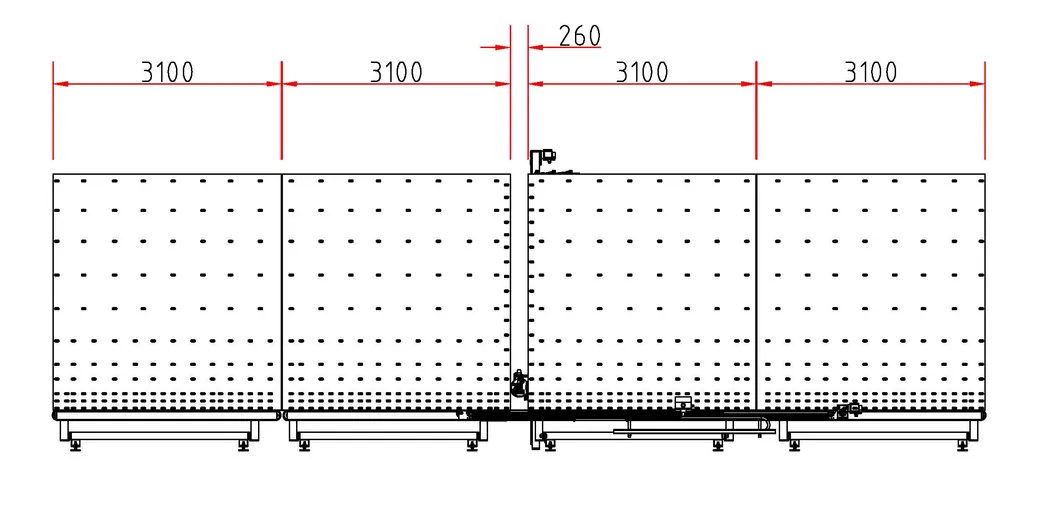

Dimensions	13000×1600×4190mm

Global Brand Parts List

Name	Brand	Country
PLC / Servo Driver / Motor	Yaskawa	Japan
Touch Screen	WEINVIEW	Taiwan
Inverter	TECO	Taiwan
Breaker / Contactor / Relay	Schneider	France
Sensor / Proximity Switch	AUTONICS	S. Korea
Solenoid / Air Cylinder	Airtag	Taiwan
Proportional Valve	SMC	Japan

Frequently Asked Questions

What is the standard lead time for orders?

The lead time is approximately 60 days for a full production line and 30 days for a single machine. For special requirements, please consult with the sales team.

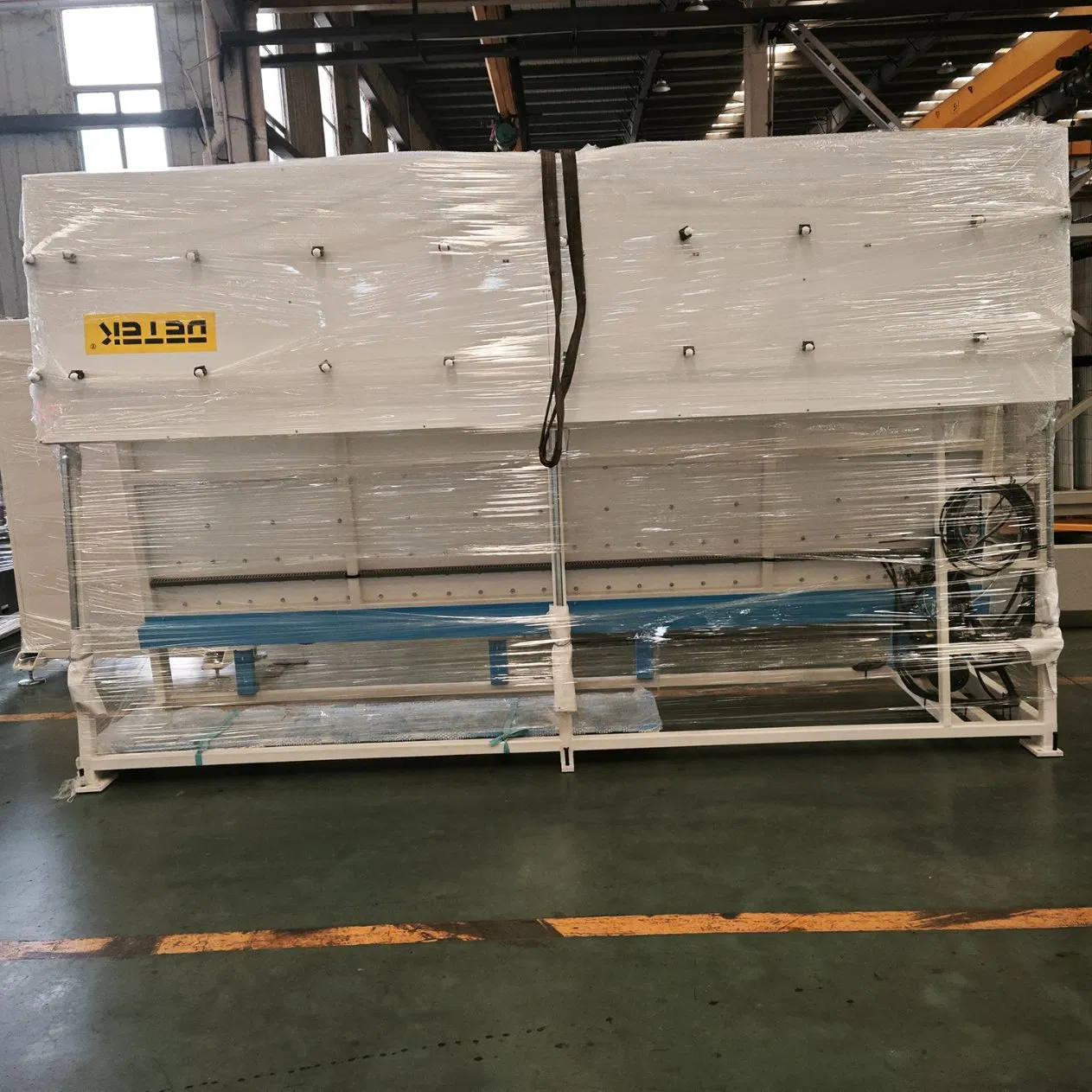

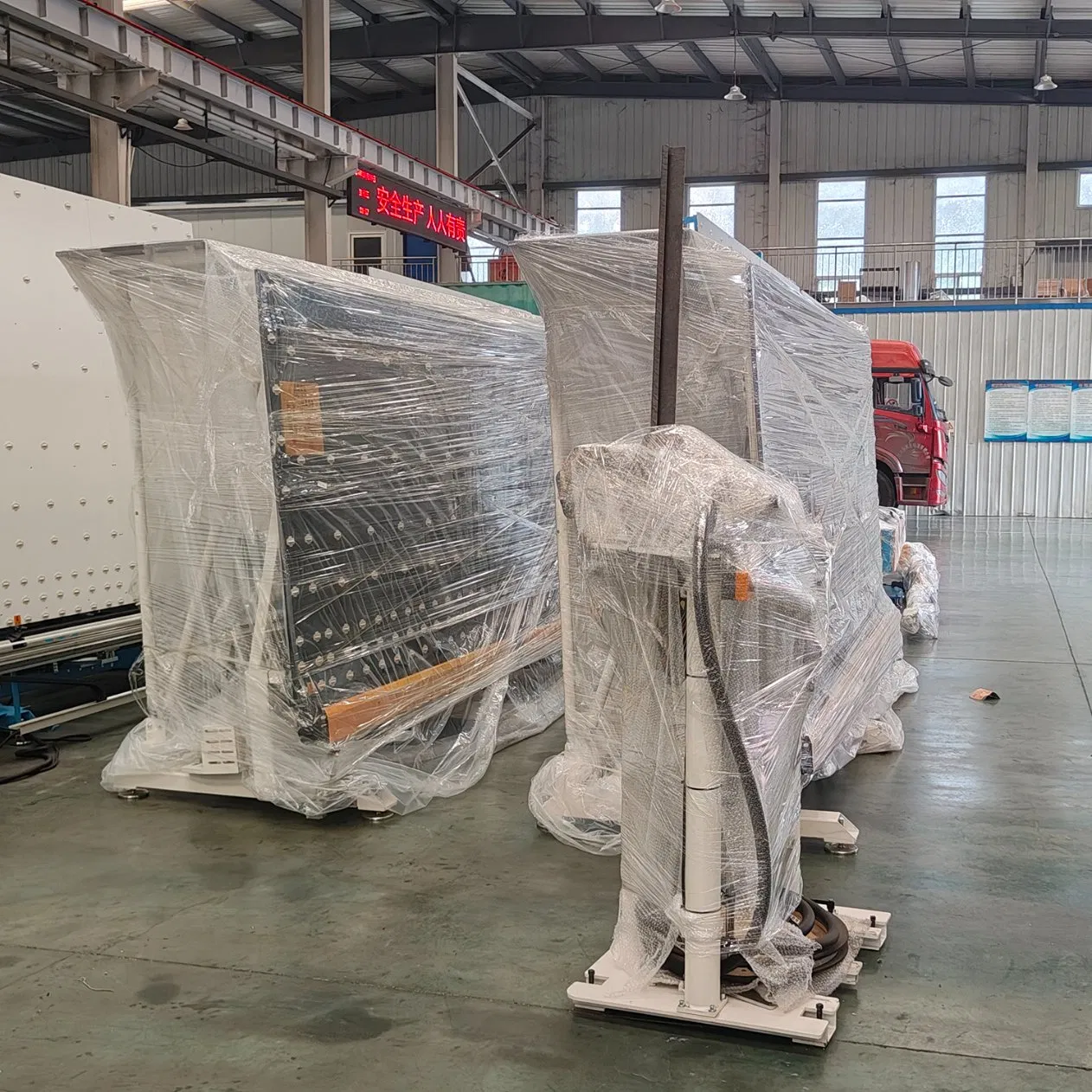

How is the equipment packaged and shipped?

All machines are designed to fit GP containers to optimize sea freight costs. We provide seaworthy packaging and professional workshop container loading to ensure safe arrival.

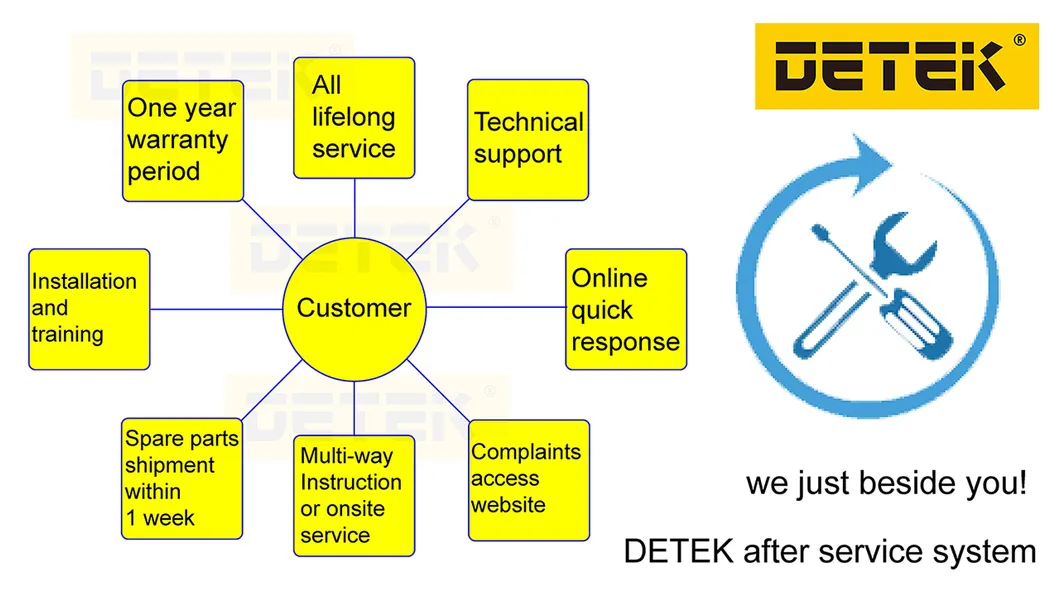

What kind of warranty and maintenance do you offer?

We provide a one-year guarantee (excluding wearing parts) and life-long technical service. Engineers can be dispatched for on-site service upon request.

How is the machine installation handled?

Installation service is included. Customers are responsible for the engineer's round-trip airfare, local transportation, and accommodation. Installation is typically completed within 15 days at a standard daily service rate.

What support is available for after-sales service?

Spare parts can be dispatched within 72 hours. Our experienced technical team and service engineers are ready to assist with on-site instruction and troubleshooting.

Can the machine handle different types of glass?

Yes, with the appropriate options, the machine is suitable for triple IGU, stepped IGU, and shaped IGU processing.
