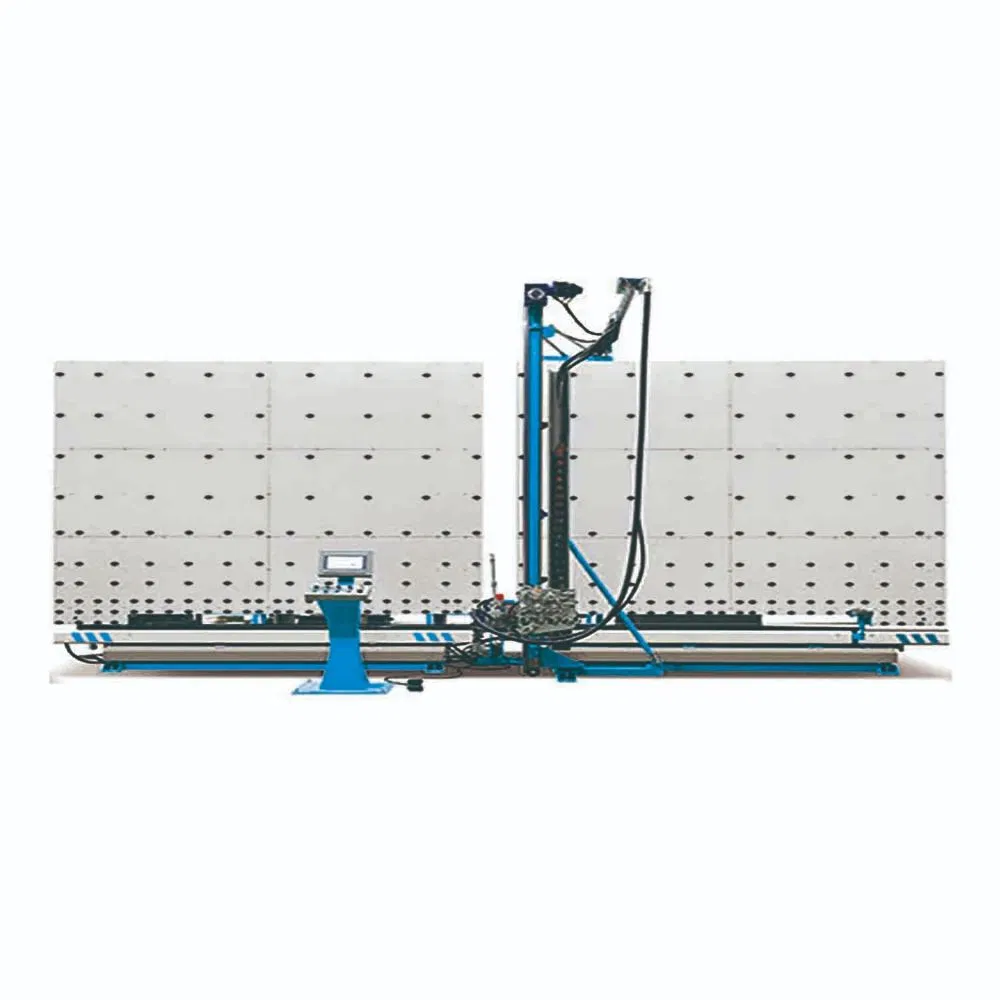

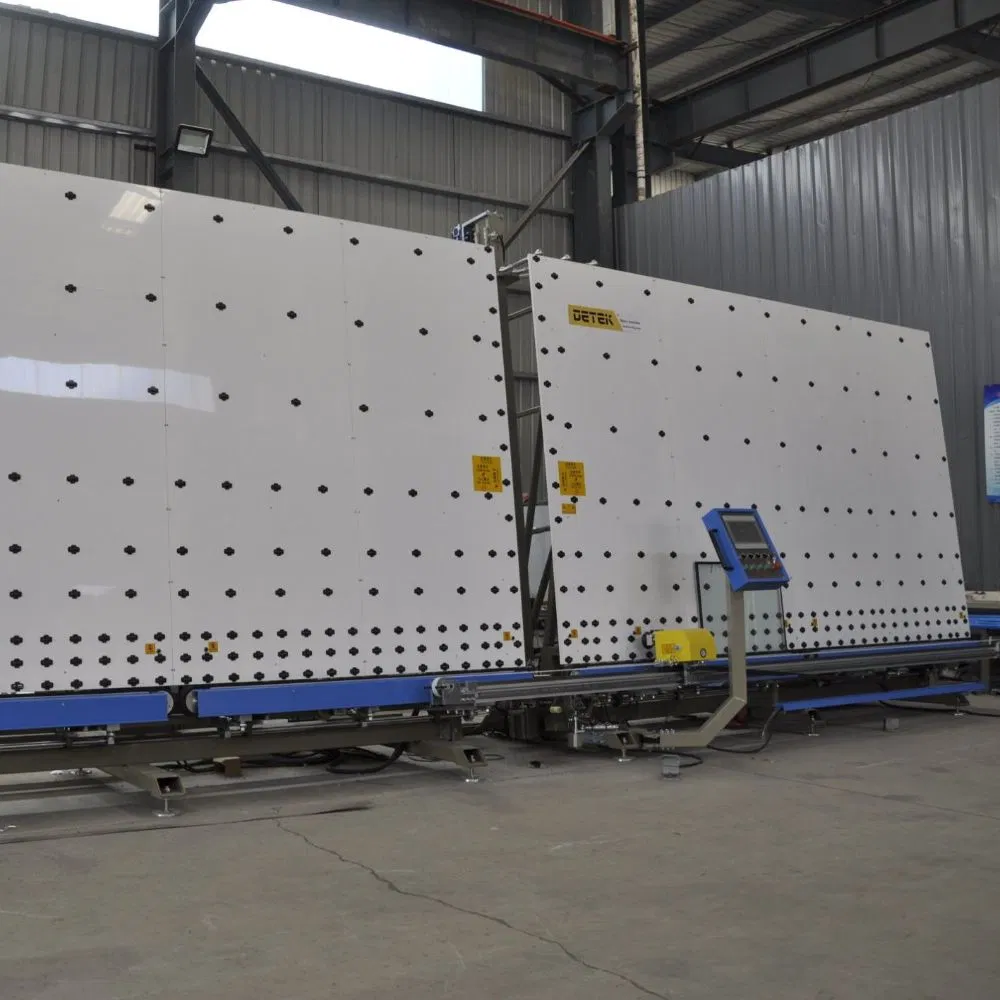

Automatic Insulated Glass Sealing Robot Machine Equipment for Double Glazing Glass Production

1 / 5

Automatic Insulated Glass Sealing Robot Machine Equipment for Double Glazing Glass Production

Customization:	Available
Certification:	CE
Customized:	Customized

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

ASR2500

Glass Thickness

12-60 mm

Structure

Vertical

Condition

New

Type

Auto Secondary Sealant Sealing Machine

Dosing System

Two Dosing System Option

Shaped IGU

Available

Function

Insulating Glass Sealing Robot

Production Capacity

300 sets/Year

Origin

China

⚙️

Product Description & Application

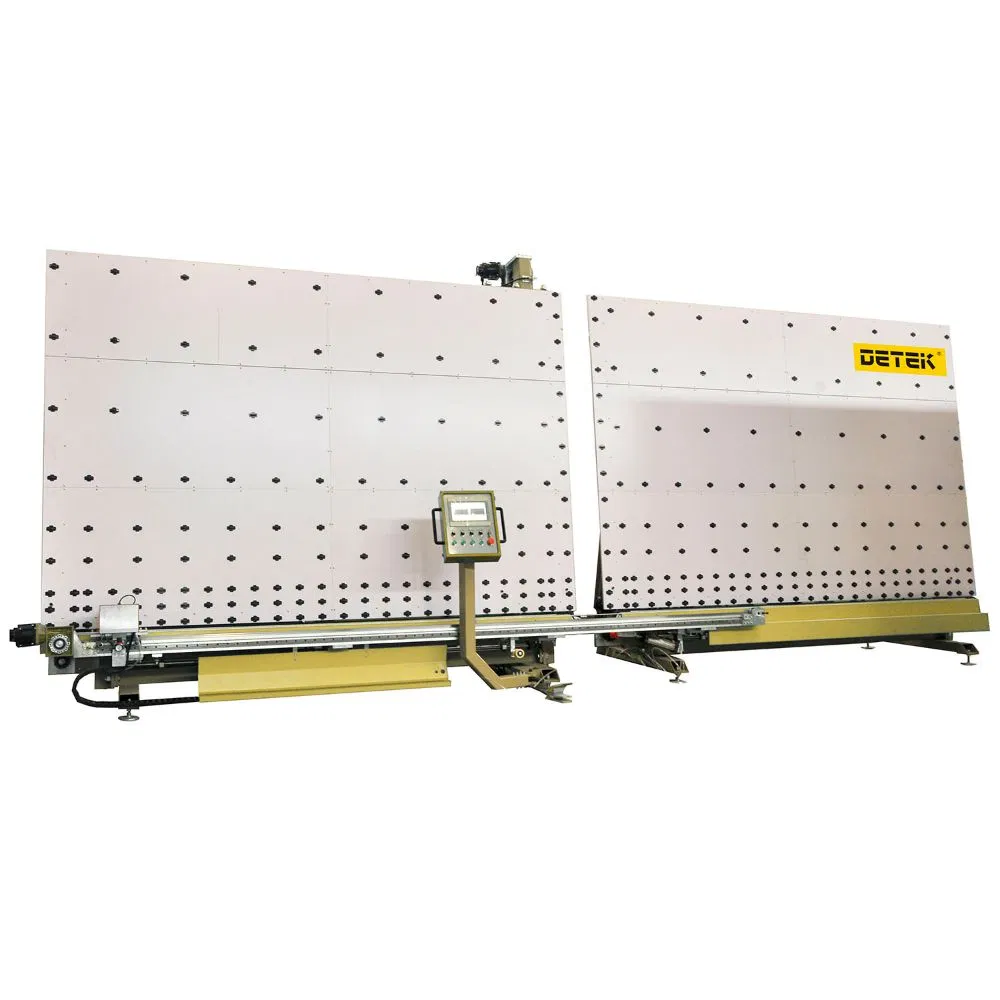

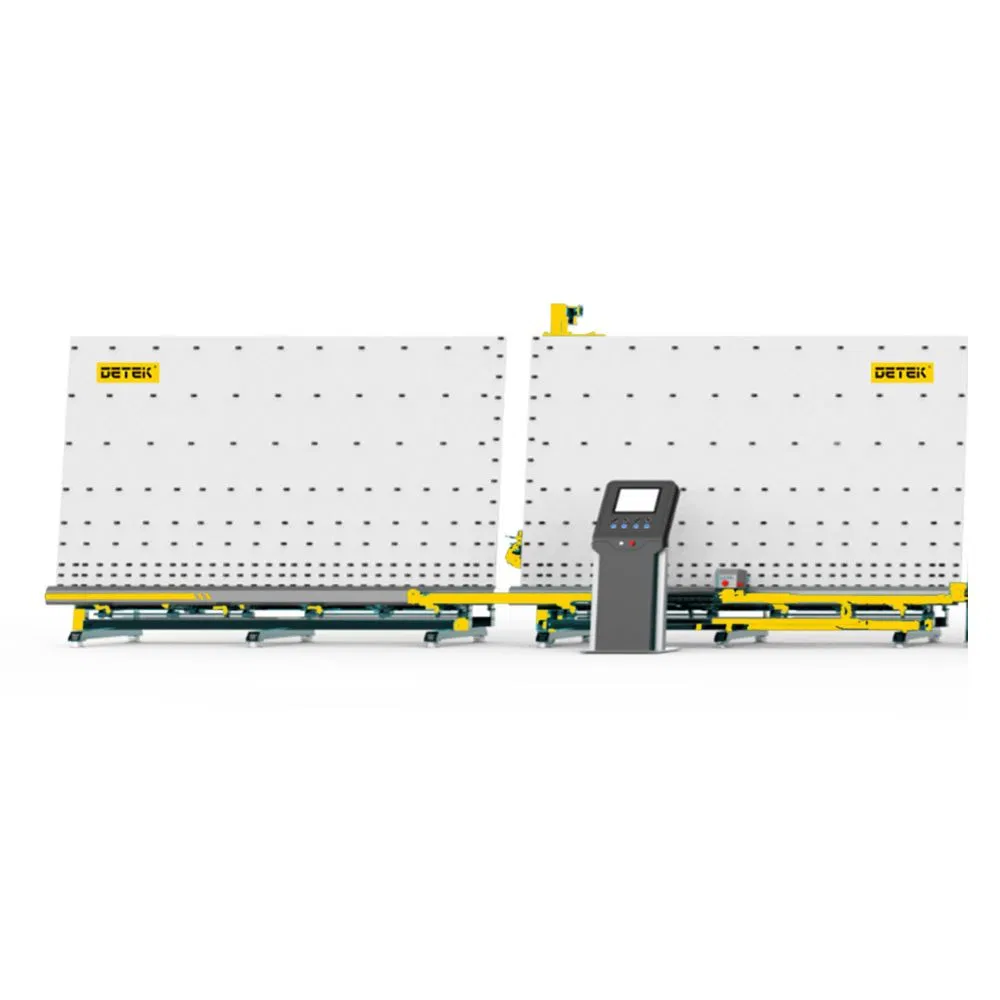

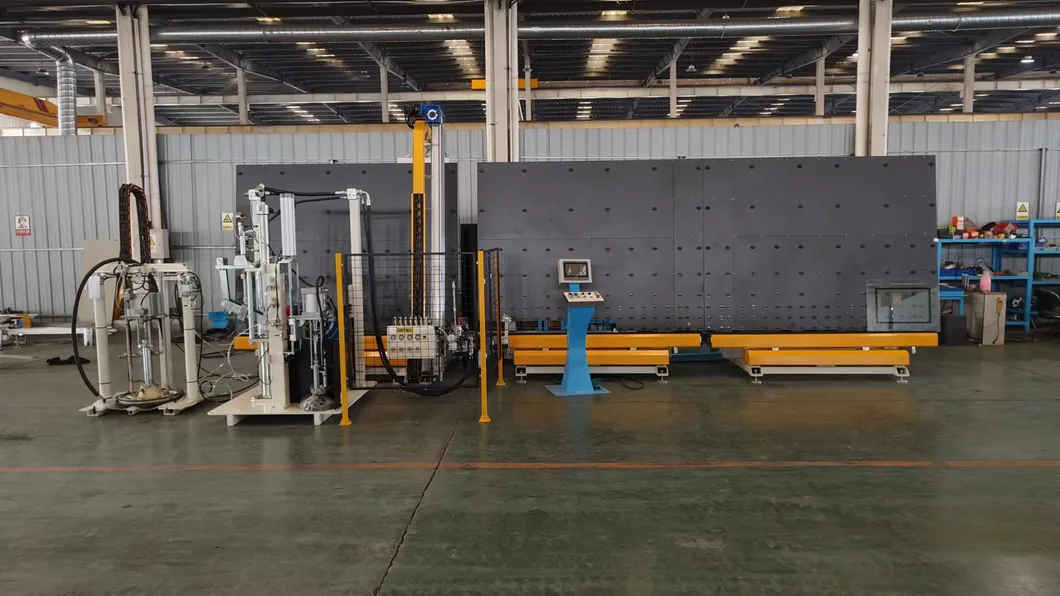

The secondary sealant sealing in Insulating Glass Units, ASR2540 is a highly automatic silicone or polysulfide sealant sealing robot. Auto sealing robot guarantees the high quality of IGU for glass processing companies.

📜

Certifications

💎

Key Features

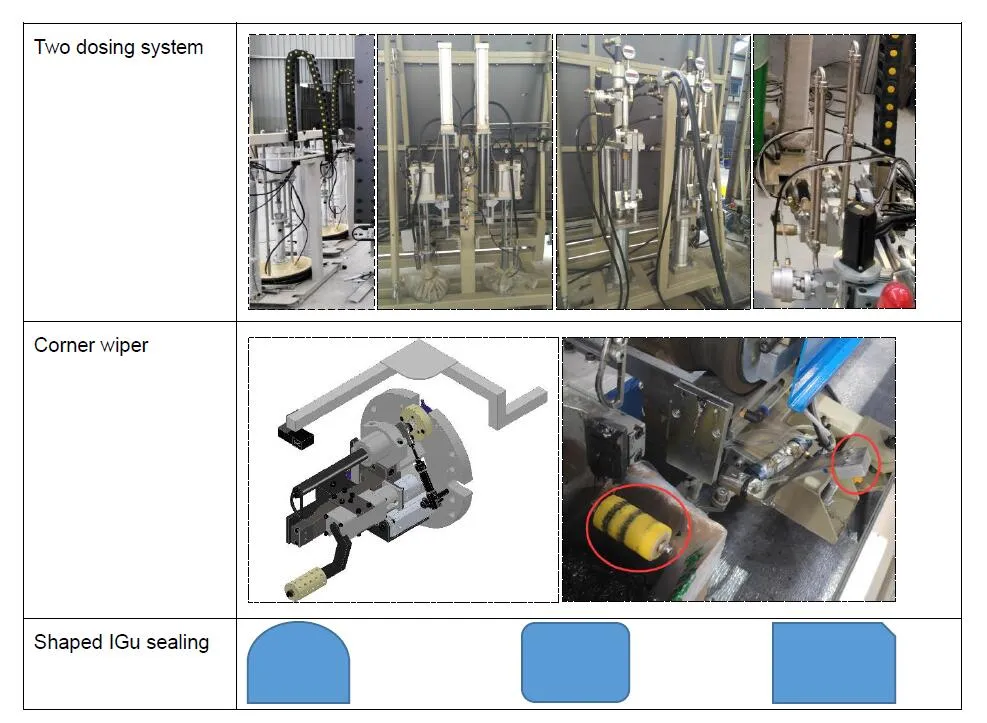

Two separate dosing system, one key switch system. (Option)

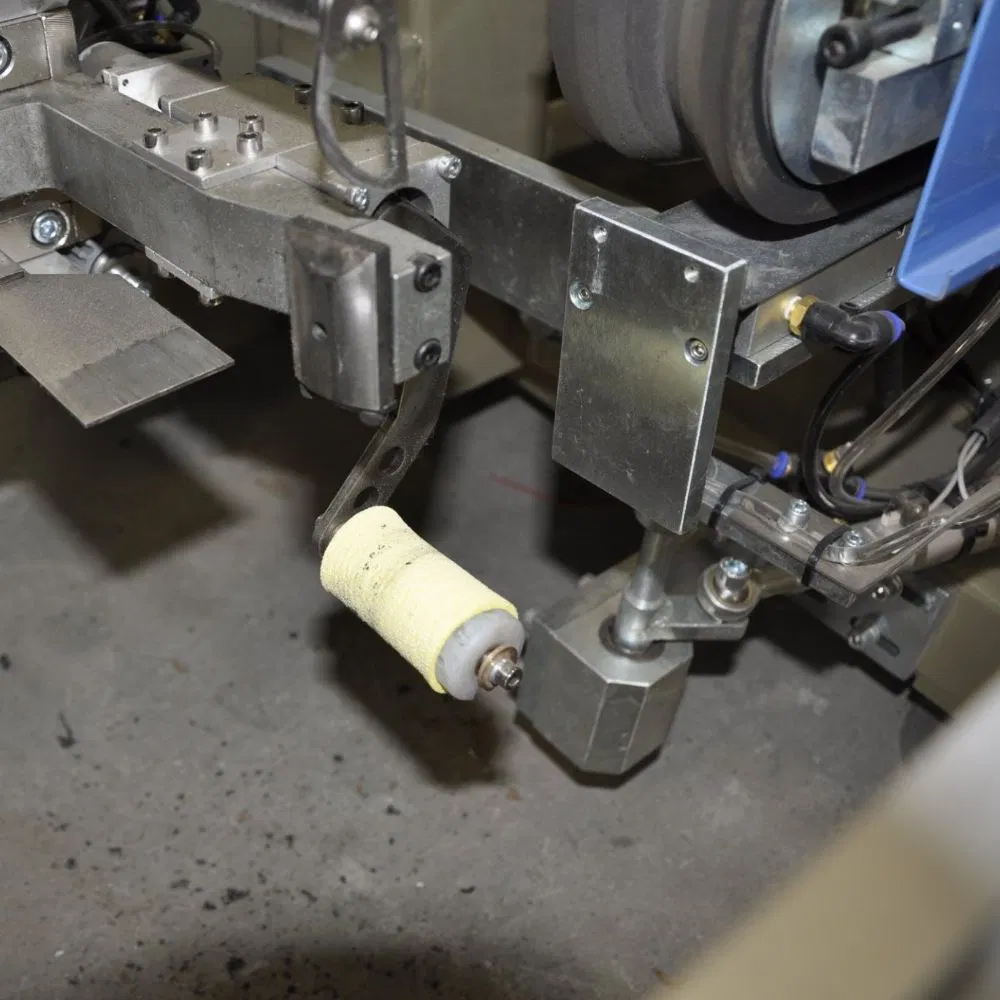

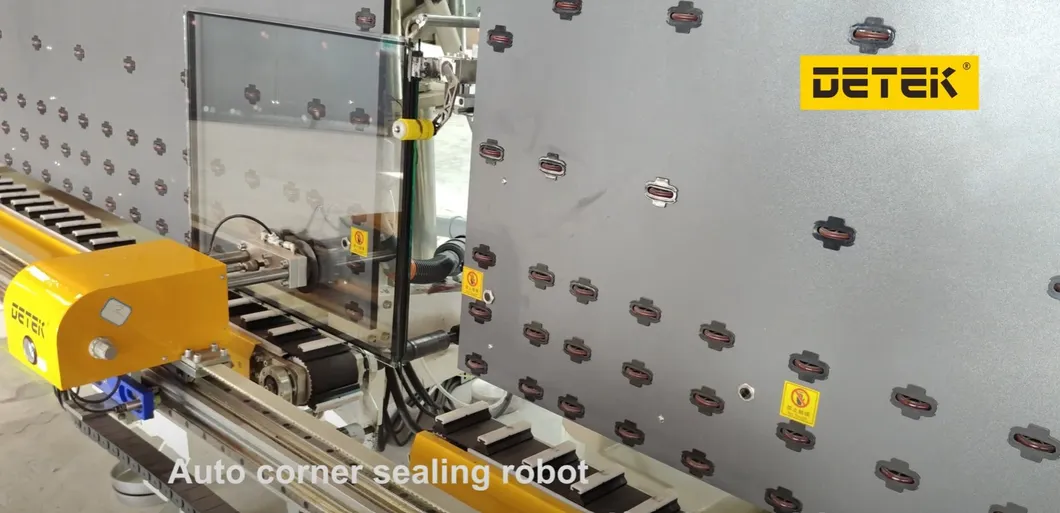

Automatic corner wiper (option).

Economical and practical for glass deep processing.

Fully intelligent touch screen with Ethernet communication and memory function.

High sealing performance and automation to reduce labor costs.

Best sealing quality without air bubbles and smooth surface.

Equipped with anti-blocking device in the mixer, easy to clean.

Servo control system (Japan YASKAWA) for stable performance and precision.

Special V type transmission belt to avoid sealant sticking.

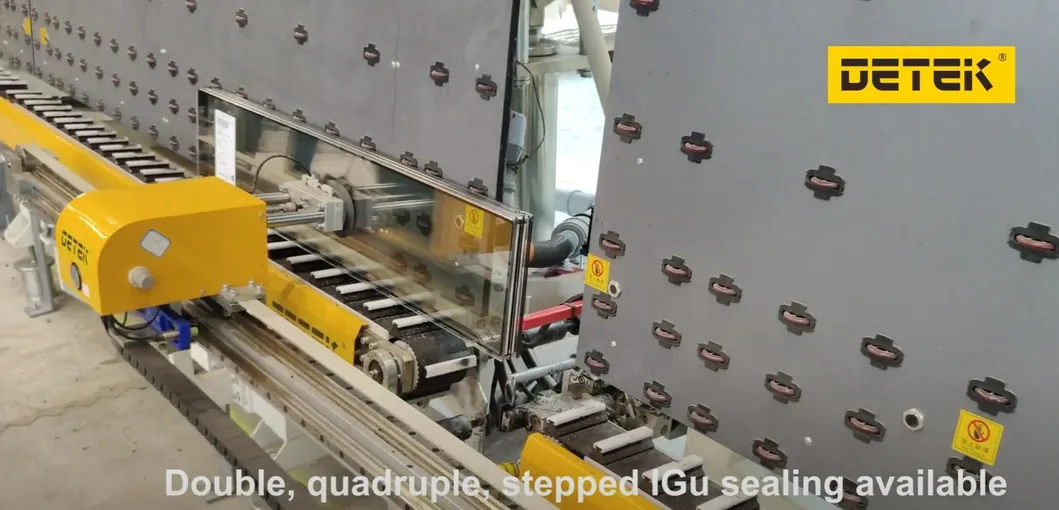

Suitable for triple IGU, stepped IGU and shaped IGU.

High-speed positioning function for accurate glass location.

Continuous upgrades and service from dedicated R&D department.

📐

Technical Parameters

Max. IGU size	2500×4000mm
Min. IGU size	180×300mm
IGU thickness	12-56mm
Power supply	3P 380V 50HZ 13KW
Air pressure	0.6-0.8Mpa
Max. squeeze pressure	32Mpa
Sealing speed	5-40m/min
Dimension	8900×1500×3400mm

🔝

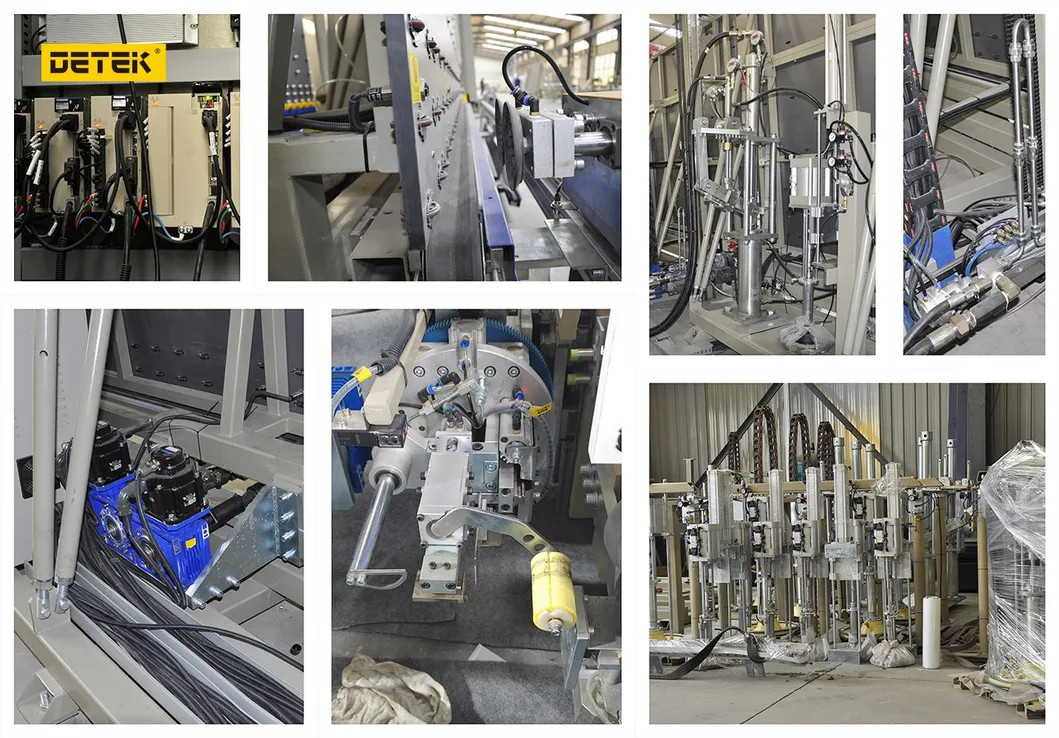

High Standard Brand Components

Component Name	Brand	Country of Origin
PLC / Servo Driver / Motor	Yaskawa	Japan
Touching Screen	WEINVIEW	Taiwan
Inverter	TECO	Taiwan
Breaker / Contactor / Relay	Schneider	France
Sensor / Proximity switch	AUTONICS	S. Korea
Solenoid / Air cylinder	Airtag	Taiwan
Proportional valve / Regulator	SMC	Japan

🏭

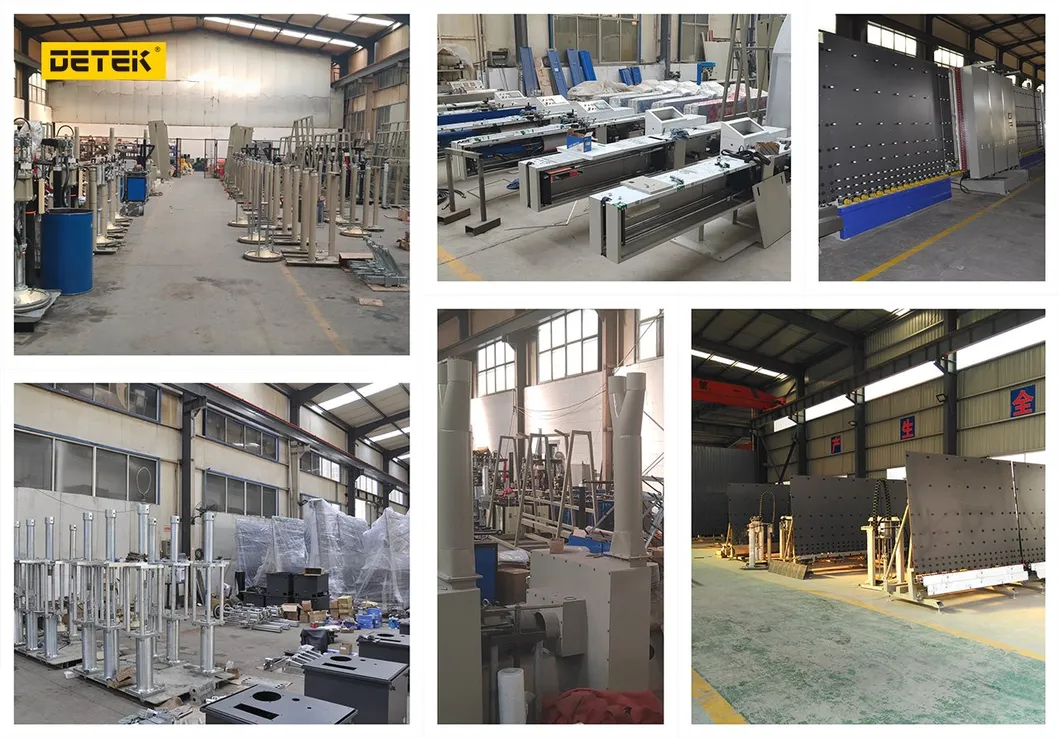

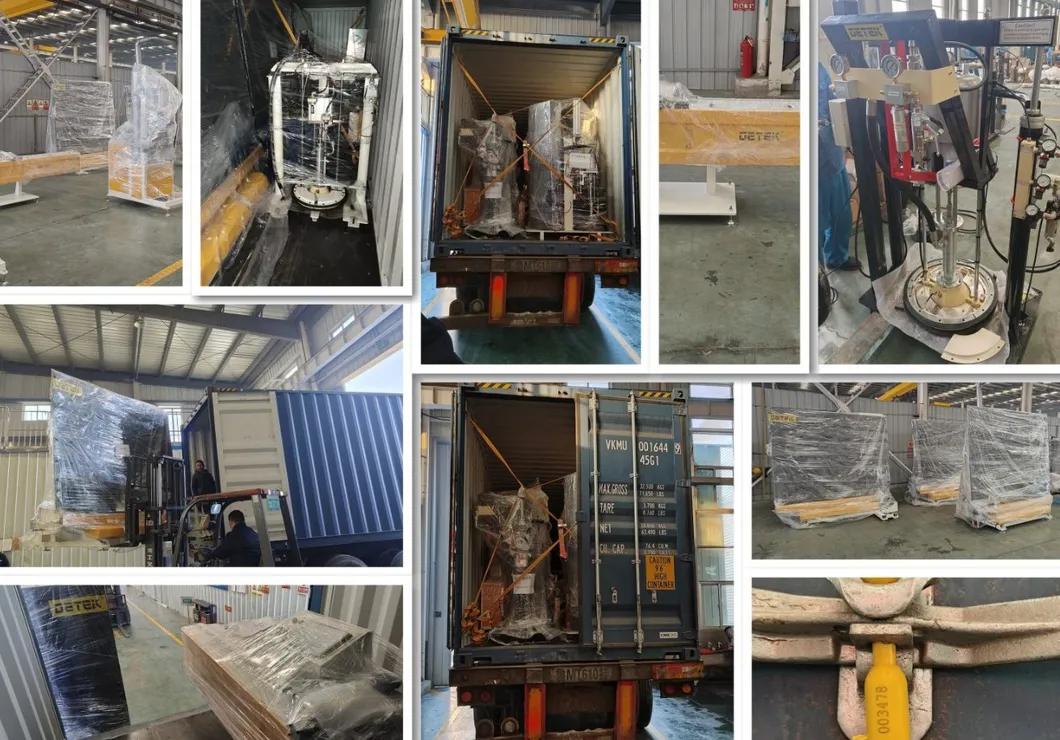

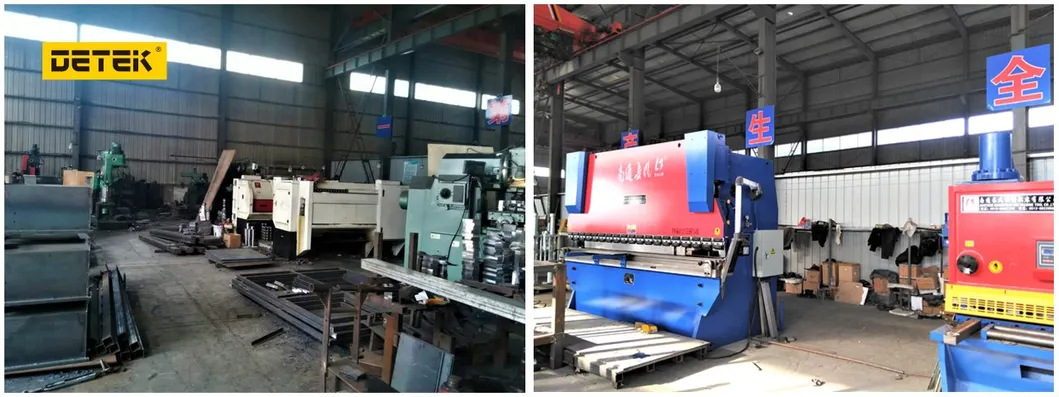

Workshop & Packaging

🛠️

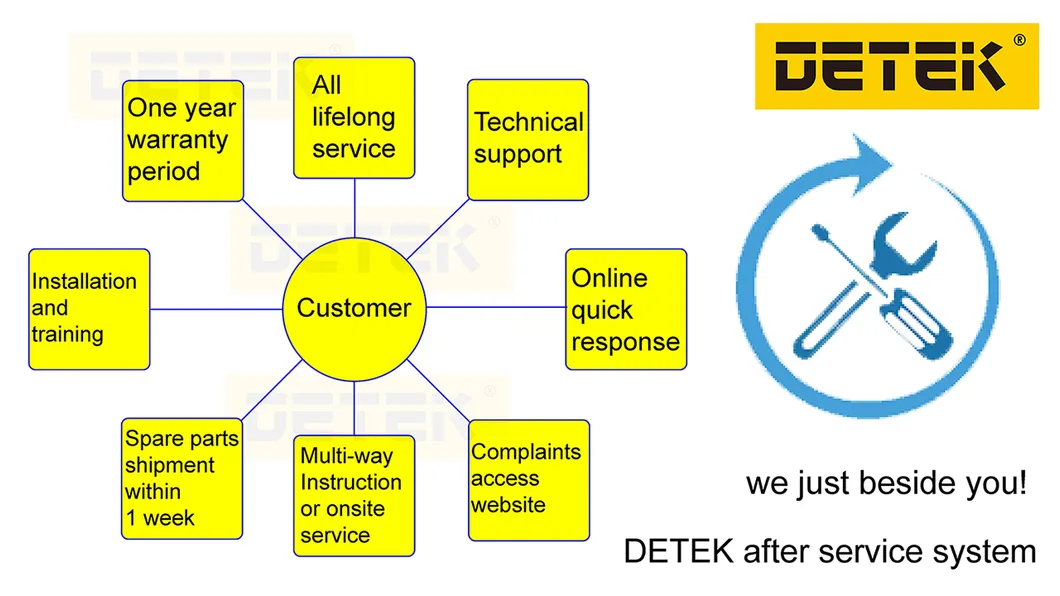

Professional After-Sales Service

Our professional engineers are available overseas to ensure comprehensive after-sale support and installation.

Frequently Asked Questions

1. What is the standard lead time for orders?

The lead time is approximately 60 days for a whole production line and 30 days for a single machine. Special requirements may vary.

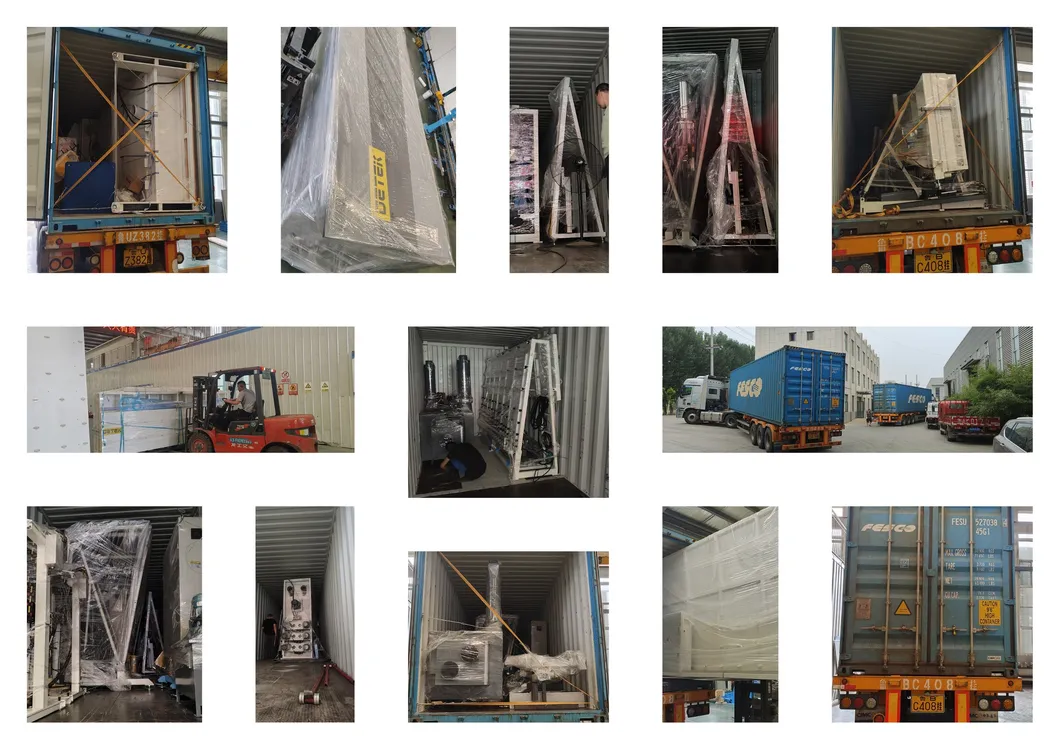

2. How is the shipment and packaging handled?

All machines are packed in seaworthy packaging and designed to fit GP containers to save on sea freight costs, ensuring safe arrival.

3. What is the guarantee period for the equipment?

We provide a one-year guarantee (excluding wearing parts) and lifelong service. Engineers can be dispatched for on-site service upon request.

4. How is the machine installation managed?

Installation service is included. Customers cover round-trip air tickets, local transport, and accommodation. Installation is typically finished within 15 days.

5. What after-sales support do you provide?

We ensure spare parts delivery within 72 hours. Experienced technical sales and service engineers are ready for instruction and on-site support.

6. Is the machine suitable for special glass types?

Yes, the system is designed to handle triple IGU, stepped IGU, and shaped IGU through optional configurations.
