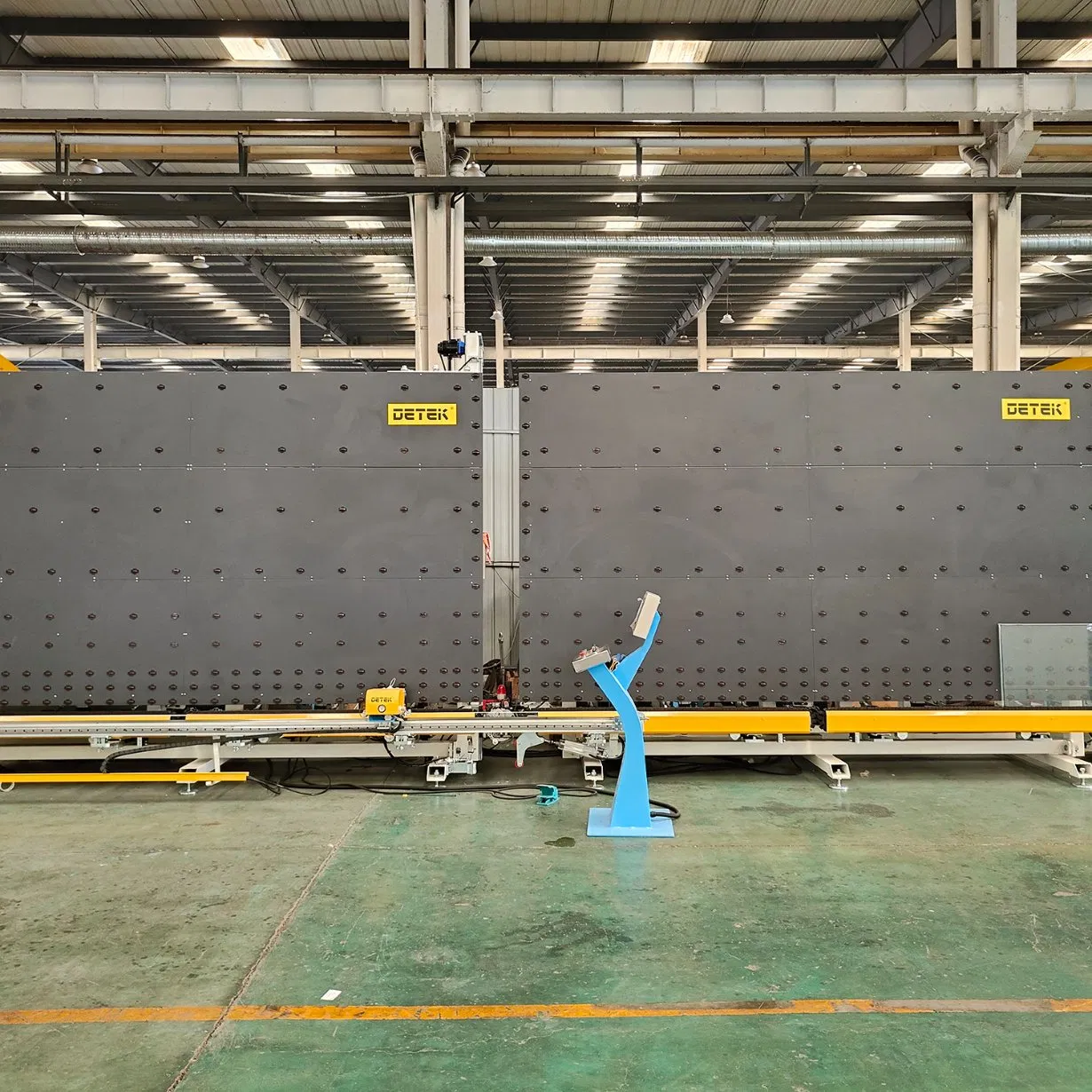

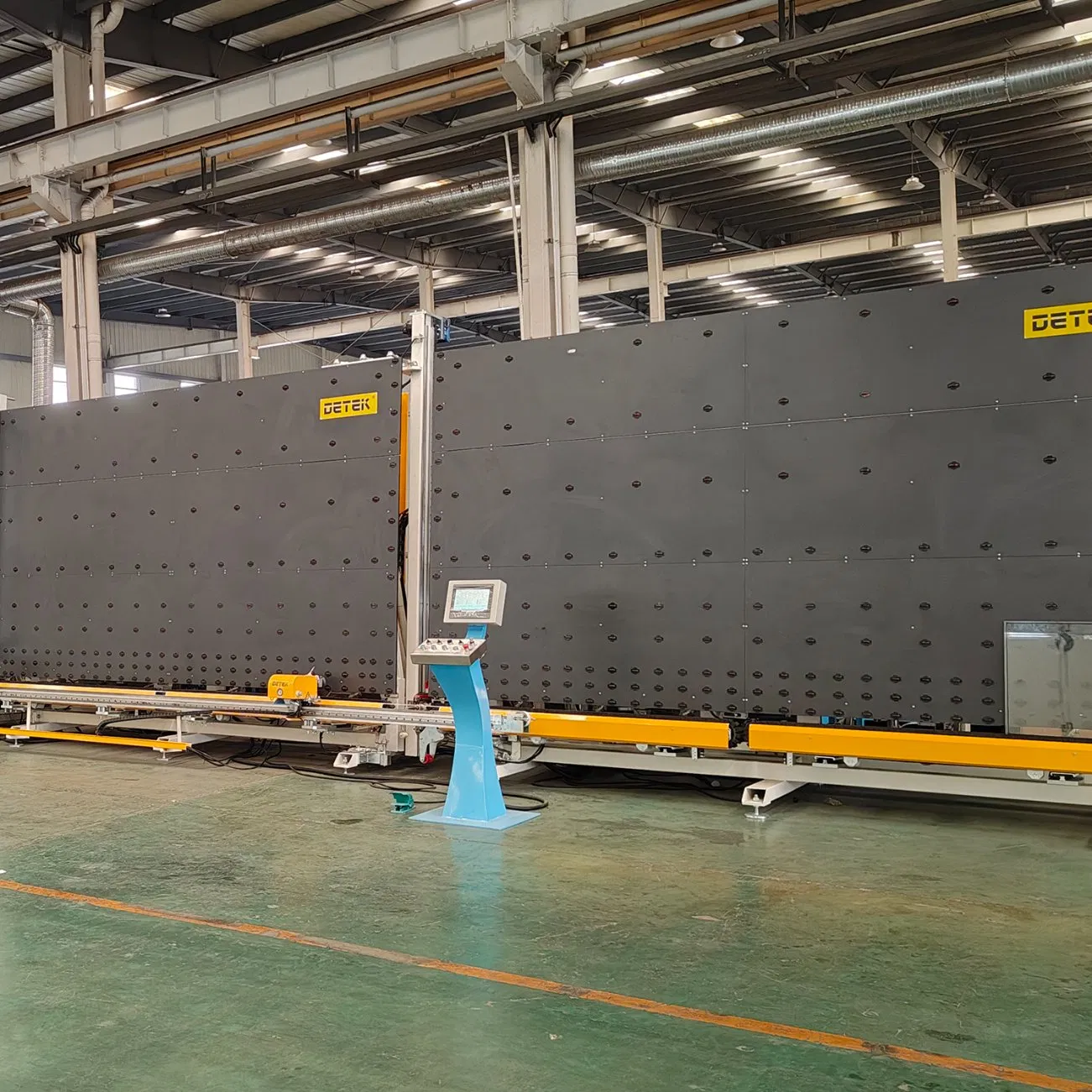

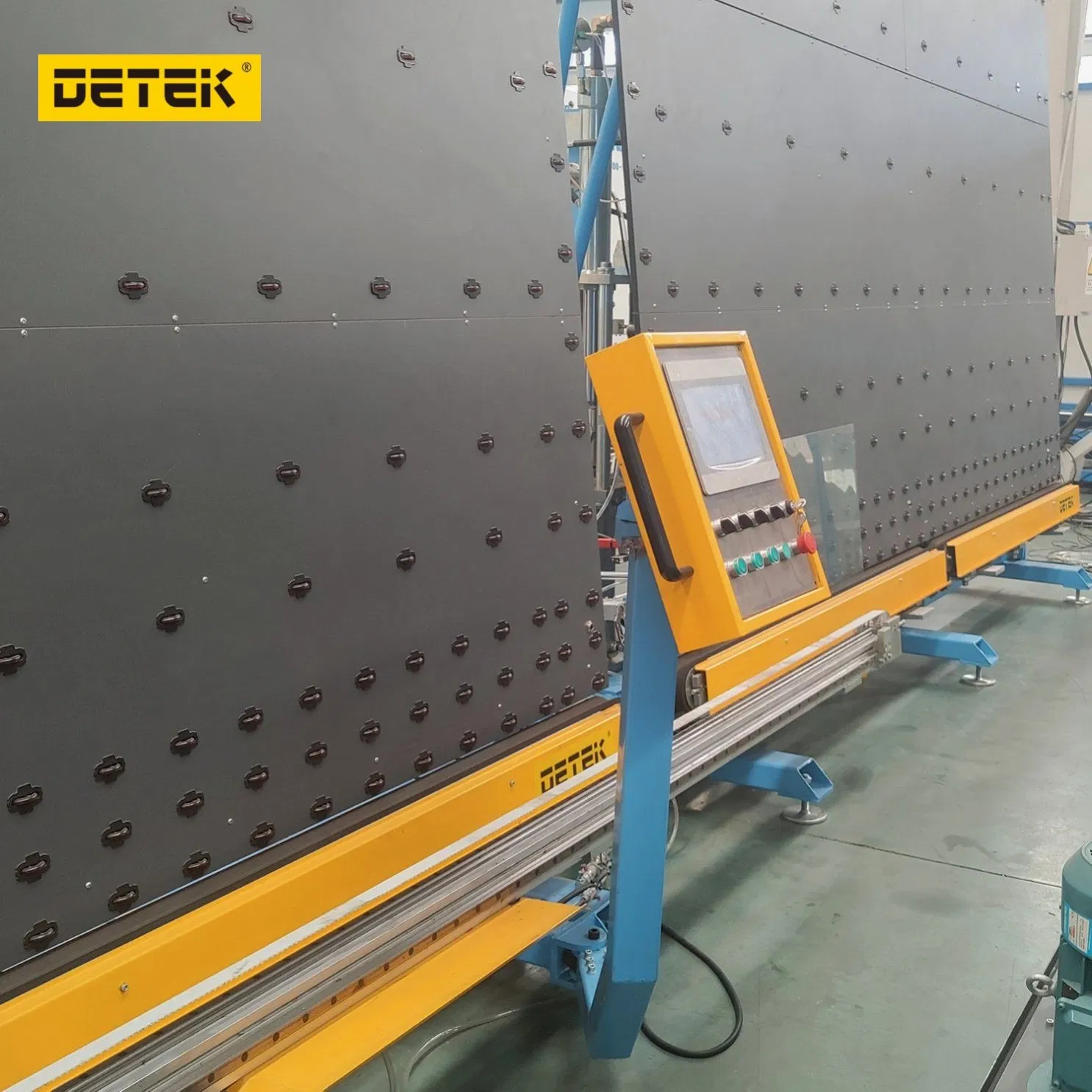

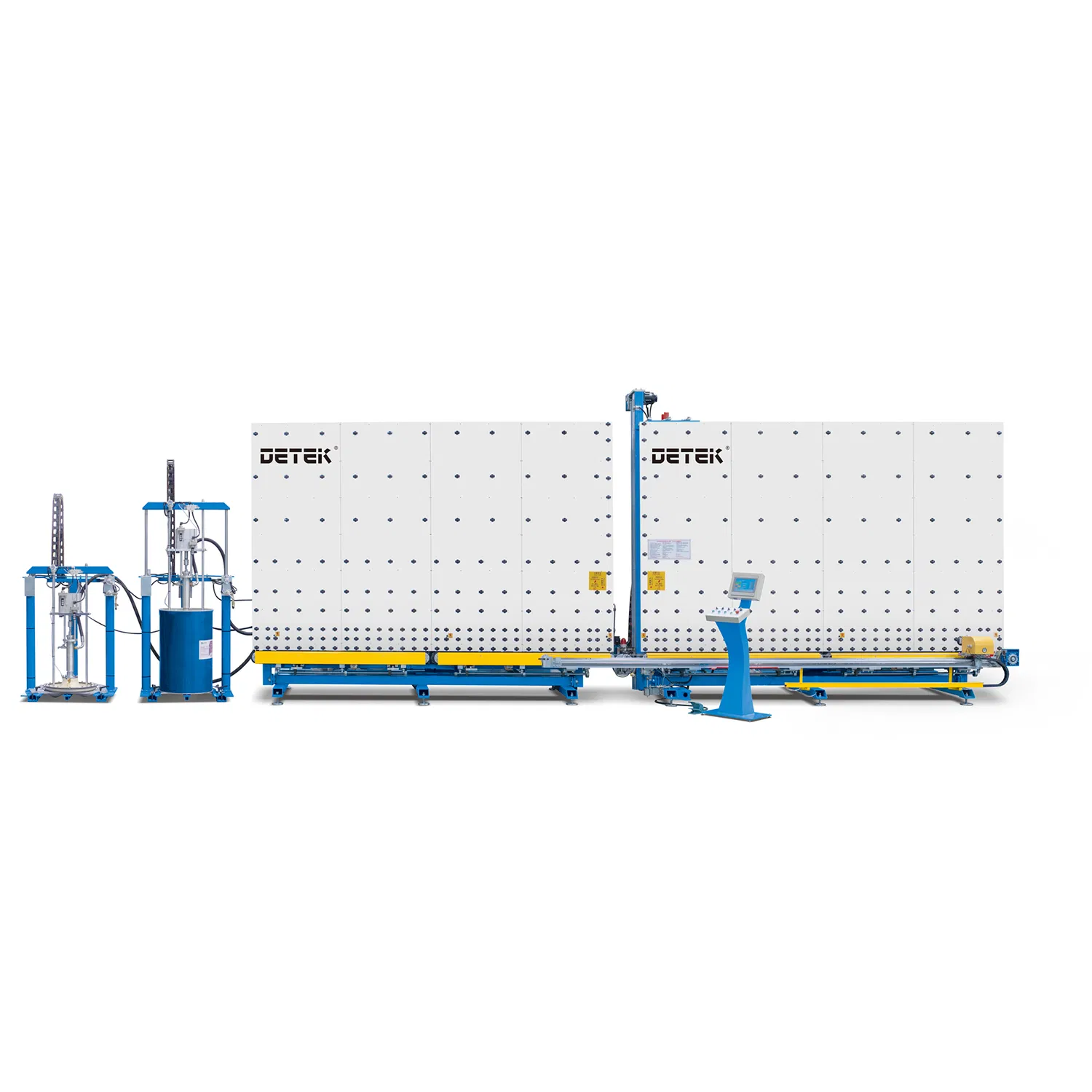

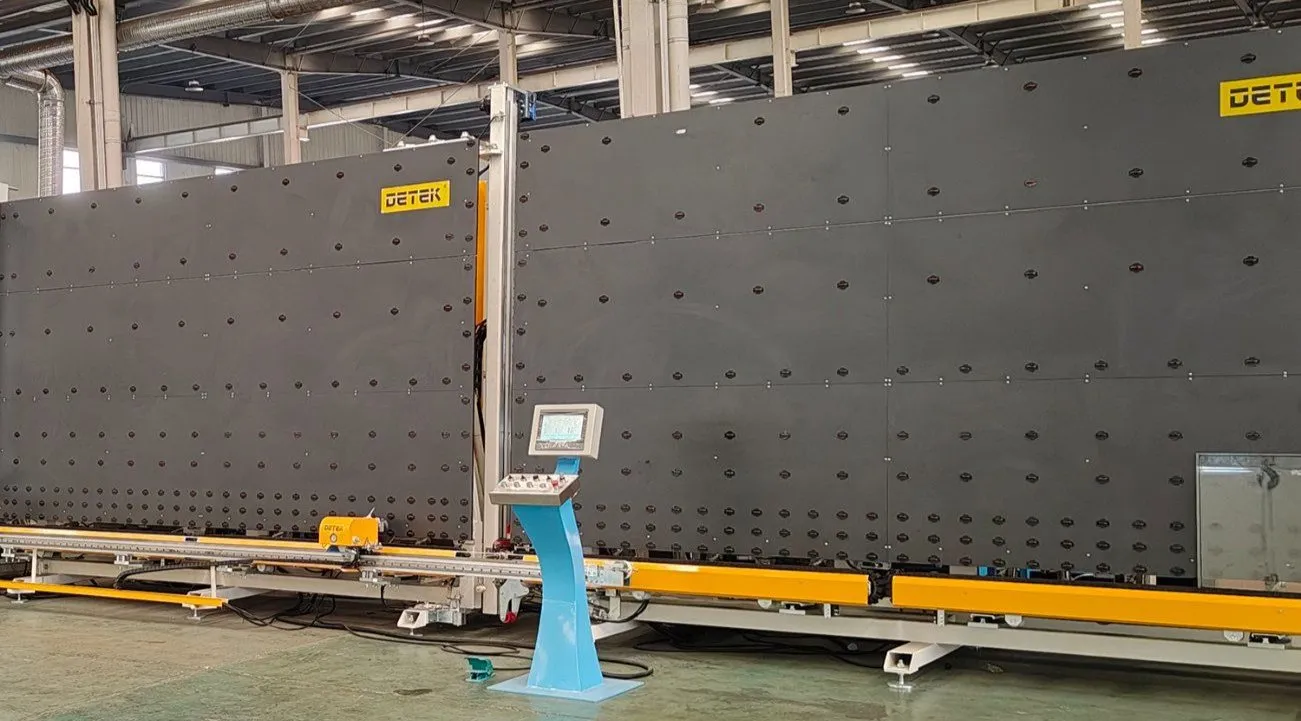

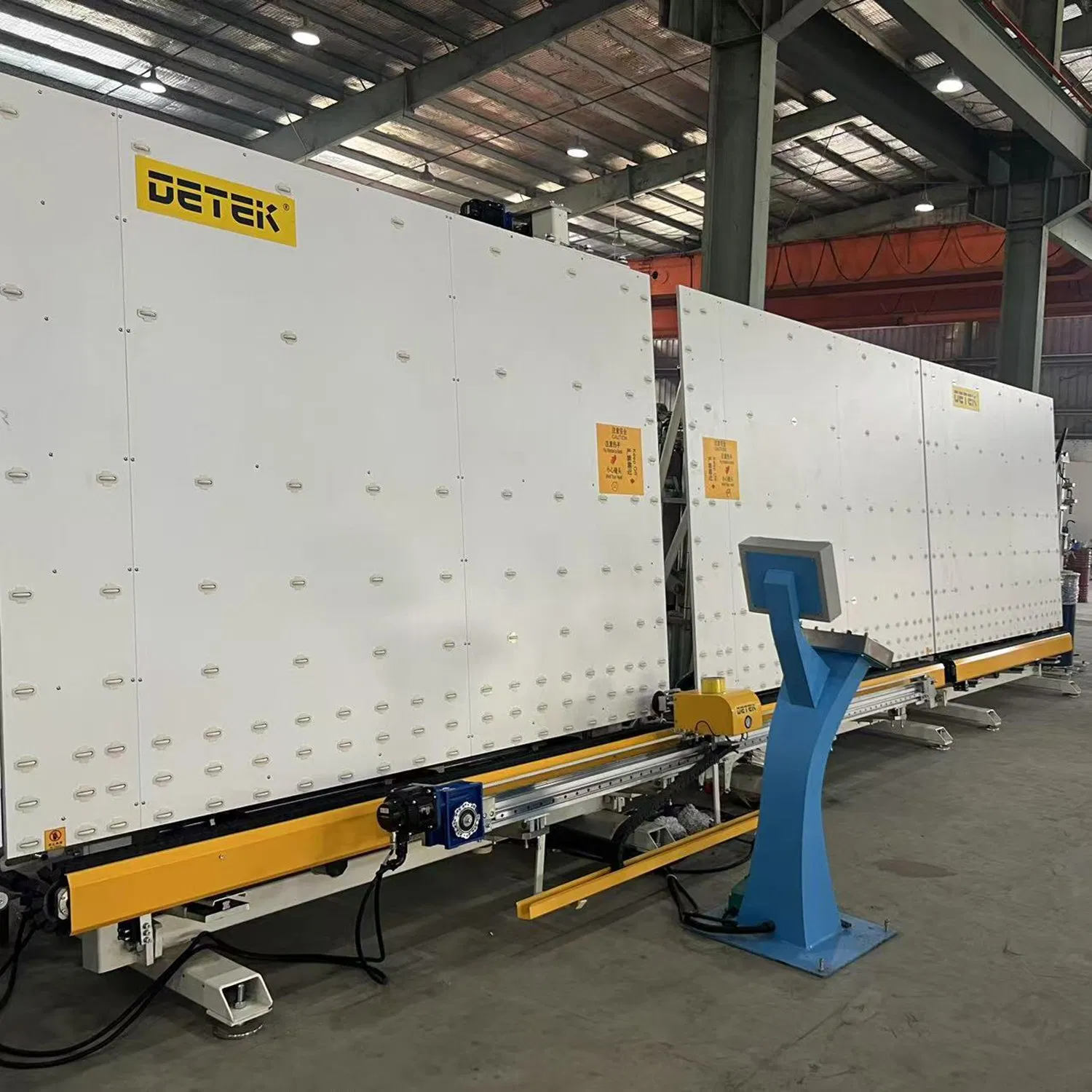

ASR2550 The secondary sealant sealing robot
The secondary sealant sealing in Insulating Glass Units, ASR2550 is a highly automatic silicone or polysulfide sealant sealing robot. As a critical piece of equipment that directly influences the service life of insulating glass, it ensures consistent high-quality IGUs for glass processors.

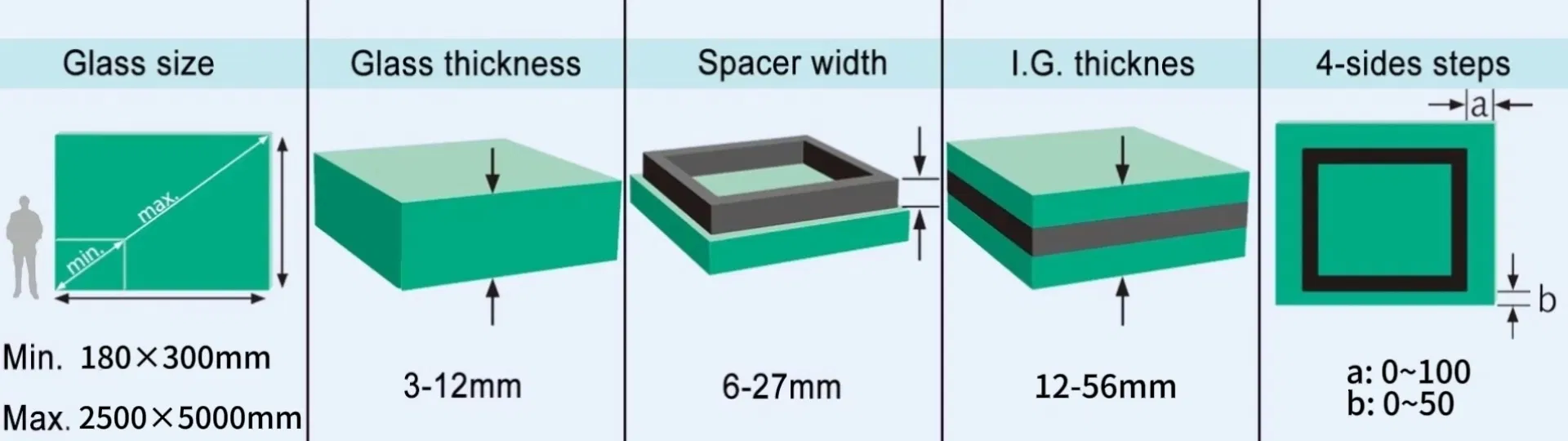

| Max. IGu size | 2500×4000mm (5000mm option) |
| Min. IGu size | 300×300mm |
| IGu thickness | 12-56mm |
| Sealing depth | 3-18mm |
| Power supply | 3P 380V 50HZ 13KW |
| Air pressure | 0.6-0.8Mpa |
| Max. squeeze pressure | 32Mpa |
| Sealing speed | 5-40m/min |

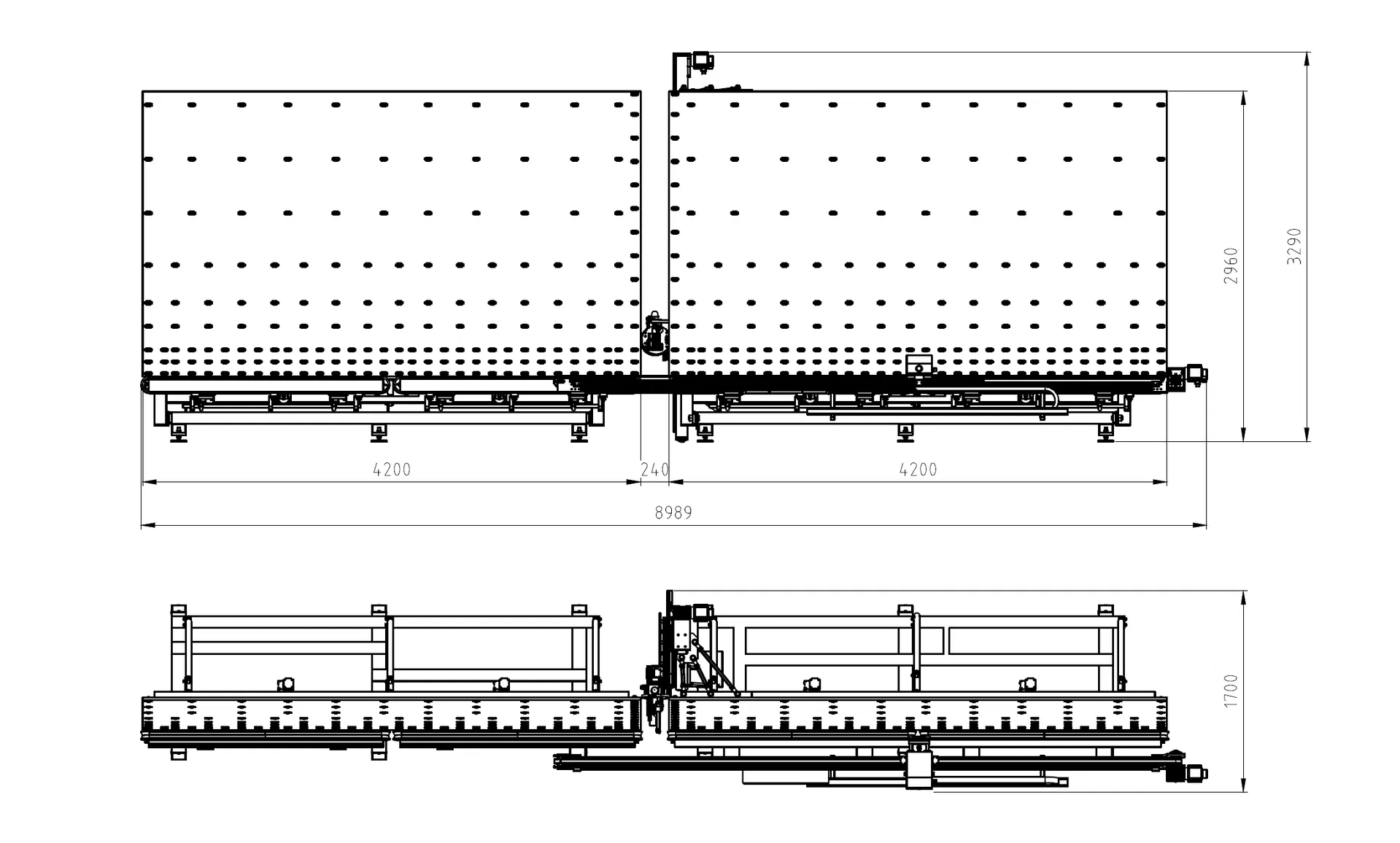

| Dimension | 8900×1500×3400mm |
| Component Name | Brand | Country of Origin |
|---|---|---|
| PLC | Yaskawa | Japan |
| Servo driver / Motor | Yaskawa | Japan |
| Touch Screen | WEINVIEW | Taiwan |
| Inverter | TECO | Taiwan |
| Breaker / Contactor / Relay | Schneider | France |
| Sensor / Proximity switch | AUTONICS | S. Korea |
| Solenoid / Air cylinder | Airtag | Taiwan |
| Proportional valve / Regulator | SMC | Japan |
Experienced technical sales sort out most of your questions. Tens of service engineers are ready for on-site service and instruction. We ensure spare parts are available within 72 hours.

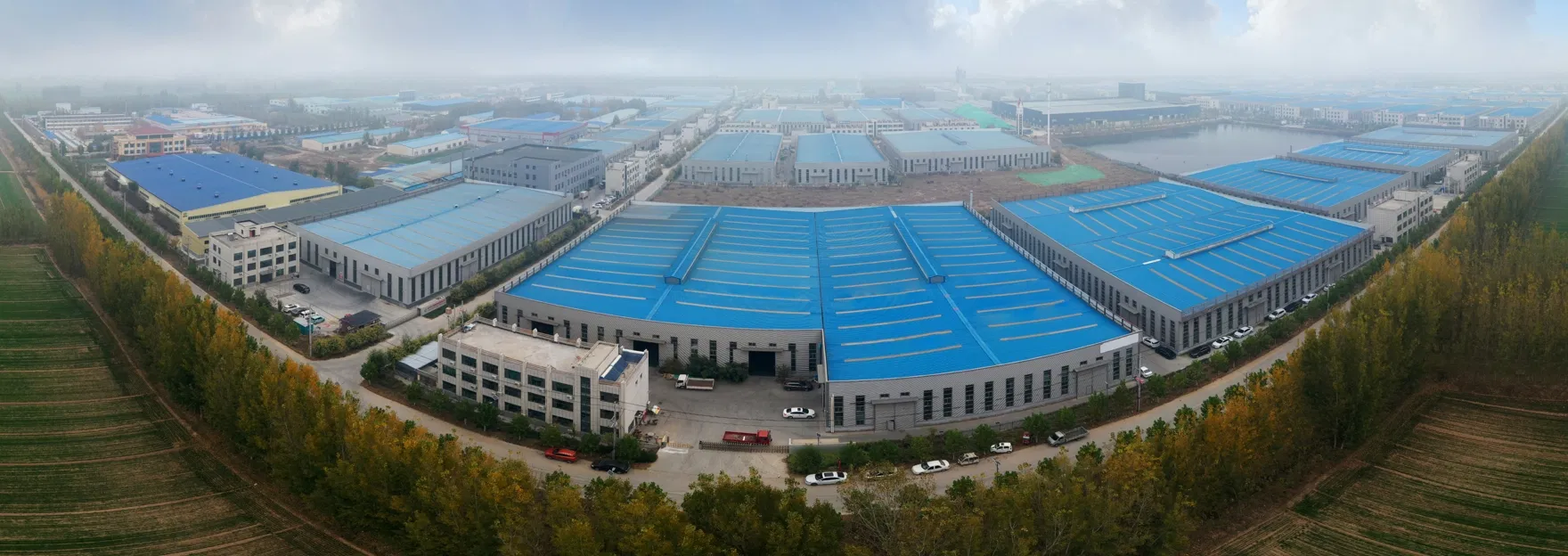

We are a professional manufacturer of insulating glass processing machinery, focusing on design, research, and development. Our 20,000 sqm workshop features its own machining center, laser cutting, bending, and plastic spray facilities. Our machines provide high production efficiency and stable performance.

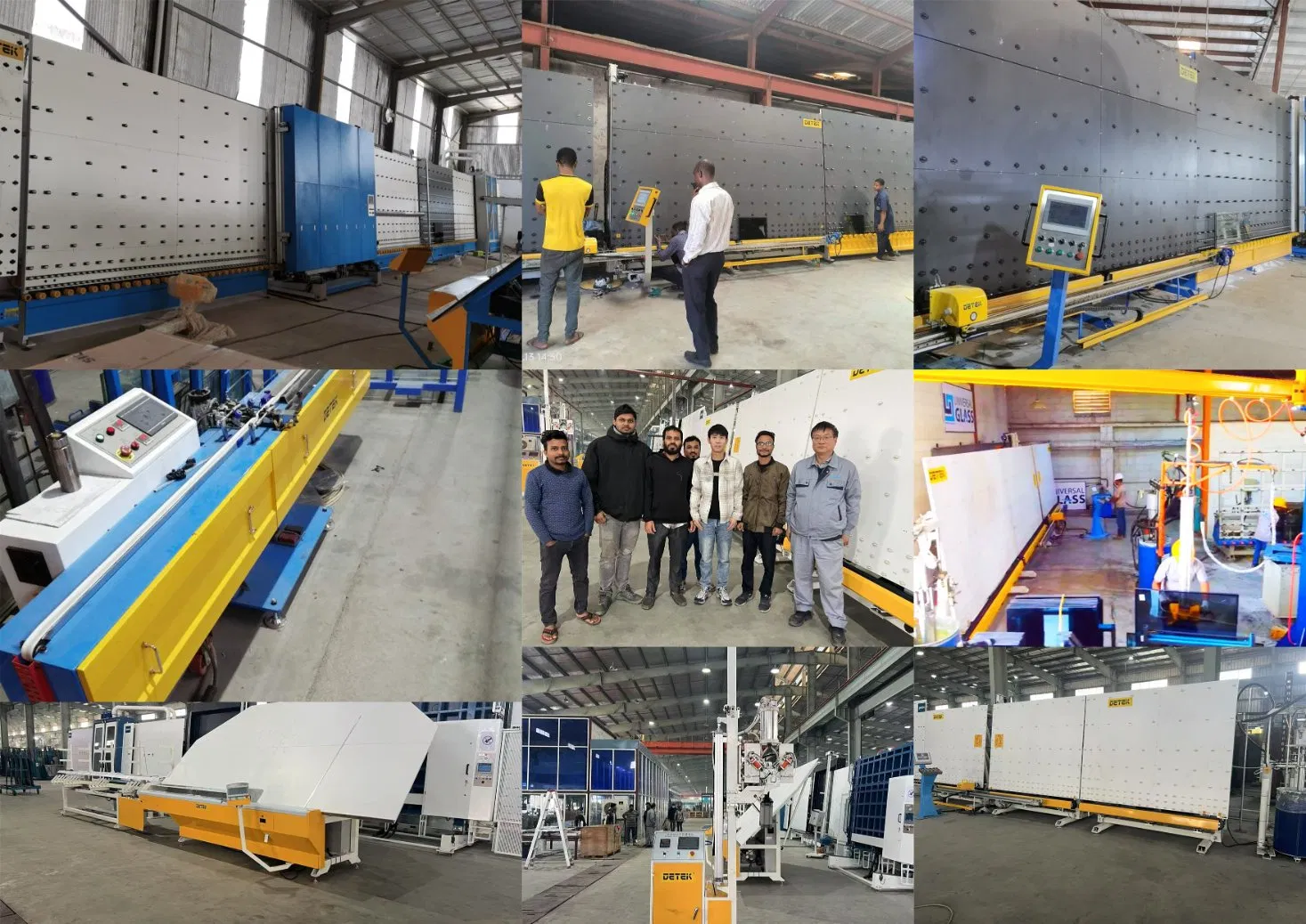

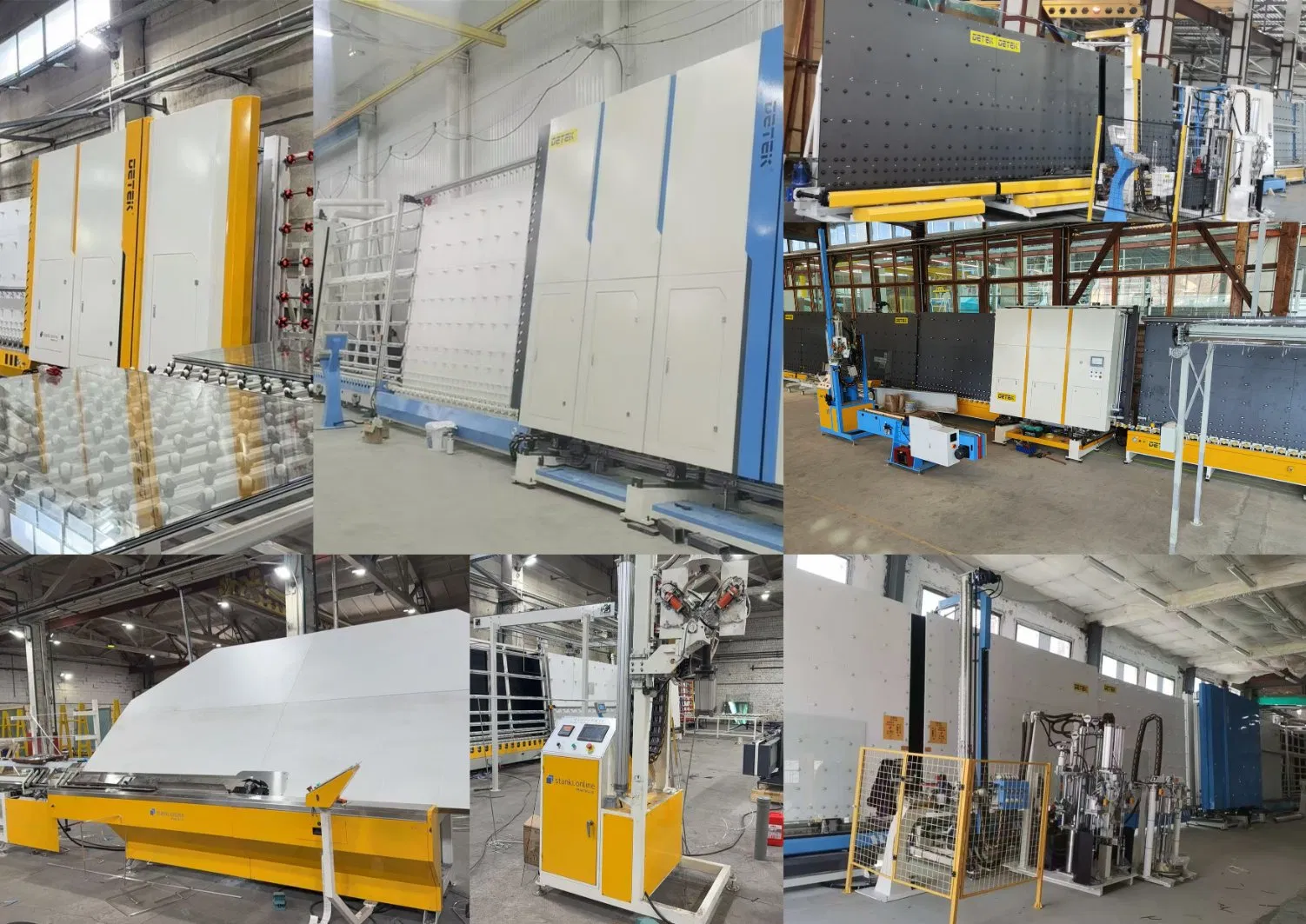

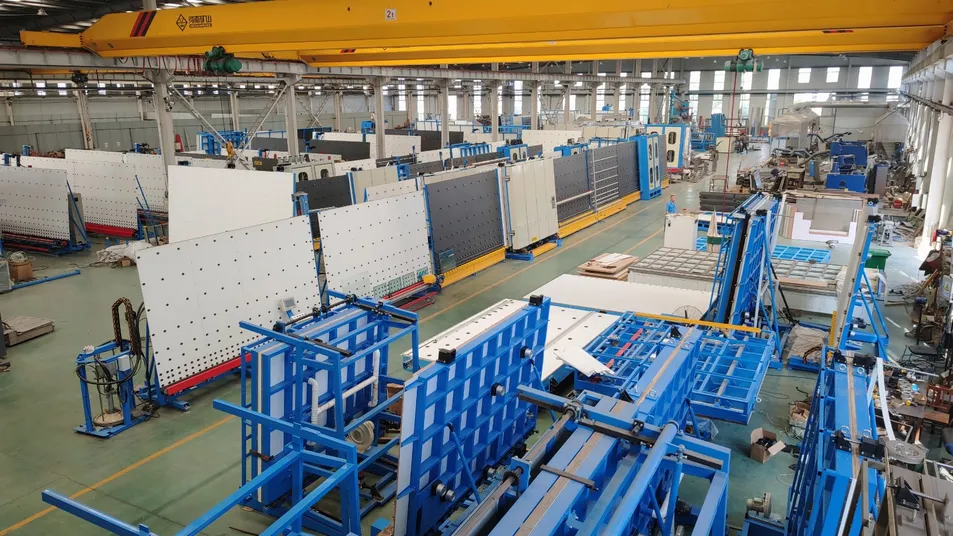

Assembly workshop for production lines

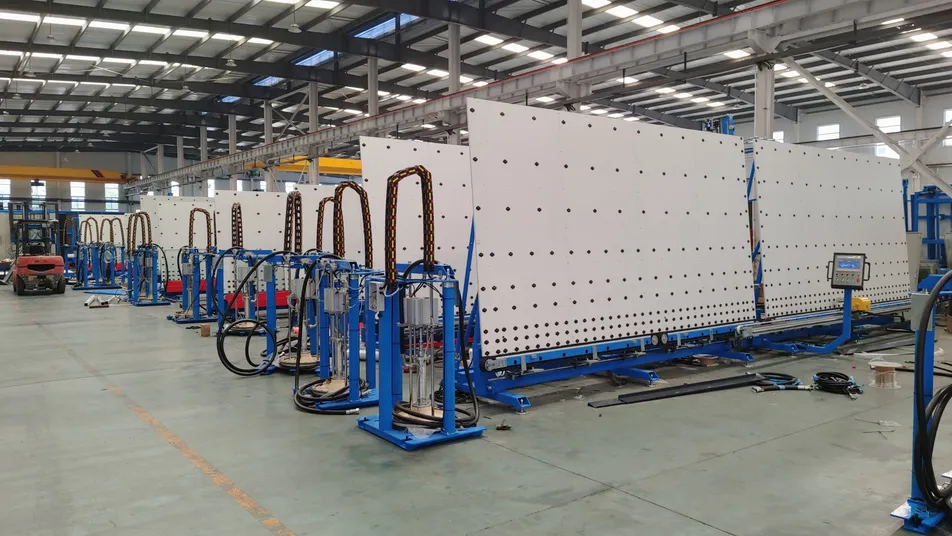

Assembly workshop for sealing robots

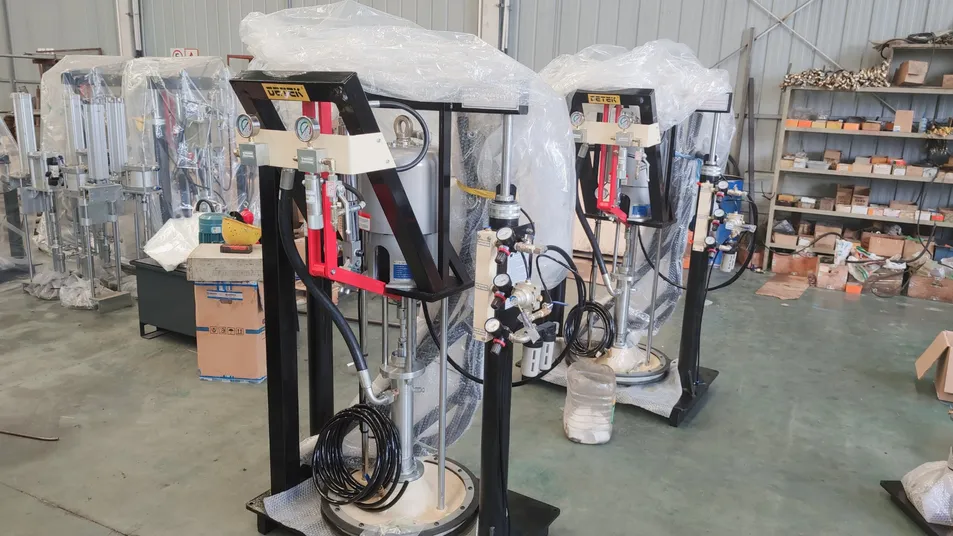

Silicone spreading machine

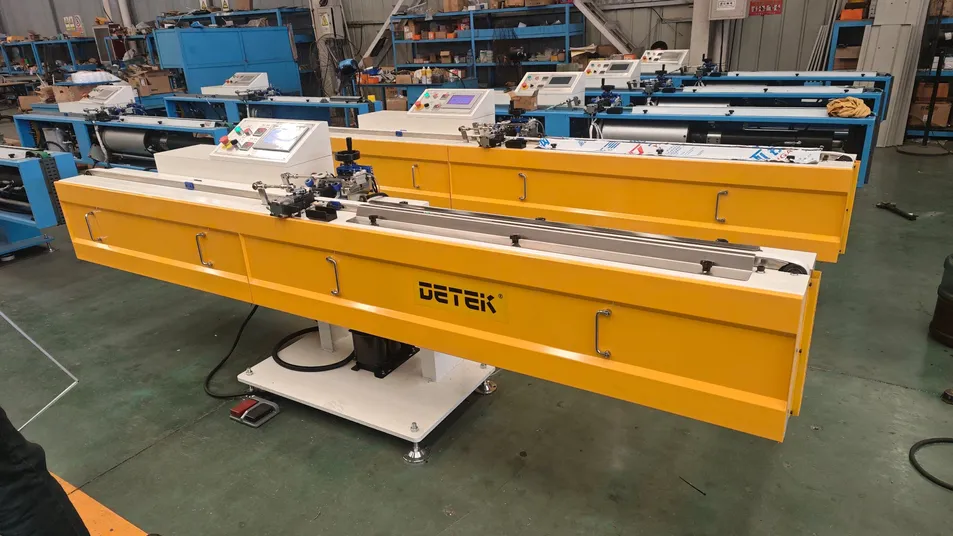

Butyl extruder machine

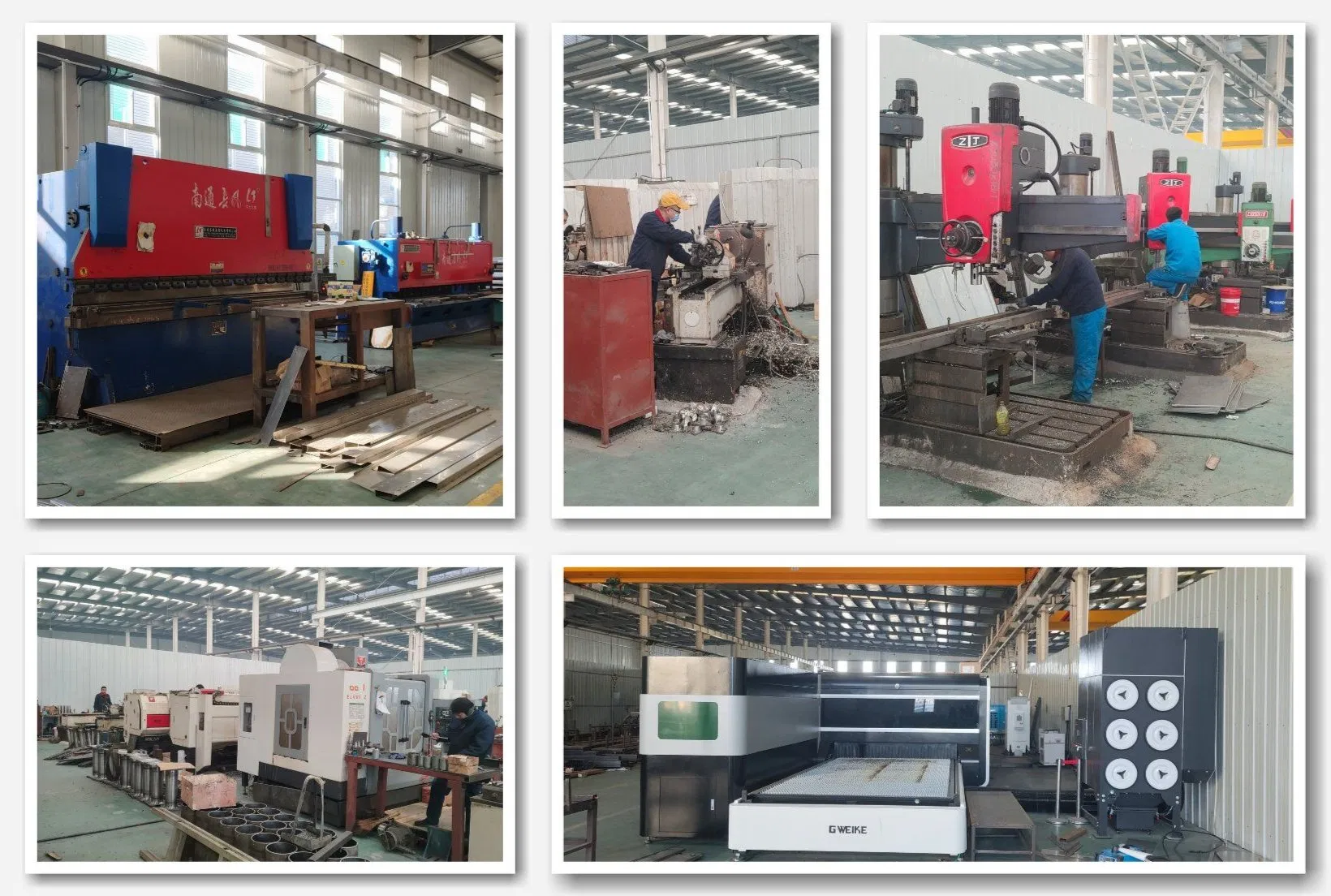

Advanced Machining Center: Laser cutting, bending, milling, and more.
