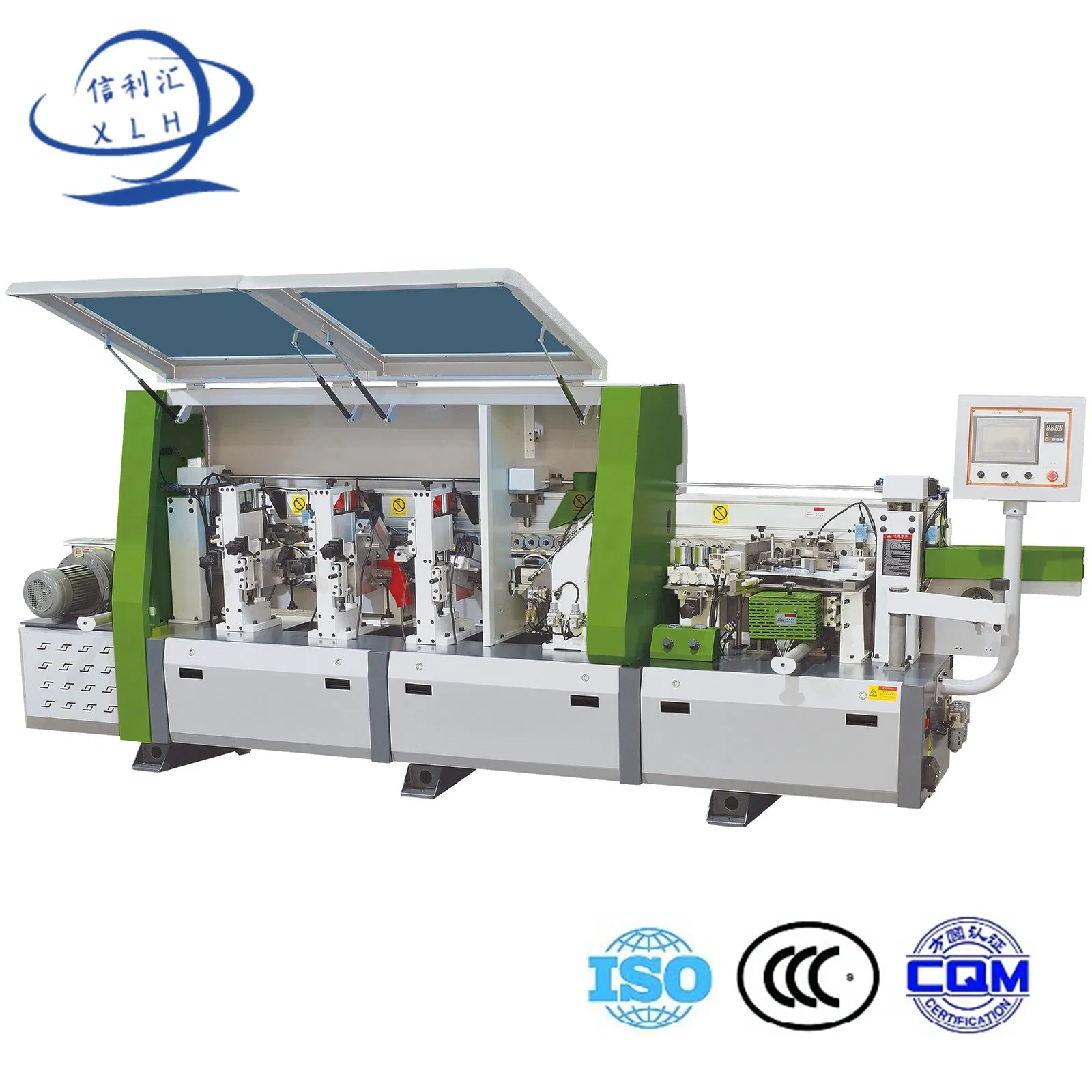

Automatic Edge Bonding Machine with Gluing with Top and Bottom Trimming, Corner Trimming, Scrapping, Spray Cleaning and Buffing
Automatic Edge Bonding Machine with Gluing with Top and Bottom Trimming, Corner Trimming, Scrapping, Spray Cleaning and Buffing
Automatic Edge Bonding Machine with Gluing with Top and Bottom Trimming, Corner Trimming, Scrapping, Spray Cleaning and Buffing
Automatic Edge Bonding Machine with Gluing with Top and Bottom Trimming, Corner Trimming, Scrapping, Spray Cleaning and Buffing
Automatic Edge Bonding Machine with Gluing with Top and Bottom Trimming, Corner Trimming, Scrapping, Spray Cleaning and Buffing
1 / 5
Automatic Edge Bonding Machine with Gluing with Top and Bottom Trimming, Corner Trimming, Scrapping, Spray Cleaning and Buffing
Automatic Edge Bonding Machine with Gluing with Top and Bottom Trimming, Corner Trimming, Scrapping, Spray Cleaning and Buffing
Automatic Edge Bonding Machine with Gluing with Top and Bottom Trimming, Corner Trimming, Scrapping, Spray Cleaning and Buffing
Automatic Edge Bonding Machine with Gluing with Top and Bottom Trimming, Corner Trimming, Scrapping, Spray Cleaning and Buffing
Automatic Edge Bonding Machine with Gluing with Top and Bottom Trimming, Corner Trimming, Scrapping, Spray Cleaning and Buffing

Automatic Edge Bonding Machine with Gluing with Top and Bottom Trimming, Corner Trimming, Scrapping, Spray Cleaning and Buffing

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
MFZ450DJ
Edging Thickness
0.4-3mm
Automatic Grade
Automatic
Panel Feeding Speed
20m/min
Certification
CE, ISO, FDA
Panel Thickness
10-60mm
Min. Panel Length
160mm
Min. Panel Width
150mm
Manufacturing Principle
Glue Tank Underneath
Air Pressure
0.7MPa
Voltage
380V/50Hz 3Phase (Customizable)
Total Power
16.5kw
Warranty
12 Months Service & Spare Parts
Delivery Time
5-7 Days
HS Code
84659100
Overall Dimensions
6585*970*1520mm
Product Description

MFZ450DJ with Pre-milling and Slotting Woodworking Automatic Edge Banding Machine applies to MDF, Block Board, Solid Wood Board, Particleboard, Polymer Door Plates, Plywood, etc., for Straight Line Edging and Trimming.

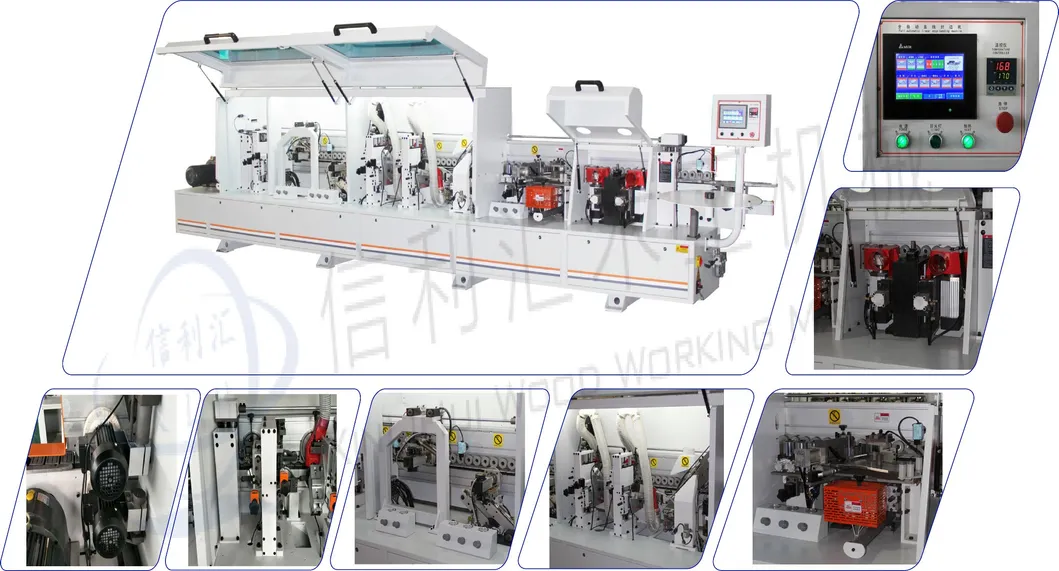

Automatic Edge Bonding Machine Product Show

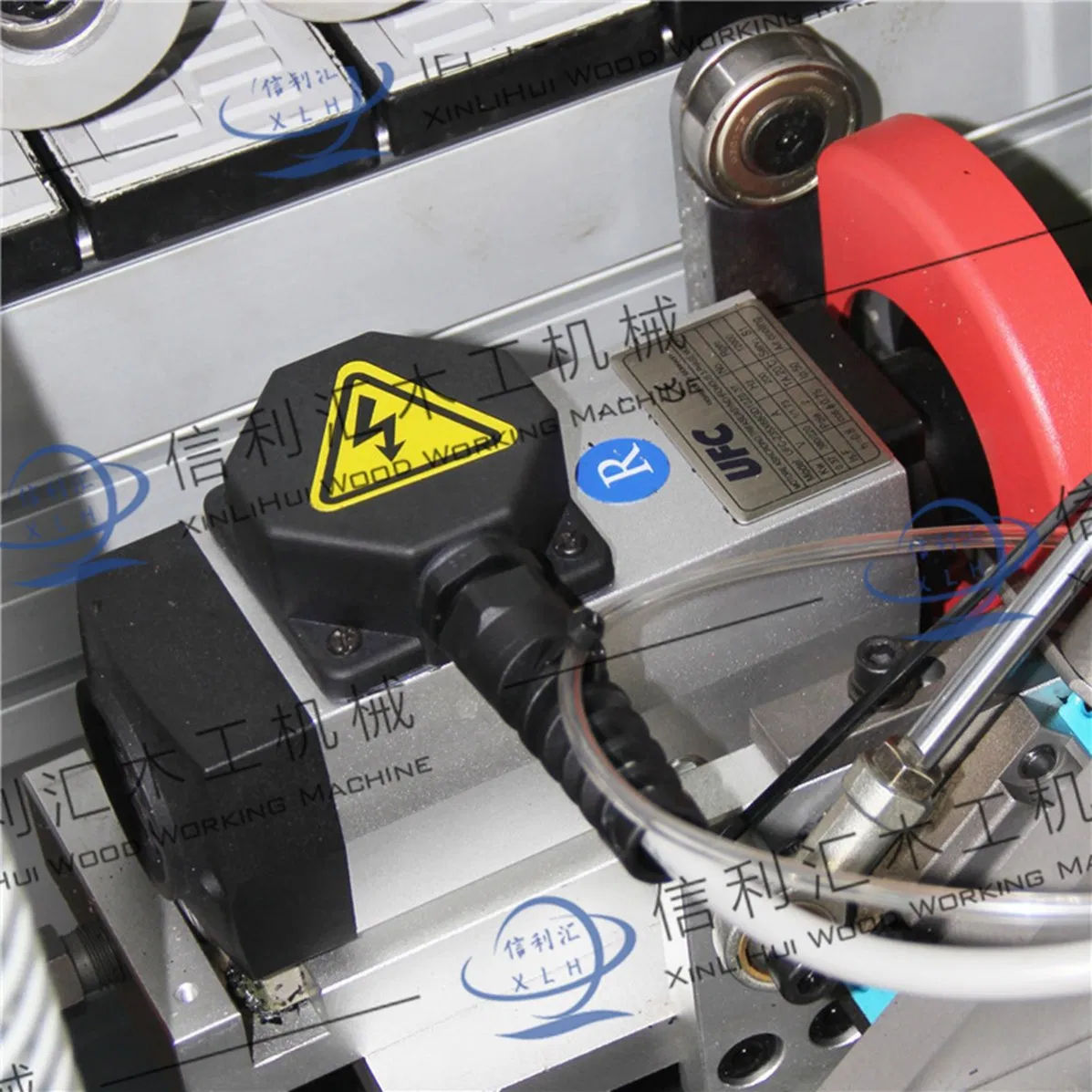

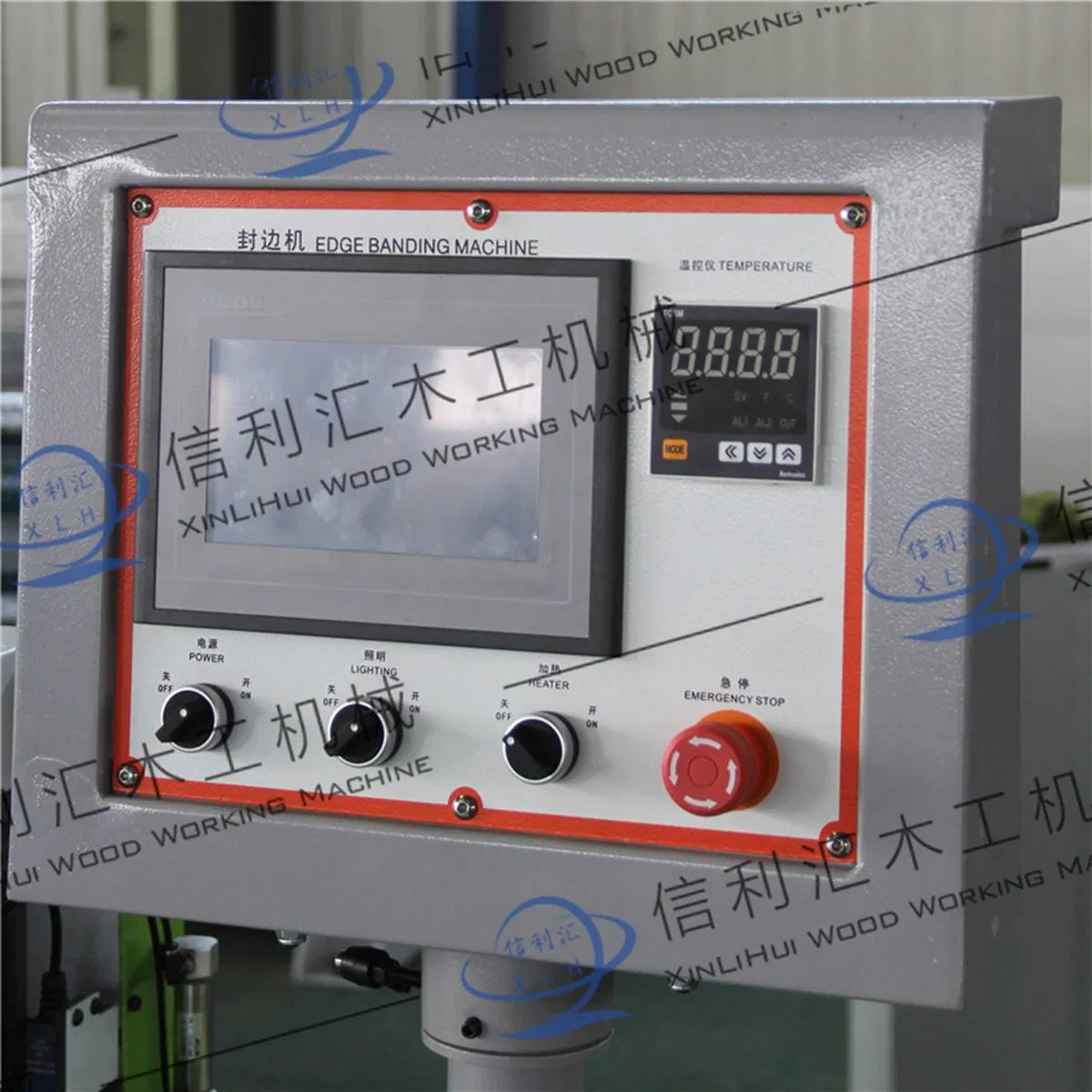

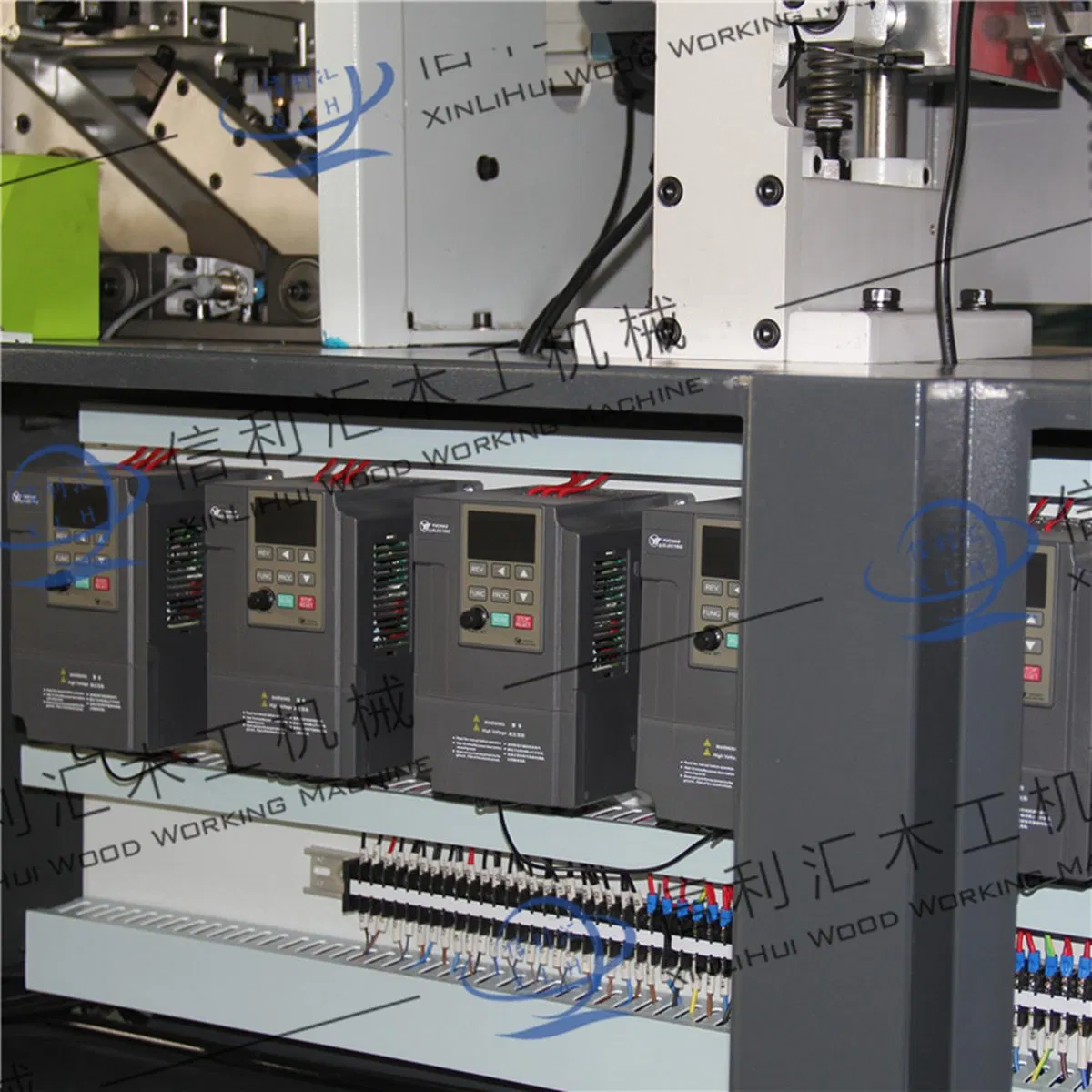

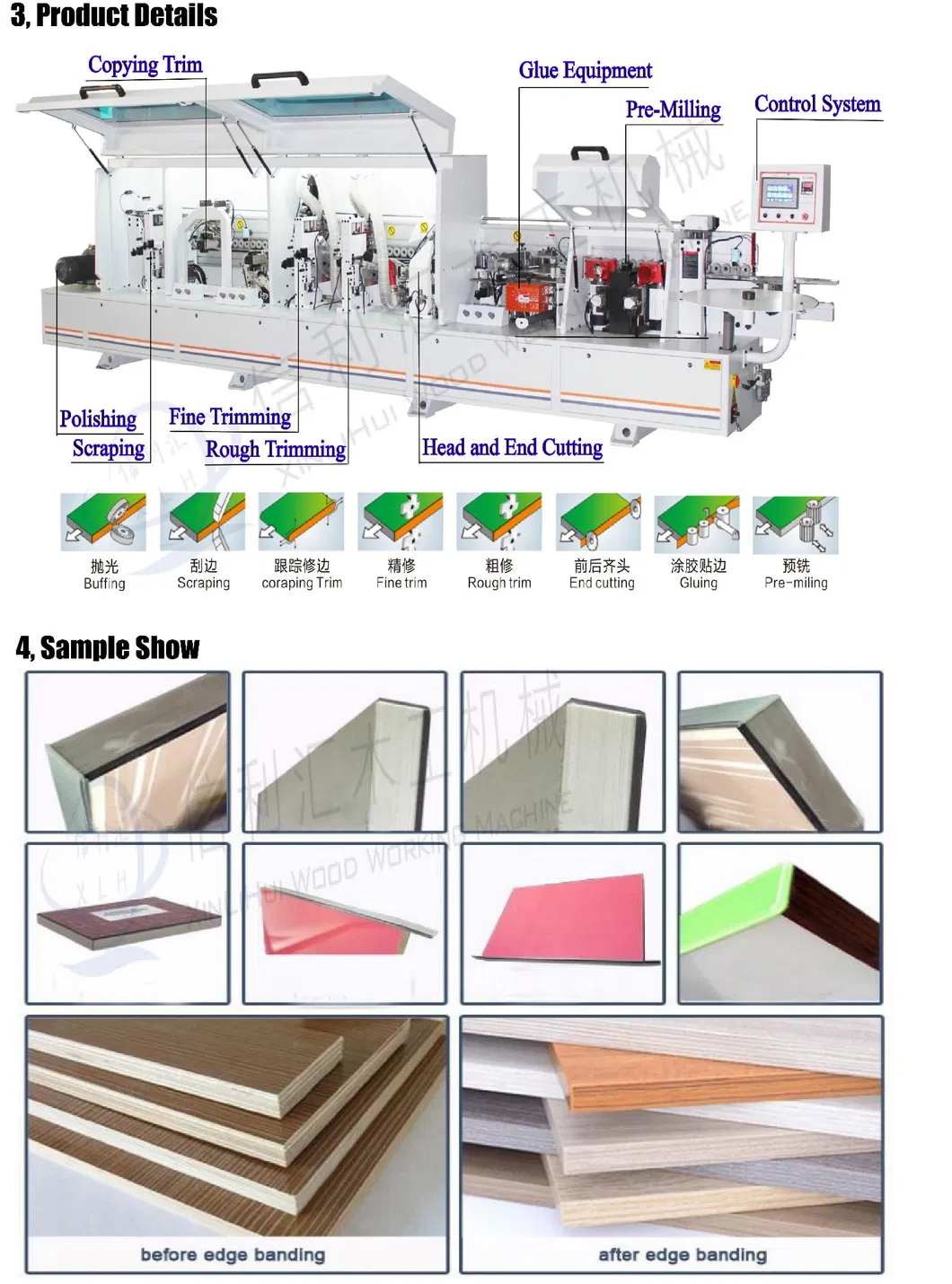

Machine Internal Details
Technical Specifications
Panel thickness10-60mm
Edging thickness0.4-3mm
Min. Width of panel≥80mm
Min. Length of panel≥160mm
Panel feeding speed≤20mm/min (variable speed)
Pneumatic power0.7Mpa
Panel feeding motor1.5KW
Glue axis motor0.75kw
Edge-cutting motor3kw*2 200Hz 12000r/min
Rough trimming motor1.1kw*2 200Hz 12000r/min
Fine trimming motor0.5kw*2 200Hz 12000r/min
Buffing motor0.25kw*2 50Hz 2800r/min
Heating power of glue tank2.5KW
Installed power9.57KW
Weight2600kg
Key Features
✅Flexible, high performance, easy debugging, and convenient maintenance.
✅High-quality electric and transmitting components for steady function.
✅Full-close safety shield for humanized operation.
✅Energy-saving and enduring design for stable performance.

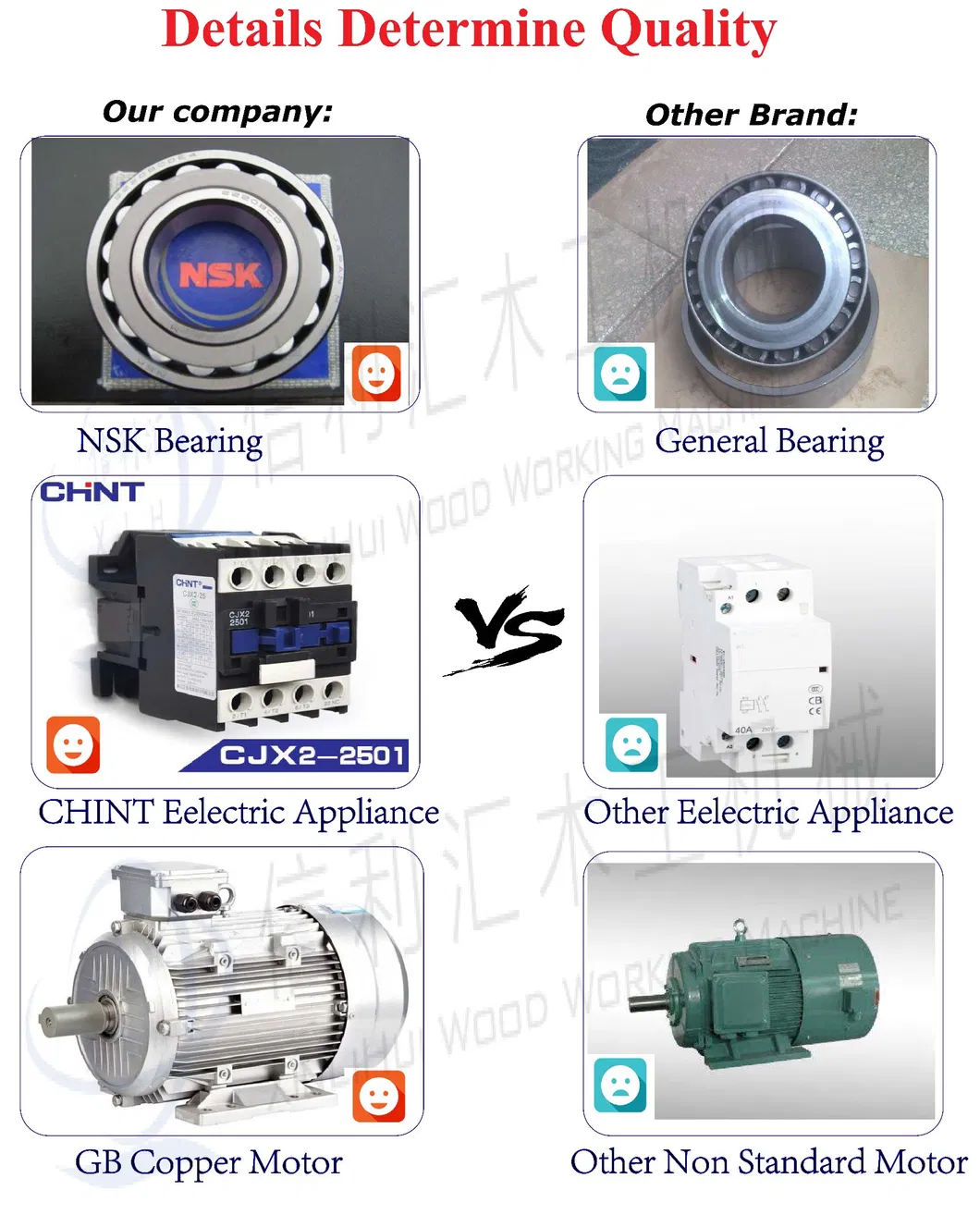

Machine Detail View 1
Machine Detail View 2
Machine Full View
Sample Board Finish
Frequently Asked Questions
1. What materials are compatible with this edge banding machine?
The MFZ450DJ is designed to process MDF, Block Board, Solid Wood Board, Particleboard, Polymer Door Plates, and Plywood.
2. What is the range of panel thickness supported?
The machine can handle panels with a thickness ranging from 10mm to 60mm.
3. Can the voltage be customized for my local power grid?
Yes, the standard 380V/50Hz 3-phase power configuration can be customized based on your specific requirements.
4. What is the maximum feeding speed of the machine?
The panel feeding speed is adjustable up to 20 meters per minute.
5. Does the machine include pre-milling and slotting functions?
Yes, this specific model (MFZ450DJ) is equipped with both pre-milling and slotting units for superior edge preparation.
6. What kind of warranty and after-sales service is provided?
We offer a 12-month warranty including free spare parts and service. Engineers are also available to service machinery overseas.
