Product Description

📋

Overview & Basic Info

Model NO.
YZ-C760
Edging thickness
0.4-3mm
Automatic Grade
Automatic
Certification
CE, ISO, FDA
Panel Thickness
10-60mm
Min. Panel Size
120mm x 50mm
Total Power
19kw
Weight
2500kg
Voltage
110V/220V/380V/415V
Air Pressure
0.6MPa-0.8MPa
⚙️

Product Description

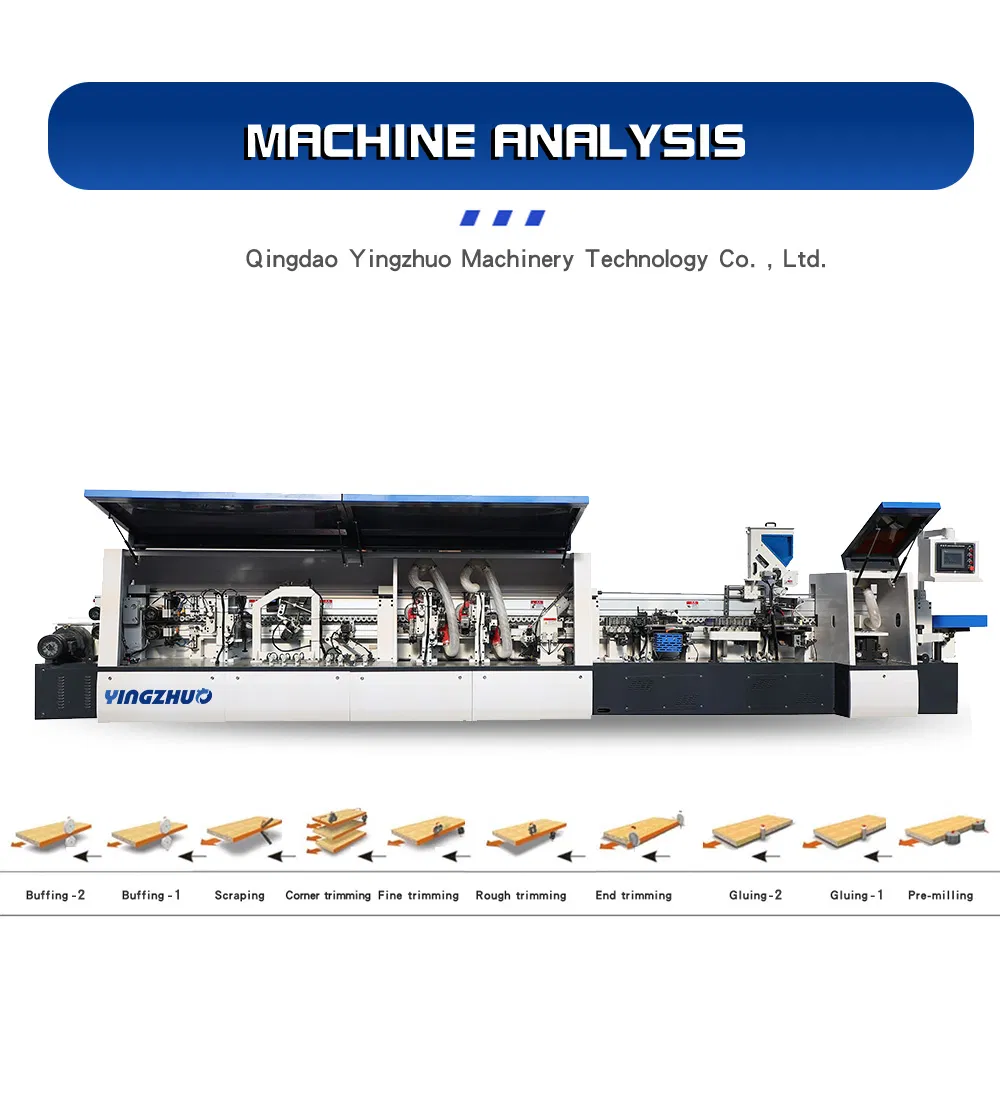

Edge Banding Machine Process Flow:
Pre-milling → Gluing-1 → Gluing-2 → End trimming → Rough trimming → Fine trimming → Corner Trimming → Scraping → Buffing-1 → Buffing-2

Applicable products: Solid wood panels, fibreboard, particleboard, MDF and other panel furniture. Edge materials include PVC, polyester, melamine, wood, etc.

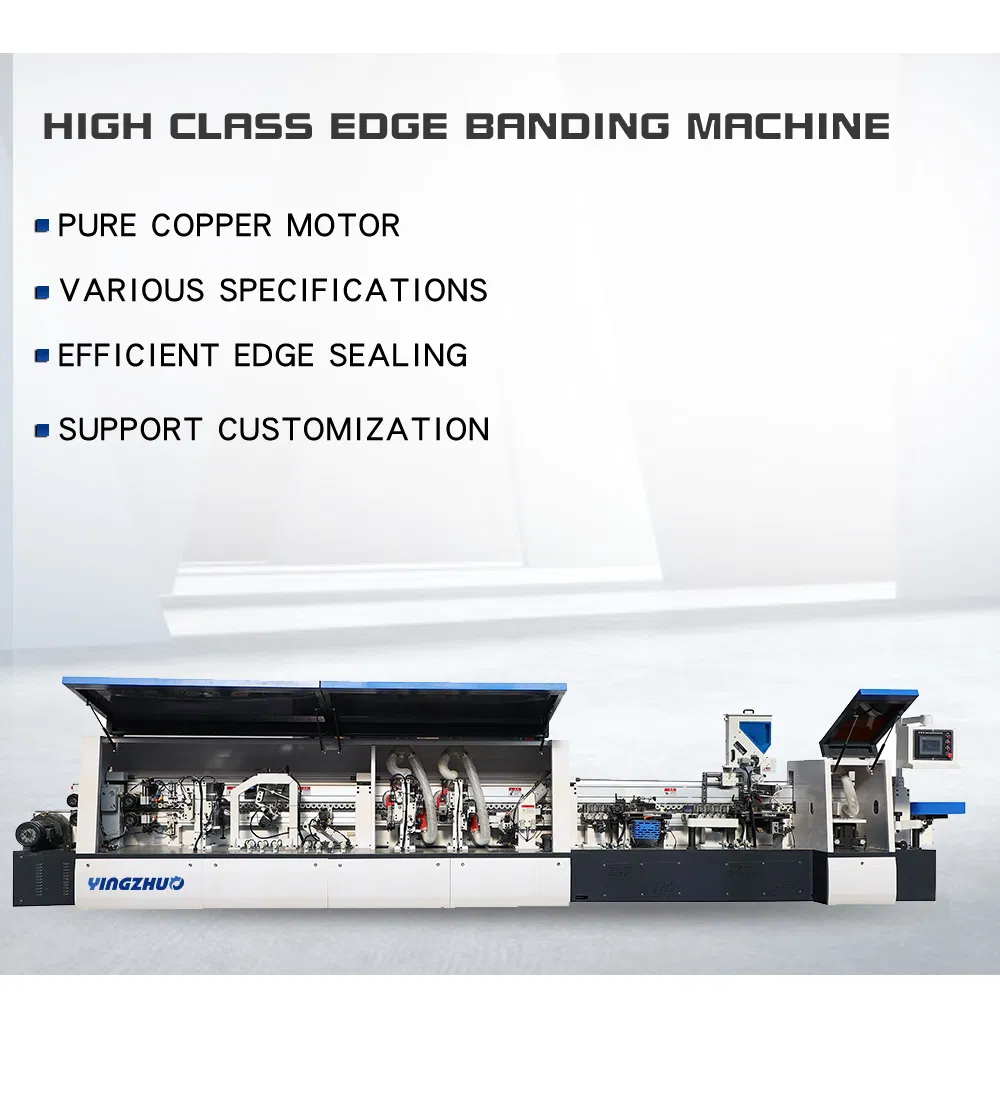

Automatic Edge Bander
Model YZ-C660 YZ-C760 YZ-CL760
Feeding speed18-25m/min18-25m/min18-30m/min
Panel length≥60mm≥60mm≥60mm
Panel width≥50mm≥50mm≥50mm
Band thickness0.4-3mm0.4-3mm0.4-3mm
Total power15kw19kw22kw
Machine size7200*1000*1700mm9000*1000*1700mm9900*1000*1700mm
🌟

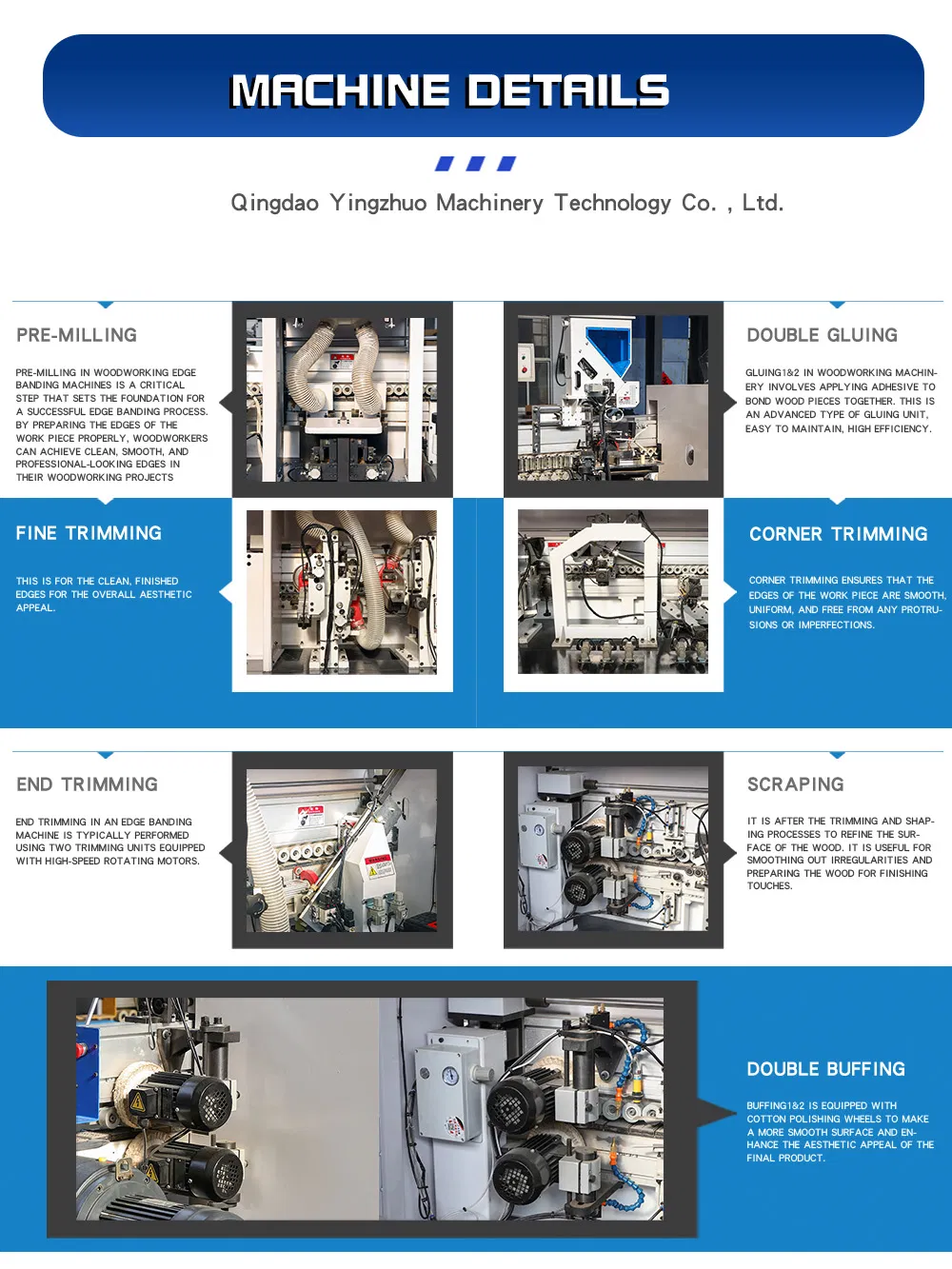

Key Features

  • Glue Mechanism: Special structure to gelatinize plates and coating materials uniformly for solid conglutination.
  • End Trimming: Precise guide track movement with high-frequency motors for smooth surface cutting.
  • Rough/Fine Trimming: Automatic tracking system to ensure excess materials are removed smoothly.
  • Profiling Unit: Makes board ends smooth and aesthetic.
  • Scraping & Buffing: Removes tool marks and polishes with cotton wheels for a perfect finish.
  • Cleaning Agents: Device to remove overflowing glue to improve overall workpiece quality.
Machine Detail 1
Machine Detail 2
📸

Detailed View

Internal Structure
Processing Example
Control System
Operation View
📜

Certifications & Shipping

Products are ISO9001:2008 and CE certified. We are dedicated to providing high-quality performance and reliable machinery.

Certification 1
Certification 2

Packaging & Logistics

Packaging Process
❓

Frequently Asked Questions

1 How to make an order?
You can order online or send us your details. We will contact you immediately to help you proceed with the order process.
2 What payment methods do you accept?
We accept L/C, T/T, and other standard payment methods for international transactions.
3 What is your delivery time?
Typically 30 days after the down payment. We maintain long-term cooperation with reliable forwarders to ensure smooth shipment.
4 What is your warranty policy?
If a product has factory defects, we provide free replacement for spare parts. For damage during shipping or other reasons, we will provide the best possible solutions.
5 What services do you provide?
We offer a one-stop service for individuals and international companies, including OEM services and experienced after-sales technical support with overseas engineer services available.
6 Are the machines customizable?
Yes, our machines can be customized to meet specific production requirements and voltages for different regions.
