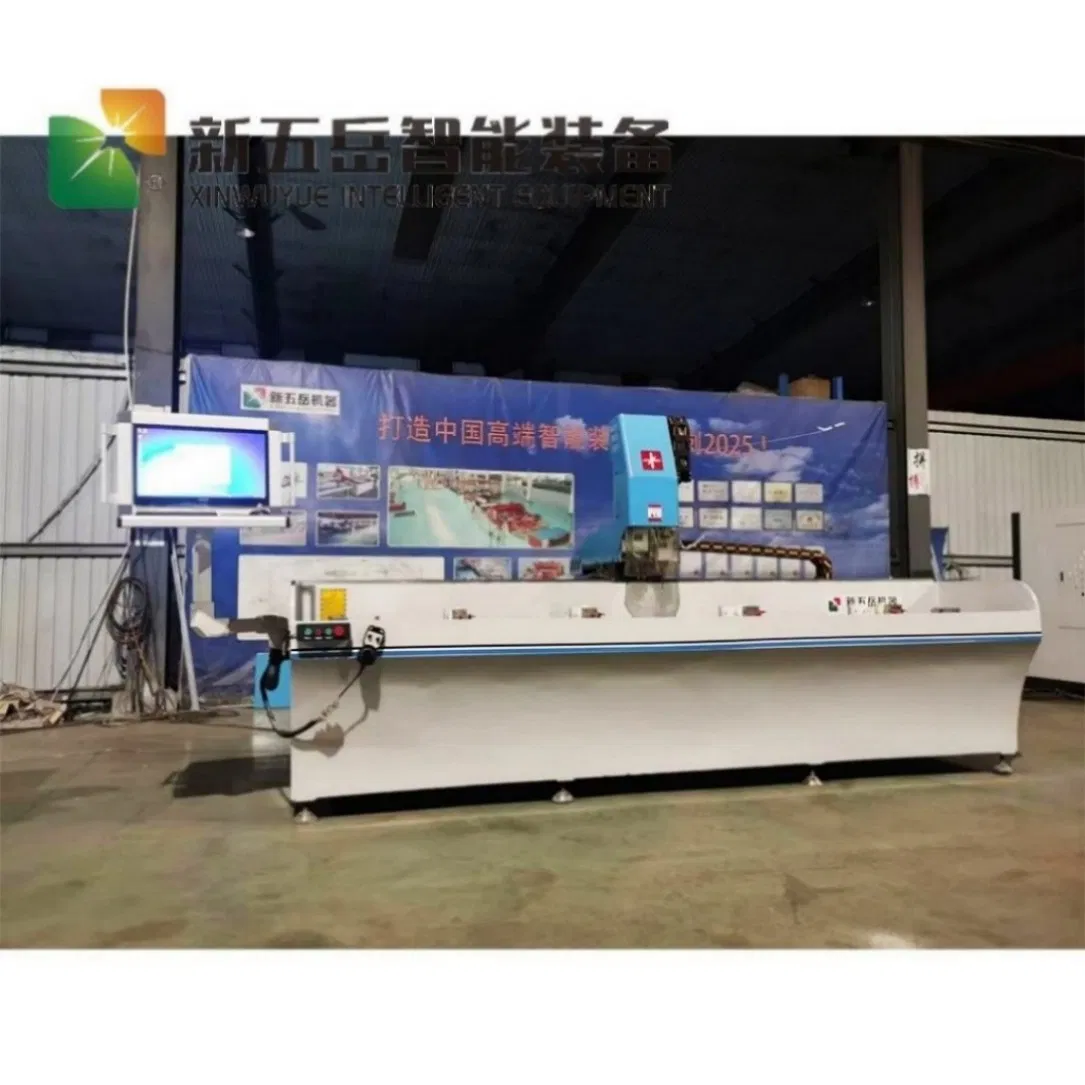

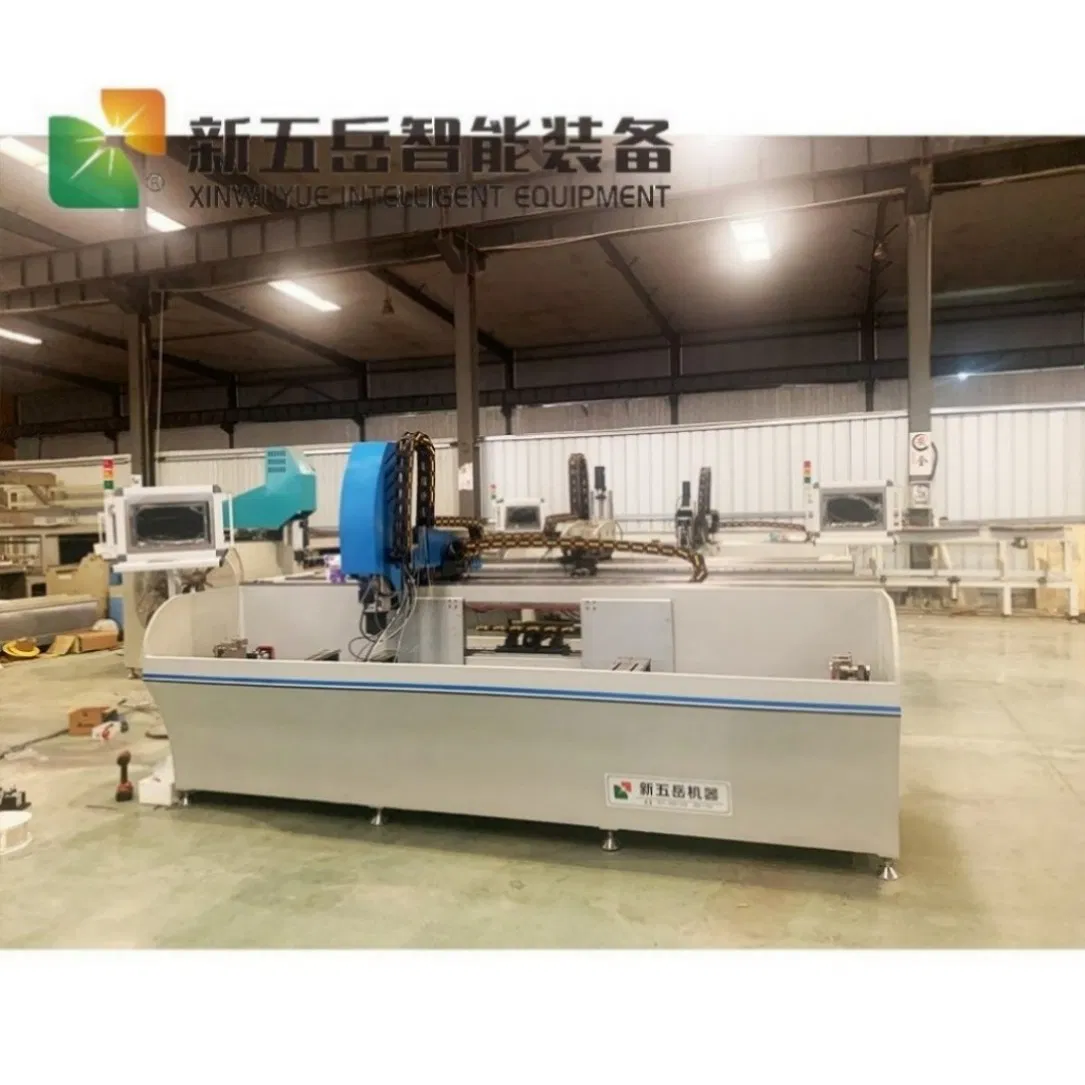

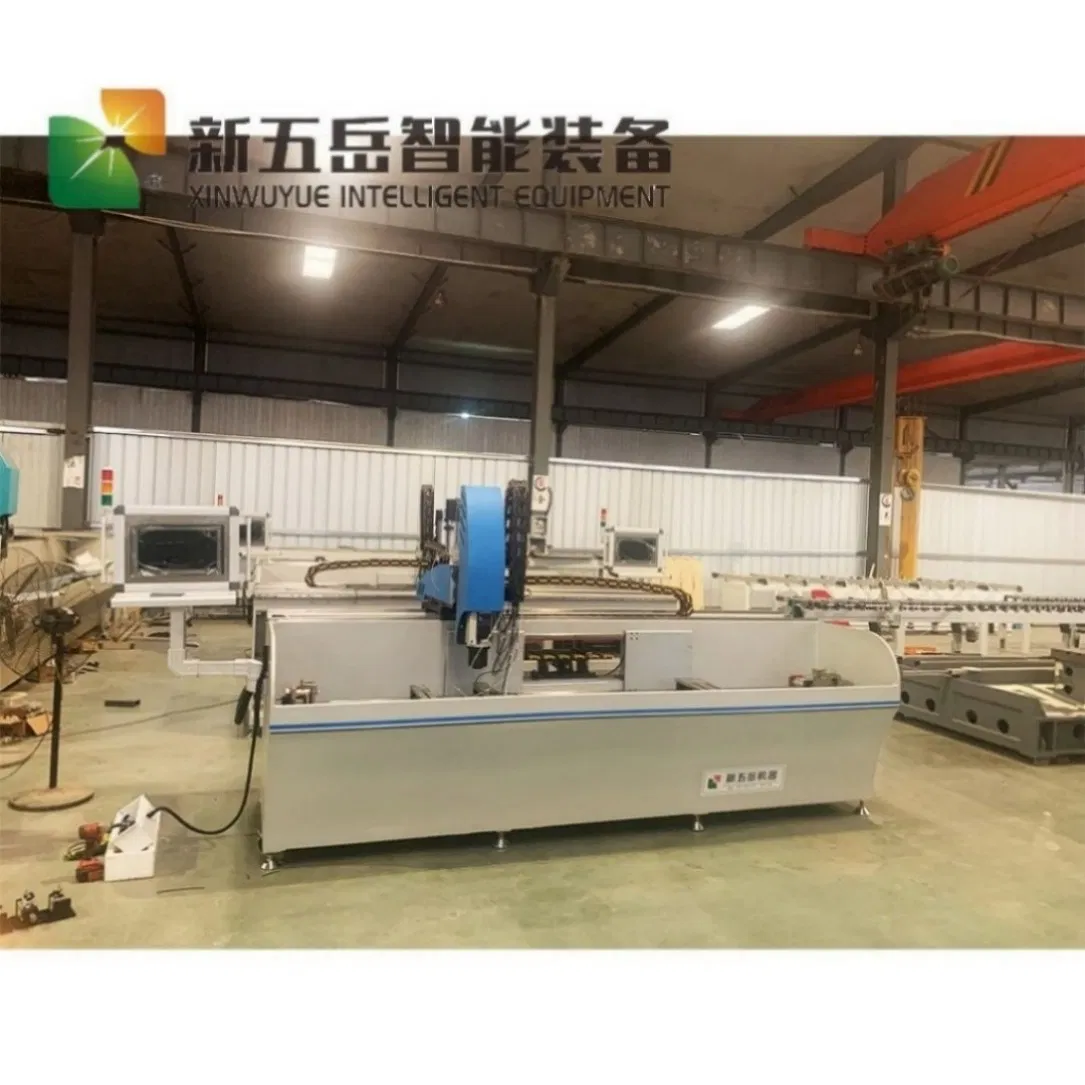

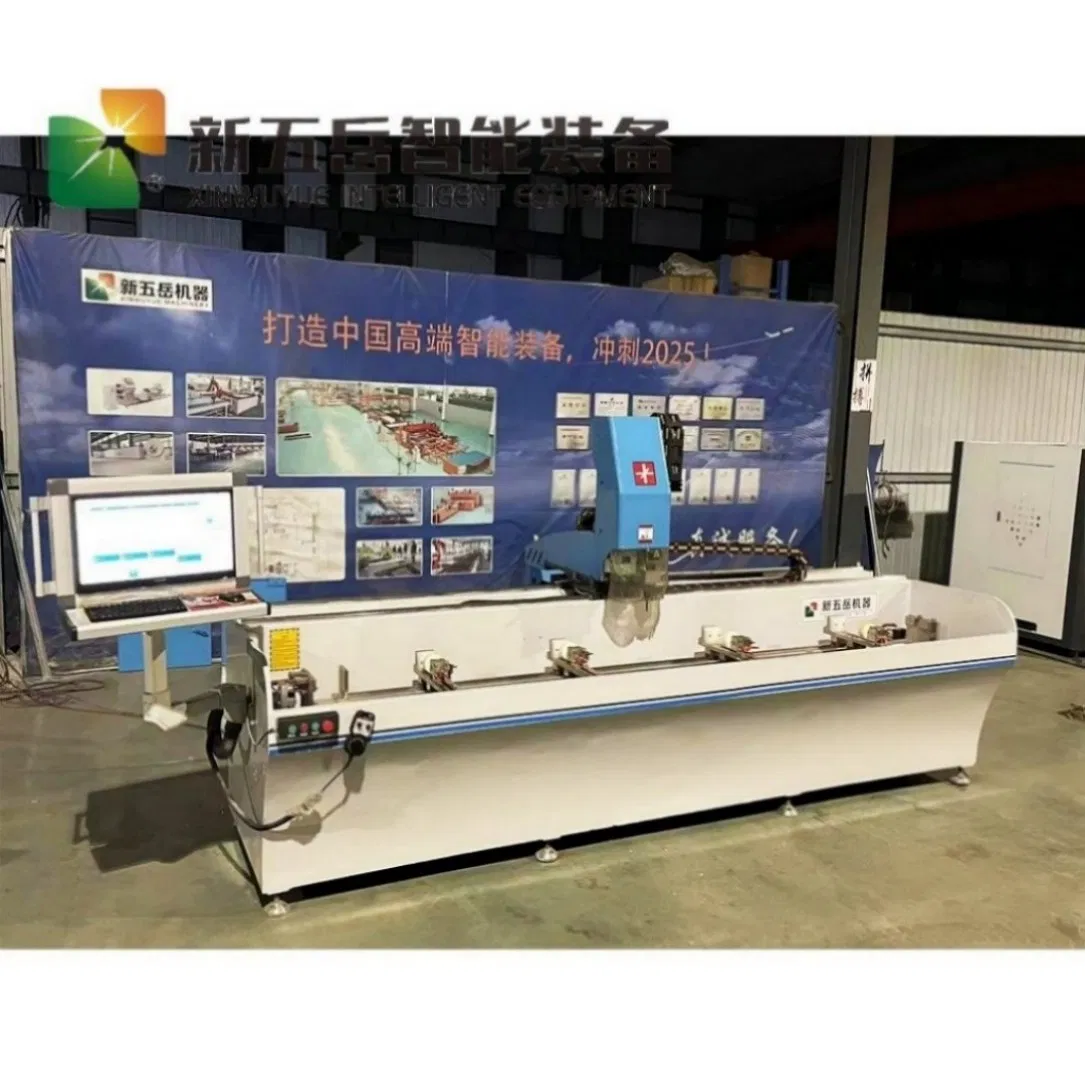

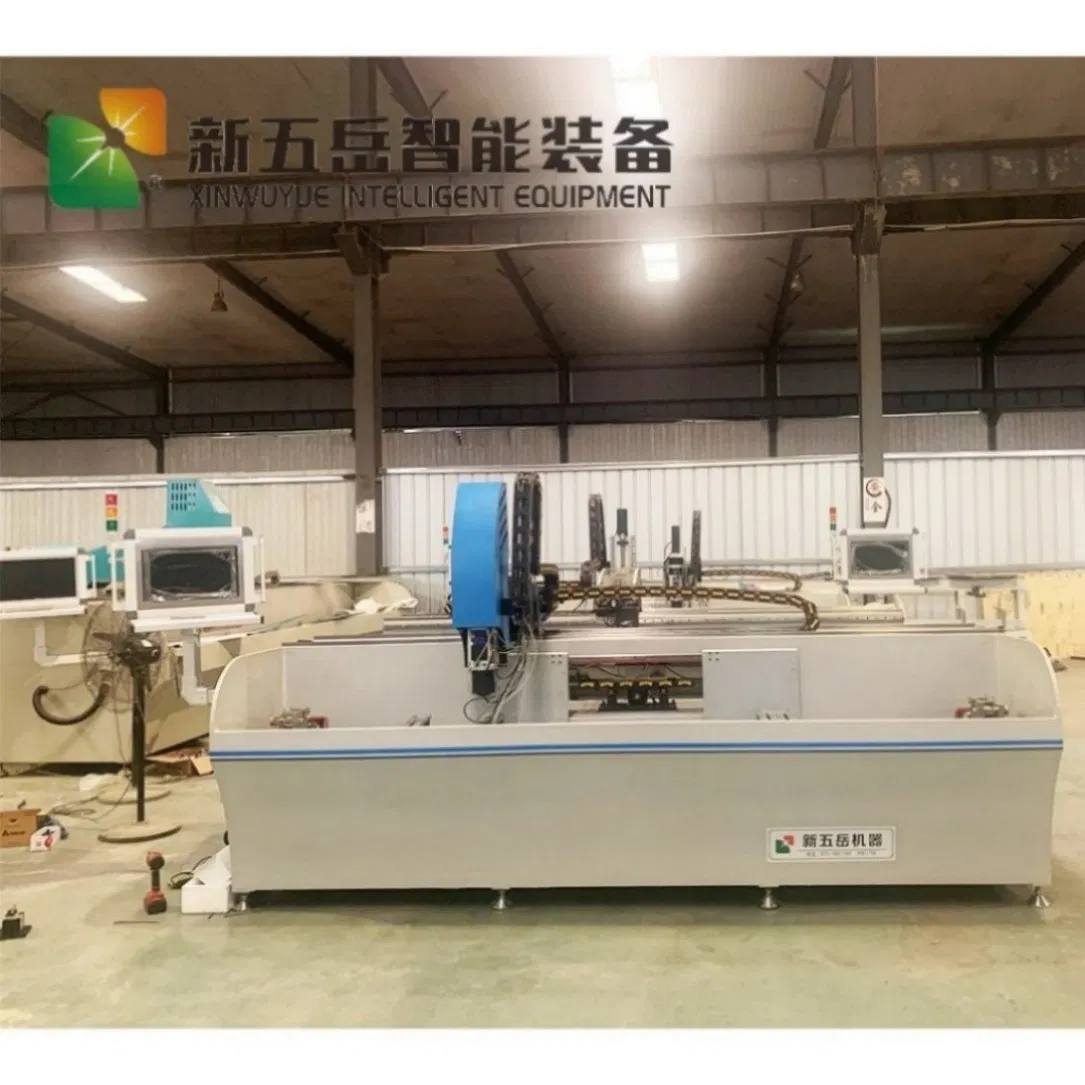

Zhixing Machine
Zhixing Machine

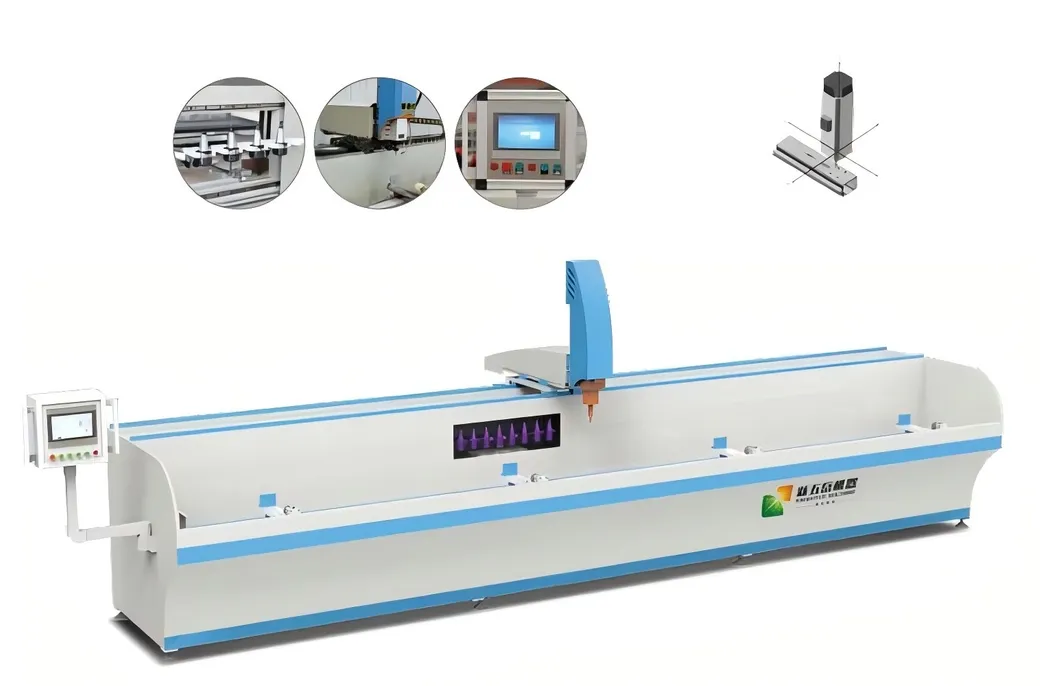

Main spindle adopt air-cooling electric main axis, providing high precision, high safety and high reliability. The system utilizes a professional CNC control system and includes professional CAD-CAM programming software.
It can transform processing G code automatically, ensuring easy operation, high efficiency and lower labor intensity. The machine features imported guide rails and sliding blocks. X-axis adopts high precision oblique gear and rack driving, while Y and Z axes utilize high precision ball screw drive.
Internal blade storage can hold 6 sets of blades with ISO30 standard handles. The drive is stable, significantly improving the precision of the whole machine.
The machine incorporates a manual pump oil supply system and blades are managed by a system-controlled spray cooling device. Main electrical parts, including circuit breakers and AC contactors, utilize top-tier international brands. All main components adopt a steel structure and have undergone aging treatment for maximum stability.
| Power supply | 380V/50Hz |
| Working pressure | 0.5~0.8MPa |
| Total power | 12kW |
| Main axis power | S6:9kW S1:7.5kW |
| Max rotary speed | 24000r/min |
| X/Y/Z-axis travel | 6000mm / 500mm / 350mm |
| X-axis speed | 50000mm/min |
| Repeat location accuracy | ±0.02mm |
| Overall dimension | 7100×1600×2200mm |
| Weight | About 2360kg |
