Aluminum Profile CNC Cutting and Machining Center
Aluminum Profile CNC Cutting and Machining Center
Aluminum Profile CNC Cutting and Machining Center
Aluminum Profile CNC Cutting and Machining Center
Aluminum Profile CNC Cutting and Machining Center
1 / 5
Aluminum Profile CNC Cutting and Machining Center
Aluminum Profile CNC Cutting and Machining Center
Aluminum Profile CNC Cutting and Machining Center
Aluminum Profile CNC Cutting and Machining Center
Aluminum Profile CNC Cutting and Machining Center

Aluminum Profile CNC Cutting and Machining Center

Customization: Available
After-sales Service: Available
Warranty: 1 Year
Send Inquiry

Product Description

⚙️ Basic Info
Model NO.
DLJXB-CNC-6800
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Motor Power
3kwx5
Air Pressure
0.6~0.8MPa
Cutting Angle
45° to 135°
Cutting Length
300-6800mm
Cutting Speed
15s/Piece
Origin
China
📘 Product Description

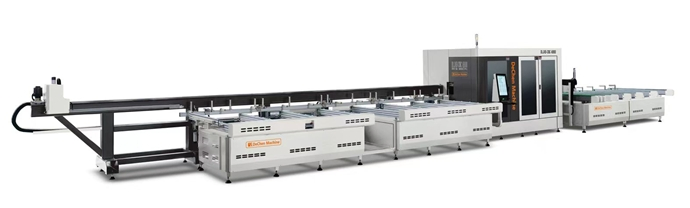

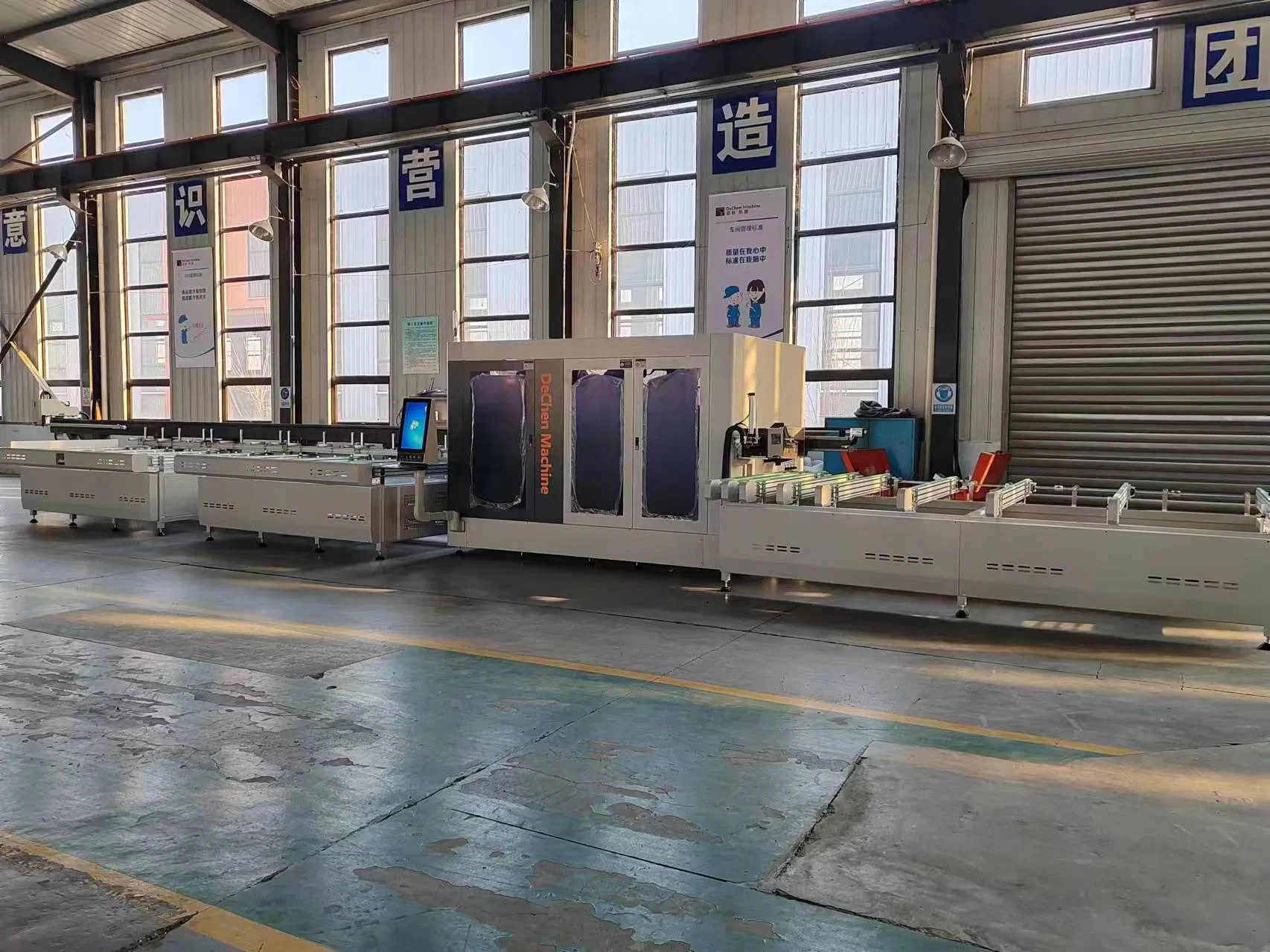

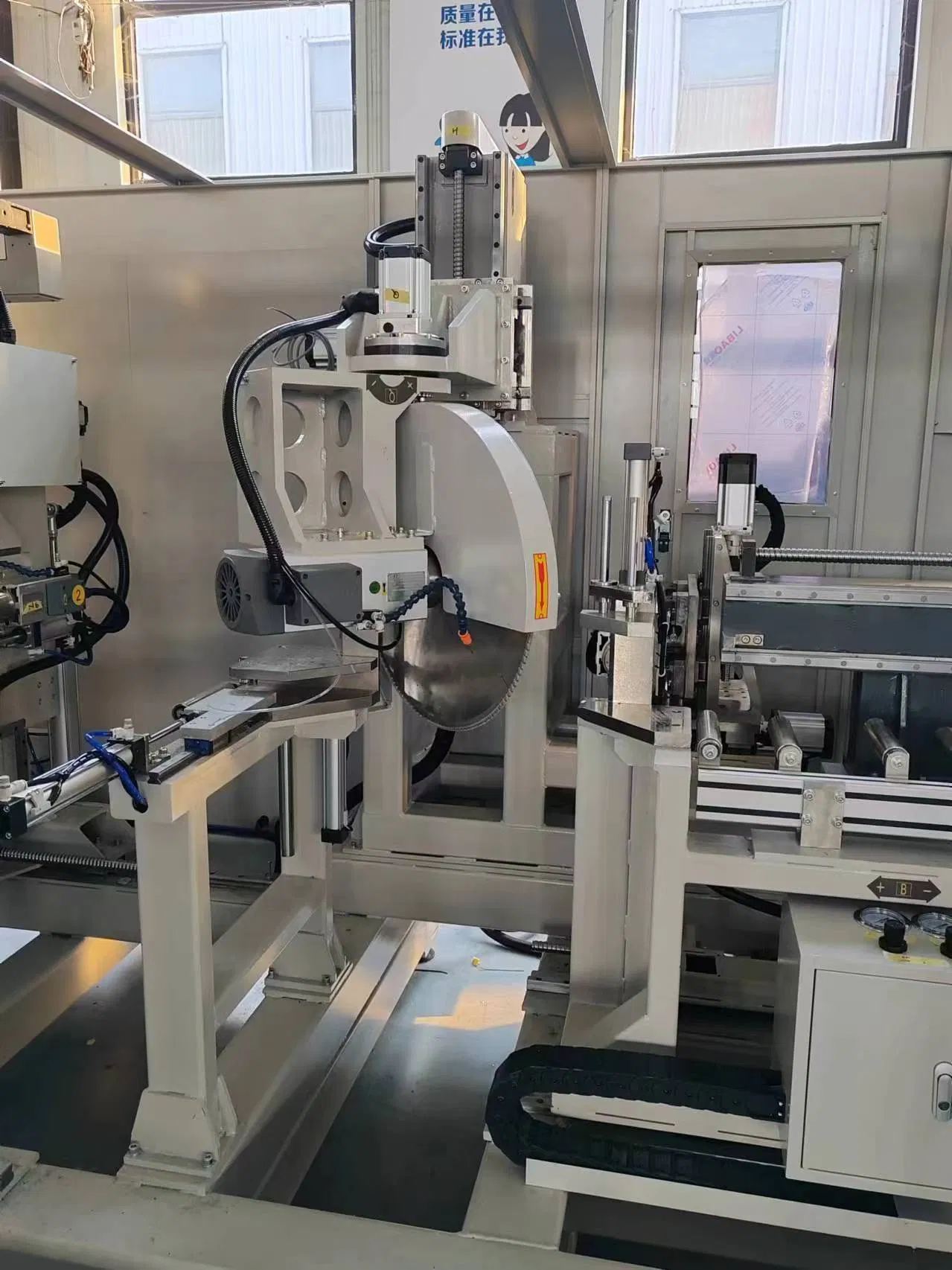

Aluminum Profile CNC Cutting and Machining Center DLJXB-CNC-6800

Specification Highlights:

  • For aluminum profiles arbitrary angle cutting from -45° to +45°, featuring four-sided milling and laser marking line.
  • Fully automated functions: raw material auto-loading, auto-cutting, auto-milling, auto-output, and auto-labeling.

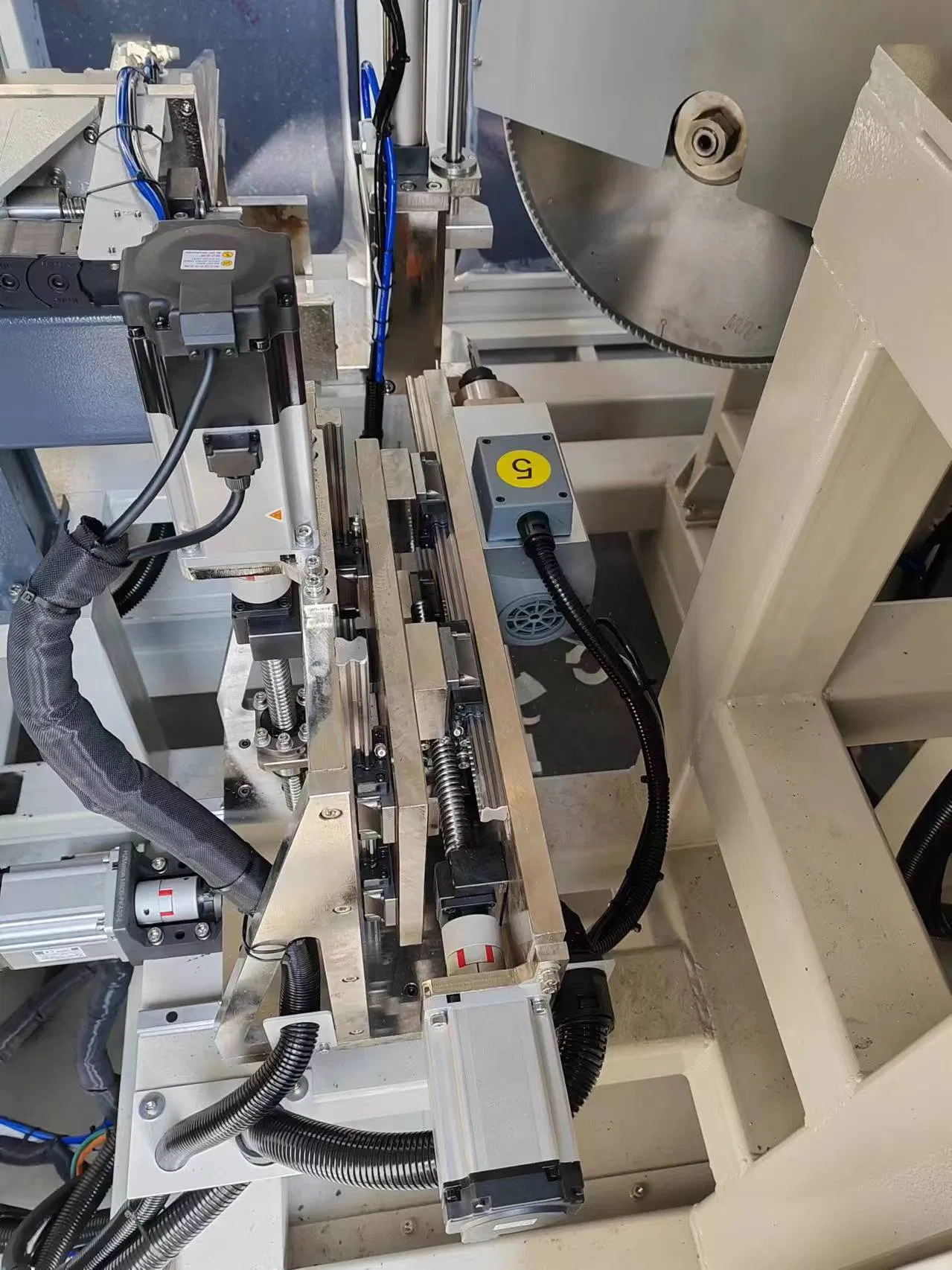

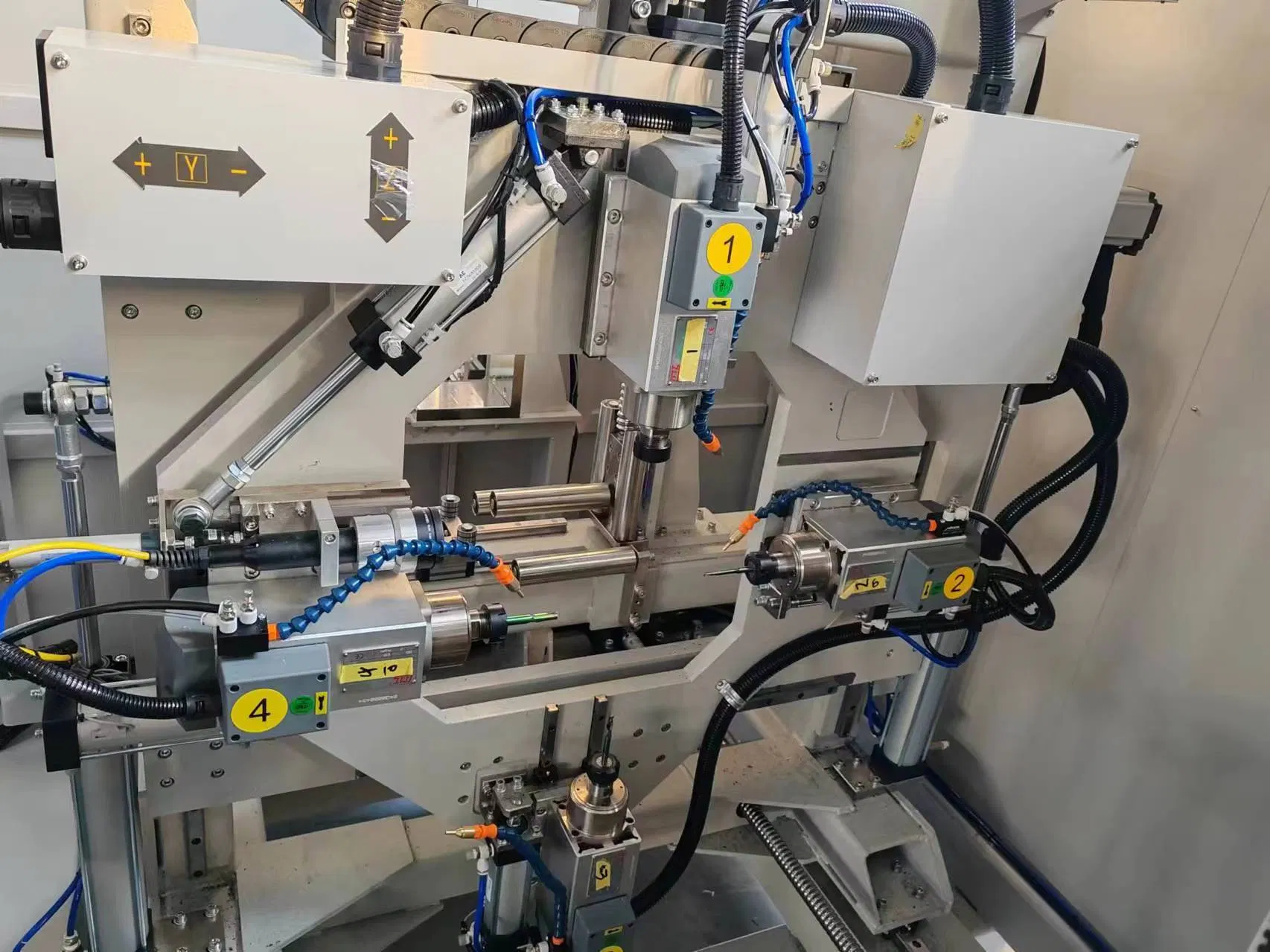

  • Equipped with four drill-milling spindles and laser engraving devices on the left; single main milling on the right for simultaneous processing.
  • Fully enclosed sawing and milling unit to prevent aluminum splashing and reduce operational noise.
  • Internal automatic chip removal system for efficient waste transfer.
  • High precision reducer in the rotating mechanism ensures super long life and cutting accuracy.
  • Advanced laser marking for accurate positioning and high efficiency.
  • Integrated automatic discharge system and automatic labeling device for unique 2D code information tracking.
  • Compatible with ERP software for intelligent processing and code scanning.
  • Intuitive Windows operating interface with remote service capabilities for maintenance and training.
📊 Technical Parameters
Parameter Item Specifications
Power Supply380v 3p 50hz/60hz
Motor Power3Kw
Spindle Power3KWx5
Total Power30KW
Air Consumption120L/min
Cutting Angle-45° to +45°
Cutting Length300-6800mm
Cutting Width / Height30-150mm
Saw Blade Diameter550mm
Repeat Position Error±0.1mm
Overall Dimension170000x5000x2300mm (LxWxH)
🏢 Profile & Production

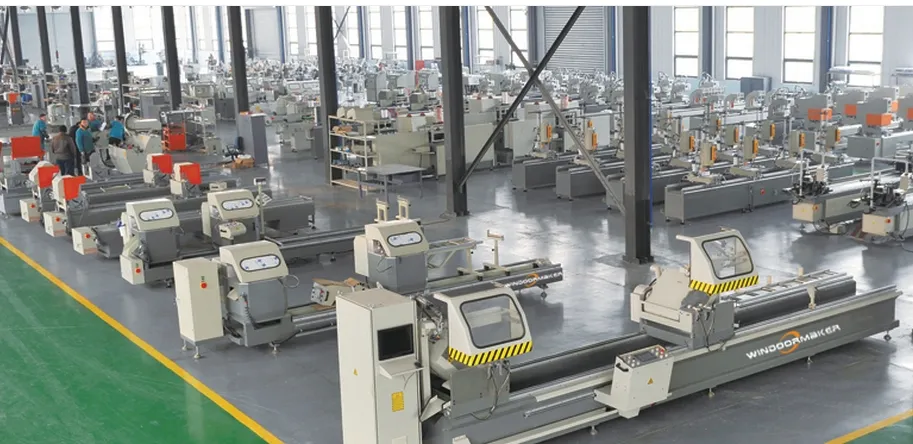

CNC Center Profile

Engineering company specialized in the manufacture and supply of UPVC & aluminum window and door machines with a factory covering an area of 15,000 m².

🛠️ Other Products & Certifications

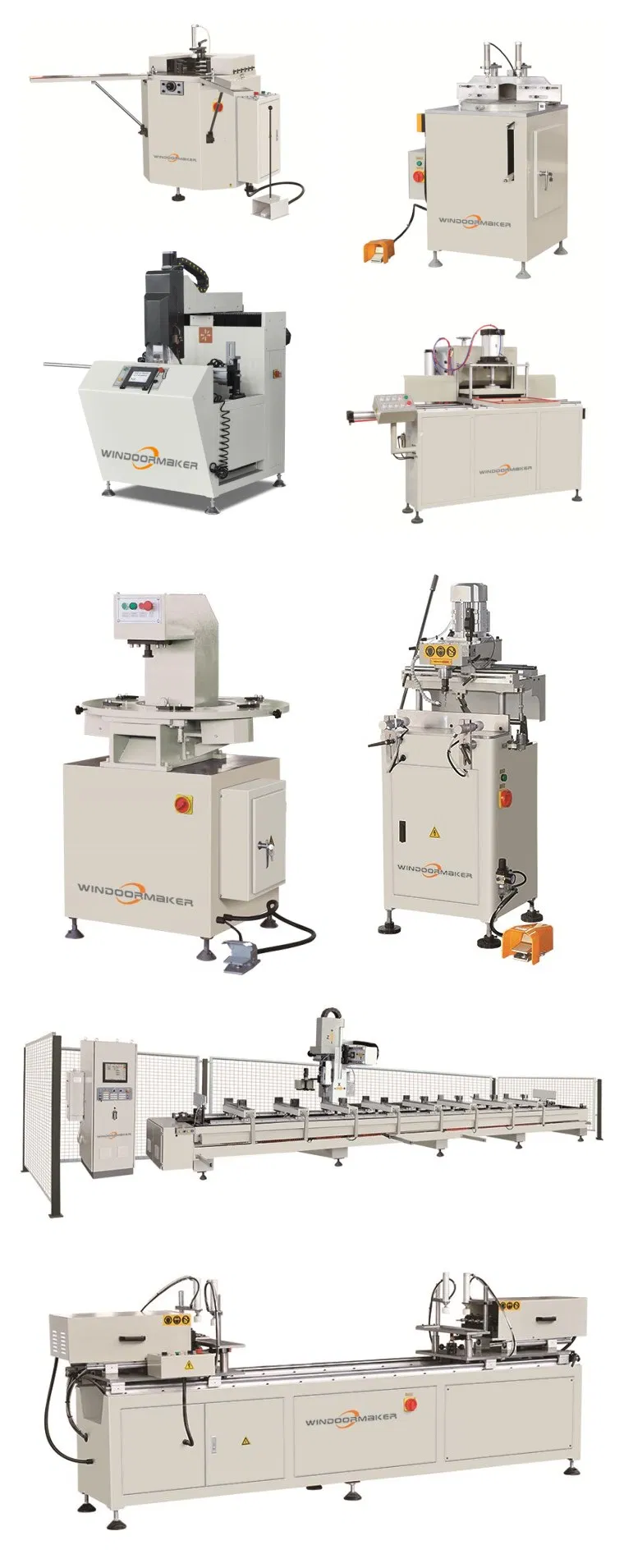

Other products

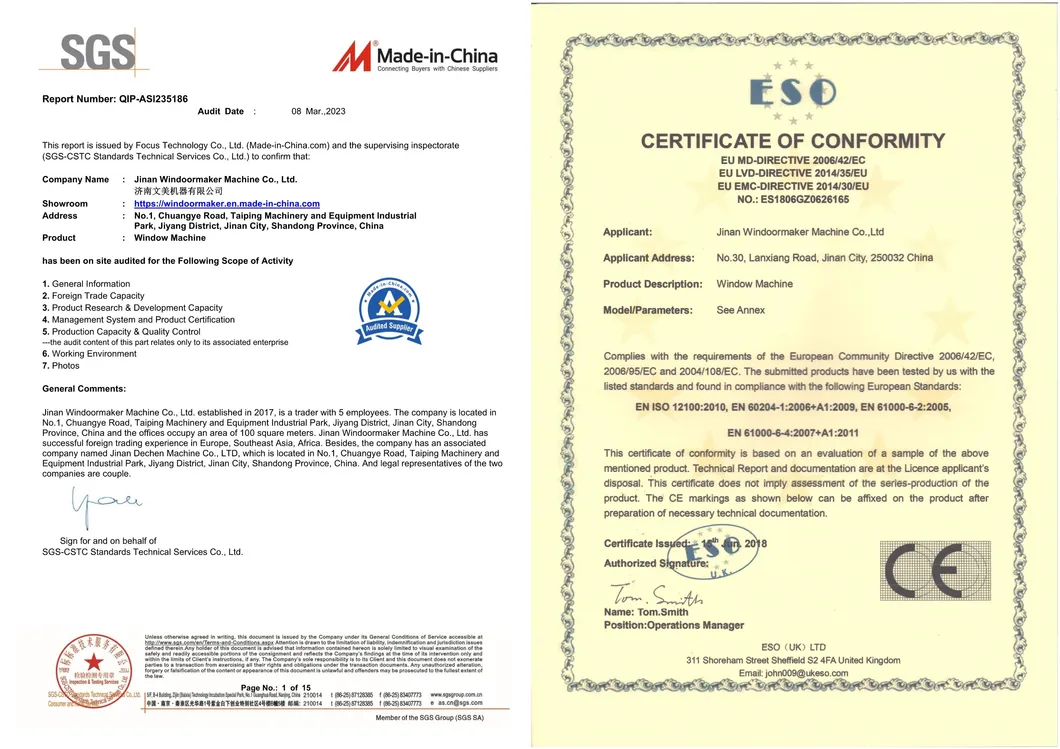

Certifications
📦 Packaging & Shipping
Packaging
🤝 Customer Feedback

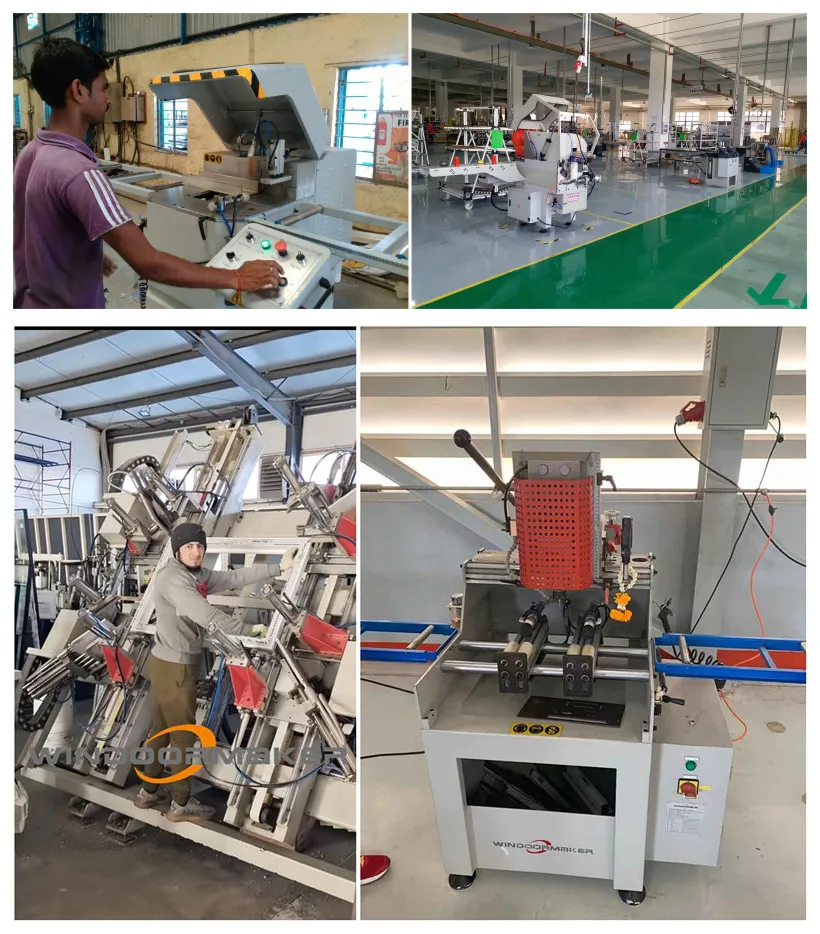

Feedback 1

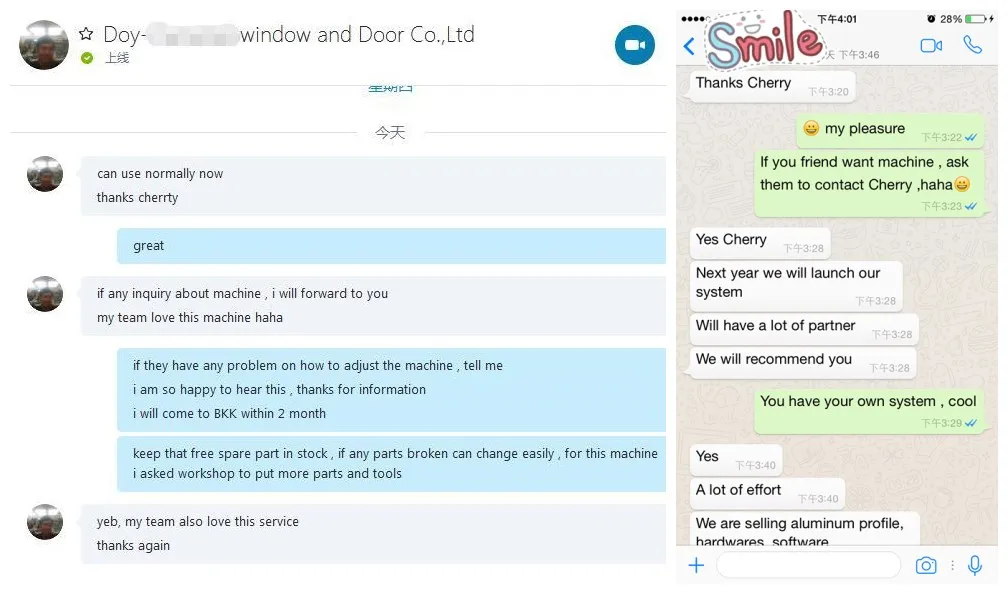

Feedback 2

Frequently Asked Questions

What materials can this CNC center process?
It is specifically designed for high-precision cutting and milling of aluminum profiles.
What are the cutting angle ranges?
The machine supports arbitrary angle cutting ranging from -45° to +45°.
Is the operation interface easy to use?
Yes, it features a Windows-based operating interface that is simple and intuitive for operators.
Does the machine support remote technical support?
Yes, it includes a remote service function for maintenance, training, and troubleshooting to reduce downtime.
How does the machine handle waste materials?
The unit is equipped with an internal automatic chip removal system to transfer cut-off bits and pieces efficiently.
Can this machine be integrated with factory software?
Yes, it can be linked with mainstream doors and windows ERP software for intelligent processing and data management.
