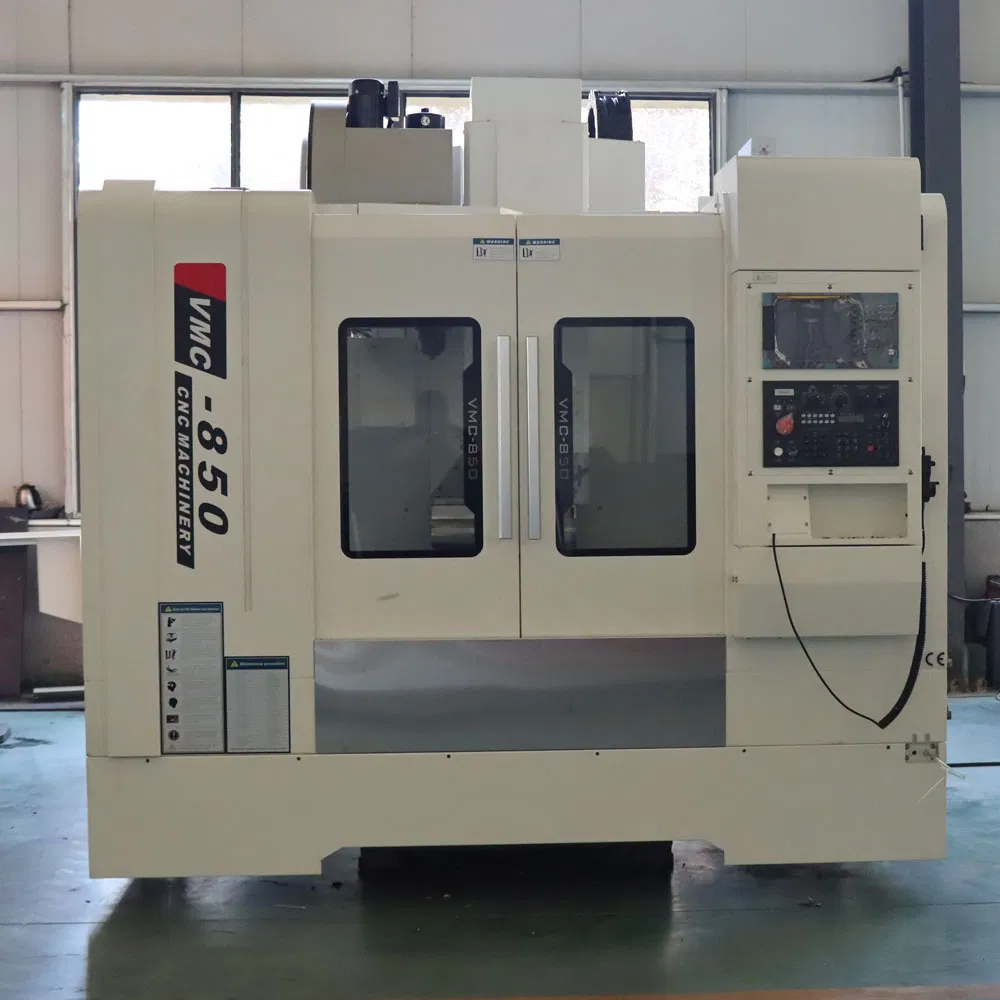

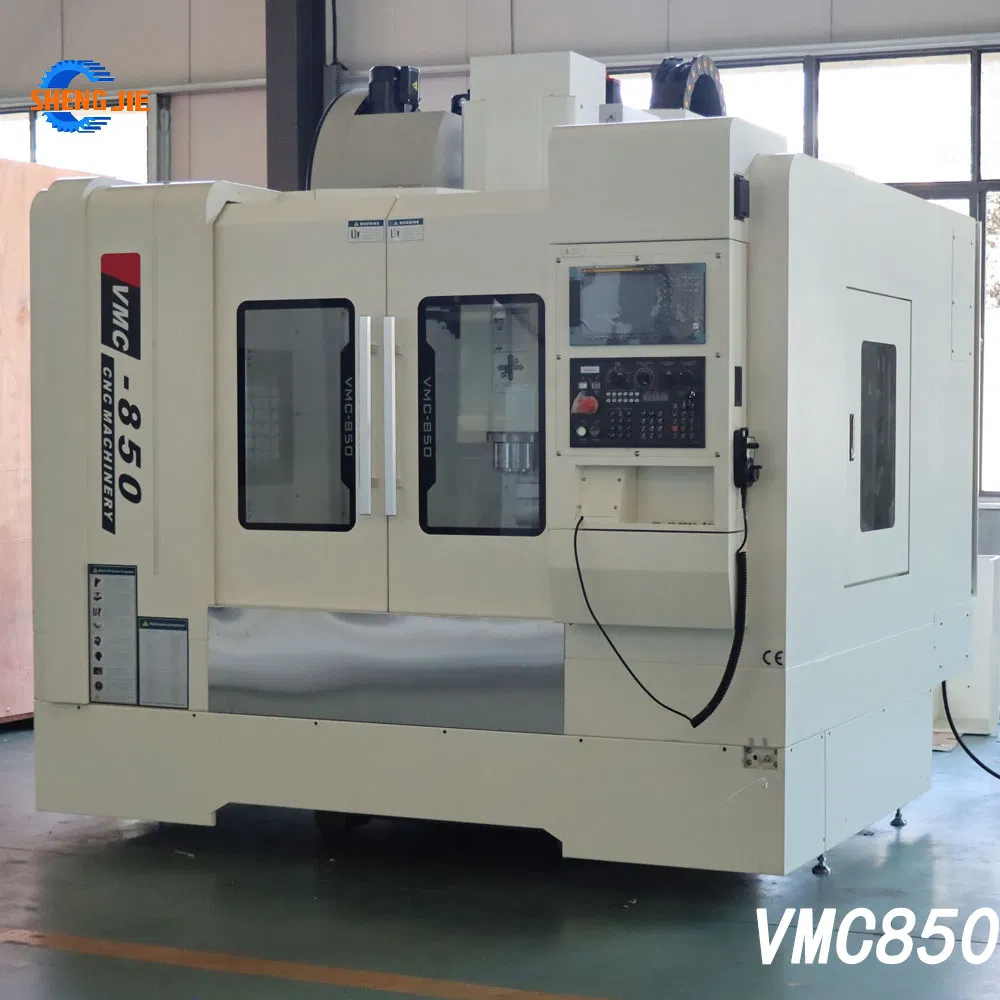

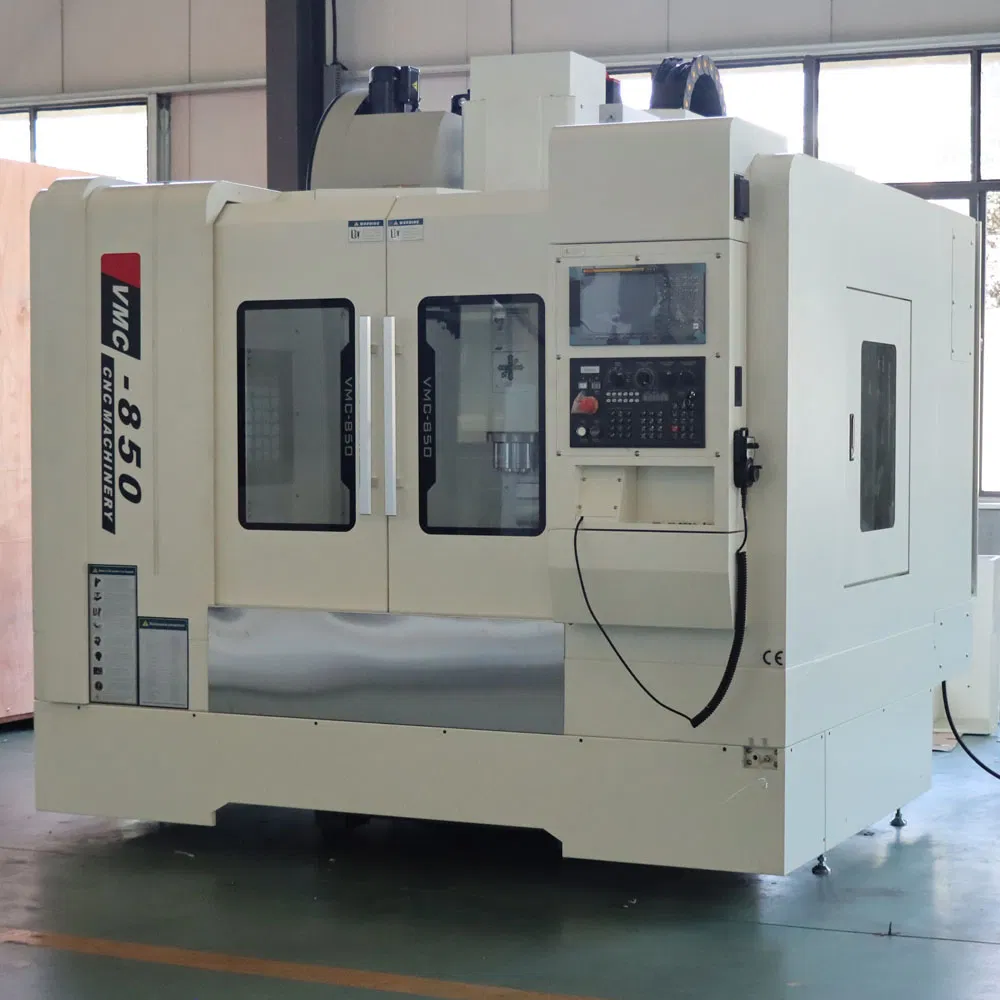

Small 3/4-Axis Machining Center Vertical VMC850 CNC Machining Center with CE
The VMC850 automatic vertical machining center is equipped with a high-quality linear guide system. It features high-quality resin sand, precision spindle, high-grade ball screws and locknuts, an automatic lubrication system, and an optional chip conveyor. This vertical machining center is suitable for machining and mold manufacturing, adapting to processing requirements from roughing to finishing, and can perform a variety of processes such as milling, drilling, tapping, and boring.
| SPECIFICATIONS | Units | VMC850 |
|---|---|---|
| Table size | mm | 1000*500 |
| X/Y/Z axis travel | mm | 800 / 500 / 500 |
| Max. worktable load | kg | 500 |
| T slot(number-width*pitch) | - | 5-18*90 |
| Max. spindle speed | rpm | 8000 |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 7.5 |
| Positioning accuracy | mm | 0.0075 |
| Tool magazine | - | Arm 24 |
| Machine weight | kg | 5000 |

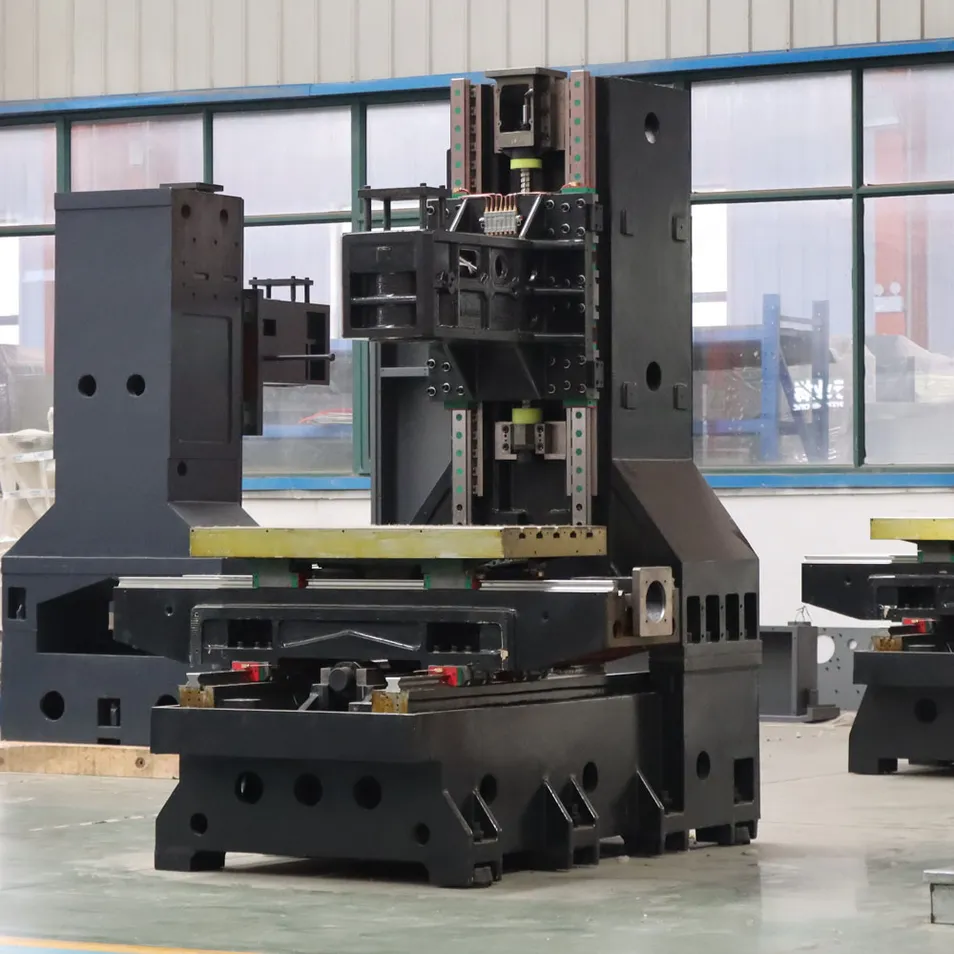

MACHINE CONSTRUCT
High strength HT300 cast iron

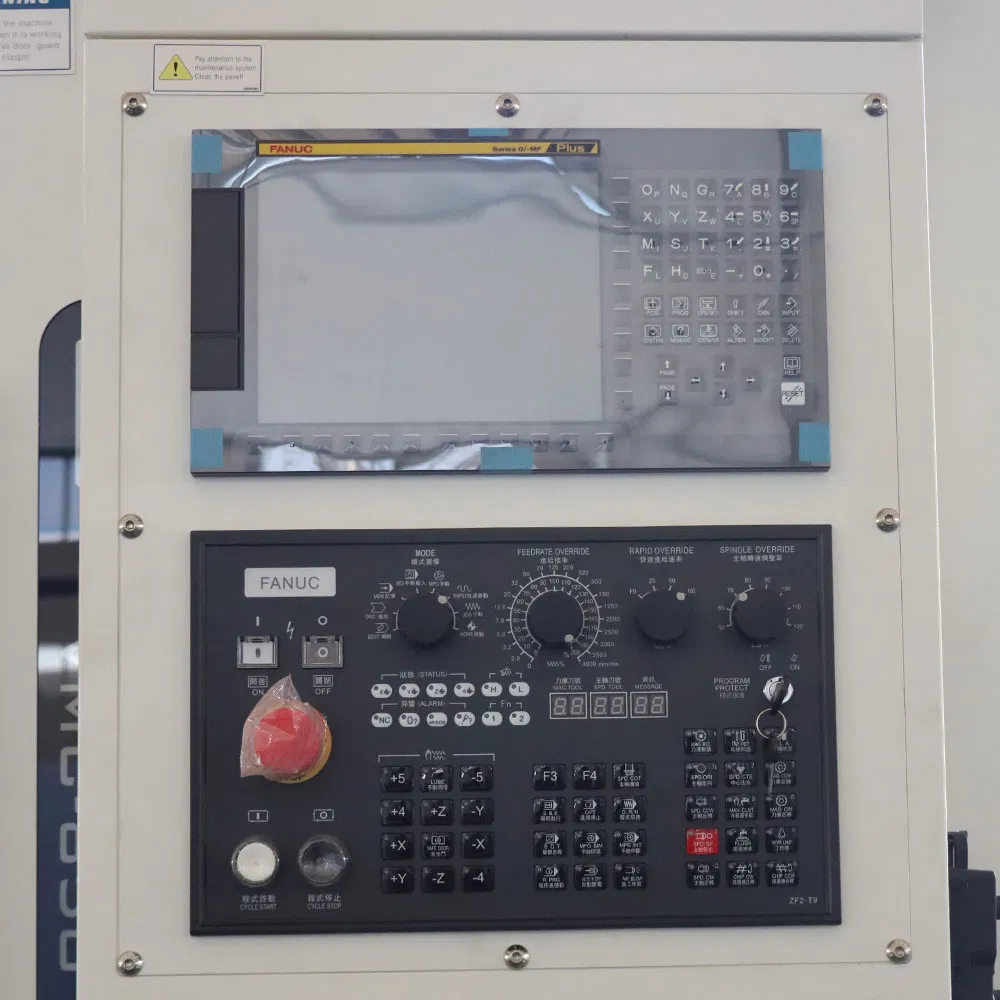

CONTROL SYSTEM
Standard high-performance control

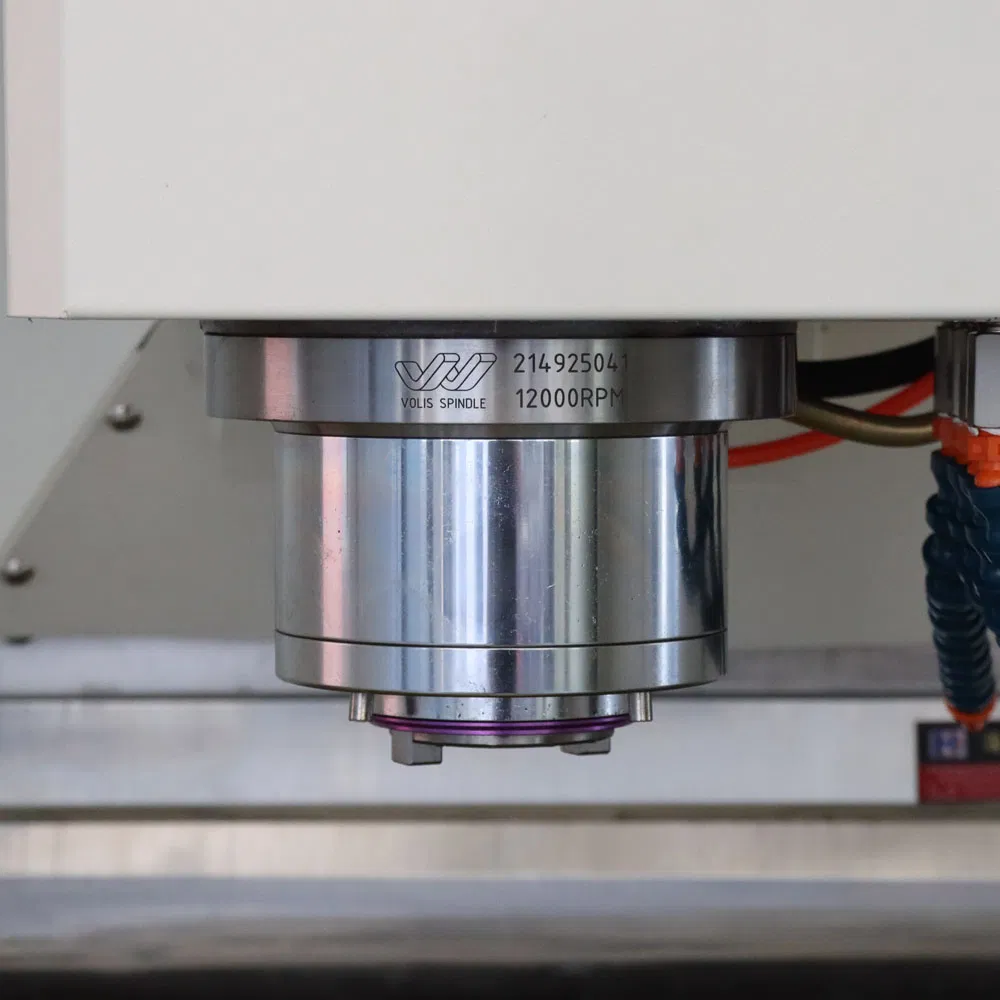

PRECISION SPINDLE
BT40 8000rpm, dynamic balance tested

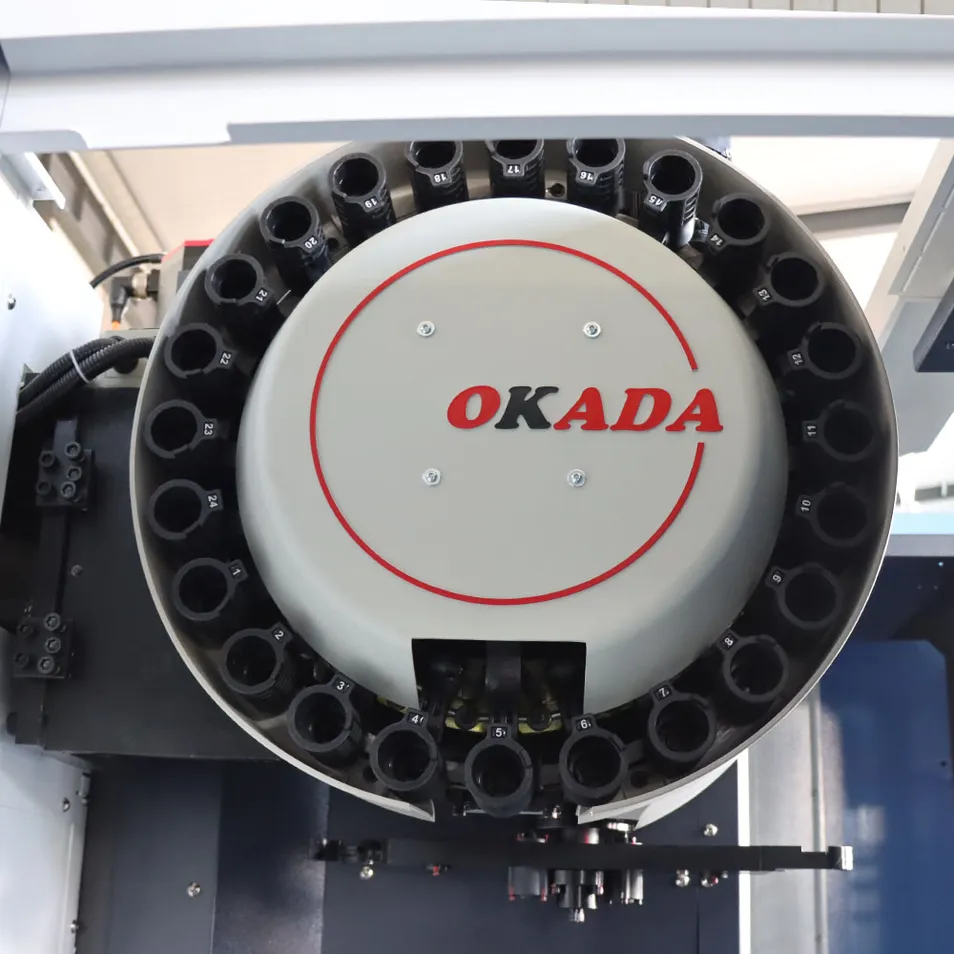

TOOL MAGAZINE
Arm 24 tool magazine, 2-3s change time

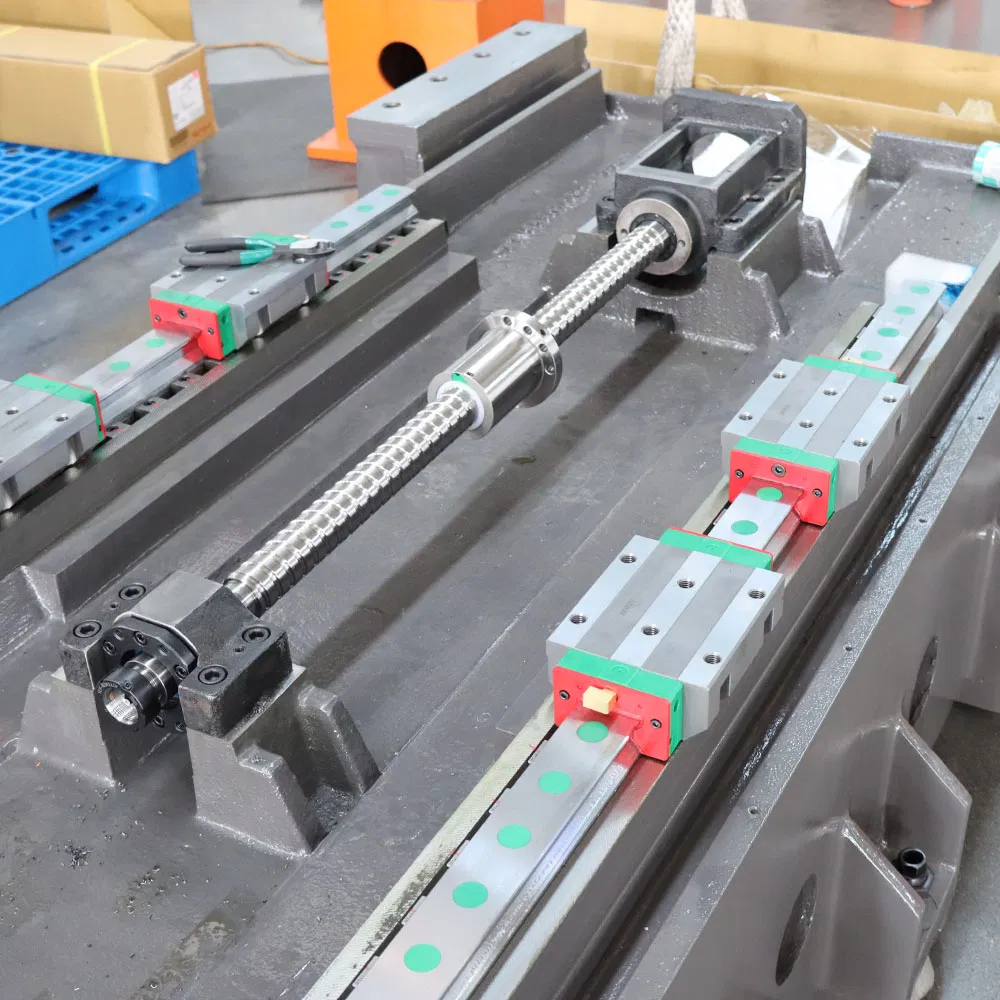

LEAD SCREW & COUPLING
High precision brand screws and bearings

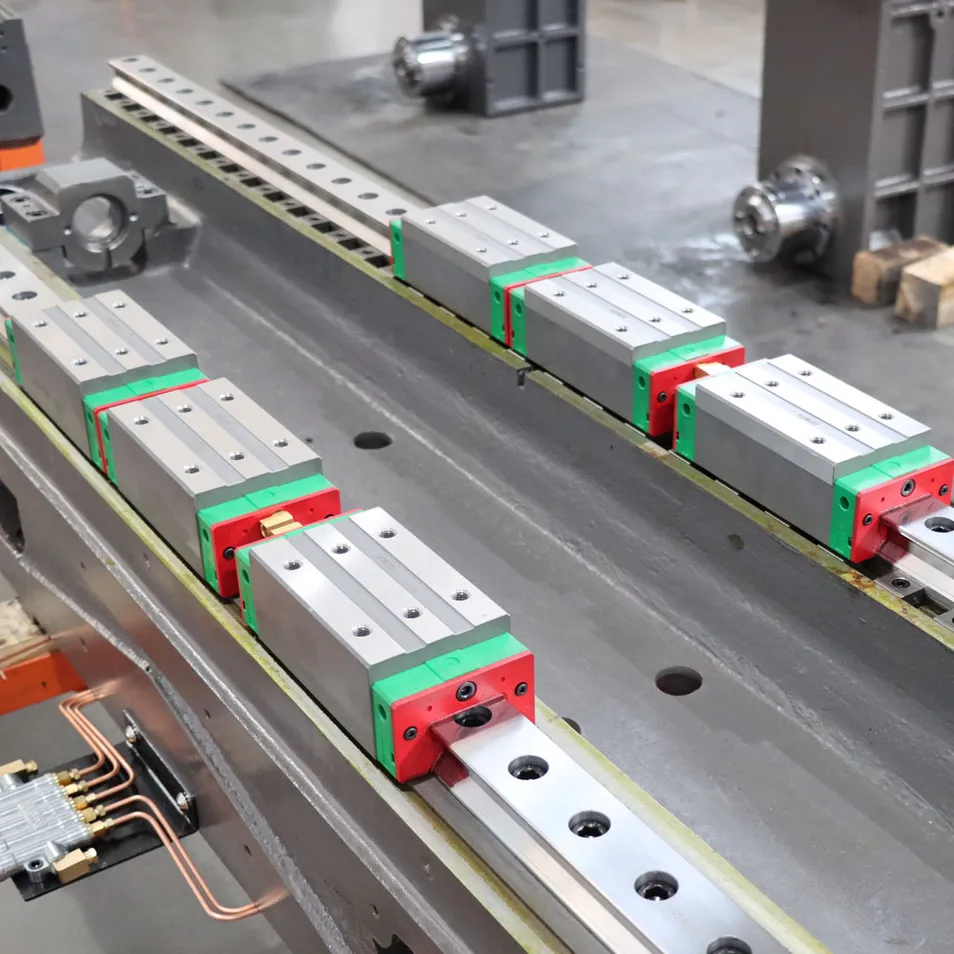

LINEAR RAILS
High speed roller linear guide rail
