Zhixing Machine
Zhixing Machine

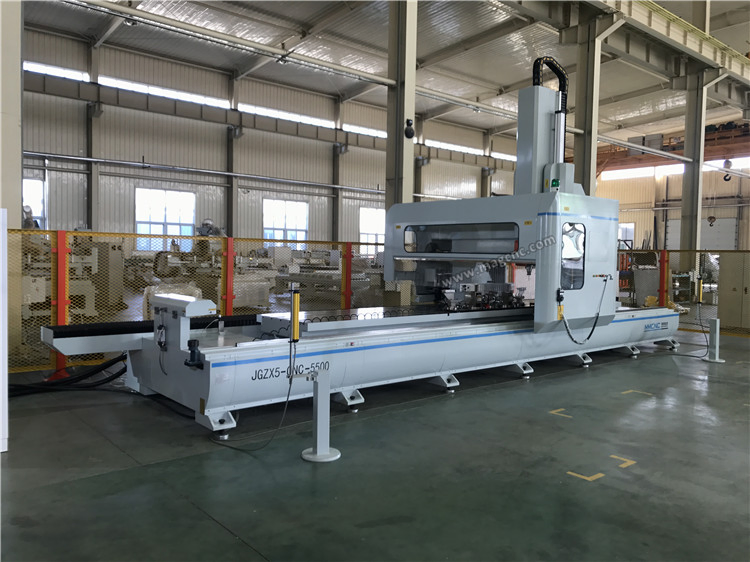

| Model NO. | JGZX5 |
| Condition | New |
| Certification | ISO, CE |
| Automatic Grade | Automatic |
| CNC or Not | CNC |
| Voltage | 380V |
| Power Supply | 380V 50Hz |
| Air Pressure | 0.5~0.8MPa |

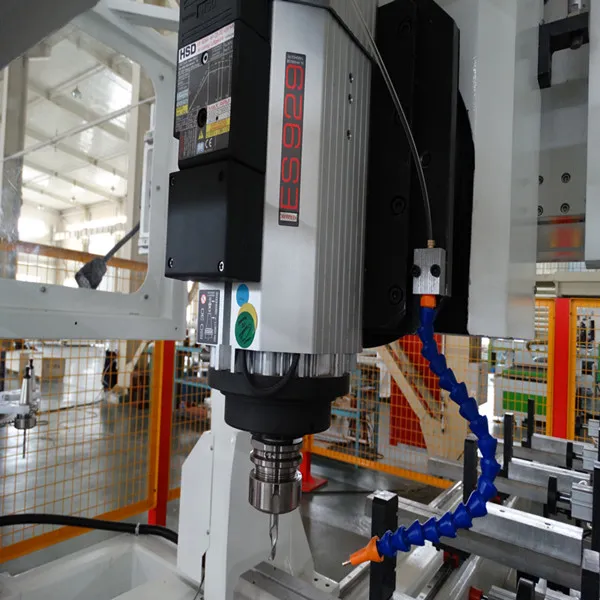

| Output Power of Spindle | 15kw |
| Max Rotary Speed | 24000r/Min |

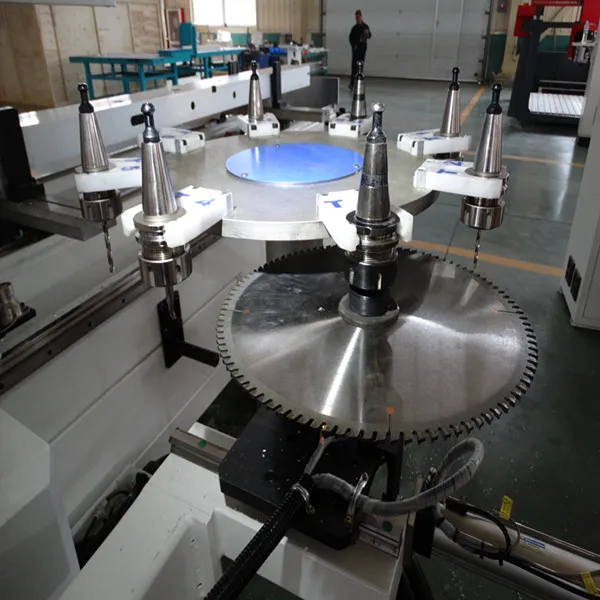

| Saw Blade Rotary Speed | 4000rpm |
| Max Diameter of Saw Blade | 300mm |
| Profile Processing Range | X: 1000mm Y:6000mm |
| Overall Dimension | 8500X2500X3000mm |
| Total Weight | 6000kg |
| Transport Package | Film |
| Air Pressure | 0.6~0.8MPa |
| X/Y/Z Axis Stroke | 9700mm * 850mm * 650mm |
| Input Power | 16KW |
| Spindle Power | 9.5KW |
| Spindle Rotary Speed | 24000 rpm |
| Max Output Torque | 6.4NM |
| Max Tool Length | 100mm |

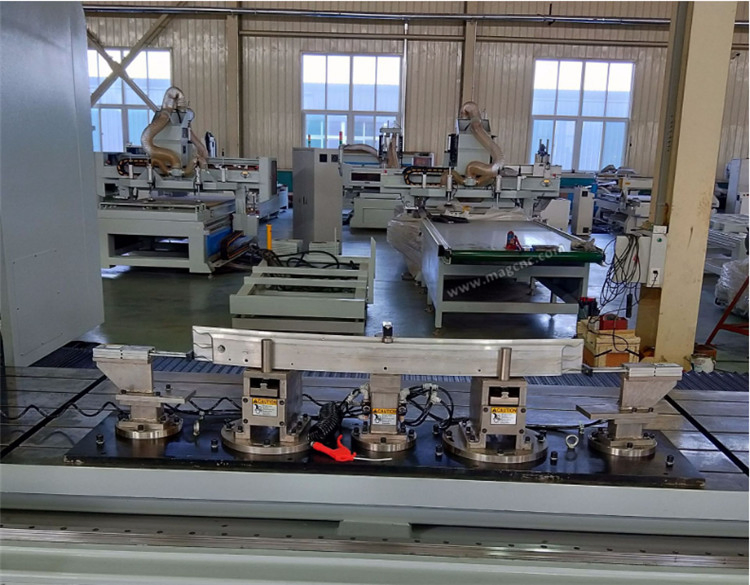

| Clamps Quantity | 8 |
| Feeding Speed | X- 50m/min, Y- 25m/min, Z- 10m/min |
| 4-Axis Range | B: -90° to 90° |
| Weight | 8500kg |

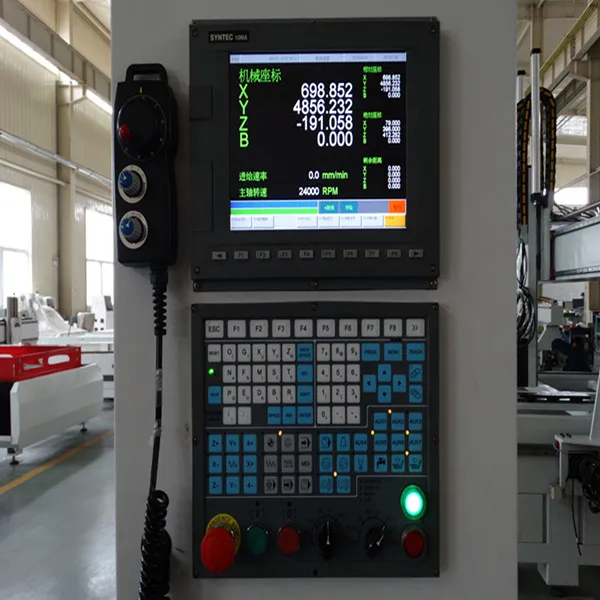

| Control System | PA CNC SYSTEM |
| Pneumatic Components | Airtec Solenoid Valve & Cylinder |

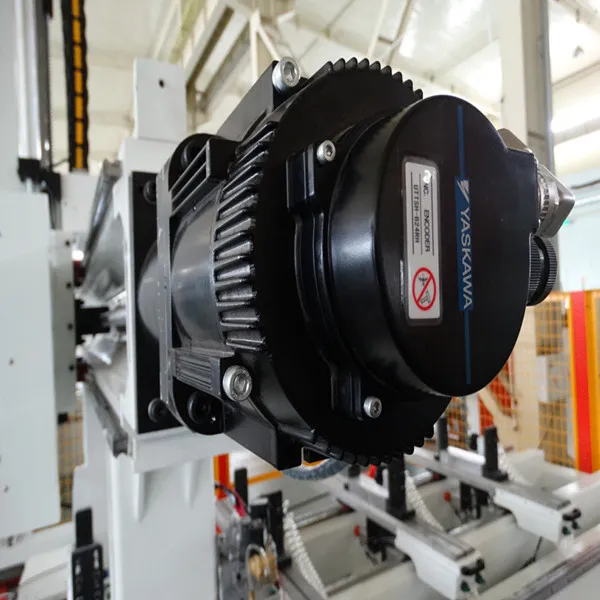

| Drive System | YASKAWA Driver |
| Electrical Components | Schneider Switch & Breaker |
| Guide Rail | Taiwan Hiwin |
| Approach Switch | Taiwan Delta |

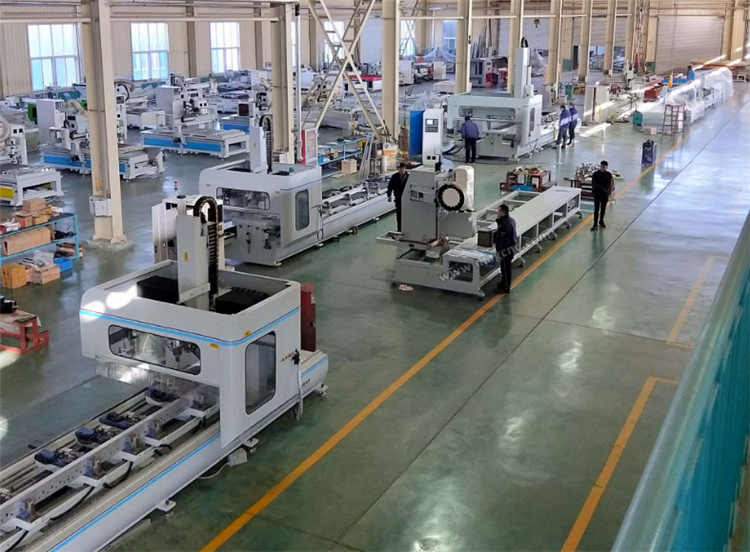

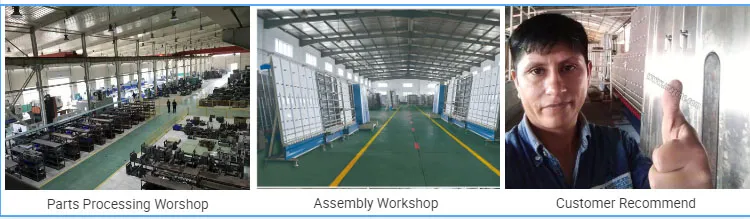

Our production base focuses on CNC processing machines and aluminum window making equipment. With major production bases and a product range covering over 300 types of machinery—including CNC machines, insulating glass lines, and curtain wall equipment—we are a comprehensive manufacturer in the building equipment domain.
We are dedicated to making buildings more energy-efficient and improving lives through high-quality window and door production technology, providing cost-effective solutions to clients worldwide.
