AGM Horizontal Glue Coating Machine for Insulated Glass Production and Sealing

1 / 5

AGM Horizontal Glue Coating Machine for Insulated Glass Production and Sealing

Customization:	Available
After-sales Service:	Aviliable
Warranty:	1 Year

Send Inquiry

Product Description

📋

Basic Information

Model NO.

Horizontal Glue Coating Machine

Condition

New

Certification

ISO, CE

Automatic Grade

Semi-Automatic

CNC or Not

CNC

Voltage

380V

Gluing Speed

10~40mm/S

Max Glass Size

2500X2500mm

🚀

Product Introduction

Our innovative insulating glass automatic glue machine is your ultimate solution to effortlessly tackle the challenges of glue application. It transforms the traditionally laborious process into a seamless and enjoyable task. With its cost-effective operation, user-friendly interface, and capability of delivering flawless glue applications, this machine significantly reduces sealant usage while maximizing production efficiency.

Versatile and reliable, this machine is compatible with a range of sealing materials, including two-component polysulfide adhesive, silicone adhesive, and structural adhesive, ensuring that all your sealing needs are met with precision.

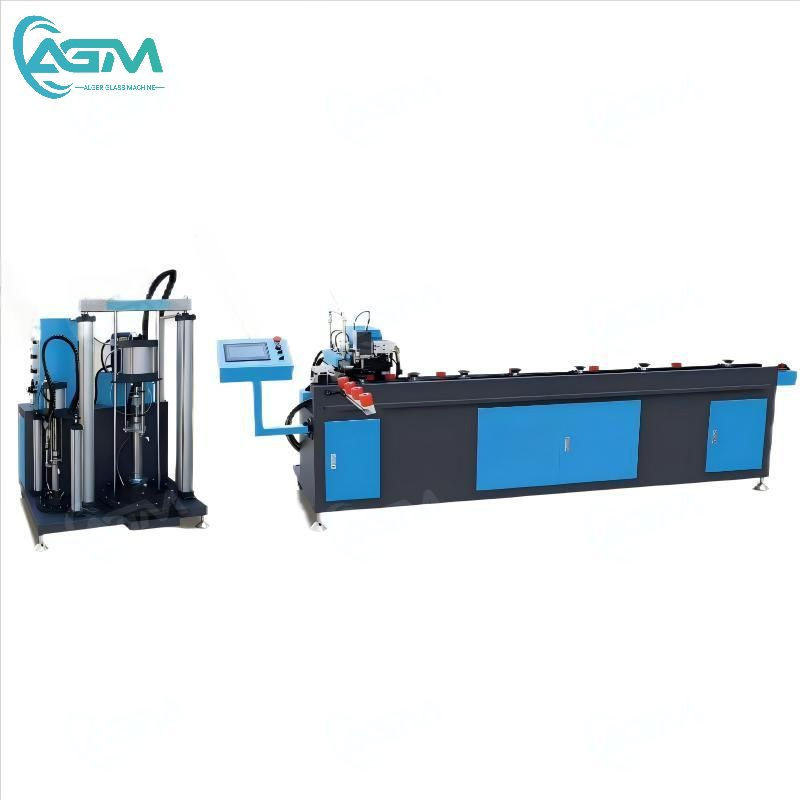

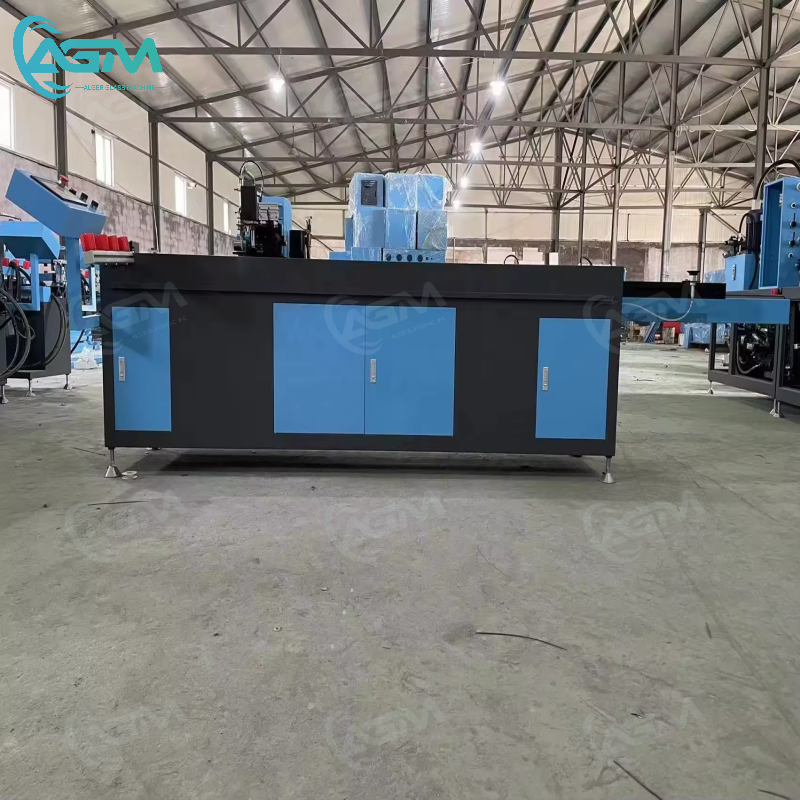

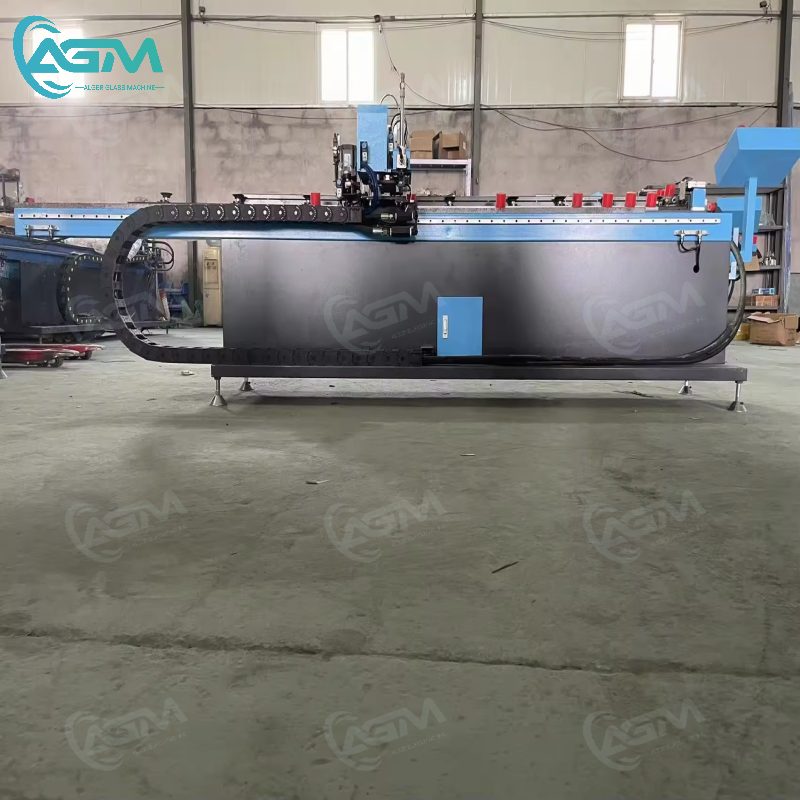

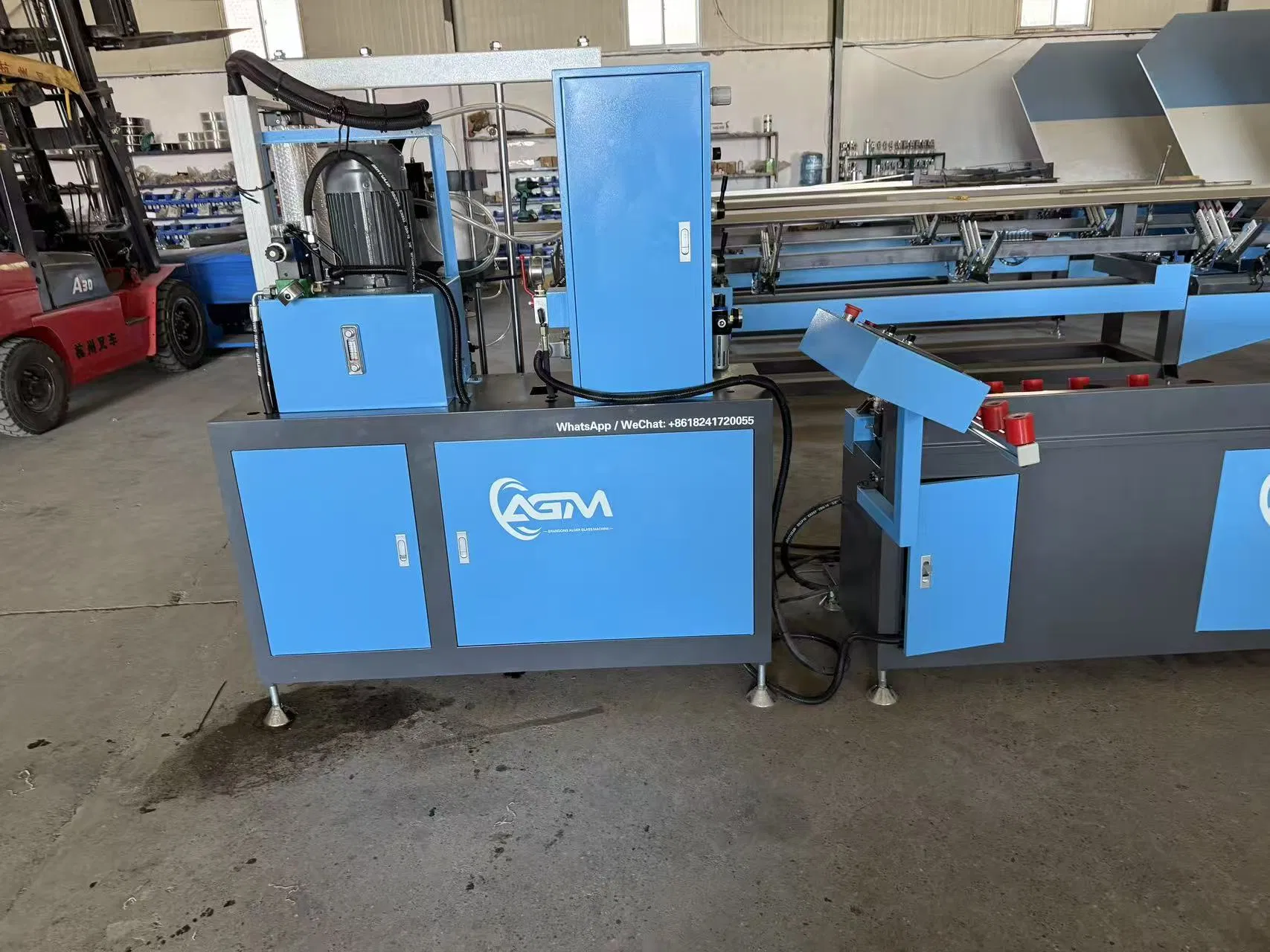

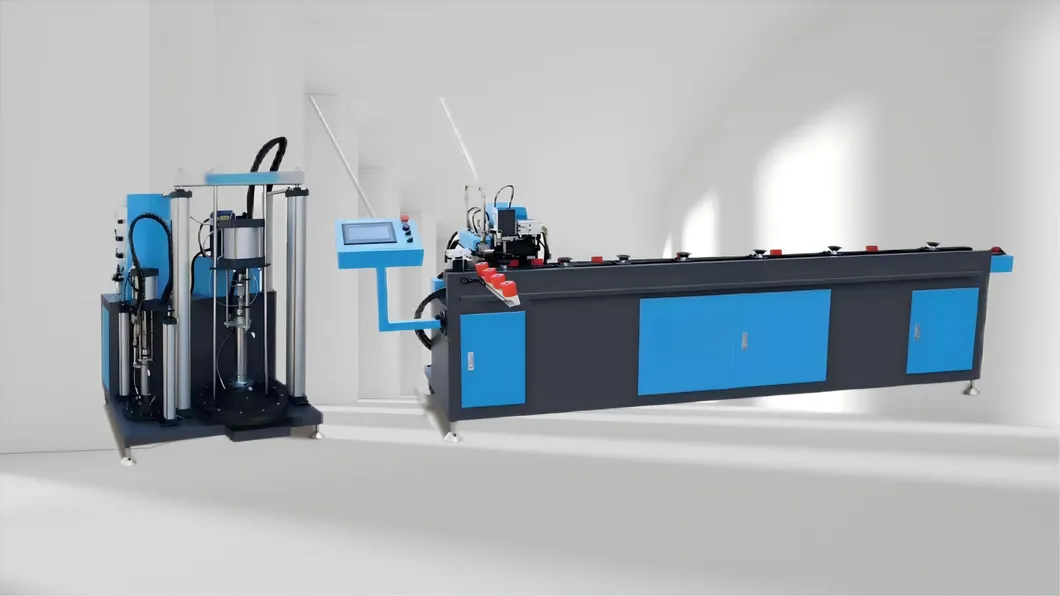

AGM Horizontal Glue Coating Machine Overview

💎

Key Benefits & Description

✔

Effortless Efficiency: Designed to transform labor-intensive gluing into a seamless operation with exceptional cost-effectiveness.

✔

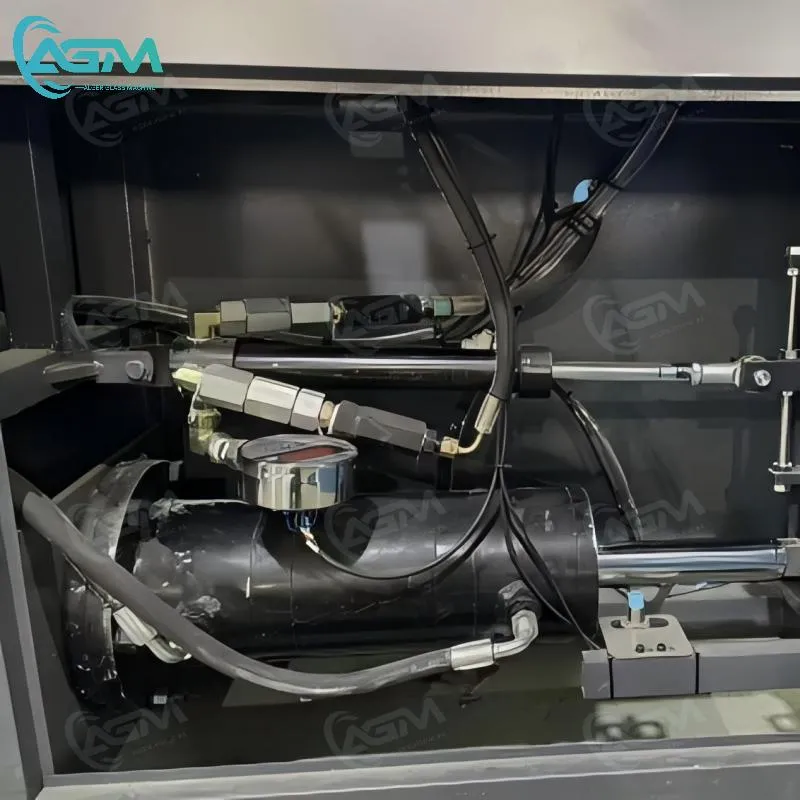

Advanced Glue Supply: Blends pneumatic supply and hydraulic output with an intelligent pressure controller for stable adjustable volume.

✔

Detection System: Features a patented encoder for aluminum strip depth detection, ensuring quick responsiveness and high-quality output.

✔

Bonus Feature: Buy the machine and receive a complimentary mobile workbench as a bonus for unparalleled flexibility.

⚙️

Product Characteristics

1 Effortless adaptability between double glass panes or triple glass panes via one-click switching.

2 Sophisticated memory parameters for seamless adjustments, including punch warnings and automatic glue removal.

3 Patented synchronous compression structure and precise encoder for aluminum strip depth detection.

4 Cutting-edge intelligent pressure and monitoring systems ensure effortless maintenance.

5 Servo motor delivers impeccable reliability and precision with a user-friendly HMI.

📊

Technical Parameters

Max Glass Size	2500x2500mm
Min Glass Size	200x200mm
Spacer Width (Double)	6A-30A
Spacer Width (Triplex)	<18A
Gluing Speed	10~40mm/s
Glue Ratio Range	8-12:1
Total Power	3KW (AC380V)
Pneumatic Pressure	0.6~0.8Mpa
Gluing Machine Size	3000x600x1200mm
Adjustment Method	Touch Screen

🔧

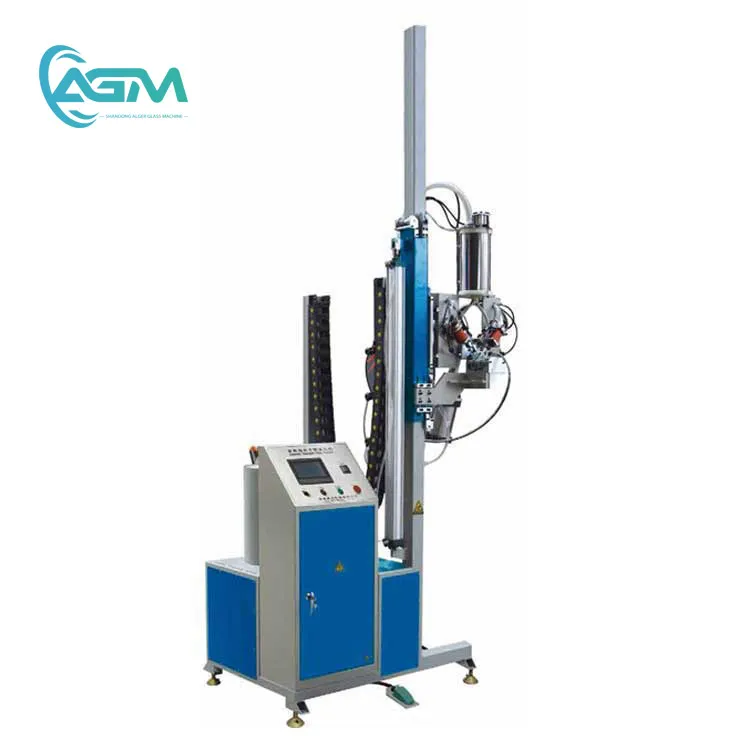

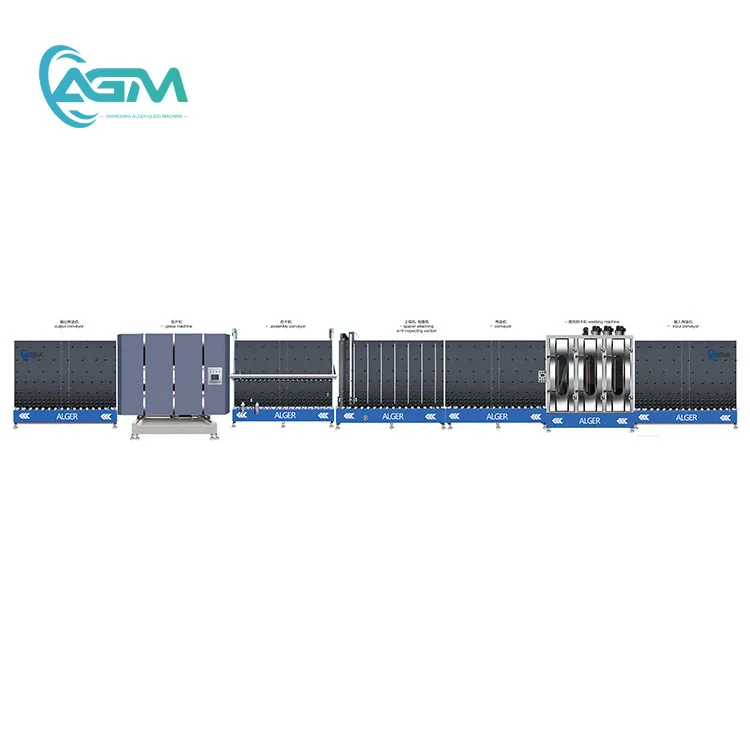

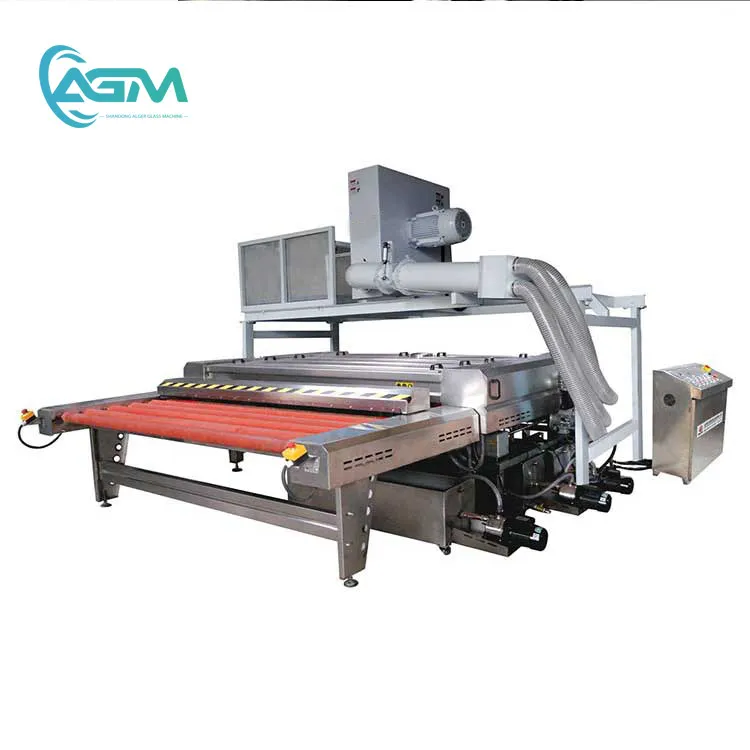

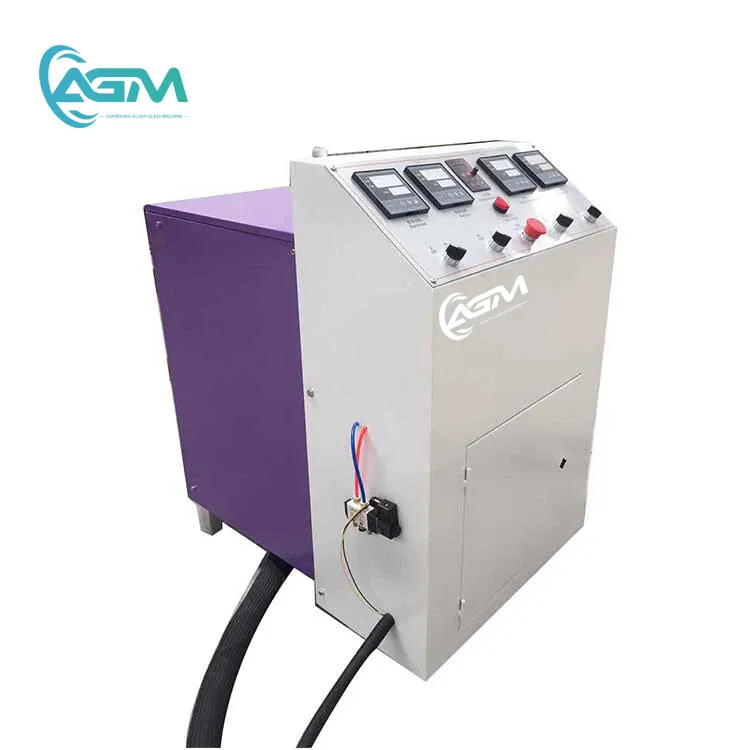

Related Machinery

📦

Packing & Delivery

❓

Frequently Asked Questions

Q1: How do you guarantee the product quality?

We always provide a pre-production sample before mass production and perform a final inspection before every shipment to ensure the highest standards.

Q2: Can I request samples? Are they free?

Yes, we provide samples according to customer needs. While the samples themselves are free, a reasonable shipping cost will be charged.

Q3: What range of products can I purchase?

You can purchase Aluminum Spacer Bars, Molecular Sieves, Butyl Tapes, Georgian Bars, Corner Keys, Silicone Sealants, and various Glass Processing Machines.

Q4: How can I obtain a price quote?

We usually provide a quotation within 24 hours of receiving your inquiry. For urgent requests, please reach out via email or other direct contact methods.

Q5: What are your accepted delivery and payment terms?

We accept various terms including FOB, CFR, CIF, EXW, and DDP. Payments can be made via T/T, L/C, Credit Card, or PayPal in USD, EUR, or CNY.

Q6: What is the typical lead time for orders?

It depends on order quantity. Small quantities can usually be shipped within 5-7 days, while larger orders typically take about 30 days.
