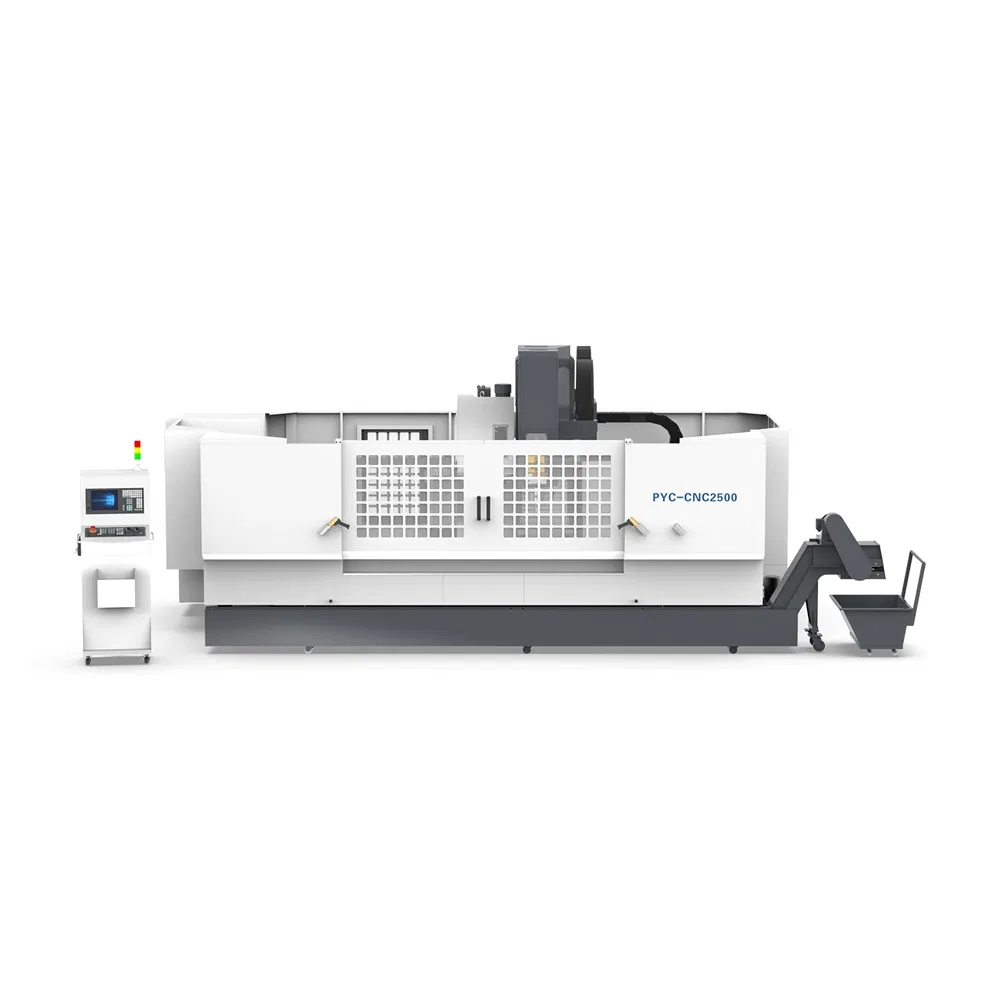

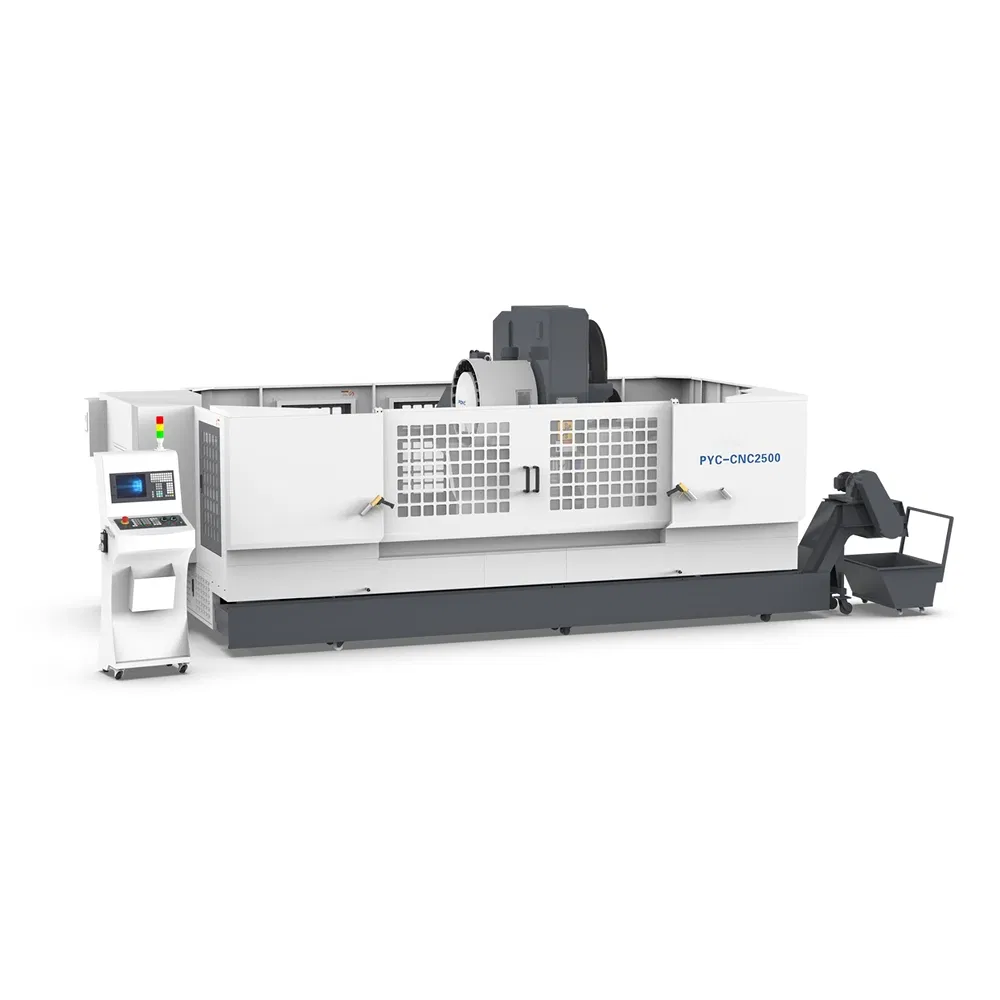

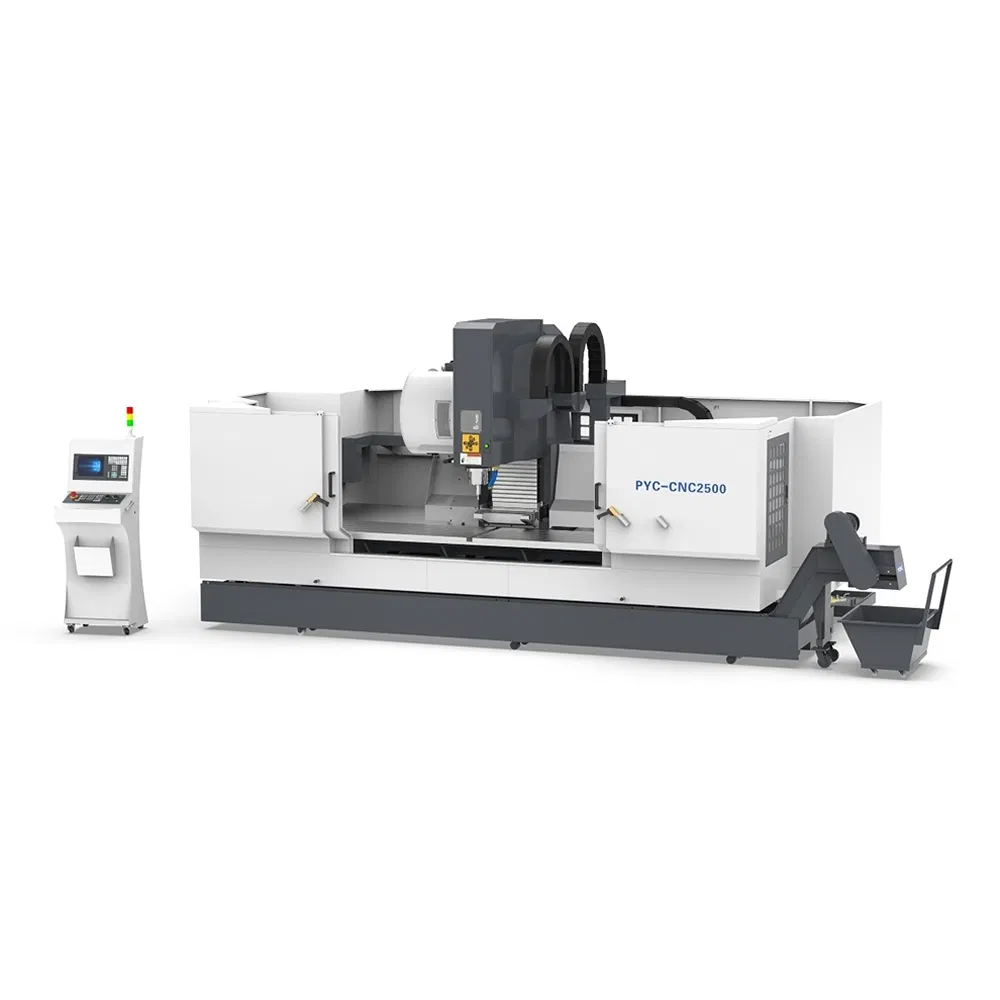

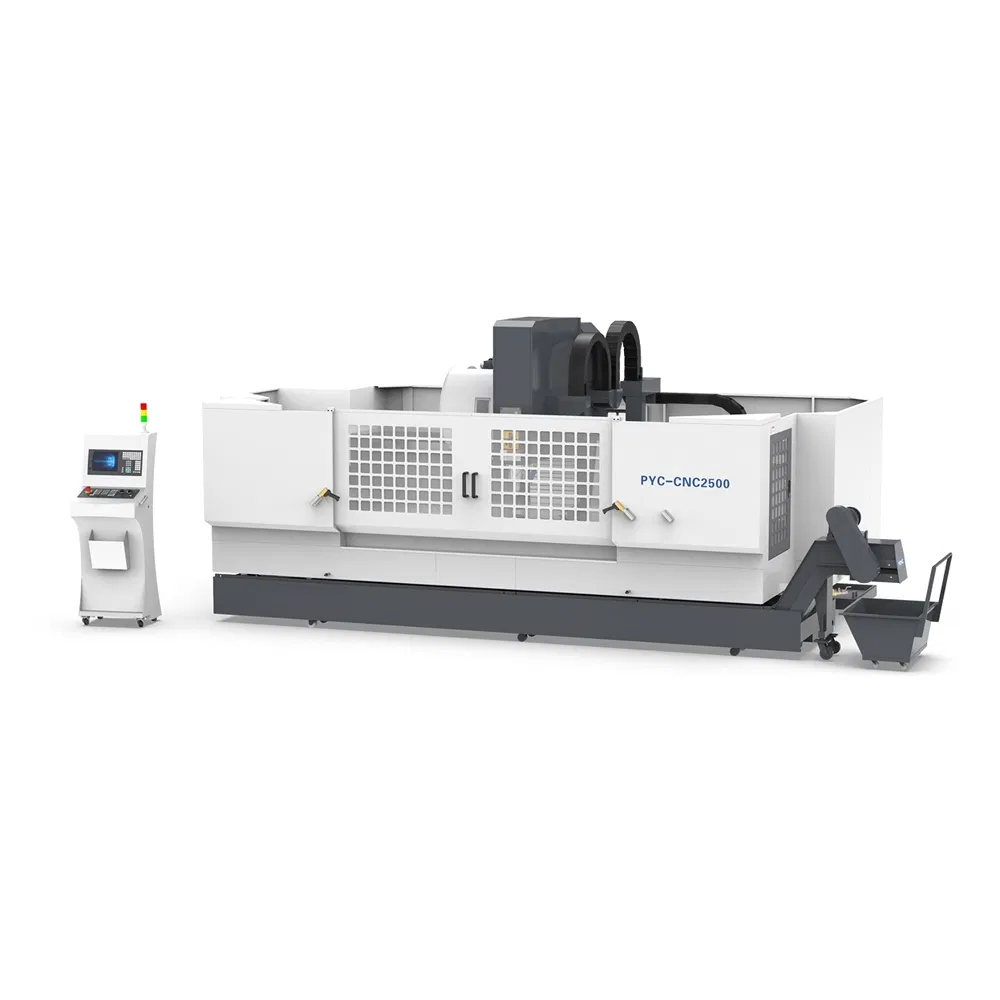

Advanced Precision CNC Machining Center for Aluminum Profiles

GENERAL DESCRIPTION

Introducing the PYC series profile machining center, a sophisticated integration of drilling, tapping, and milling functionalities. This long-stroke CNC composite machining center is meticulously designed for the precision processing of extended profile workpieces, ensuring superior performance and versatility.

This state-of-the-art equipment offers cost-effective solutions for high-speed, medium, and heavy-duty profile processing, making it ideal for applications demanding exceptional precision and rigidity.

SPINDLE SYSTEM

High-performance spindle systems engineered for demanding processing needs across metal materials. The BT/SK/40 standard taper elevates tool stability and balance at high speeds, ensuring impeccable machining precision.

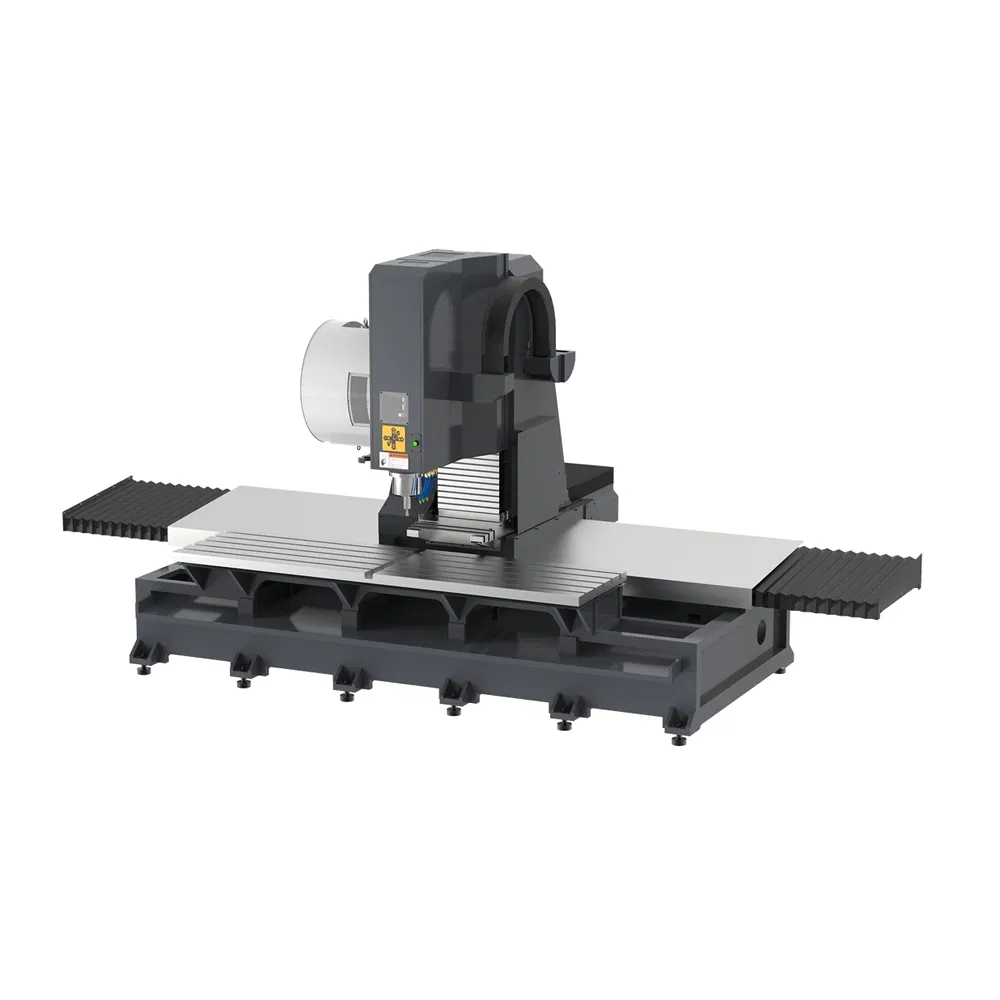

MACHINE BED & COLUMN

Crafted from cast iron for exceptional shock absorption and stability. Undergoes heat treatment to eliminate residual stress. The intensified moving column structure minimizes X-axis deformation.

TOOL MAGAZINE & LUBRICATION

Tool-preparation function achieves tool-to-tool changes in just 2 seconds. Features an independent automatic oil supply lubrication system for guide rails and precision ball screws.

• Masterfully handle metal profiles including aluminum, steel, and copper.
• Ideal for aerospace, railway, textile machinery, and communication industries.

• 3-axis simultaneous control for smooth machining processes.
• Extended 2500mm+ travel on X-axis for versatile profile processing.
• BT40 high-speed spindle specifically optimized for steel products.
• Superior high accuracy, rigidity, and stability for dependable operation.
• Optional configurations: rotary table, milling heads, grating ruler, and coolant spindle.
