| Model NO. | LM4-CNC-7000 |
| Condition | New |
| Certification | ISO, CE |
| Automatic Grade | Automatic |
| CNC or Not | CNC |
| Voltage | 380V |

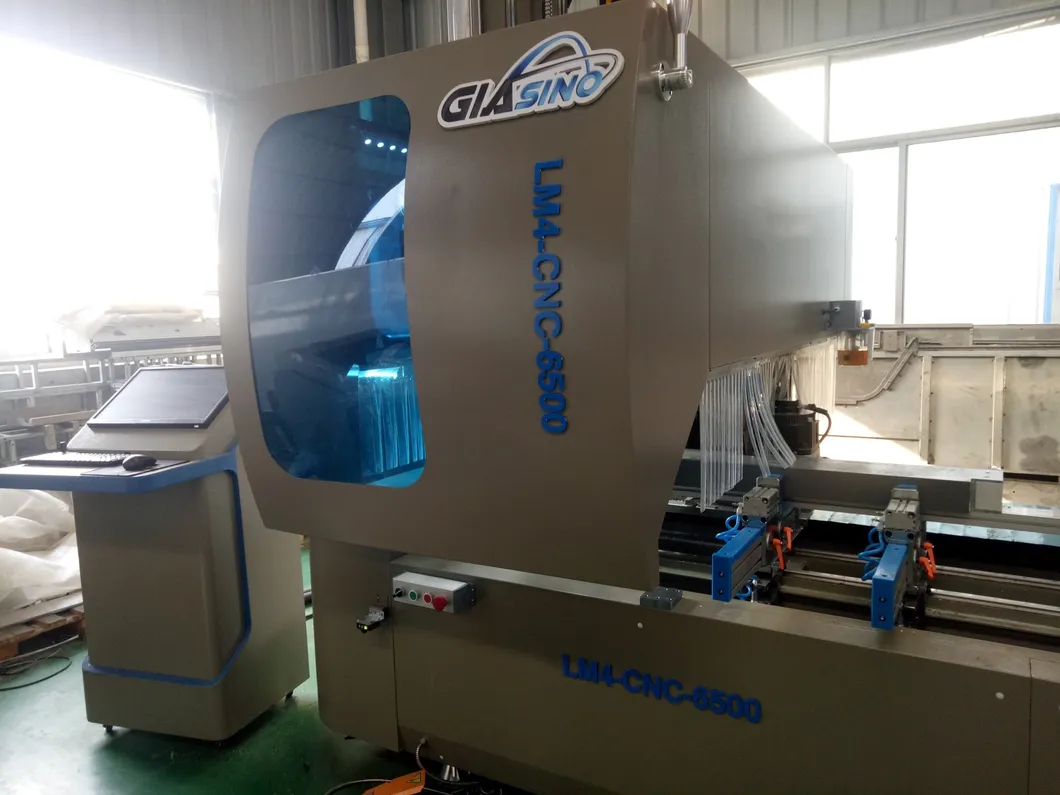

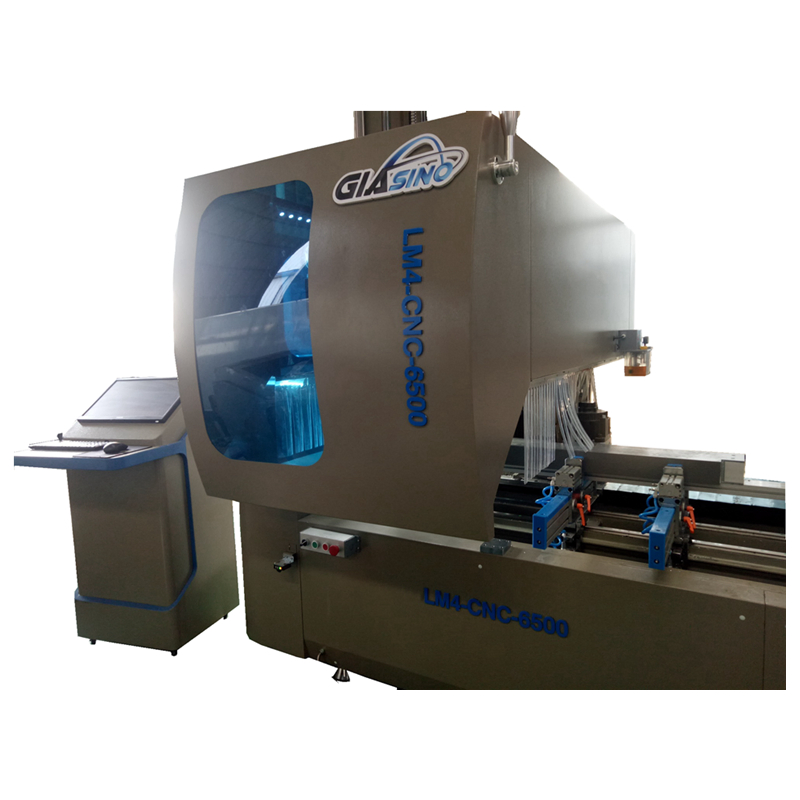

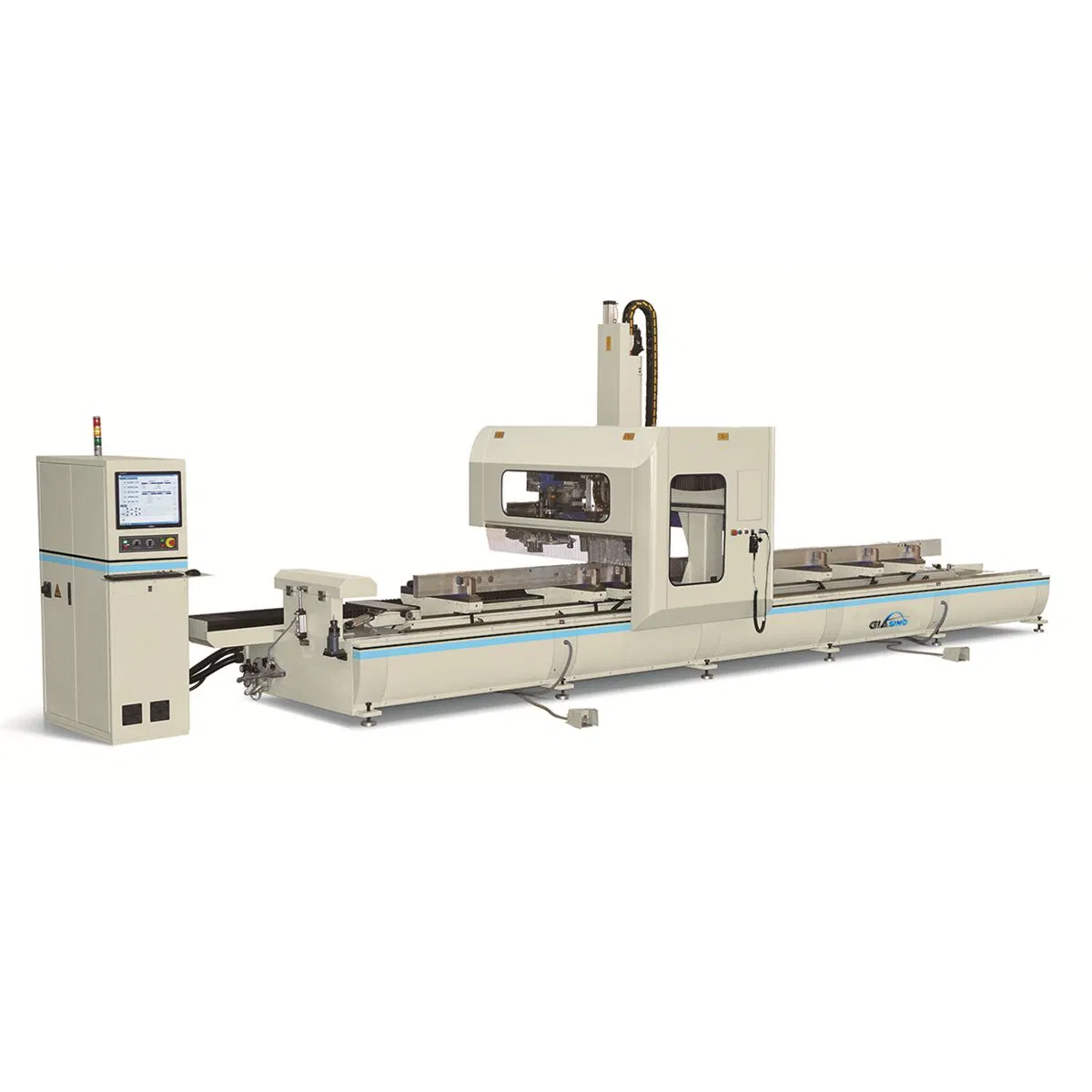

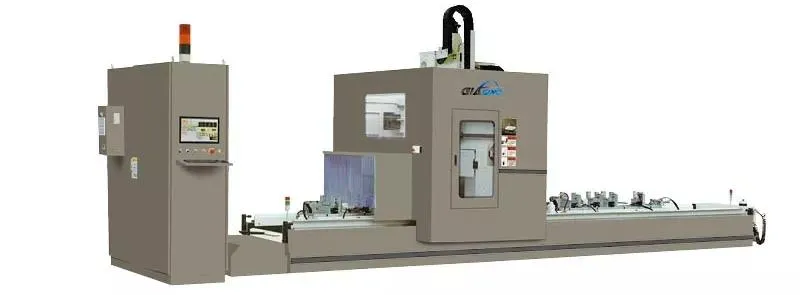

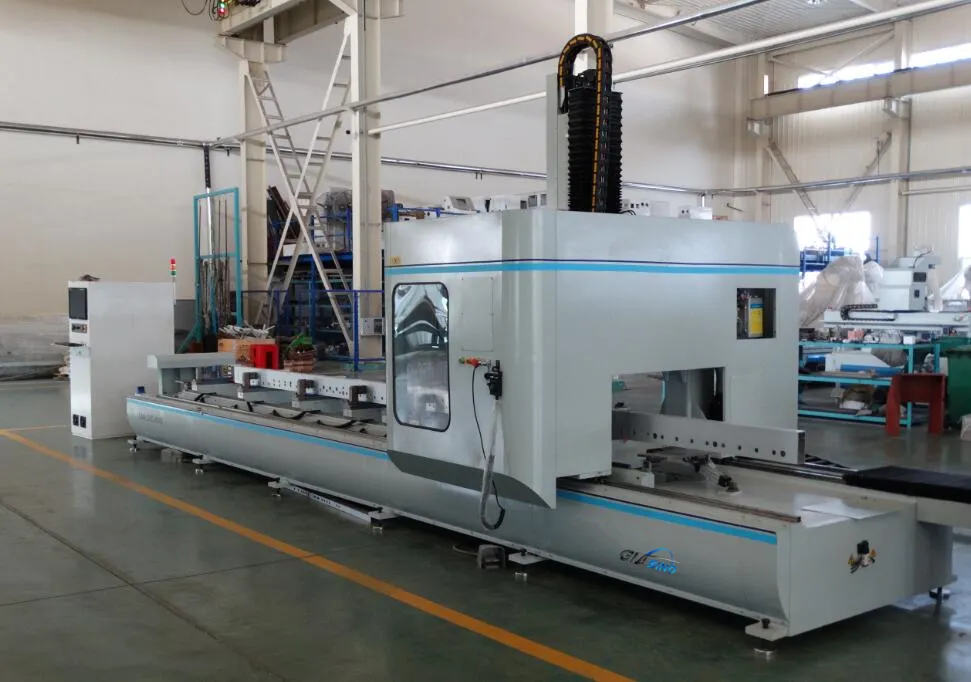

| Name | 4 Axis CNC Milling Drilling Machining Center |
| Usage | Milling Drilling Machining Center for Aluminum |
| Function | Milling Drilling Aluminum Profile |
| Color | According to Customer |
| Keyword | Drilling Milling Machine |
| Application | Aluminium Metal Machining Center |
| Transport Package | Film Package |
| Specification | 500x300x7000mm |
| Origin | China |
| Production Capacity | 80 Sets/Year |

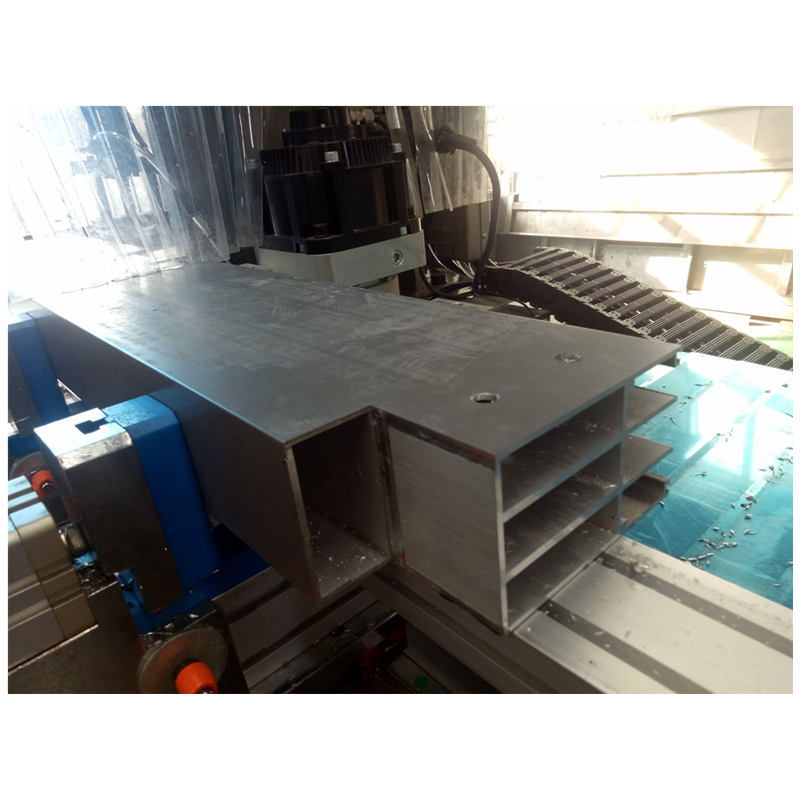

The 4 axis CNC high-speed drilling and milling centre is suitable for aluminum doors and windows and curtain wall installation holes, water tanks, keyhole shaped holes, tapping, and end milling.
| Power Supply | 380v, 50Hz |
| Working Pressure | 0.6~0.8 Mpa |
| Total Power | 16 kw |
| Spindle Power | 9 kw |
| Spindle Rotary Speed | 24000 rpm |
| Spindle Max Torque | 6.4 NM |
| Tool Magazine | 8 + 8 |
| Tool Shank Model | ISO30 |

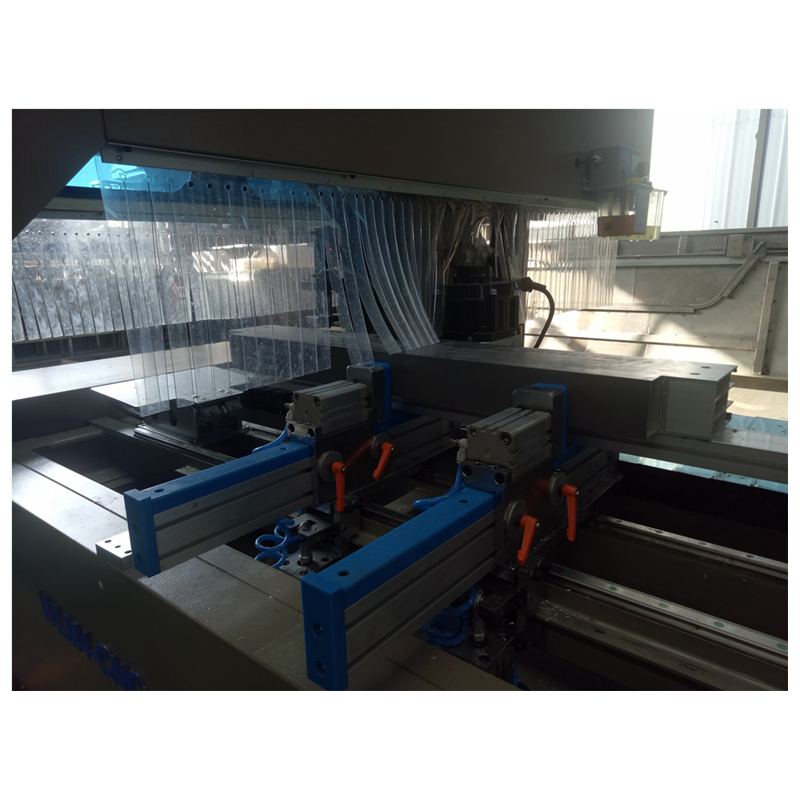

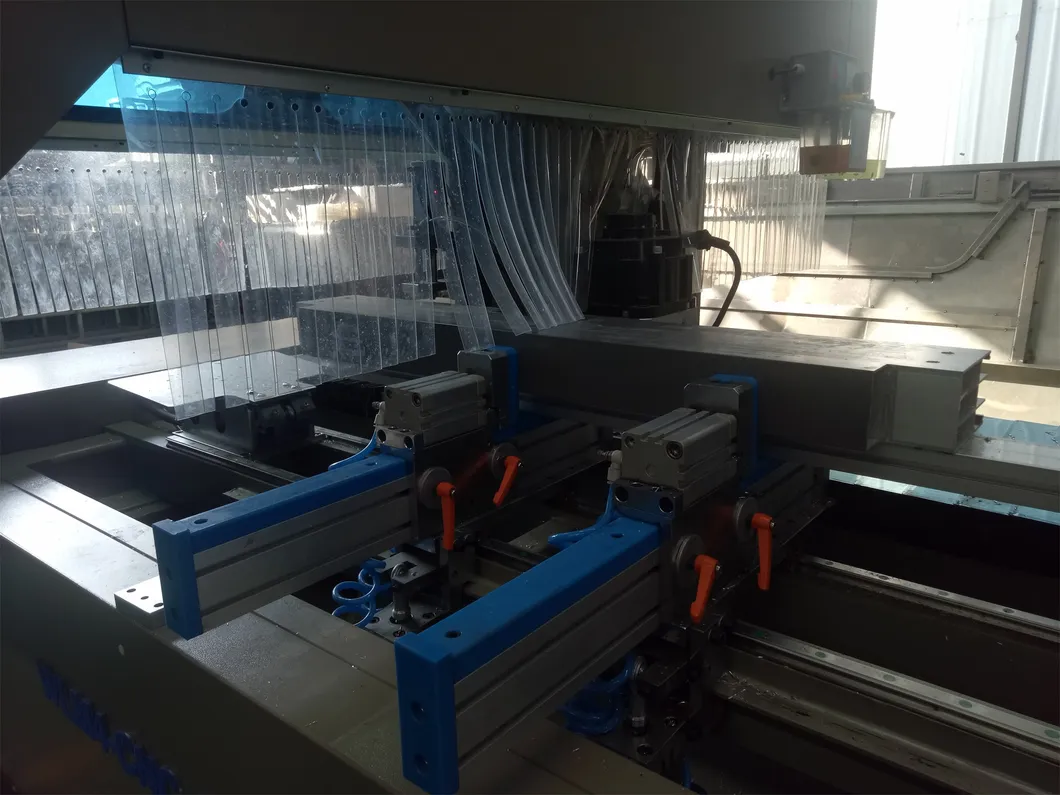

| Clamps Number | 8 |
| Processing Travel | X: 7000 | Y: 500 | Z: 300 |
| Feeding Speed | X: 50m/min | Y: 25m/min | Z: 10m/min |
| Processing Size | 6000 x 450 x 300 mm |
| Lubrication | Automatic |
| Cooling | Oil Mist Pump |
| Overall Dimension | 9000 x 2230 x 3060 mm |
Founded in 2003, we are a high-tech enterprise specializing in the production of CNC glass cutting machines, insulating glass machines, and curtain wall glass machines. Our range includes laminated glass cutting machines, automatic glass cutting lines, and full set processing machines for insulating glass. We hold European CE certification, Switzerland SGS certification, and ISO 9001: 2008 quality control system honors.
Only quality processes market, and improvement gets progress.
A: It is designed specifically for aluminum profiles, aluminium-wood composite profiles, and other light metal processing used in windows, doors, and curtain walls.

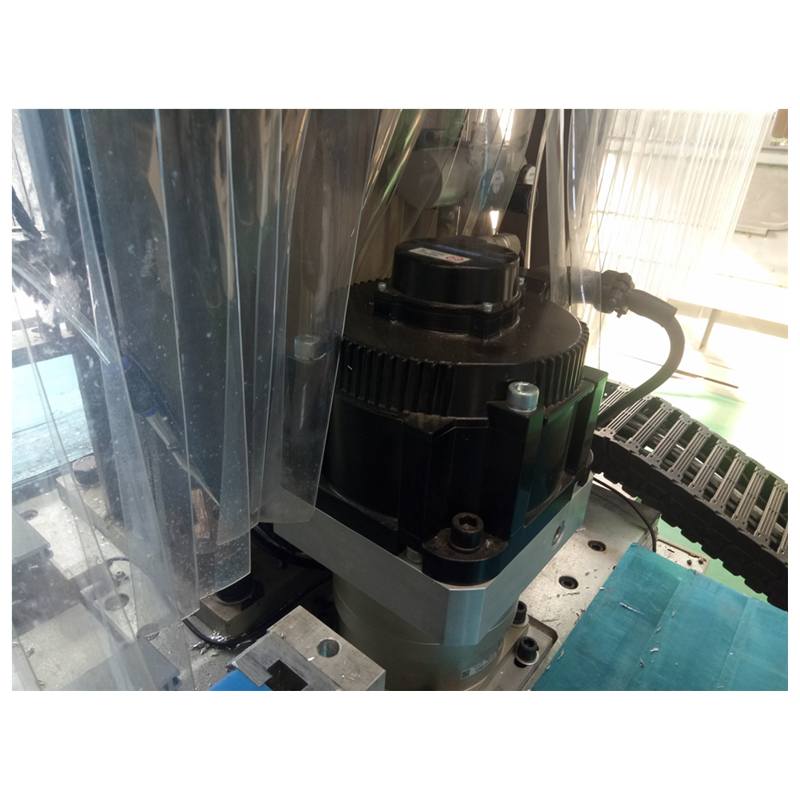

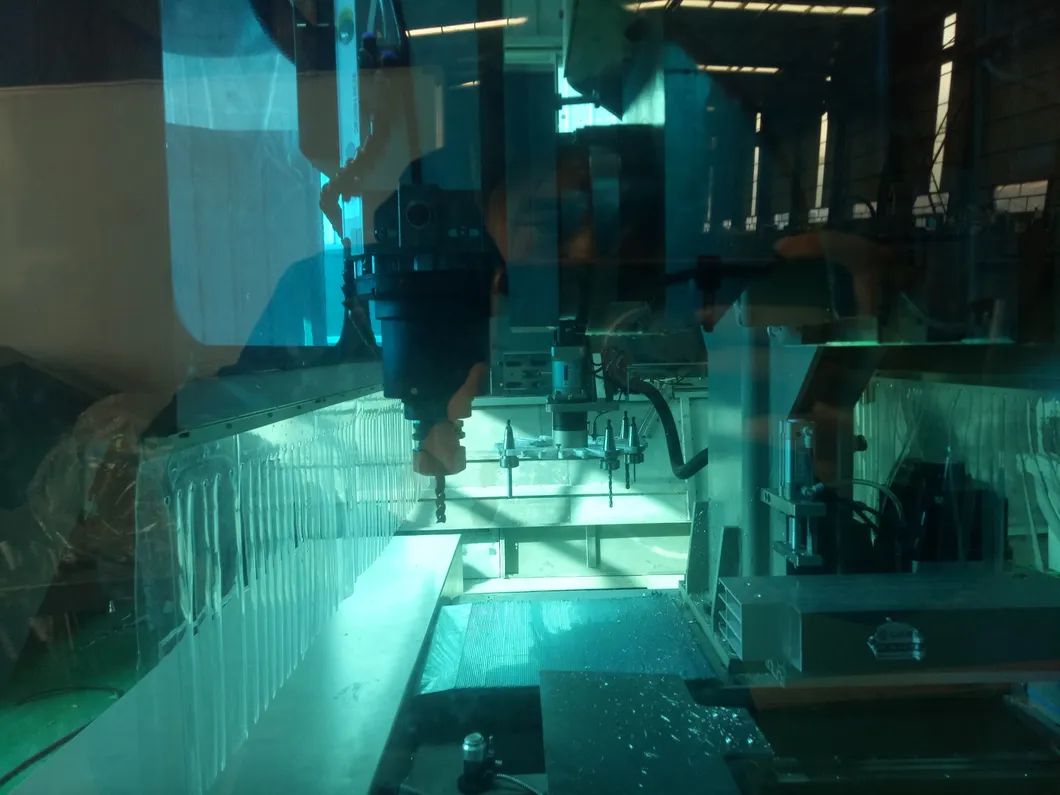

A: The spindle can swing ±90°, allowing for multi-aspect drilling, milling, and tapping in a single clamping session, which significantly increases accuracy and efficiency.
A: Yes, it features a tool magazine with a capacity of 16 pieces, including an 8-piece disc automatic tool changer and an 8-piece linear automatic tool changer.
A: Absolutely. CAD patterns can be imported directly into the professional CAM software to generate NC files for processing.
A: The machine is equipped with an automatic lubrication system and an oil mist pump for spray cooling to maintain tool temperature and longevity.
A: It utilizes high-end German PA or Taiwan Syntec control systems, known for their stability and intuitive user interfaces.
