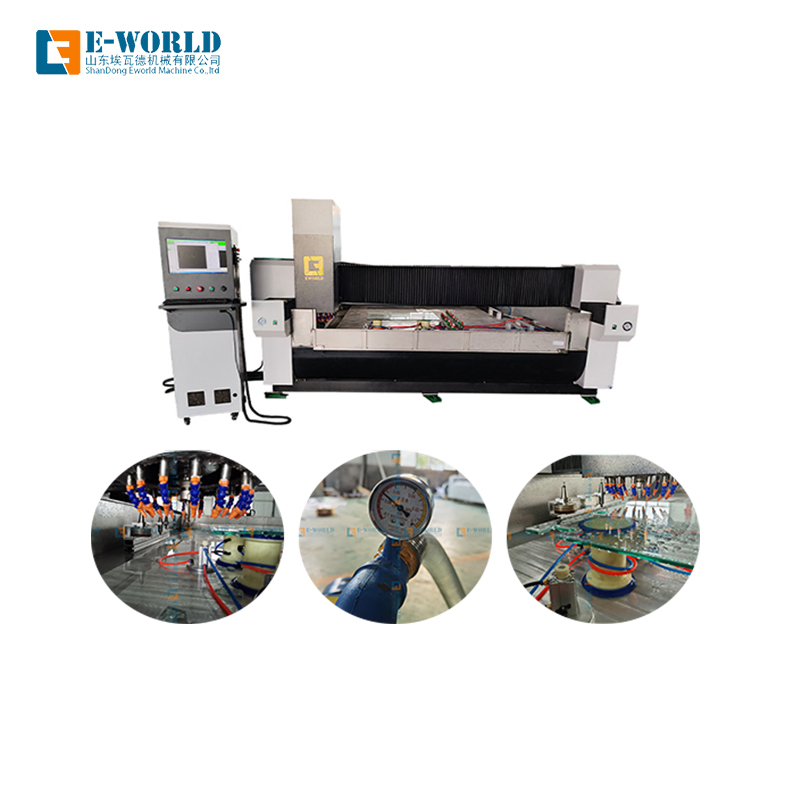

Zhixing Machine
Zhixing Machine
| Model NO. | WD-1530 |
|---|---|
| Glass Thickness | 3-19 mm |

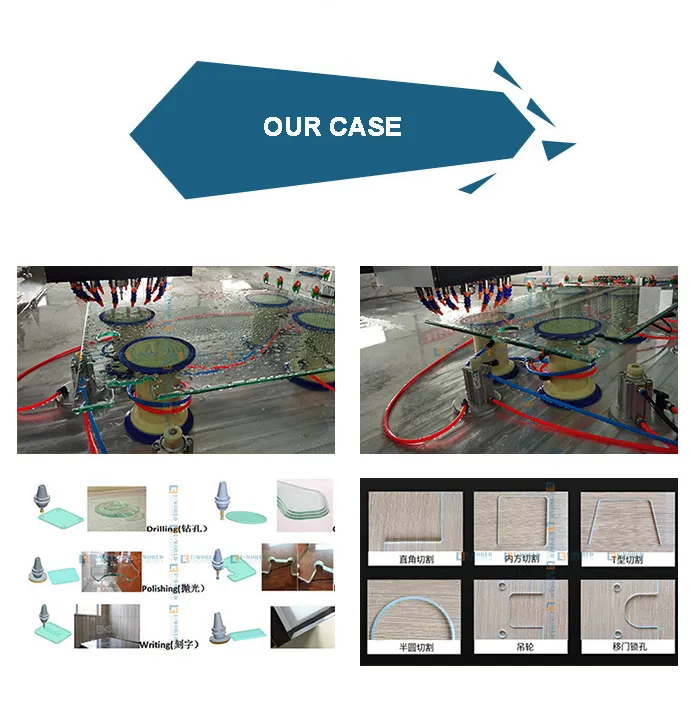

| Processing Services | Beveling, Cutting, Drilling, Edging |
| Warranty | 1 Year |
| Transverse (Axis X) | 3000 mm |
| Length Ways (Axis Y) | 1500 mm |
| Vertical (Axis Z) | 250 mm |
| Power Supply | 380 V, 50 Hz, 3 Phases |
| Total Power | 15 Kw |
| Structure | Horizontal |
| Control System | PLC |
| Condition | New |

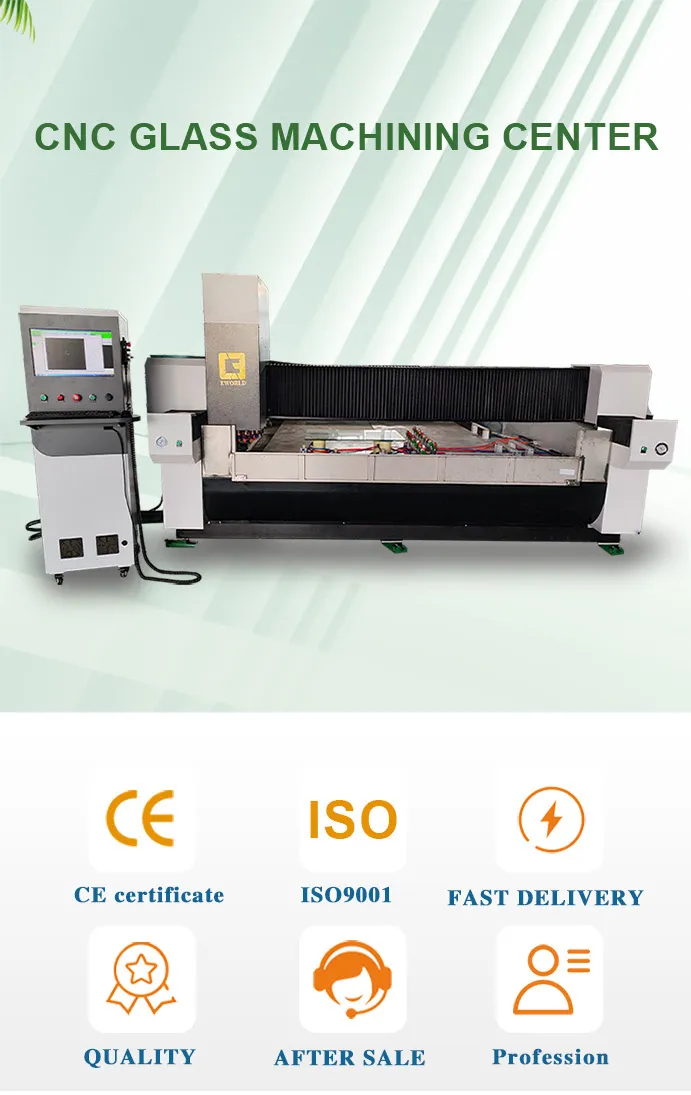

| Type | Glass Working Center |
| HS Code | 8464201000 |
| Production Capacity | 100 pieces/Year |
| Allocating accuracy (X,Y,Z) | 0.01 * 0.02 * 0.01 |
| Glass Milling speed | 500-600 mm/min |
| Glass Grinding and polishing Speed | 4000-5000 mm/min |
| Motor of main spindle | 7.5 KW |

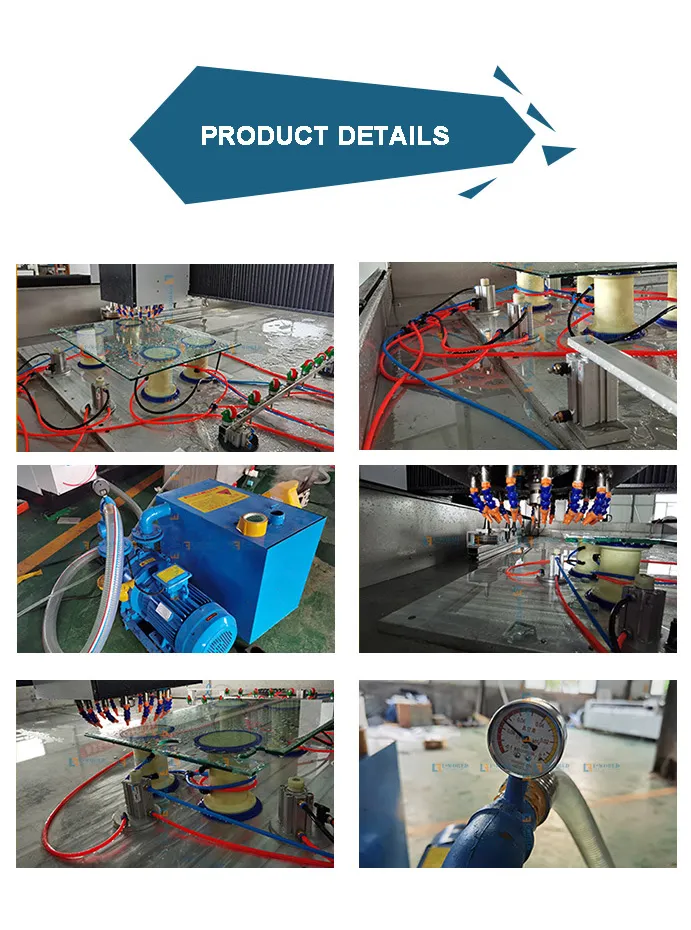

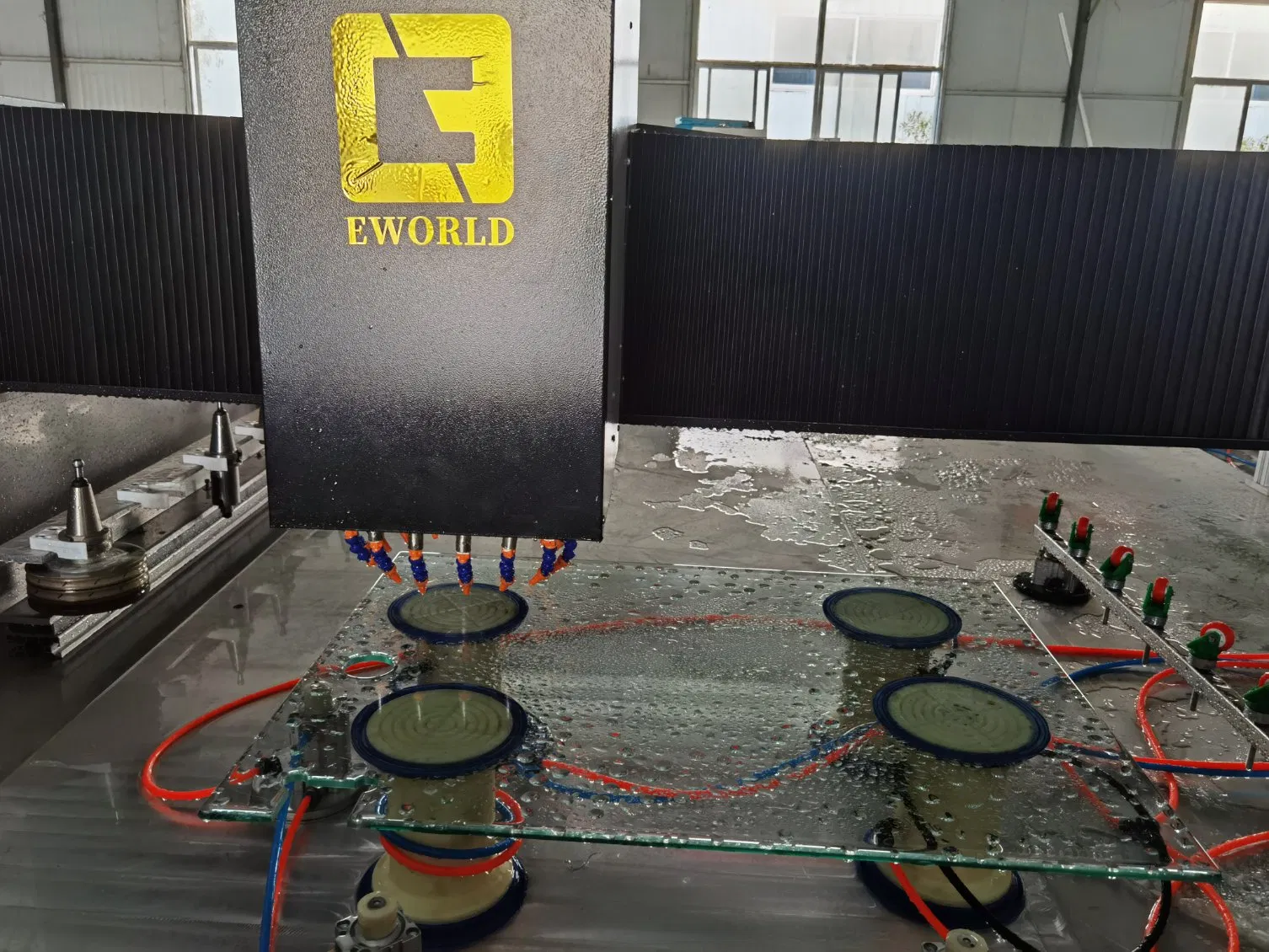

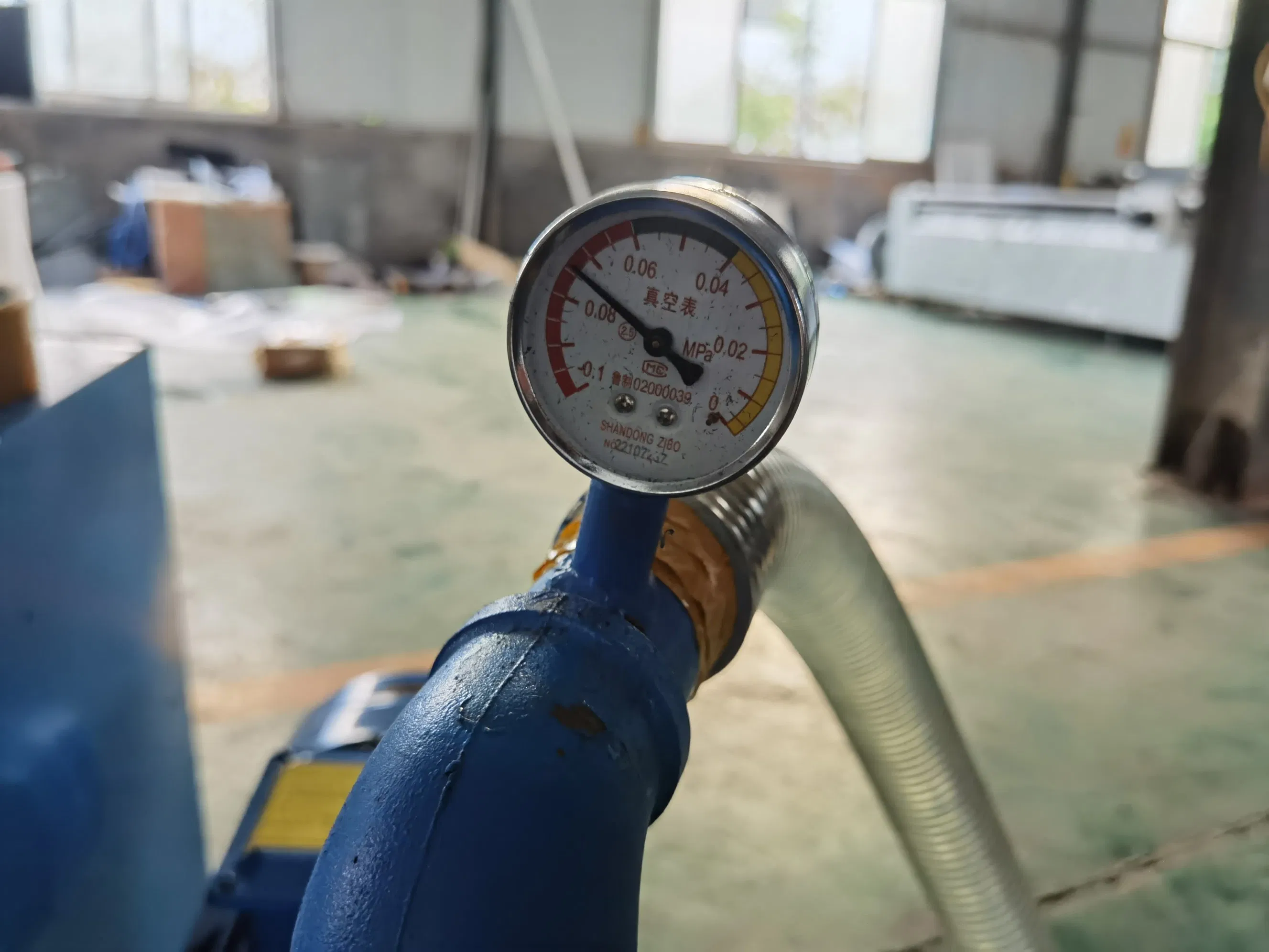

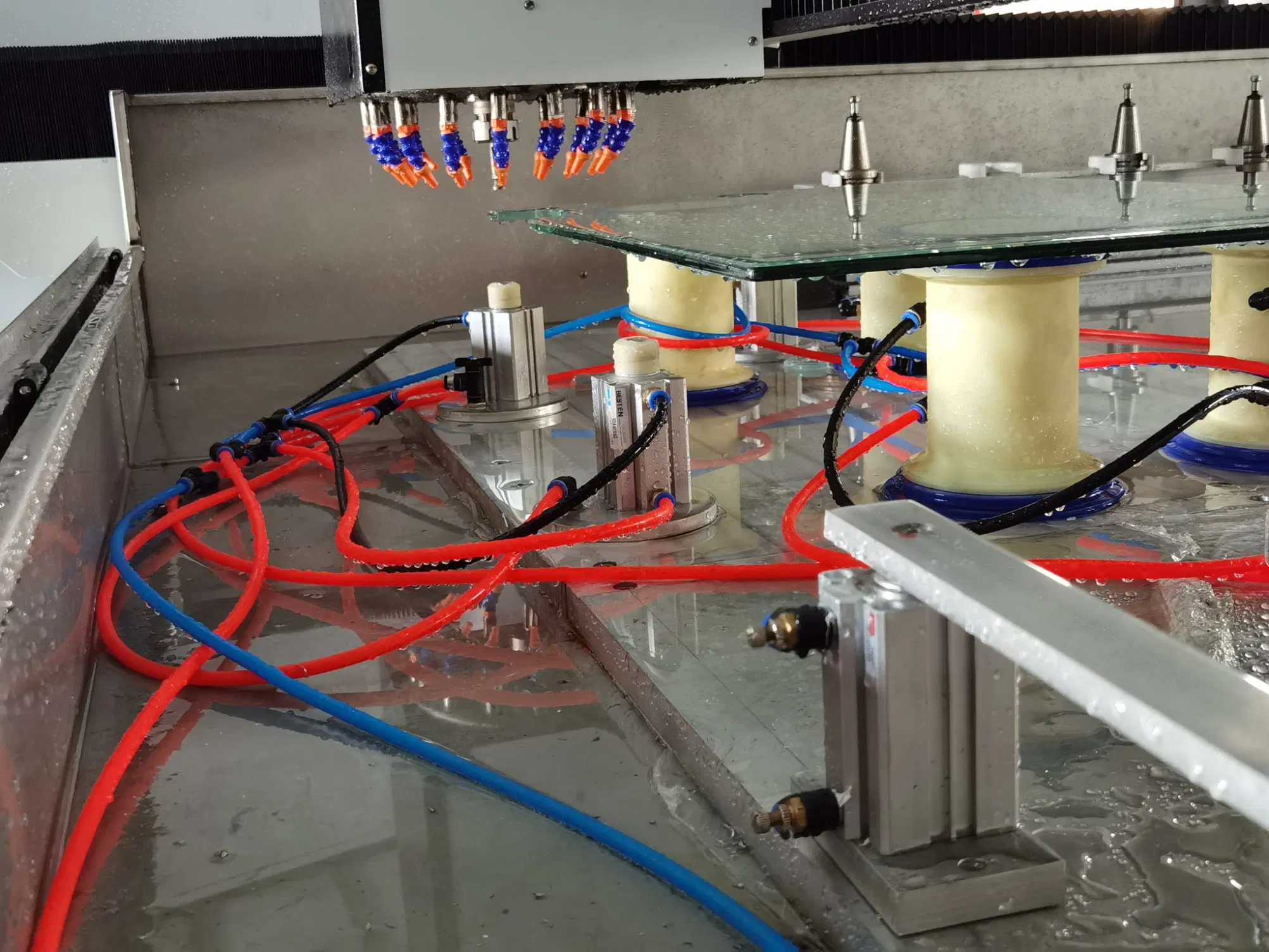

| Vacuum pump | For sucking raw glass |
| Compressed air | ≥ 0.6 Mpa |
| Environment temperature | 0 - 50 ºC |
1. Standard plywood case with superior compressive strength.
2. Excellent leakproofness and waterproof structure.
3. Fumigation-free plywood for simplified import procedures.
4. Delivery Detail: Within 20 days after payment reception.
