Four Head Vinyl Window Welder PVC UPVC Window Door Welding Machine
Four Head Vinyl Window Welder PVC UPVC Window Door Welding Machine
Four Head Vinyl Window Welder PVC UPVC Window Door Welding Machine
Four Head Vinyl Window Welder PVC UPVC Window Door Welding Machine
Four Head Vinyl Window Welder PVC UPVC Window Door Welding Machine
1 / 5
Four Head Vinyl Window Welder PVC UPVC Window Door Welding Machine
Four Head Vinyl Window Welder PVC UPVC Window Door Welding Machine
Four Head Vinyl Window Welder PVC UPVC Window Door Welding Machine
Four Head Vinyl Window Welder PVC UPVC Window Door Welding Machine
Four Head Vinyl Window Welder PVC UPVC Window Door Welding Machine

Four Head Vinyl Window Welder PVC UPVC Window Door Welding Machine

Customization: Available
After-sales Service: Remote Guidance, Door-to-Door Service, Operation V
Warranty: 18 Months
Send Inquiry

Product Description

i

Basic Information

Model NO.HJ02-120X4
ConditionNew
CertificationISO, CE, BV
Automatic GradeSemi-Automatic
Voltage220V
FunctionUPVC Window Welding
Heads QuantityFour Head
Welding Height120mm
Total Power4.5kw
Gross Weight1500kgs
P

Product Description

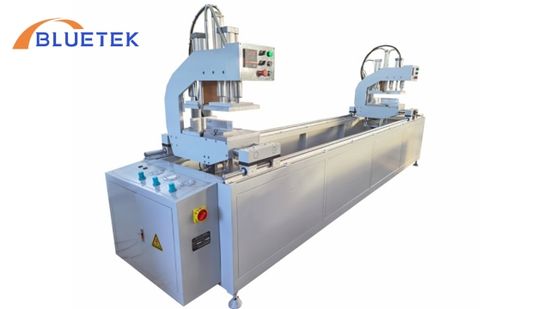

Video Preview

Four Head Vinyl Window Welder PVC UPVC Window Door Welding Machine

Model: HJ02-120x4 | Application: making UPVC window and door | Function: Welding corners

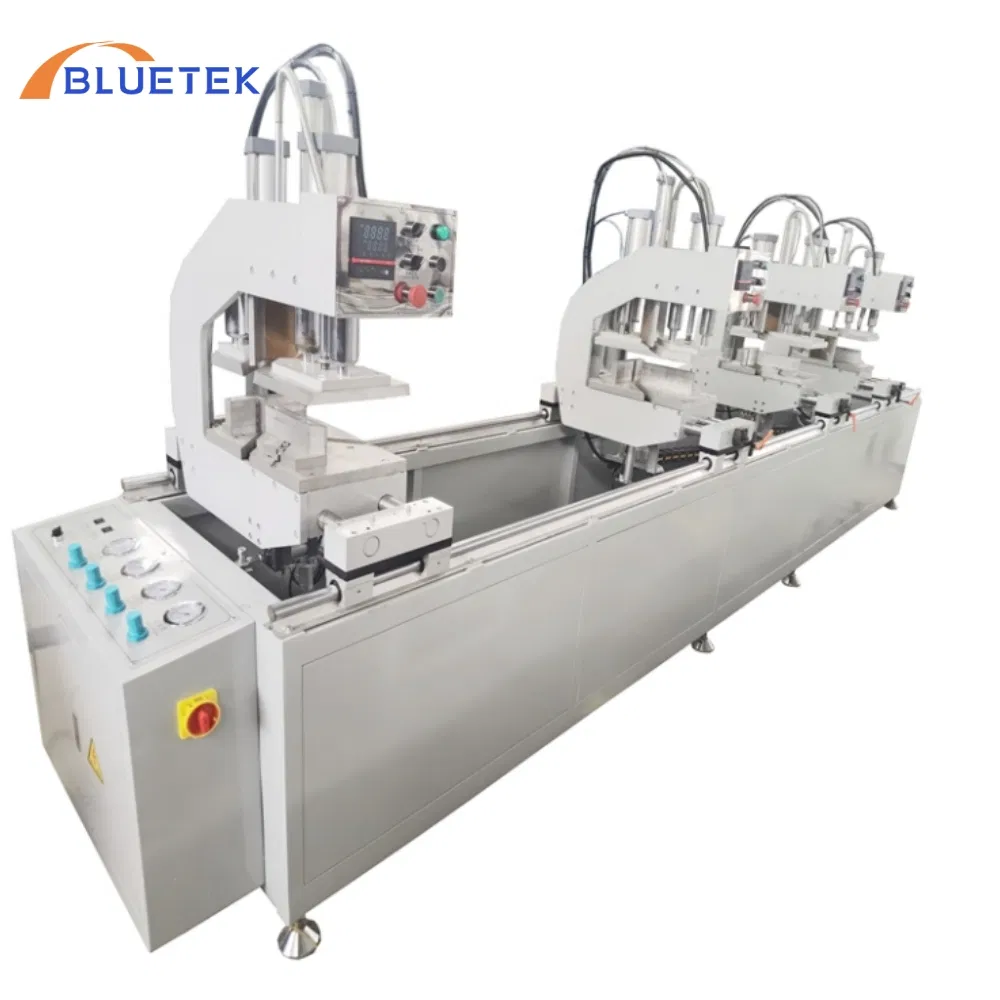

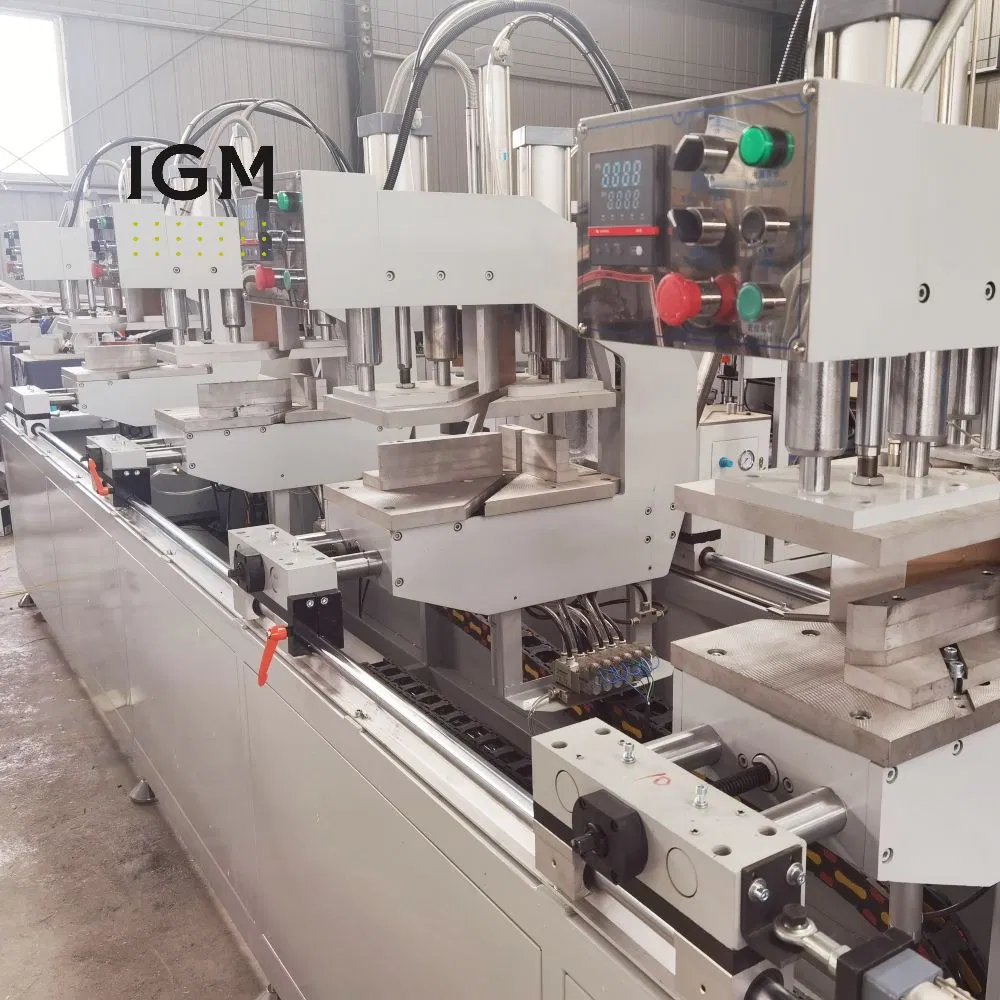

Main Machine View
★

Main Features

  • Two heads for welding UPVC window door corners and mullions.
  • Four heads welder: 4 minutes to make two window frames/sashes.
  • Fully automatic control by PLC.
  • Movable right head (400-3500 mm).
  • Right head can weld 30-180 degrees.
  • Welding height up to 120 mm (customizable).
  • Quickly detachable mold system saves time.
  • Adjustable heating temperature and pressure.
  • Heating element with constant temperature control.
  • Digital display for easy temperature adjustments.
S

Technical Specification

Parameter Details
ModelHJ02-120x4
Working Air Pressure0.5 -0.7 Mpa
Input Power4.5kw
Electric Power220V 50Hz Single Phase
Welding Height120-140mm
Welding Width120mm
Heating/Cooling Time25-30s
Welding Angles90°
Machine Size5500*1100*1800mm
D

Details & Components

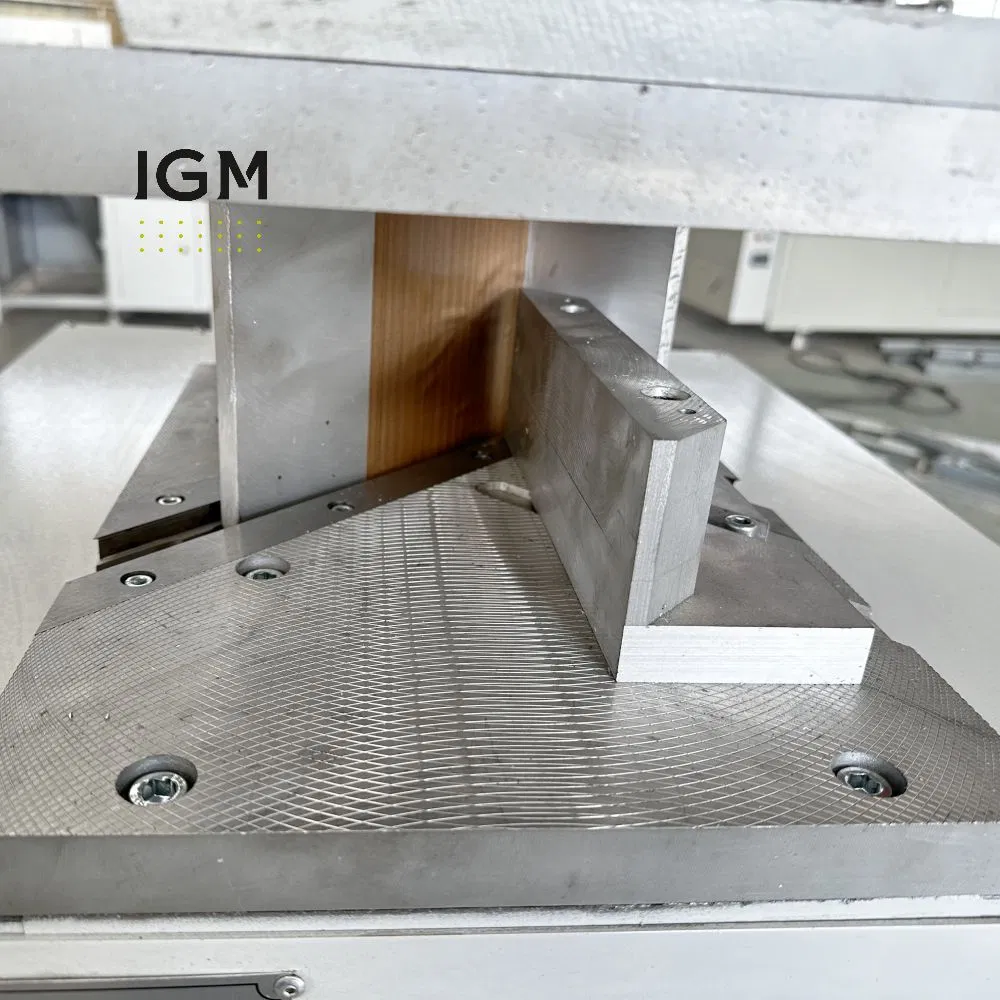

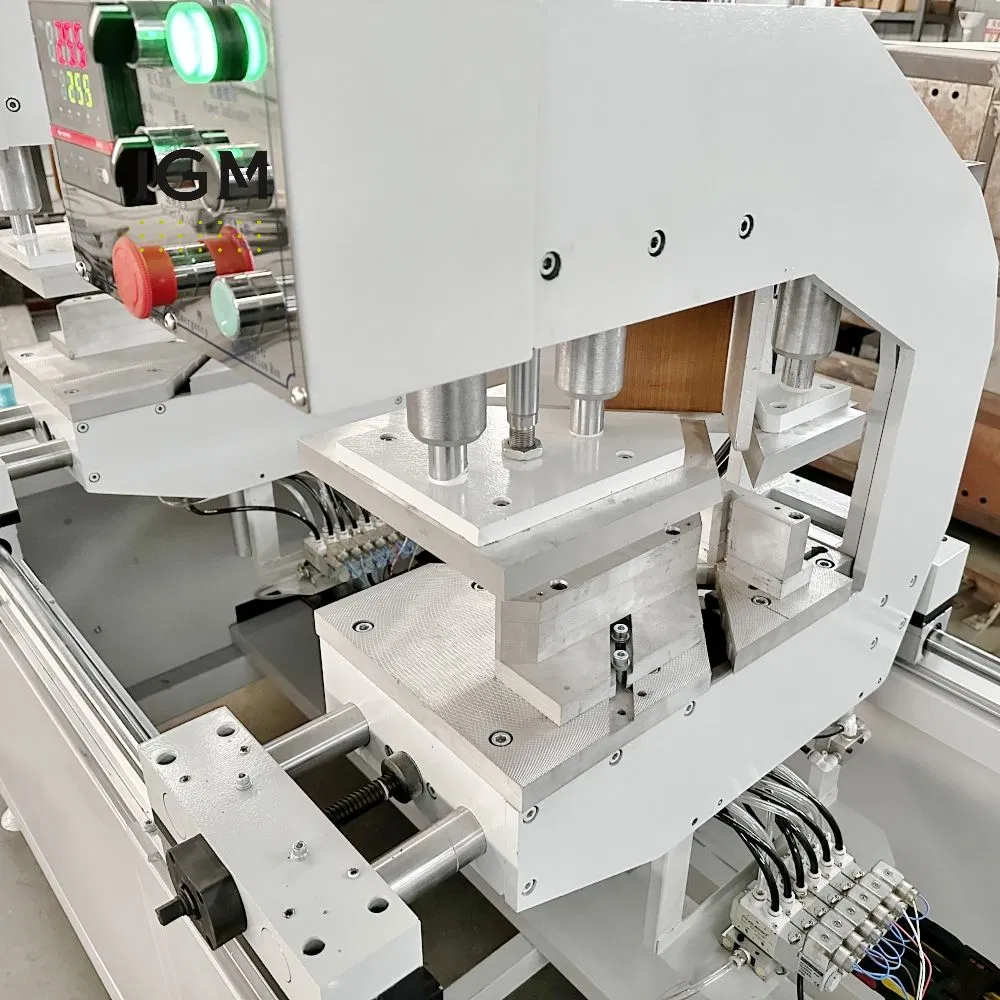

Classic head structure

Classic head structure: Solid aluminum clamp and backing plate. No cutting corners on materials.

Welding effect

Stronger Welds: Real materials make welds more uniform and stronger for long-term durability.

C

Main Configuration

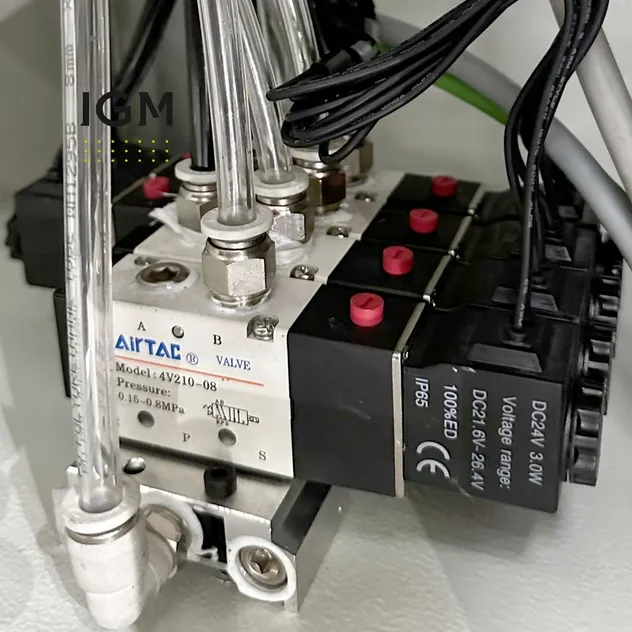

Omron PLC Pneumatic components Circular Track

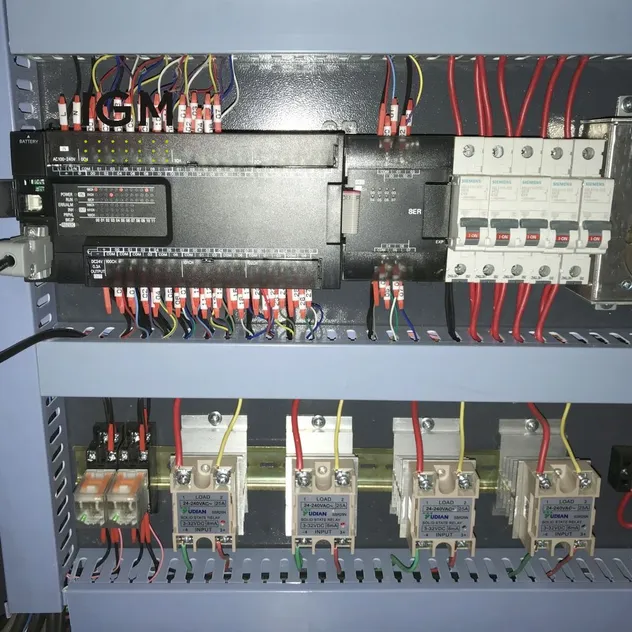

Omron PLC Control
World-renowned Components

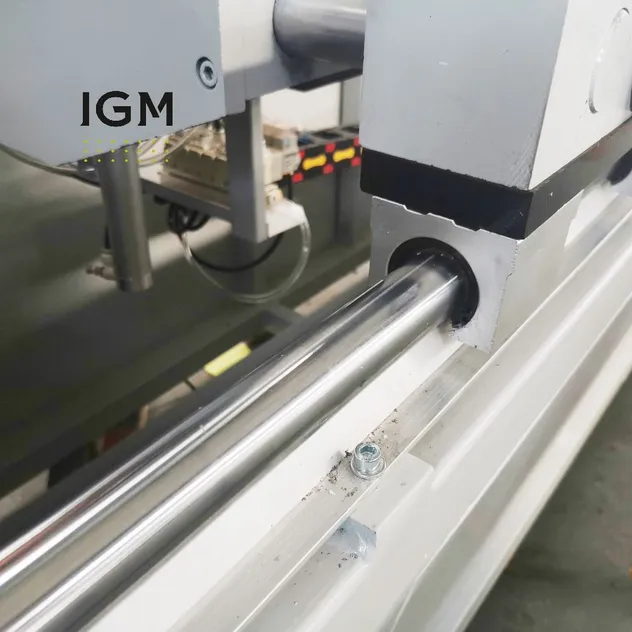

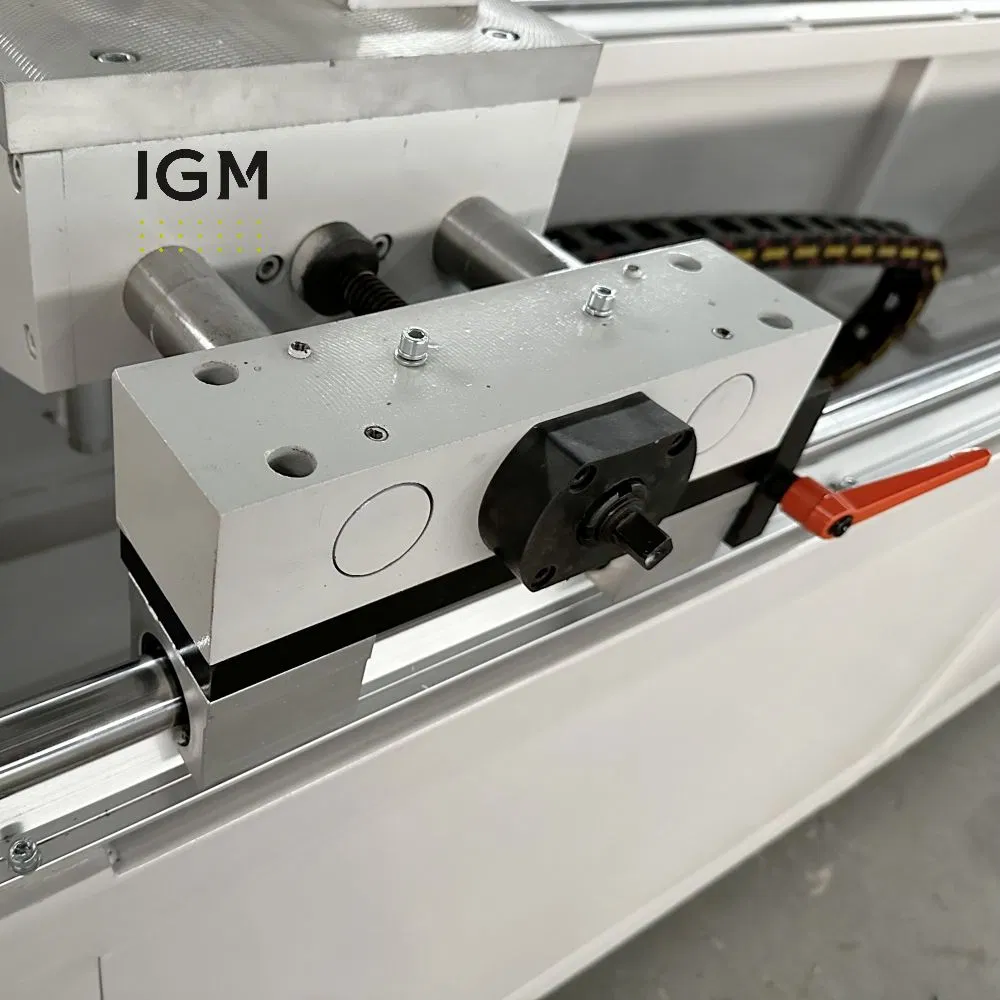

High Precision Circular Track
L

Packaging & Logistics

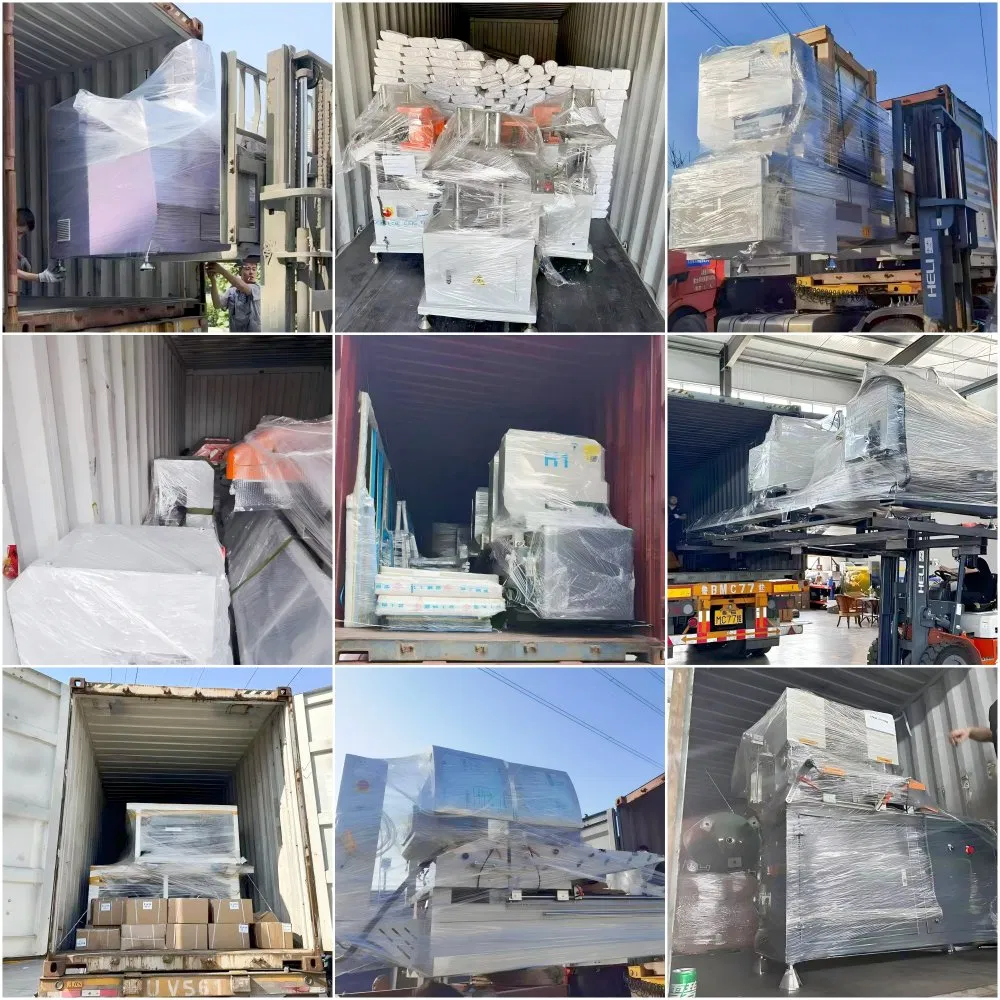

Shipping Packaging

LCL: Packed in fumigation-free plywood with thickened pallets and fixed with steel wire.

FCL: Wrapped in plastic film and fixed in 20/40-foot containers with steel wire or special packaging tape.

A

About the Manufacturer

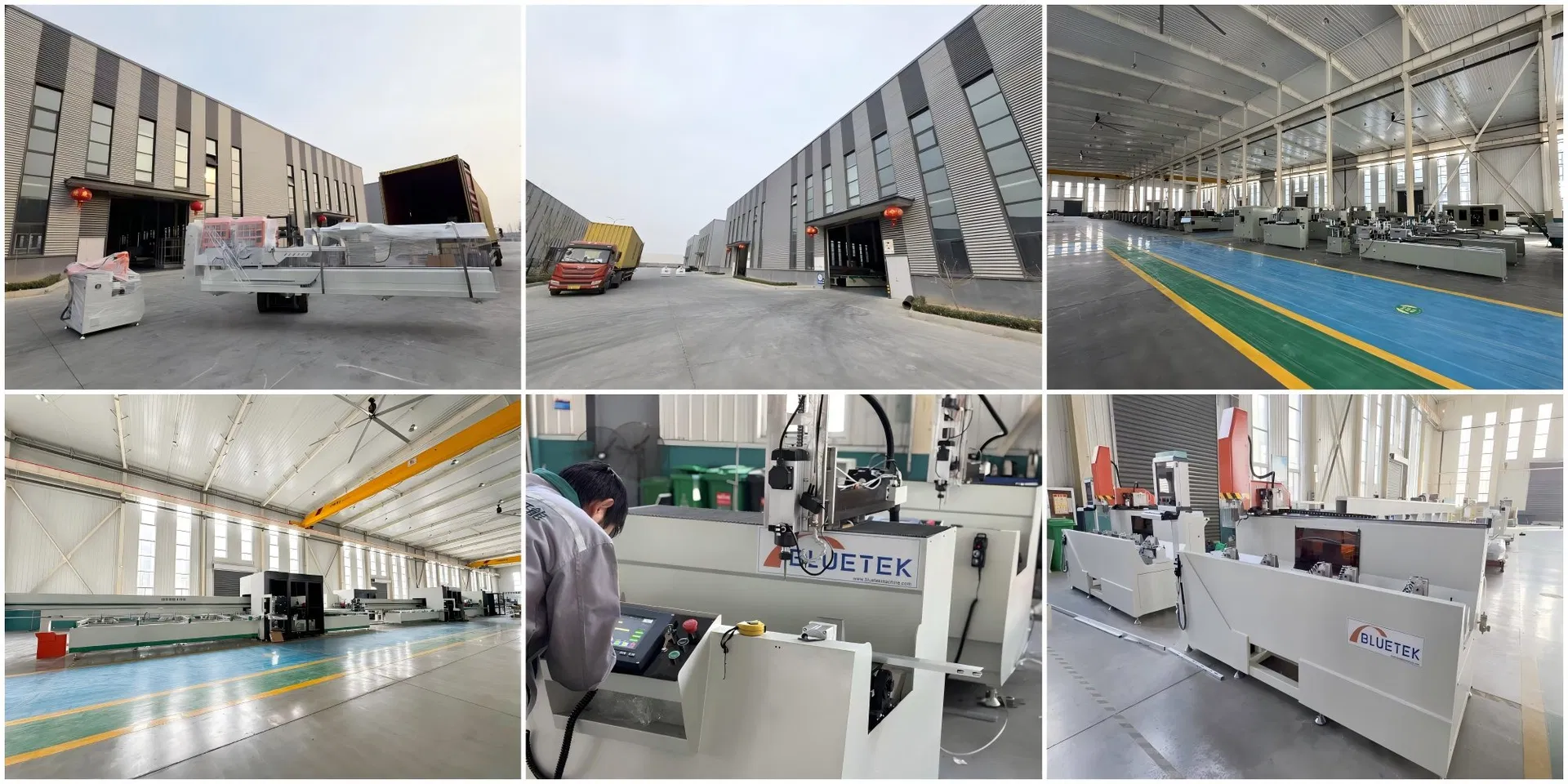

Factory Overview

Specializing in the design, manufacturing, and distribution of high-quality Aluminum and UPVC window door machines. Providing innovative and customized solutions to meet the diverse needs of global clientele.

Products are engineered for precision, efficiency, and durability, ensuring high-quality output that meets international standards. Advanced machinery has found extensive applications across North America, Europe, the Middle East, and more.

S

After-Sales Support

Support Team
  • Installation: Professional on-site installation and equipment commissioning support.
  • Training: Comprehensive operation and maintenance training for your staff.
  • Warranty: 18-month warranty period with lifelong after-sales service.
  • Response: 24/7 technical support and quick spare parts supply.

Frequently Asked Questions

What is the maximum welding height of this machine?
The standard welding height is 120mm, but it can be customized to reach up to 140mm depending on your profile requirements.
How efficient is the Four Head Welder compared to Double Head?
The four-head welder is much more efficient; it can complete two window frames or sashes in approximately 4 minutes, doubling the output of a standard double-head machine.
Does the machine support non-90 degree welding?
Yes, the right head is adjustable and can weld angles ranging from 30 to 180 degrees, providing flexibility for various window shapes.
What kind of power supply does the machine require?
The standard configuration requires 220V 50Hz single-phase power, with a total input power of 4.5kw.
What is included in the after-sales warranty?
We provide an industry-leading 18-month warranty period and lifelong technical support, including remote video assistance and spare parts supply.
How is the machine protected during international shipping?
For LCL shipments, we use fumigation-free plywood cases with reinforced bases. For FCL, machines are wrapped in protective film and securely fixed within the container using steel wires.
