Home > Glass Processing Machinery > Vertical Automatic Insulating Glass Production Line Machine for Double Glazing Glass Processing

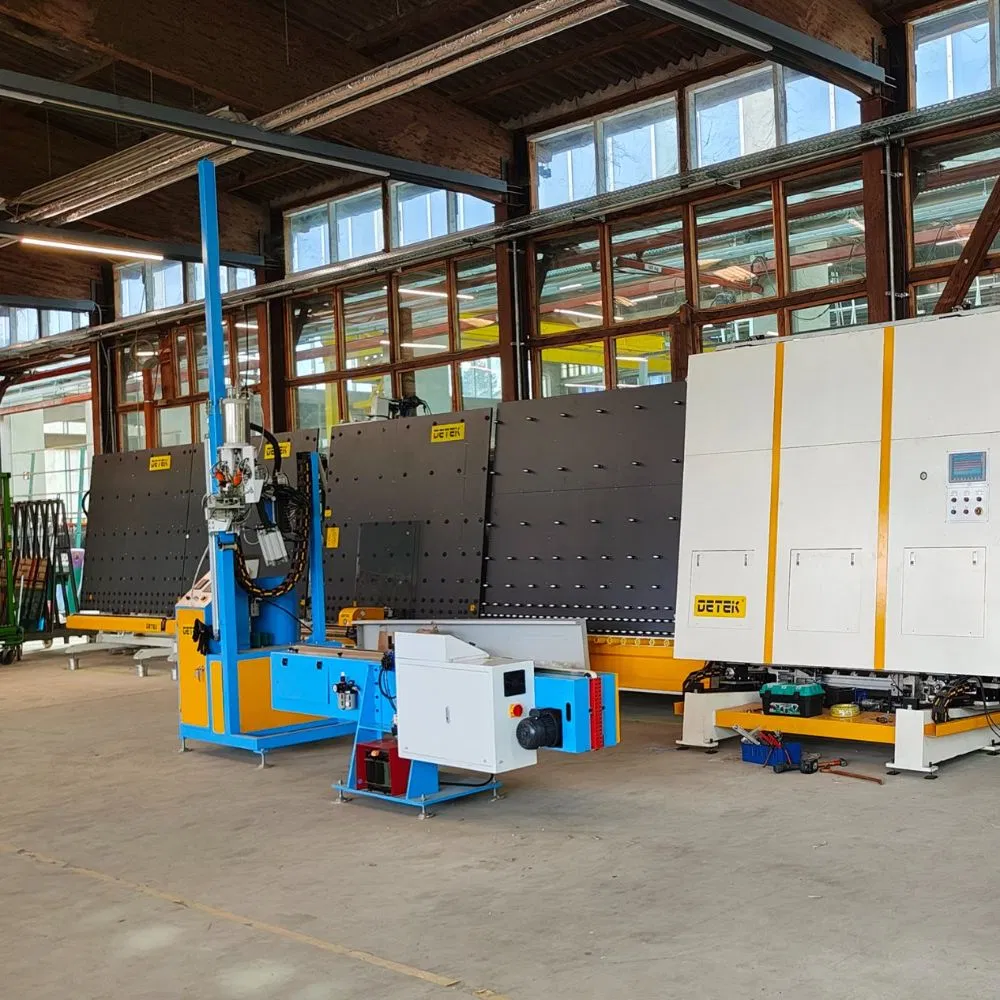

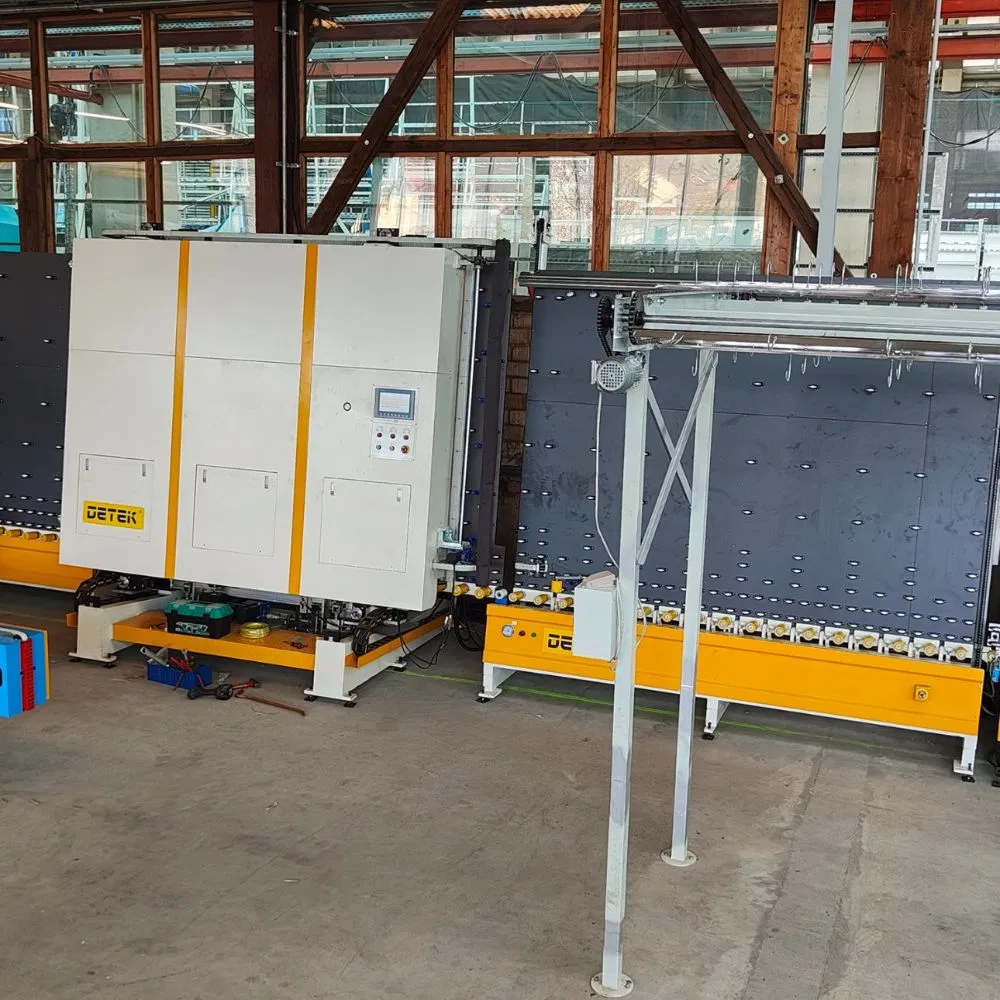

Vertical Automatic Insulating Glass Production Line Machine for Double Glazing Glass Processing
Vertical Automatic Insulating Glass Production Line Machine for Double Glazing Glass Processing
Vertical Automatic Insulating Glass Production Line Machine for Double Glazing Glass Processing
Vertical Automatic Insulating Glass Production Line Machine for Double Glazing Glass Processing
Vertical Automatic Insulating Glass Production Line Machine for Double Glazing Glass Processing
1 / 5
Vertical Automatic Insulating Glass Production Line Machine for Double Glazing Glass Processing
Vertical Automatic Insulating Glass Production Line Machine for Double Glazing Glass Processing
Vertical Automatic Insulating Glass Production Line Machine for Double Glazing Glass Processing
Vertical Automatic Insulating Glass Production Line Machine for Double Glazing Glass Processing
Vertical Automatic Insulating Glass Production Line Machine for Double Glazing Glass Processing

Vertical Automatic Insulating Glass Production Line Machine for Double Glazing Glass Processing

Customization: Available
Certification: CE
Guarantee: 1 Year
Send Inquiry

Product Description

📋
Basic Specifications
Model NO.
LBZ2000
Type
Insulating Glass Production Line
Structure
Vertical
Glass Washing
Ultrasonic System
Specification
2500*4000mm
Condition
New
Origin
China
Package Size
2000.00cm * 2000.00cm * 3000.00cm
Gross Weight
5000.000kg
💎
Product Description

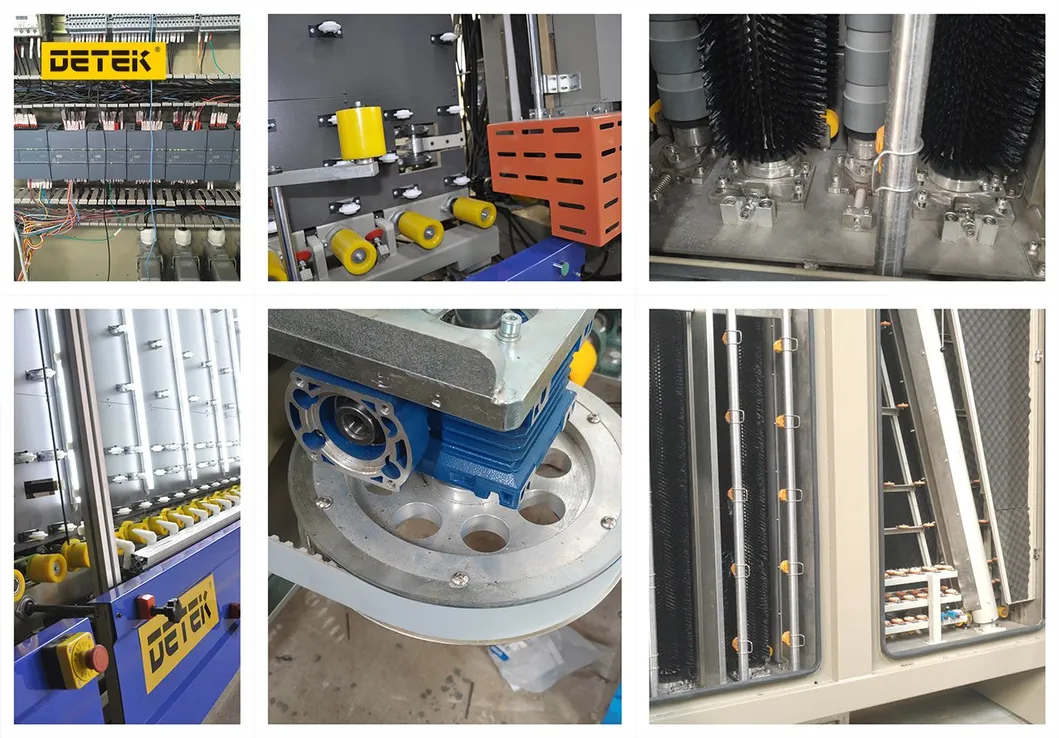

Machine Overview 1

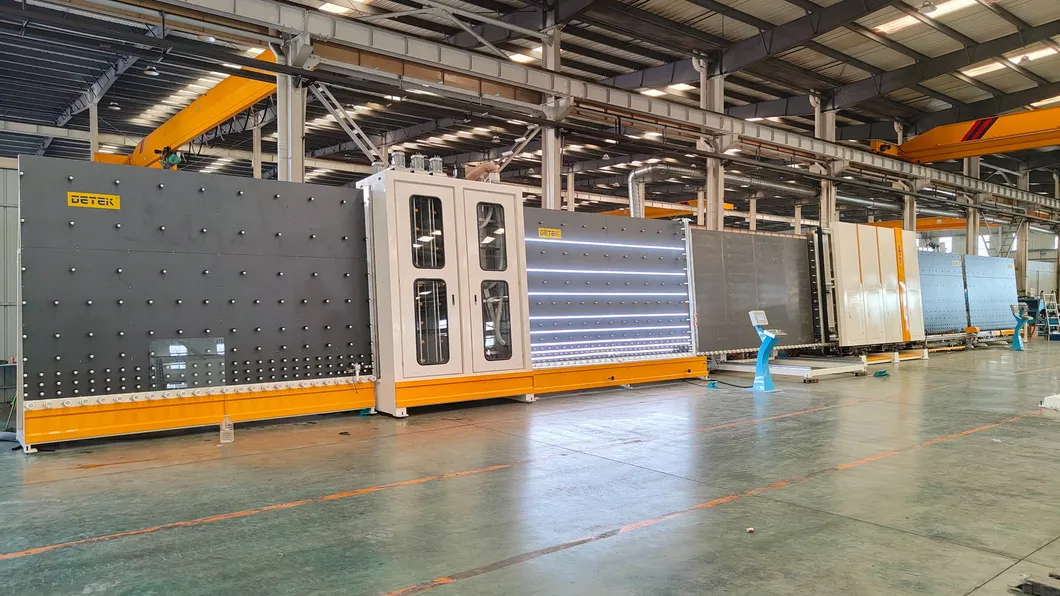

Machine Overview 2

Vertical automatic insulating glass flat press production line is mainly used for Insulating Glass Units (double glazing glass) production. This model applies to glass processing companies and window/door fabricators. It features fully automatic glass sheet transportation, automated Low-E coating detection, automatic washing and drying, and fully automatic IGU assembly and pressing. Optional gas filling on line and automatic secondary sealant sealing ensure high-quality units with long-life performance.

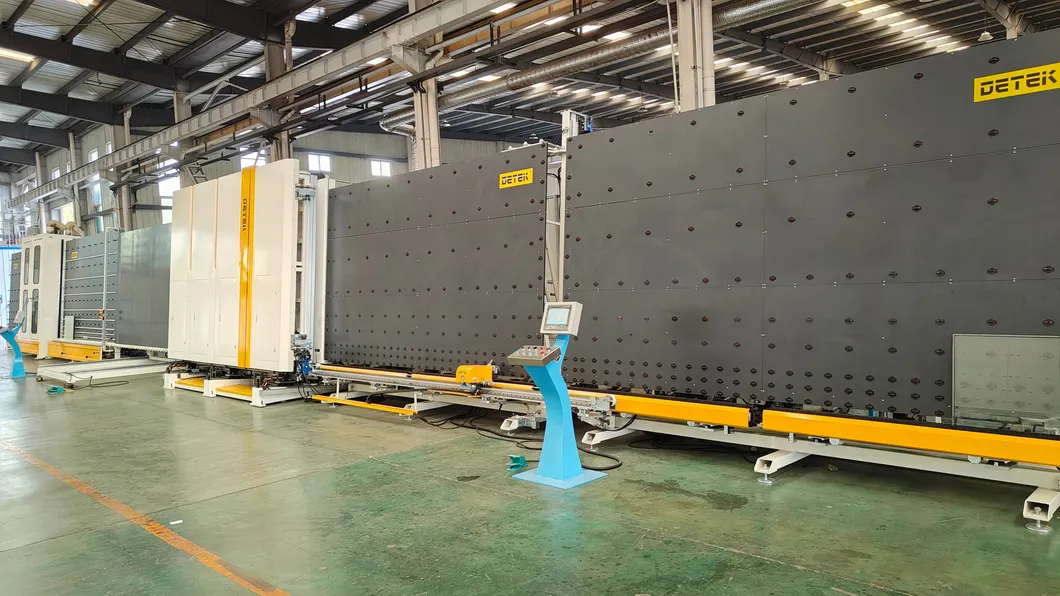

Processing Unit
Application View
Key Features
  • PLC control system with touch screen interface.
  • Automatic detection for Low-E glass coating side.
  • Unique air knife with silencer device for quiet operation.
  • Automatic aluminum frame mounting and glass positioning.
  • Supports Double IGU, Triple IGU, and shaped glass.
  • On-line gas filling with automatic size checking.
📊
Technical Parameters
Max. IG size2500×4000mm
Min. IG size280×450mm
Single glass thickness3-12mm
Insulating glass thickness40mm
Glass washing speed2-10m/min
Washing brushes3 pairs
Glass conveyor speed45m/min
Power3P 380V 50HZ 40kw
Dimension24500×3500×3800mm
Weight6500Kg
⚙️
Main Components Brand
Part NameBrandOrigin
PLC / Servo DriverSiemensGermany
Servo Motor / Touch ScreenKincoChina
Inverter / SensorOmronJapan
Electrical ComponentsSchneiderFrance
Proximity SwitchIFMGermany
Pneumatic PartsAirtagTaiwan
Cooperation Brands
🏭
Production & Logistics

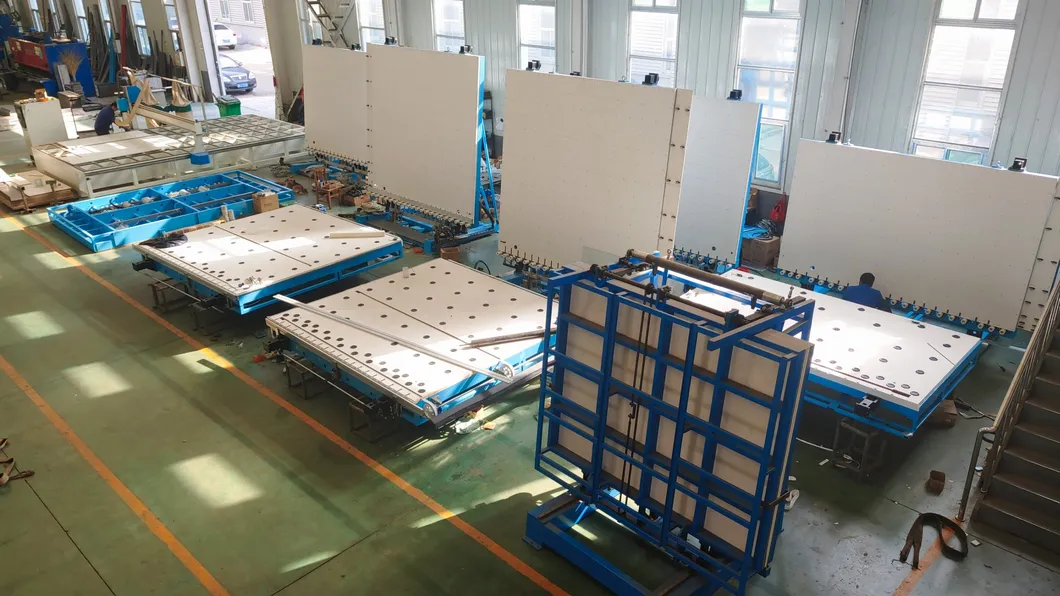

Workshop

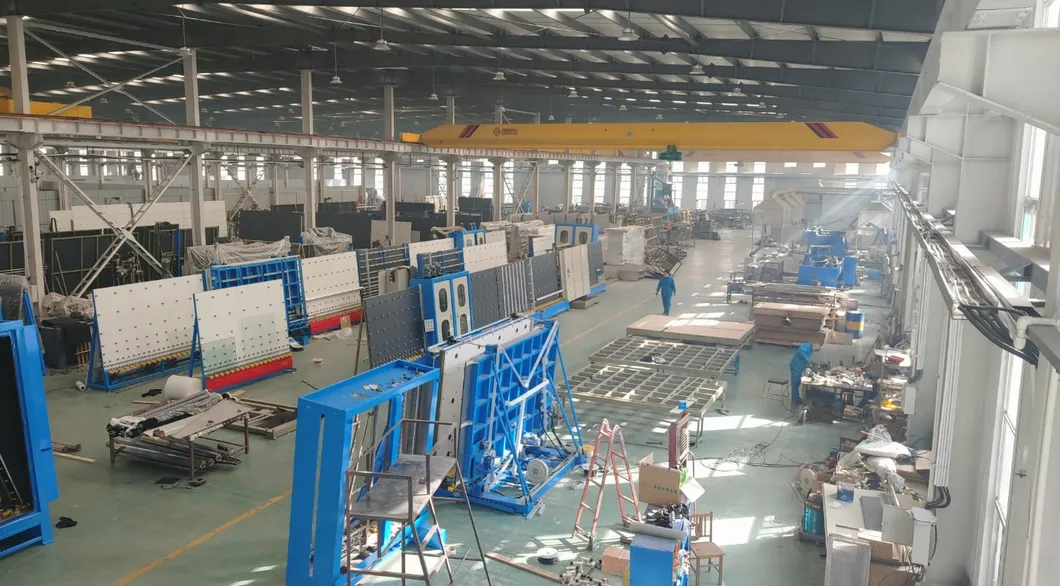

Production
Packing
Shipping
Loading
After-sales Service
Frequently Asked Questions
What is the lead time for equipment delivery?
The lead time is approximately 60 days for a complete production line and 30 days for individual machines.
How is the international shipment arranged?
Machines are designed to fit GP containers to save on sea freight. We use seaworthy packaging and professional container loading to ensure safe arrival.
What is the warranty policy for these machines?
We provide a one-year guarantee (excluding wearing parts) and life-long technical service support. On-site engineering service is available upon request.
Are installation services provided?
Yes, installation is included. Customers are responsible for the engineer's travel expenses (airfare, local transport) and accommodation. Installation typically completes within 15 days.
What kind of after-sales support can I expect?
Spare parts can be dispatched within 72 hours. We have experienced technical teams and service engineers ready for on-site instruction and troubleshooting.
Can the line handle special types of glass?
Yes, our system supports double IGU, triple IGU, shaped IGU, and stepped IGU units.
