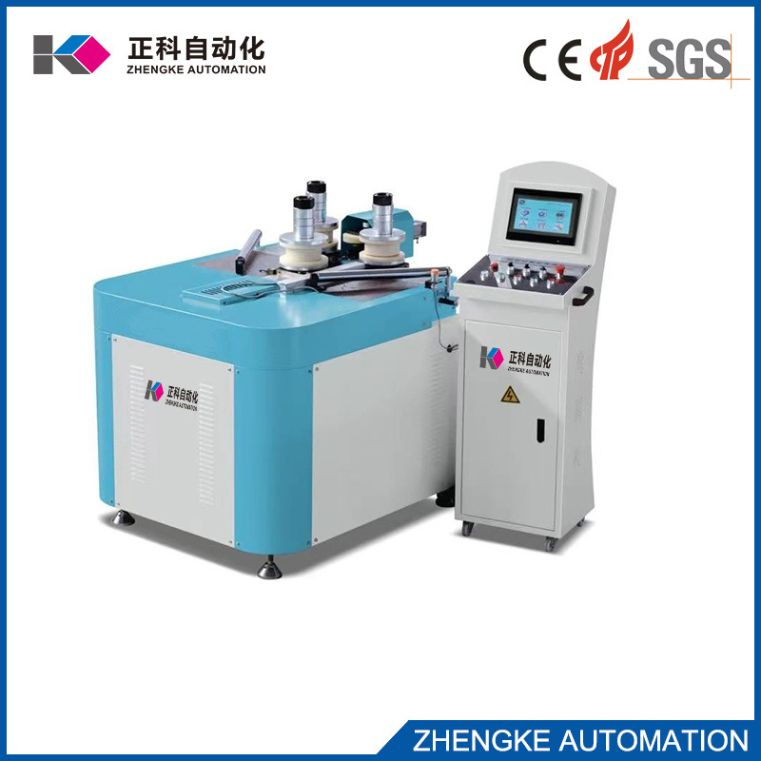

Basic Specifications
| Model NO. | WD200-CNC-20T |
| Condition | New |
| Certification | ISO, CE |
| Automatic Grade | Automatic |
| CNC or Not | CNC |
| Voltage | 380V |
| Input Power | 5.2kw |
| Roller Rotation Speed | 0-15rpm |
| Max Diameter of Roller Mold | 300mm |
| Material | Chromium 12 Molybdenum-Vanadium, Nylon |
| Roller Diameter | 60/mm (Customizable) |
| Fixed Axis Center Distance | 350-750mm Adjustable |
| Y-Axis Driving Force | 20 Tons |
| Y-Axis Positioning Accuracy | <= Plus or Minus 0.01mm |
| Max Torque (X/Y Axis) | 2300 N. M |
| Y Axis Feed Stroke | 0-220mm |
| Roller Shaft Length | 200mm |
| Range of Processed Profiles | 150* 150mm (H x W) |
| Minimum Machining Radius | 100mm |
| HS Code | 8462911000 |

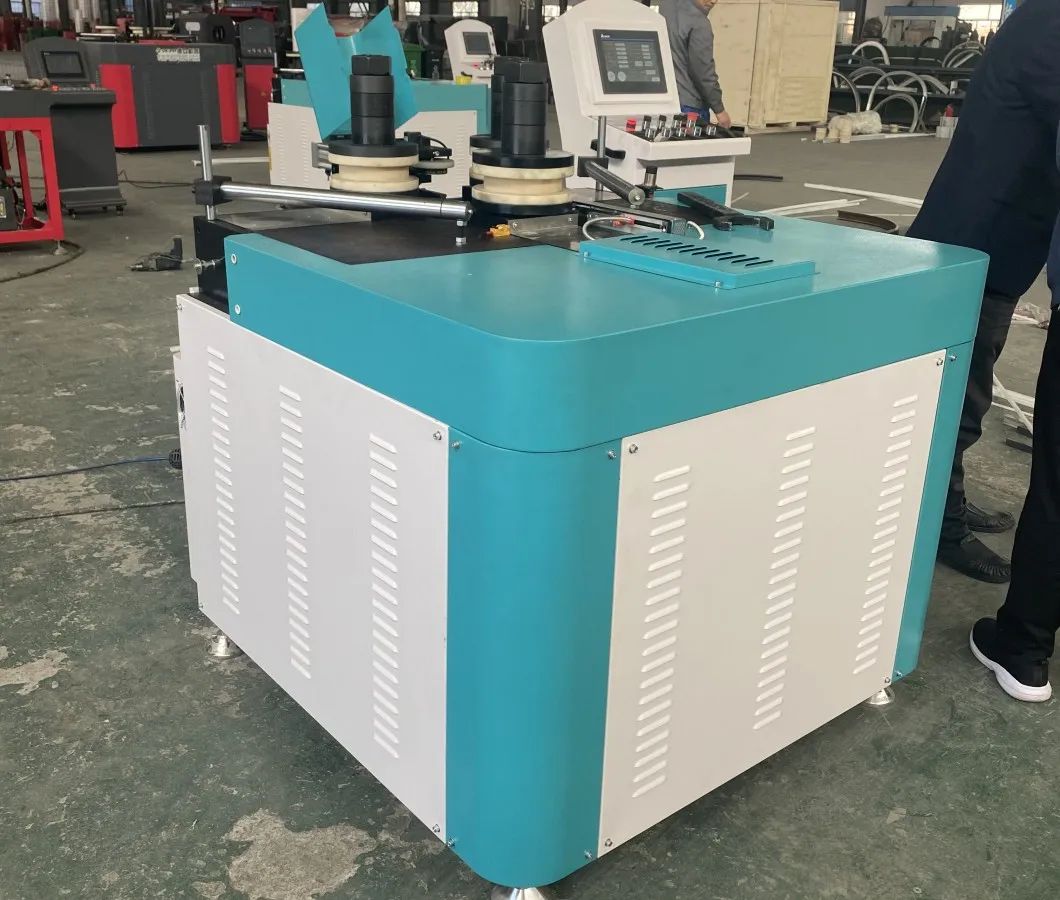

Product Features
🎯

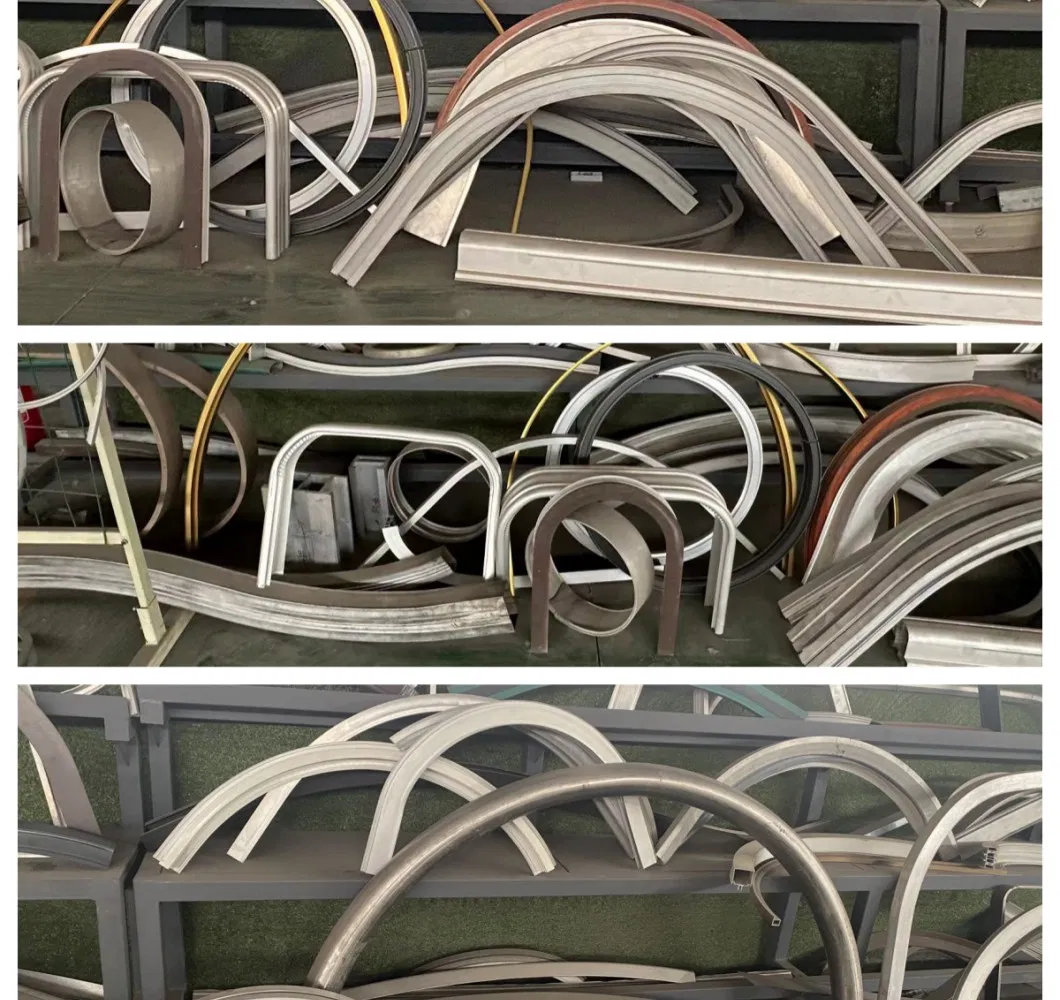

Multi-radius bending can be formed once (multi-curvature), effectively improving processing efficiency.
💧
Imported hydraulic system ensures 20 tons of pressure with positioning accuracy less than 0.01mm.
📏
Double drive grating ruler with anti-interference module provides excellent arc bending repeatability.
💻

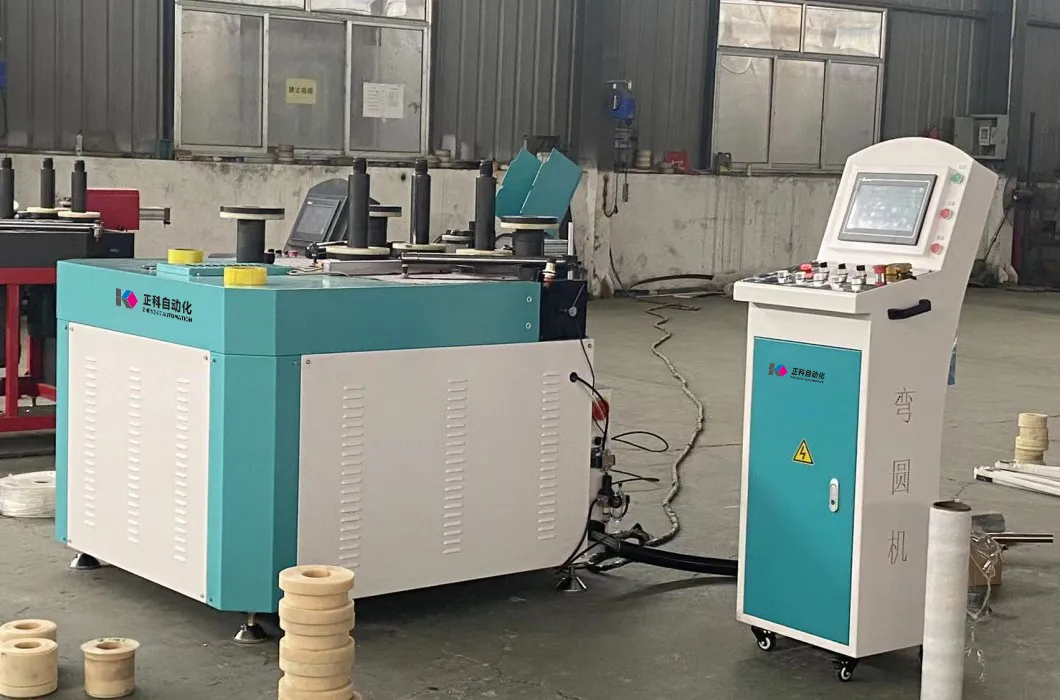

CNC control system manages smooth and symmetric transitions for different workpiece curvatures.
🛠️
Exquisite mold design technology prevents wrinkles, scratches, and distortion during processing.
Technical Parameters
| Total Power | 5.2KW |
| Power Supply | 3 Phase 4 Wire AC380V, 50HZ |
| X Axis Positioning Accuracy | <0.1mm |
| Y Axis Repeat Accuracy | 0.01mm |
| Total Weight | 1000kg |
| Host Dimensions | 1300*1100*1500mm |

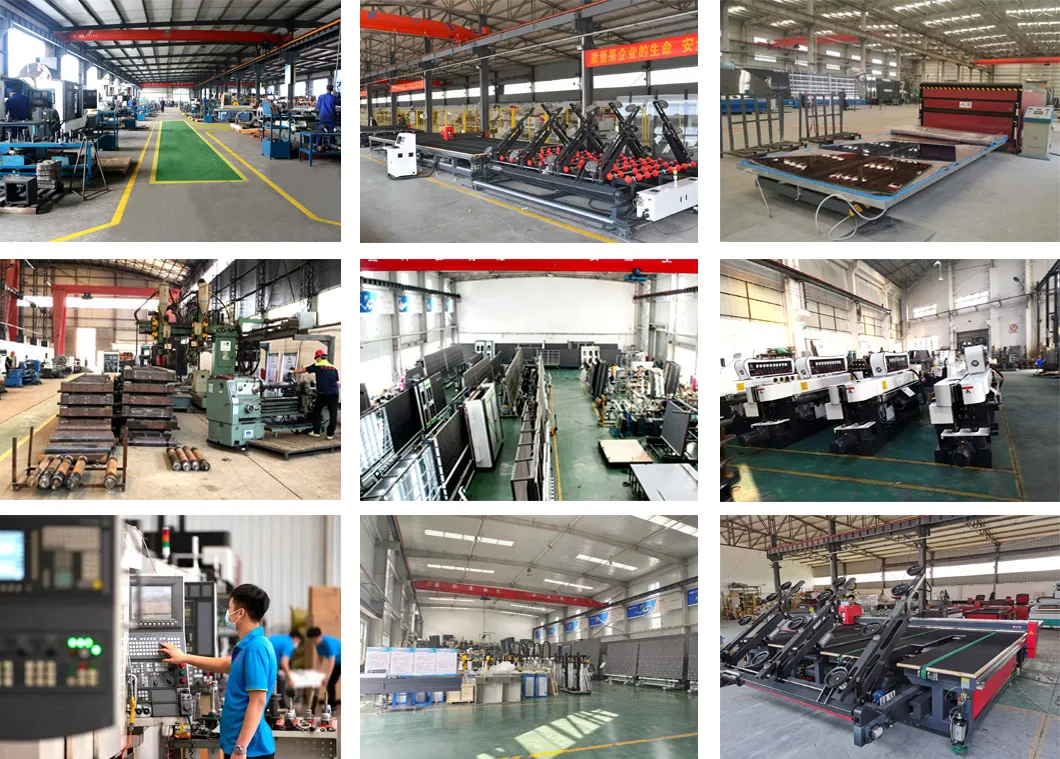

Production & Capability

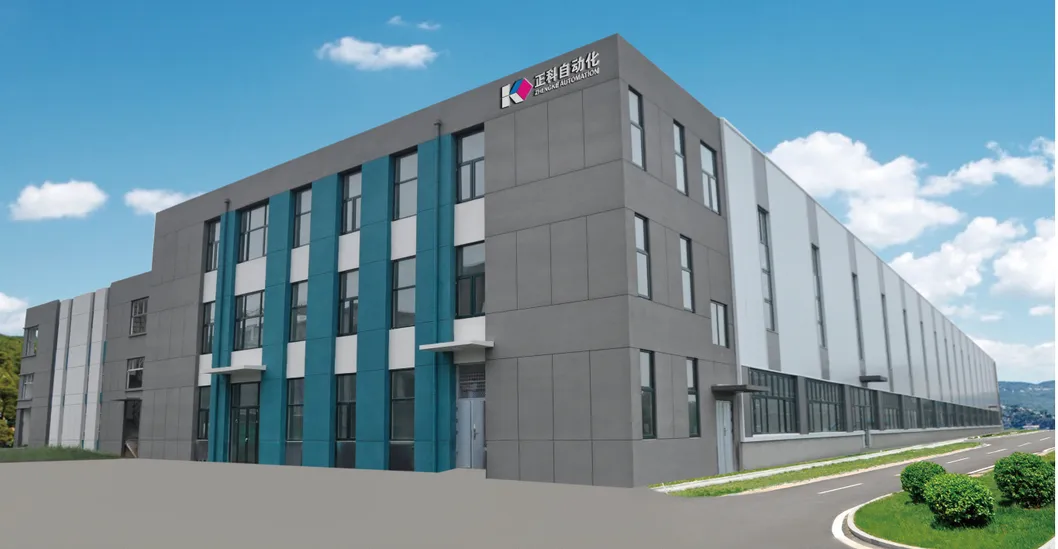

The facility focuses on advanced glass and aluminum processing machinery, including cutting, edging, washing, and tempering equipment. With independent technology design and R&D teams, the systems are developed for high production efficiency, continuous stability, and high degrees of automation. The core technologies include unique core algorithms and rich rolling parameters to solve reliance on highly skilled manual labor.
Our Advantages
✅ Professional glass and profile production solutions.
✅ Advanced production equipment with strict quality control.
✅ OEM & ODM customized design and packaging support.
✅ Direct manufacturer pricing with no middleman.
✅ Fast delivery times via professional manufacturing management.
Frequently Asked Questions
Q1: What is the positioning accuracy of the CNC Bending Machine?
The machine features a high-precision hydraulic system that allows the Y-axis to achieve a repeated positioning accuracy of less than or equal to 0.01mm.
Q2: Can the machine handle complex multi-radius shapes?
Yes, the CNC control system allows multi-radius (multi-curvature) bending to be formed in a single operation, ensuring smooth and symmetric transitions.
Q3: What materials are used for the roller molds?
The roller molds are crafted from high-quality Chromium 12 Molybdenum-Vanadium and Nylon to ensure durability and prevent profile distortion.
Q4: What is the maximum processing capacity for profiles?
The machine can process profiles with a maximum range of 150mm in both height and width, with a driving force of 20 tons on the Y-axis.
Q5: Is the machine easy to operate for non-skilled workers?
Yes, the system is designed with a humanized, flexible interface and a unique core algorithm that simplifies complex operations, reducing reliance on highly skilled labor.
Q6: What are the power and electrical requirements?
The standard setup requires a 3-phase 4-wire AC380V, 50Hz power supply with a total input power of 5.2KW. Customization is available upon request.
