Zhixing Machine
Zhixing Machine
| Model NO. | SYH-1800 |
| Automatic Grade | Automatic |
| CNC or Not | CNC |
| Voltage | 380V |
| Product Name | UPVC Window Bending Machine |
| Machine Type | PVC Profile Bending Machine |
| Raw Material | PVC Profile, UPVC & PVC Profile |
| Worktable Dimension | 2850X1250X800mm |
| Heating Tank Dimension | 3100X300X650mm |
| Heating Time | 10-15 Mins |
| Heating Temperature | 100°-120° |
| Working Diameter | 500mm-1800mm |
| Heating System | Infrared Ray |
| Warranty | 1 Year |
| HS Code | 8477800000 |

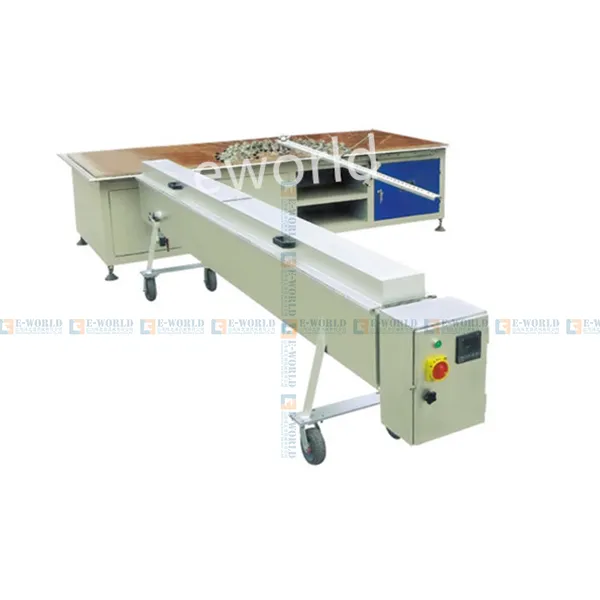

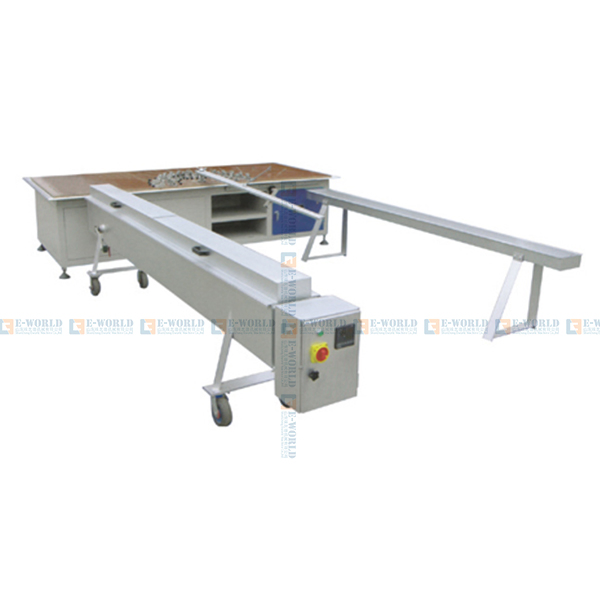

Professional UPVC Arc Window Making Machine

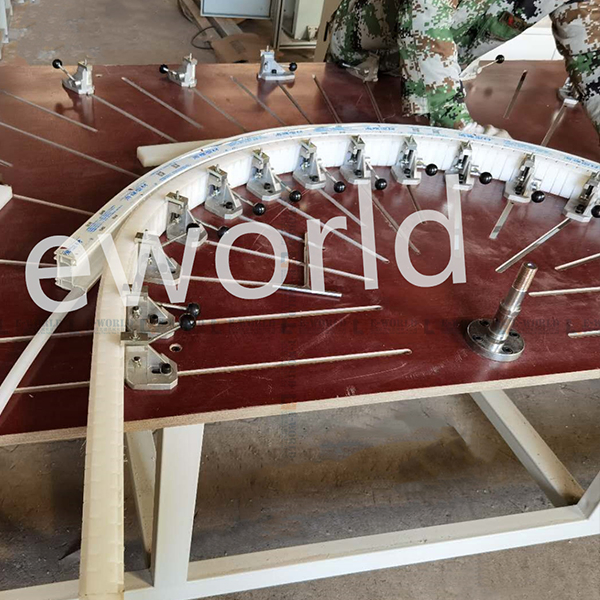

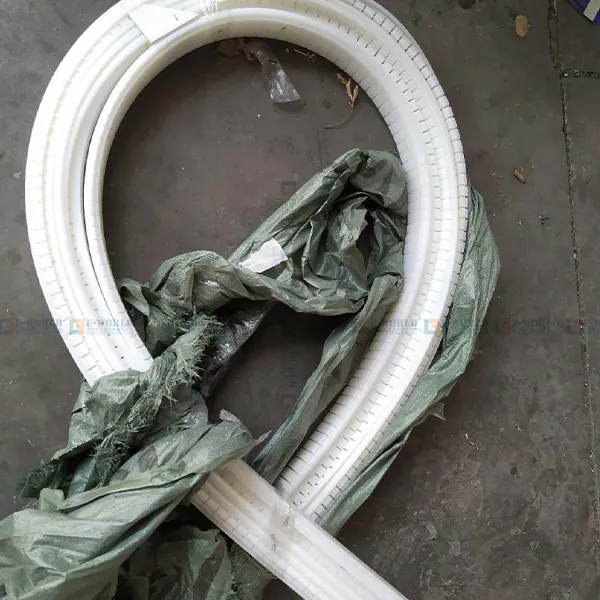

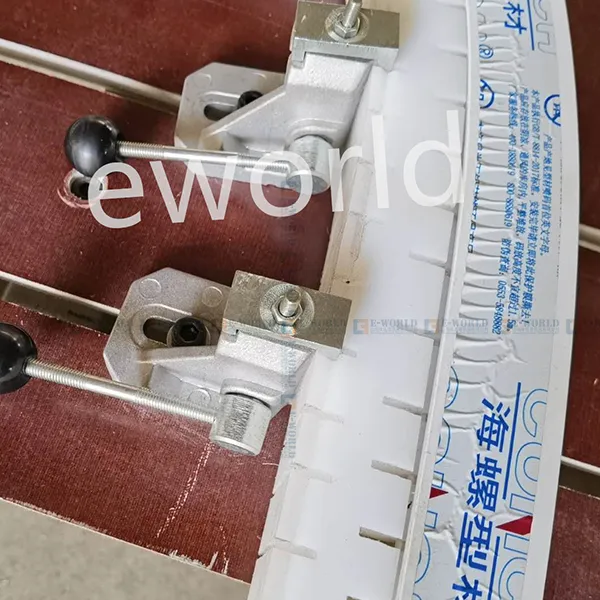

This machine is used for bending PVC/UPVC/Plastic/Vinyl arc shape window and doors. It includes a working table, heating groove (heating tank), and bending moulds (shape-forming bands). Heated by infrared ray air, the profile is softened in the heating groove for precision processing. Handles semi-circles from 500mm diameter with high reliability and efficiency.
| Equipment Name | UPVC & PVC arch bending machine |
| Power Supply | 380V / 50HZ / 8Kw |
| Table Dimension | 2850 x 1250 x 800mm |
| Heating Tank Size | 3100 x 300 x 650mm |
| Heating Duration | 10-15 mins |
| Operating Temp | 100° - 120° |
| Diameter Range | 500mm - 1800mm |
| Total Weight | 600Kg |
Note: We recommend the air heating type over oil heating. Air heating is cleaner and ensures the profiles do not require additional cleaning after the bending process, resulting in a superior finish.
