| Model NO. | LXD2S7-CNC-300 |
| Condition | New |
| Certification | ISO, CE |
| Automatic Grade | Automatic |
| CNC or Not | CNC |
| Voltage | 380V |
| Maximum Worktable Tool Diameter | 350mm |
| Worktable Size | 505*410mm(W*H) |
| Profile Maximum Size(Horizontal) | 160*70*500mm(H*D*W) |
| Profile Maximum Size(Vertical) | 80*50*500mm(H*D*W) |
| Transport Package | Iron Pallet in Container |
| Dimensions | 5500*1700*2350mm |
| Production Capacity | 300 Units/Year |

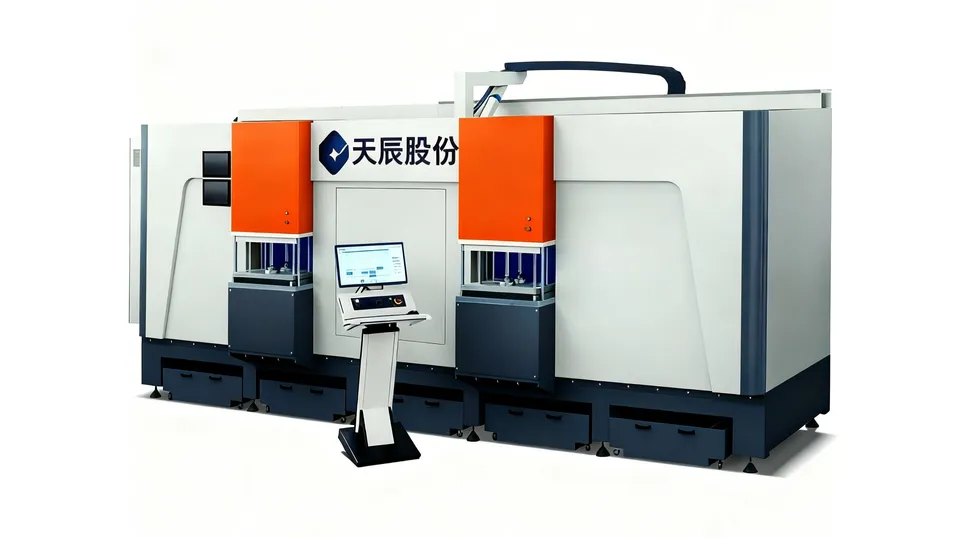

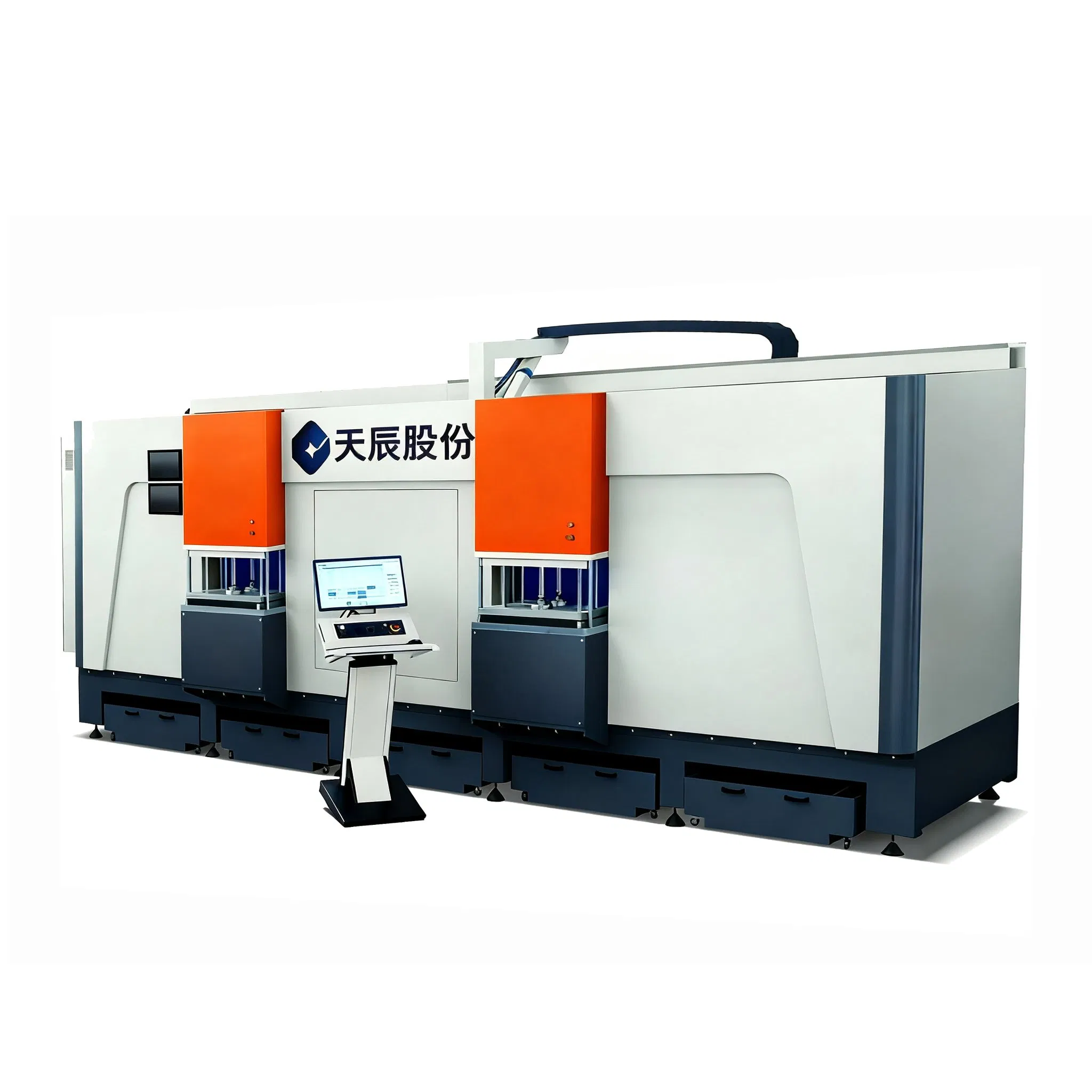

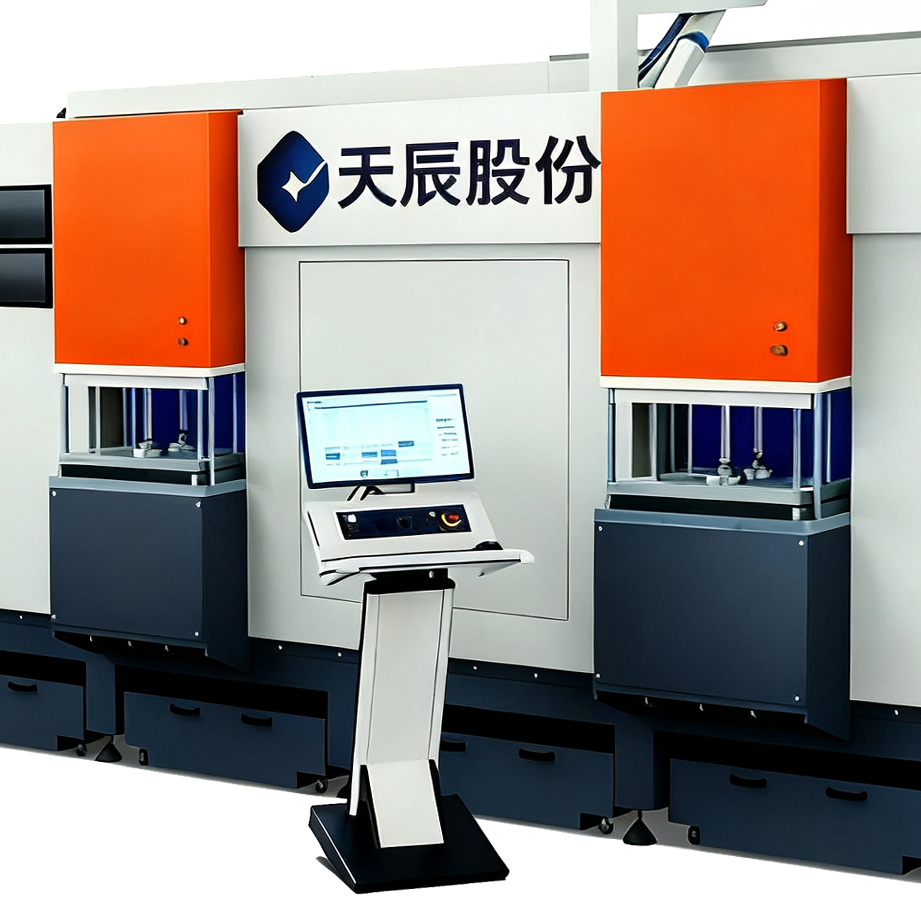

7-axis End Milling Machine for Aluminum Window Profiles

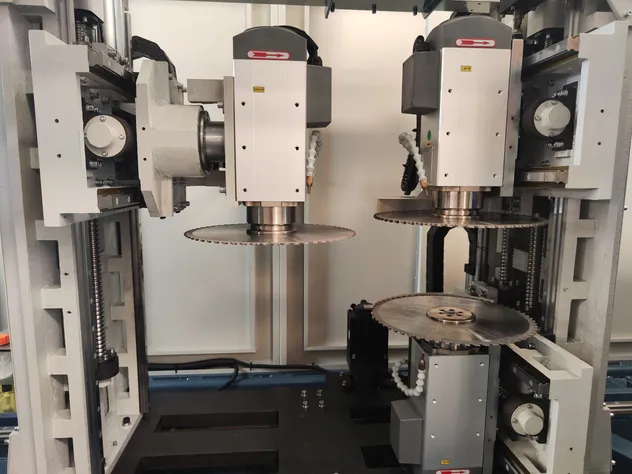

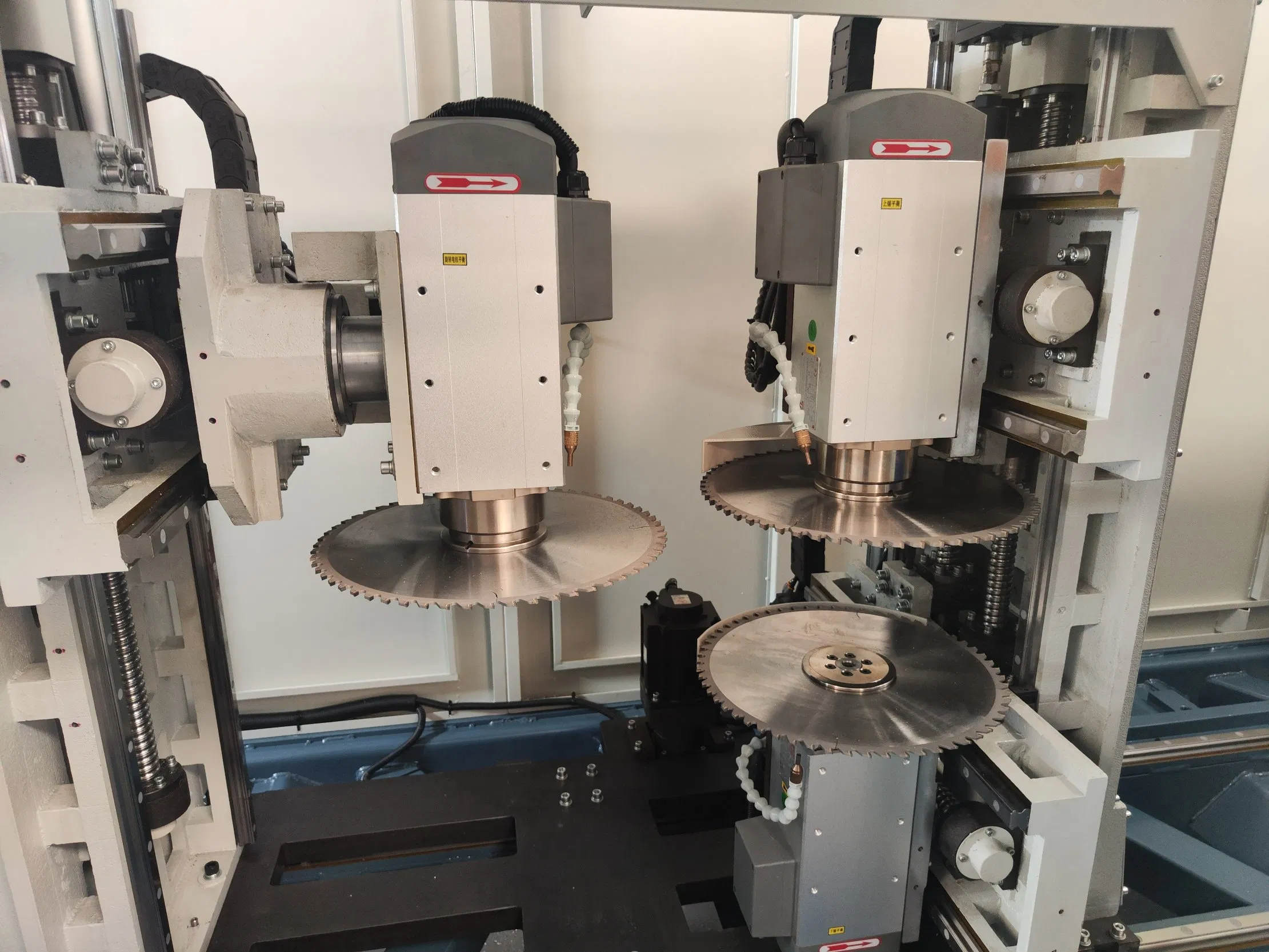

The LXD2S7-CNC-300 End Milling Machine is designed for efficient sawing and milling of tenon and step surfaces on aluminum door and window stiles. It features three high-power direct-drive spindles, with one capable of vertical and horizontal flipping for versatile processing of various cross-sections, including reinforced profiles.

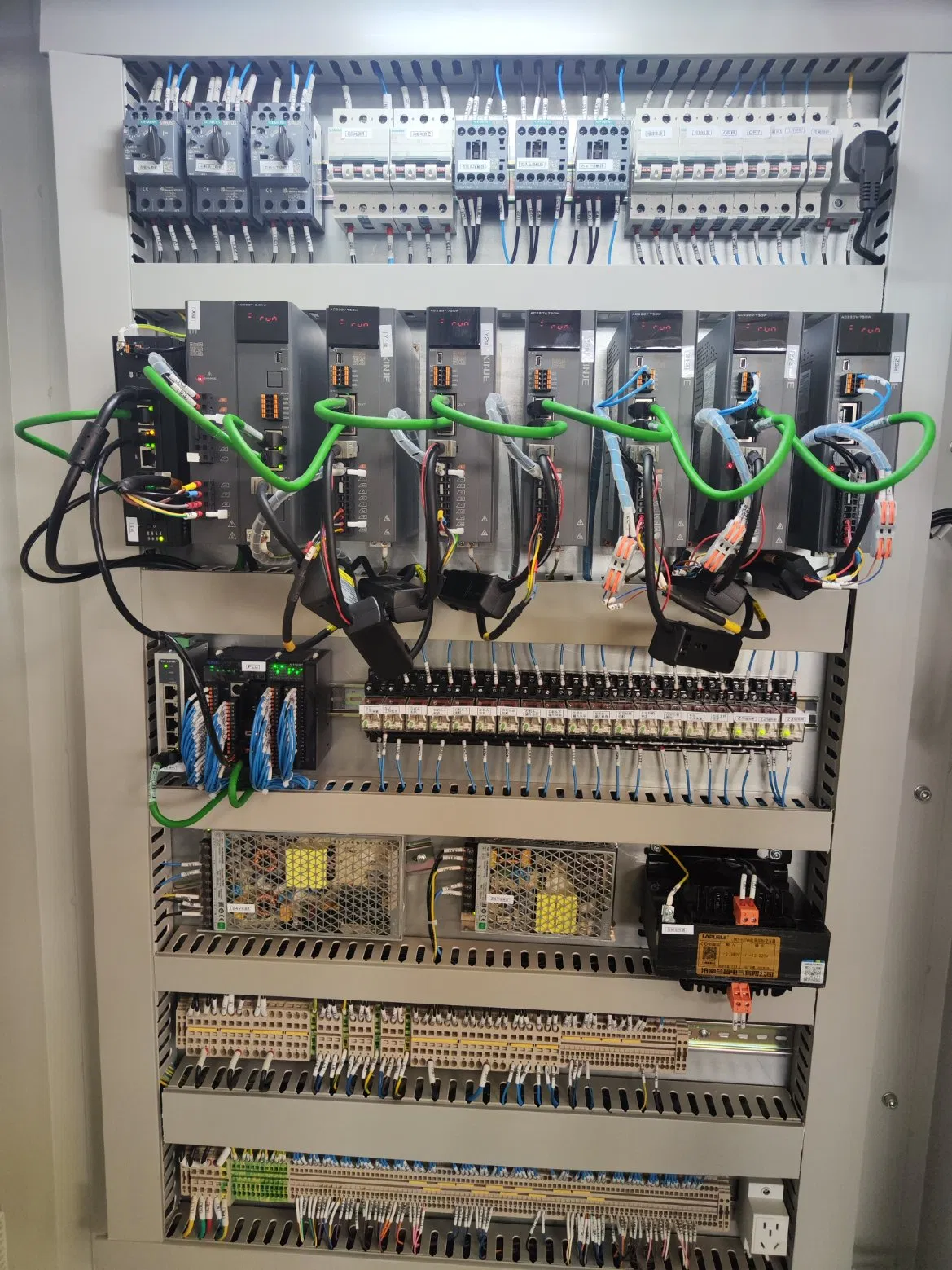

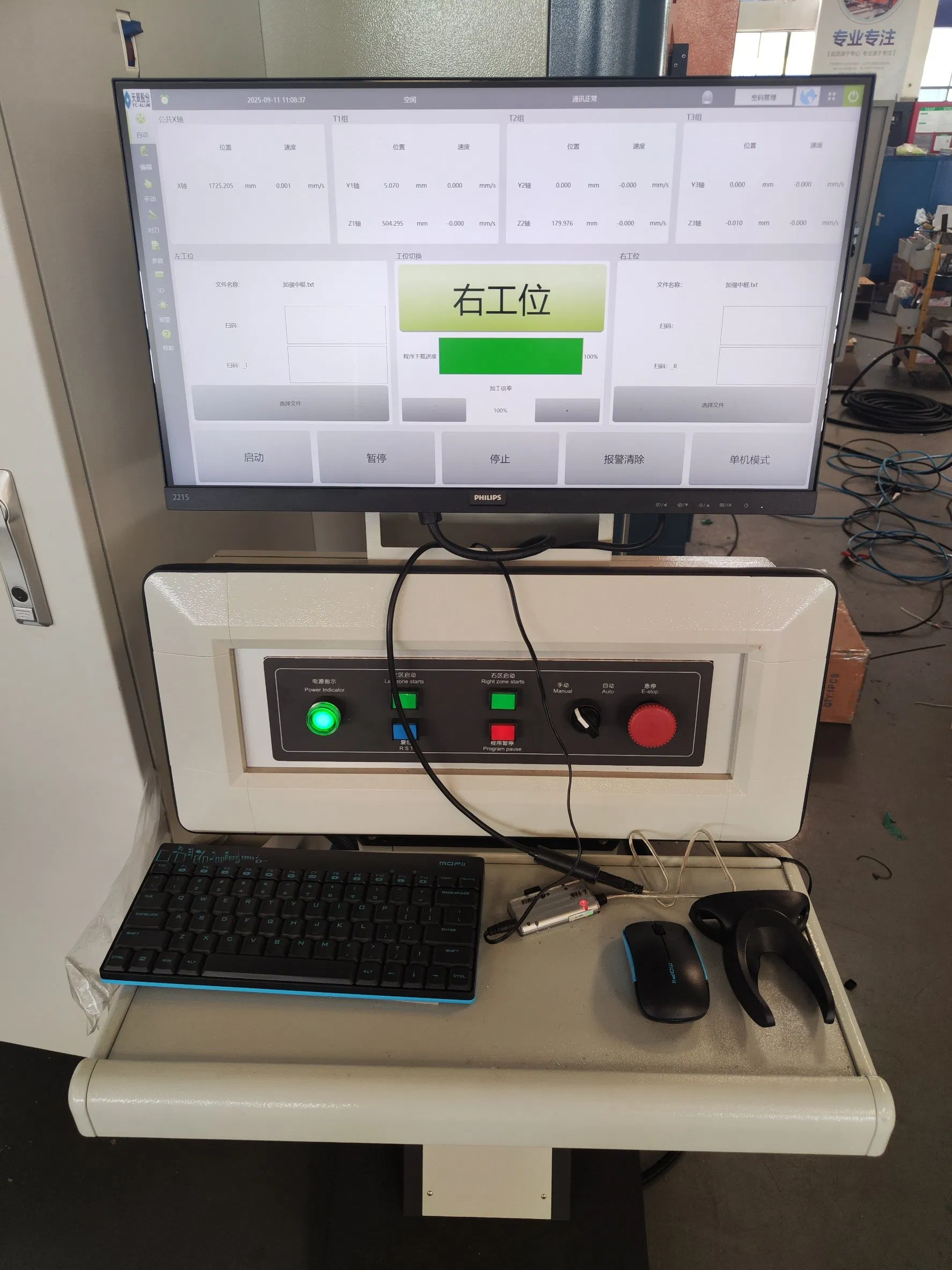

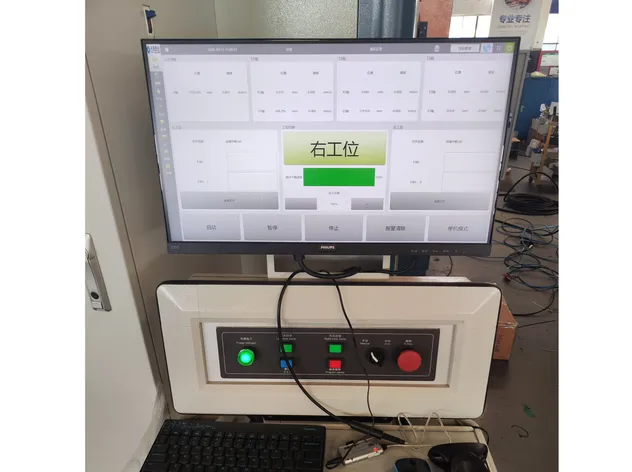

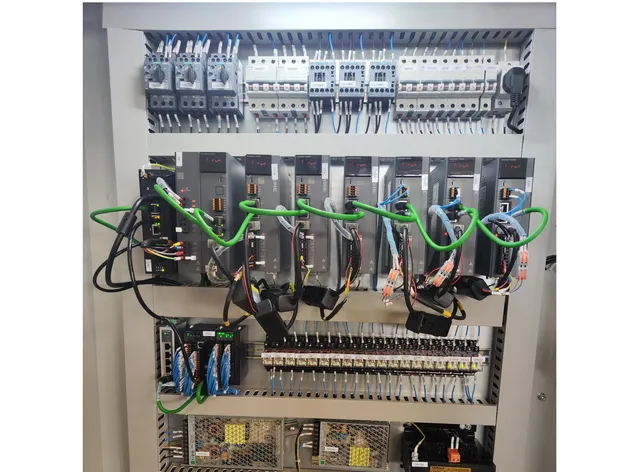

Controlled by seven servo motors and a CNC system, it enables fully automated, precise operation without manual adjustment. With servo-driven feed, gear rack transmission, and MES connectivity, it ensures high accuracy, smooth milling, and easy code-scanning operation for enhanced productivity.
| Power Supply | 380V 50Hz |
| Air Source | 0.5-0.8Mpa |
| Milling Motor Power | 3.0kw*3 |
| Motor Rotating Speed | 2800rpm |
| Spindle Diameter | 30mm |
| Headstock Feeding Stroke | 0~1500mm |
| Maximum Sawing Blade | ∮350mm |
| Tenon Max Size (Horizontal) | 160*70*500mm |
| Tenon Max Size (Vertical) | 80*50*500mm |
We offer a full range of high-performance machinery for aluminum door, window, and curtain wall production. Our products feature high precision, automation, and flexibility. With advanced servo systems and digital factory connectivity, we ensure improved productivity and reduced labor costs.

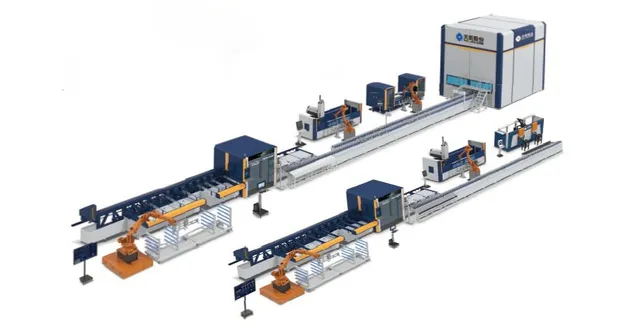

Intelligent Production Line

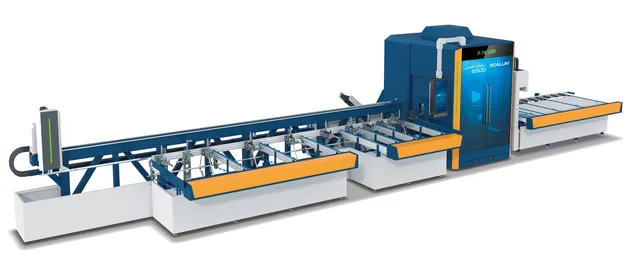

Sawing & Milling Center

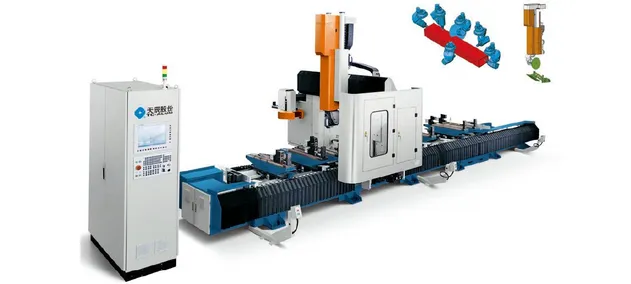

Milling Machining Center

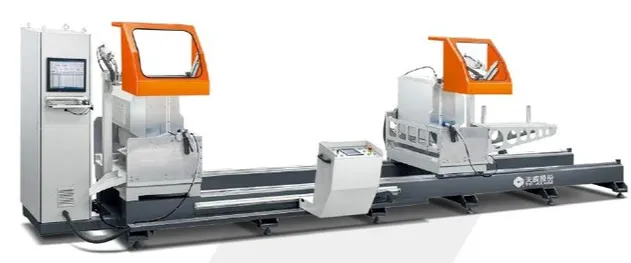

Double Head Saw

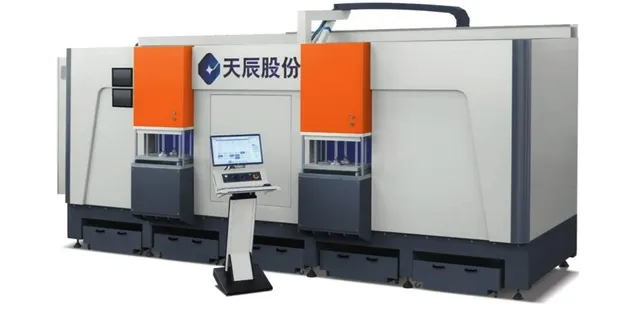

End Milling Machine

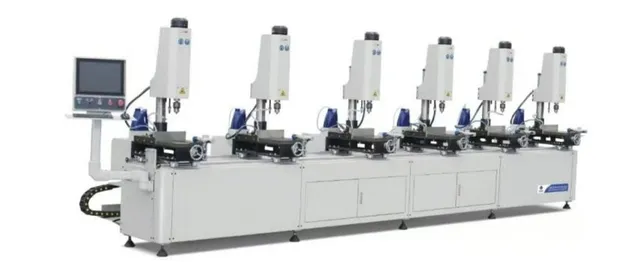

Drilling Machine

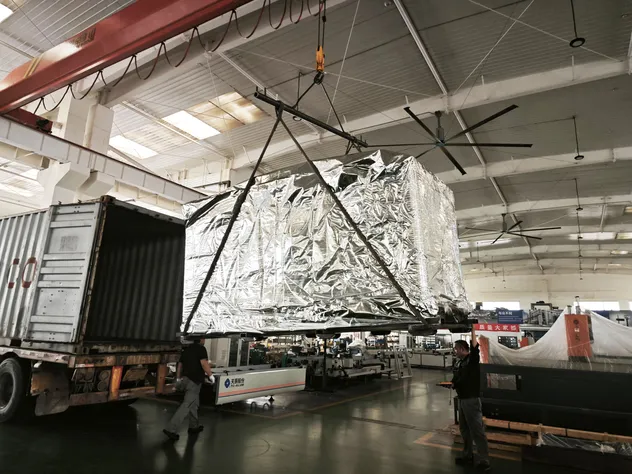

Exported to over 70 countries including the U.S., Germany, and Australia. We support over 8,000 clients globally with professional packaging to ensure machine safety during transit.
Pre-Sale Services
Complimentary consultation to recommend suitable machinery and customized professional design solutions for each client.
After-Sale Services
24/7 technical support, 1-year warranty, and overseas engineer dispatch for installation and operator training.
