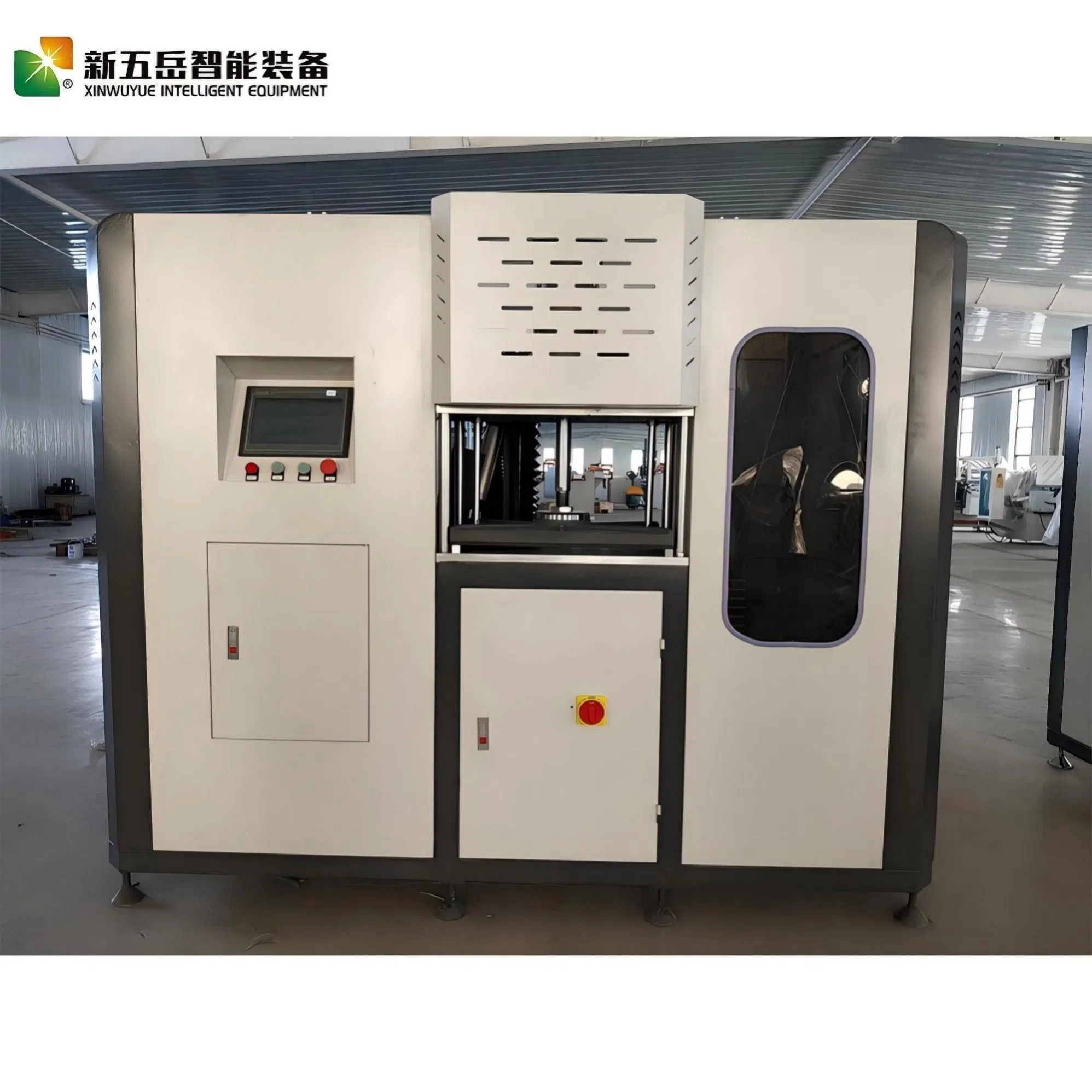

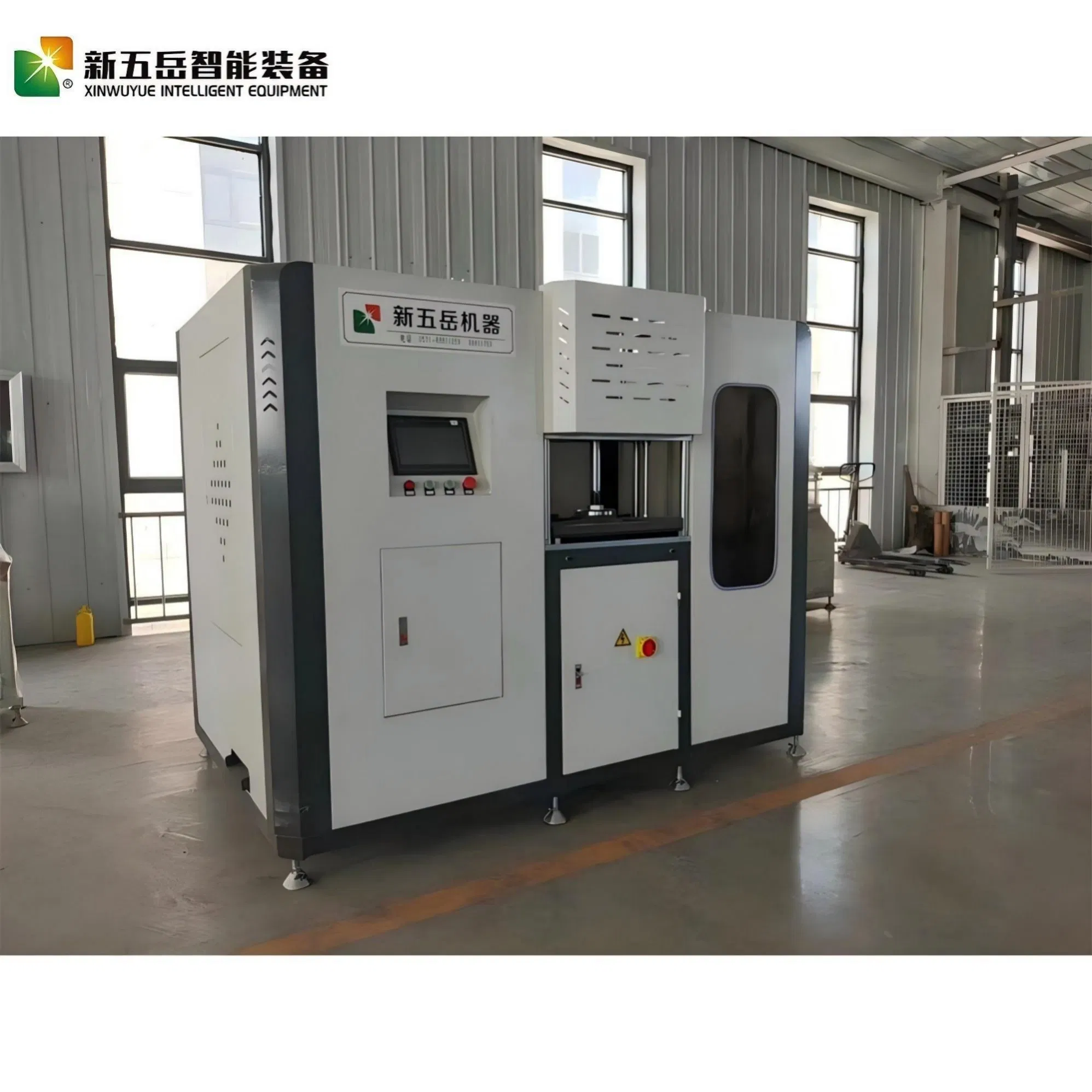

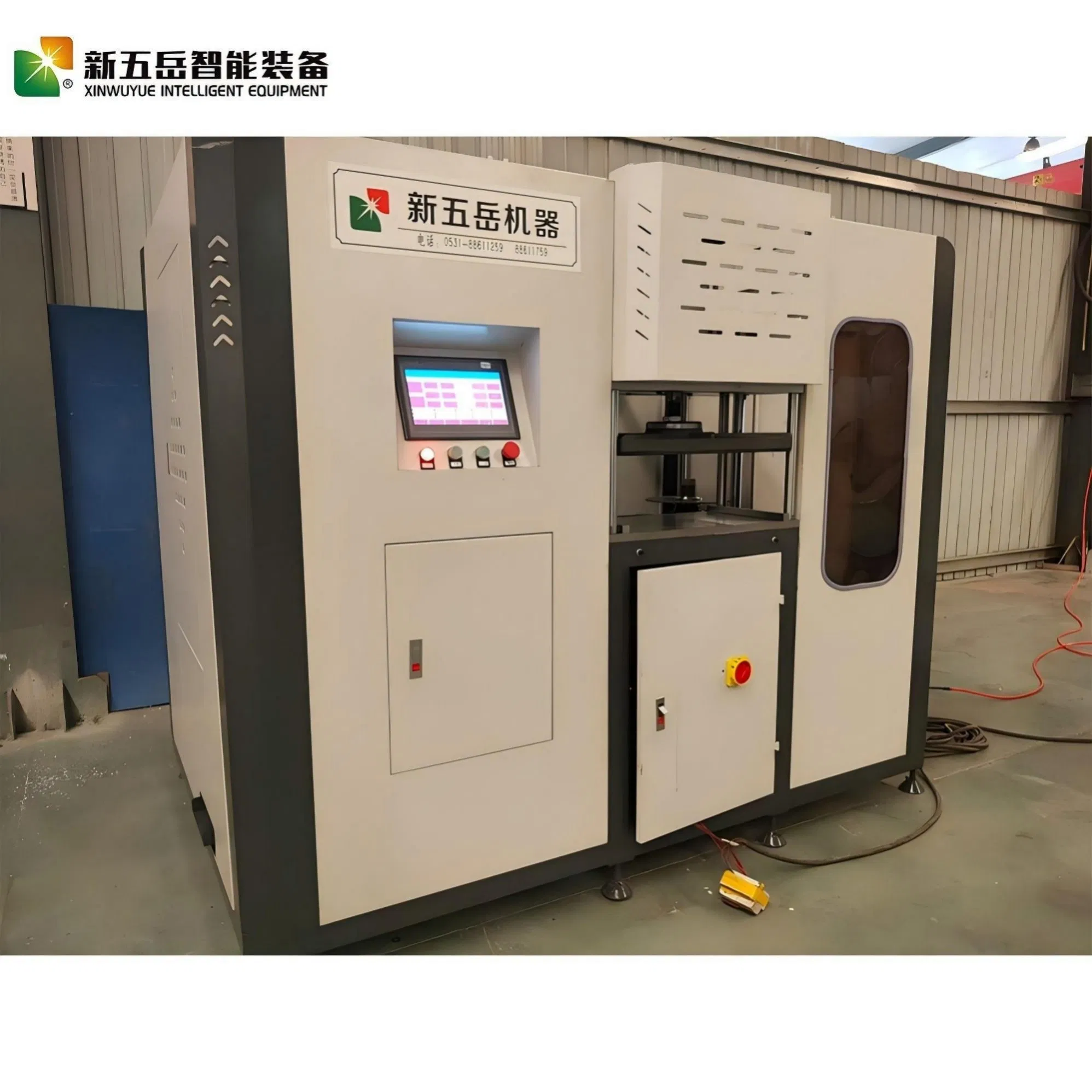

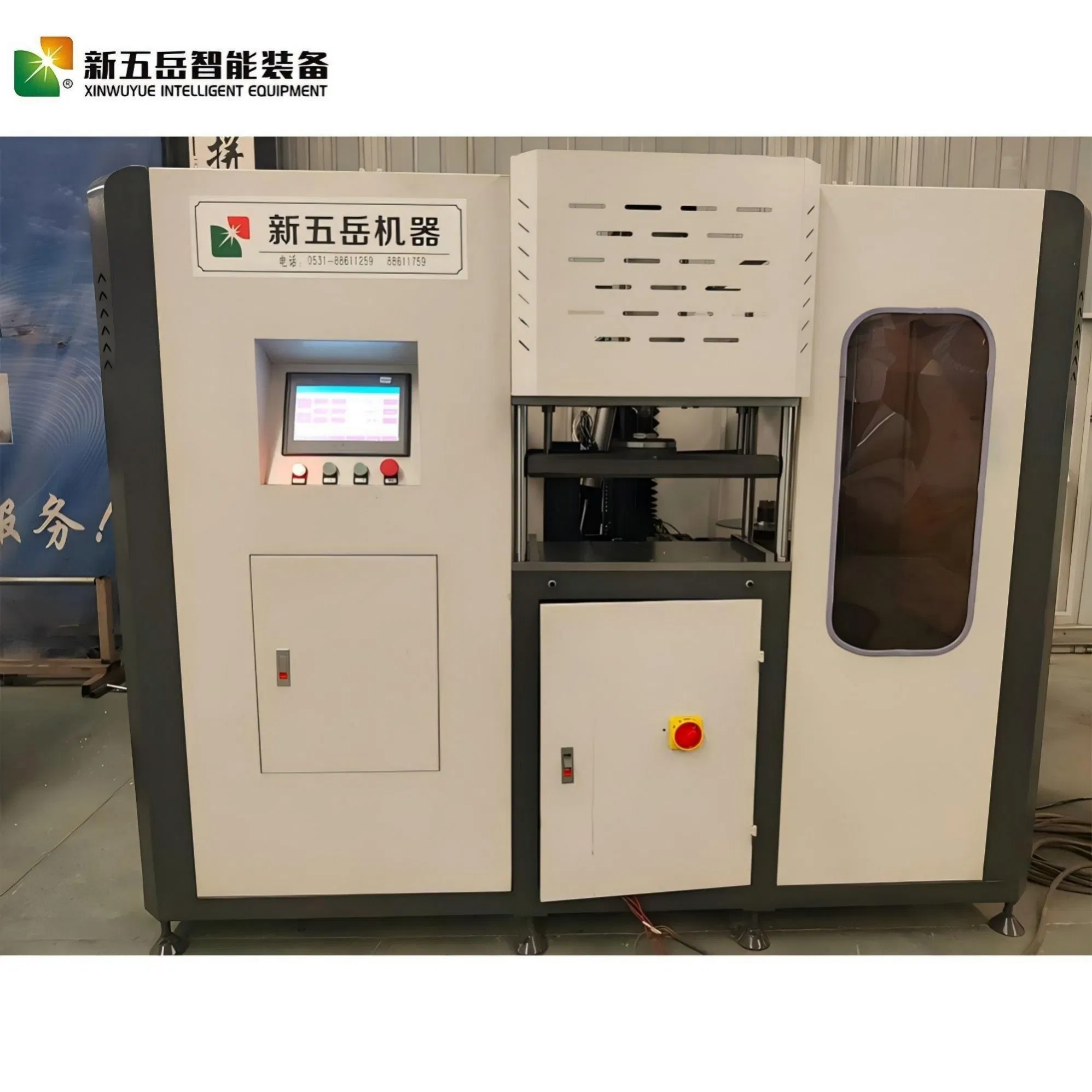

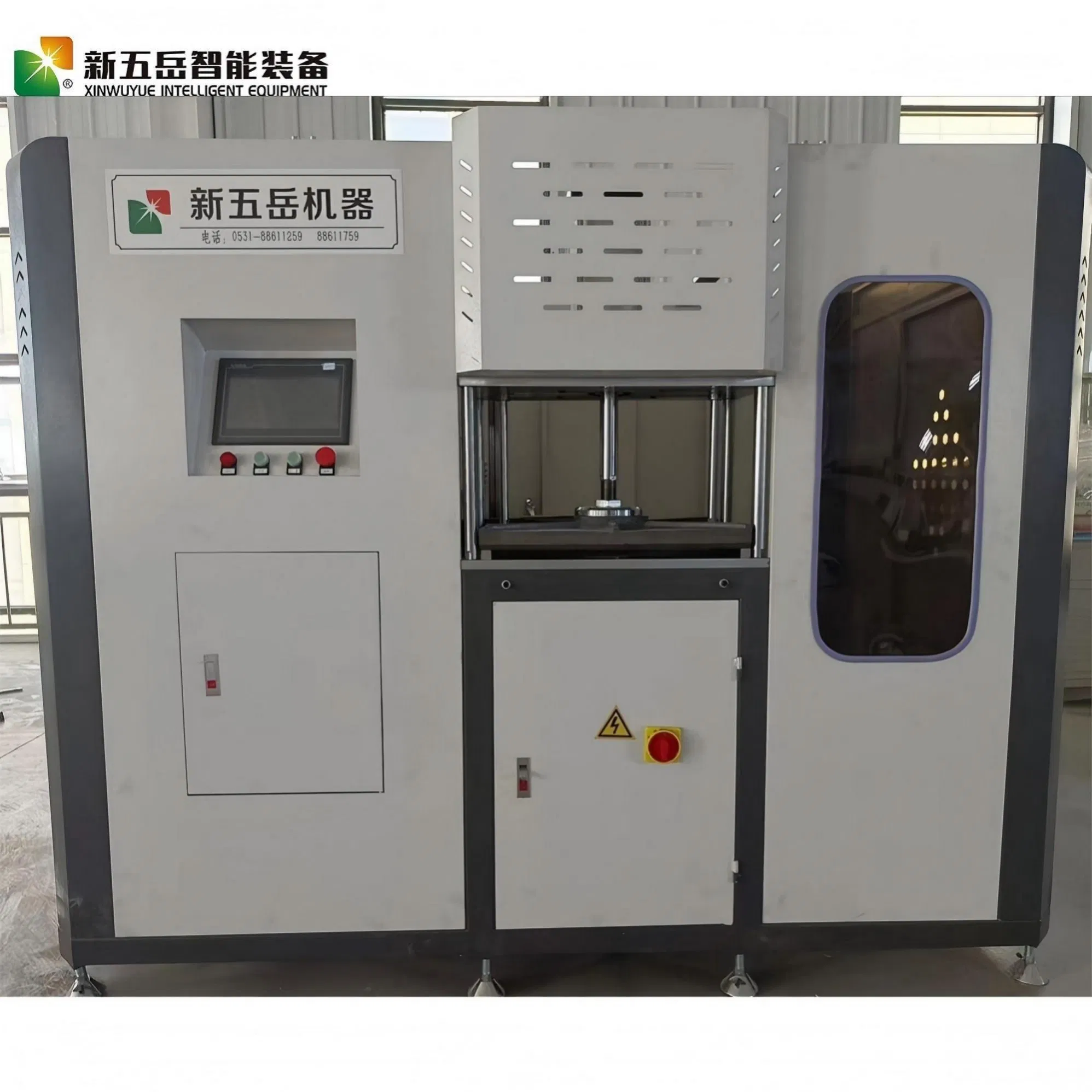

3-Axis CNC End Milling Machine with Stable Mechanical Structure for Aluminum
3-Axis CNC End Milling Machine with Stable Mechanical Structure for Aluminum
3-Axis CNC End Milling Machine with Stable Mechanical Structure for Aluminum
3-Axis CNC End Milling Machine with Stable Mechanical Structure for Aluminum
3-Axis CNC End Milling Machine with Stable Mechanical Structure for Aluminum
1 / 5
3-Axis CNC End Milling Machine with Stable Mechanical Structure for Aluminum
3-Axis CNC End Milling Machine with Stable Mechanical Structure for Aluminum
3-Axis CNC End Milling Machine with Stable Mechanical Structure for Aluminum
3-Axis CNC End Milling Machine with Stable Mechanical Structure for Aluminum
3-Axis CNC End Milling Machine with Stable Mechanical Structure for Aluminum

3-Axis CNC End Milling Machine with Stable Mechanical Structure for Aluminum

After-sales Service: Online Service
Warranty: One Year Warranty
Condition: New
Send Inquiry

Product Description

Basic Information

Model NO.
LDX3-250 (3+2)
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Power Supply
50Hz
Working Pressure
0.5-0.8MPa
Motor
3kw
Weight
850kg
Speed
2800rpm
Specification
2500mm×1700mm×2000mm
Production Capacity
100 Sets/Month

Product Description

CNC End Milling Machine

Equipment Performance

  • Used for end milling of mullions in aluminum doors, windows and curtain walls. Full CNC intelligence with adjustable tool positions.
  • Equipped with a high-performance spindle motor and two milling cutters.
  • Features a fixed workbench and traveling cutter type with large stroke, processing multiple profiles at once.
  • Computer-stored programs call profiles automatically, greatly improving work efficiency.
  • Adopts imported CNC servo system to ensure the stability of the system.

Technical Parameters

Power Supply380V 50Hz (Three-phase four-wire system)
Spindle Motor Power3.0Kw
Rotating Speed2800rpm
Total Power5.25Kw
Saw Blade SpecificationΦ300×Φ32×3.2
Working Pressure0.5-0.8Mpa
Motor Adjustment StrokeX: 400mm, Y: 200mm, Z: 200mm
Weight850Kg
Overall Dimension (L×W×H)2500mm×1700mm×2000mm

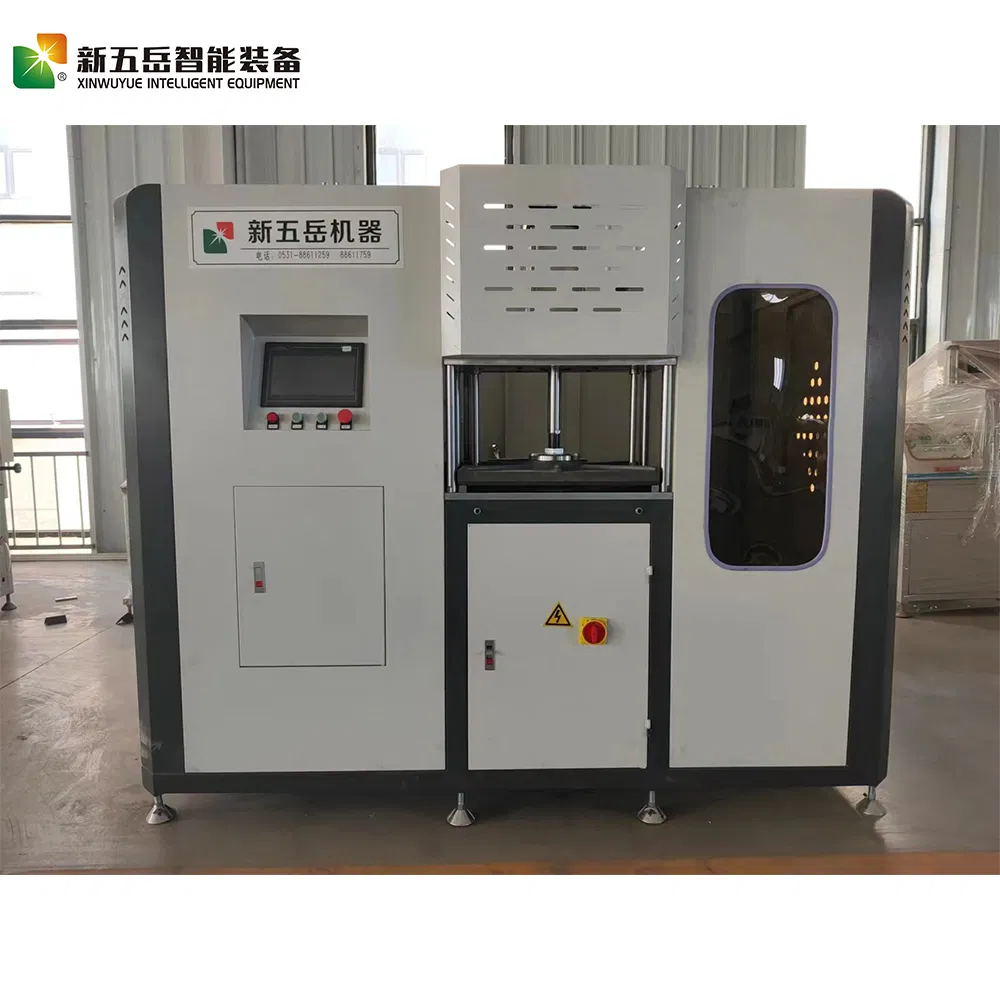

Technical Specifications

Product Display & Packaging

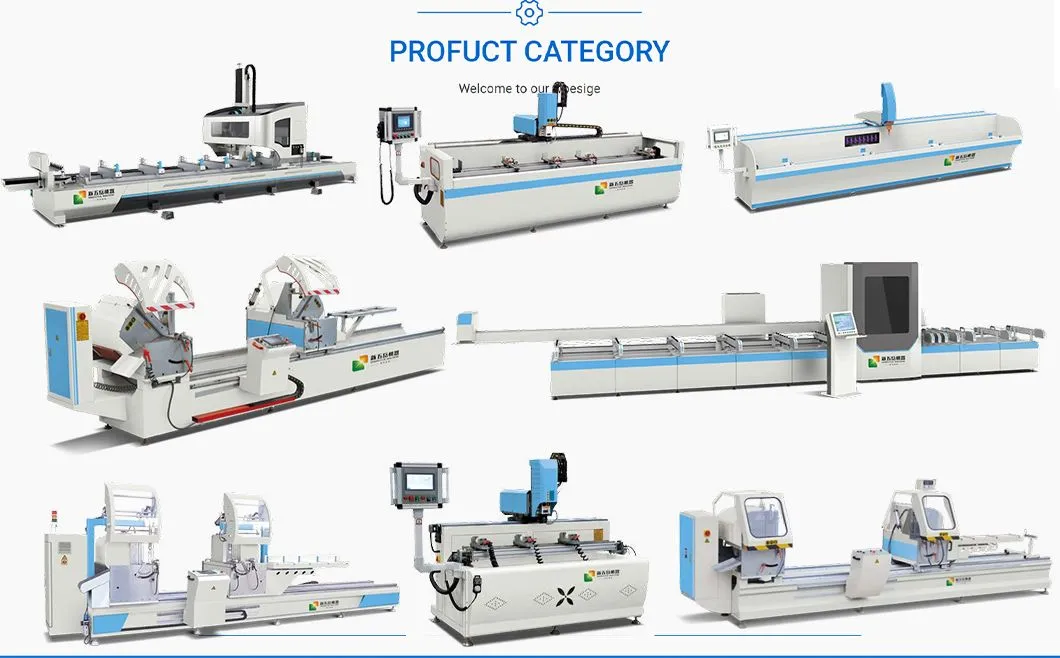

Recommended Machine Product Details
Process View Packaging and Shipping

FAQ

Are you a factory or trading company?
We are a factory with more than 25 years of experience in manufacturing door and window equipment.
What kind of payment methods do you support?
We support T/T and L/C payment methods for our transactions.
Do you provide customized services?
Yes, we can provide customized orders tailored to specific processing requirements.
What is the shipping time and method?
Regular stock machines take 10-15 days. Shipping is mainly by sea, while small tools and accessories can be shipped by air.
How long is the service life and warranty?
Our machines have a designed service life of over ten years, with a one-year warranty on all parts except consumables.
How is the machine installed upon arrival?
Equipment is debugged before leaving the factory. We offer on-site training, remote video guidance, and detailed user manuals for setup.
