Zhixing Machine
Zhixing Machine

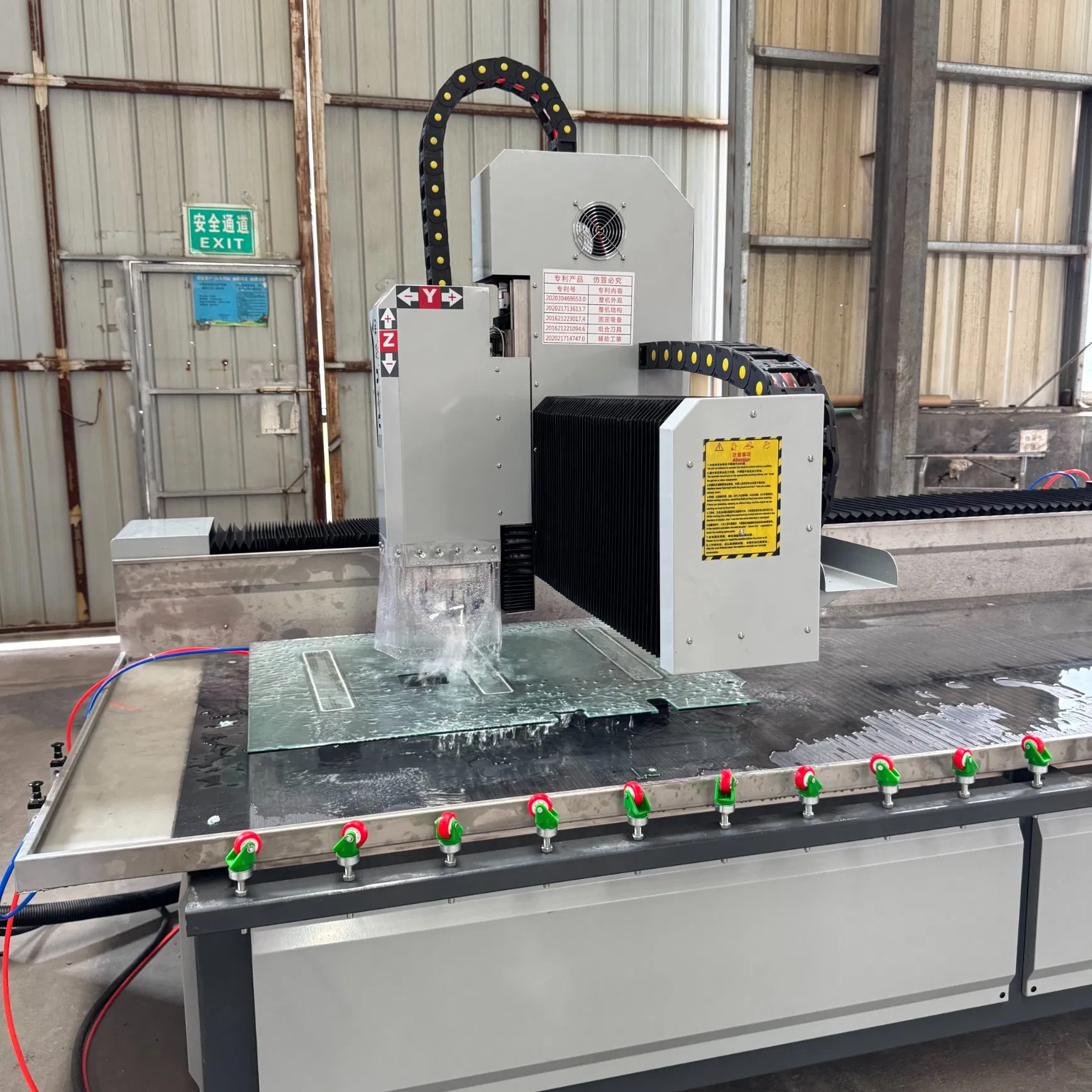

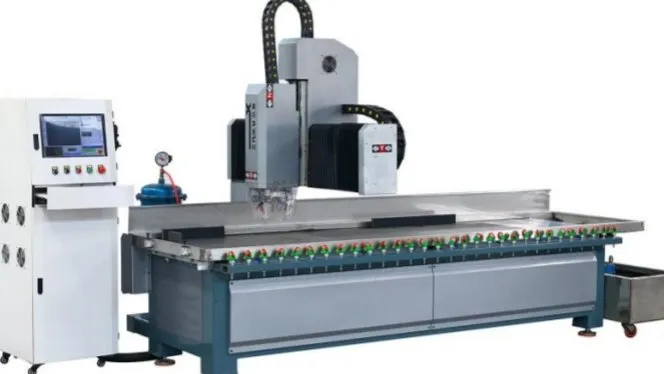

The CNC Milling Machine is specifically designed for high-precision glass processing. It is an essential tool for processing door hinges, door clamps, and lock holes, making it ideal for factories specializing in shower rooms, sliding doors, and tempered glass products. Compared to water jets, this solution offers a lower price point, reduced consumables, and simpler maintenance.
| Model NO. | ZXX-E1025 |
| Glass Thickness Range | 3 mm - 19 mm |
| Function | Drilling, Cutting, Grinding, Milling, Carving, Engrave |
| Heads Number | 1 |
| Power | 9.1kw |
| Weight | 1800kg |
| Material Application | Glass, Marble, Metal, Wood Panel, etc. |
| Structure | Horizontal |
| Dimensions | 3400*1600*2000mm |

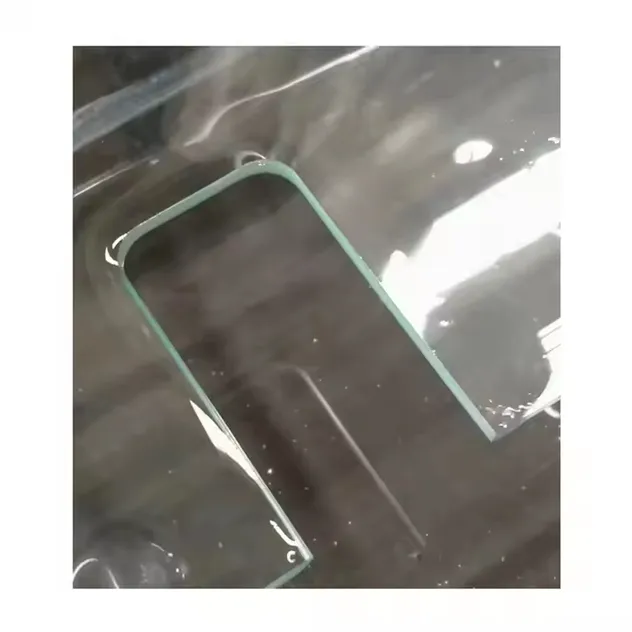

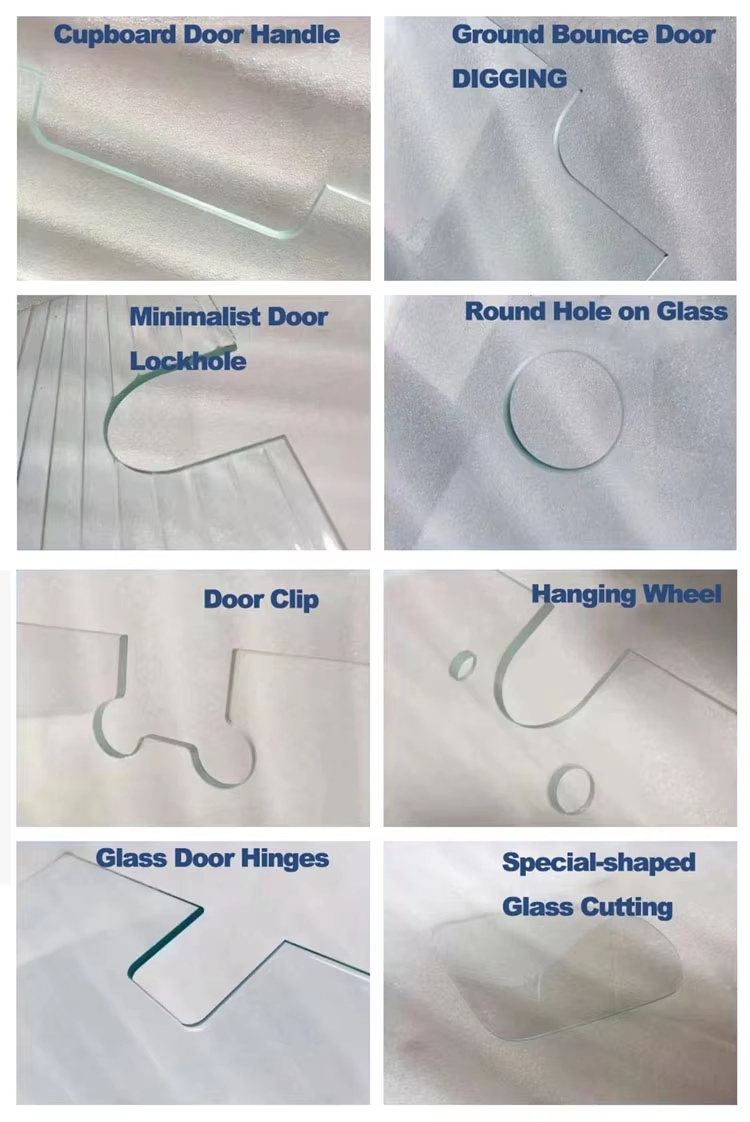

Glass Door Hinges

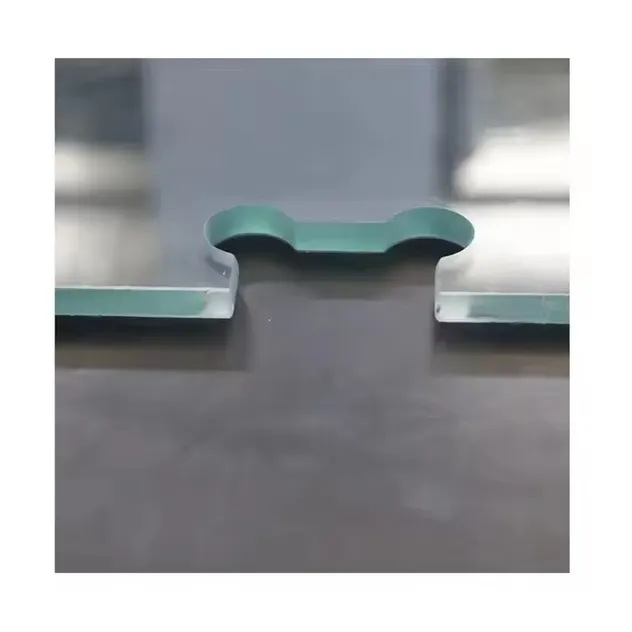

Door Clip

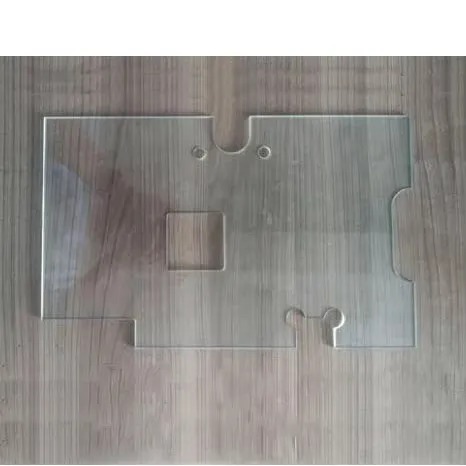

Hanging Wheel
| Head Stroke Size | 2500*800mm |
| Process Glass Size | Unlimited (three sides opened table) |
| Main Spindle Power | 7.5kw |
| RPM of Main Spindle | 24000 RPM/MIN |
| Servo Motor | 0.75kw * 3 |
| Milling Speed | 0-1 m/min |
| Accuracy | ±0.2mm |
| Voltage | 380v/50hz, 3 Phase (Customizable) |

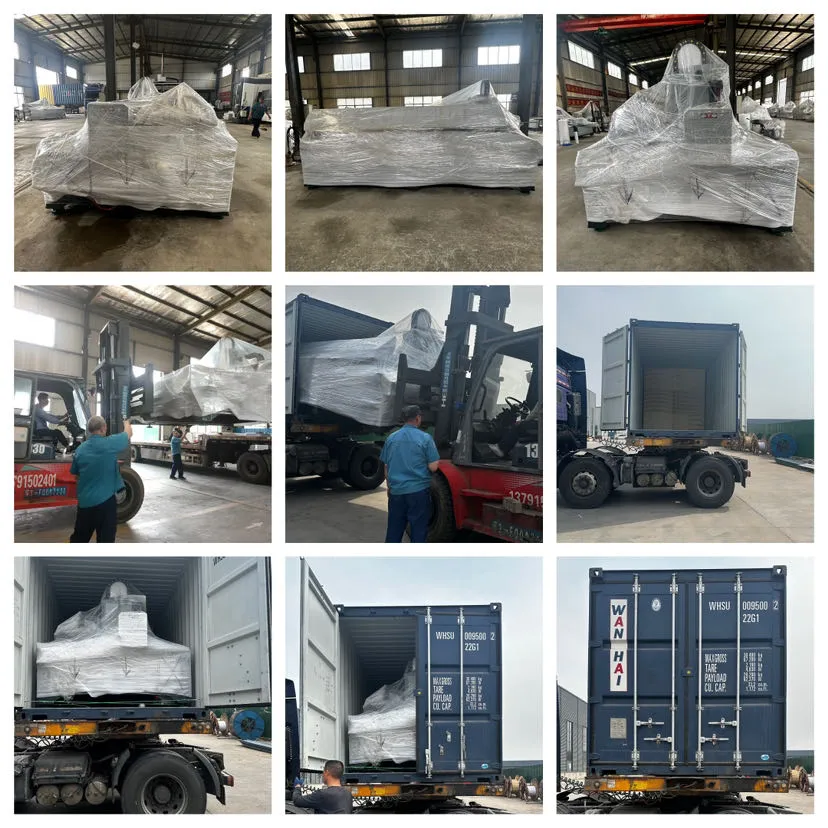

We implement rigorous moisture-proof, rust-proof, and vibration-proof measures (including brackets and cushioning materials) to ensure the precision equipment arrives safely. All machinery is reinforced with professional tie wraps and welding for secure transit.
