| Model NO. | FSM | Processing Thickness | 5-25 mm |
| Voltage | 380V | Warranty | One Year |
| Product Name | Glass Edging Machine | Keywords | Double Edger Machine |
| Glass Thickness | 3-25mm | Max.Edge Grinding | 5mm |
| Max.Chamfer Grinding | 2mm | Working Speed | 1-30m /Min |
| Parallel Error | ≤0.2mm /M | Diagnial Error | ≤0.5mm /M |
| Air Pressure | ≥0.6MPa | Production Capacity | 5000 Sets/Year |

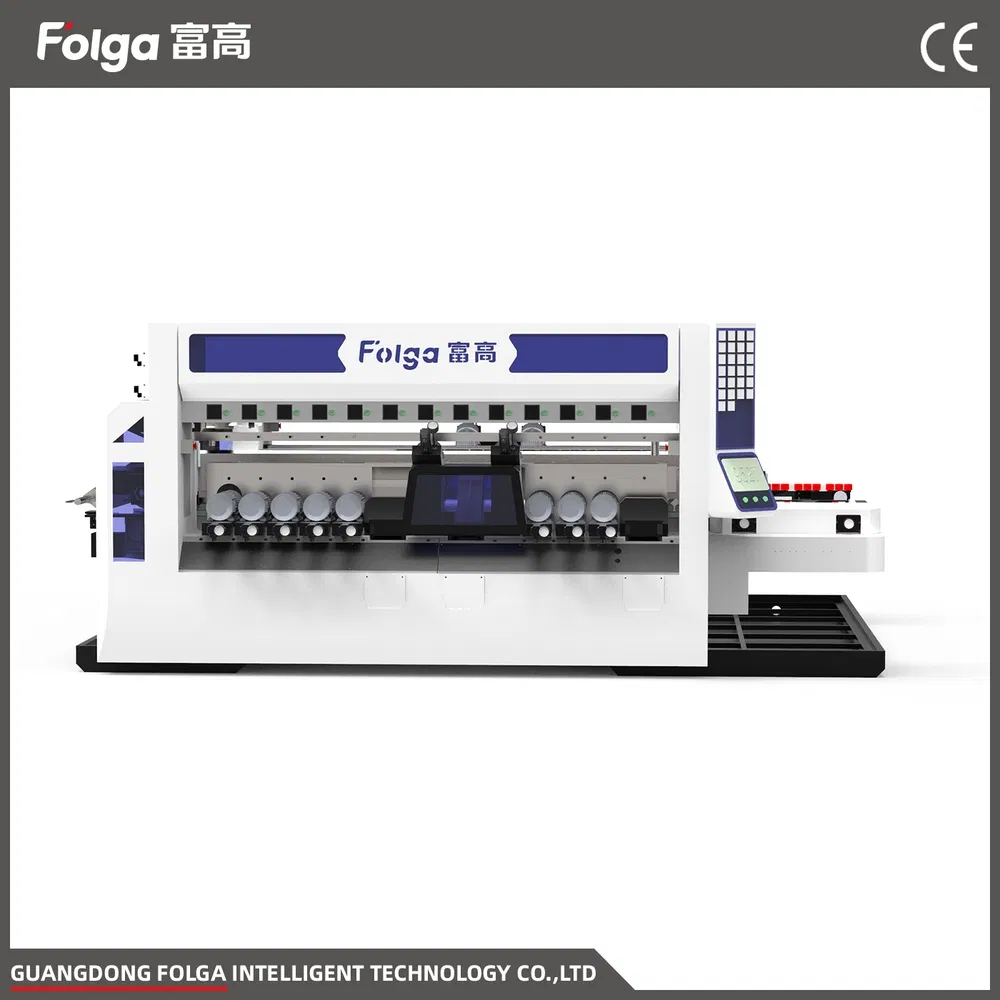

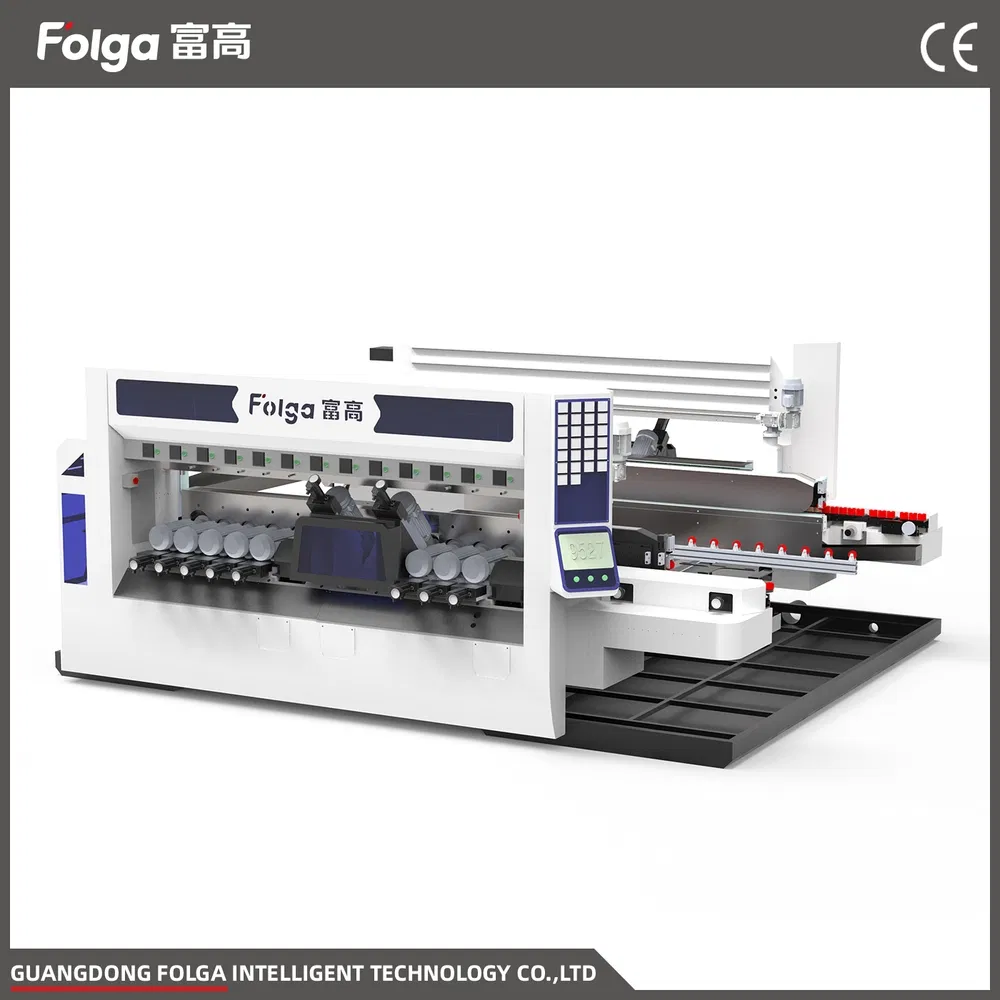

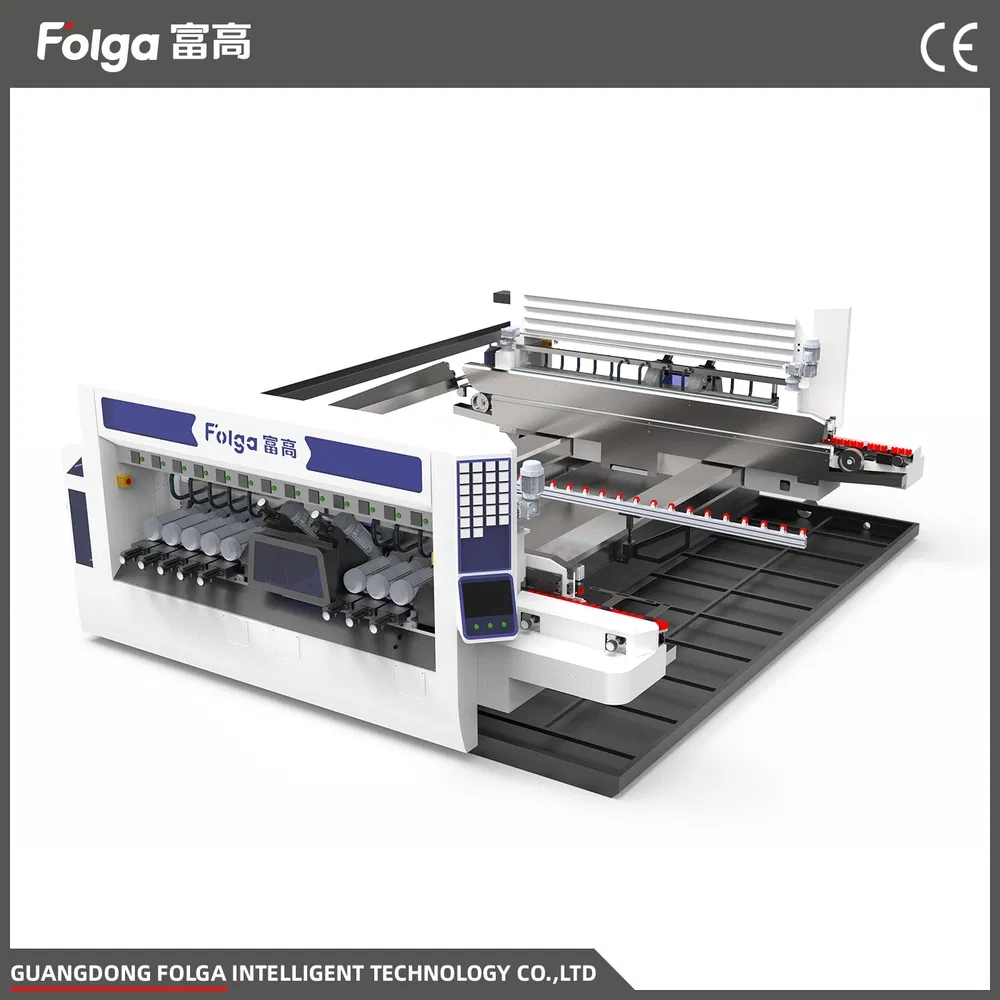

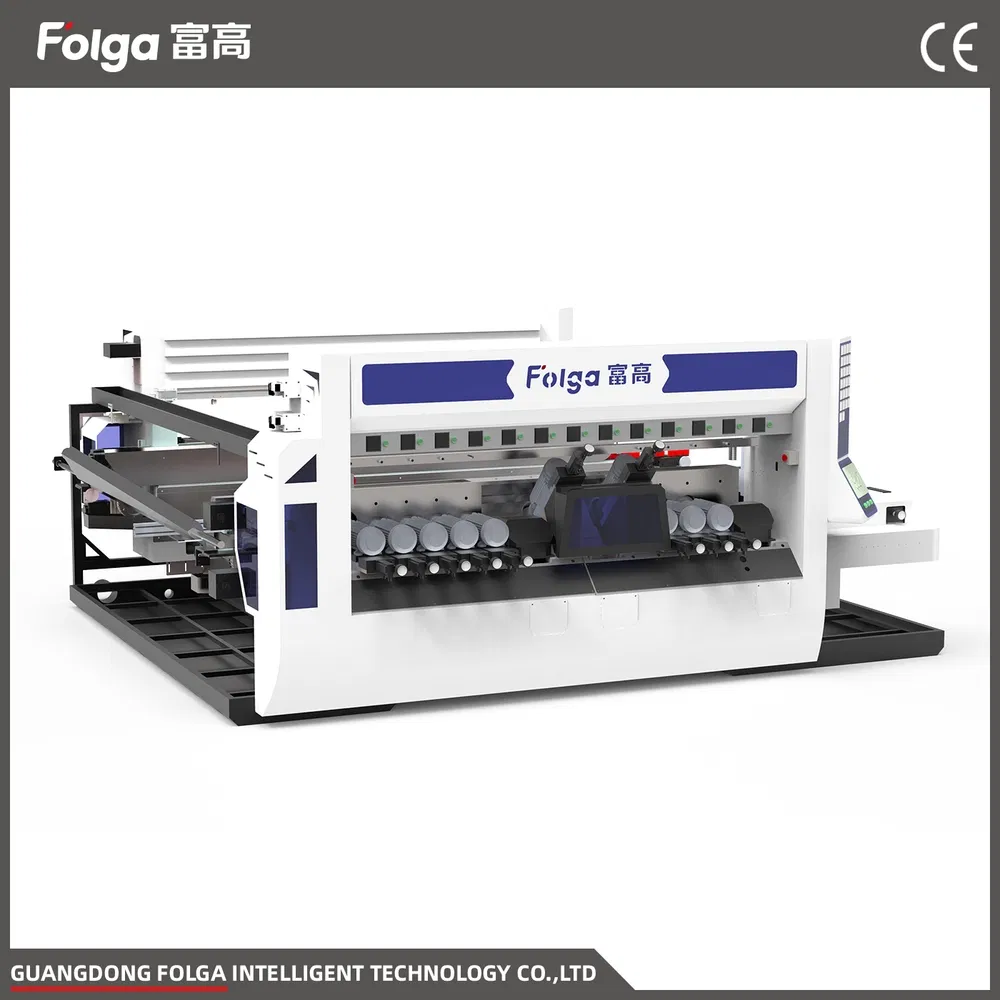

GLASS DOUBLE EDGING MACHINE

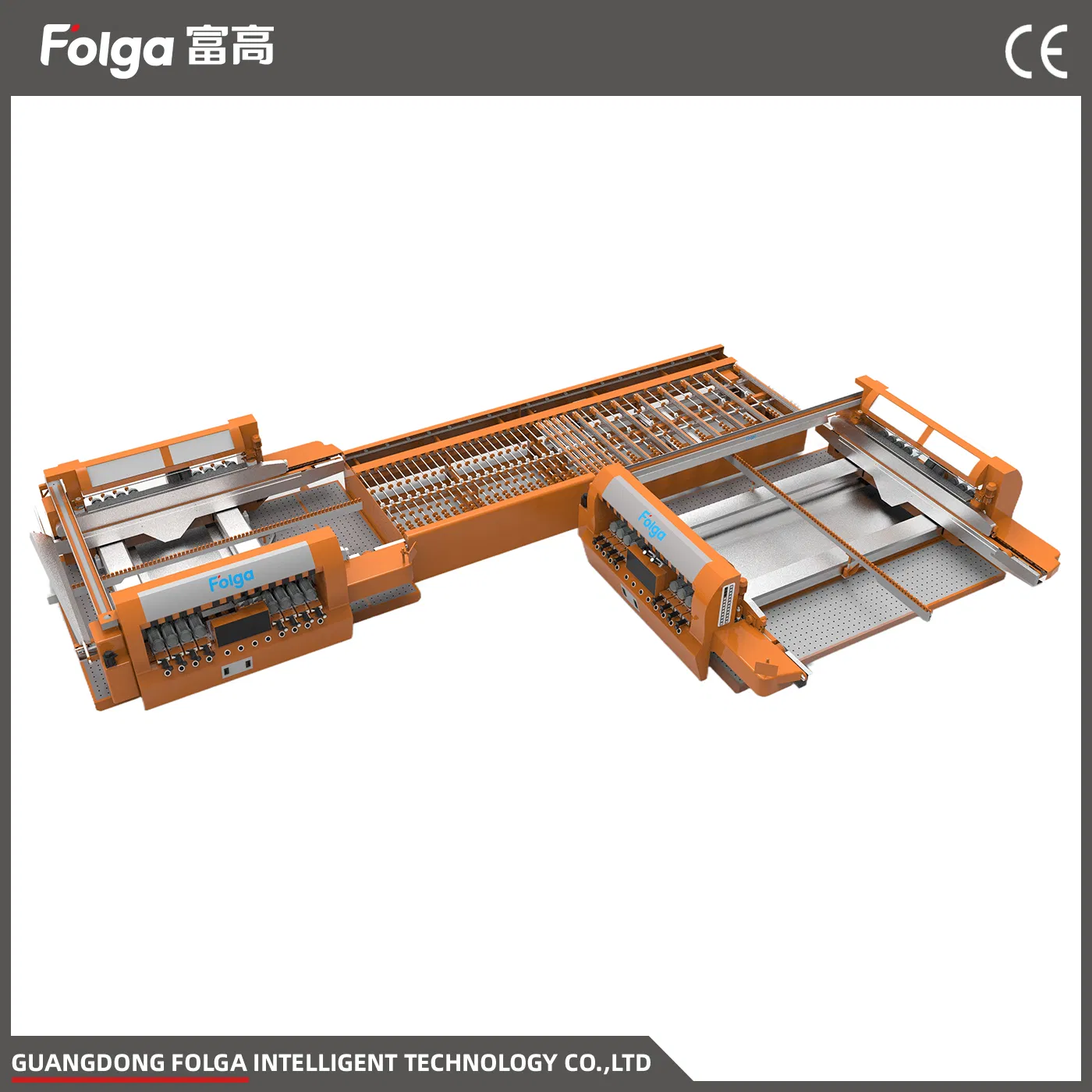

The FSM Series Glass Double Edging Machine is a high-performance automatic double edger line engineered for precision glass processing in industrial applications. This straight line double-edge grinding machine combines economy, high efficiency, and exceptional accuracy to deliver superior edging results for building glass, furniture glass, and window & door glass.
Featuring advanced servo system control and PLC automation, our glass bilateral edging machine automatically measures glass dimensions and adjusts processing parameters for mixed or uniform size production.

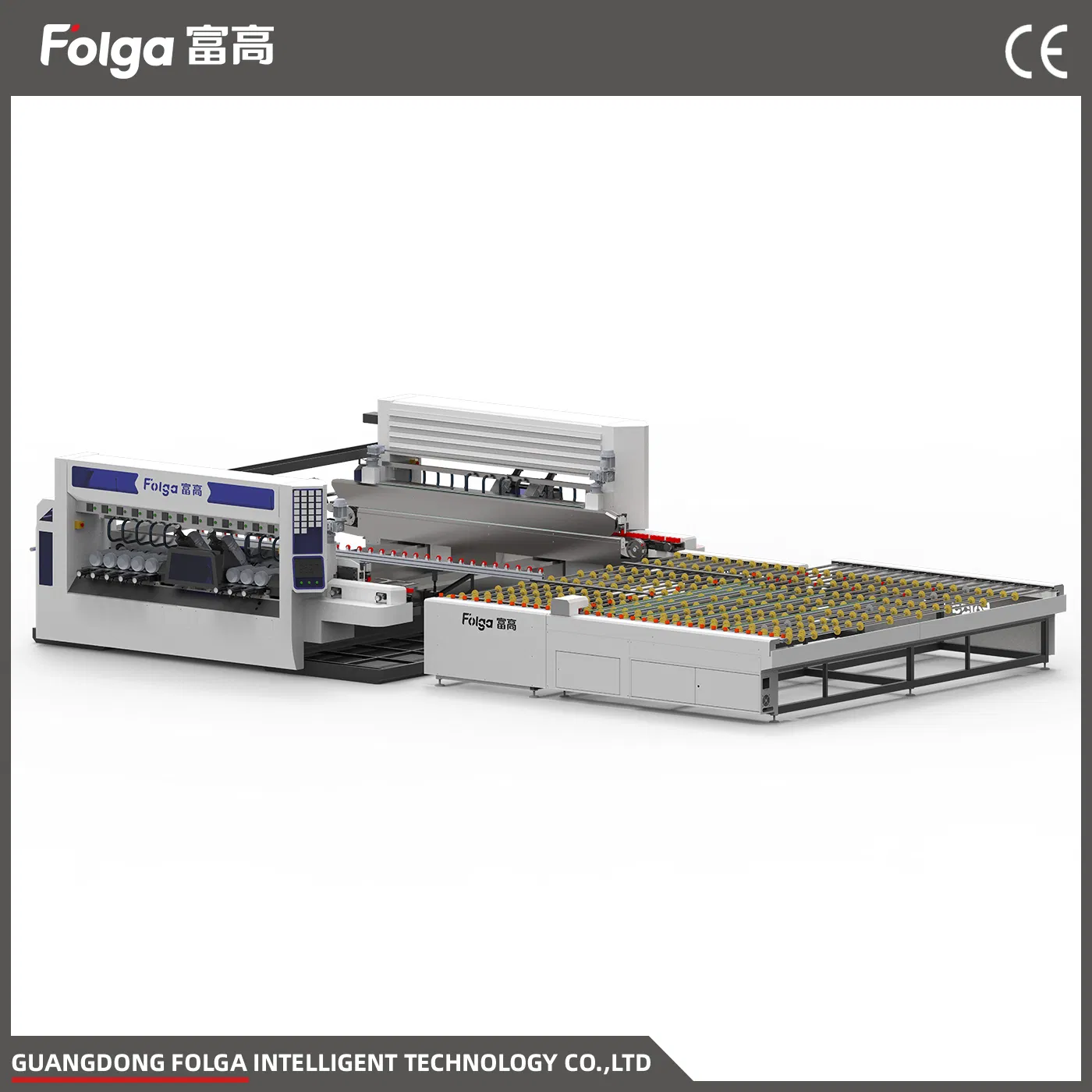

Equipped with an intelligent measuring table that automatically measures glass length, width, and thickness without manual input, enabling seamless processing of mixed-size batches.
Features a double screw rod and a linear guide rail structure with a servo system drive for automatic opening/closing with excellent repositioning accuracy.
Double dovetail guide rail base for coarse grinding motor ensures stability, with manual-automatic servo compensation integration.
| Parameter Item | Specification Details |
|---|---|
| Glass Thickness | 3-25mm |
| Max. Edge Grinding | 5mm |
| Max. Chamfer Grinding | 2mm |
| Working Speed | 1-30m /min |
| Size Changing Speed | 1-18m /min |
| Parallel Error | ≤0.2mm /m |
| Diagnial Error | ≤0.5mm /m |
| Air Pressure | ≥0.6Mpa |
| Single Machine Power | 74kw (24 motors) |
45° AUTOMATIC CHAMFERING: Integrated automatic lifting device for upper chamfering with accurate positioning for beveled edge applications.
AUTOMATIC CLAMPING FRAME LIFTING: Features 150mm vertical travel range for rapid grinding wheel replacement, minimizing maintenance time.
DOUBLE SERVO DRIVE SYSTEM: Main transmission powered by dual servo motors for reliable performance and simplified timing belt replacement.
PLC & HMI INTEGRATION: User-friendly interface with PLC control system delivers intuitive operation and high automation levels.
