Customization: Available
After-sales Service: Remote Guidance, Door-to-Door Service, Operation V
Warranty: 18 Months
Send Inquiry

Product Description

📋 Basic Information
Model NO.HRWF-CNC-140x2200x3000
ConditionNew
CertificationISO, CE
Automatic GradeAutomatic
CNC or NotCNC
Voltage380V
FunctionWelding PVC Profile
ApplicationMaking PVC Window Door Machine
Weight3000 Kgs
Total Power9kw
Power Supply380V 50Hz
Welding Height20-140 mm
Welding Width110 mm
Max. Welding Range2200*3000 mm
🔍 Product Description
PVC Window-Door Equipment

Four Corner Plastic Window CNC UPVC PVC Welding Machine

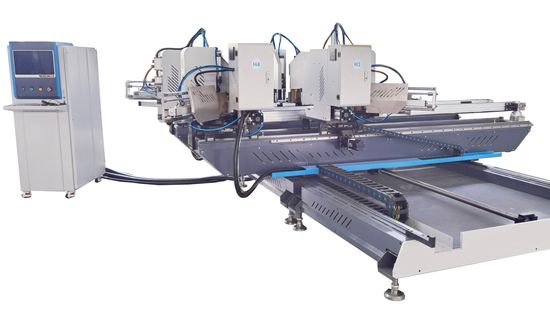

Video Cover

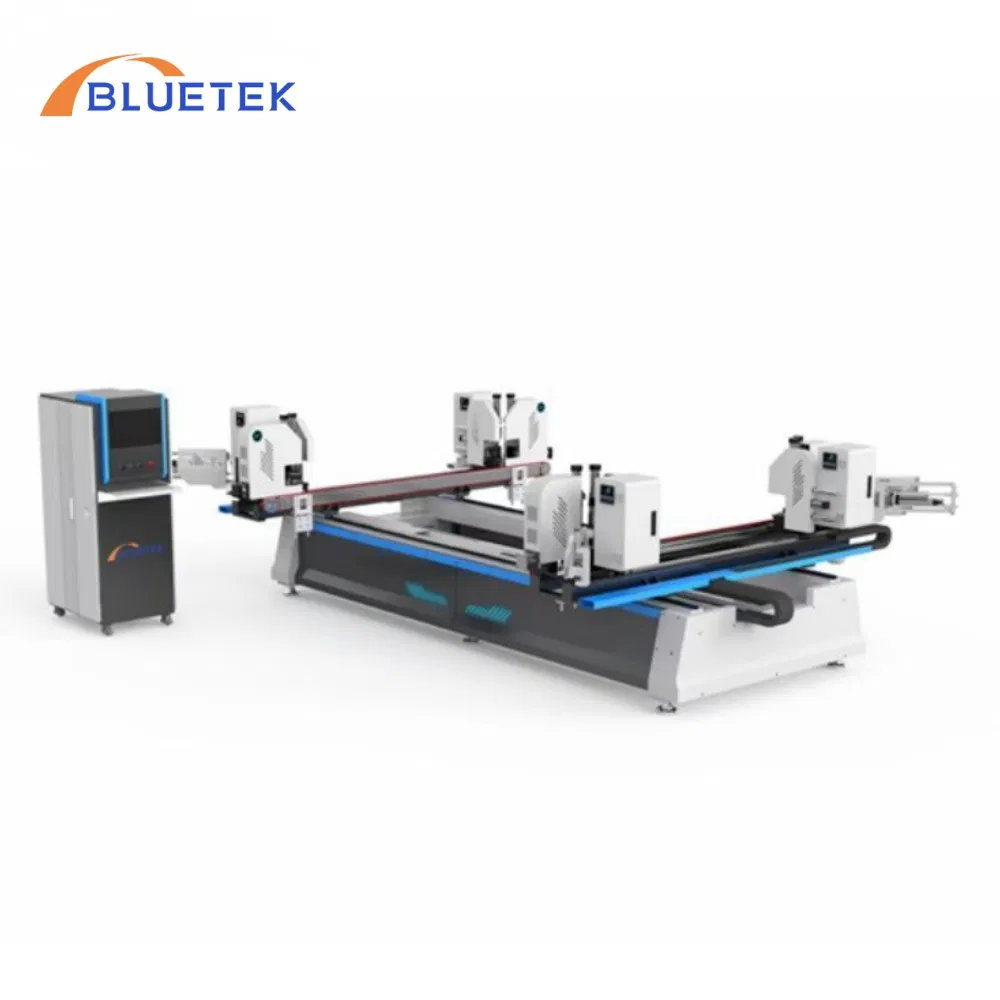

PVC Welding Machine

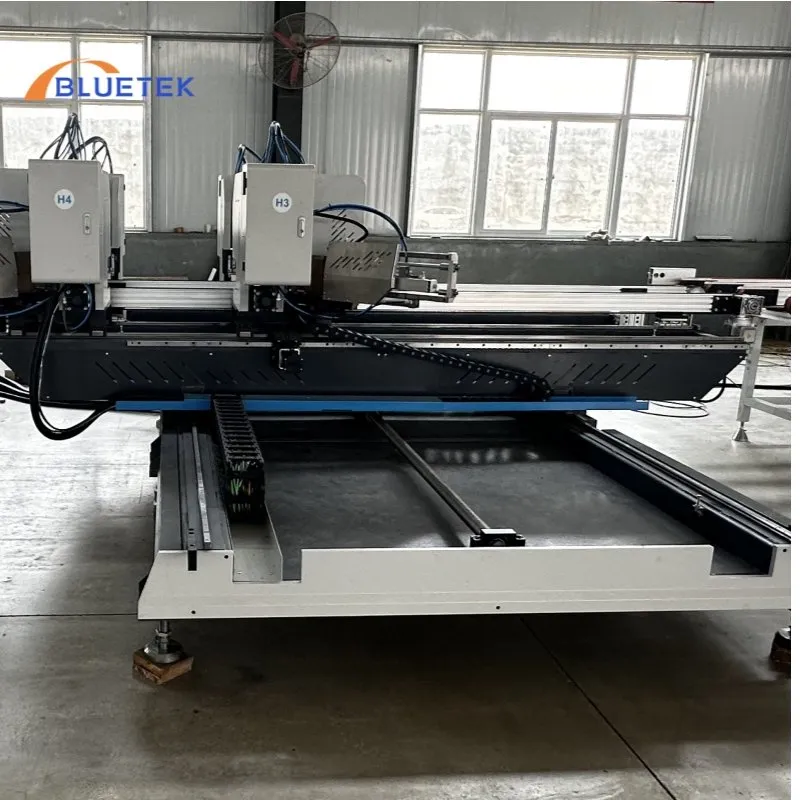

CNC UPVC Machine
Main Features
  • Specially used for welding white and colored PVC windows doors; welds a rectangular frame/sash at one time.
  • High-precision extrusion cutters made of alloy material, precisely processed after quenching.
  • Integrated positioning and heating plates to improve processing efficiency.
  • Universal floating support plate ensures flatness and weld gap precision.
  • High-precision linear square guide rails for equipment stability.
  • Color touch screen and Schneider PLC with large inertia servo motor.
  • Thick-walled rectangular steel pipe frame for strong load-bearing capacity.
  • Detachable bed for easy transportation.
📊 Technical Specifications
ModelHRWF-CNC-140x2200x3000
Air Pressure0.6-0.8 MPa
Min. Welding Range420*370mm
Max. Welding Range2200*3000mm
Welding Height20-140mm
Welding Width110mm
Overall Dimension5100*4500*1650 mm
Weight3000 KGS
🖼️ Detailed Photos

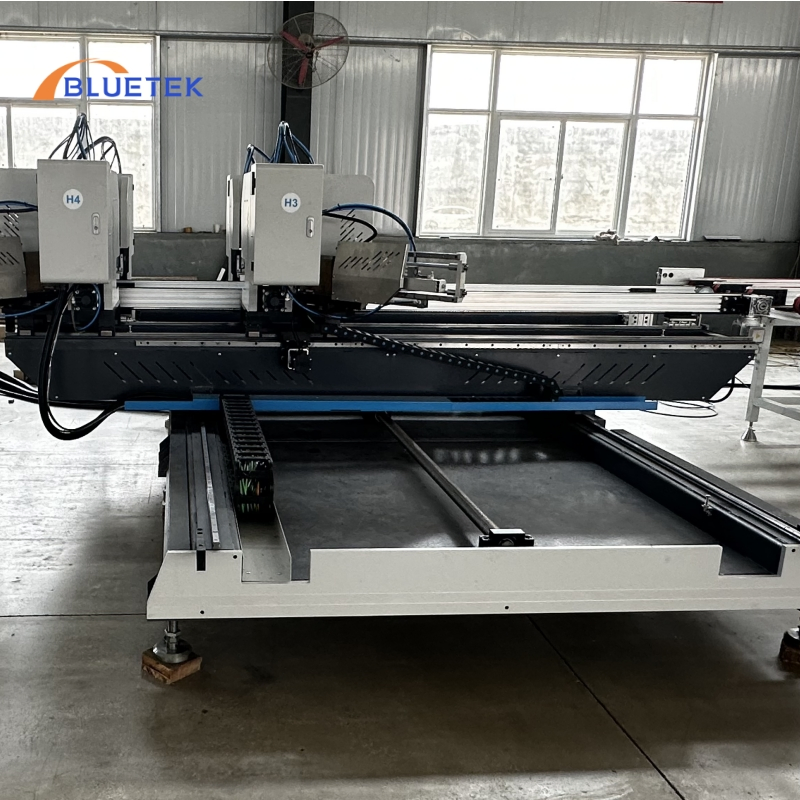

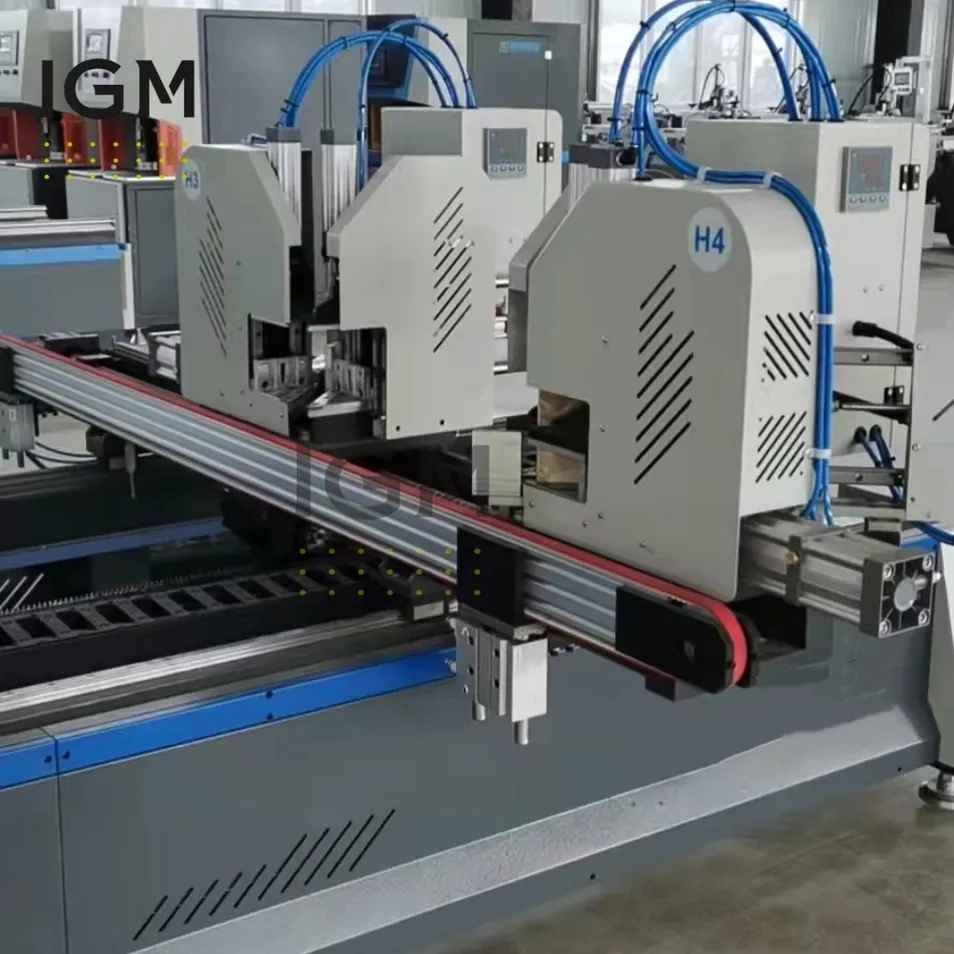

Four Head Welding

Four Head Welding

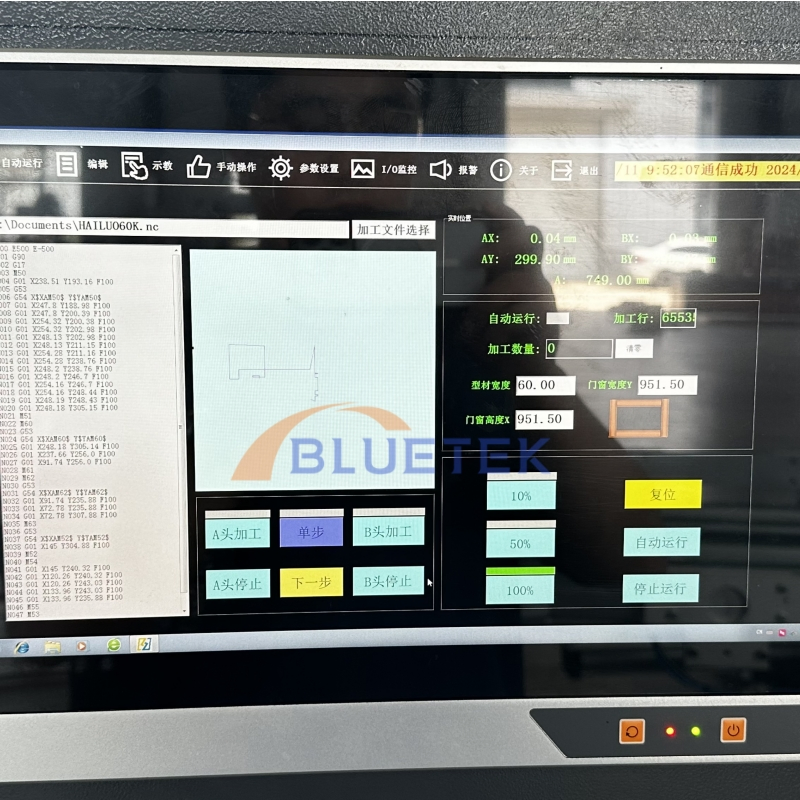

Schneider Control System

Schneider Control System

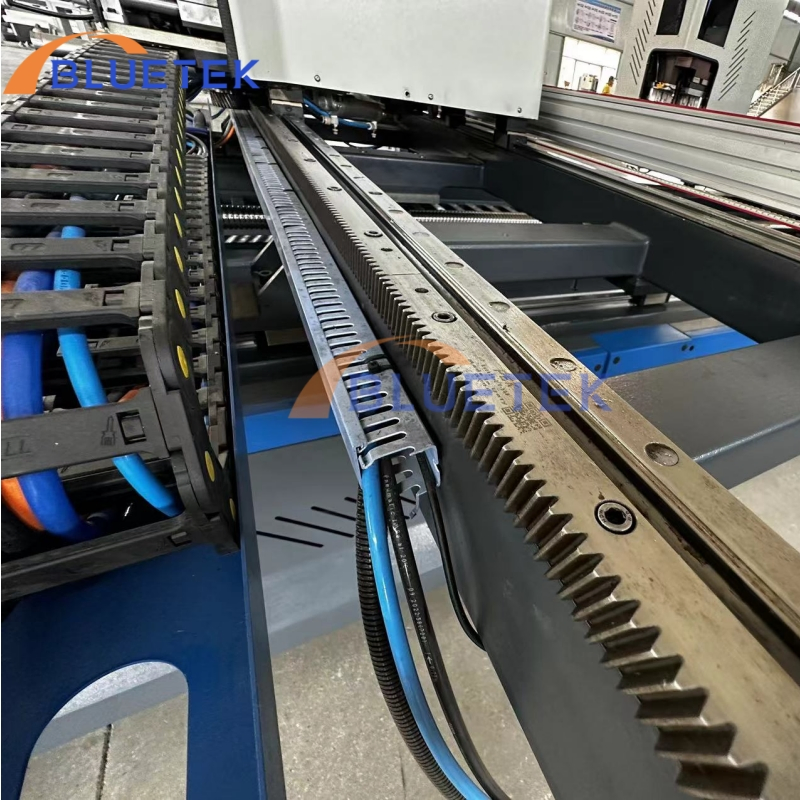

Linear Square Rails

High Precision Rails

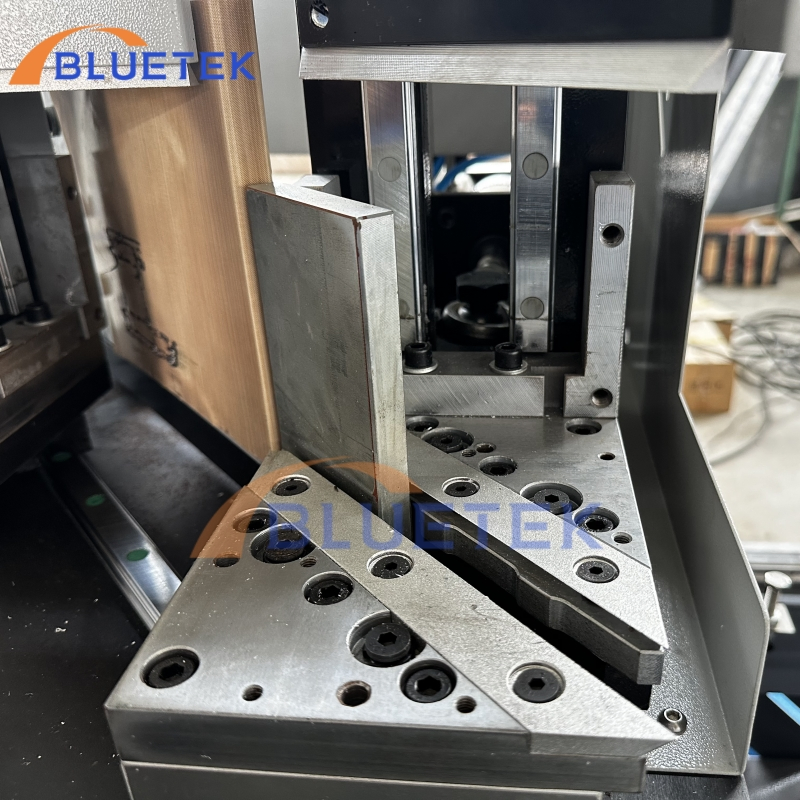

Cutting Tools

Alloy Cutting Tools

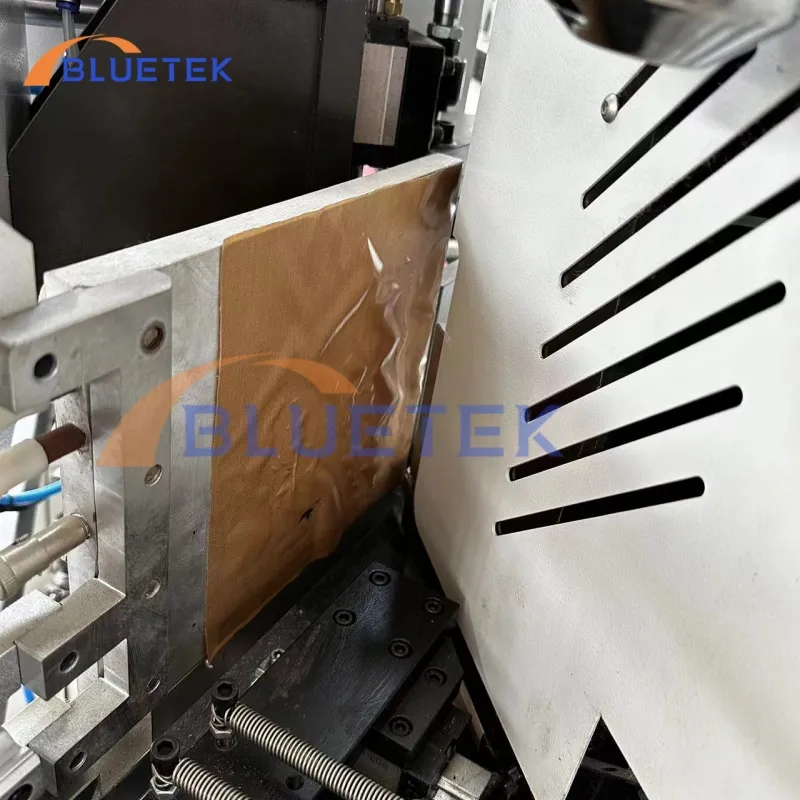

Welding Plate

Welding Plate

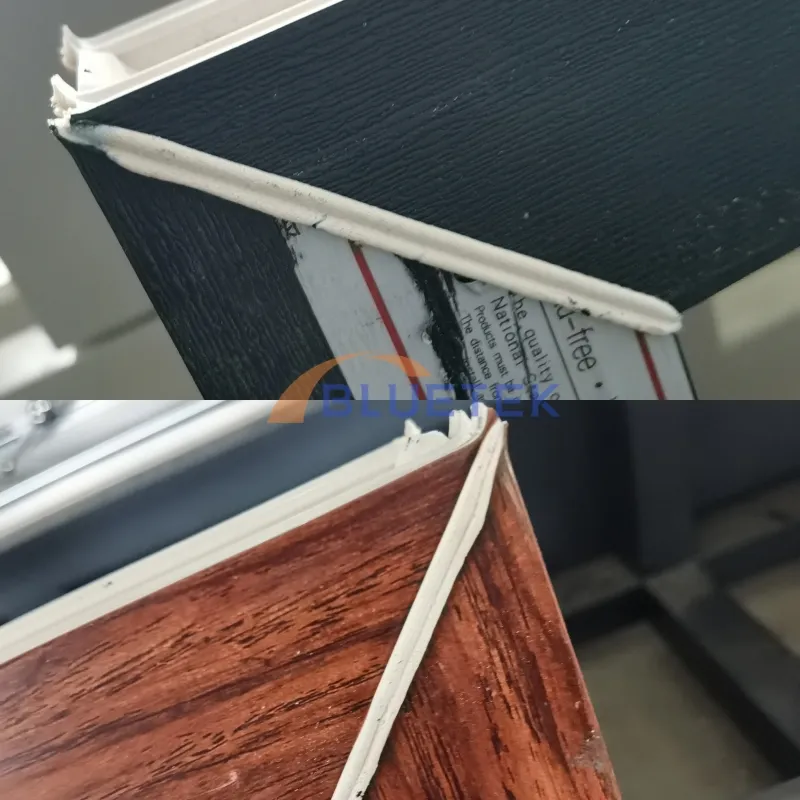

Welding Effect

Welding Effect

📦 Packaging & Shipping
Packaging

LCL: Packed in fumigation-free plywood with thickened pallets; machine base fixed with steel wire.

FCL: Outer packaging is plastic film, fixed in 20/40-foot containers with steel wire or special packaging tape.

🏢 Professional Profile

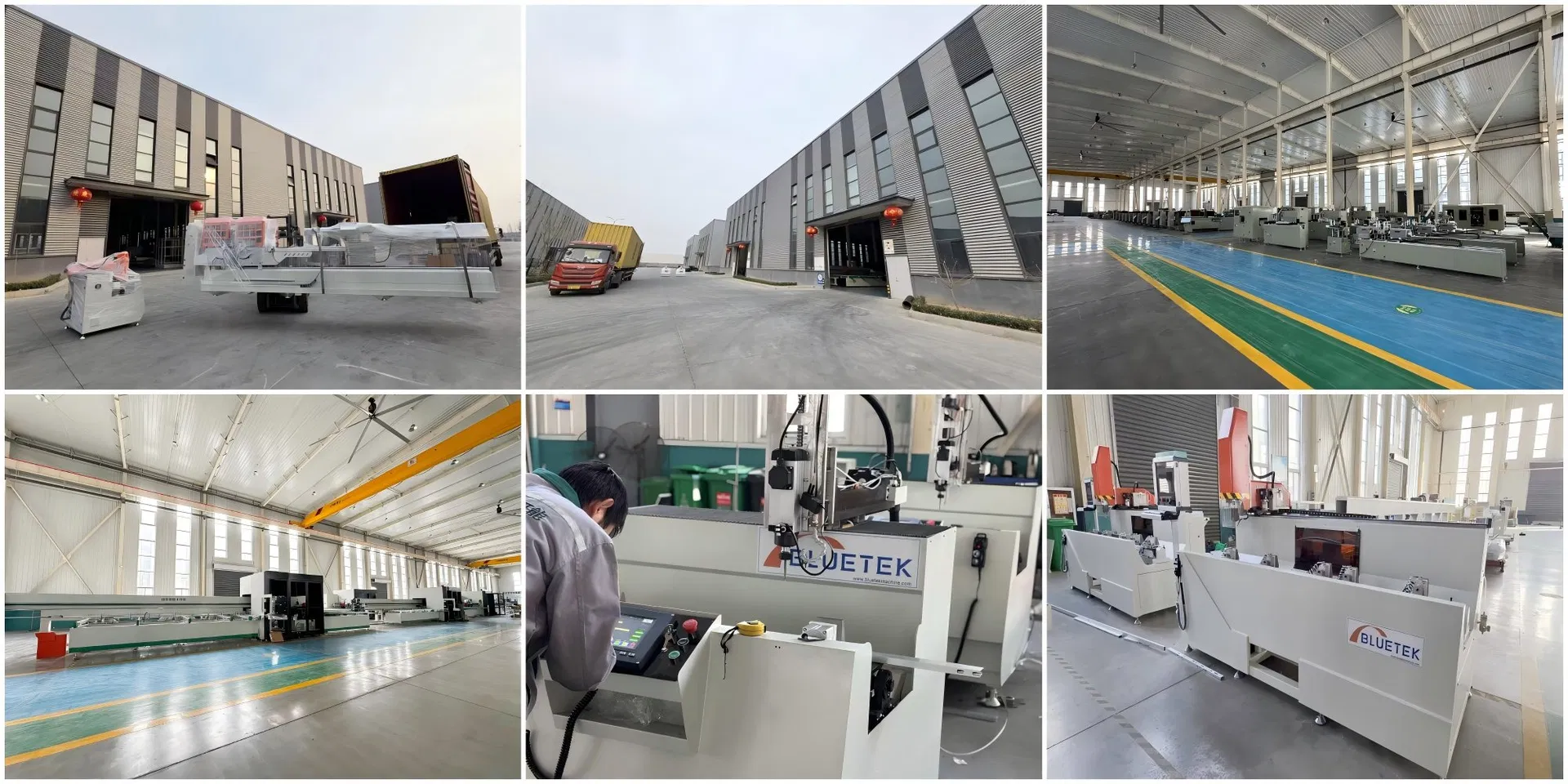

Company Facility

We specialize in the design, manufacturing, and distribution of high-quality Aluminum and UPVC window door machines. Our products are engineered for precision, efficiency, and durability, catering to a global clientele across North America, Europe, and the Middle East.

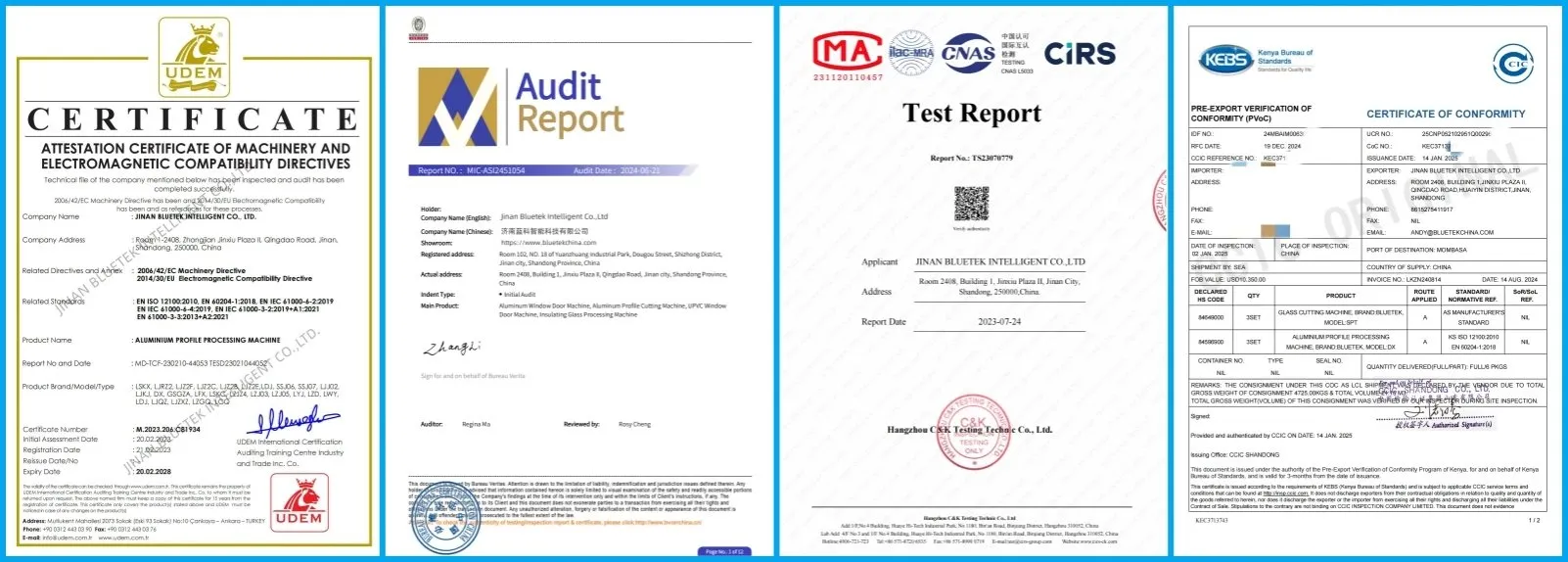

Certifications
Certifications

Our products have passed the EU CE certification and the US UL certification, exported to more than 50 countries worldwide.

🛠️ After-Sales Service
Service
  • Installation: On-site professional technician support and equipment commissioning.
  • Training: Comprehensive operation and maintenance training for your staff.
  • Maintenance: Regular inspections and preventive maintenance suggestions.
  • Support: 24/7 remote technical support and quick response mechanism.
  • Warranty: 18-month warranty period with lifelong after-sales service.
❓ Frequently Asked Questions
What is the primary function of this CNC welding machine?
It is designed to weld four corners of a rectangular PVC window frame or sash simultaneously, significantly increasing production efficiency compared to single-head machines.
Can this machine handle colored or film-coated PVC profiles?
Yes. It uses high-precision alloy extrusion cutters that are specifically optimized for co-extrusion and film-coated profiles, ensuring a clean and stable weld.
What are the key electronic components used?
The machine is equipped with a Schneider PLC (France) and a color touch screen, driving large inertia servo motors for reliable and precise performance.
What is the maximum welding range supported?
The HRWF-CNC-140x2200x3000 model supports a maximum welding range of 2200mm by 3000mm.
What kind of after-sales support do you provide?
We provide an 18-month warranty, on-site installation, operator training, and 24/7 remote technical support for the lifetime of the machine.
Is the machine easy to transport?
Yes, the machine bed is detachable, which makes it much easier to handle during shipping and installation in your facility.
