PVC UPVC Window Profile Bending Machine Arch Window Bending Machine

After-sales Service:	Provided
Warranty:	1 Year
Application:	Metal

Basic Information

Model NO.

SMT-WYJ-15T

Process Usage

Metal-Forming CNC Machine Tools, Bending

Movement Method

Contour Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Performance

High-End CNC

Certification

CE, ISO 9001

Condition

New

Control System

PLC

Profiles

Iron, Copper, Aluminum, PVC

Bending Diameter

Min.150mm

Product Description

PVC / UPVC Profile Arch Bending Machine with Heating System

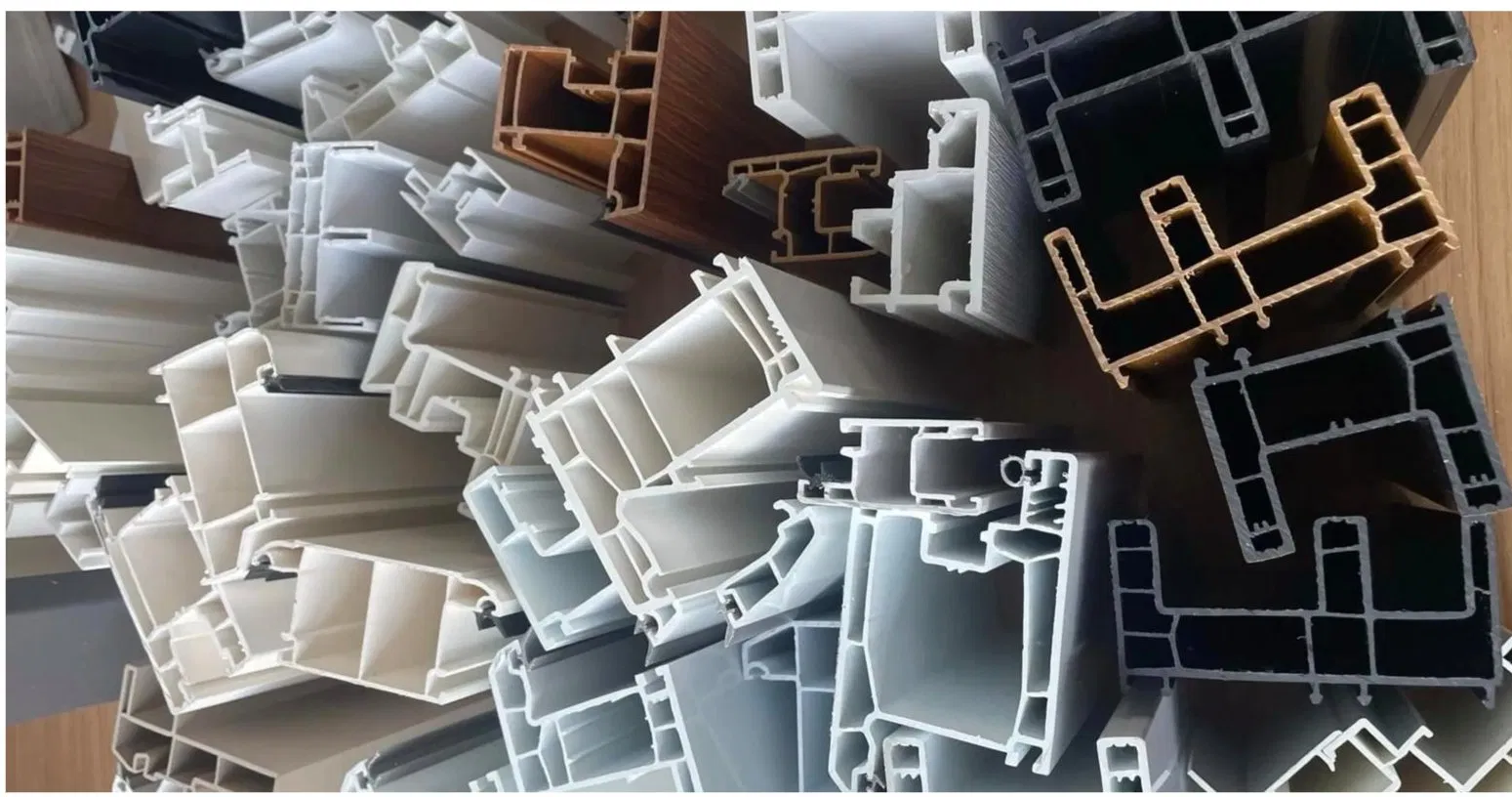

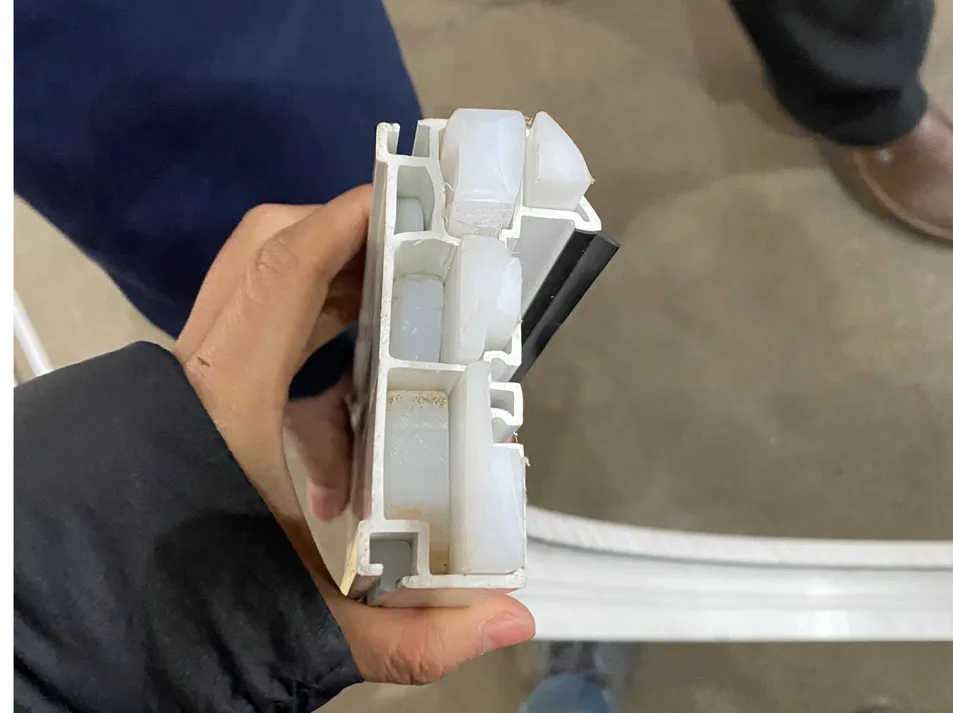

Specially designed for bending PVC and UPVC window and door profiles into arches, circles and various curved shapes.

🔍 Why Choose This Machine?

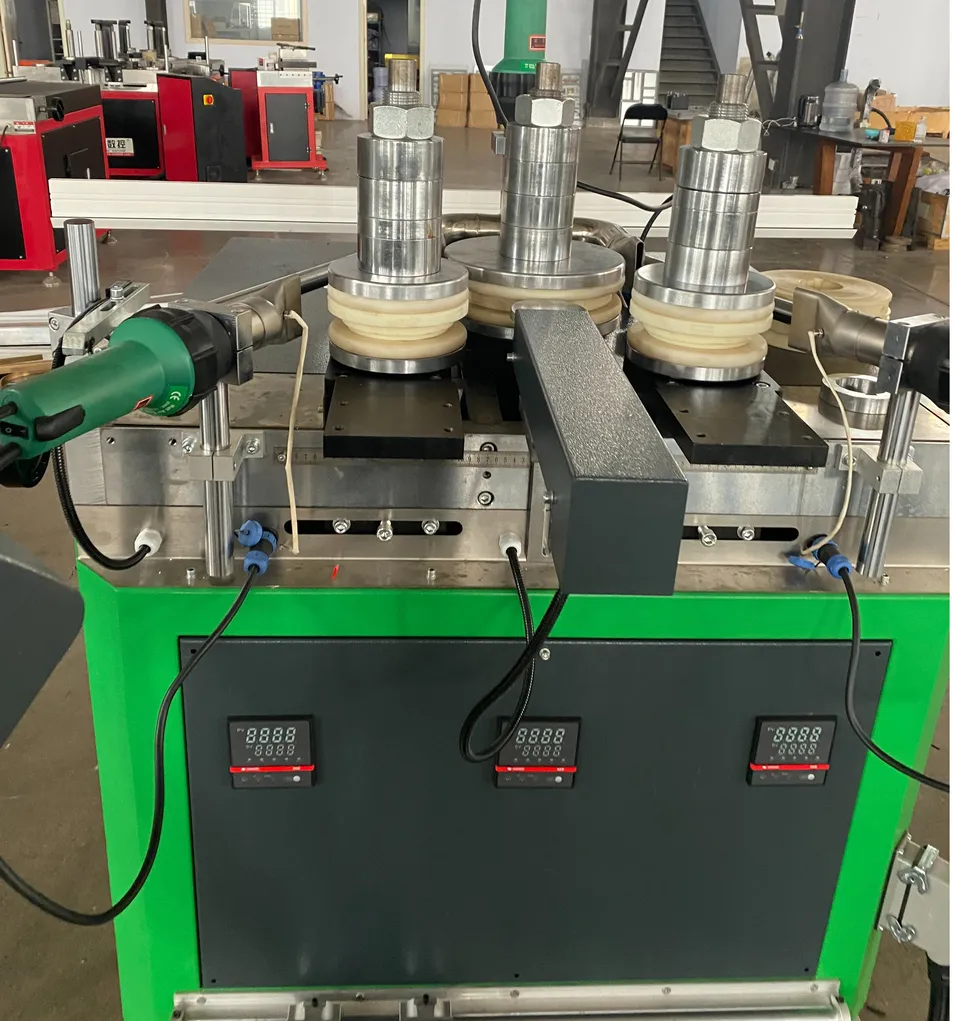

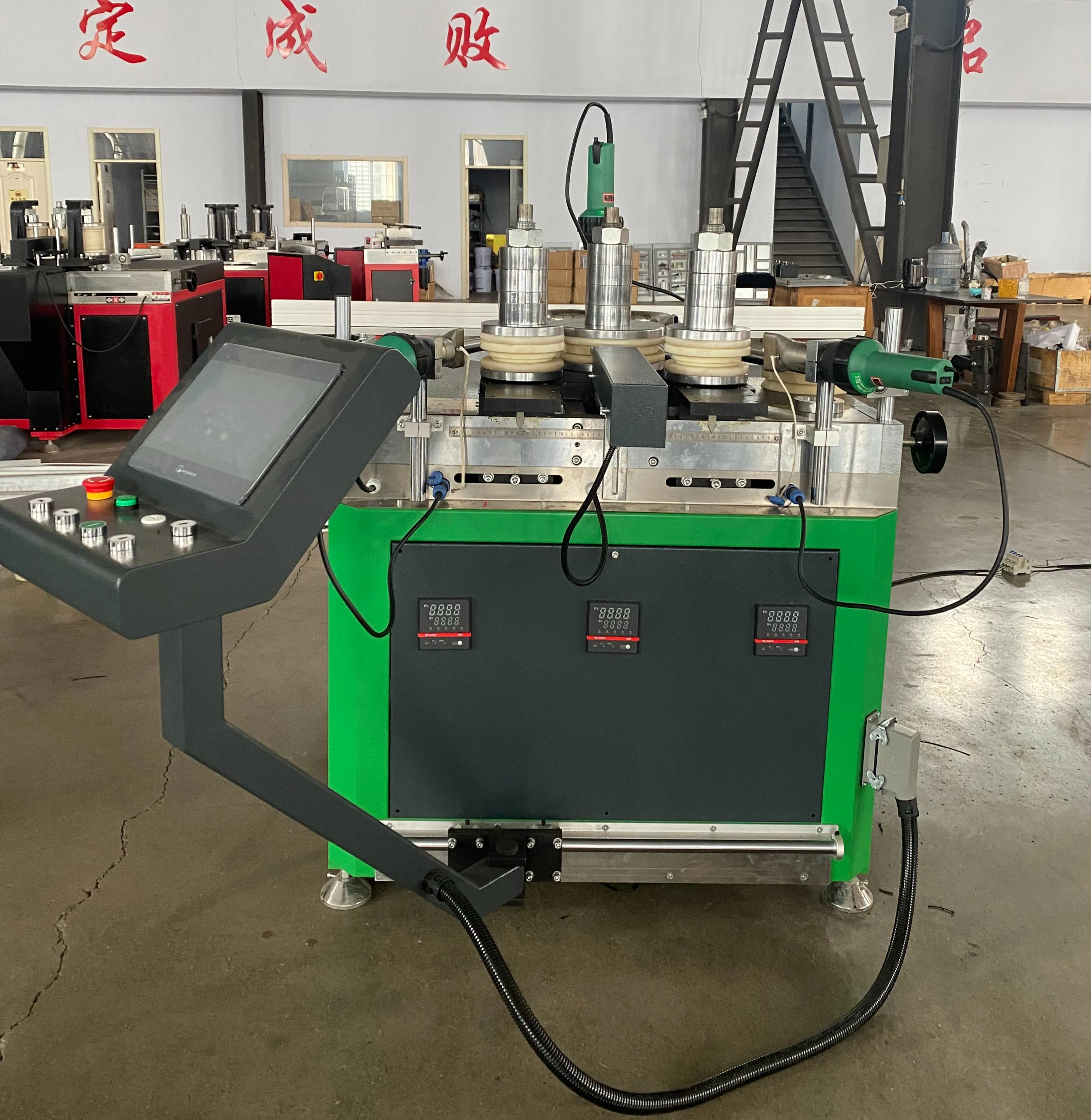

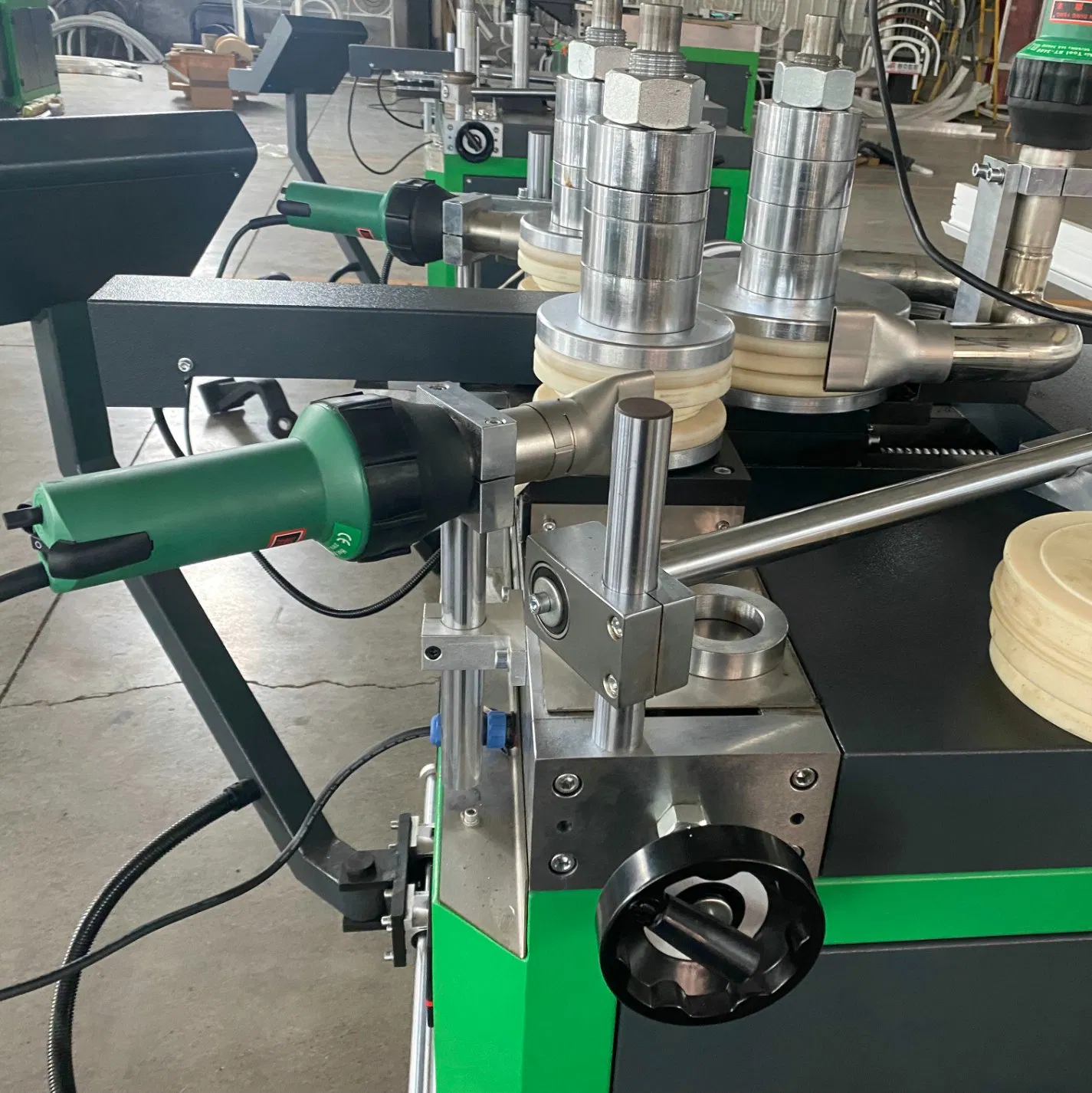

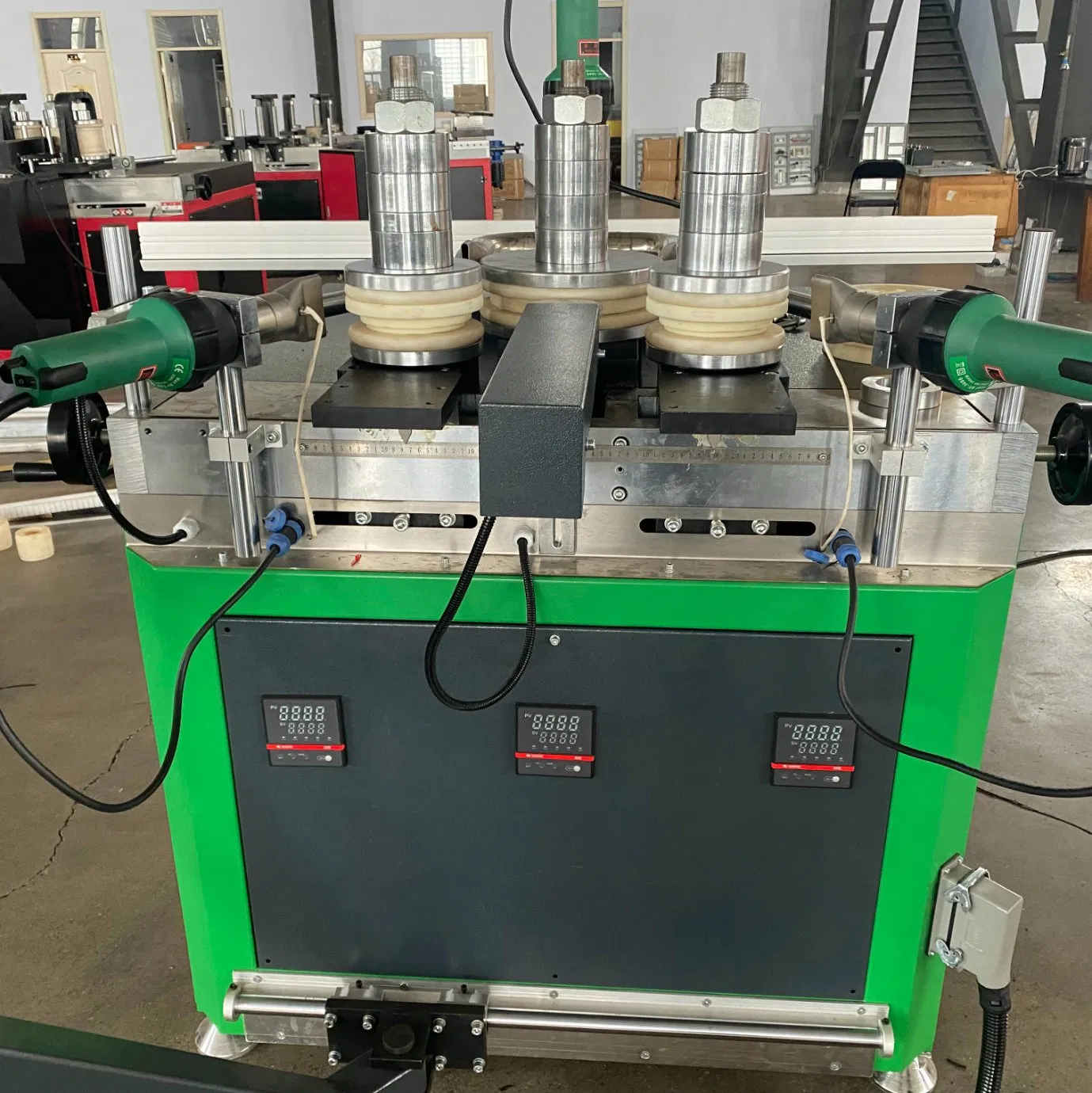

Equipped with a hot air heating blower, this model heats and softens the profile during the bending process, effectively preventing cracking, deformation, and surface damage.

✔️

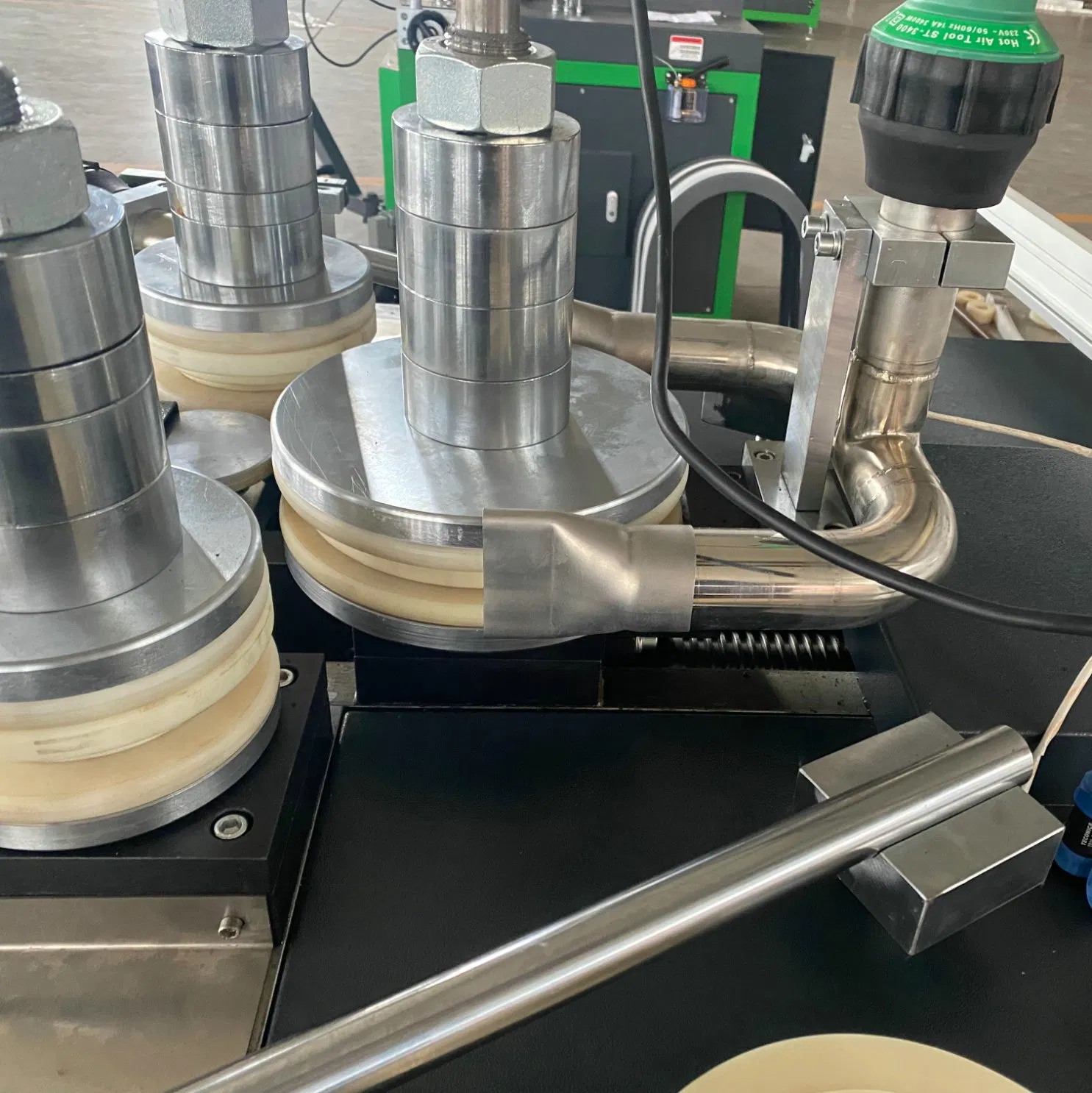

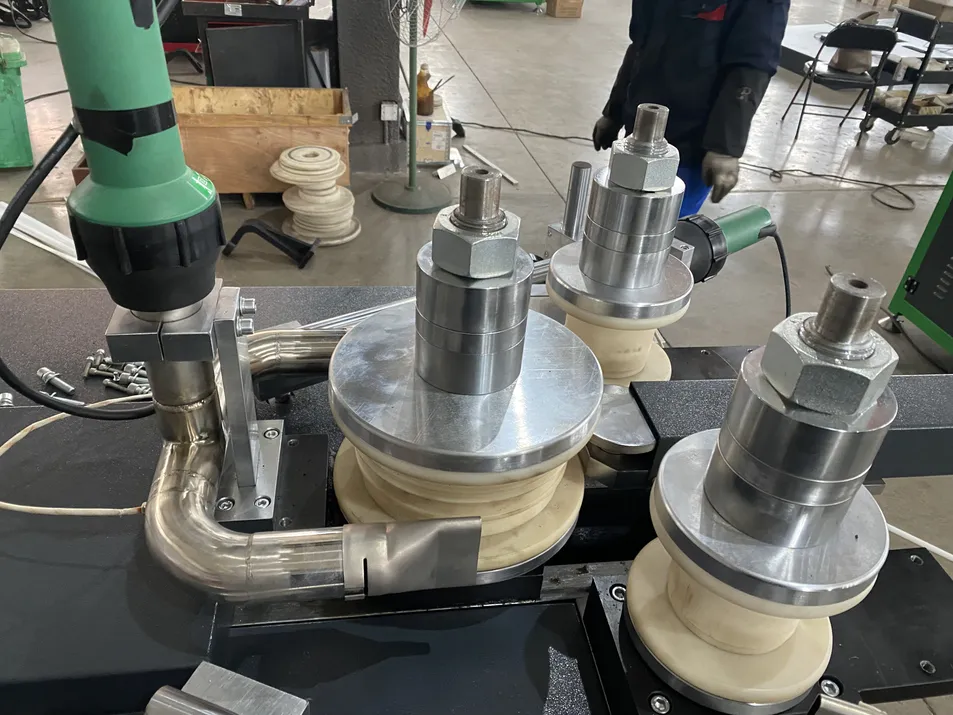

Hot Air System: Ensures smooth profile bending without whitening.

✔️

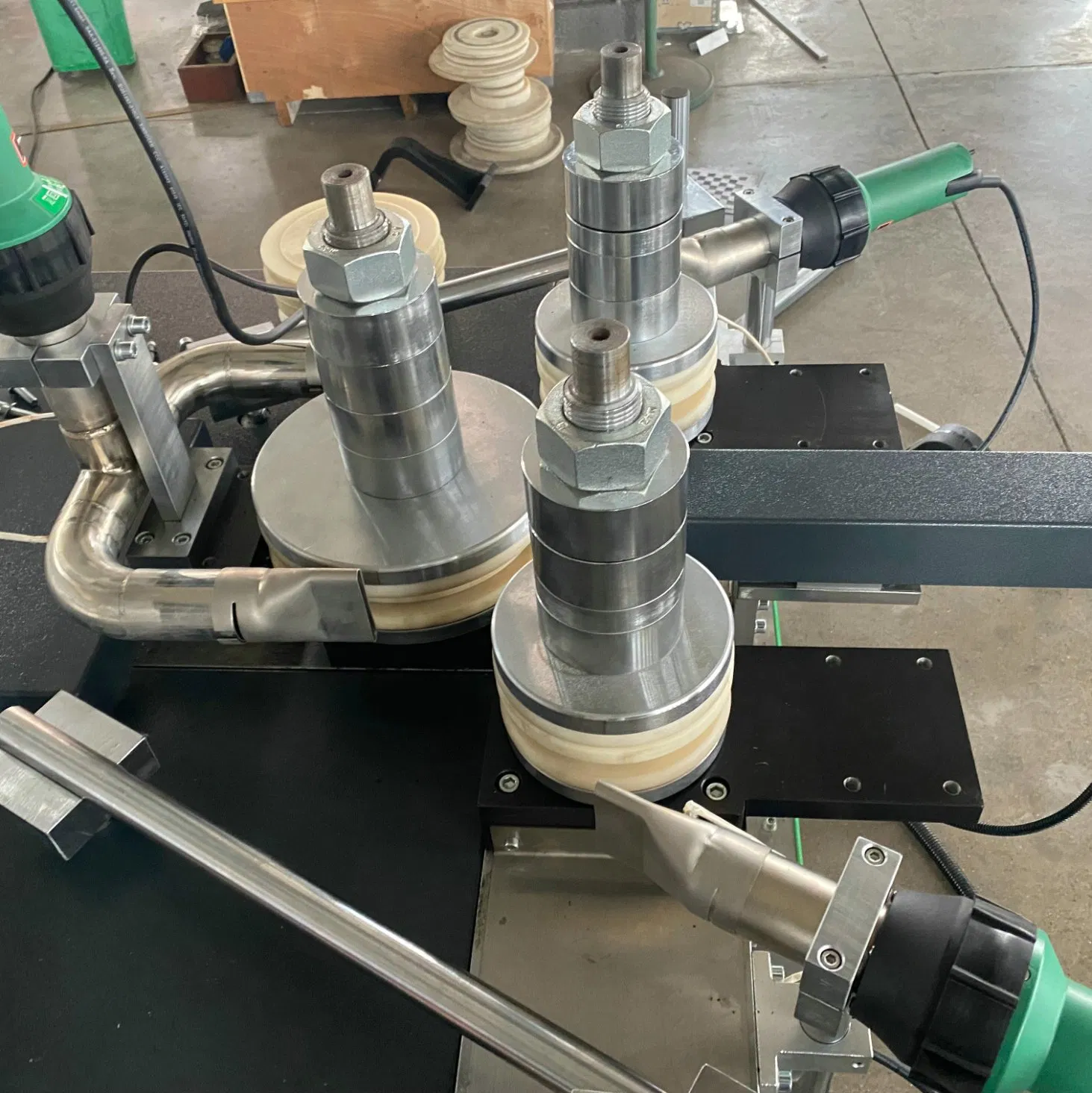

High Precision: Rollers ensure stable and accurate bending results.

✔️

Robust Frame: Strong high-strength steel frame for reliable performance.

✔️

Wide Application: Ideal for arched windows, circular windows, and curved doors.

Visual Showcase

Technical Specification

Item	MGW-CNC-25T Data
Voltage (V)	380
Power (kW)	11
Roller Speed (r/min)	1–15
Max. Roller Mold Diameter (mm)	380
Roller Diameter (mm)	80
Y-Axis Thrust Max (T)	25
Y-Axis Position Accuracy (mm)	≤0.01
Min. Rolling Radius (mm)	150
Max. Width for Profiles (mm)	200
Max. Size for Square Pipes (mm)	80×80×5
Weight (kg)	1800

Solutions & Applications

What Problems Does this Machine Solve?

Eliminates inaccurate arcs and shape collapse.
Prevents oval deformation and surface scratches.
Reduces dependence on highly skilled manual operators.
Provides digital servo compensation for stable radius.
Enables one-touch parameter switching for fast changeover.

Packing & Delivery

International standard fumigation-free wooden case
Reinforced frame + moisture protection | Suitable for ocean, land, and air shipment

Frequently Asked Questions

What materials can this machine process?

The machine is designed for PVC and UPVC profiles, but it can also handle aluminum, iron, and copper profiles depending on the specific mold configuration.

How does the heating system help the bending process?

The hot air heating system softens the PVC/UPVC material, preventing it from cracking, whitening, or deforming during high-tension bending.

What is the minimum bending radius achievable?

The minimum bending radius is 150mm, allowing for the creation of small arched windows and decorative elements.

Is the operation difficult for new users?

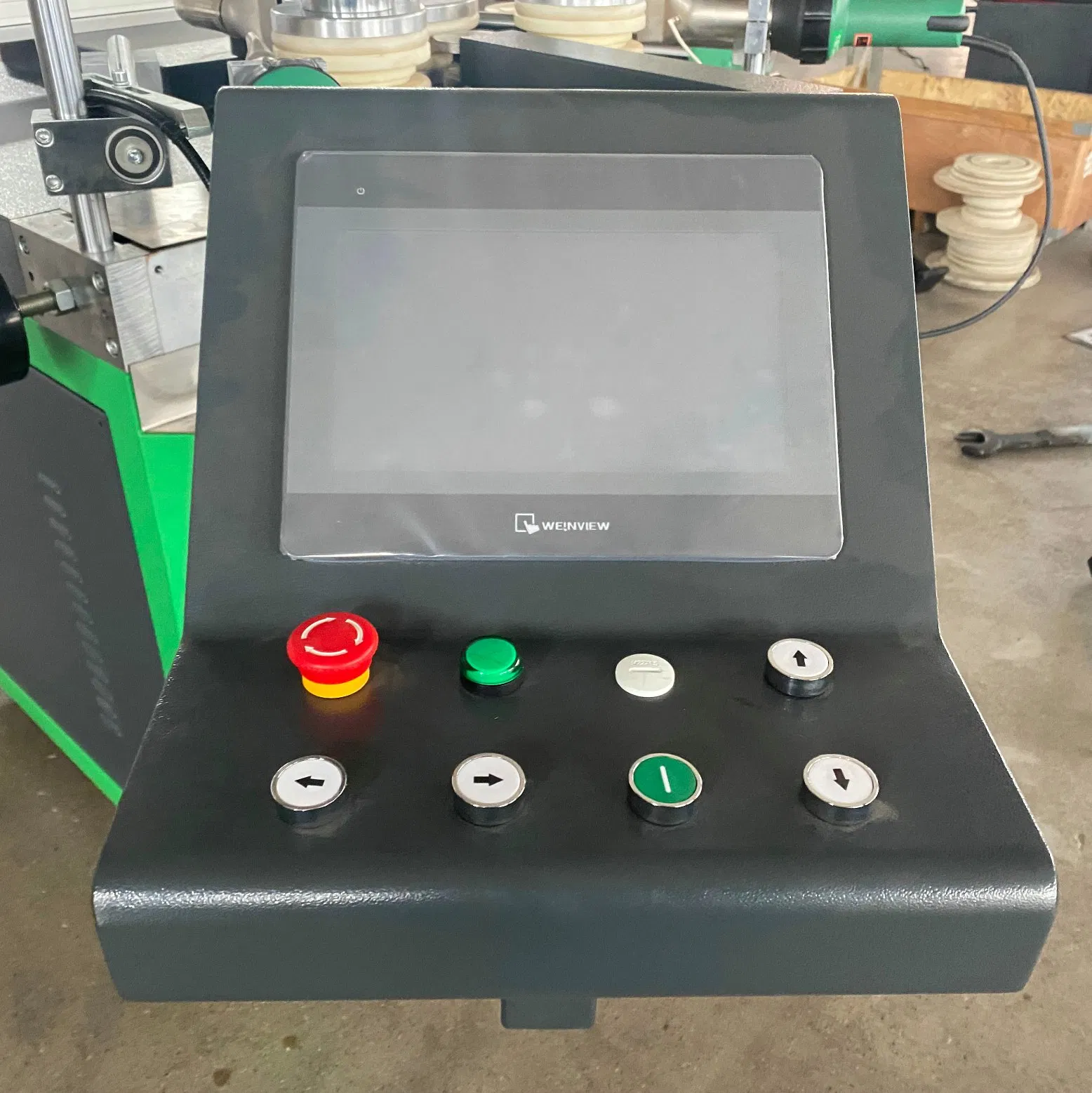

No, the machine features a PLC control system with digital servo compensation and one-touch switches, making it user-friendly even for less experienced operators.

What certifications does the machine have?

The machine is fully certified with CE and ISO 9001 standards, ensuring it meets international quality and safety requirements for export.

How is the machine protected during international shipping?

We use international standard fumigation-free wooden cases with reinforced frames and moisture-proof wrapping to ensure safety during sea or land transport.
