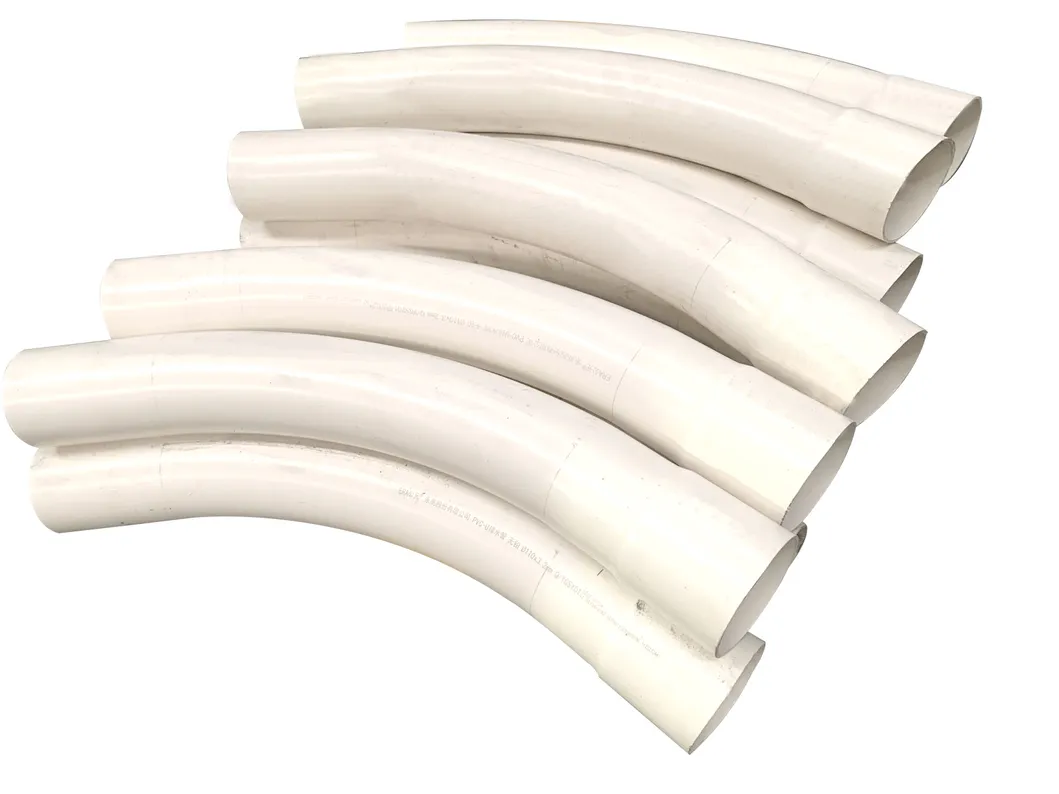

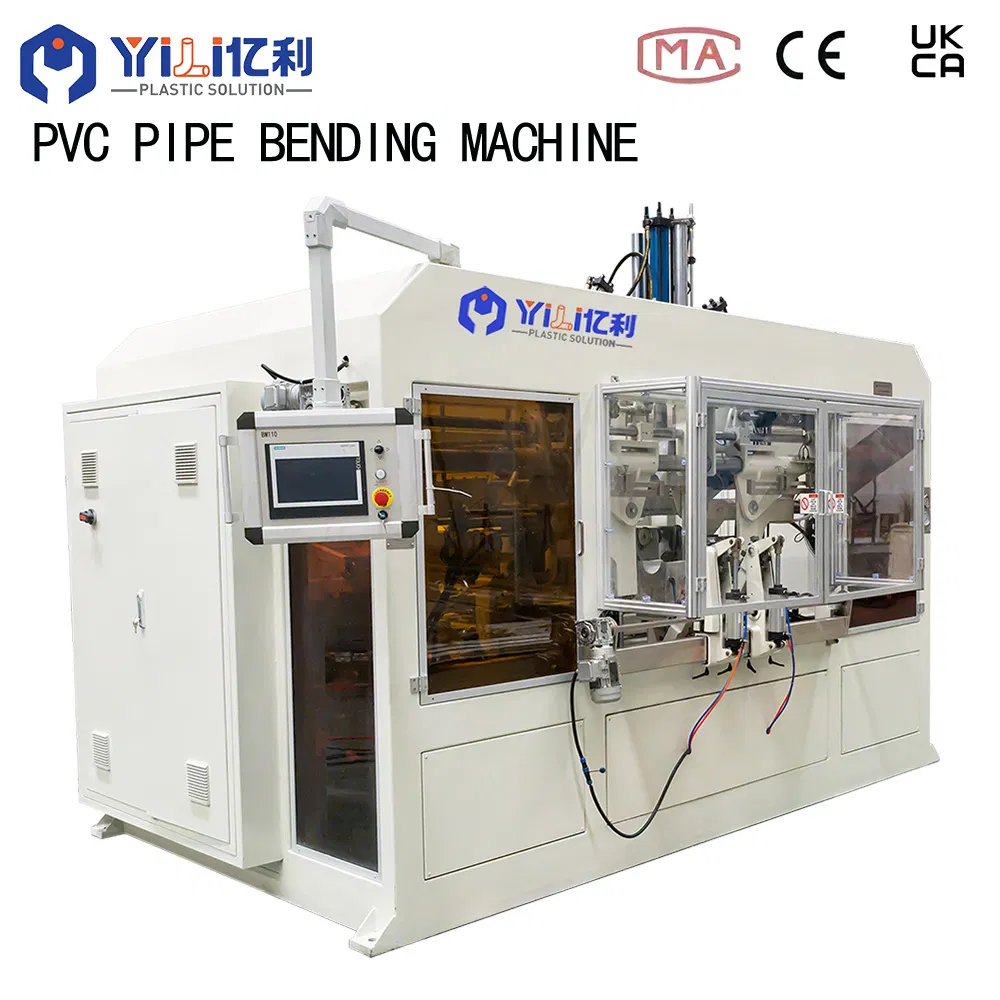

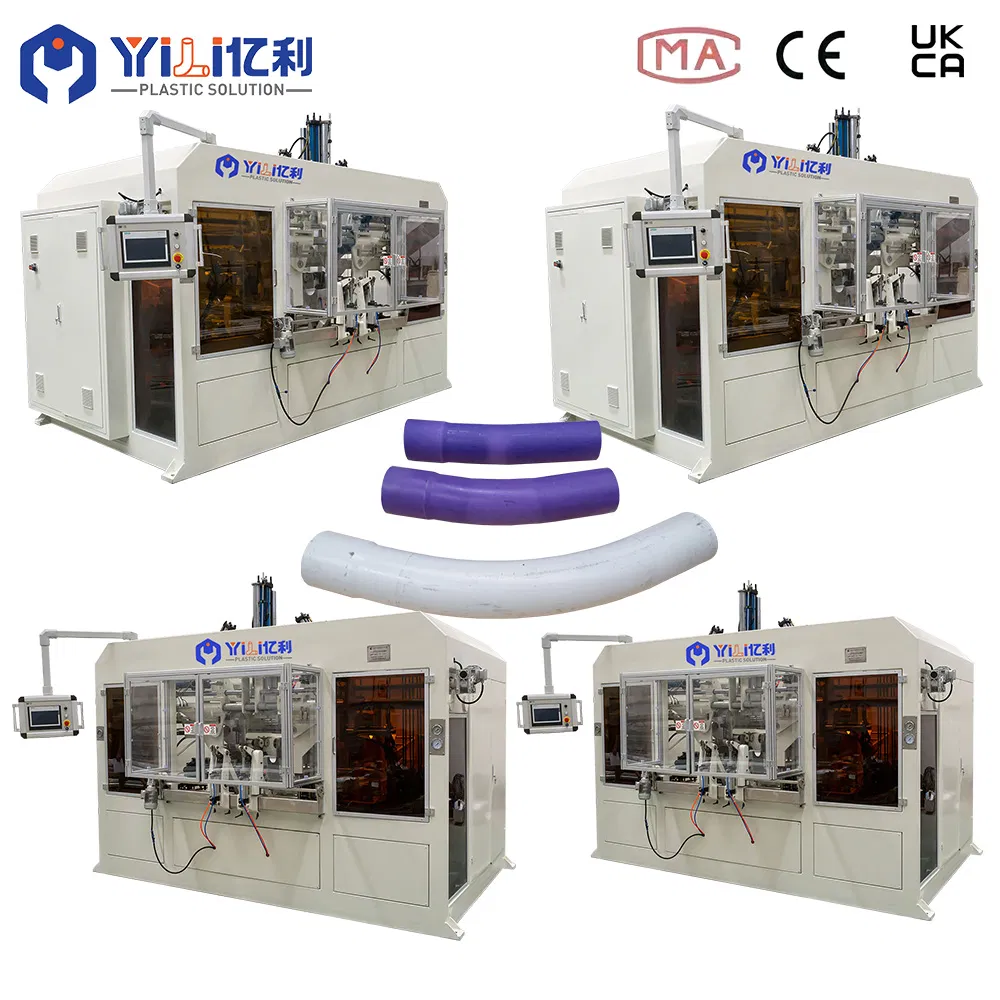

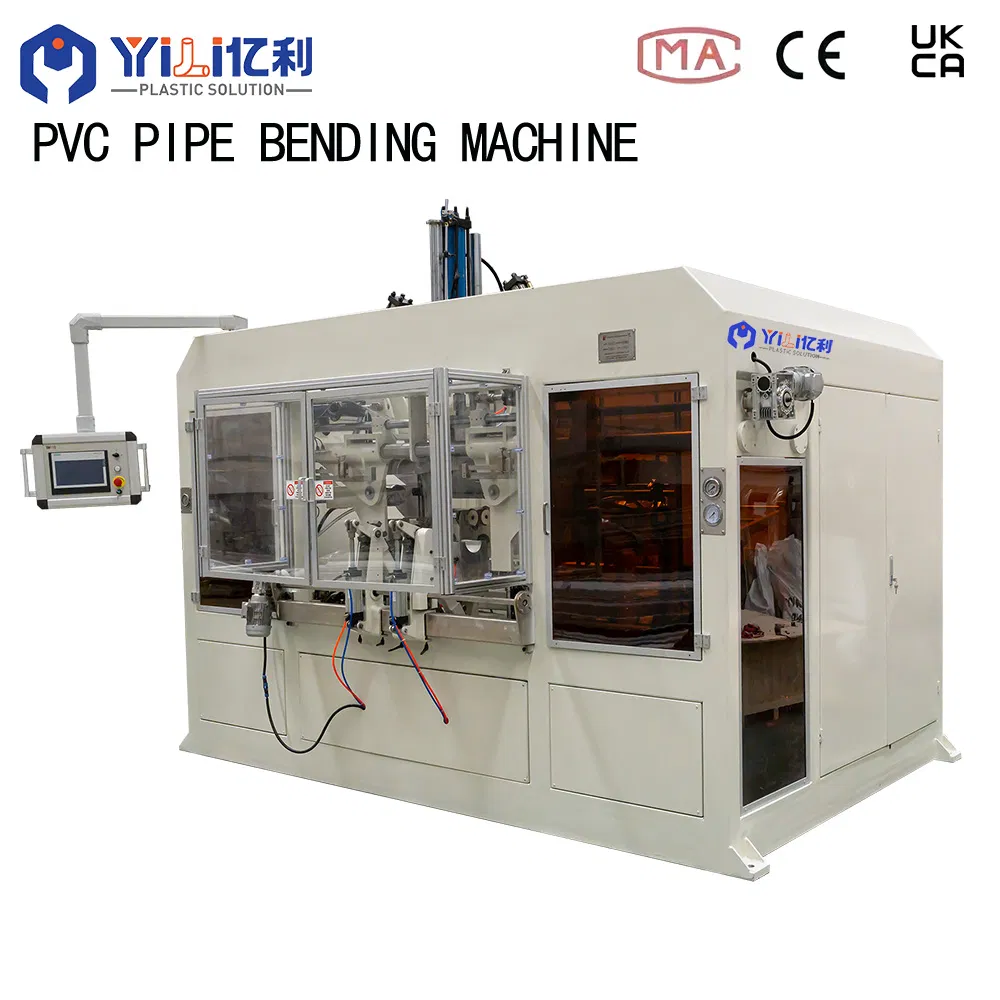

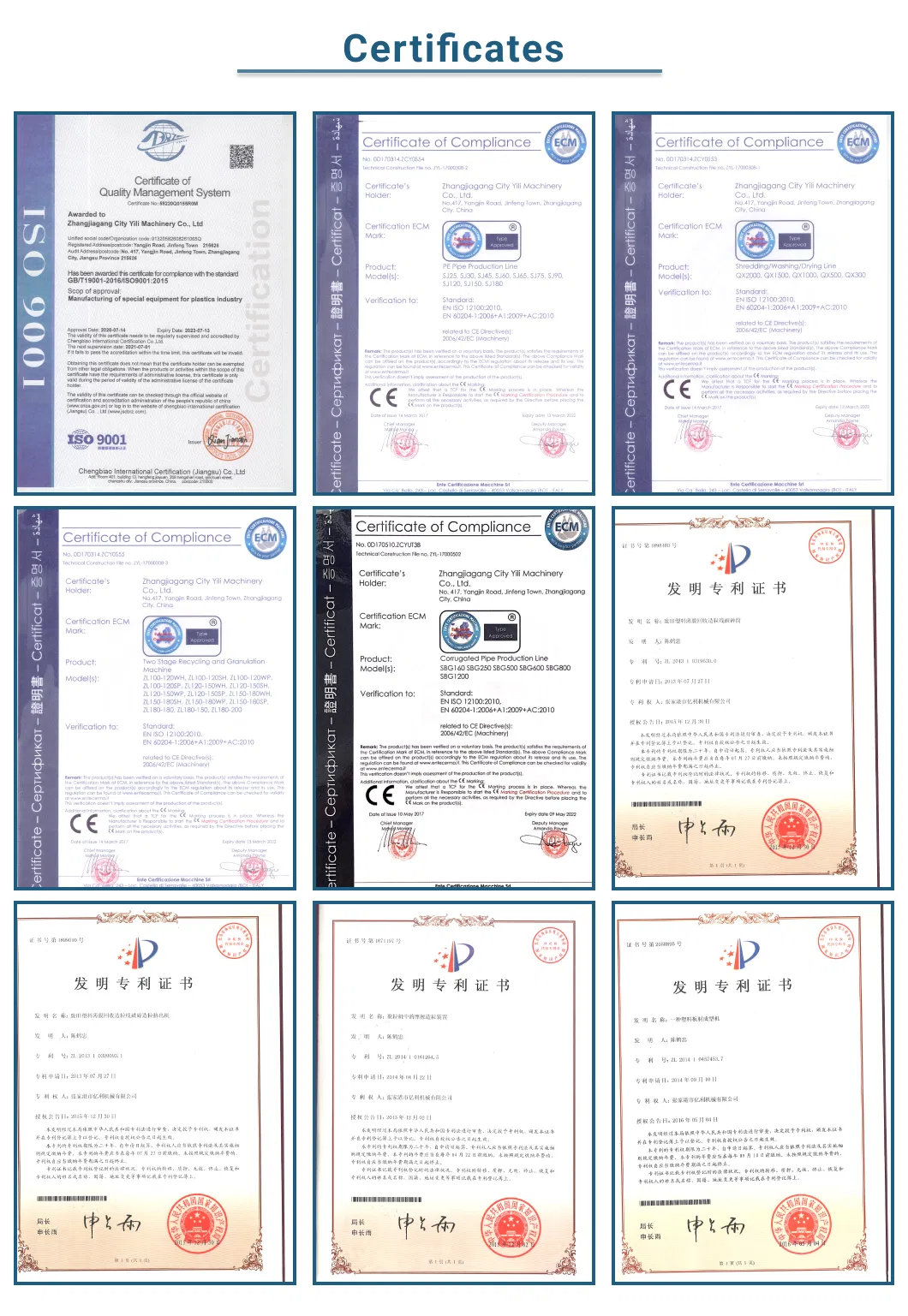

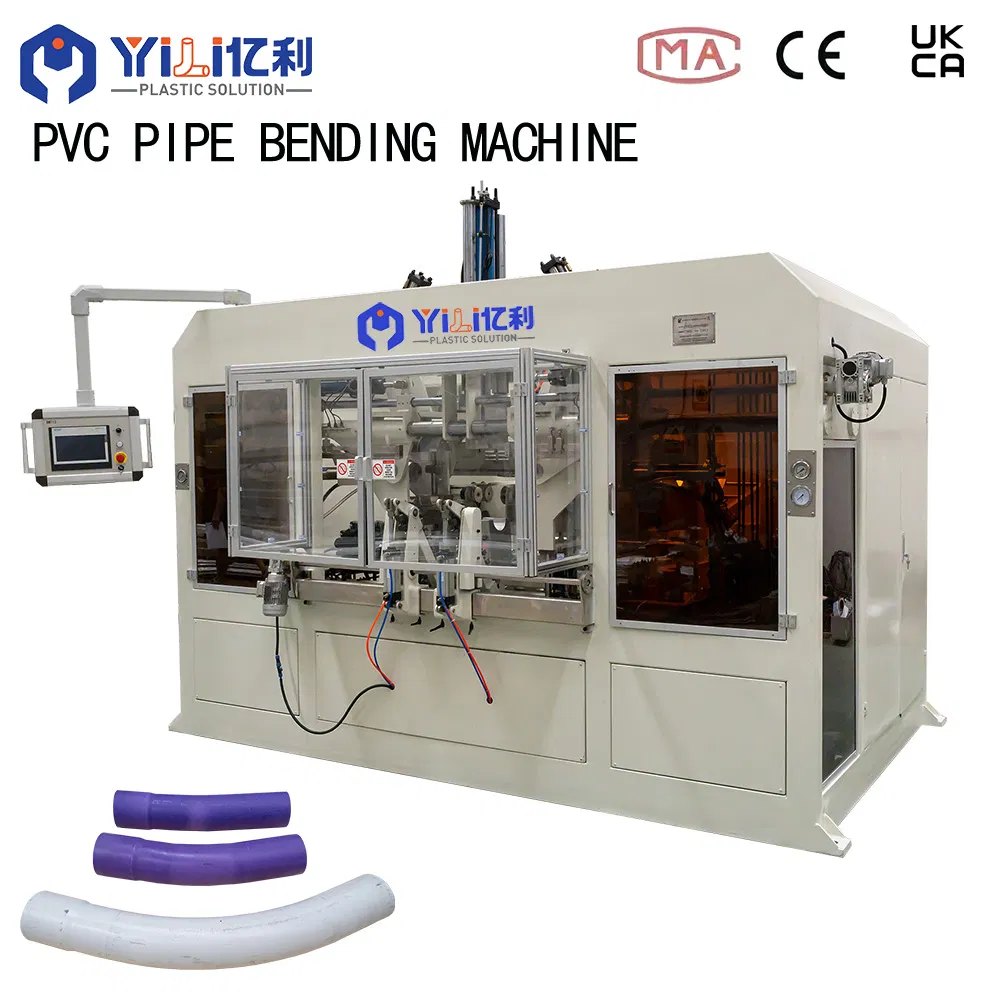

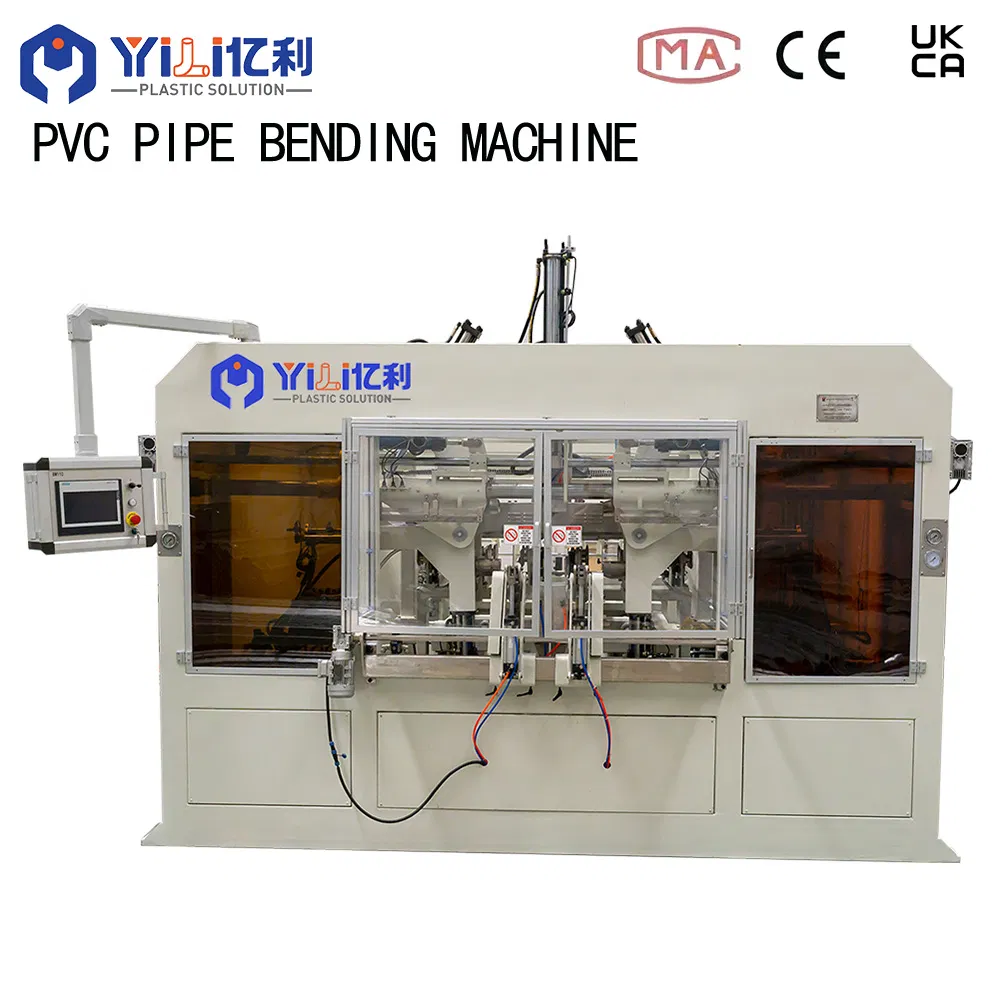

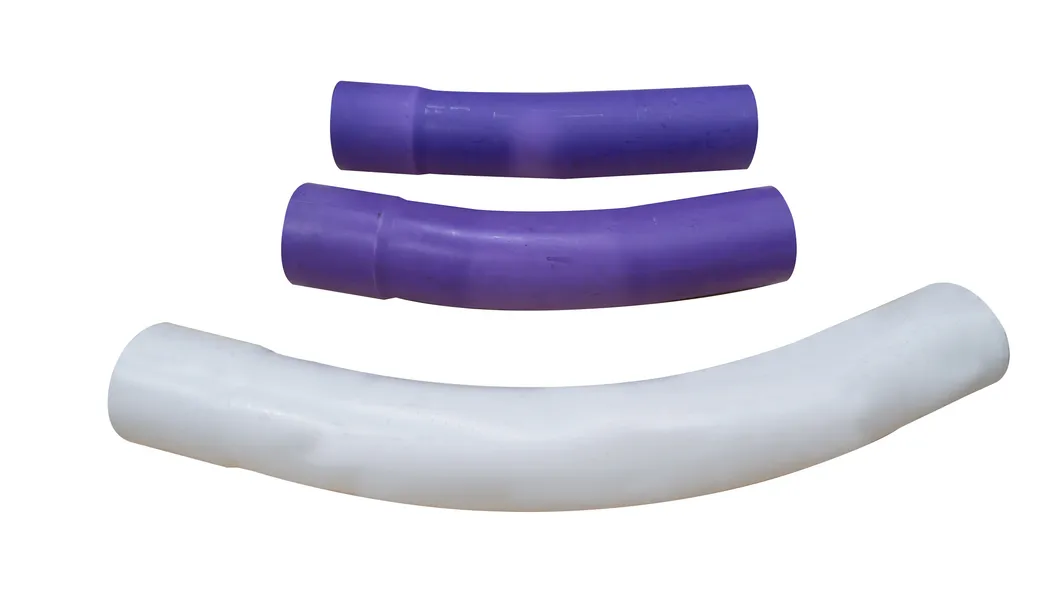

The sophisticated team and top-class R&D experts have developed high-performance PVC duct and PVC pipe bending machines. These machines are specifically designed to produce PVC pipe or PVC duct bends with sockets. Integrating technical support from industry experts in Italy and Germany, these machines meet diverse manufacturing requirements based on years of field experience, standing as highly affordable and economical solutions globally. All units are CE and UKCA certified.
| Model | Pipe OD (mm) | Bending Angle | Capacity (pcs/hr) |
|---|---|---|---|
| YL-63 | Φ20-63 | 11.25/22.5/45/90° | 480 |
| YL-110 | Φ50-110 | 11.25/22.5/45/90° | 80 |
| YL-160 | Φ75-160 | 11.25/22.5/45/90° | 80 |
| YL-250 | Φ90-250 | 11.25/22.5/45/90° | 72 |

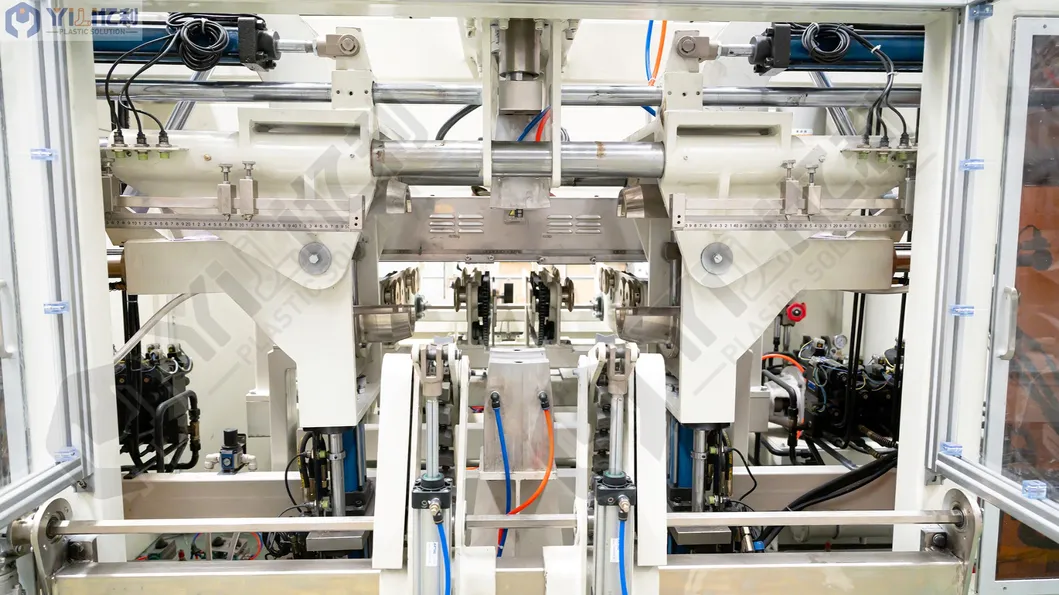

Advanced Heating System: Features Irish ceramic heaters capable of 700ºC with insulated SUS304 covers. The two-step heating process ensures uniform and efficient thermal distribution, with adjustable height for different pipe diameters.

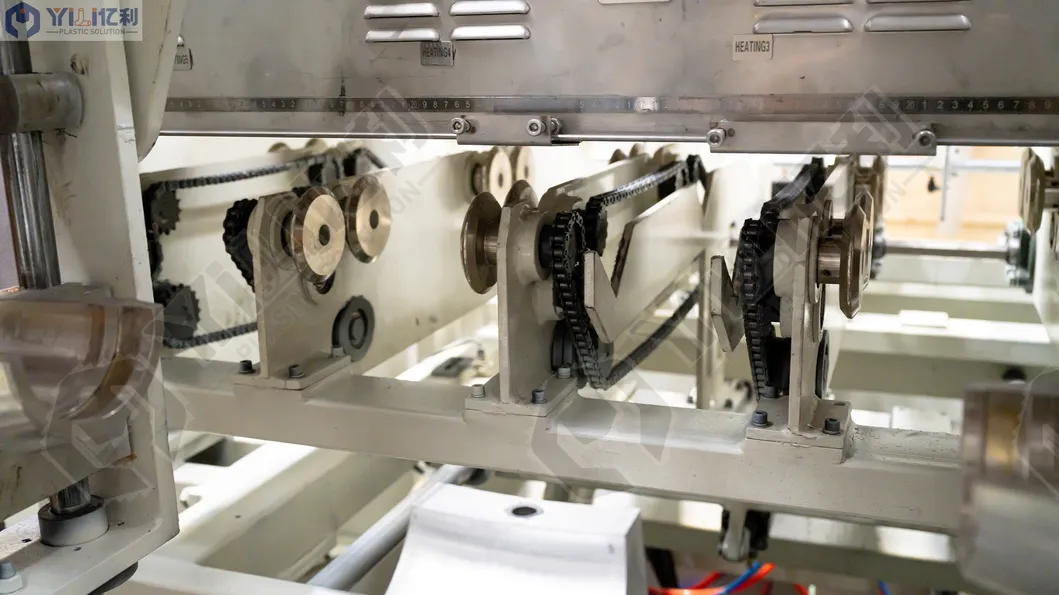

Full Automation: This compact machine integrates pipeline transportation, heating, belling, bending, and outlet processes. It increases efficiency by 3-5 times compared to manual operations.

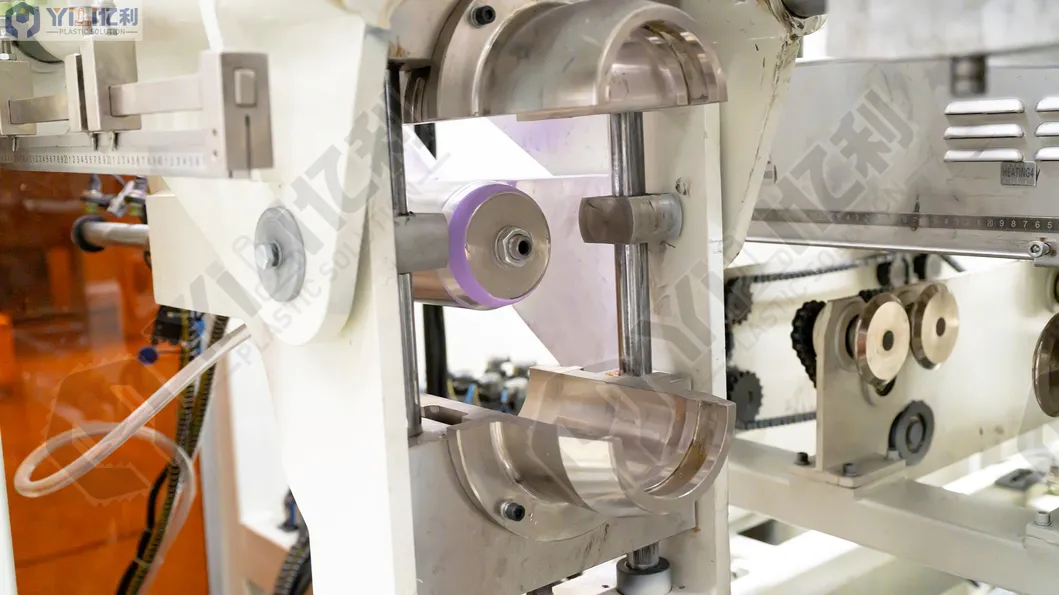

Precision Belling: Equipped with 45# nickel-phosphorus treated clamping tools and Autonics photoelectric detection to ensure accurate belling length and aesthetic finishing.

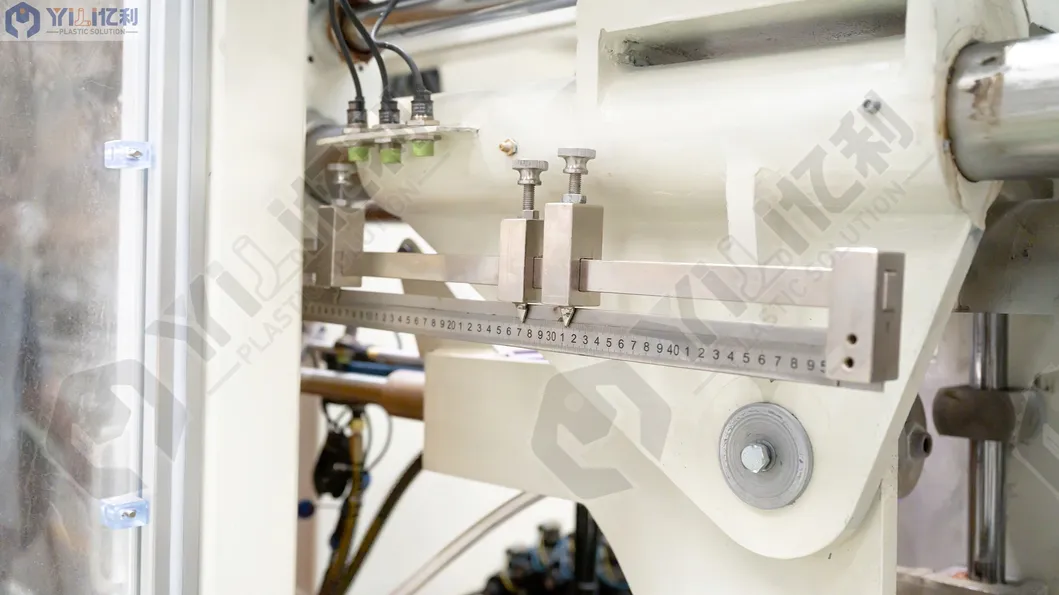

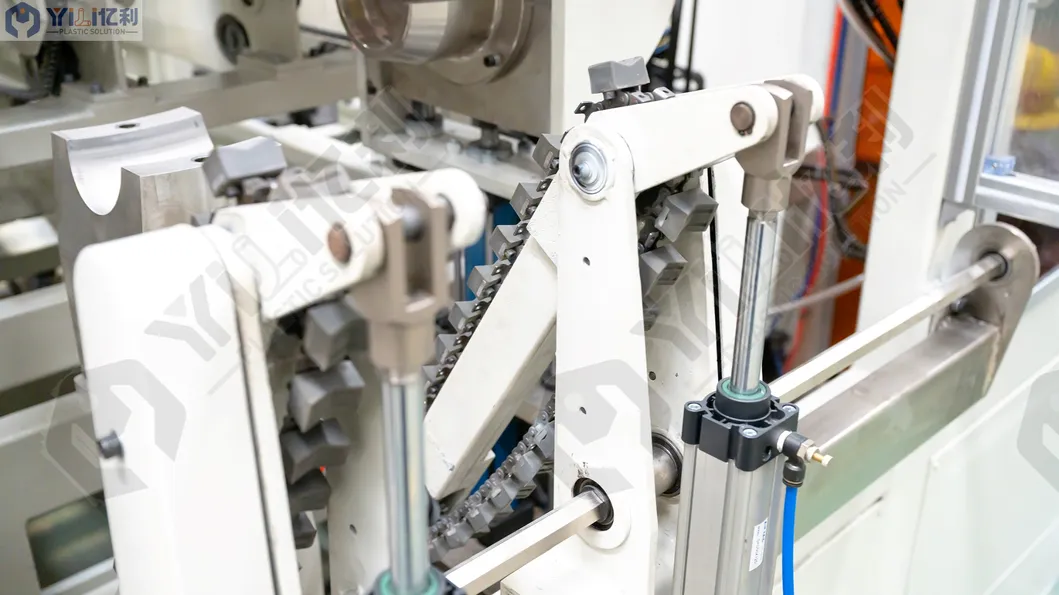

Adjustment & Output: Installed scales allow for mold base adjustments within 1mm tolerance. An automatic discharge device lifts and sends out finished products safely without manual labor.

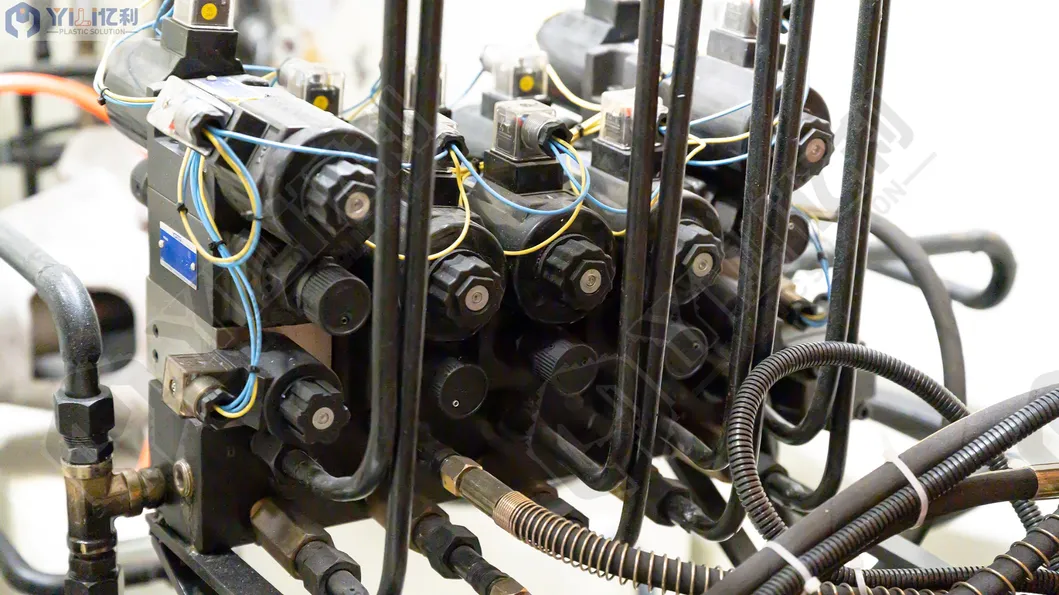

Hydraulic Excellence: Utilizing Japanese YUKEN oil pumps and solenoid valves combined with advanced energy storage for noise reduction and energy saving.
