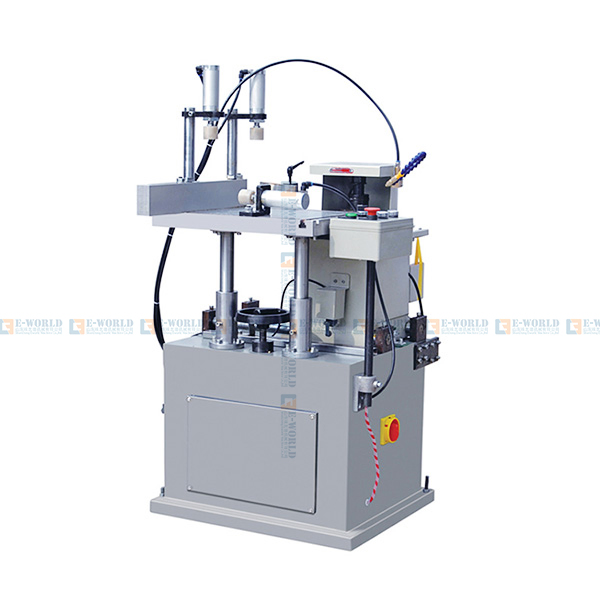

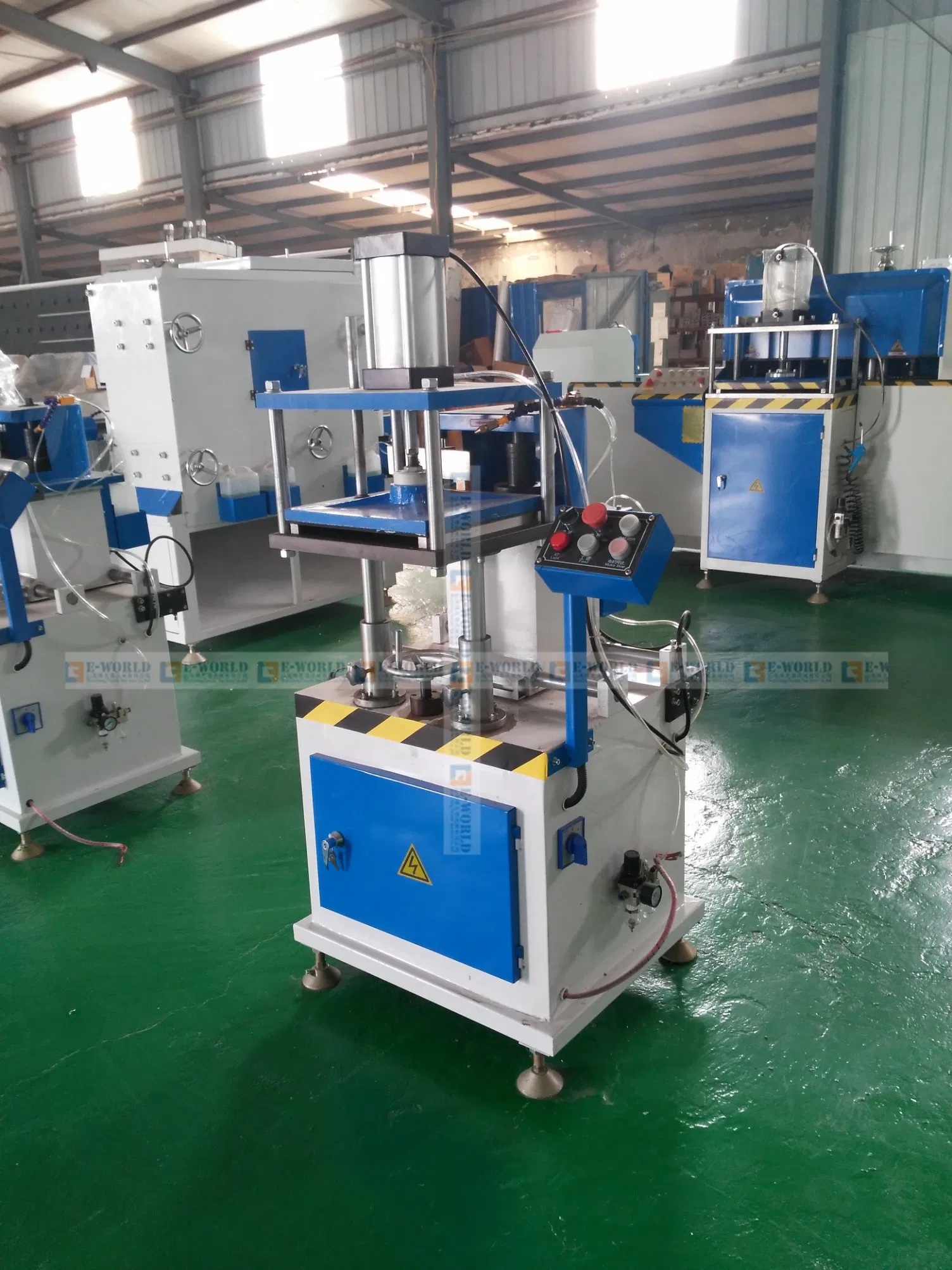

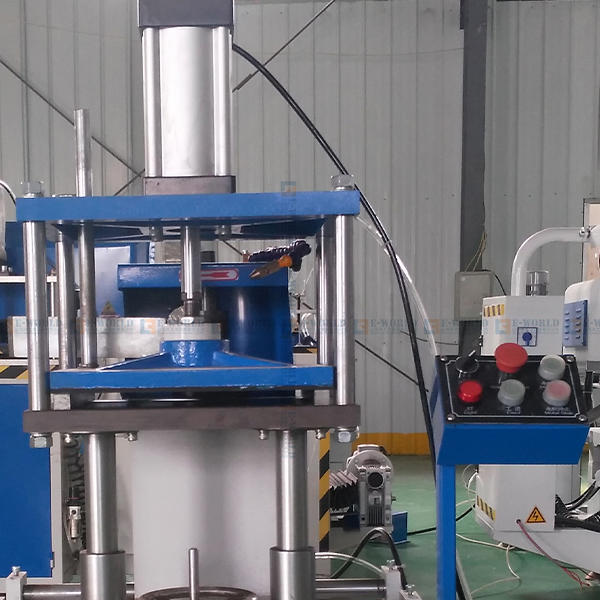

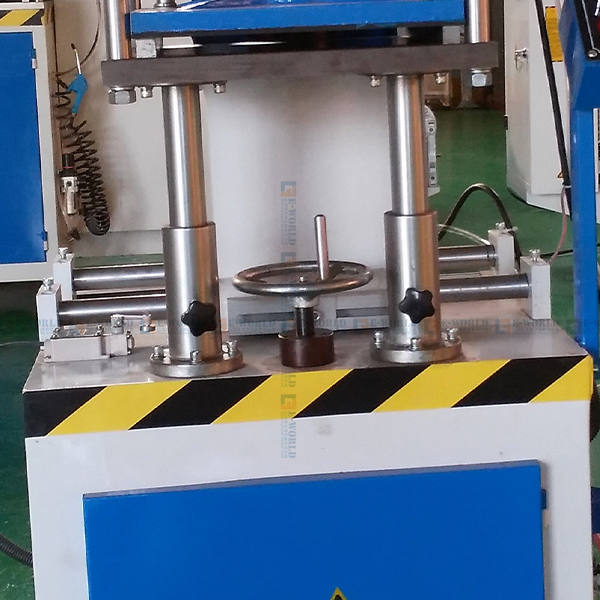

PVC and Aluminum End Milling Machine Window End Milling Machine
PVC and Aluminum End Milling Machine Window End Milling Machine
PVC and Aluminum End Milling Machine Window End Milling Machine
PVC and Aluminum End Milling Machine Window End Milling Machine
PVC and Aluminum End Milling Machine Window End Milling Machine
1 / 5
PVC and Aluminum End Milling Machine Window End Milling Machine
PVC and Aluminum End Milling Machine Window End Milling Machine
PVC and Aluminum End Milling Machine Window End Milling Machine
PVC and Aluminum End Milling Machine Window End Milling Machine
PVC and Aluminum End Milling Machine Window End Milling Machine

PVC and Aluminum End Milling Machine Window End Milling Machine

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

📊

Basic Information

Model NO.LXD-200ConditionNew
CertificationISO, CEAutomatic GradeAutomatic
Voltage380VMotor Power1.5kw
Air Pressure0.4 ~ 0.8MPaWeight150kg
Max. Hole Size70*45*200mmPackageWooden Box
Specification850*740*1280mm
⚙️

Product Description

End Milling Machine

End Milling Machine
  • ✔It can be used for end milling of profiles for aluminum doors and windows.
  • ✔With a large-sized work bench and long cutting feed travel, it can mill 6--10 profiles in one operation with adjustable multiple cutting tools.
  • ✔It is unnecessary to replace the cutting tools in case of product change so as to save the production setup period and cost.
  • ✔Multiple sets of cutting tools can work simultaneously or separately based on different profiles.
  • ✔With bigger diameter of cutting tools, the quality of machining surface is better; the hydraulic damping cylinder ensures stable feed.
  • ✔The thickened clamping plate effectively prevents profiles from deforming during the process.
  • ✔Customizable according to local power supply and voltage requirements.
📷

Detailed Photos

Detailed View 1

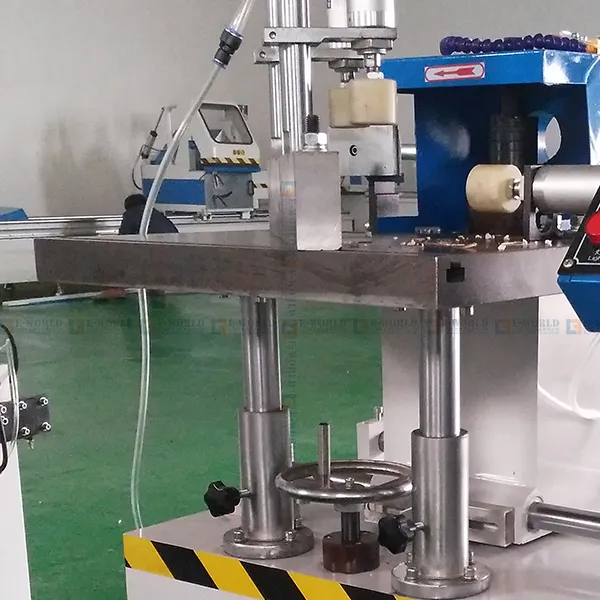

Detailed View 2

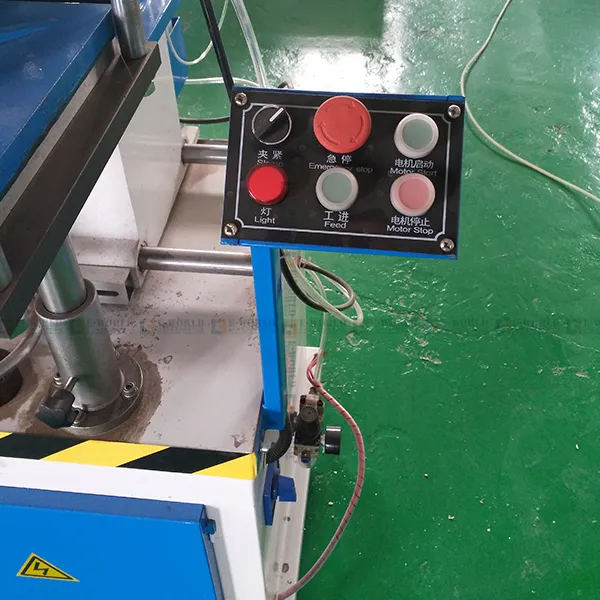

Detailed View 3
📋

Technical Parameters

Model numberLXD-250
Working air pressure0.5~0.8 Mpa
Air consumption30L/min
Power supply380V 50Hz
Input power6.6 kw
Main shaft diameterØ32mm
Milling cutter diameterØ250mm
Max. processing hole size40mm
Contour dimension (L×W×H)2400×970×1640mm
Weight (approx.)450 kg
📜

Certifications

Certifications
🏢

Factory Display

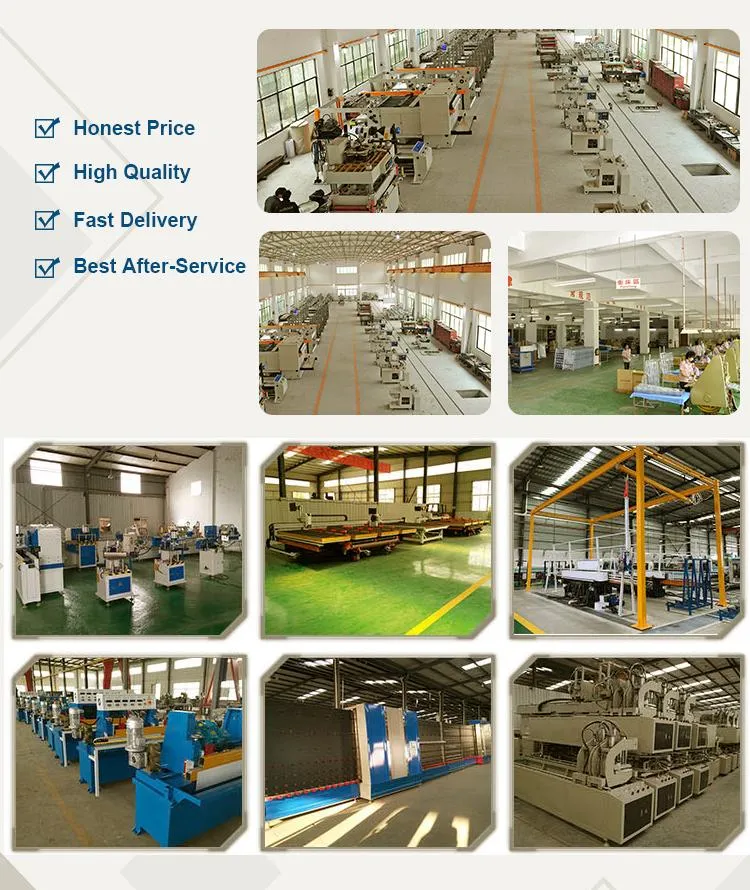

Factory View 1
Factory View 2
Factory View 3
Factory View 4
Factory View 5
Factory View 6
Frequently Asked Questions
What is the primary application of this machine?
This end milling machine is specifically designed for the end milling of profiles for aluminum doors and windows.
How many profiles can be processed at once?
Thanks to the large-sized workbench, it can mill 6 to 10 profiles in a single operation using adjustable cutting tools.
Do I need to change tools for different aluminum profiles?
No, the machine features adjustable multiple cutting tools, eliminating the need to replace tools when changing products, which saves setup time and costs.
How is the milling stability ensured?
The machine utilizes a hydraulic damping cylinder to push the tool feed, ensuring a smooth and stable operation for high-quality surface finishing.
Can the voltage be customized for my local power supply?
Yes, we can adjust the machine's configuration to match your local voltage and power supply requirements before purchase.
What safety features prevent profile damage?
The machine is equipped with a thickened clamping plate which prevents aluminum profiles from deforming during the milling process.
