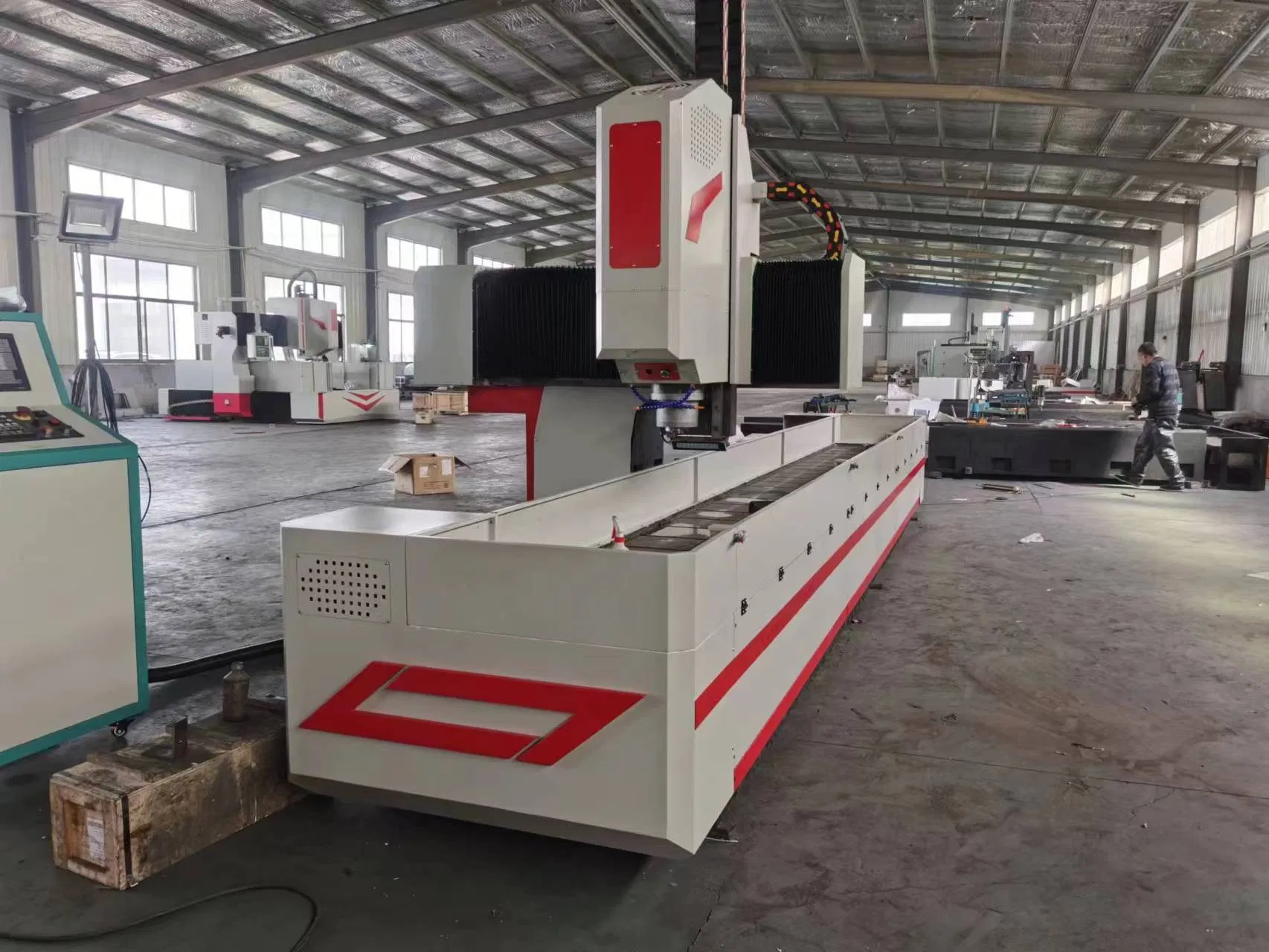

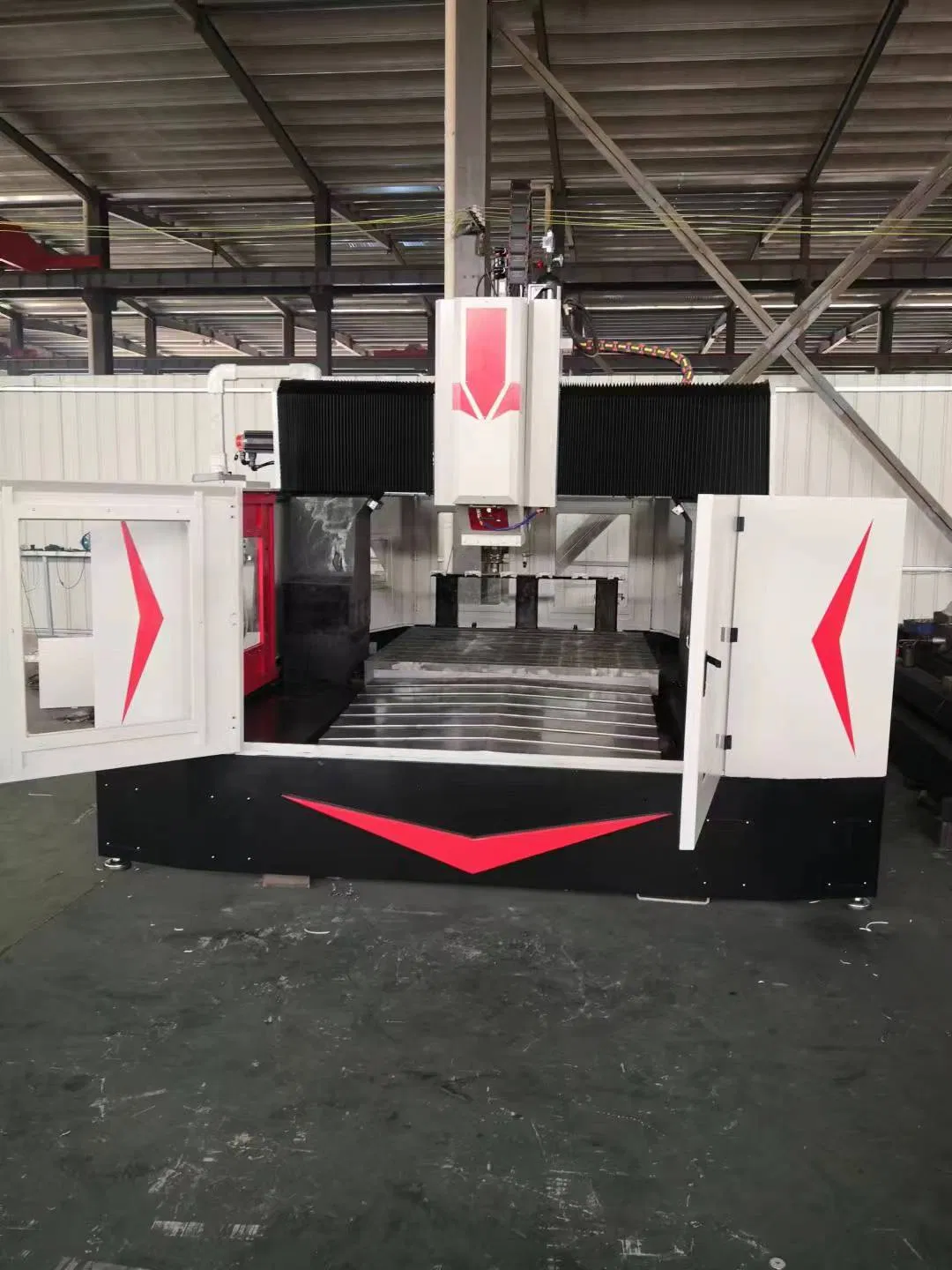

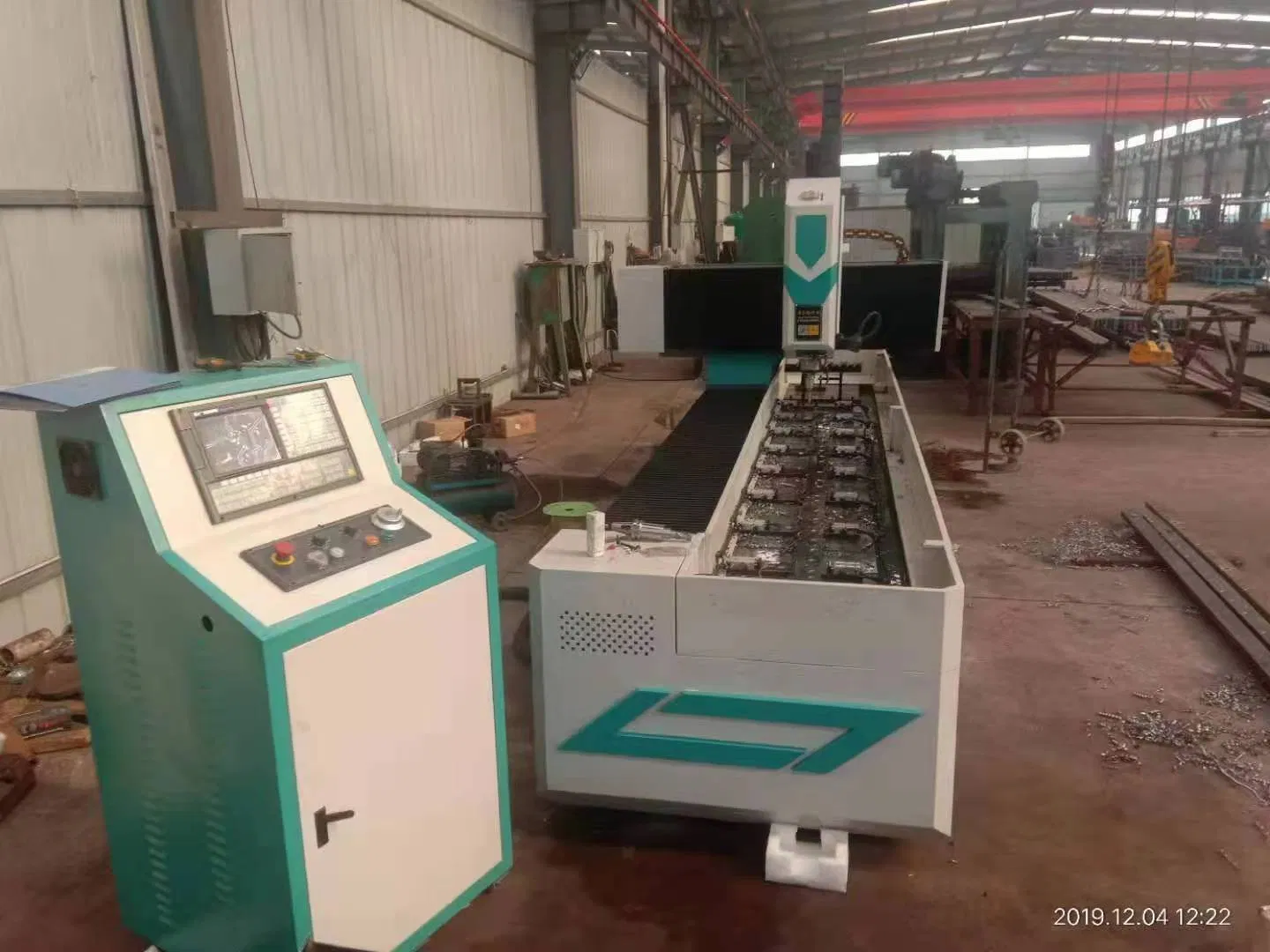

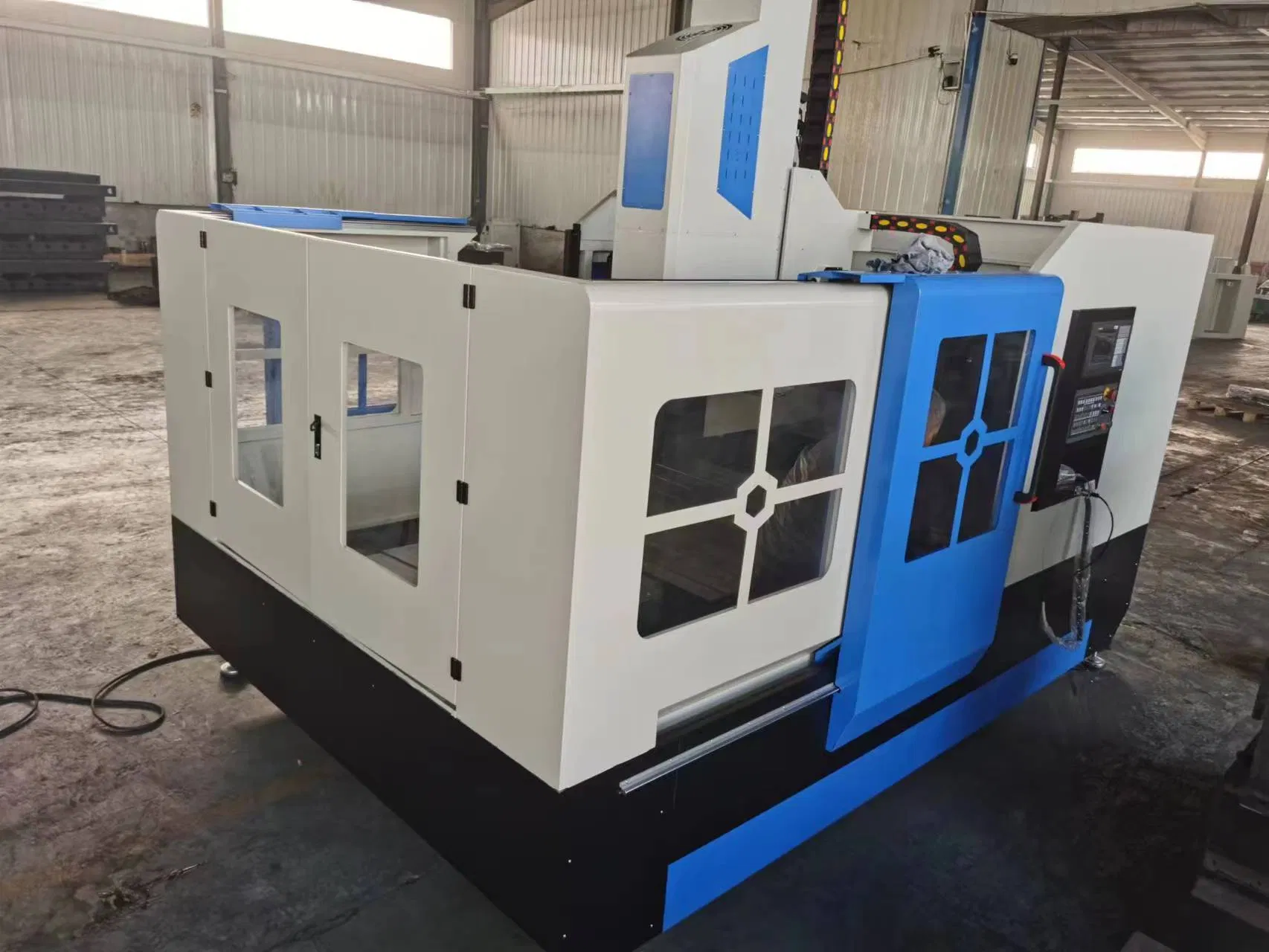

Milling Machine with Good Precision/Factory Direct Sale Aluminum End Milling Machine Tat3020
Milling Machine with Good Precision/Factory Direct Sale Aluminum End Milling Machine Tat3020
Milling Machine with Good Precision/Factory Direct Sale Aluminum End Milling Machine Tat3020
Milling Machine with Good Precision/Factory Direct Sale Aluminum End Milling Machine Tat3020
Milling Machine with Good Precision/Factory Direct Sale Aluminum End Milling Machine Tat3020
1 / 5
Milling Machine with Good Precision/Factory Direct Sale Aluminum End Milling Machine Tat3020
Milling Machine with Good Precision/Factory Direct Sale Aluminum End Milling Machine Tat3020
Milling Machine with Good Precision/Factory Direct Sale Aluminum End Milling Machine Tat3020
Milling Machine with Good Precision/Factory Direct Sale Aluminum End Milling Machine Tat3020
Milling Machine with Good Precision/Factory Direct Sale Aluminum End Milling Machine Tat3020

Milling Machine with Good Precision/Factory Direct Sale Aluminum End Milling Machine Tat3020

Customization: Available
Transport Package: Wooden Box Packing
Specification: 2500*1560*2200
Send Inquiry

Product Description

Model NO. TAT3020
Origin Suzhou, China
HS Code 32059609
Production Capacity 500/Year
CNC Milling Machine TAT3020
Product Description Header
CNC drilling and milling machine series are mainly used for efficient drilling, tapping and milling of workpieces with thickness of plate, flange, disc and ring in effective range.

All use high quality resin sand wear-resistant casting, strong, super-large column, wide low seat, honeycomb structure. After two annealing treatments and vibration aging, the stress can be removed to ensure a long time without deformation.

Technical Specifications Header
Parameter Item Specifications (TAT-3020)
Max. workpiece size L*W (mm) 3000 × 2000
Maximum thickness (mm) 200
Vertical Power Head Spindle taper hole BT50
Borehole diameter (mm) Φ3 - Φ80
Tapping diameter M4 - M36
Spindle speed (r/min) 30 ~ 3000
Servo Motor Power 30 kw (400N.m)
X Axis Movement Max. travel (mm) 2000
Moving Speed (m/min) 0 ~ 8
Y Axis Movement Max. travel (mm) 3000
Moving Speed (m/min) 0 ~ 8
Z Axis Movement Max. travel (mm) 450
Moving Speed (m/min) 0 ~ 4
Overall dimension (L*W*H mm) 6000 * 4600 * 3350
Positioning accuracy (mm) ±0.05
Repetitive positioning accuracy (mm) ±0.025
Gross weight (t) About 23
Configuration Section

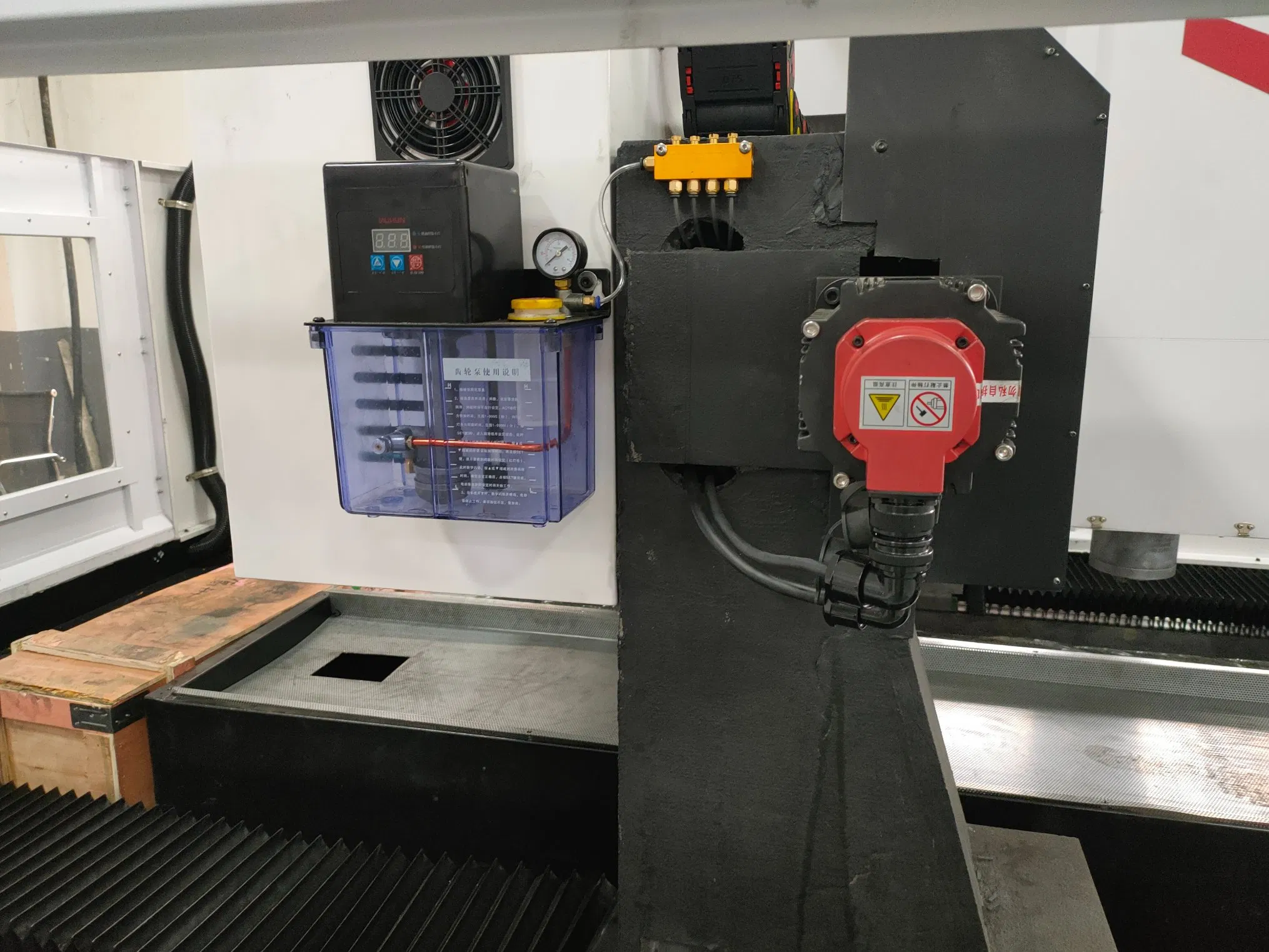

Machine Detailed View
💡 Frequently Asked Questions
What types of workpieces are suitable for the TAT3020?
The TAT3020 is designed for efficient drilling, tapping, and milling of plates, flanges, discs, and ring-shaped workpieces within its effective processing range.
What is the spindle specification for this CNC machine?
It features a BT50 spindle taper hole with a speed range of 30 to 3000 r/min, powered by a 30kw servo motor delivering 400N.m of torque.
How does the machine ensure long-term structural stability?
The machine utilizes high-quality resin sand wear-resistant castings with a honeycomb structure. It undergoes two annealing treatments and vibration aging to remove internal stress and prevent deformation.
What are the maximum workpiece dimensions supported?
The TAT3020 can handle workpieces up to 3000mm in length and 2000mm in width, with a maximum thickness of 200mm.
What is the positioning accuracy of the X, Y, and Z axes?
The machine offers a positioning accuracy of ±0.05mm and a repetitive positioning accuracy of ±0.025mm across all three axes.
What is the drilling and tapping capacity of the TAT3020?
It supports borehole diameters from Φ3mm to Φ80mm and tapping diameters ranging from M4 to M36.
