🛠️ Technical Study of RTP Pipe Plant

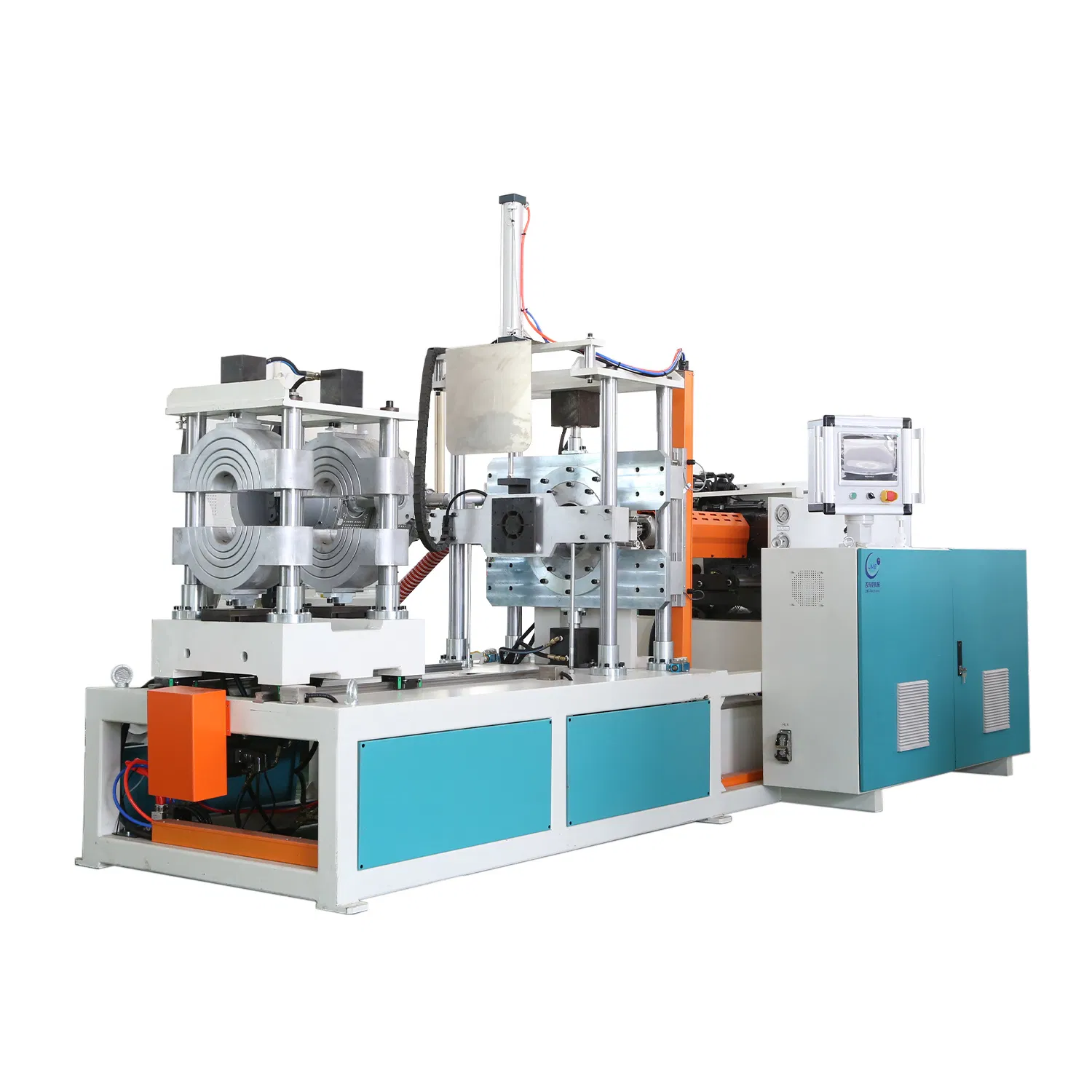

RTP Pipe Equipment Features
Advantageous features of the equipment:

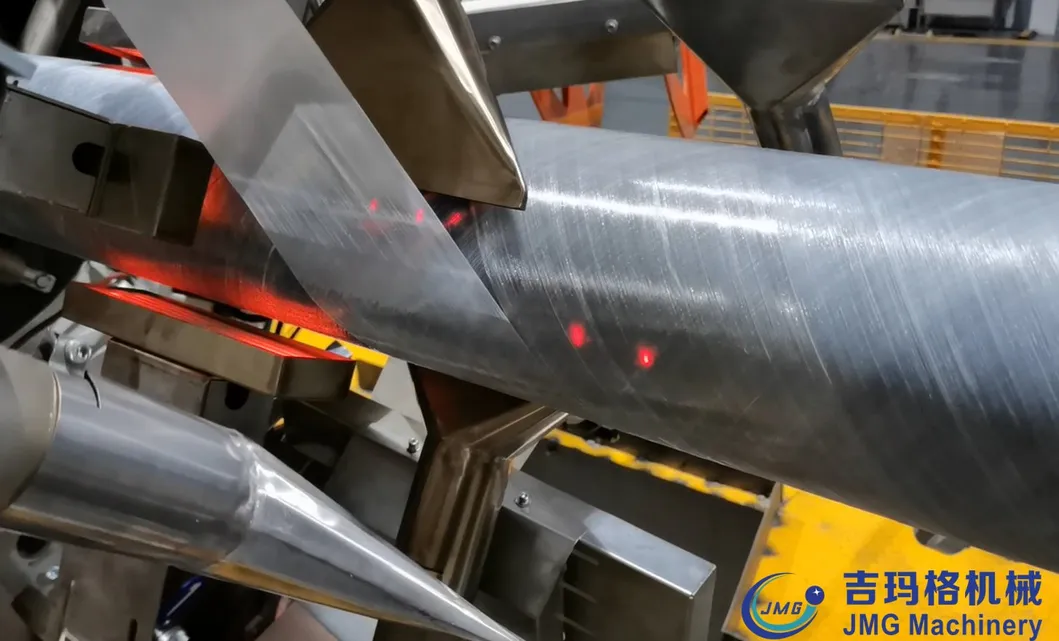

- The winding disk is tilted at the same angle as the reinforcement tape, ensuring precision and avoiding performance damage from corner issues.
- Adopts servo drive and high-precision electric cylinders to ensure uniform winding and stable production.

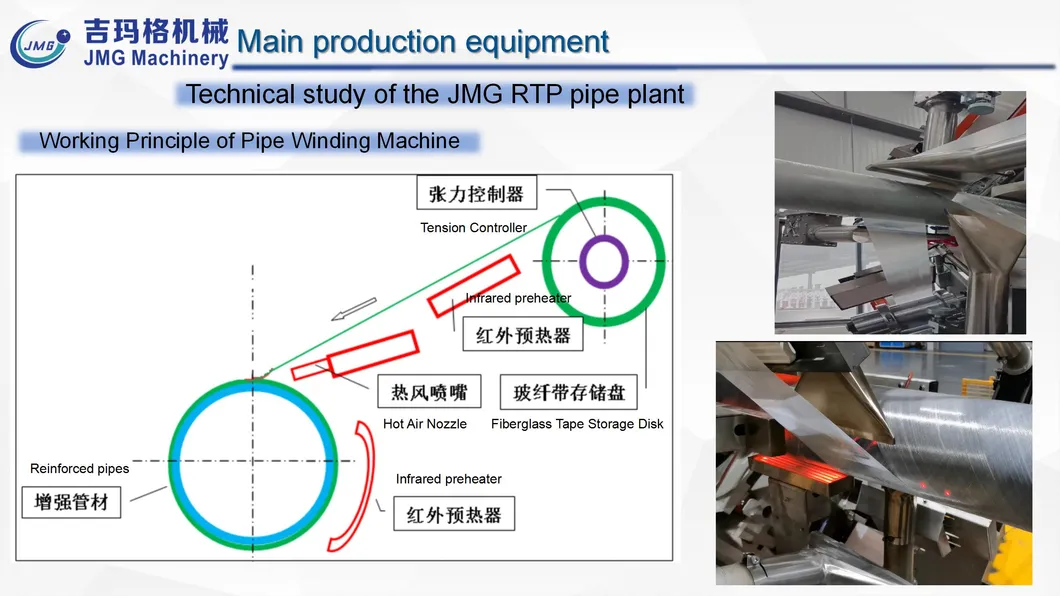

- Heating mode: A reasonable and efficient combination of infrared and hot air heating for stable performance.
- Control System: Latest generation Siemens PLC control, network structure, one-button operation, and high automation with synchronized speed control.

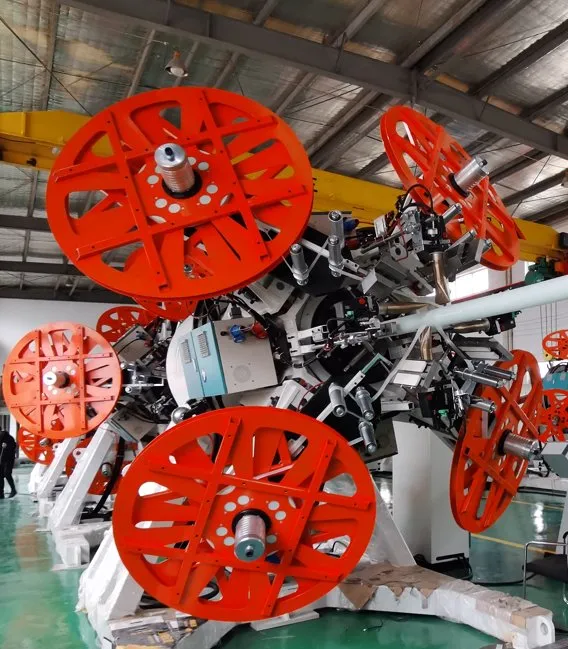

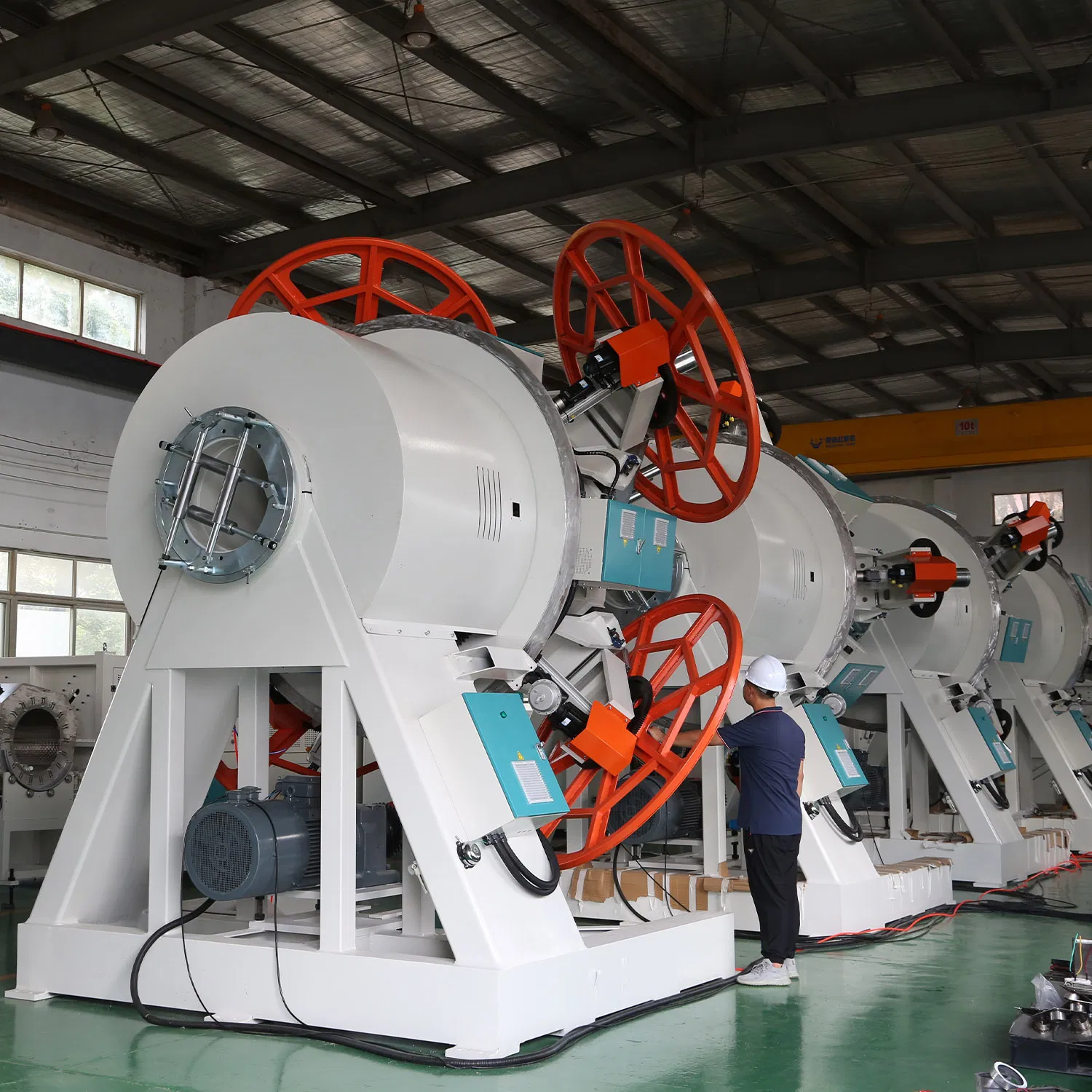

- Winding/Unwinding System: Lower sleeve-type gantry structure, automatic walking, motor-driven reel lifting for easy operation.

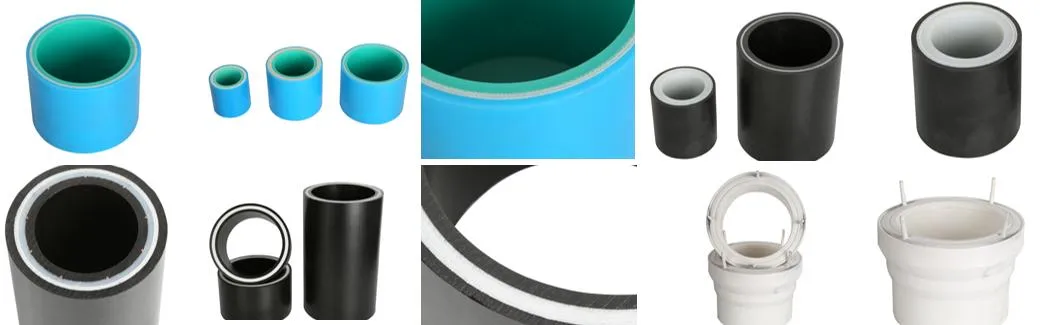

🔹 Device Use: Glass fiber tape winding reinforced pipe, aramid belt winding reinforced pipe, polyester tape winding reinforced pipe, steel tape winding reinforced pipe, etc.

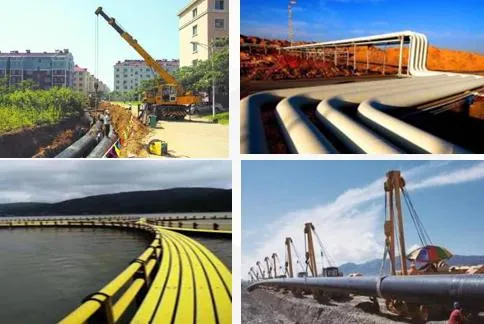

🔹 Pipe Applications: Mainly used in hot spring water transportation, central heating secondary pipe network, deep geothermal, oilfield oil gathering and gas transportation, etc.
| Technical Data |
| Type |
JMGDZ150 |
Speed |
2-4m/min |
| Pipe Diameter |
ID 50-150mm |
Warranty |
1 Year |
| Operate |
Automated Control |
Weight |
2-3t |
| Production Capacity |
DN(4Mpa) 100mm: 480KM/year |
Delivery Time |
45-60 Days |
| DN(4Mpa) 150mm: 370KM/year |
Customized per needs |

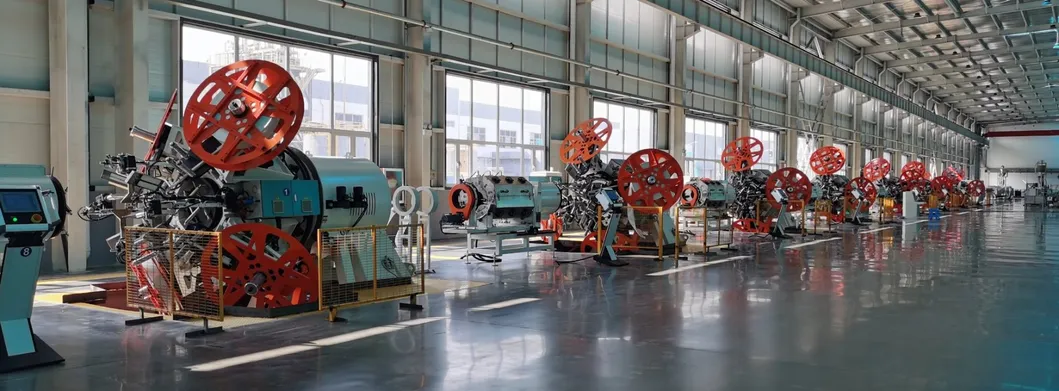

🏢 Manufacturing Profile

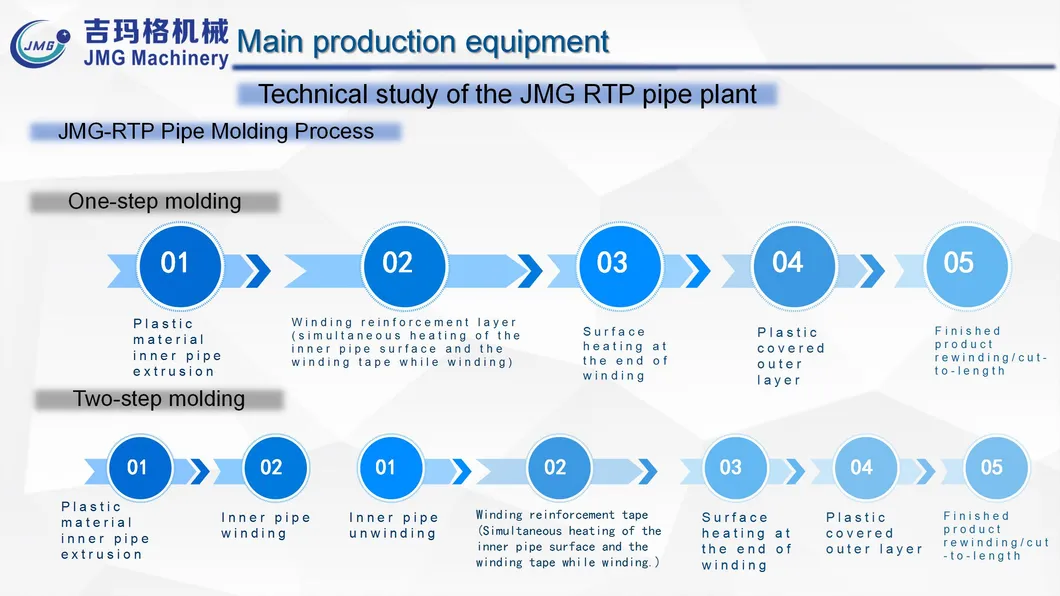

We focus on providing customers with new materials composite pipe equipment research and development, intellectual property, and integrated, personalized solutions. Our scope covers plastic pipe extrusion, reinforced composite, outer coating, finished product rewinding, and pipeline connections.
Main Products:
- Strip (glass fiber, aramid, polyester, steel tape) winding reinforced composite pipe production equipment.
- Non-metallic filaments (polyester, aramid, basalt wire) reinforced composite pipe production equipment.
- Metal wires (steel wire mesh skeleton) winding reinforced composite pipe production equipment.
- High-efficiency plastic extrusion and RTP pipe equipment (patented).
❓ Frequently Asked Questions
What are your technical strengths?
We adopt a unique combination of infrared and hot air heating. This method is reasonable, efficient, and ensures a strong adhesion of the reinforcement layer with stable performance, backed by experienced engineers.
How is the machine assembled and debugged?
Equipment is fully debugged before delivery. Once at the customer site, experienced engineers assist in installation and final commissioning. Comprehensive staff training is provided after setup.
What support is provided for equipment failures or parts?
We provide video technical guidance and can send engineers on-site if necessary. During the warranty period, replacement parts are free. Wearing parts are provided at cost.
What is the product warranty period?
We provide a 1-year parts warranty and lifelong technical support for all our machinery.
Can equipment be customized to specific needs?
Yes, we specialize in exclusive customization based on different customer requirements. We design machines according to specific products to ensure maximum efficiency and stability.

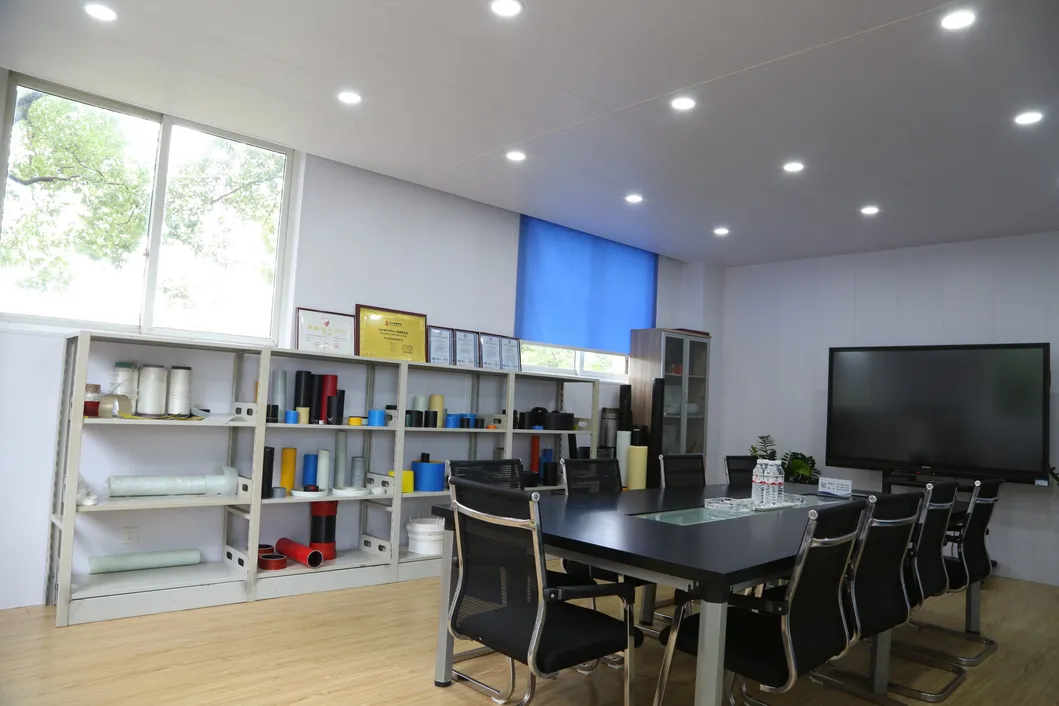

Can we visit the production facility?
Yes, our factory is available for visits. We can provide airport pick-up services for customers requiring on-site inspections.
