Zhixing Machine
Zhixing Machine

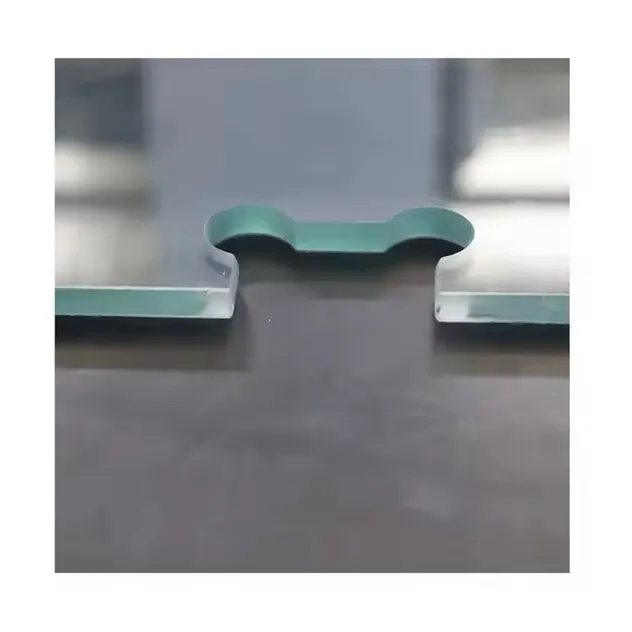

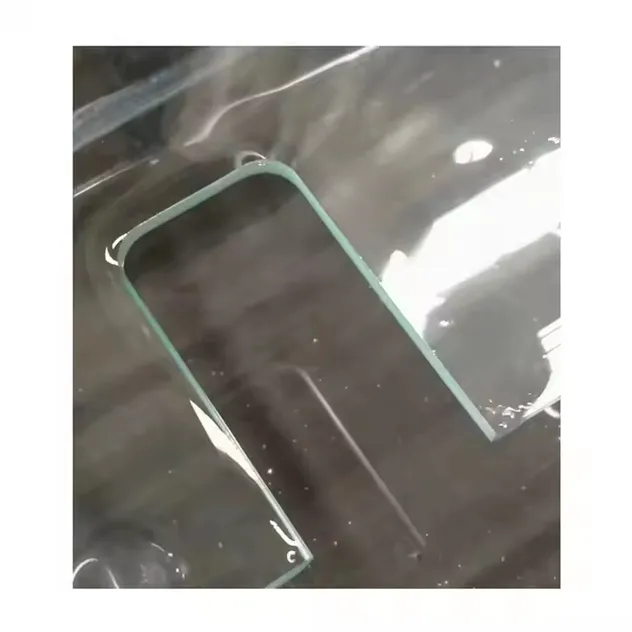

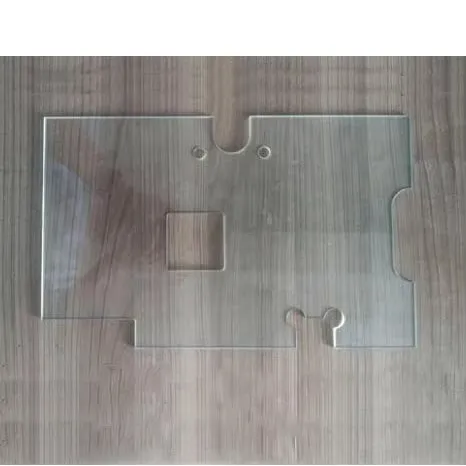

CNC Milling Machine: This specialized equipment is primarily used to process door hinges, door clamps, and lock holes. It is an essential tool for tempered glass factories processing shower rooms, simple doors, sliding doors, and more. Compared to water jet technology, it offers lower pricing, fewer consumables, and more convenient maintenance.

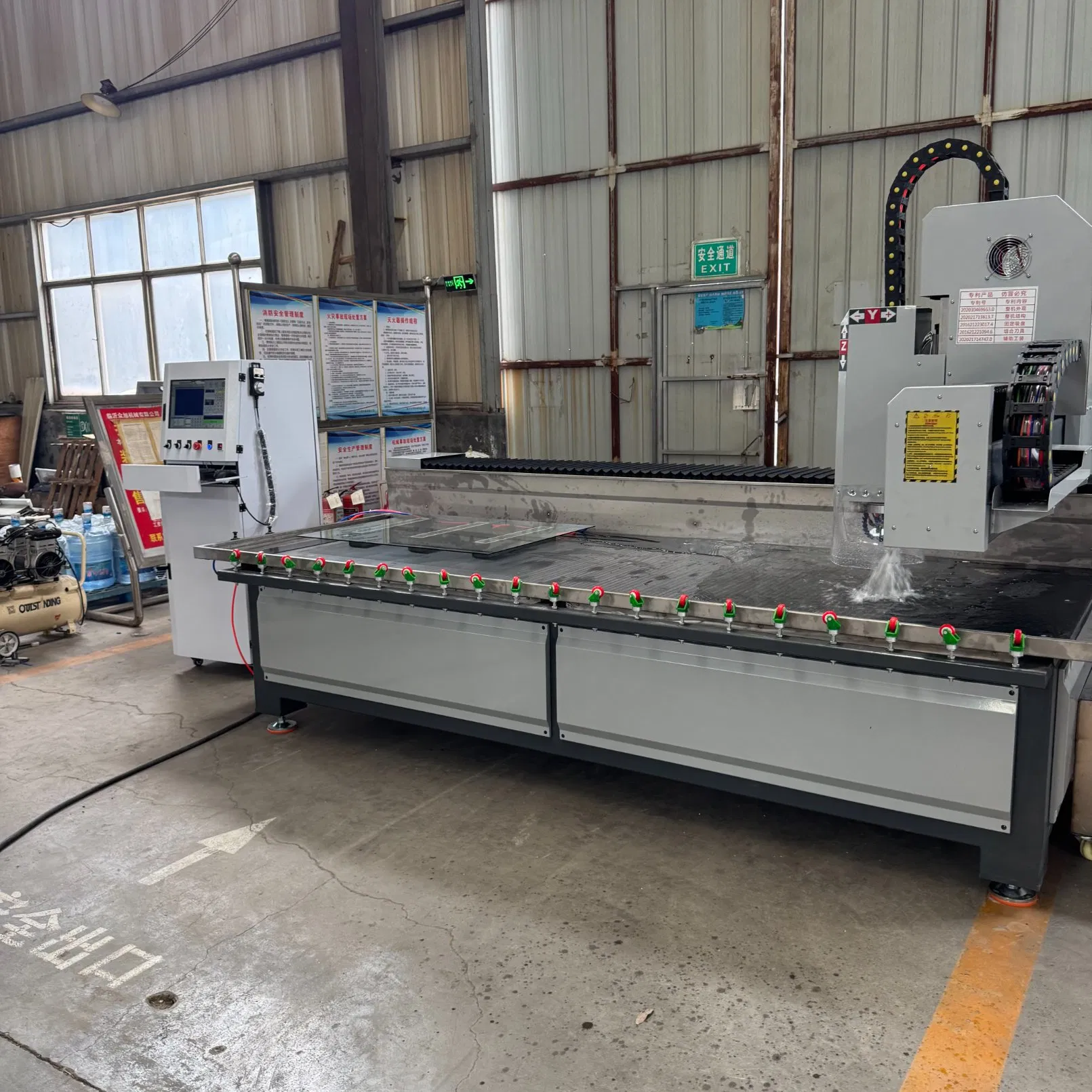

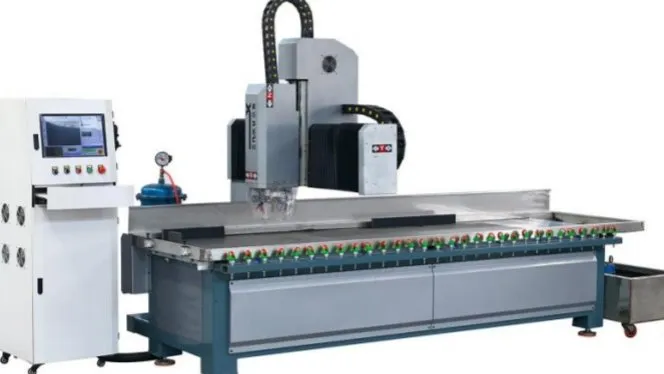

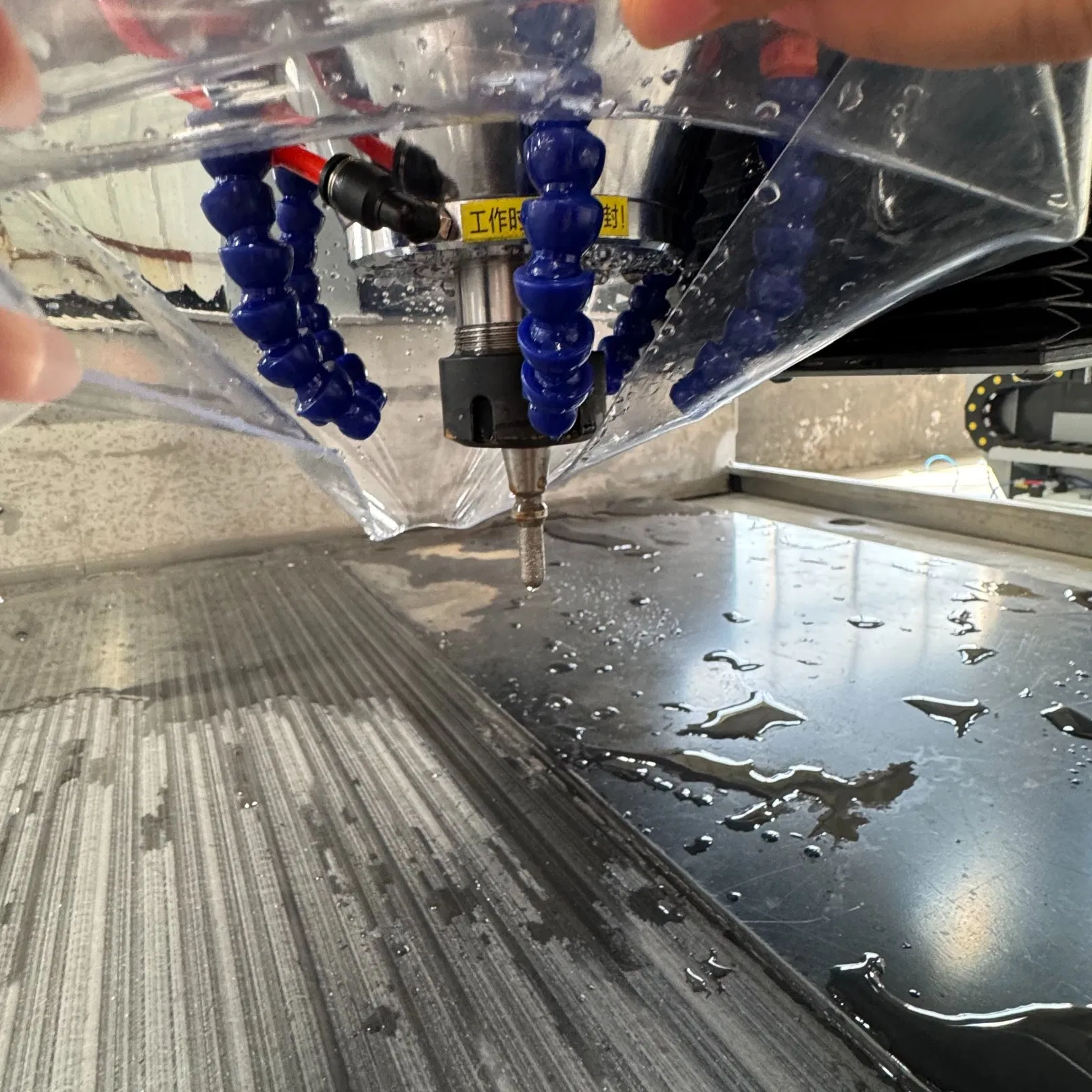

Features a cantilevered three-axis three-wheel drive structure. The bed is welded with high-quality steel and processed after quenching. Driven by H-class precision linear guides and pure servo motors, ensuring maximum accuracy and stability. Fast milling speed, small radial runout, and high processing accuracy.
| Parameter | Specification |
|---|---|
| Machine Size | 3500*1500*2200mm |
| Head Stroke Size | 2500*800mm |
| Process Glass Size | No limit (Three-side open table) |
| Main Spindle Power | 7.5kw |
| RPM of Main Spindle | 24000 RPM/MIN |
| Total Power | 13.6kw, 3 Phase |
| Milling Speed | 0-1 m/min |
| Accuracy | ±0.2mm |
| Waterproof Design | Half-shielded waterproof structure |
| Commodity | Model/Type | QTY | Remark |
|---|---|---|---|
| Host & Electrical Cabinet | Standard | 1 Set | CHINT Components |
| Computer & Hand Wheel | Control System | 1 Set | Included |

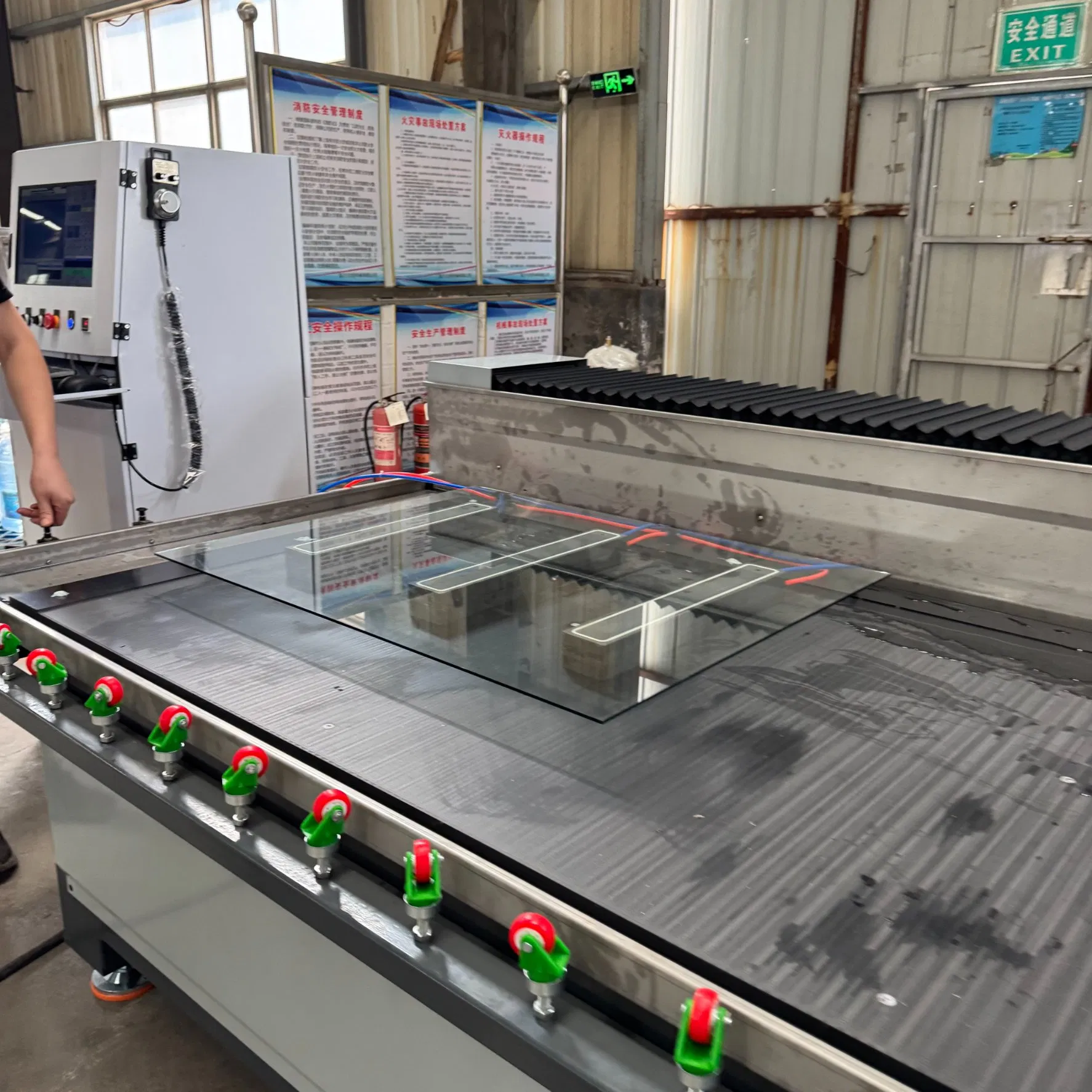

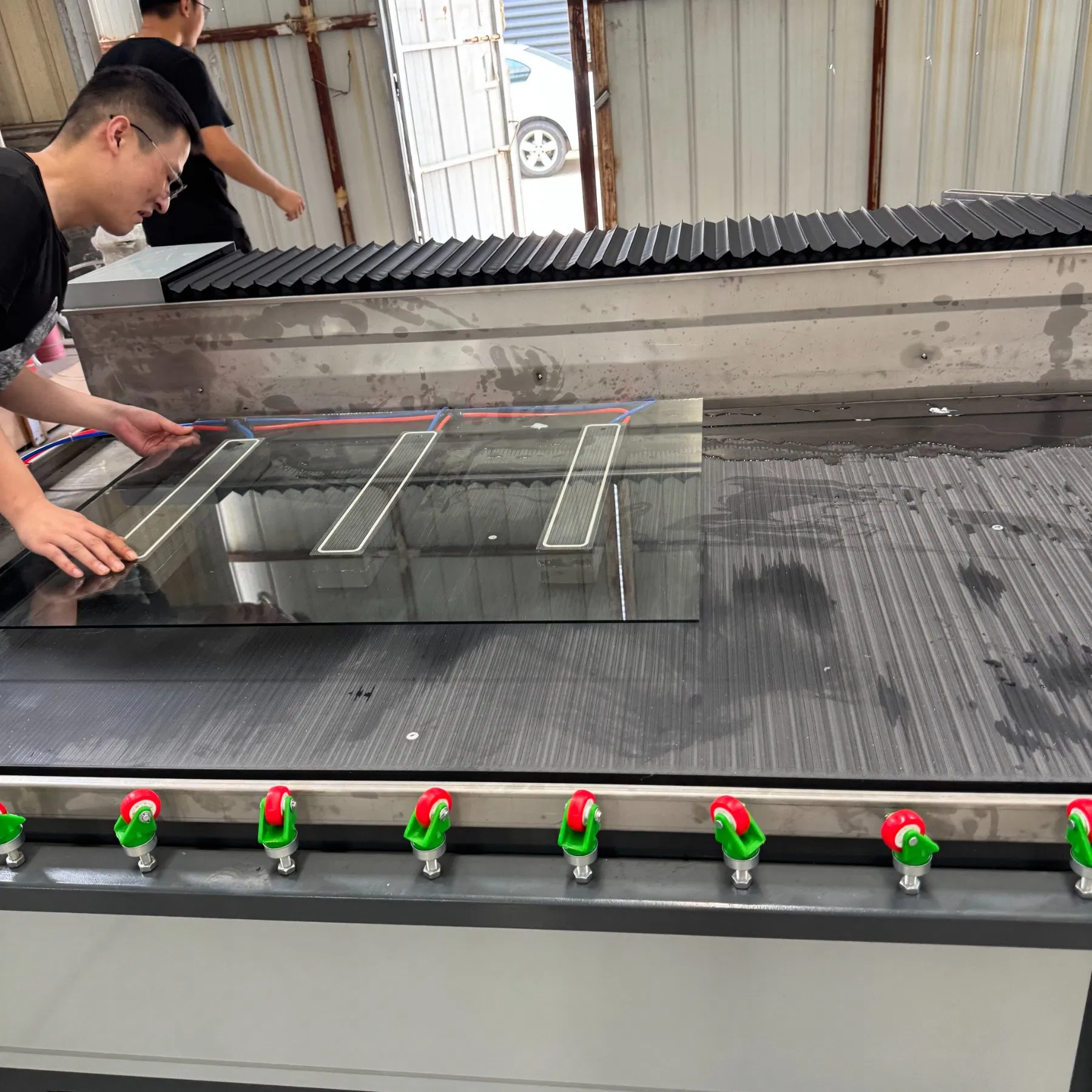

| Vacuum Pump Assembly | Full Set | 1 Set | Included |
| Cutter Tools | Alloy/Electroplating | 6 Pcs | Assorted |

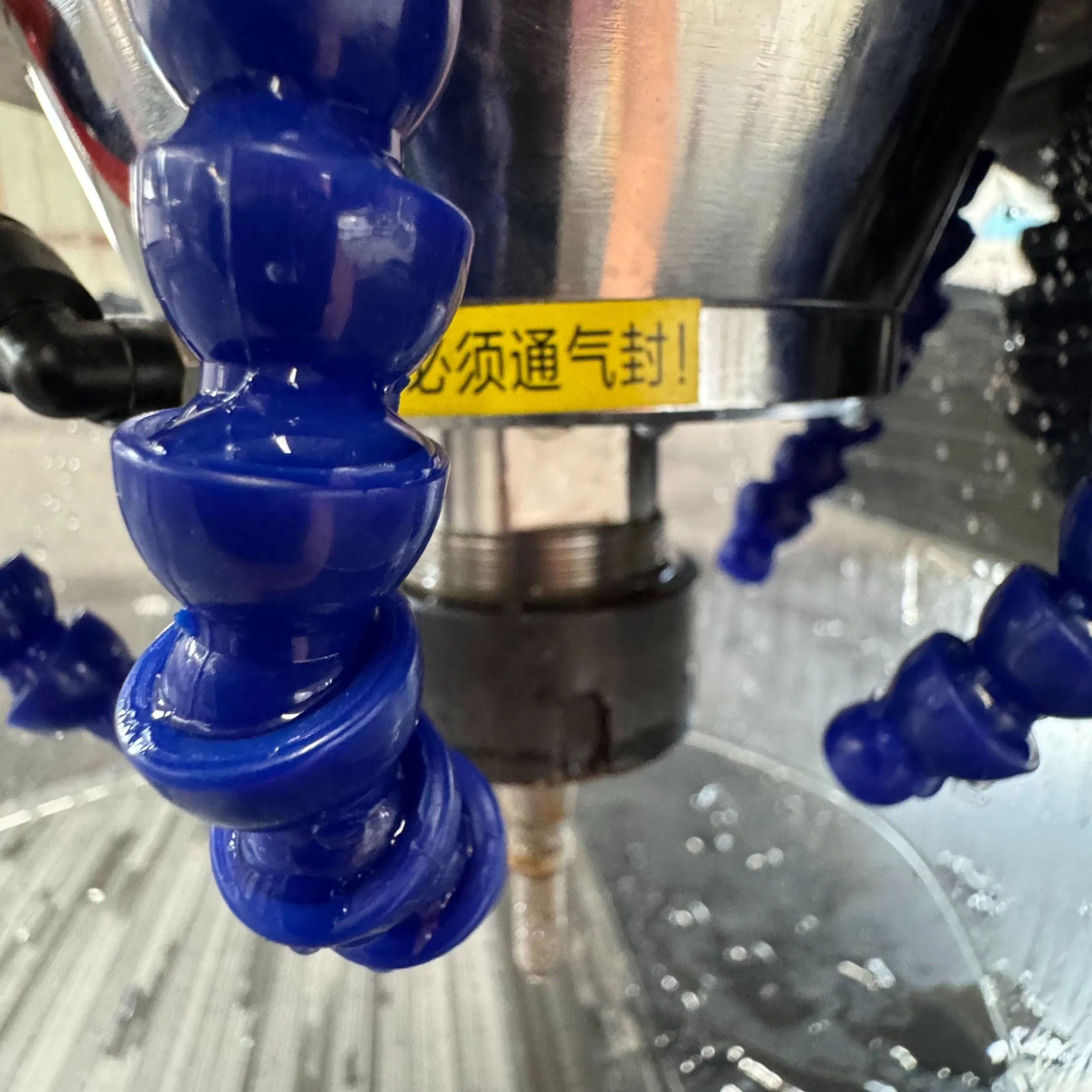

| Water Pump | For Spindle Cooling | 1 Pc | Plastic/Stainless Options |

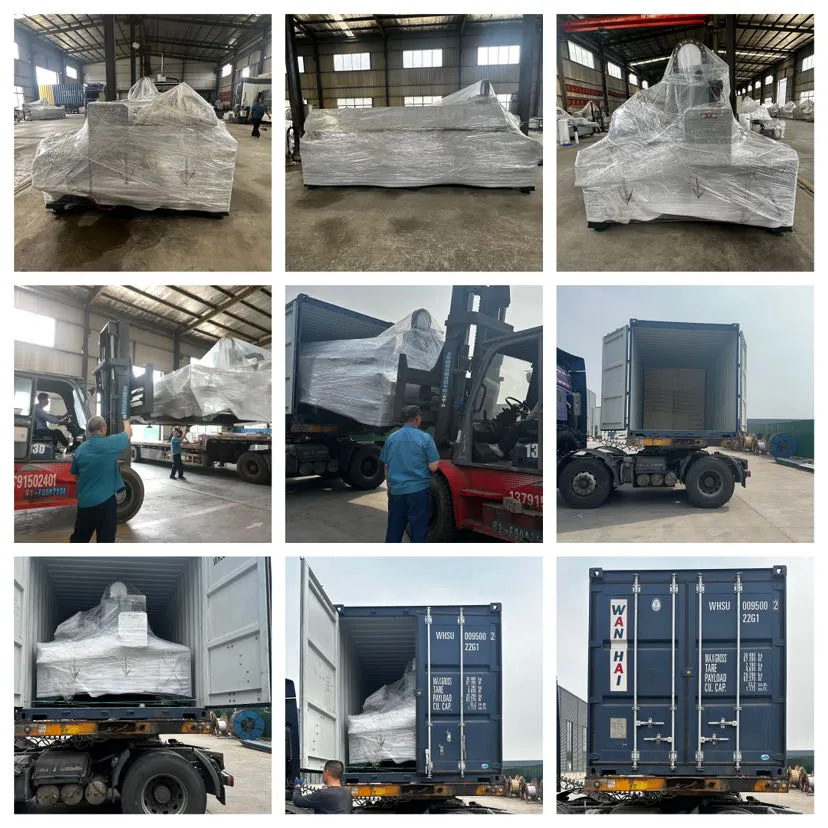

We emphasize precision equipment protection, using vibration-proof brackets, moisture-proof desiccants, and rust-proof oil paper to ensure safe arrival.
