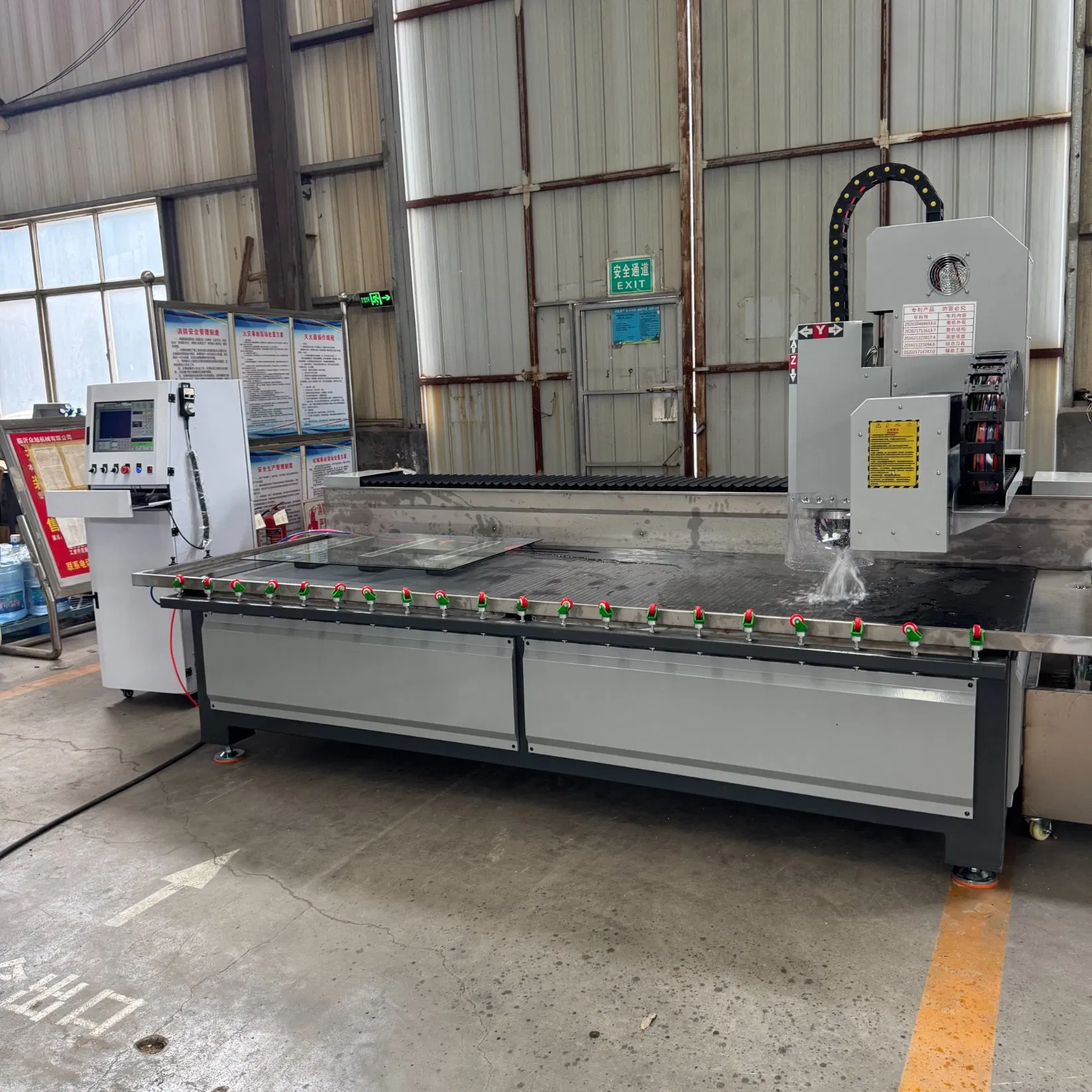

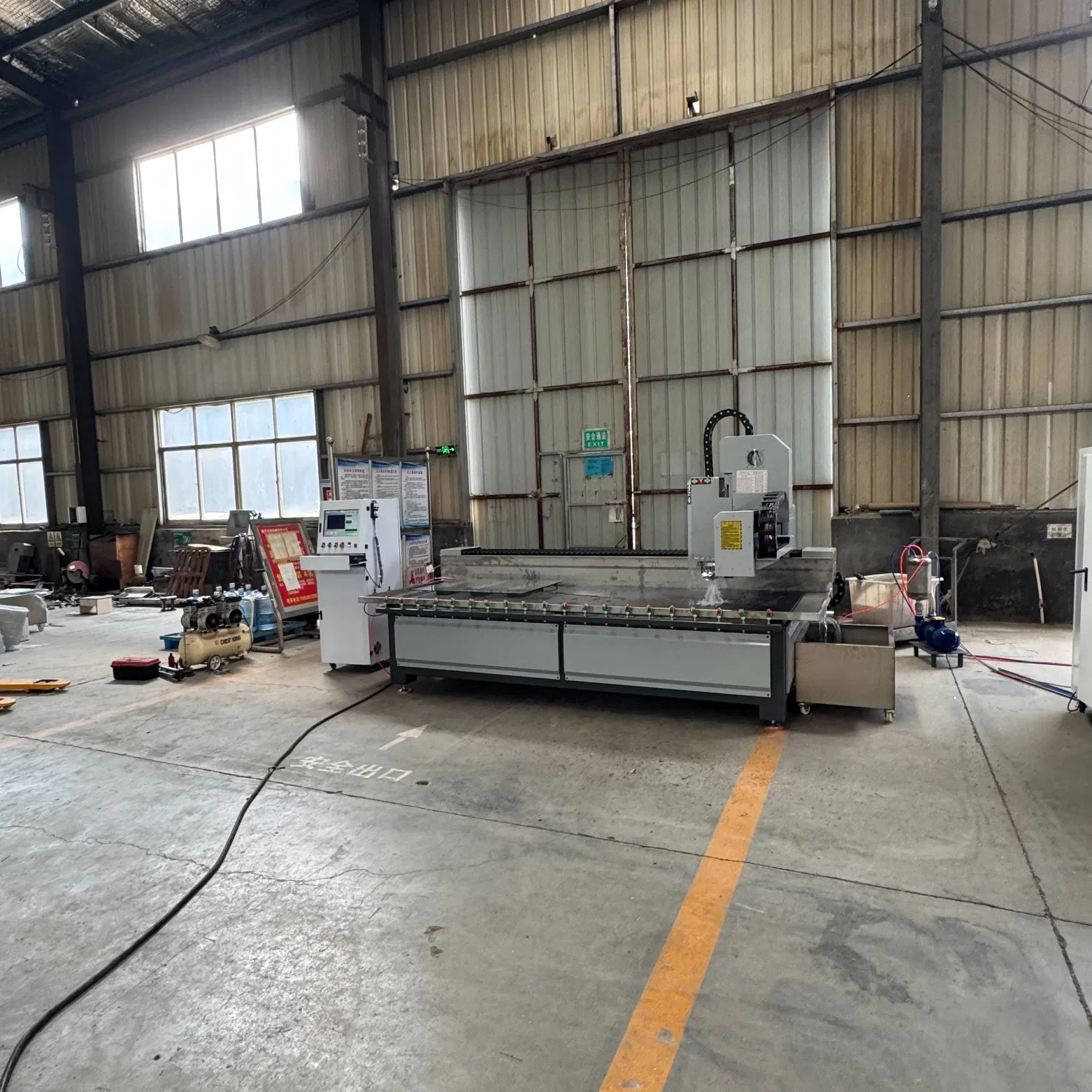

CNC Milling Machine for Glass

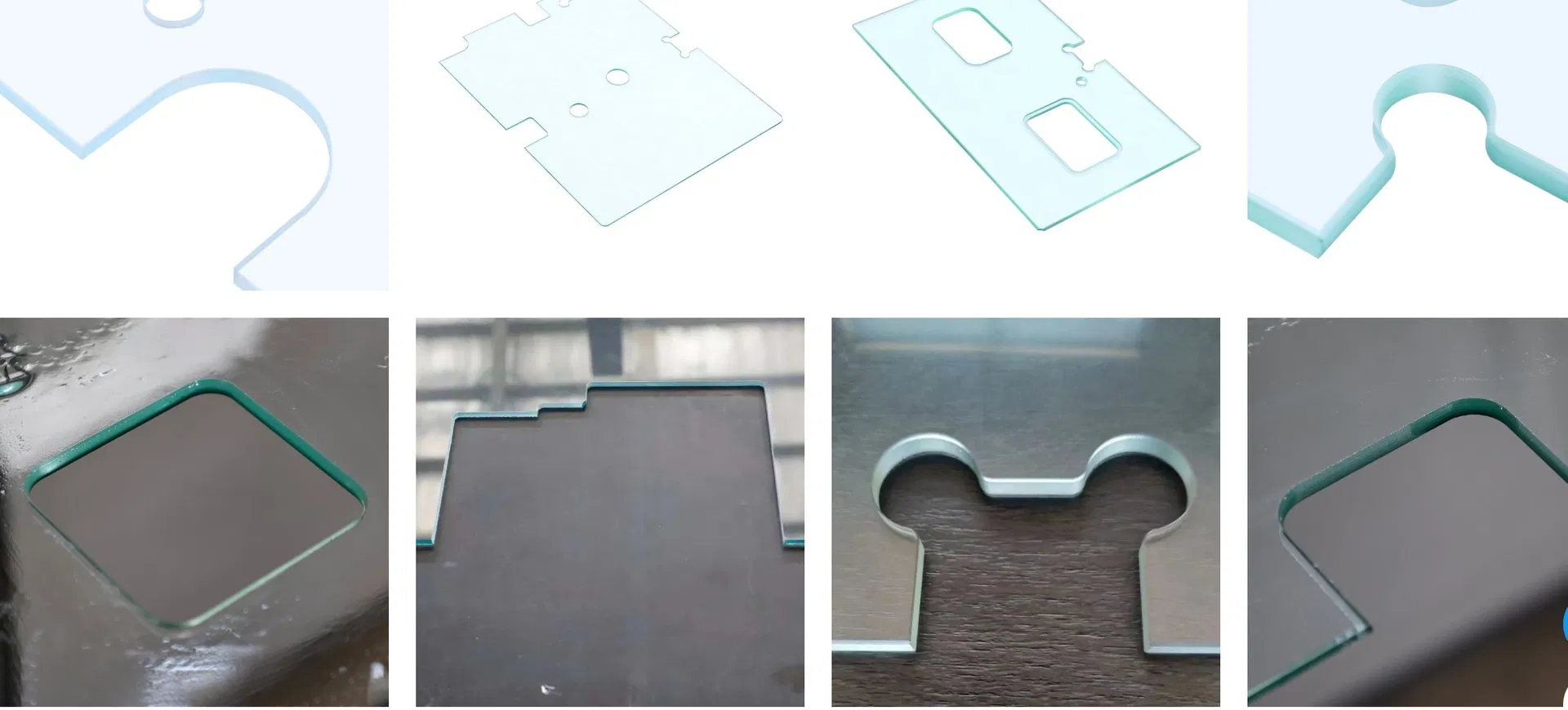

This glass milling machine is primarily engineered for processing door hinges, door clamps, and lock holes. It serves as an essential tool for tempered glass facilities specializing in shower rooms, sliding doors, and minimalist cabinetry. Compared to water jets, this solution offers a lower price point, reduced consumable costs, and simplified maintenance.
| Parameter | Specification Details |
|---|---|
| Machine Size | 3500*1500*2200mm |
| Head Stroke Size | 2500*800mm |
| Table Size | 3400*1000mm |
| Main Spindle Power | 7.5kw |
| Spindle Speed | 24000 RPM/MIN |
| Servo Motor | 0.75*3 (Yichuan) |
| Total Power | 13.6kw, 3 Phase |
| Milling Speed | 0-1 m/min |
| Accuracy | ±0.2mm |
| Waterproof Design | Half-shielded structure |

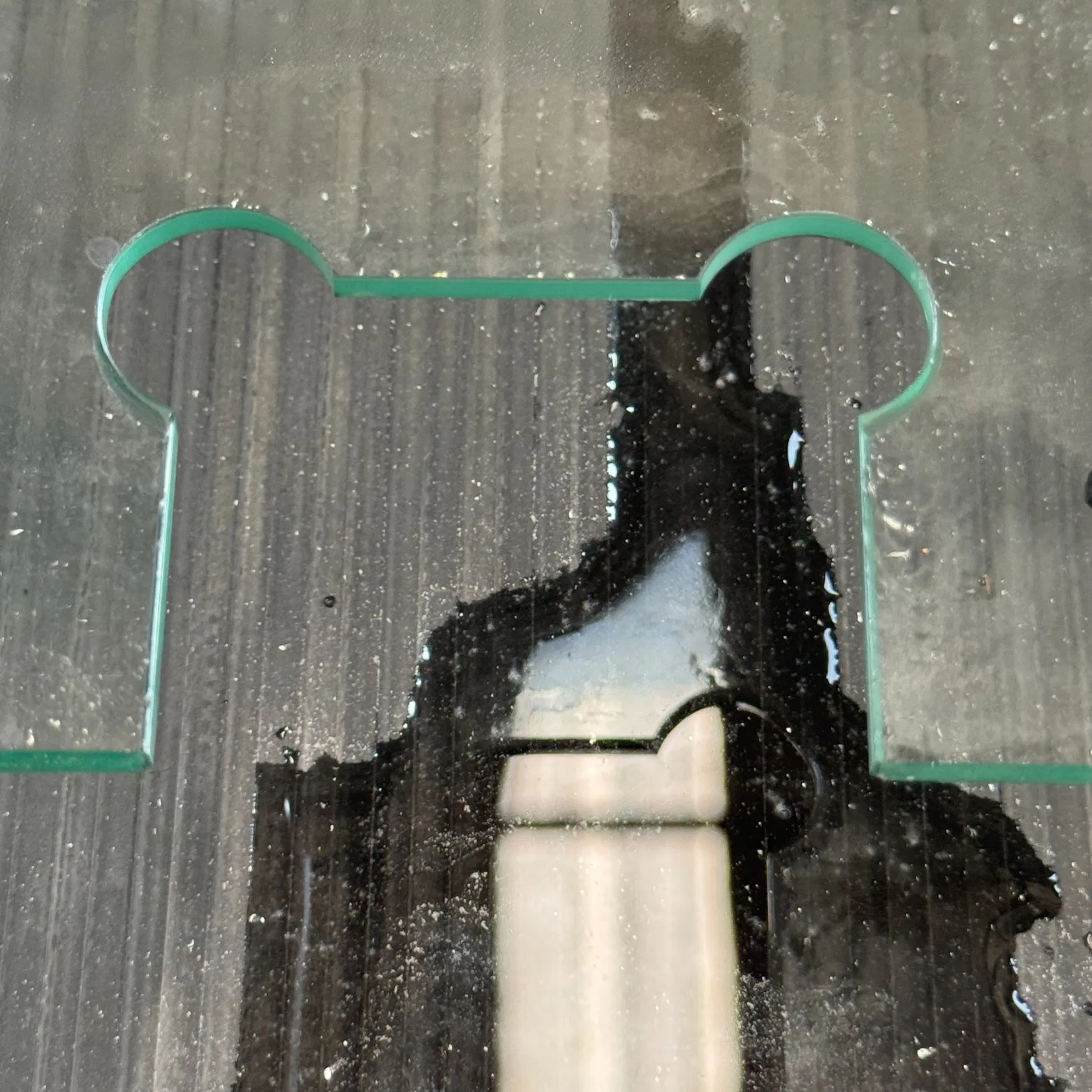

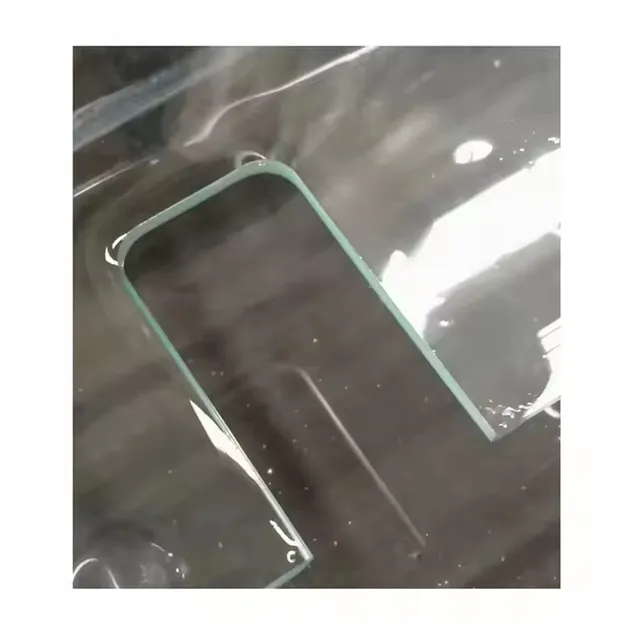

Glass Door Hinges

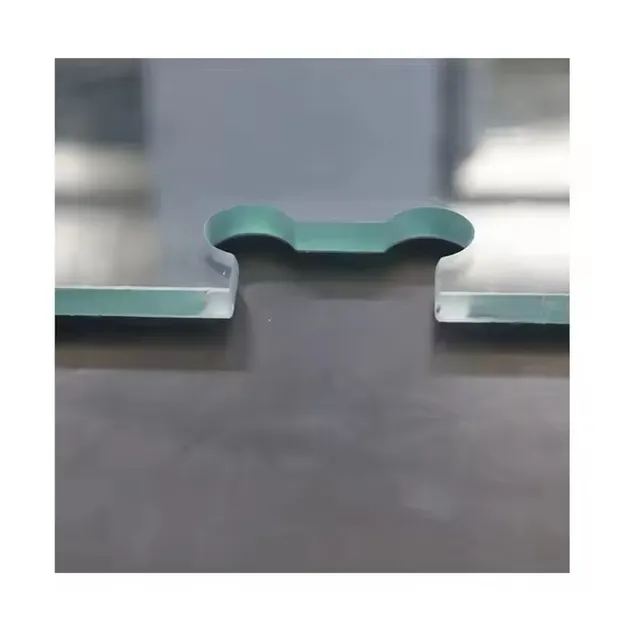

Door Clip

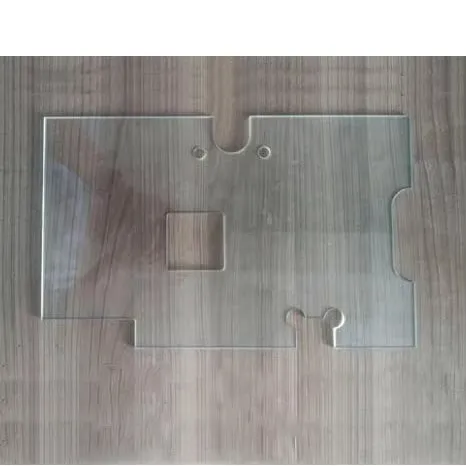

Hanging Wheel
| Commodity | QTY | Remark |
|---|---|---|
| Host, electrical cabinet | 1 set | CHINT Components |
| Computer, mouse, hand wheel | 1 set | Standard |
| Vacuum pump assembly | 1 full set | Standard |
| Alloy milling cutter | 1 pc | Cutter Tool |
| Electroplating cutter | 4 pcs | Cutter Tool |
| Suction cup | 1 set | 4pcs |
| Large water tank | 2 pcs | Stainless steel |
