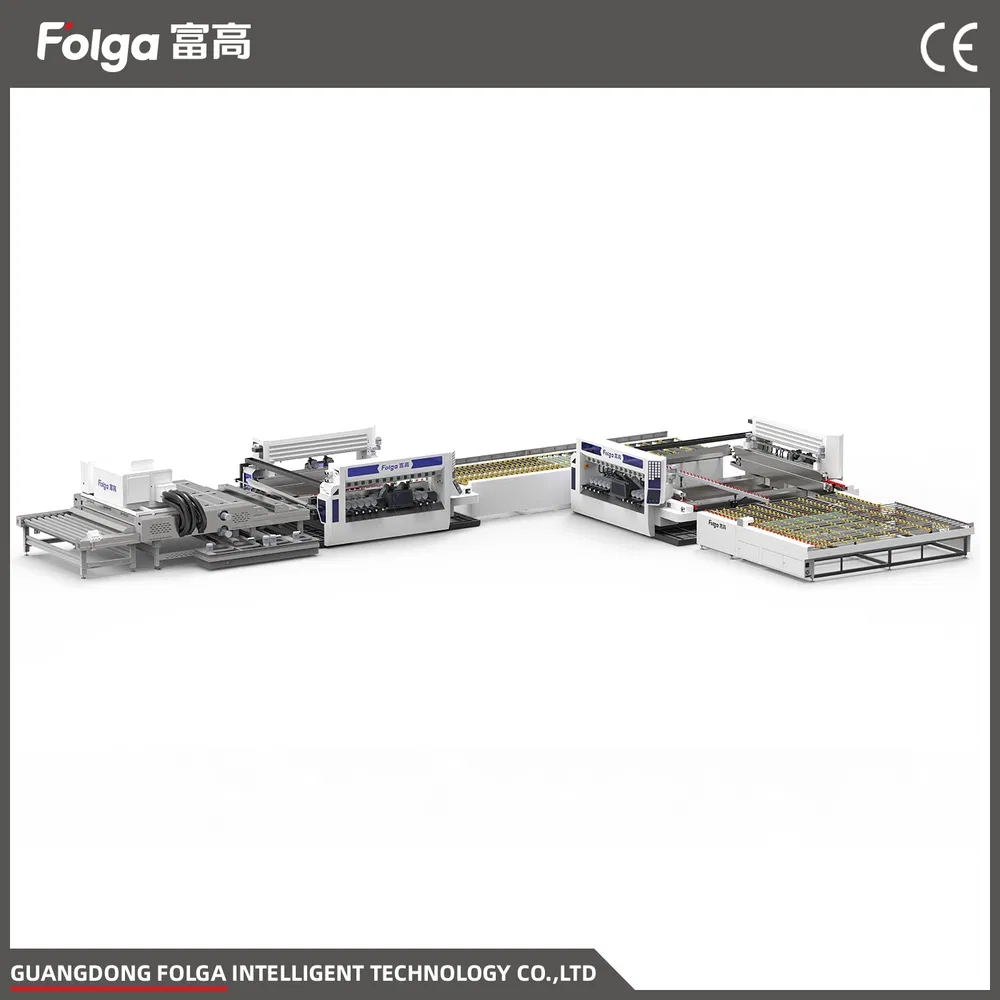

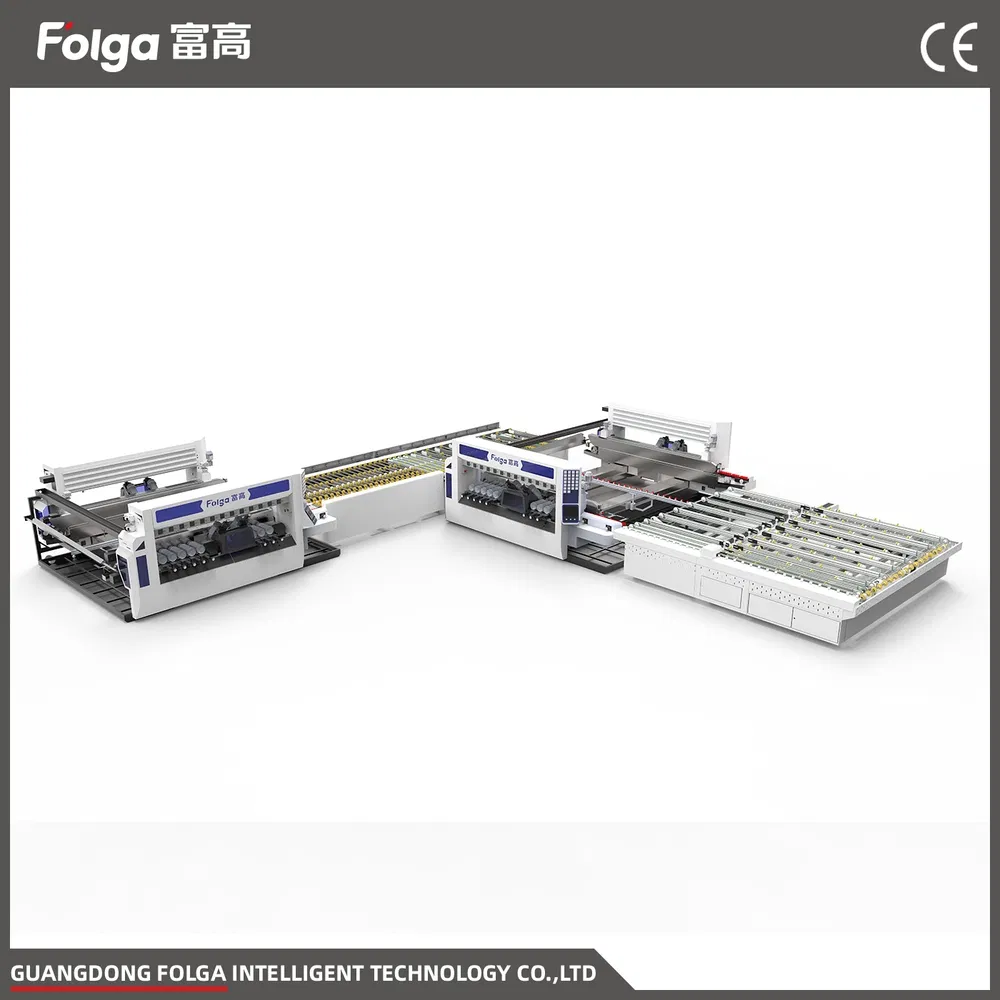

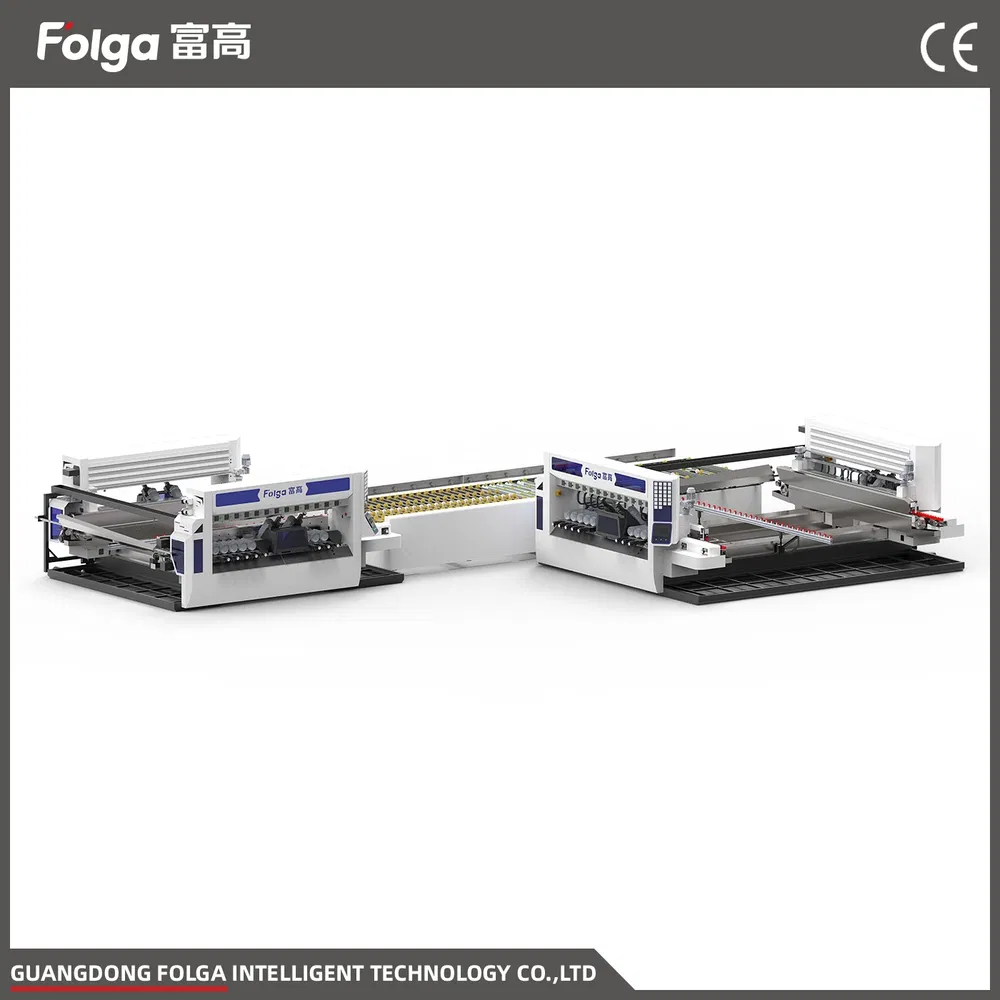

Low-Energy Consumption High-Speed Glass Double Edging Machine for Mixed-Size-Glass Processing
Low-Energy Consumption High-Speed Glass Double Edging Machine for Mixed-Size-Glass Processing
Low-Energy Consumption High-Speed Glass Double Edging Machine for Mixed-Size-Glass Processing
Low-Energy Consumption High-Speed Glass Double Edging Machine for Mixed-Size-Glass Processing
Low-Energy Consumption High-Speed Glass Double Edging Machine for Mixed-Size-Glass Processing
1 / 5
Low-Energy Consumption High-Speed Glass Double Edging Machine for Mixed-Size-Glass Processing
Low-Energy Consumption High-Speed Glass Double Edging Machine for Mixed-Size-Glass Processing
Low-Energy Consumption High-Speed Glass Double Edging Machine for Mixed-Size-Glass Processing
Low-Energy Consumption High-Speed Glass Double Edging Machine for Mixed-Size-Glass Processing
Low-Energy Consumption High-Speed Glass Double Edging Machine for Mixed-Size-Glass Processing

Low-Energy Consumption High-Speed Glass Double Edging Machine for Mixed-Size-Glass Processing

Customization: Available
Certification: CE, FDA, ISO, PCI, PDA, UR
Processing Speed: 10-15 m/min
Send Inquiry

Product Description

📊

Basic Information

Model NO.
FSM
Processing Thickness
5-25 mm
Voltage
380V
Warranty
One Year
Product Name
Glass Edging Machine
Keywords
Double Edger Machine
Glass Thickness
3-25mm
Working Speed
1-30m /Min
Parallel Error
≤0.2mm /M
Diagonal Error
≤0.5mm /M
Air Pressure
≥0.6MPa
Total Power
74kw (24 motors)
📦

Packaging & Delivery

Package Size
4100.00cm * 2000.00cm * 2000.00cm
Gross Weight
3200.000kg
Packaging
Standard Packaging or Customized
📝

Product Description

Glass Double Edging Machine

GLASS DOUBLE EDGING MACHINE

The FSM Series Glass Double Edging Machine is a high-performance automatic double edger line engineered for precision glass processing in industrial applications. This straight line double-edge grinding machine combines economy, high efficiency, and exceptional accuracy to deliver superior edging results for building glass, furniture glass, and window & door glass.

Featuring advanced servo system control and PLC automation, our glass bilateral edging machine automatically measures glass dimensions and adjusts processing parameters for mixed or uniform size production.

Automatic Glass Dimension Detection Equipped with an intelligent measuring table that automatically measures glass length, width, and thickness without manual input, enabling seamless processing of mixed-size batches.
Servo-Driven Size Adjustment Features a double screw rod and a linear guide rail structure with a servo system drive for automatic opening/closing with excellent repositioning accuracy.
Dual Grinding Configuration Double dovetail guide rail base for coarse grinding motor ensures stability, with manual-automatic servo compensation integration.

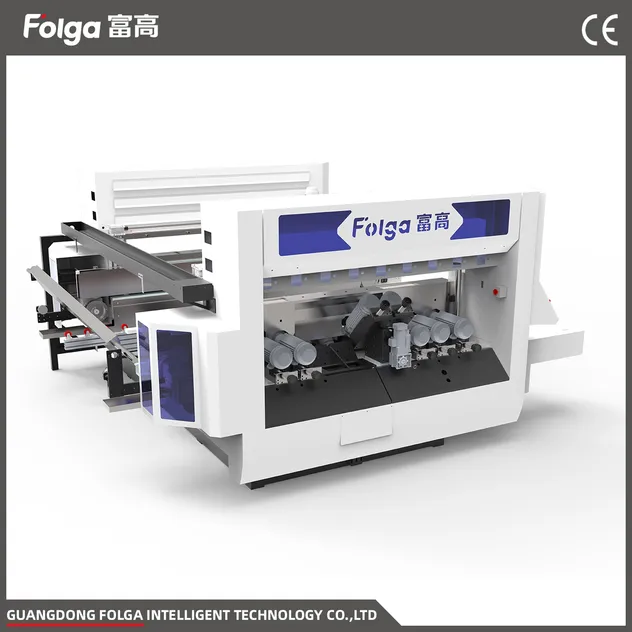

Machine Detail 1

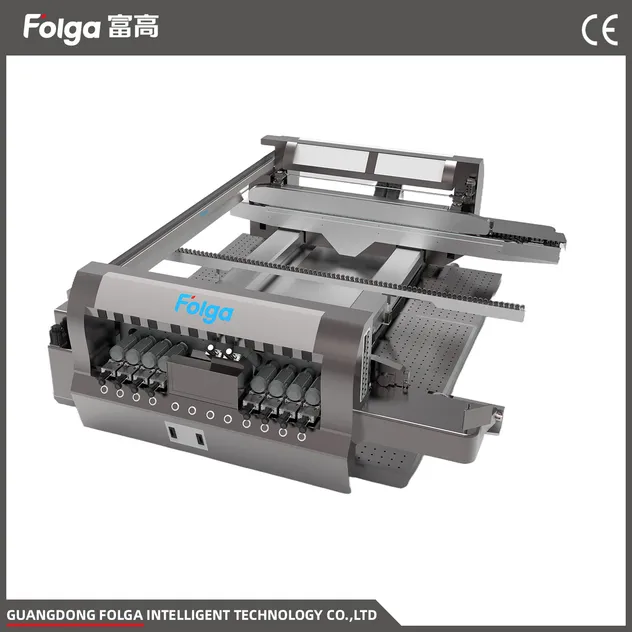

Machine Detail 2

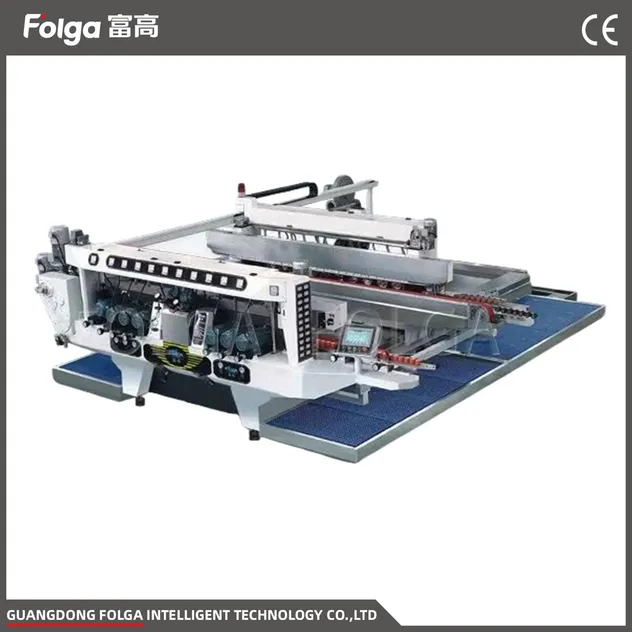

Machine Detail 3

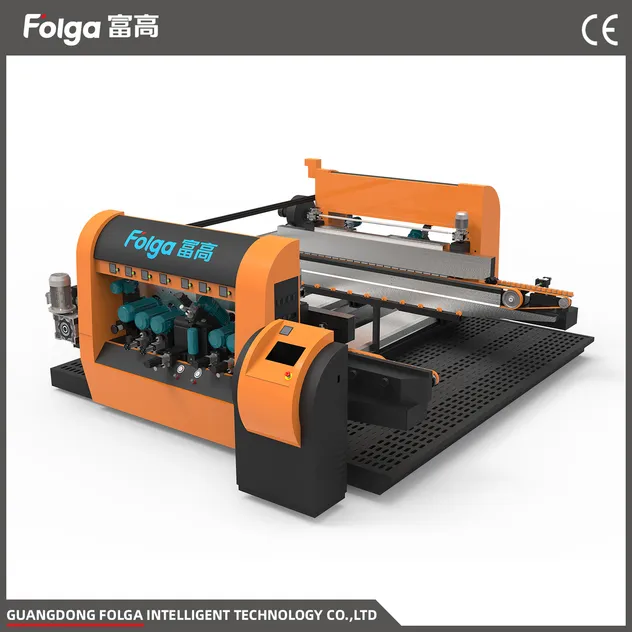

Machine Detail 4

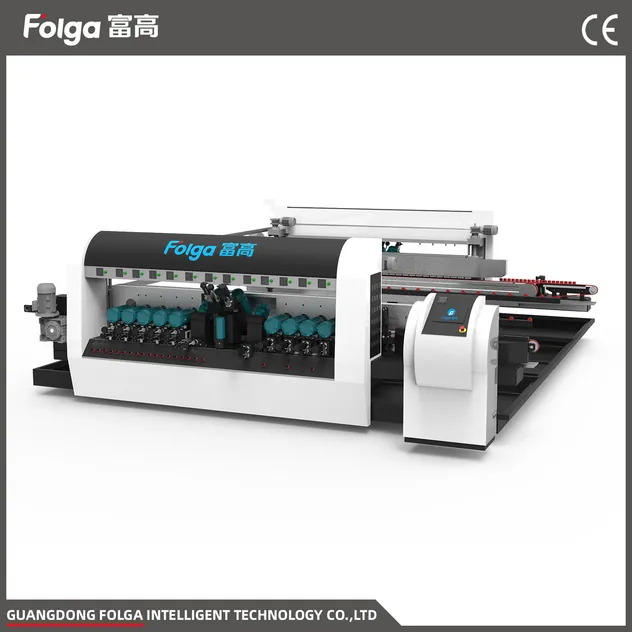

Machine Detail 5

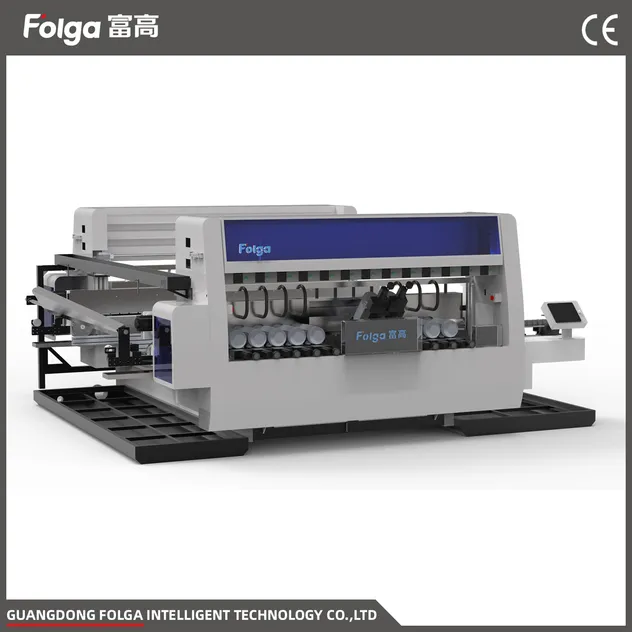

Machine Detail 6
📐

Technical Parameters

Parameter Specification
Glass Thickness3-25mm
Max. Edge Grinding5mm
Max. Chamfer Grinding2mm
Working Speed1-30m /min
Size Changing Speed1-18m /min
Parallel Error≤0.2mm /m
Diagonal Error≤0.5mm /m
Air Pressure≥0.6Mpa
Single Machine Power74kw (24 motors)
✨

Detailed Features

45° AUTOMATIC CHAMFERINGIntegrated automatic lifting device for upper chamfering with accurate positioning and effortless operation.
AUTOMATIC CLAMPING FRAME LIFTINGFeatures 150mm vertical travel range for rapid grinding wheel replacement, minimizing downtime.
DOUBLE SERVO DRIVE SYSTEMMain transmission powered by dual servo motors for reliable performance and simplified maintenance.
PLC & HMI INTEGRATIONUser-friendly human-computer interface with PLC control system delivers intuitive operation.
INTELLIGENT SPEED MANAGEMENTAutomatic acceleration at entry/exit points and energy-saving sleep function.

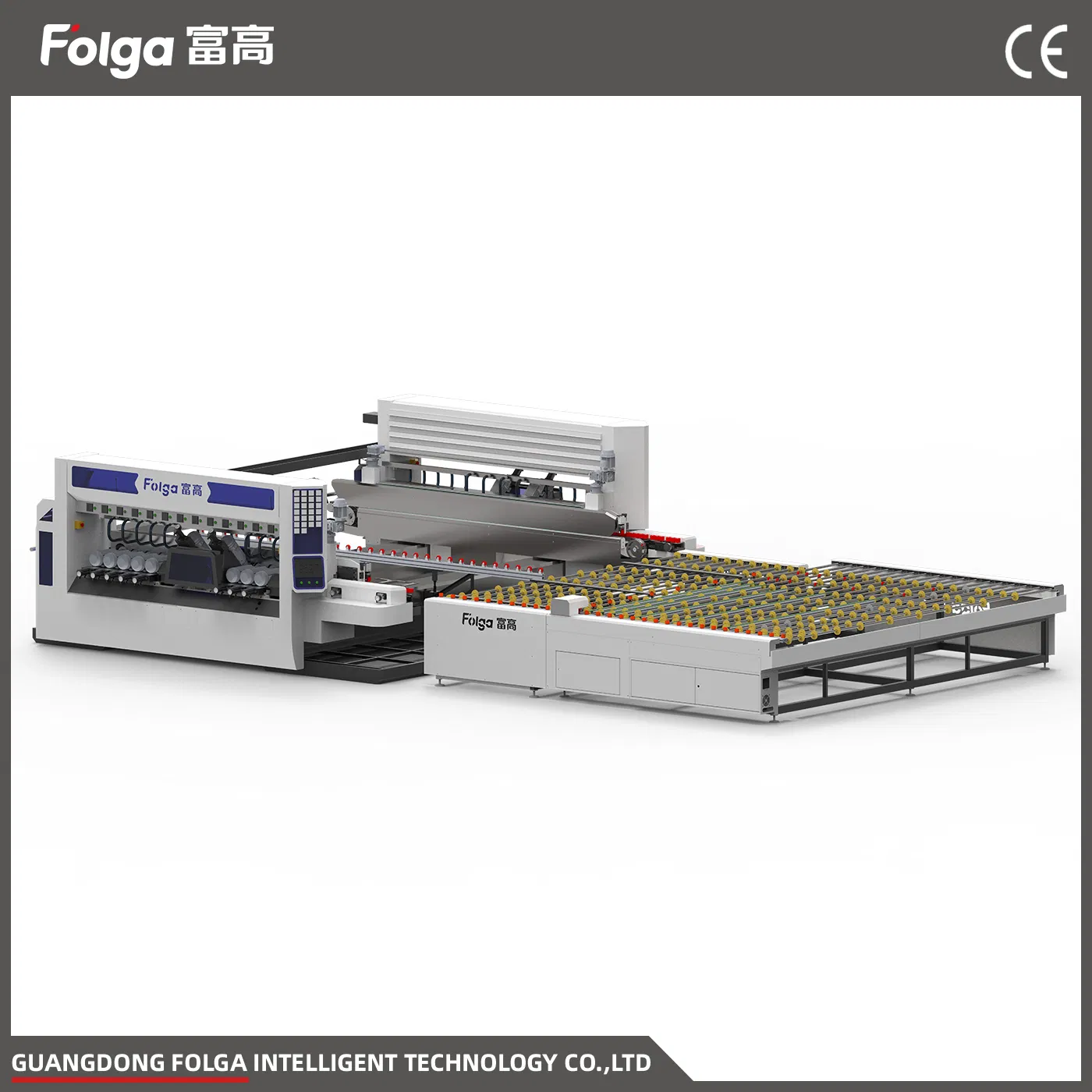

Machine Photo 1

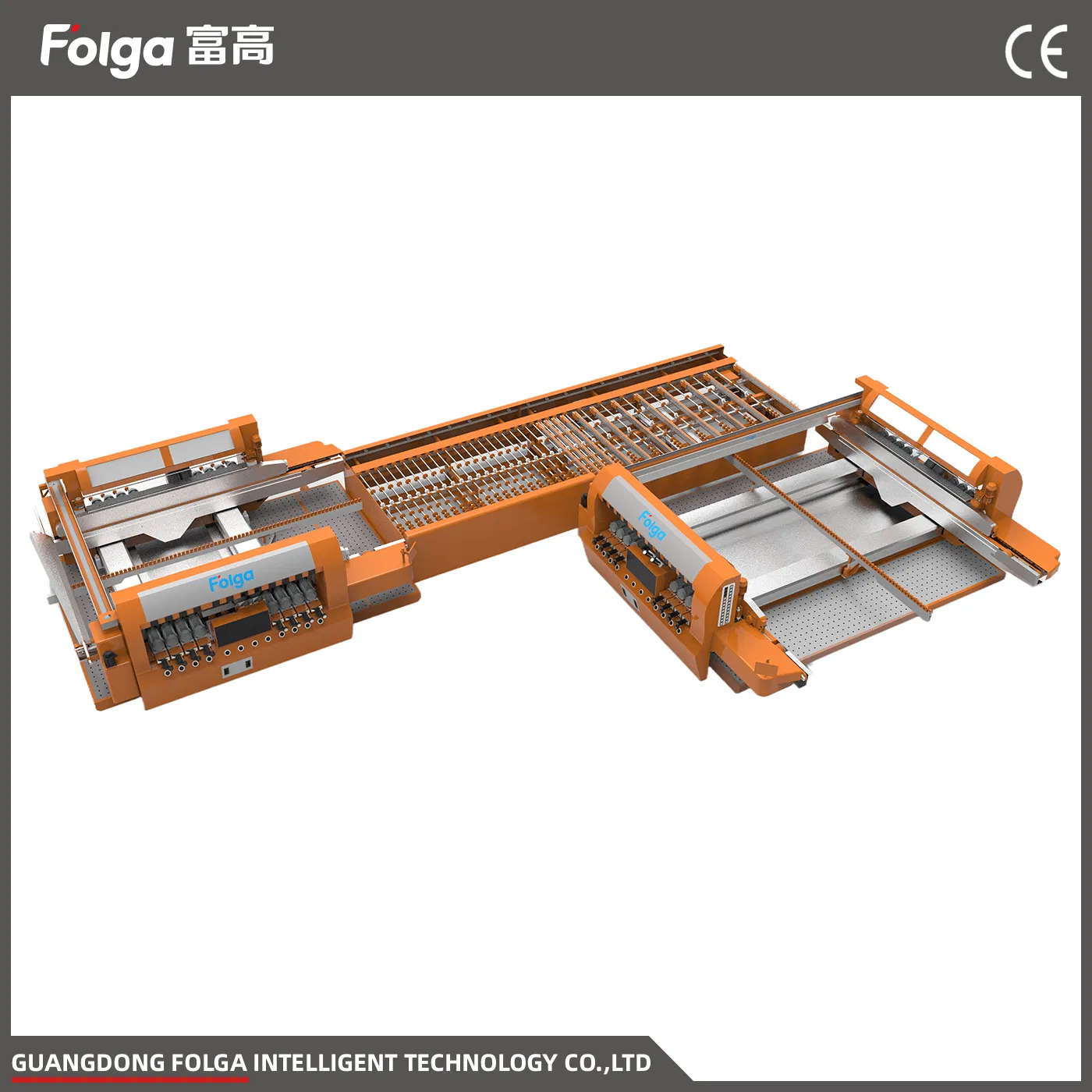

Machine Photo 2

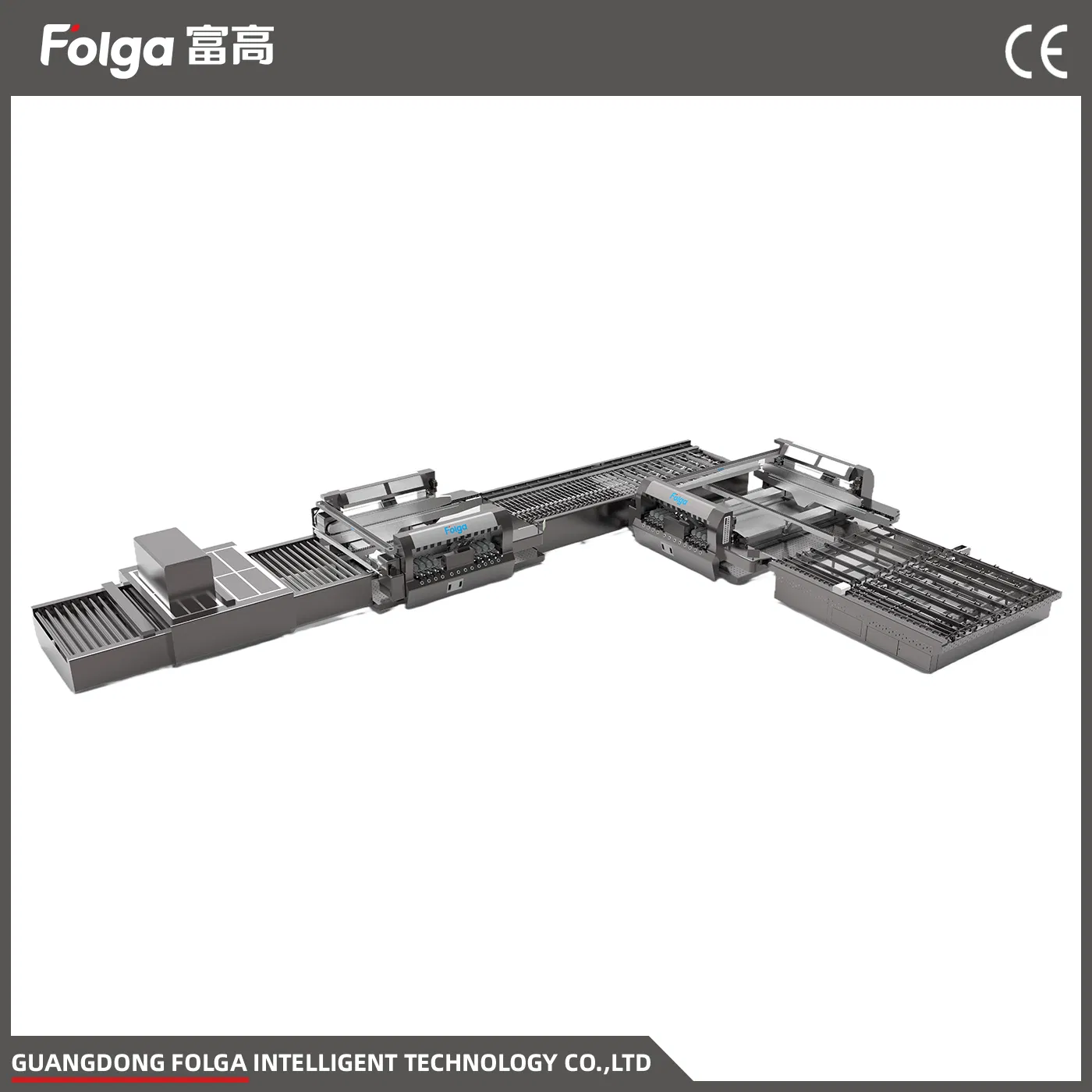

Machine Photo 3

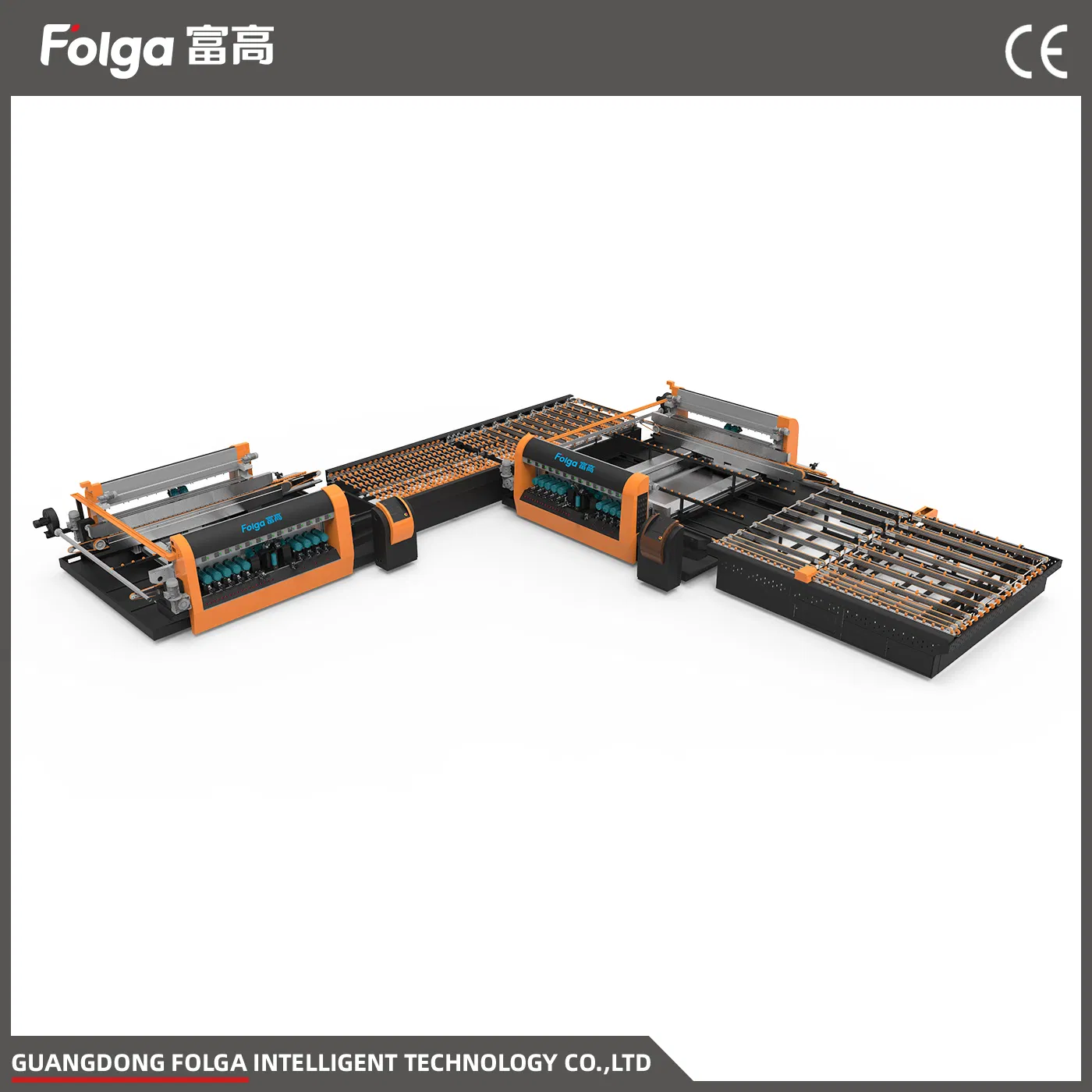

Machine Photo 4
System View 1
System View 2
System View 3
System View 4
System View 5
❓

Frequently Asked Questions

What are your main products?
We mainly produce glass single edging machine, glass double edging machine, and glass seaming machine. We also offer other glass machines such as washing machines, loading & unloading machines, drilling machines, and irregular glass shaping machines.
How many years of experience does your company have?
Founded in 2004, we have over 21 years of history ensuring stable technology, high quality, and prompt after-sales service.
Do you provide on-site installation and training?
Yes, global installation services are available. We can dispatch engineers for on-site setup and operator training.
Can you customize machine sizes for JUMBO glass?
Yes, we can customize glass machine dimensions based on your specific industrial requirements.
What kind of glass can your machines process?
Our machines process all kinds of glass with either shiny polishing or matte grinding finishes. We recommend the optimum machine based on your project needs.
What is your support process if a machine has a problem?
We respond within 8 hours. Within 24 hours, our engineers provide step-by-step troubleshooting. If needed, spare parts are sent immediately via Express (DHL).
