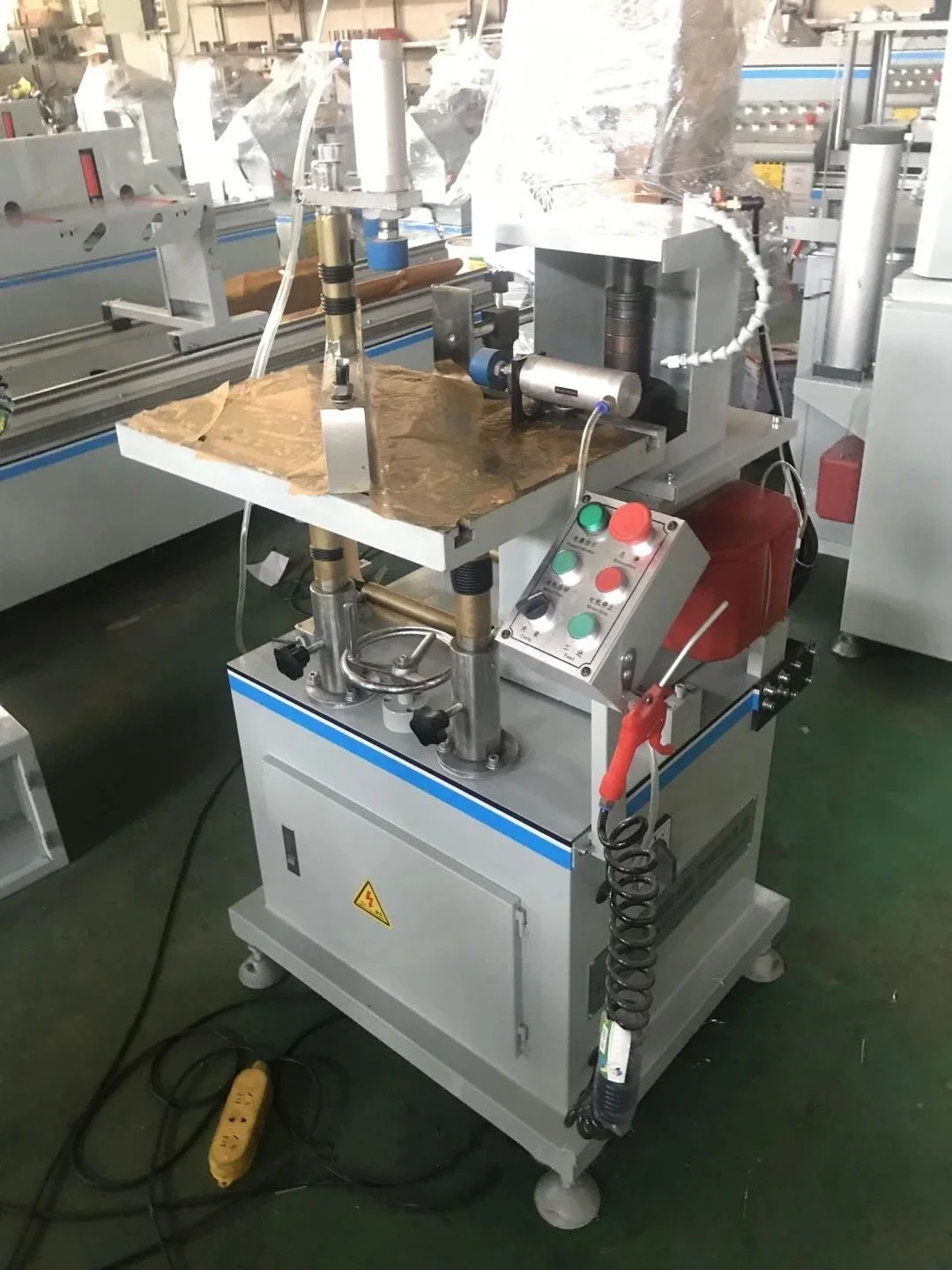

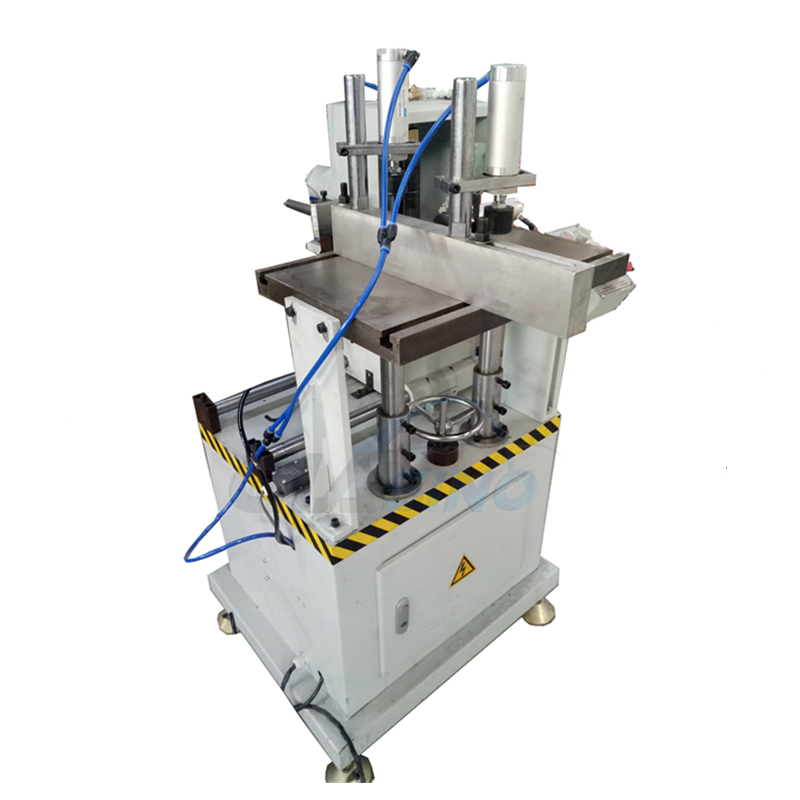

Ldx-200 Aluminum Profile End Milling Machine
Ldx-200 Aluminum Profile End Milling Machine
Ldx-200 Aluminum Profile End Milling Machine
Ldx-200 Aluminum Profile End Milling Machine
Ldx-200 Aluminum Profile End Milling Machine
1 / 5
Ldx-200 Aluminum Profile End Milling Machine
Ldx-200 Aluminum Profile End Milling Machine
Ldx-200 Aluminum Profile End Milling Machine
Ldx-200 Aluminum Profile End Milling Machine
Ldx-200 Aluminum Profile End Milling Machine

Ldx-200 Aluminum Profile End Milling Machine

Customization: Available
Condition: New
Certification: CE
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
LDX-200
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Product Name
Aluminium and PVC Window Door End Milling Machine
Transport Package
Plywood Case
Origin
Shandong, China
HS Code
84778000
Production Capacity
60 sets/Month
⚙️ LDX-200 Product Description

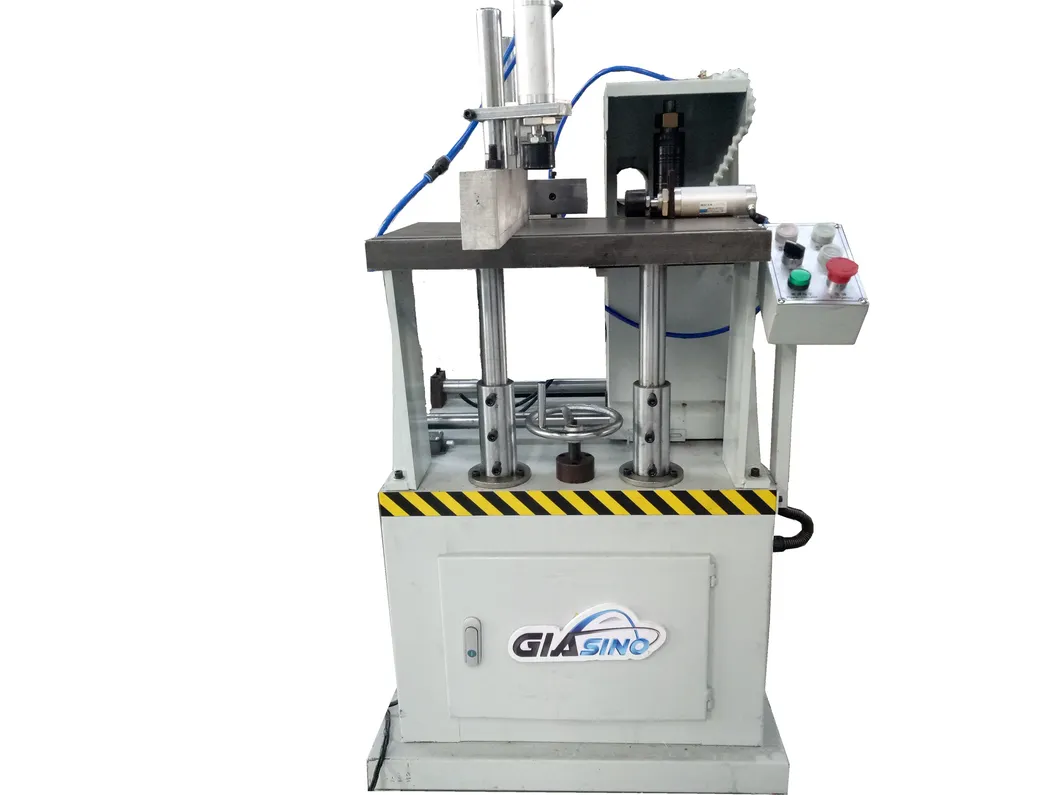

LDX-200 Aluminum Profile End Milling Machine

Equipment Features

This aluminum profile end milling machine is designed for processing aluminium profile end step faces and end slots with high efficiency.

  • Multiple Profile Capability: Can work for several profiles at one time.
  • High Precision: Super precision main shaft ensures accurate and steady processing.
  • Adjustable Angles: Processing angle is adjustable within 30° - 90°.
  • Flexible Setup: Convenient tool setting due to the adjustable worktable.
  • Main Shaft Design: Tool main shaft is connected by shaft coupling, protecting working accuracy from motor vibrations.
  • Smooth Feeding: Tool feeding adopts linear bearing motion pair for a steady process.
🔍 Machine Details

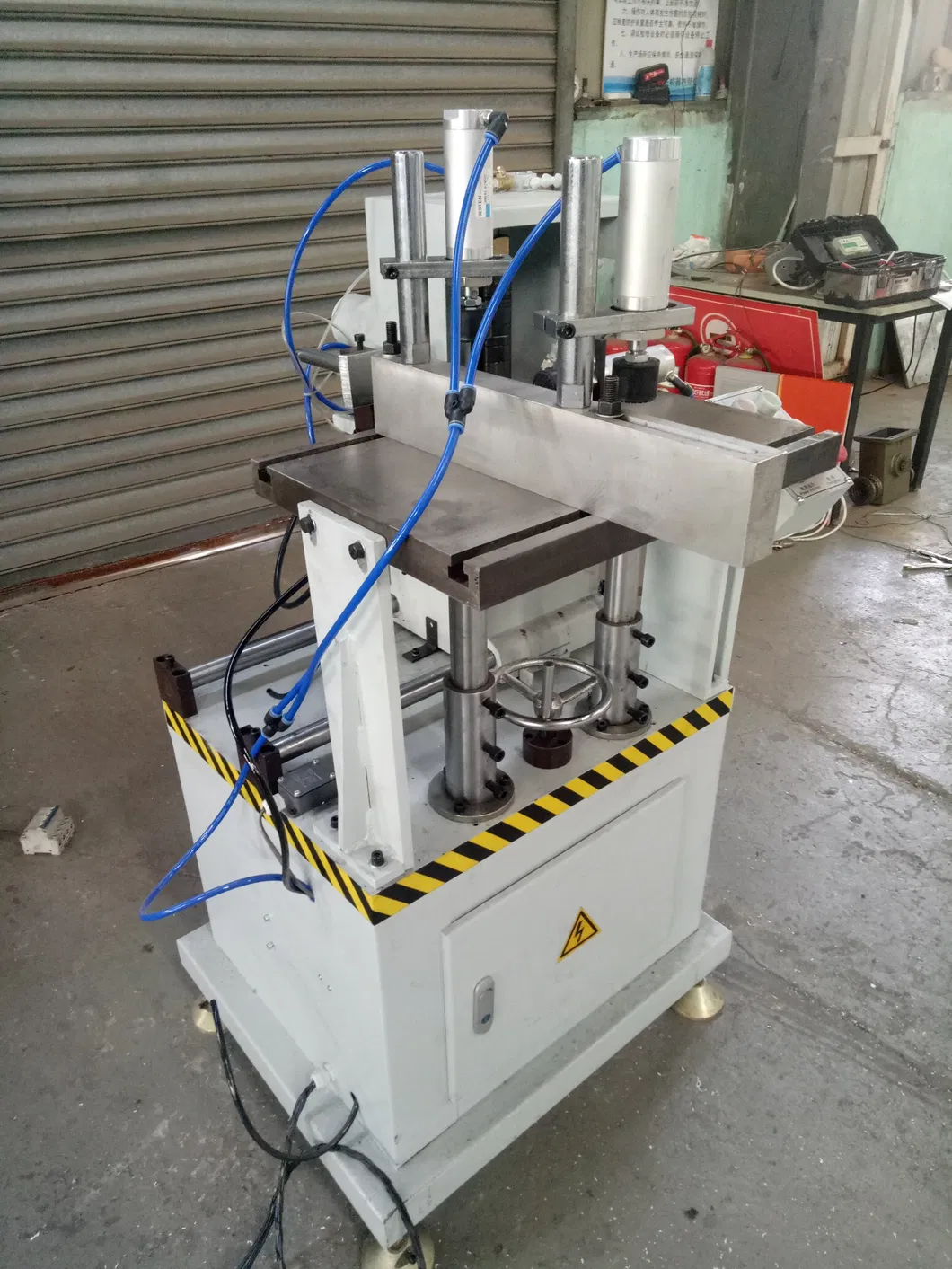

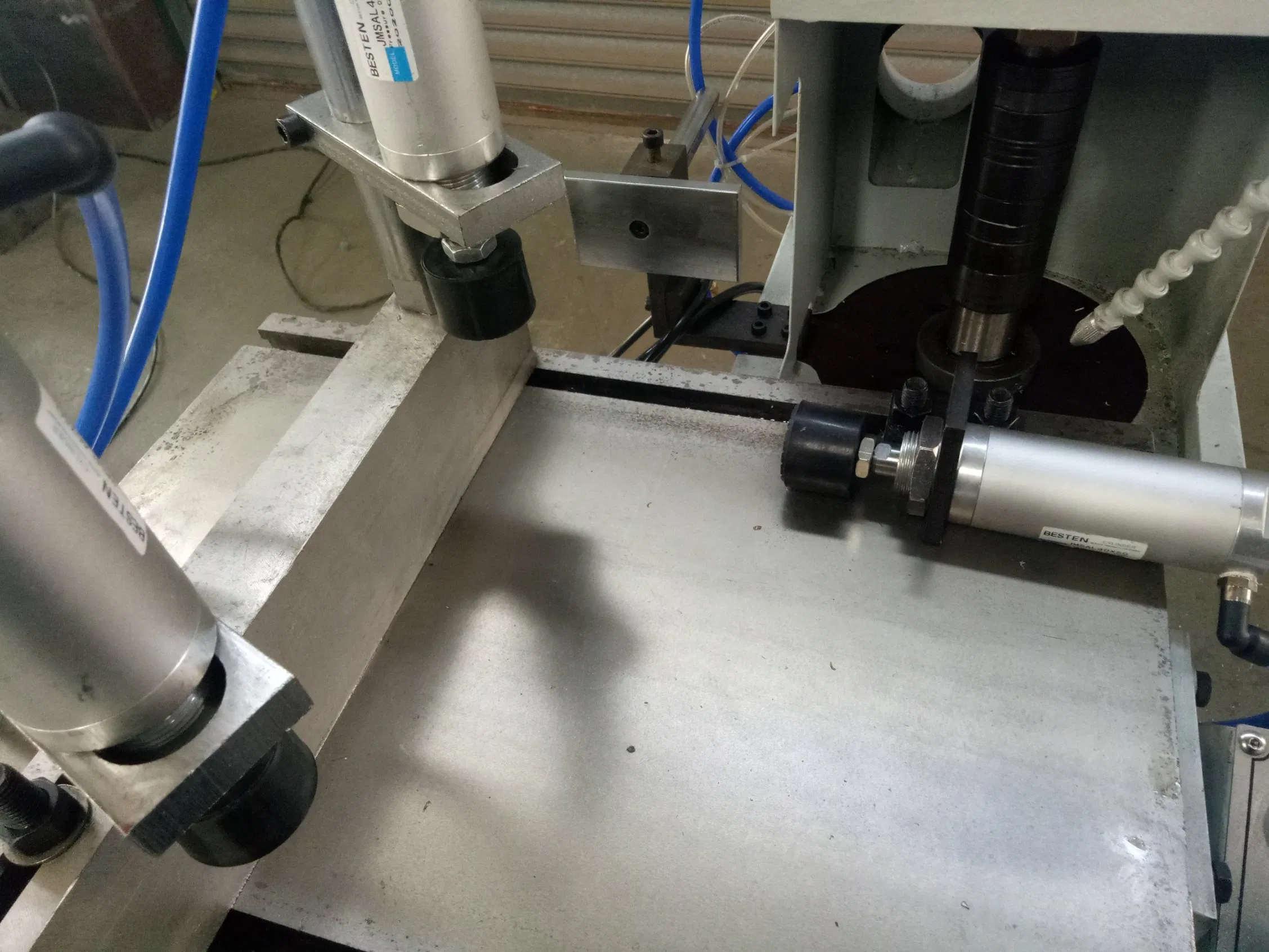

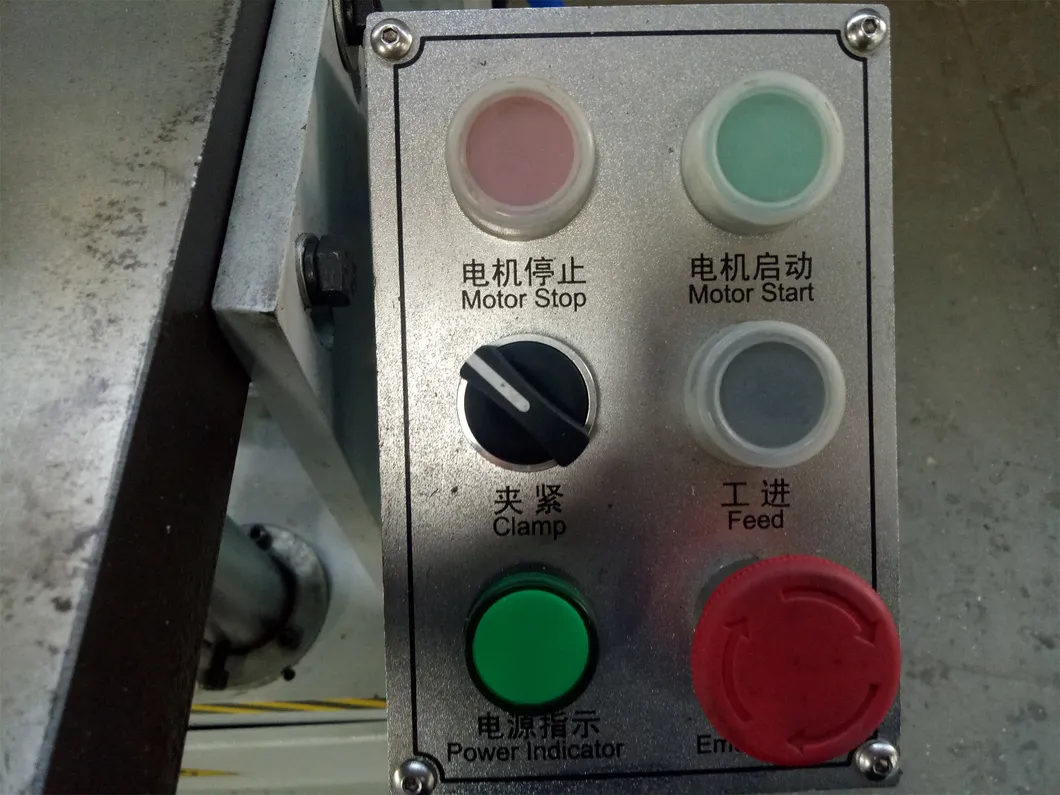

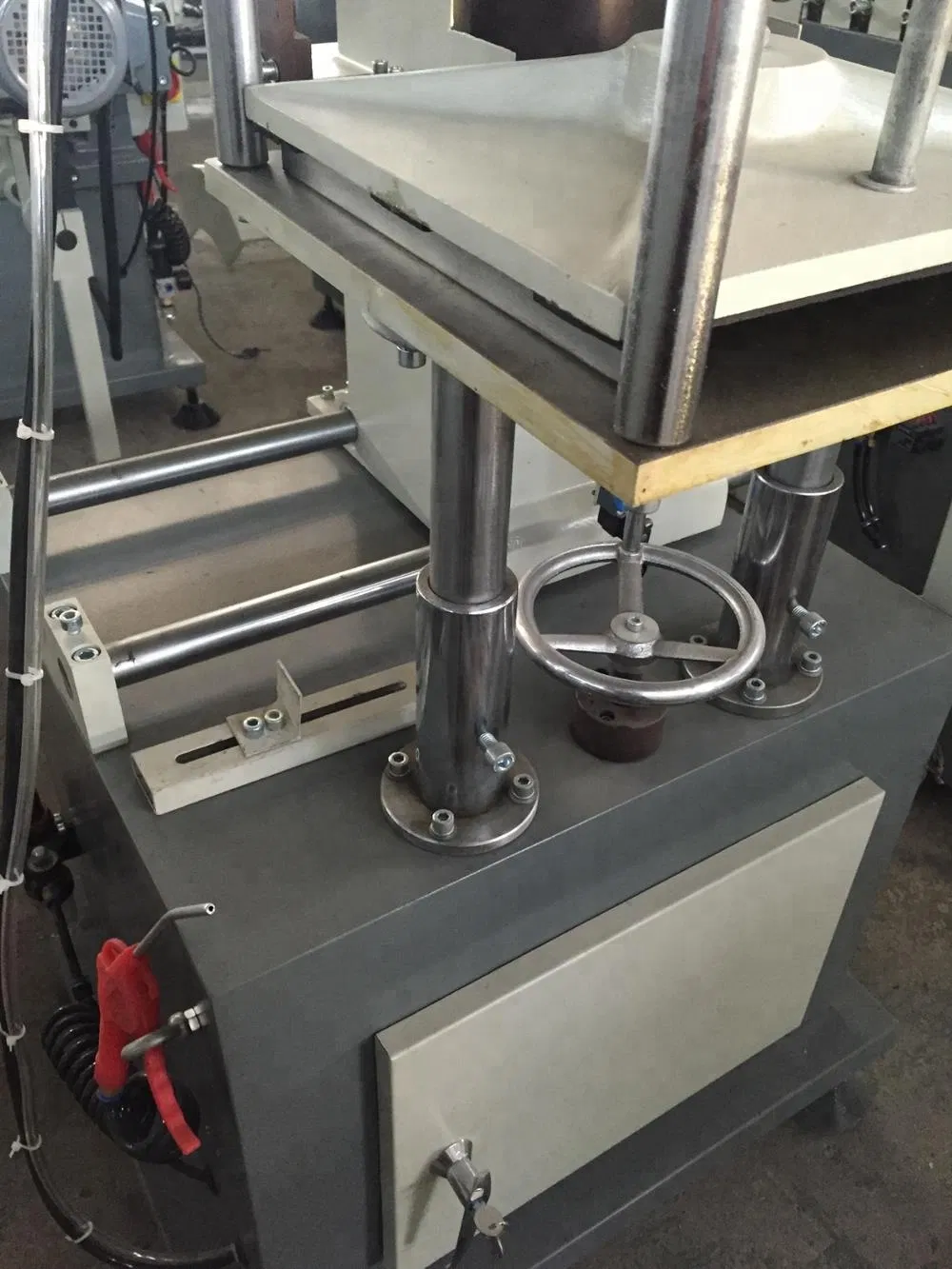

Detail 1 Detail 2 Detail 3 Detail 4
🛠️ Working Samples

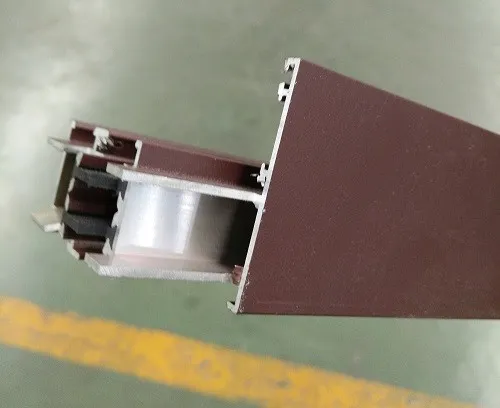

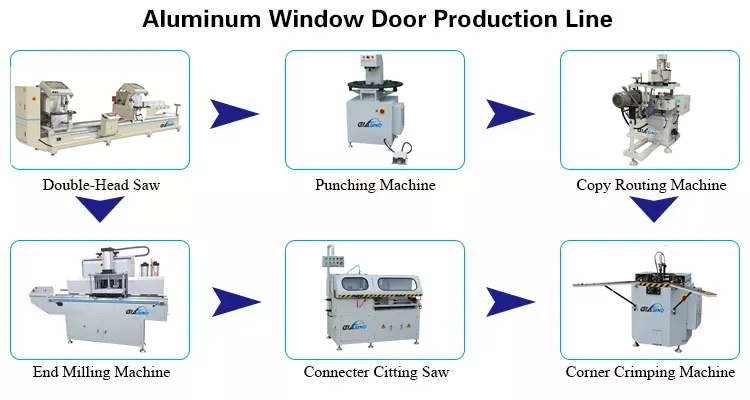

Working Sample 1 Working Sample 2
📊 Technical Parameters
Motor Power1.5KW
Motor Adjusted Travel0-80mm
Air Pressure0.5-0.8MPa
Blade Specification200mm
Rotary Speed2800r/min
Surface HarshnessRa12.5 µm
Overall Dimension850mm x 740mm x 1280mm
Weight150KG
📦 Packaging & Workshop

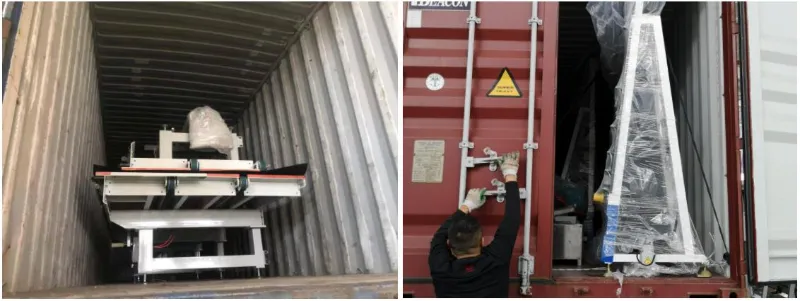

Product Packaging

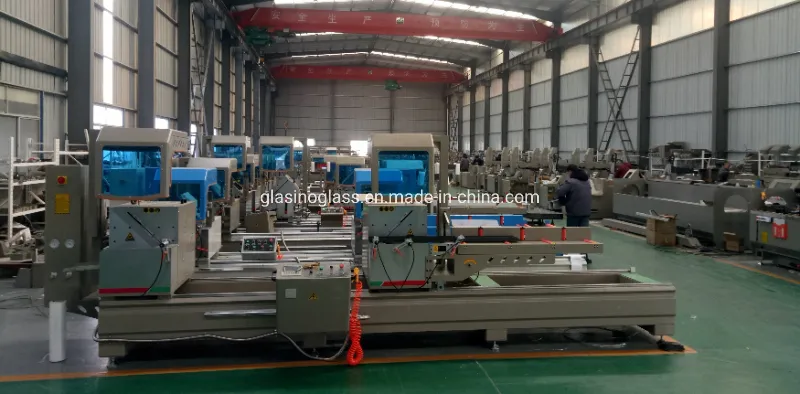

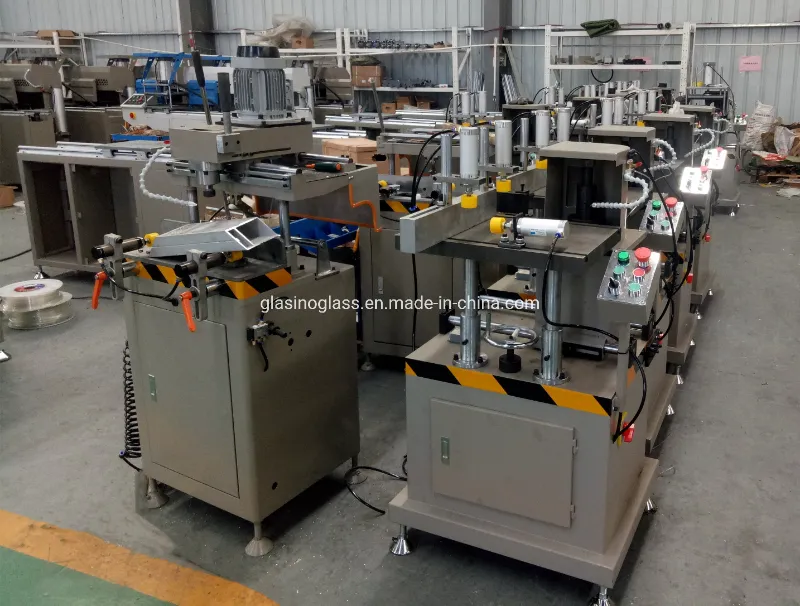

Workshop 1 Workshop 2

Exhibition History

Exhibition
Frequently Asked Questions
1. Are you a manufacturer or a trading company? We are a direct factory specializing in aluminum and PVC profile processing machinery.
2. What is the warranty period for the equipment? The equipment comes with a standard one-year warranty.
3. How do you handle after-sales service and training? We provide on-site installation, commissioning, and staff training. Additionally, we offer free accessories within the first year and provide ongoing remote technical support and video guidance.
4. What is the typical delivery timeframe? Delivery usually takes between 10 to 20 days after the receipt of the deposit.
5. What is the adjustable range for the processing angle? The LDX-200 allows for processing angles to be adjusted freely between 30° and 90°.
6. What is the production capacity of this model? Our facility has a production capacity of approximately 60 sets per month for the LDX-200 model.
