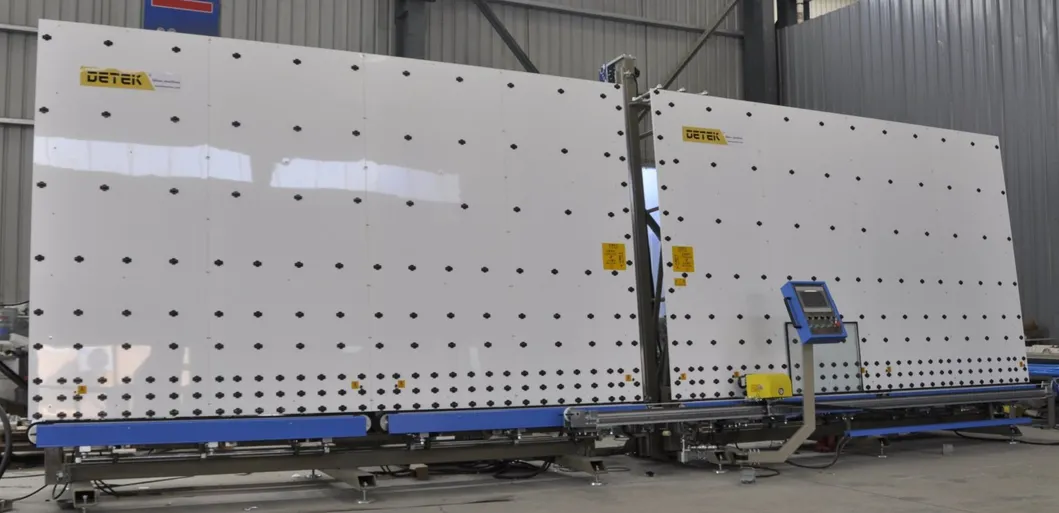

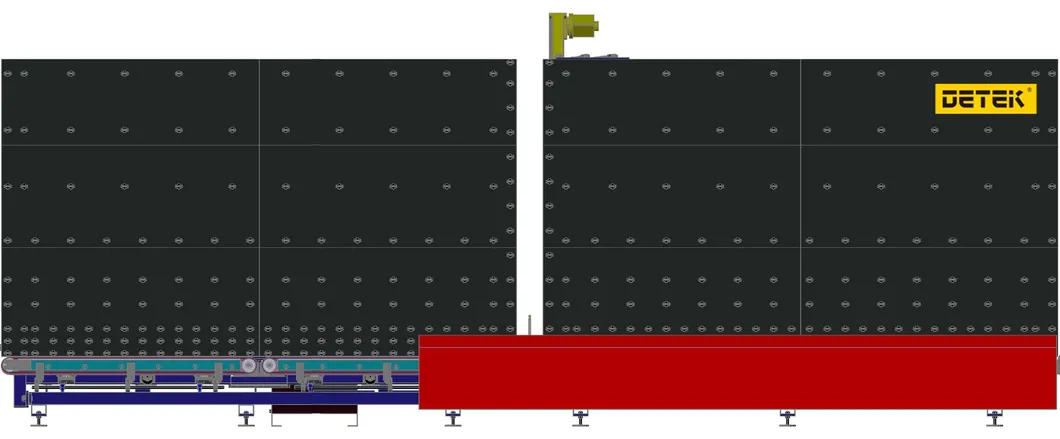

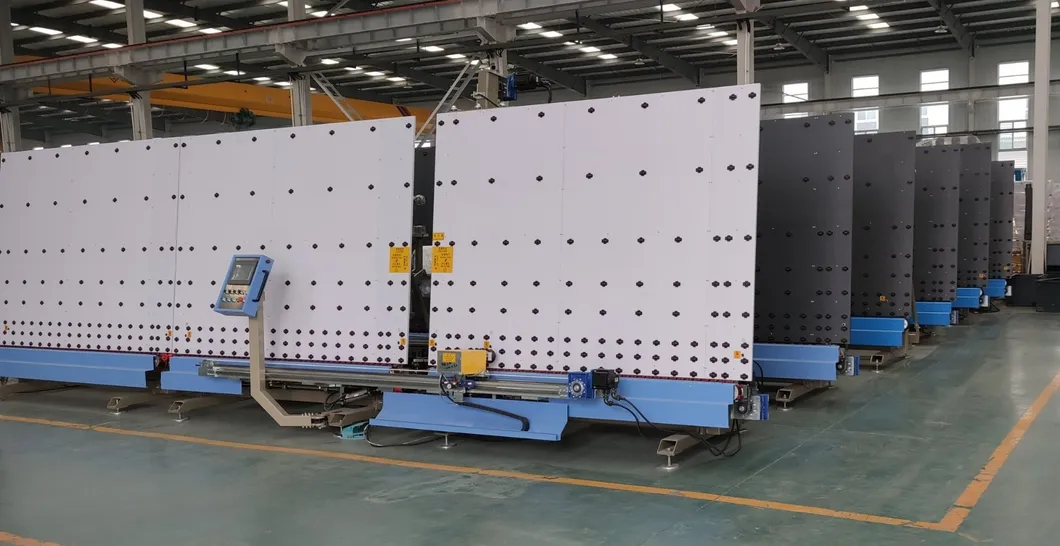

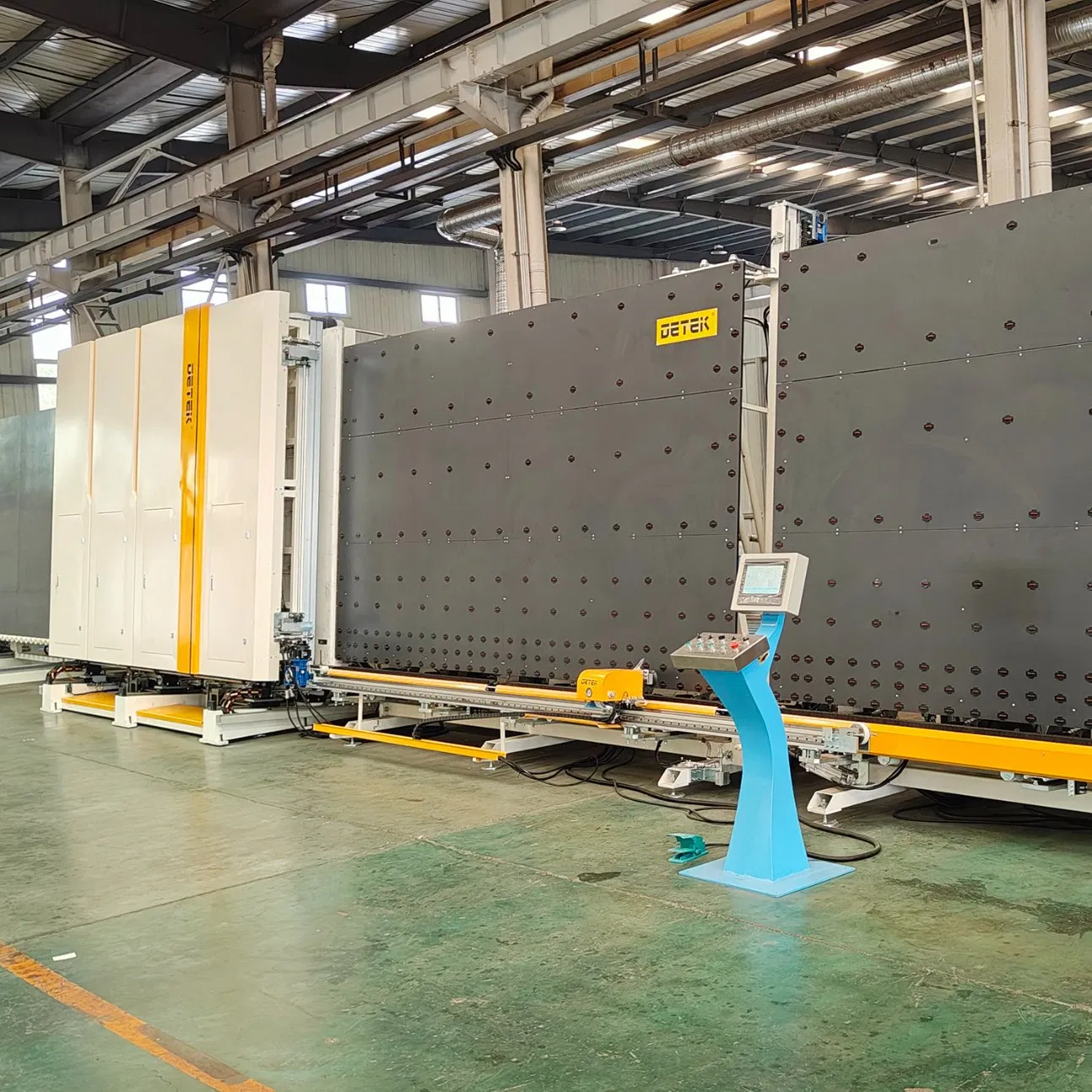

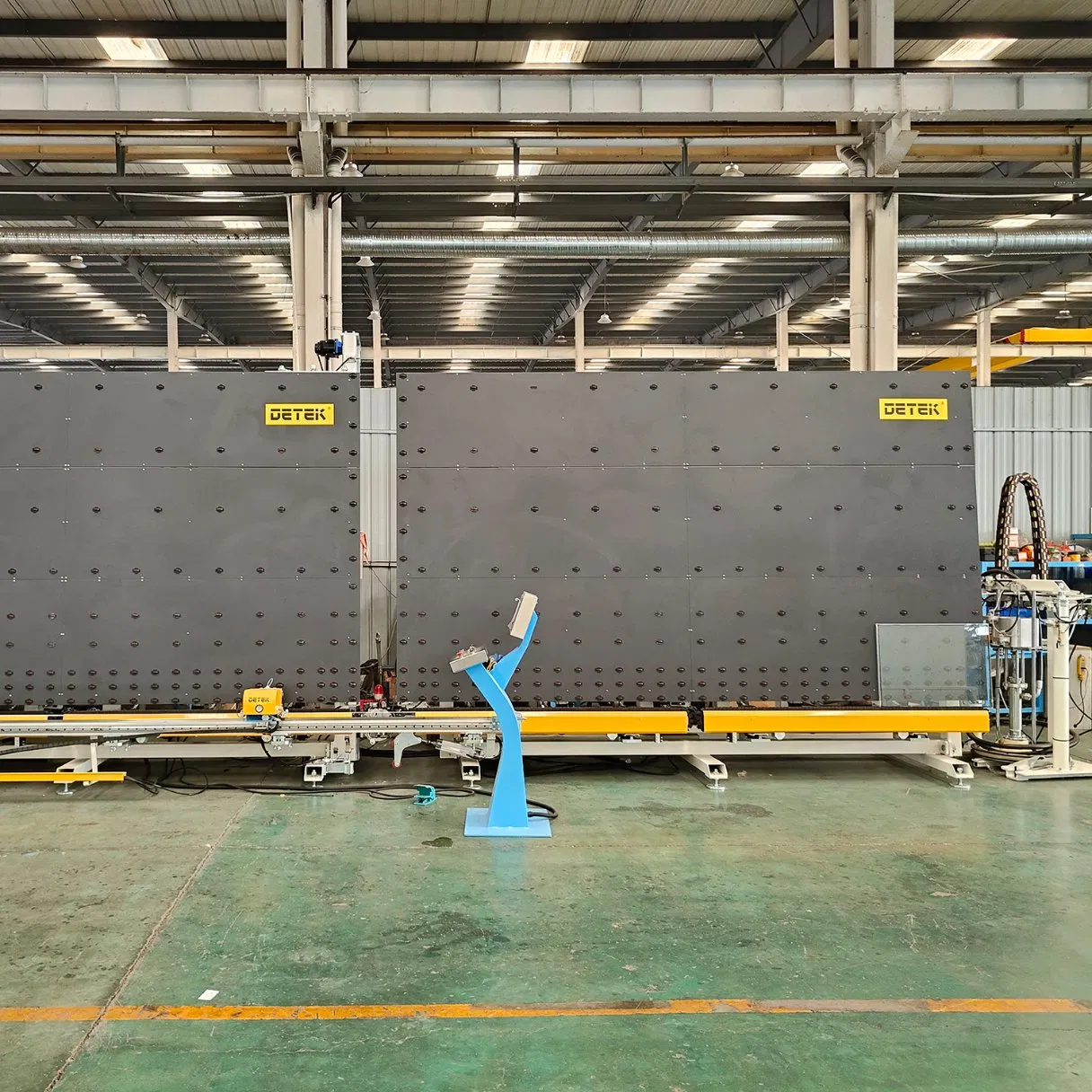

Application: The secondary sealant sealing in Insulating Glass Units, ASR2540 is highly automatic silicone or polysulfide sealant sealing robot. Auto sealing robot guarantees the high quality of IGU for glass processing companies.
Key Features

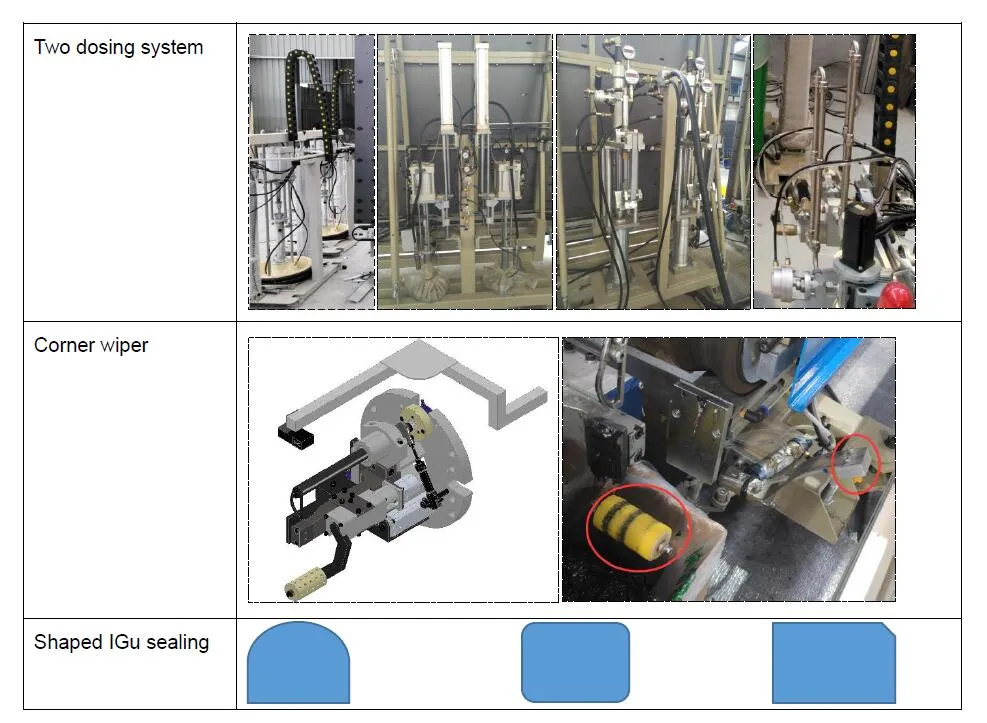

Two separate dosing system, one key switch system. (Option)
Automatic corner wiper (option).
Economical and practical, used for glass deep processing company.

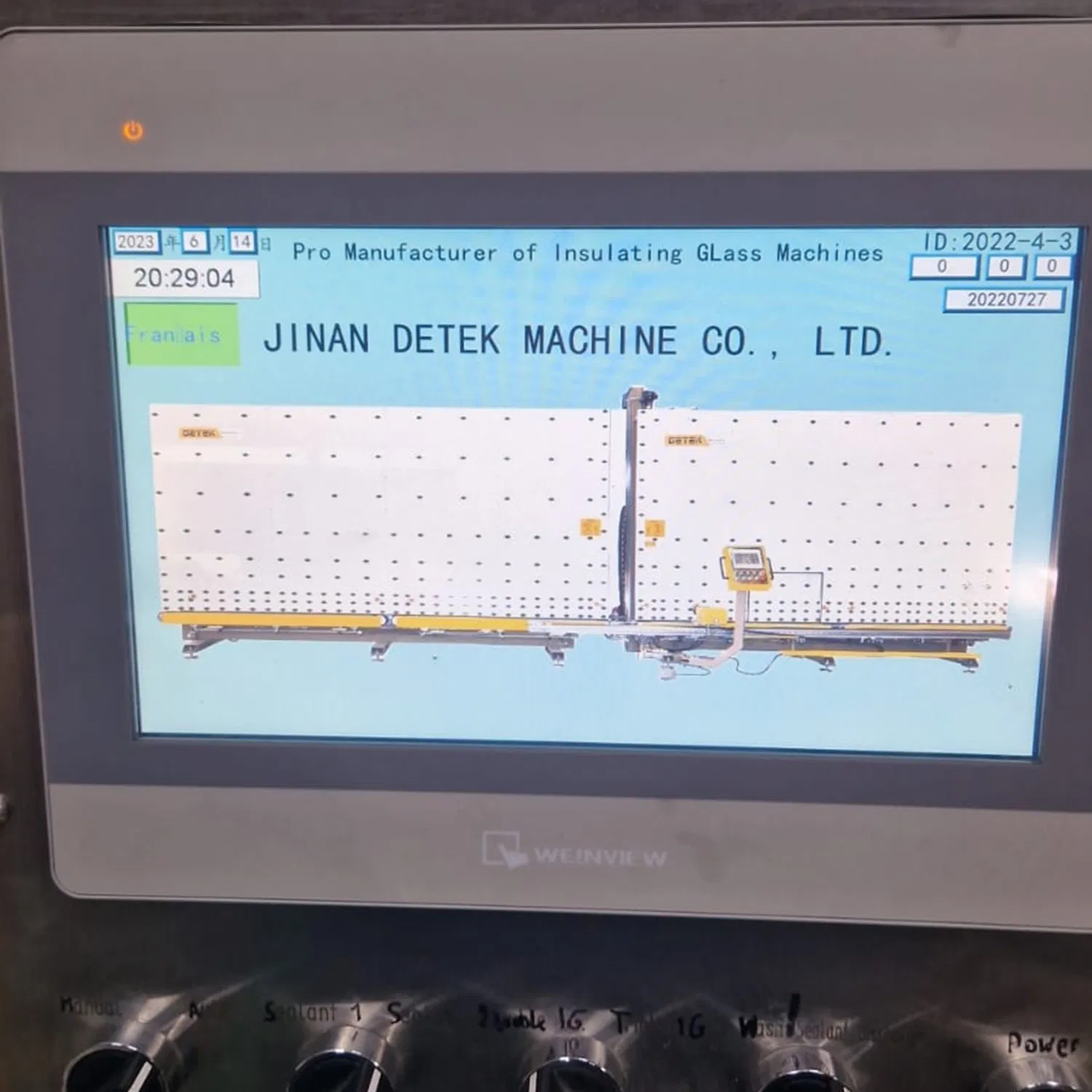

Fully intelligent and friendly touching screen adopt Ethernet communication.
High sealing performance, high automation, reduce labor cost.
Best sealing quality without air bubbles, smooth surface.
Equipped with anti-blocking device in the mixer, easy to clean.
Servo control system adopts Japan YASKAWA for stable performance.
Special V type transmission belt to avoid sealant sticking.
Suitable for triple IGu, stepped IGu and shaped IGu.
High standard parts ensure the stable performance.
Equipped with high speed positioning function for accuracy.
Technical Parameters
Parameter
Specification
Max. IGu size
2500×4000mm(5000mm option)
Min. IGu size
300×300mm
IGu thickness
12-56mm
Power supply
3P 380V 50HZ 13KW
Air pressure
0.6-0.8Mpa
Max. squeeze pressure
32Mpa
Sealing speed
5-40m/min
Dimension
8900×1500×3400mm

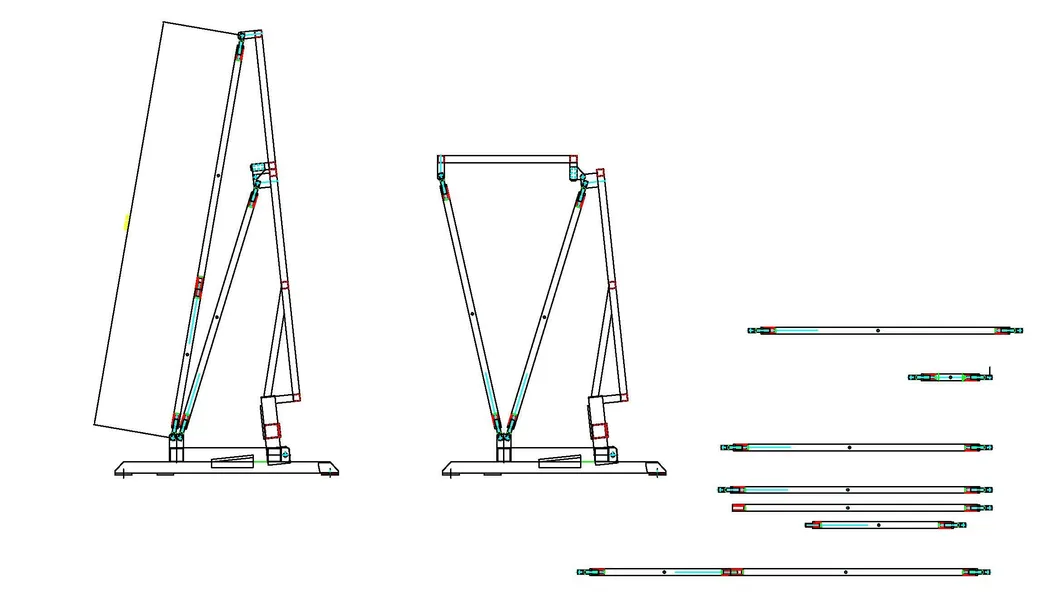

Note: Bendable structure to save SEA FREIGHT (General container).
Major Brand Components
Name
Brand
Country
PLC / Servo Driver / Motor
Yaskawa
Japan
Touching Screen
WEINVIEW
Taiwan
Inverter
TECO
Taiwan
Breaker / Contactor / Relay
Schneider
French
Sensor / Proximity Switch
AUTONICS
S. Korea
Reduction Motor
YOUSHENG
Shanghai
Solenoid / Air Cylinder
Airtag
Taiwan
Proportional Valve / Regulator
SMC
Japan
Frequently Asked Questions
What is your typical lead time for orders?
The lead time is approximately 60 days for a whole production line and 30 days for a single machine. For special requirements, please coordinate with our team.
How is the shipment of the machines arranged?

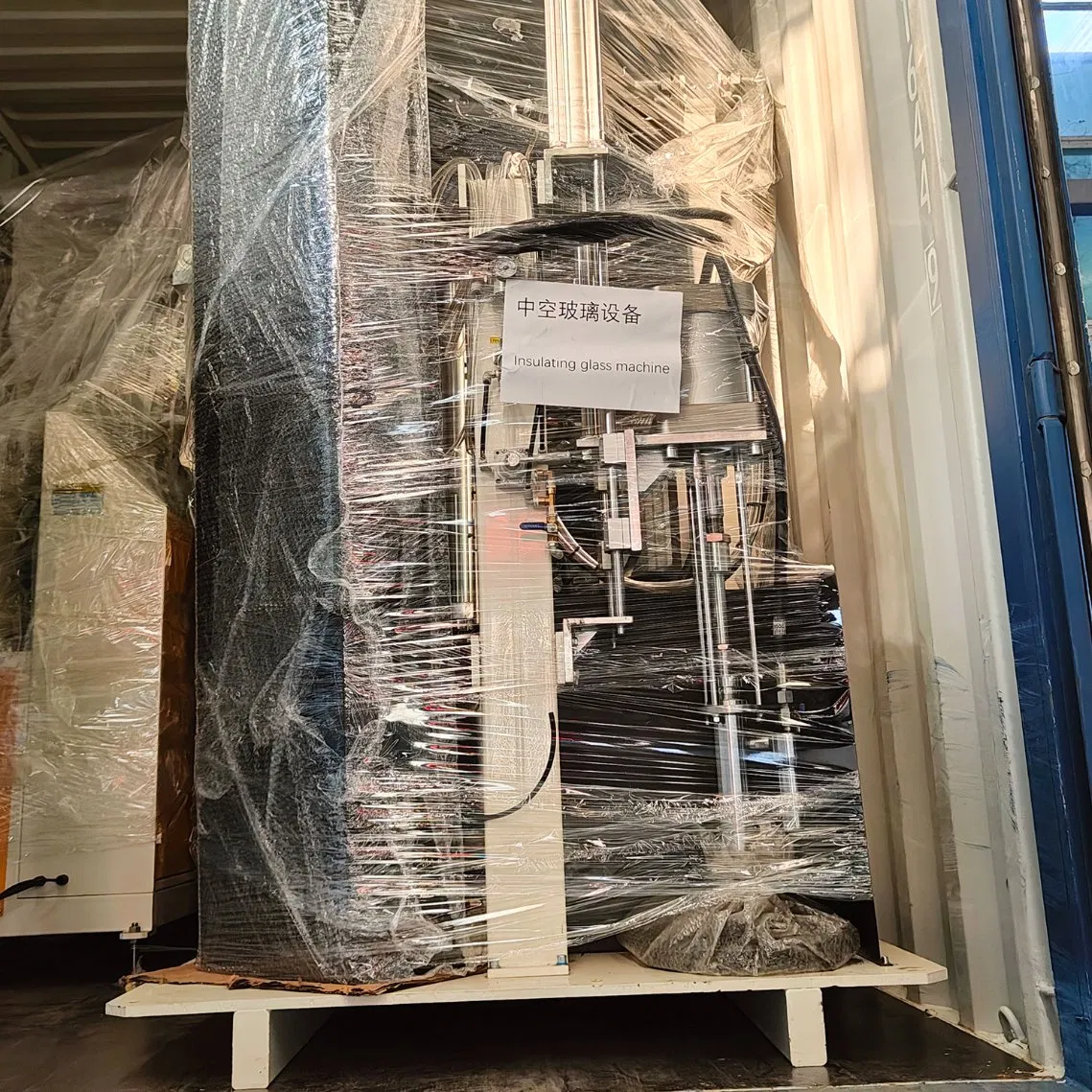

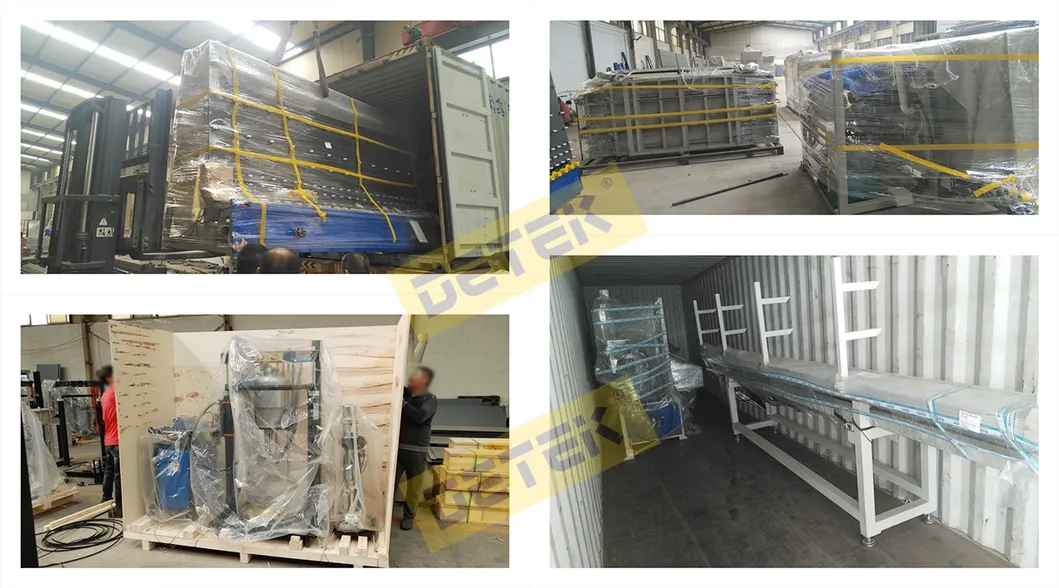

All machines are designed to fit into GP containers to save on sea freight. We use seaworthy packaging and professional workshop container loading to ensure safe arrival.

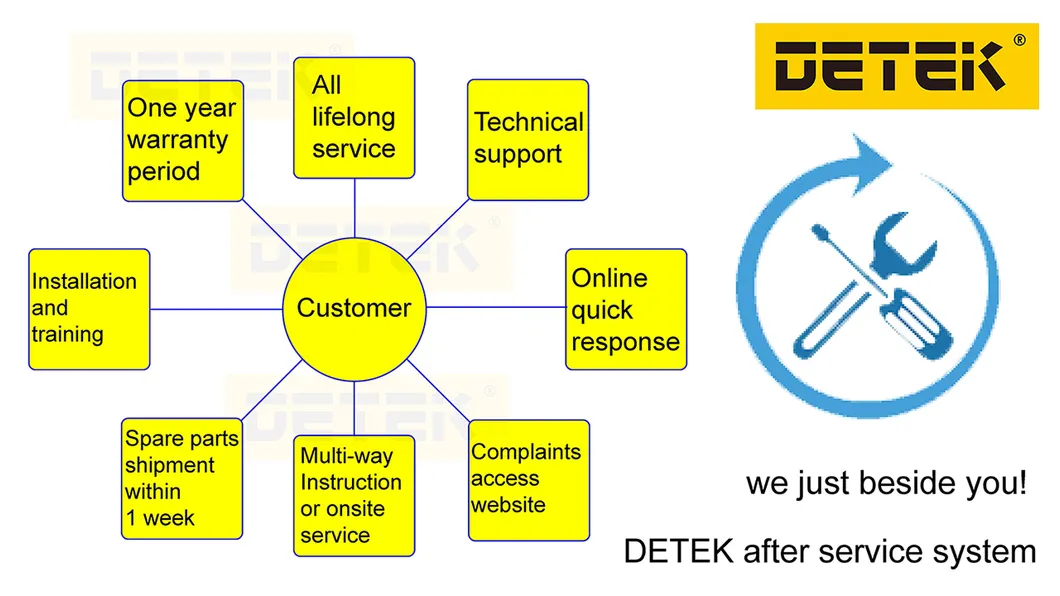

What kind of guarantee and service do you provide?
We provide a one-year guarantee (excluding wearing parts) and life-long service. Technical support and onsite engineer services are available upon request.
How is the machine installation handled?
Installation is included. However, customers are responsible for the engineer's round-trip air tickets, local transportation, and accommodation. Installation is typically finished within 15 days at a standard daily rate.
What can I expect from your after-sales support?
We ensure spare parts are available within 72 hours. Experienced technical support is available to solve questions, and service engineers are ready for on-site instruction.
Is the machine compatible with triple and shaped IGU?
Yes, the ASR2540 is suitable for triple IGU, stepped IGU, and shaped IGU through optional configurations.
