Zhixing Machine
Zhixing Machine
| Model NO. | FHS-CNC-11 | Automatic Grade | Automatic |
|---|---|---|---|
| CNC or Not | CNC | Voltage | 380V |
| Profile Feed Rate | 0-70m/Min | Rolling Wheel Dia. | 230mm |
| Cutterhead Dia. | 230mm | Adjustment Range | 8.6-100mm |
| Power | 11kw | Production Capacity | 200 sets/Year |

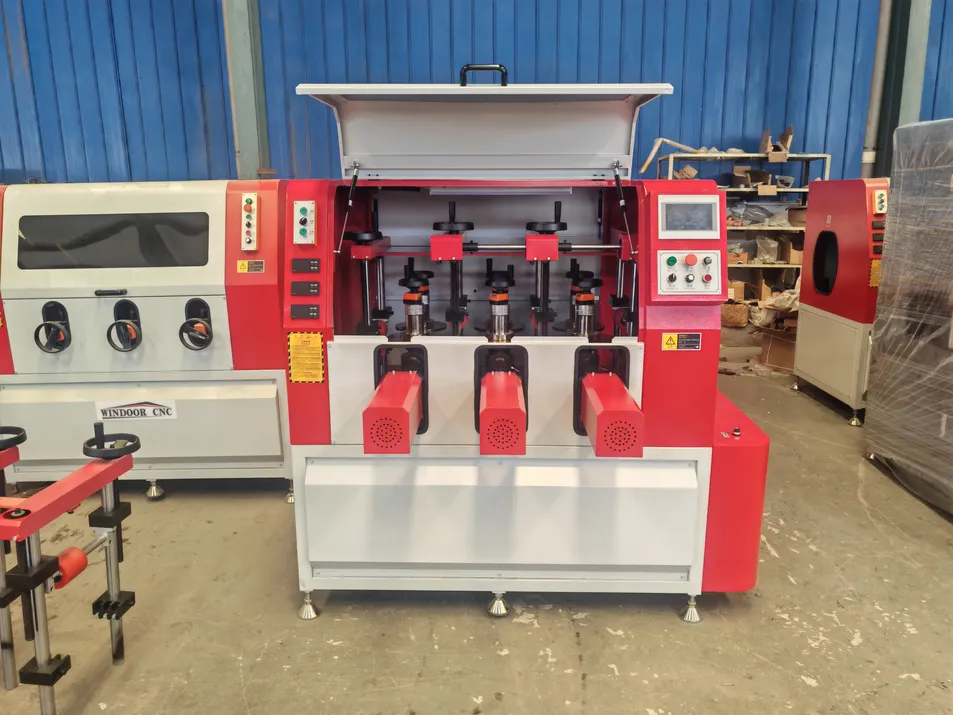

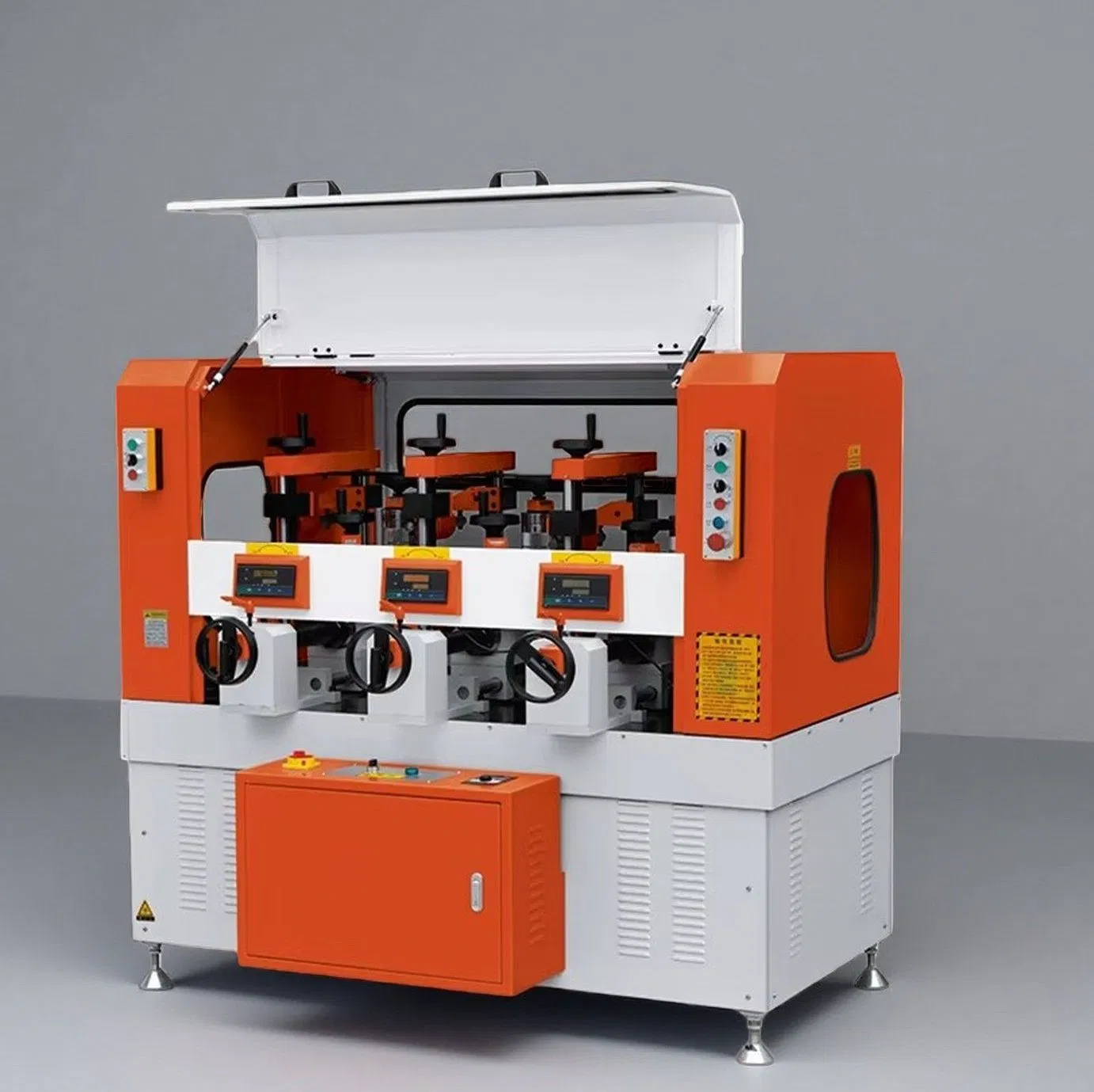

CNC 11 Axis Crimping Rolling Machine: This advanced system securely bonds thermally-insulated aluminum profiles pre-fitted with insulation strips into a single integrated unit.
Advanced Control: Equipped with an 11-axis CNC system, Omron PLC, and precision linear guideways for superior accuracy.

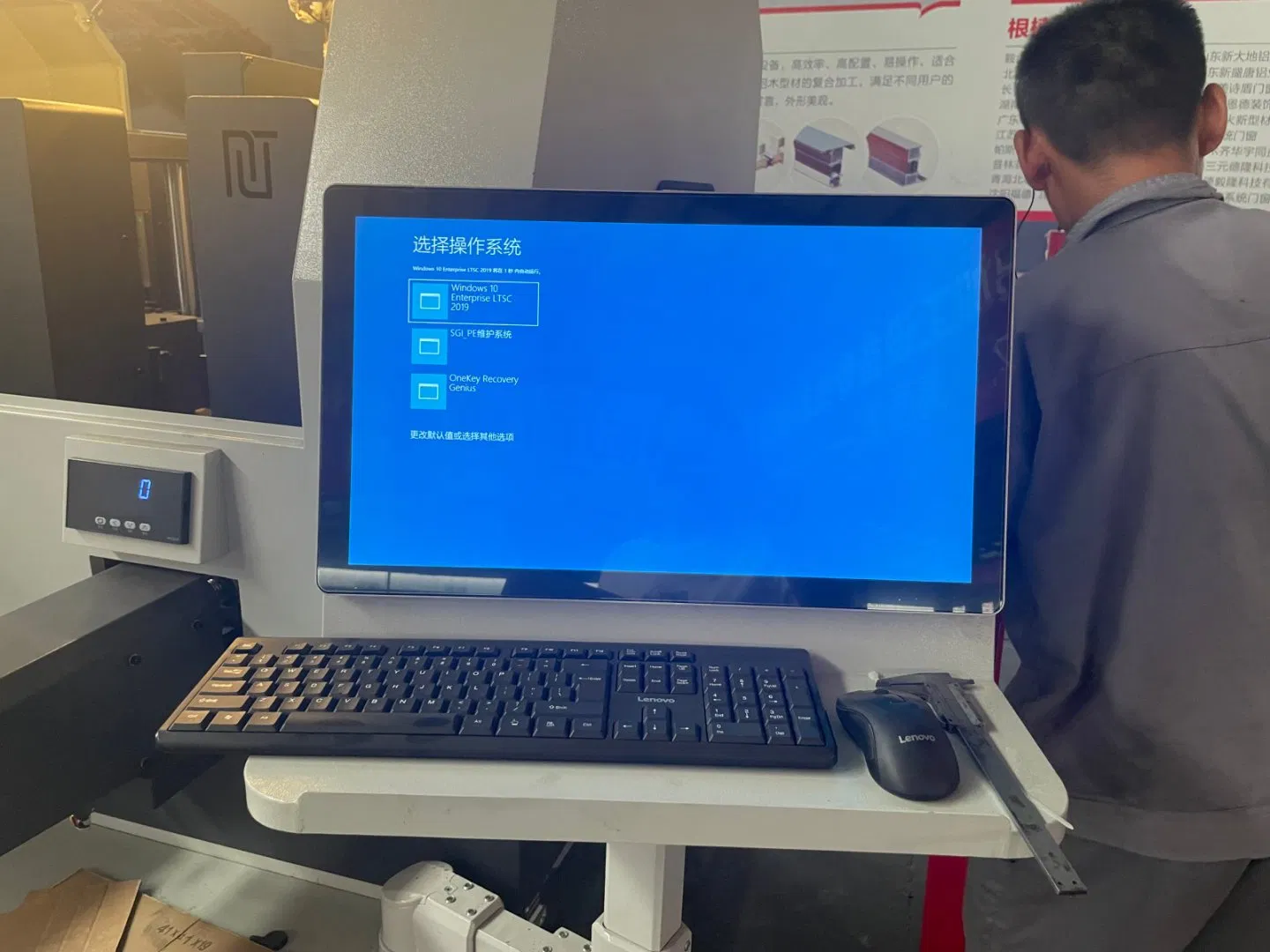

Smart HMI: 15-inch LCD touchscreen interface allows for data storage and automated profile changes, enabling unmanned adjustments.

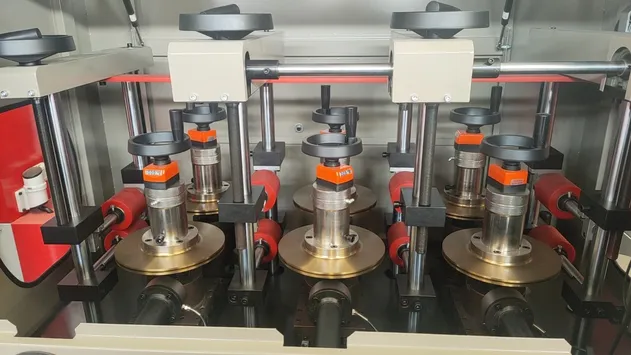

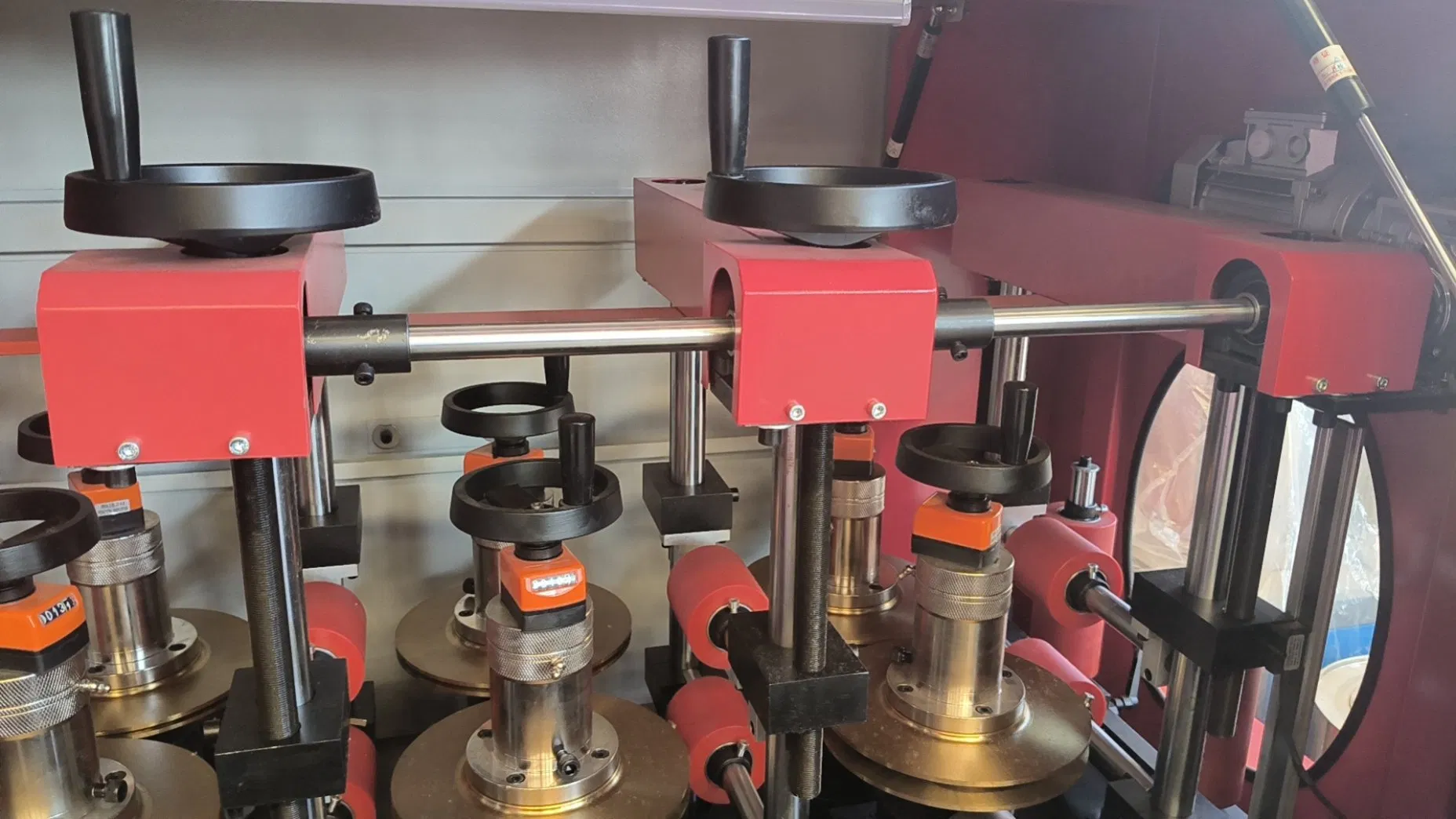

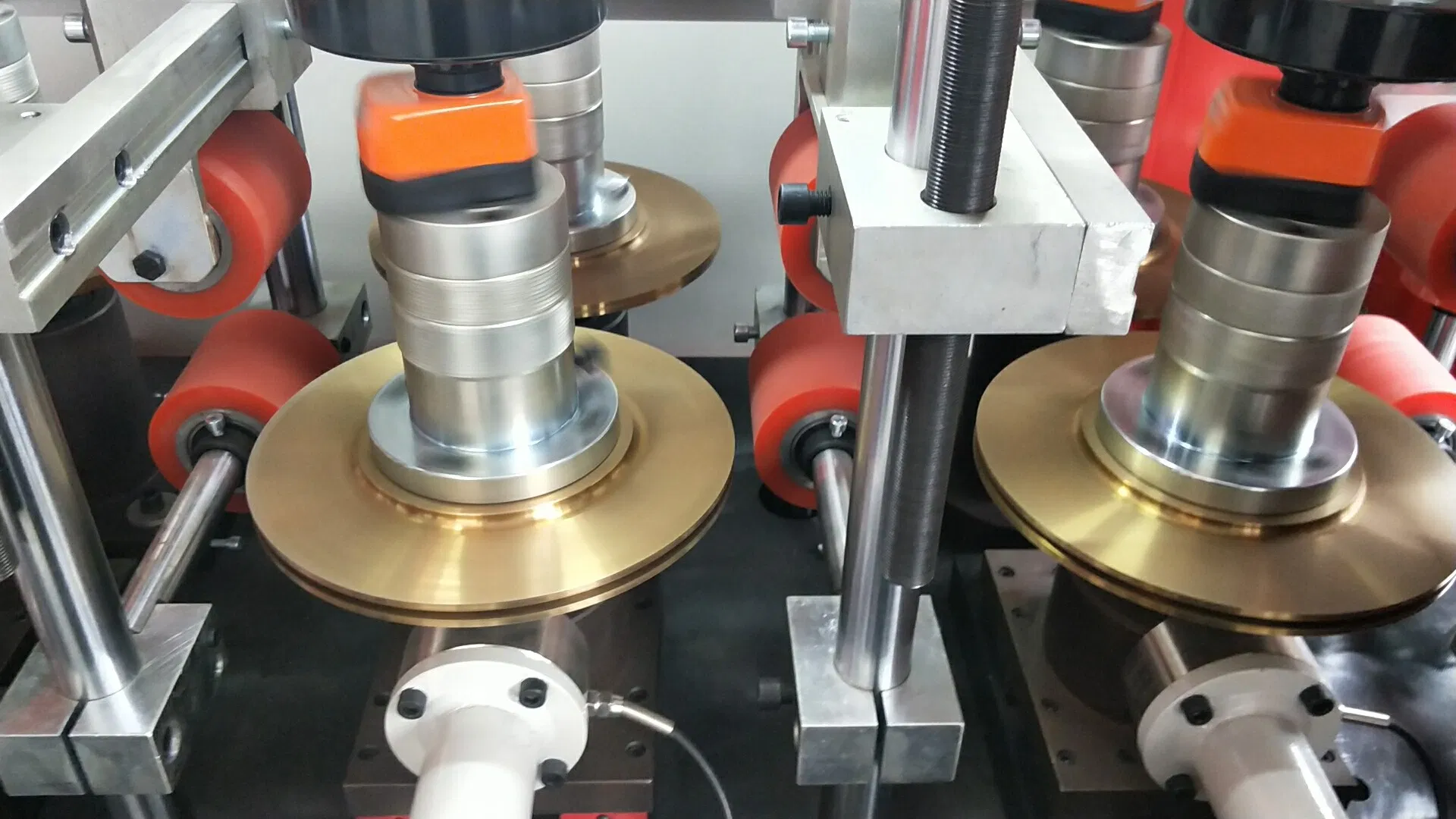

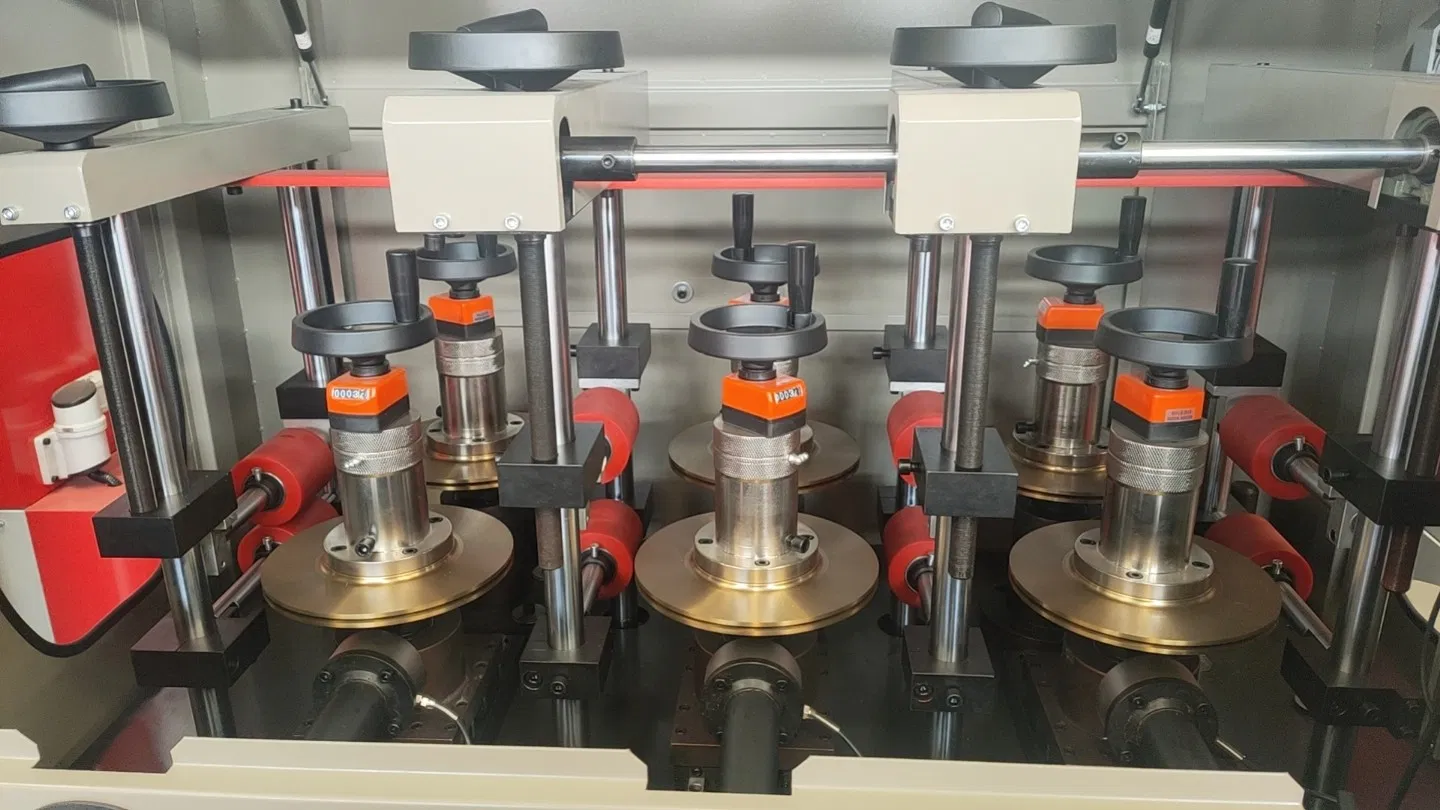

Three sets of hard rollers firmly press aluminum profiles with insulation strips to achieve a permanent, tight bond.
Key Features:
| Parameter | Specification Details |
|---|---|
| Power Supply | 380V 50Hz |
| Total Power | 11kW |
| Cutter Diameter | 230mm |
| Cutter Height Adj. Range | 8.6-100mm |
| Max Processing Size | 350mm x 200mm |
| Profile Feed Speed | 0-60m/min (Adjustable) |
| Machine Dimensions | 2500mm x 1800mm x 1900mm |
| Machine Weight | 2500kg |
As a leading manufacturer specializing in high-quality door and window machinery, we provide integrated solutions for glass processing, aluminum, and PVC window production. We are committed to providing reliable, high-performance machines with a vision to be the "Solution Expert in Processing Facilities".
OEM Capability: We have obtained qualifications for OEM production for German brands, constantly innovating to bring better quality and service to global clients.
