Zhixing Machine
Zhixing Machine
| Model NO. | SKX3+1-CNC-3000 |
| Product Name | Window Profile Milling Drilling Machine |
| Condition | New |
| Certification | CE |
| Automatic Grade | Semi-Automatic |
| CNC or Not | CNC |
| Function | Window Frame Hole Drilling Milling |
| Application | Window Door Frame Hole Making |
| Suitable Material | Aluminum PVC Window Door Profile |
| X-Axis Travel | 3000mm |
| Y-Axis Travel | 360mm |
| Z-Axis Travel | 300mm |
| Total Power | 5.75kw |
| Spindle Power | 3.5kw |
| Processing Range | 120*120mm |
| Specification | 3700*1560*2040mm |
This machine is suitable for milling, drilling and other machining operations of lightweight alloys such as 120mm×120mm aluminum profiles, industrial aluminum profiles, as well as PVC profiles, meeting various profile processing requirements.
It adopts high-precision linear motion pairs and ball screws, ensuring stable operation, high positioning accuracy and high machining precision, which effectively guarantees the processing quality of profiles.
Equipped with a high-quality high-speed variable-frequency spindle motor, it runs smoothly with low noise and strong cutting capacity. The worktable supports automatic three-sided turning, including 90° inward and outward flipping and 180° horizontal flipping, with high flexibility.

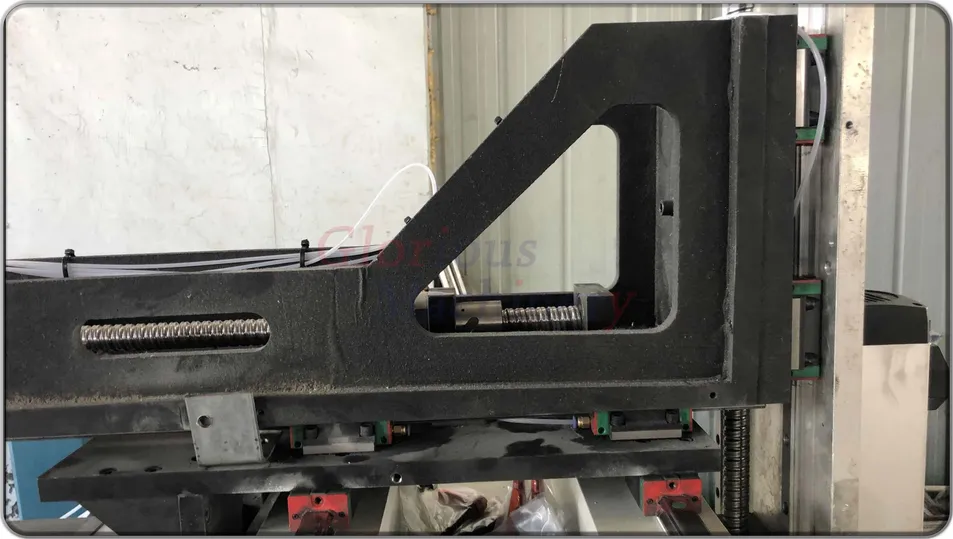

Transmission

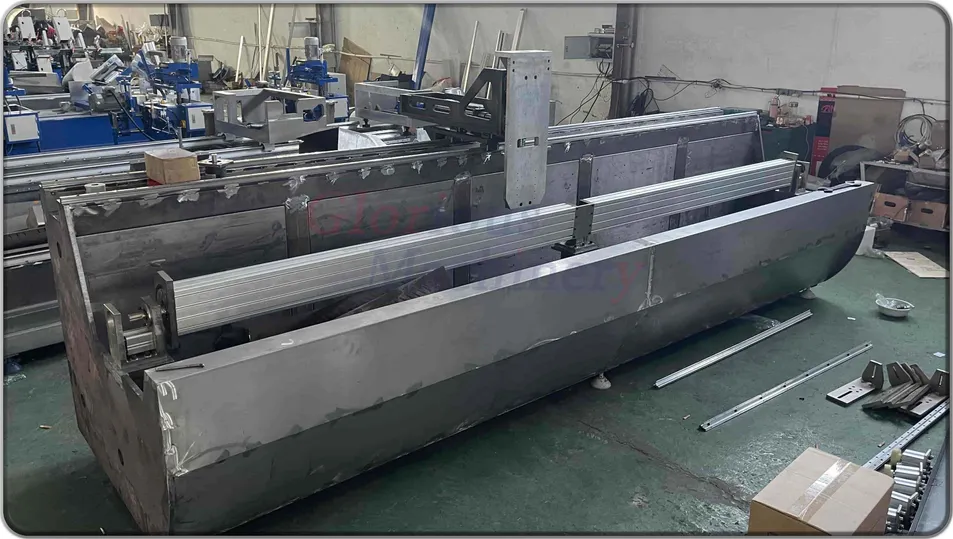

Frame

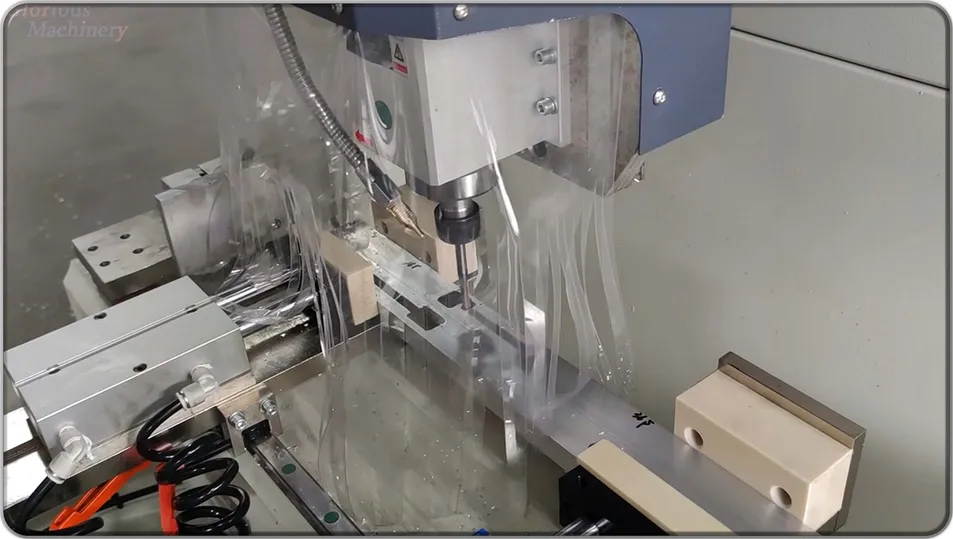

Machining

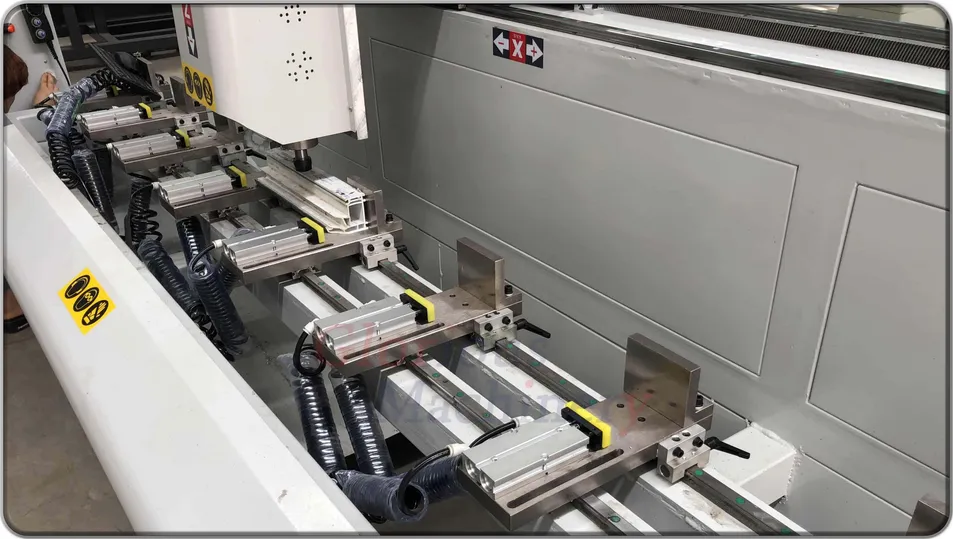

Fixture

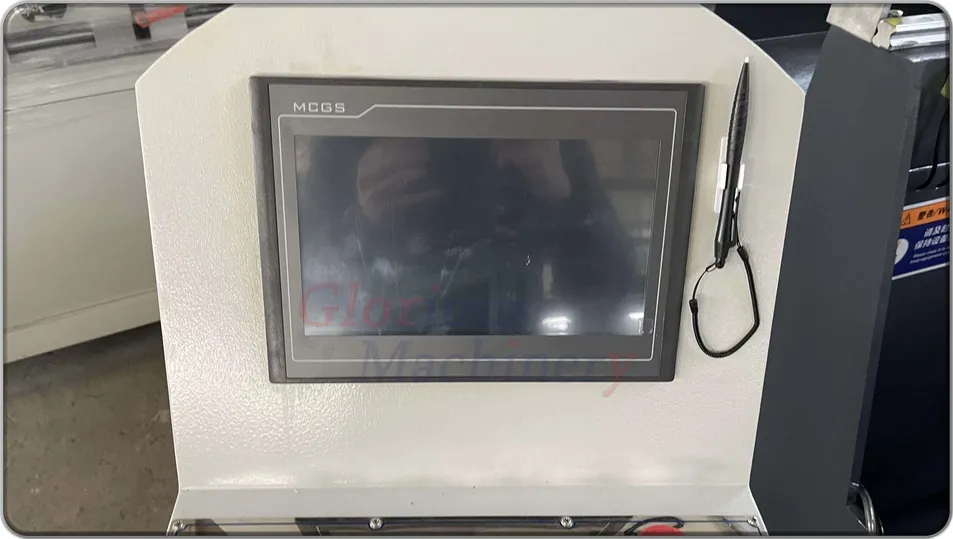

System

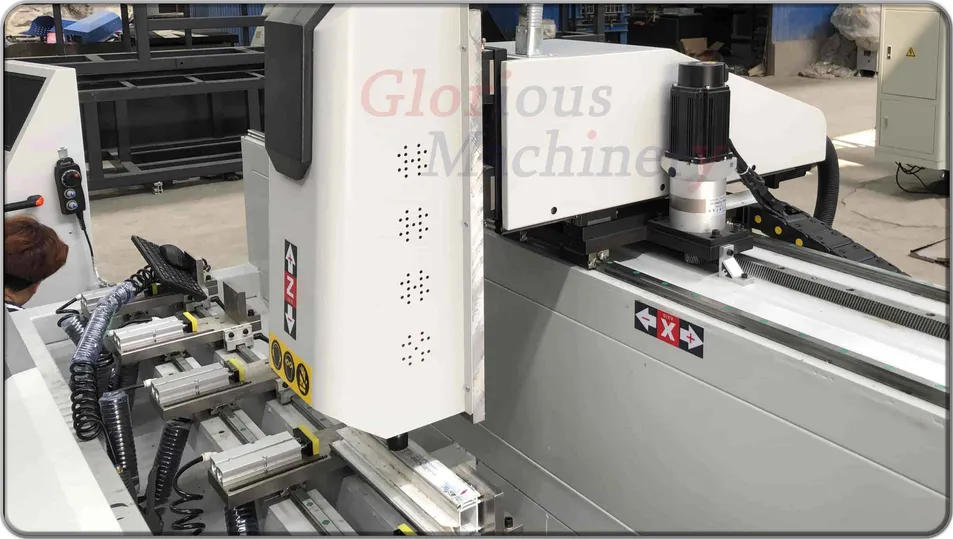

Motion
X-Axis: 3000 mm | Y-Axis: 360 mm | Z-Axis: 300 mm
Generous travel enables high-precision machining large-section profiles and complex holes in one clamping, improving efficiency and precision.
Aluminum Alloy Profiles: Suitable for aluminum windows, doors and curtain walls.
PVC/UPVC Profiles: Efficient drilling/milling plastic profiles without deformation.
Other Materials: Process wood composite, fiberglass-reinforced, and mild steel profiles.
1. Precision Cutting: Aluminum profiles are cut to exact dimensions.
2. Milling & Drilling: Functional holes, slots, and drainage points are processed.
3. Structural End Milling: Connecting ends of mullion profiles are formed for seamless integration.
4. Cleat Cutting: Metal cleats are prepared for hidden reinforcement.
5. Corner Crimping Assembly: Components are bonded into rigid 90-degree corners.
6. Finished Window Frame: The final robust window frame unit is completed.

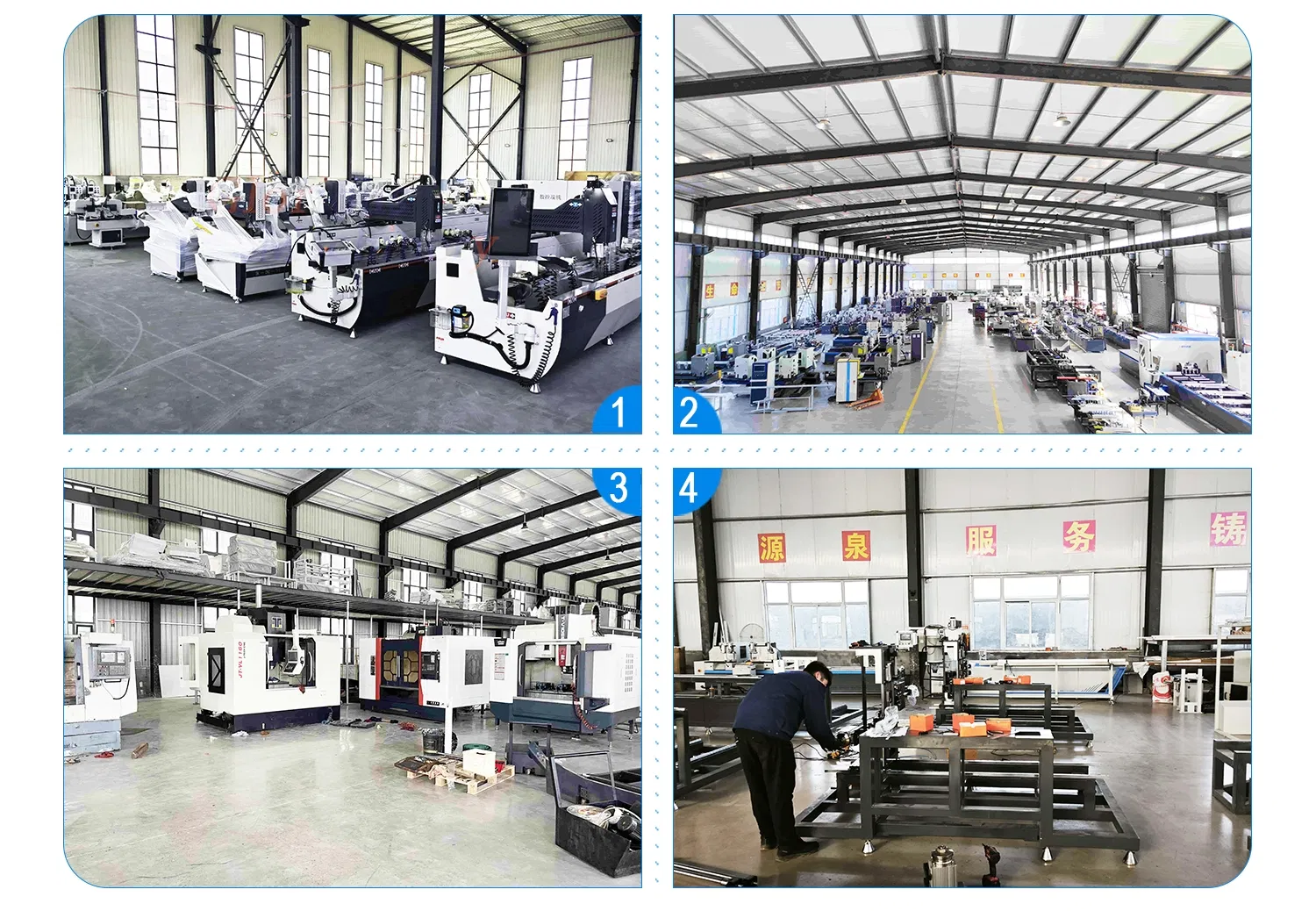

We are an innovative manufacturing enterprise with independent R&D, professional design, and large-scale production capabilities. We focus on the R&D, production, and sales of high-end aluminum & PVC window and door processing equipment, committed to providing global customers with practical and reliable mechanical solutions. Our equipment has been successfully exported to many countries including the United States, Canada, Russia, India, and Malaysia.
