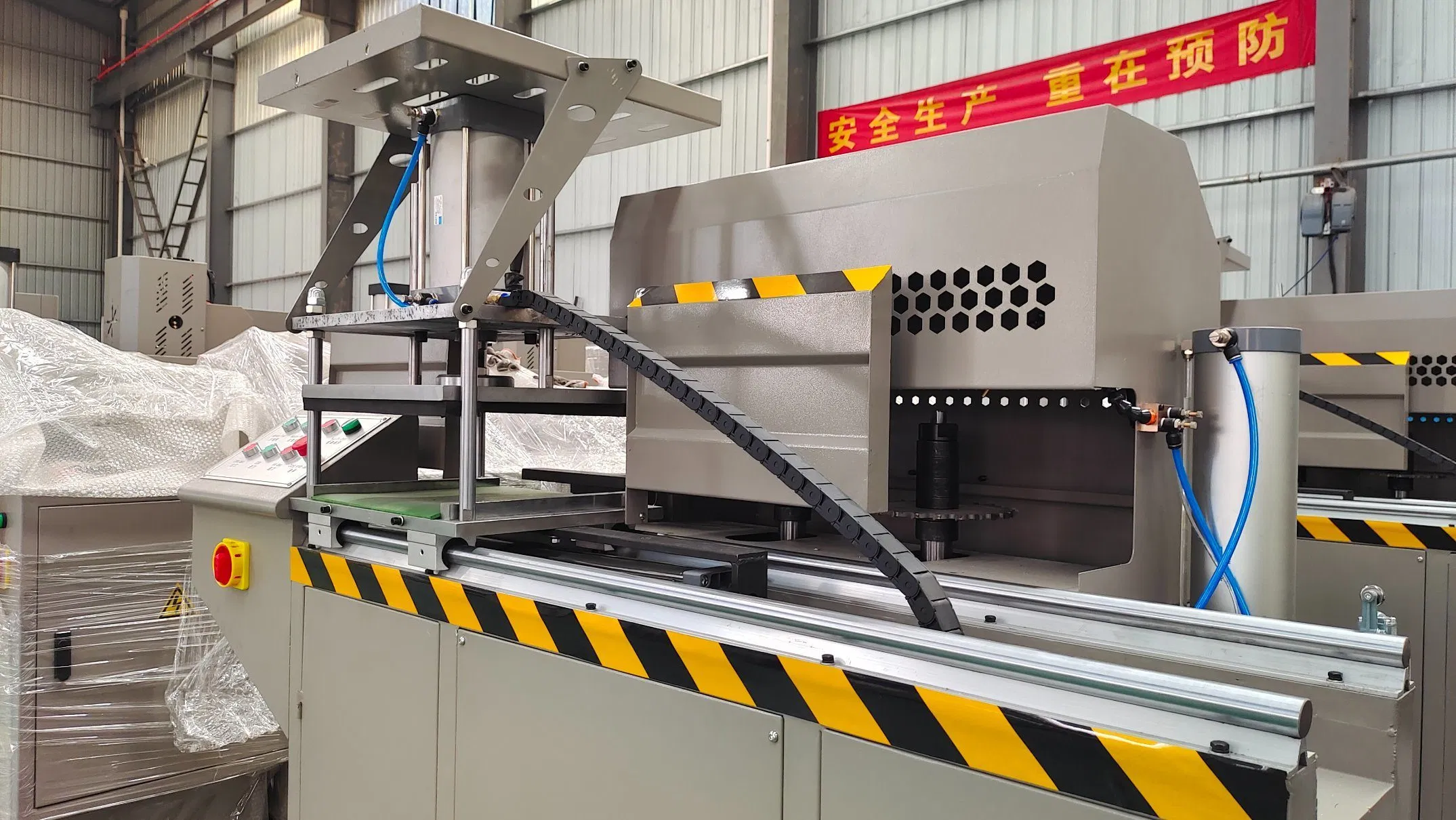

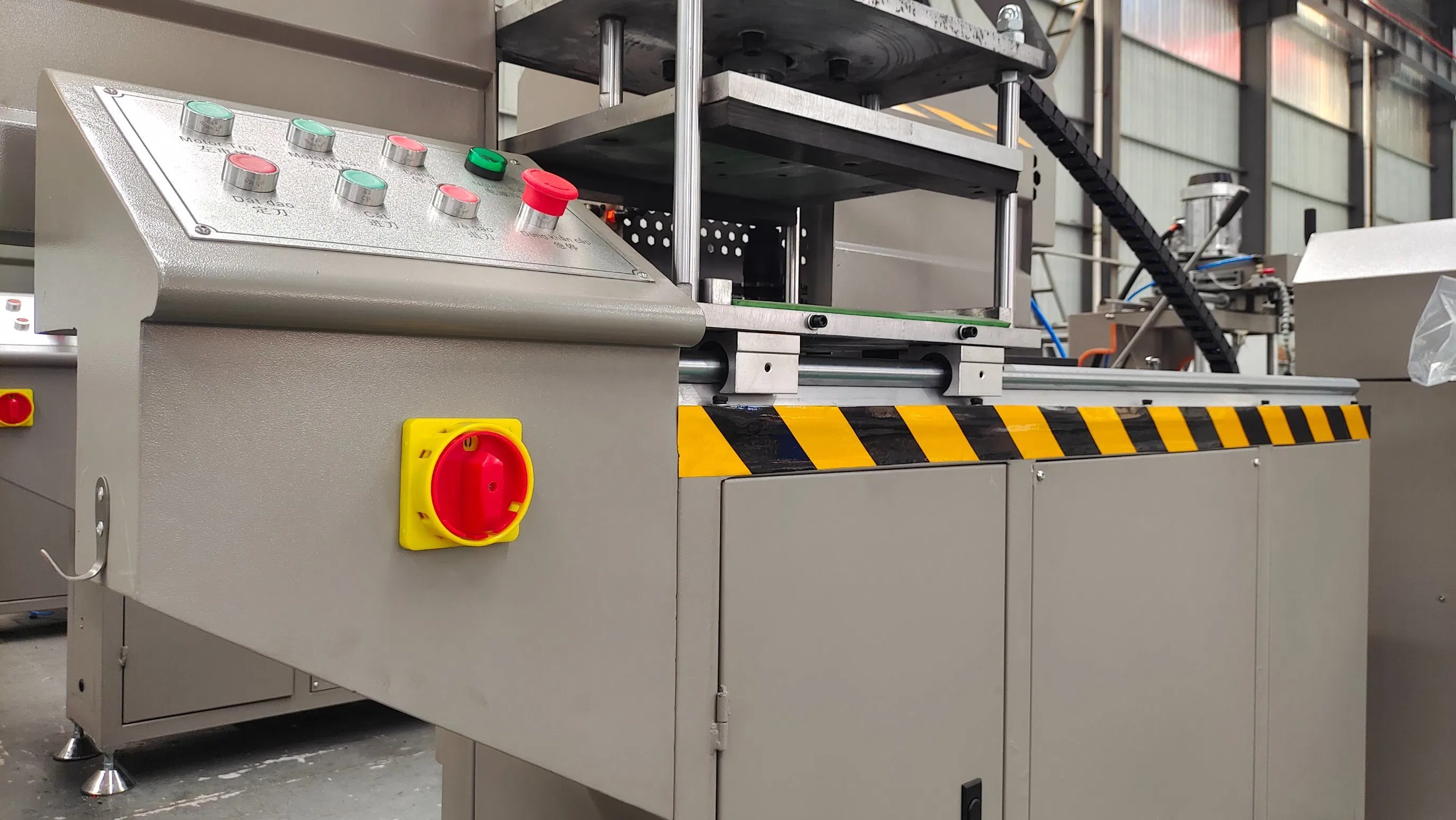

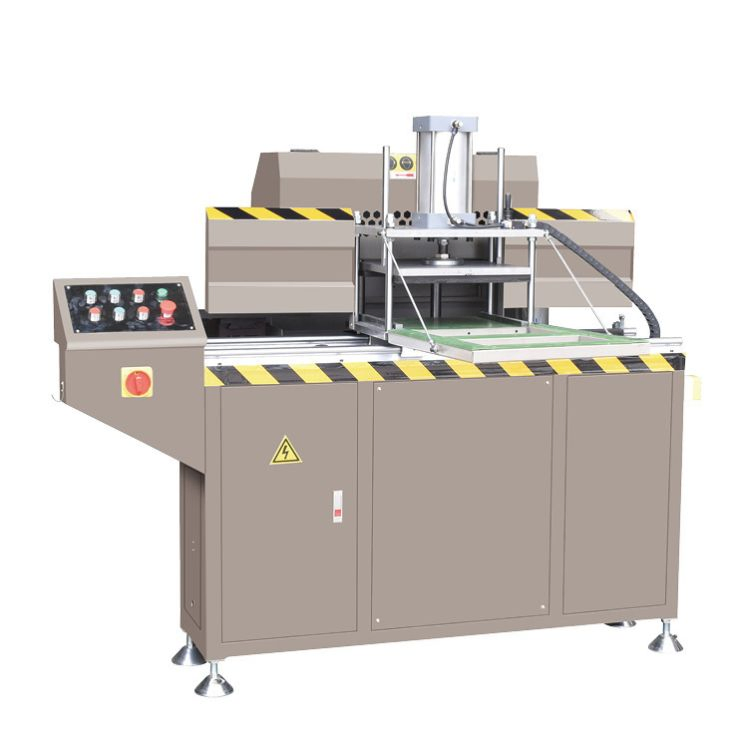

High Speed Window Structure Milling Machine Auto End-Milling Machine for Aluminum Profile Mullion
High Speed Window Structure Milling Machine Auto End-Milling Machine for Aluminum Profile Mullion
High Speed Window Structure Milling Machine Auto End-Milling Machine for Aluminum Profile Mullion
High Speed Window Structure Milling Machine Auto End-Milling Machine for Aluminum Profile Mullion
High Speed Window Structure Milling Machine Auto End-Milling Machine for Aluminum Profile Mullion
1 / 5
High Speed Window Structure Milling Machine Auto End-Milling Machine for Aluminum Profile Mullion
High Speed Window Structure Milling Machine Auto End-Milling Machine for Aluminum Profile Mullion
High Speed Window Structure Milling Machine Auto End-Milling Machine for Aluminum Profile Mullion
High Speed Window Structure Milling Machine Auto End-Milling Machine for Aluminum Profile Mullion
High Speed Window Structure Milling Machine Auto End-Milling Machine for Aluminum Profile Mullion

High Speed Window Structure Milling Machine Auto End-Milling Machine for Aluminum Profile Mullion

Customization: Available
After-sales Service: One Year
Warranty: Lifttime Warranty
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
WDDX06-200Z
Condition
New
Certification
ISO, CE, SGS
Automatic Grade
Semi-Automatic
Voltage
380V
Input Power
2*2.2kw
Rotating Speed
2840r/Min
Air Pressure
0.5~0.8MPa
Cutter Diameter
160-200mm
Milling Height
120mm
Clamping Width
330mm
Dimension
1050*660*1350mm
⚙️

Product Description

High Speed Window Structure Milling Machine

High Speed Auto End-Milling Machine for Aluminum Profile Mullion

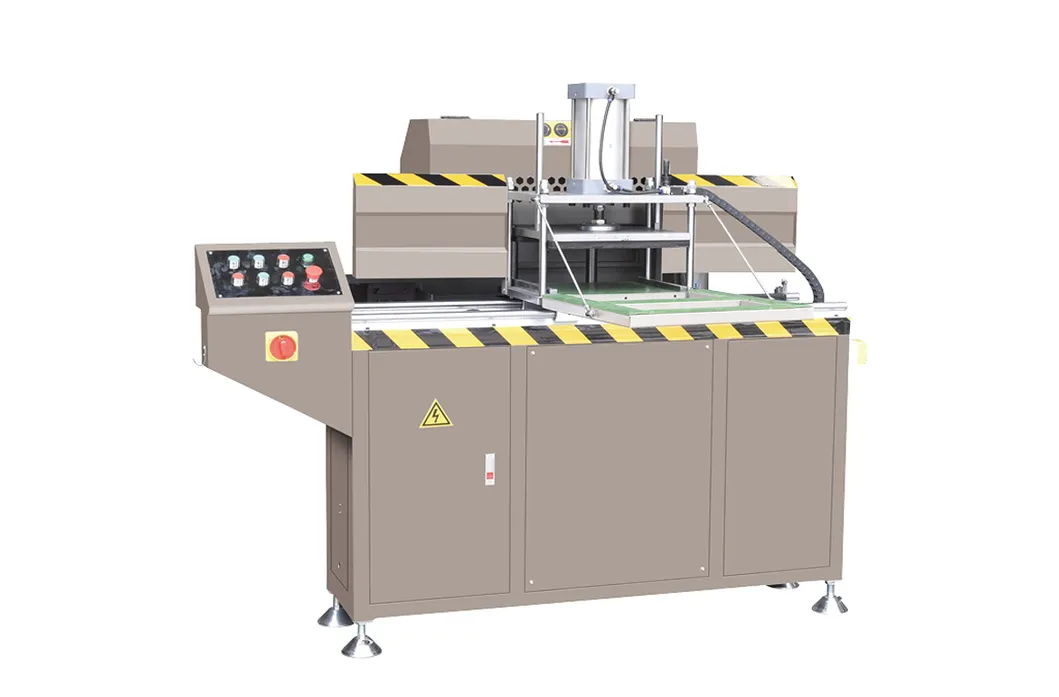

Milling Machine Detail 1 Milling Machine Detail 2 Milling Machine Detail 3
🌟

Key Features

01

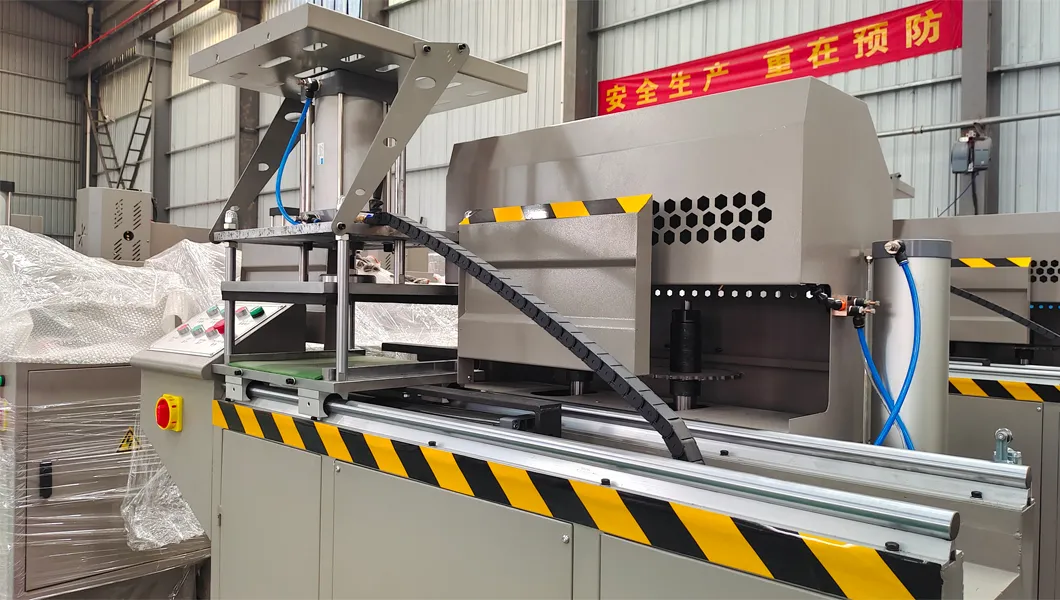

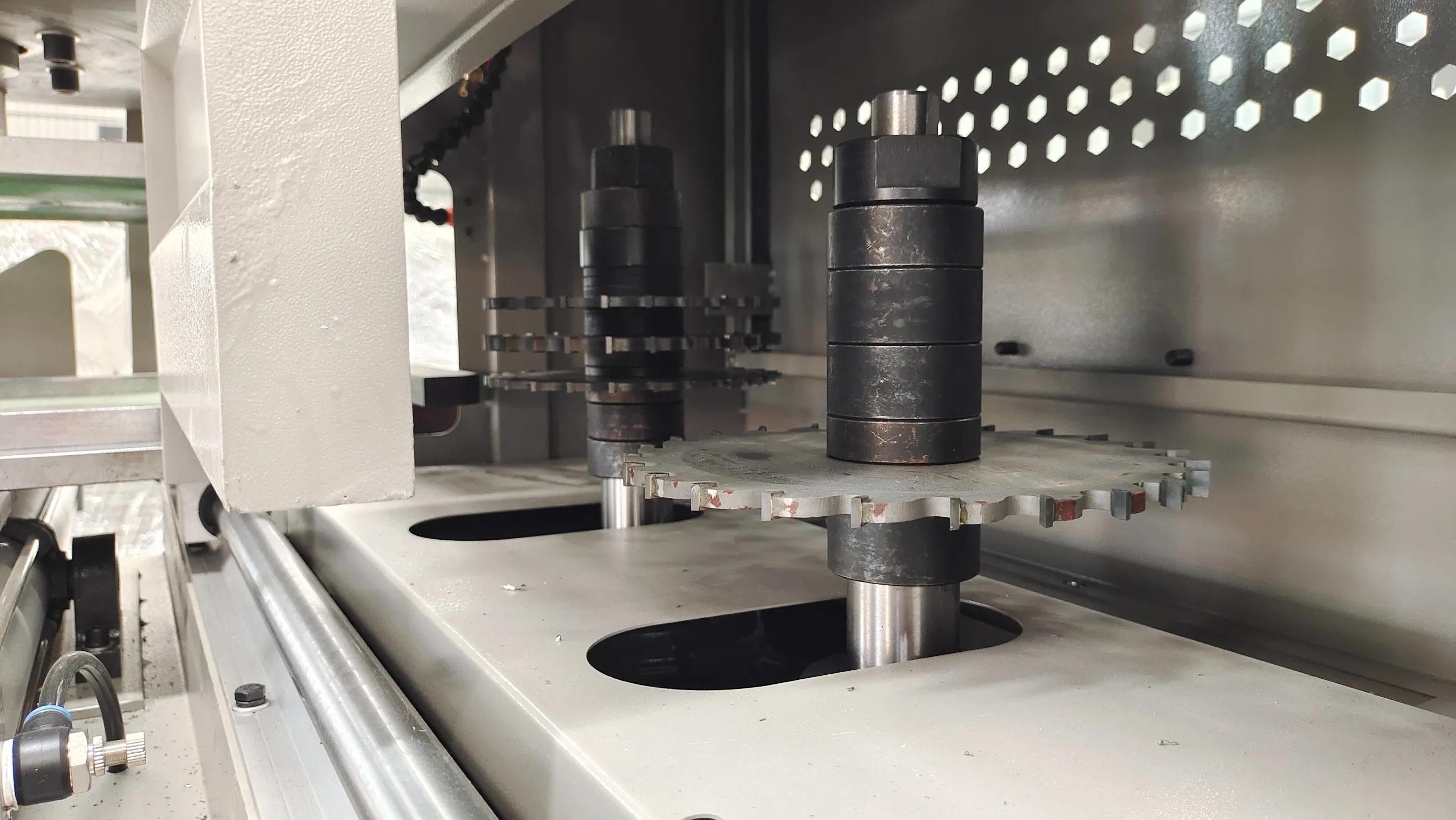

It is the first to create the structure of the interaction between the two tool axes, which does not require customized blades, making the milling and tenon processing simple and easy.
Feature 1
02

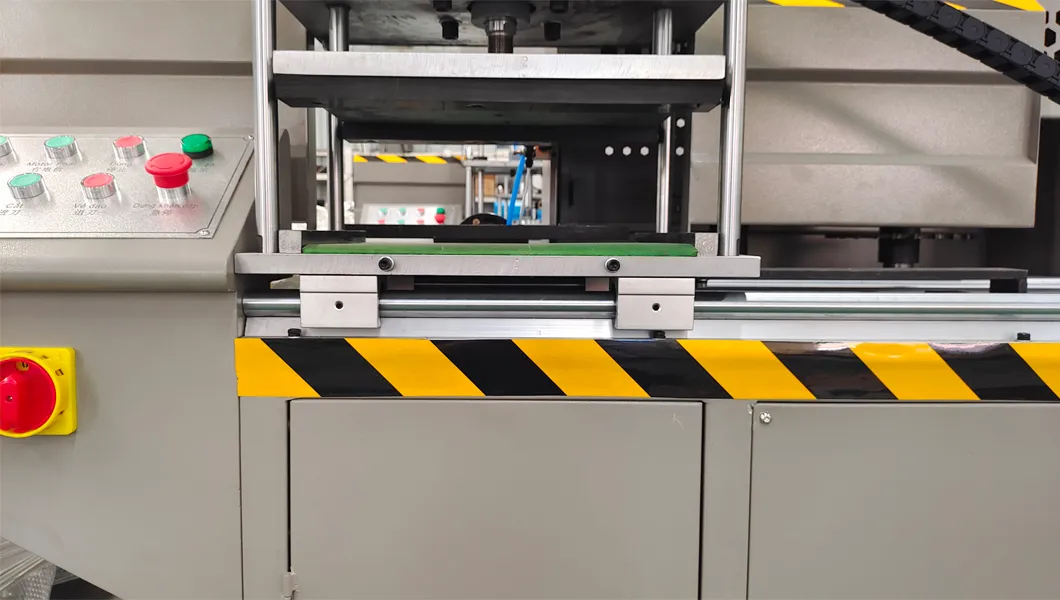

The pneumatic atomization cooling system makes the milling and tenon processing better and the tool more durable.
Feature 2
03

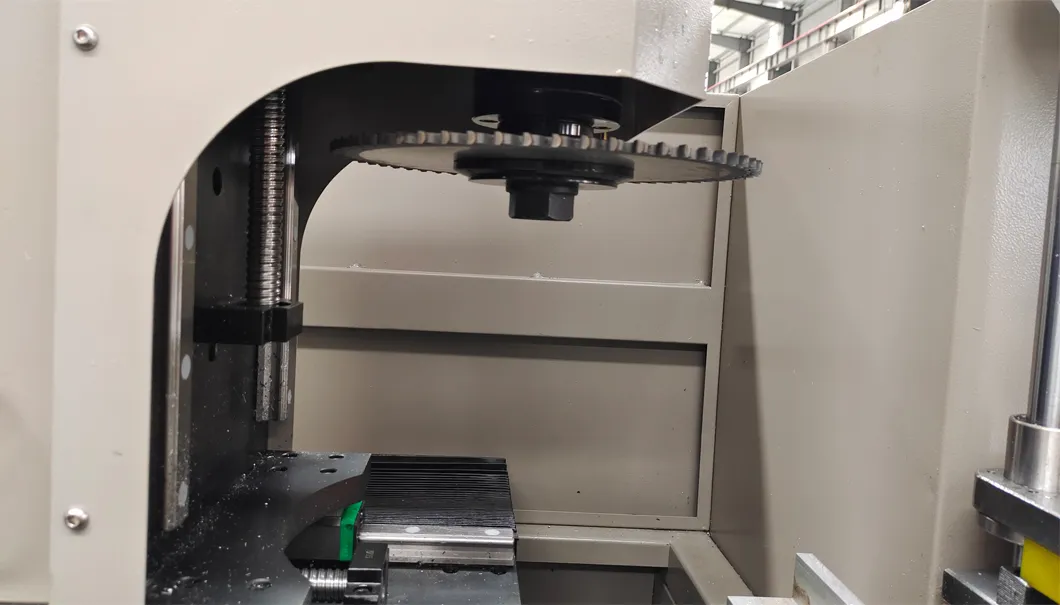

The speed of the tool can be adjusted up and down, left and right to adapt to the processing of different shapes and sizes.
Feature 3
04

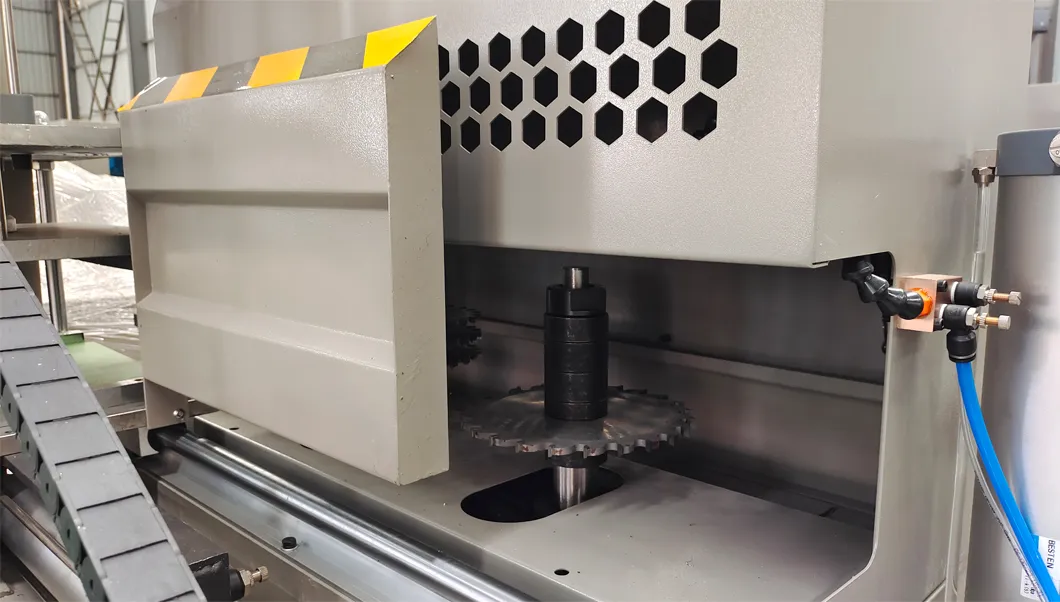

The tool shaft and bearing seat are processed by precision technology, so that the tool shaft rotates more smoothly, and the noise and vibration are far lower than other models.
Feature 4
📊

Technical Parameters

Power Supply 380V/3Phase/50Hz Input Power 2×2.2KW
Rotating Speed 2840r/min Air Pressure 0.5~0.8Mpa
Cutter Diameter Φ160-Φ200mm Max Milling Height 120mm
Clamping Width 330mm Overall Dimension 1050*660*1350mm

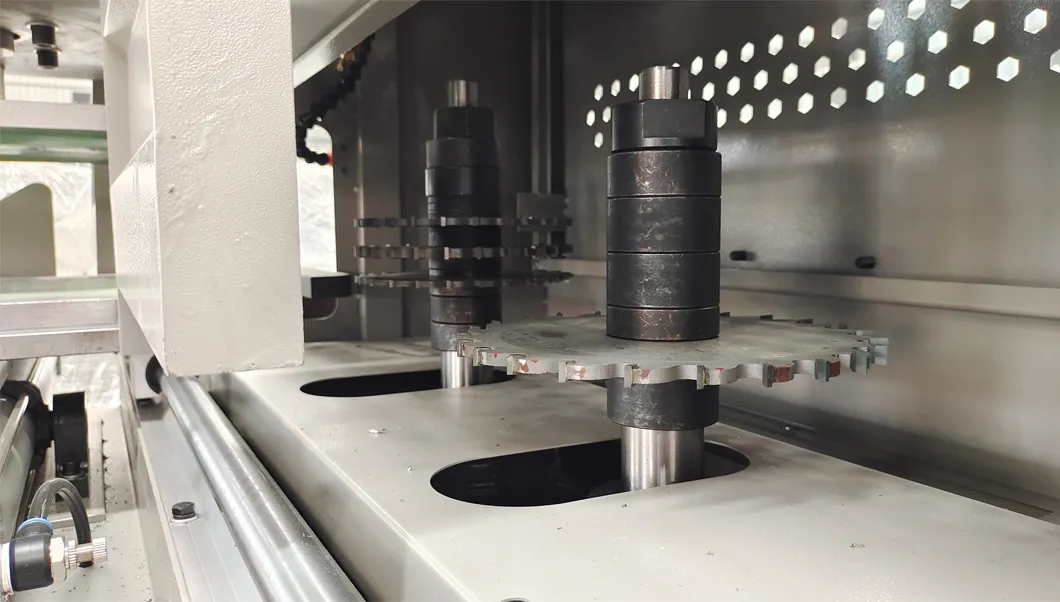

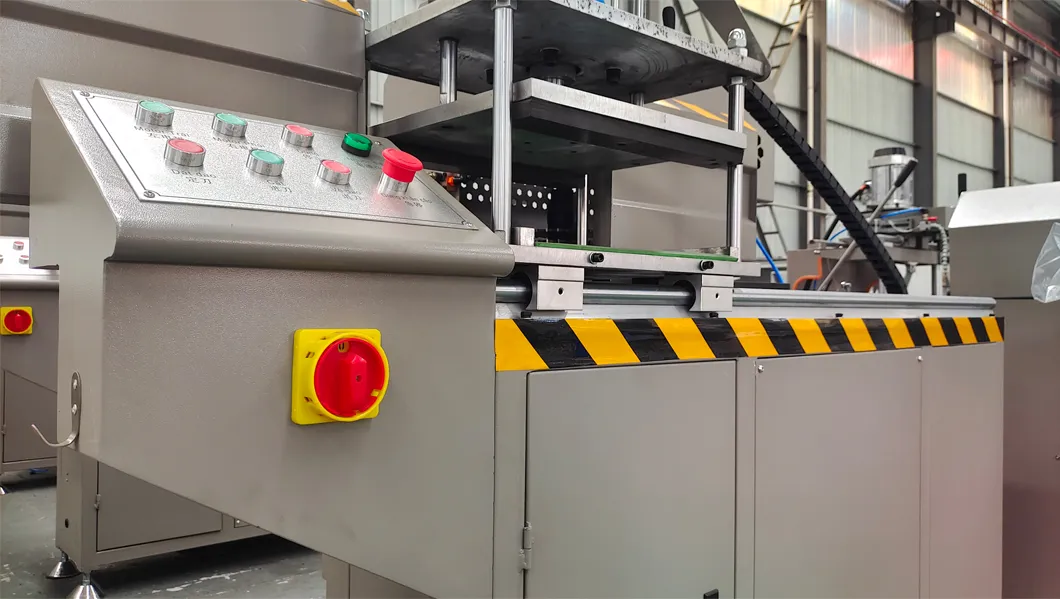

Param Image 1 Param Image 2 Param Image 3
📦

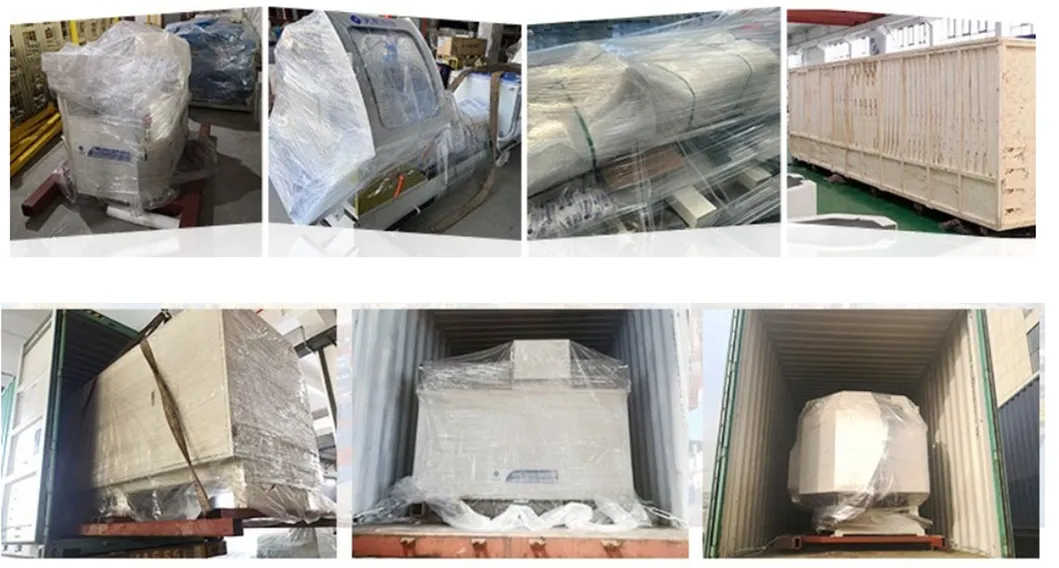

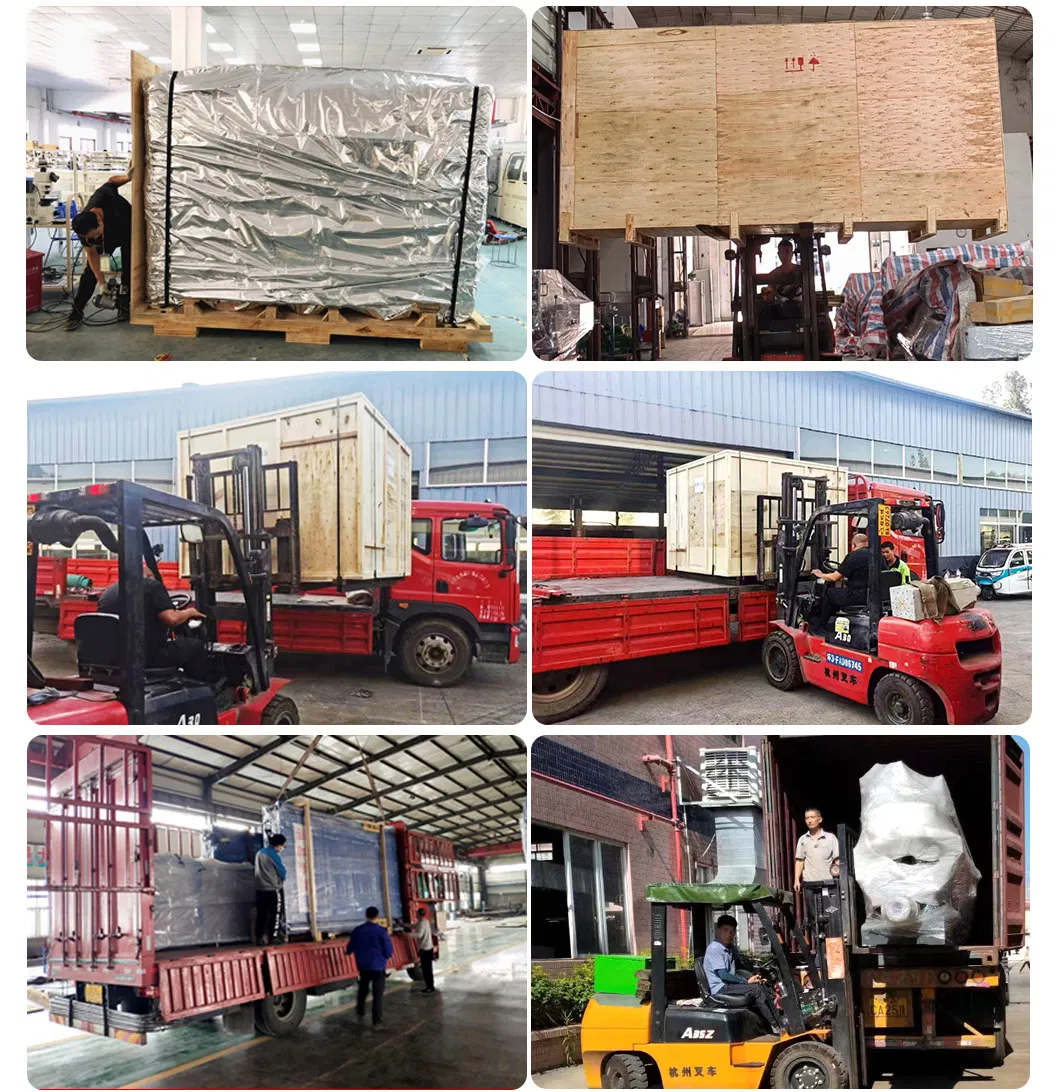

Package and Transport

Packaging Transport
🏢

Professional Profile

We are a domestic professional high-tech enterprise specialized in glass and aluminum machinery. With a core team of experienced professionals and independent research and development capabilities, we provide modern industrial solutions for glass cutting, edging, washing, and tempering.

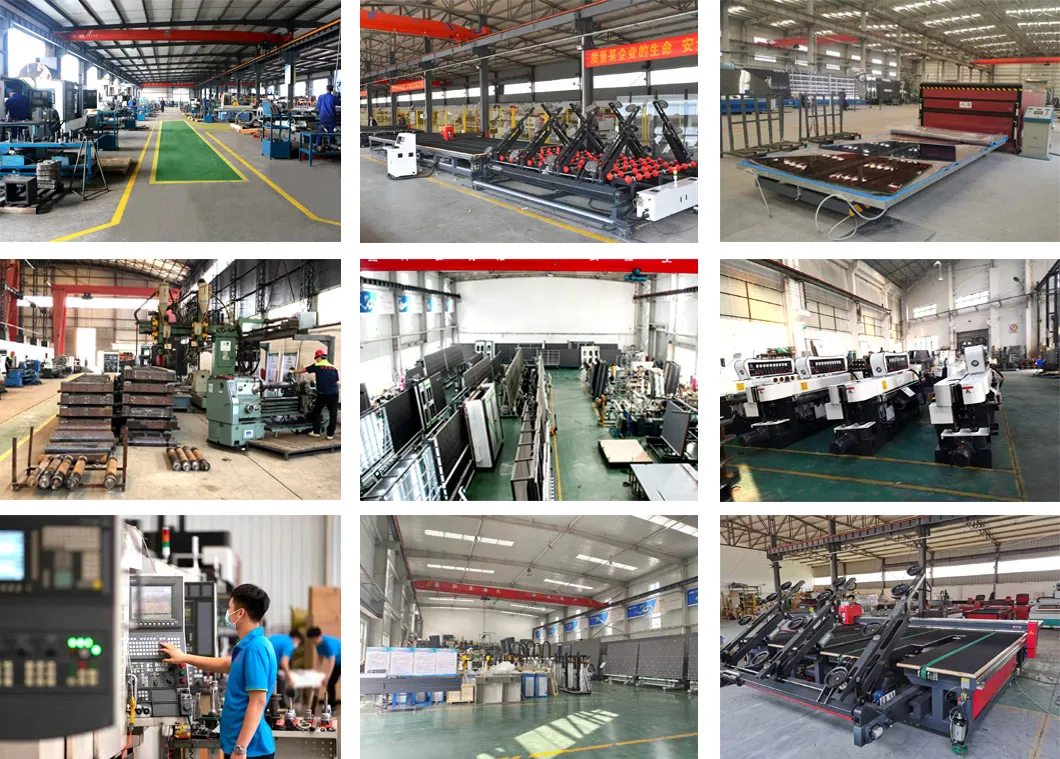

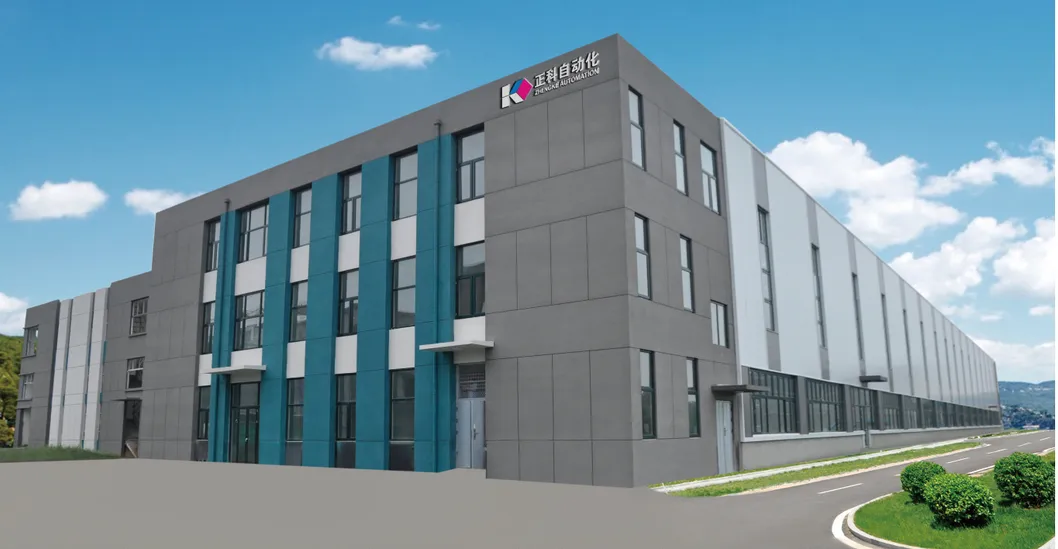

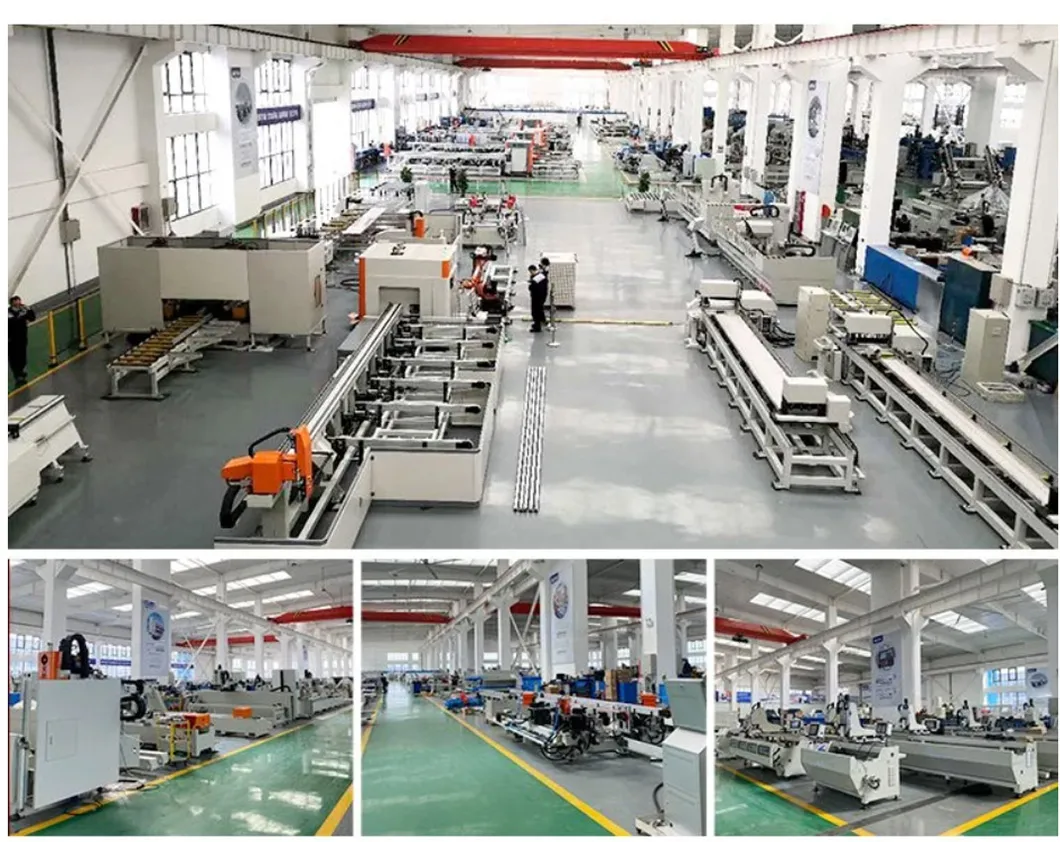

Factory View 1 Factory View 2
💎

Our Advantages

1. Professional glass and aluminum production solutions.
2. Professional online service team with 24-hour response.
3. Strong technical team providing wholehearted service.
4. Quality-first manufacturing philosophy.
5. OEM & ODM support for customized design and branding.
6. Advanced equipment and strict quality testing systems.
7. Competitive factory-direct pricing with no middleman.
8. Reliable delivery times via professional management.
Quality Control Certificate
❓

Frequently Asked Questions

Q1: Does this milling machine require customized blades?
No, the machine features a unique interaction structure between the two tool axes that eliminates the need for customized blades, making processing simple.
Q2: What materials can be processed with this machine?
It is specifically designed for high-speed end-milling of aluminum profiles and mullions used in window and door structures.
Q3: How does the cooling system work?
The machine uses a pneumatic atomization cooling system which protects the tools and ensures a high-quality finish on the processed materials.
Q4: What are the power requirements?
The standard power supply requirement is 380V/3Phase/50Hz with an input power of 2×2.2KW.
Q5: Can the tool position be adjusted?
Yes, the speed and position (up/down, left/right) can be adjusted to adapt to different shapes and sizes of profiles.
Q6: What is the maximum processing capacity?
The machine allows for a maximum milling height of 120mm and a maximum clamping width of 330mm per cycle.
