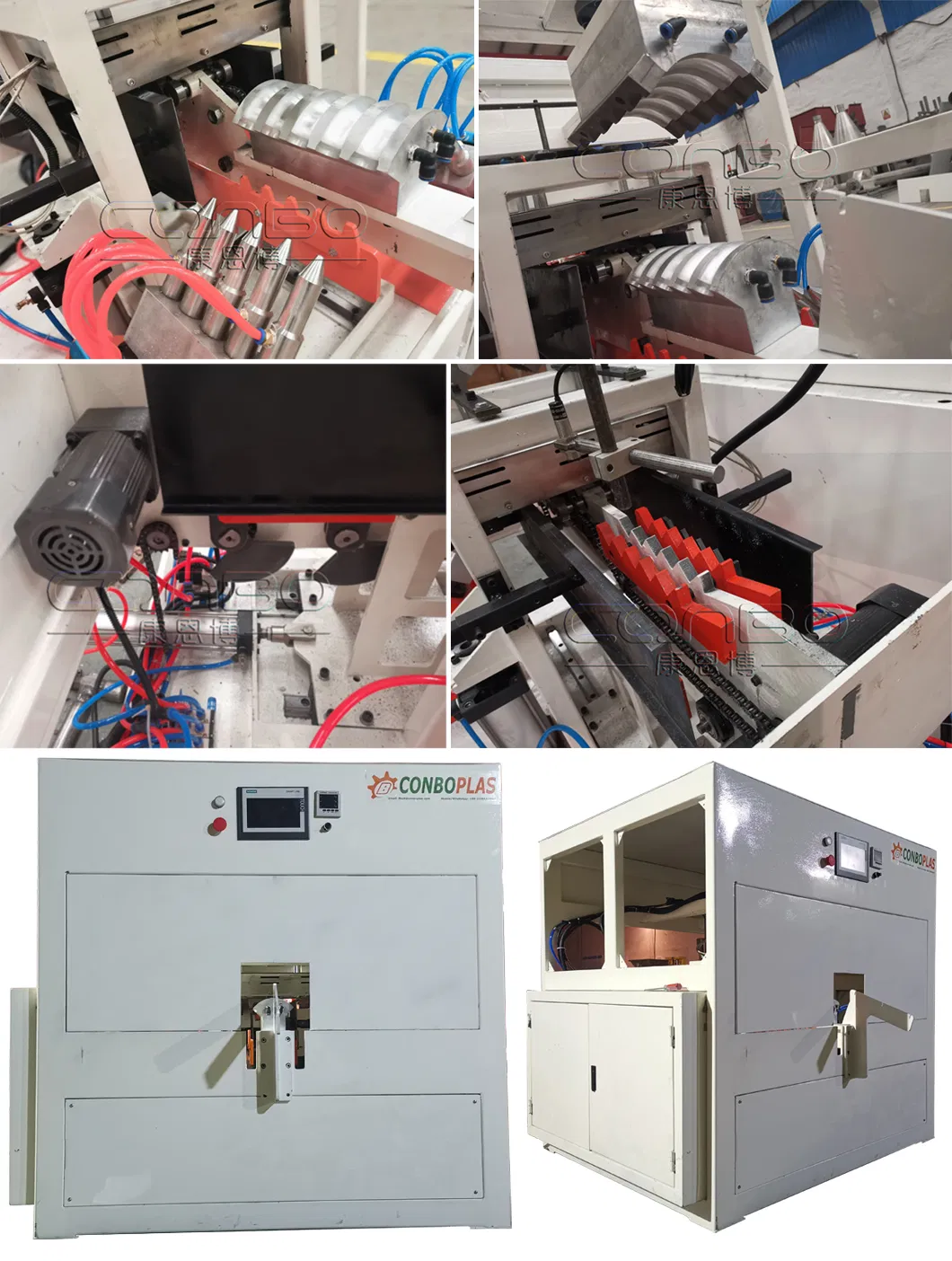

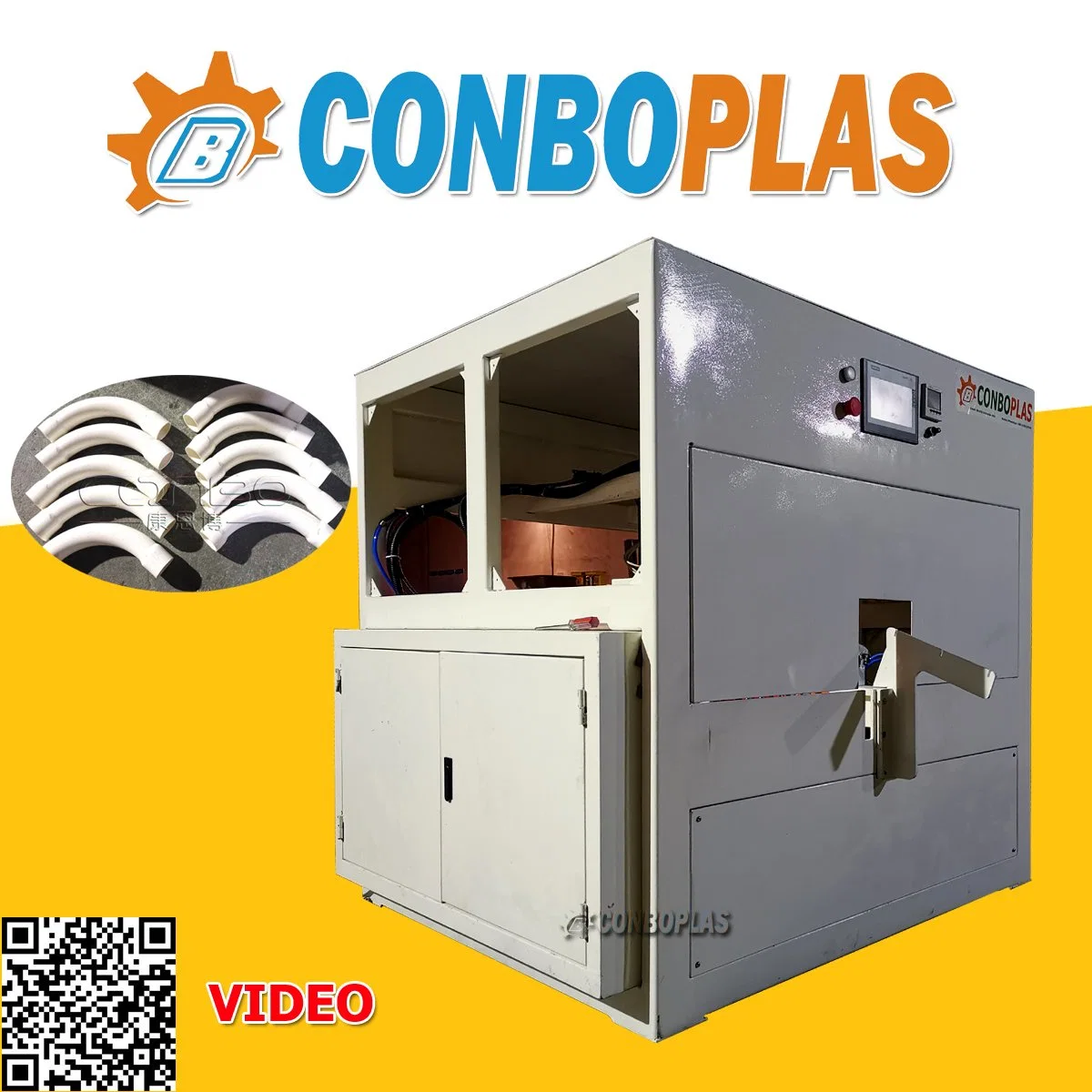

High performance advanced 20/25/32mm Plastic Pipe Elbow Making Machine / UPVC PVC Pipe Tube Curve Bending Machine

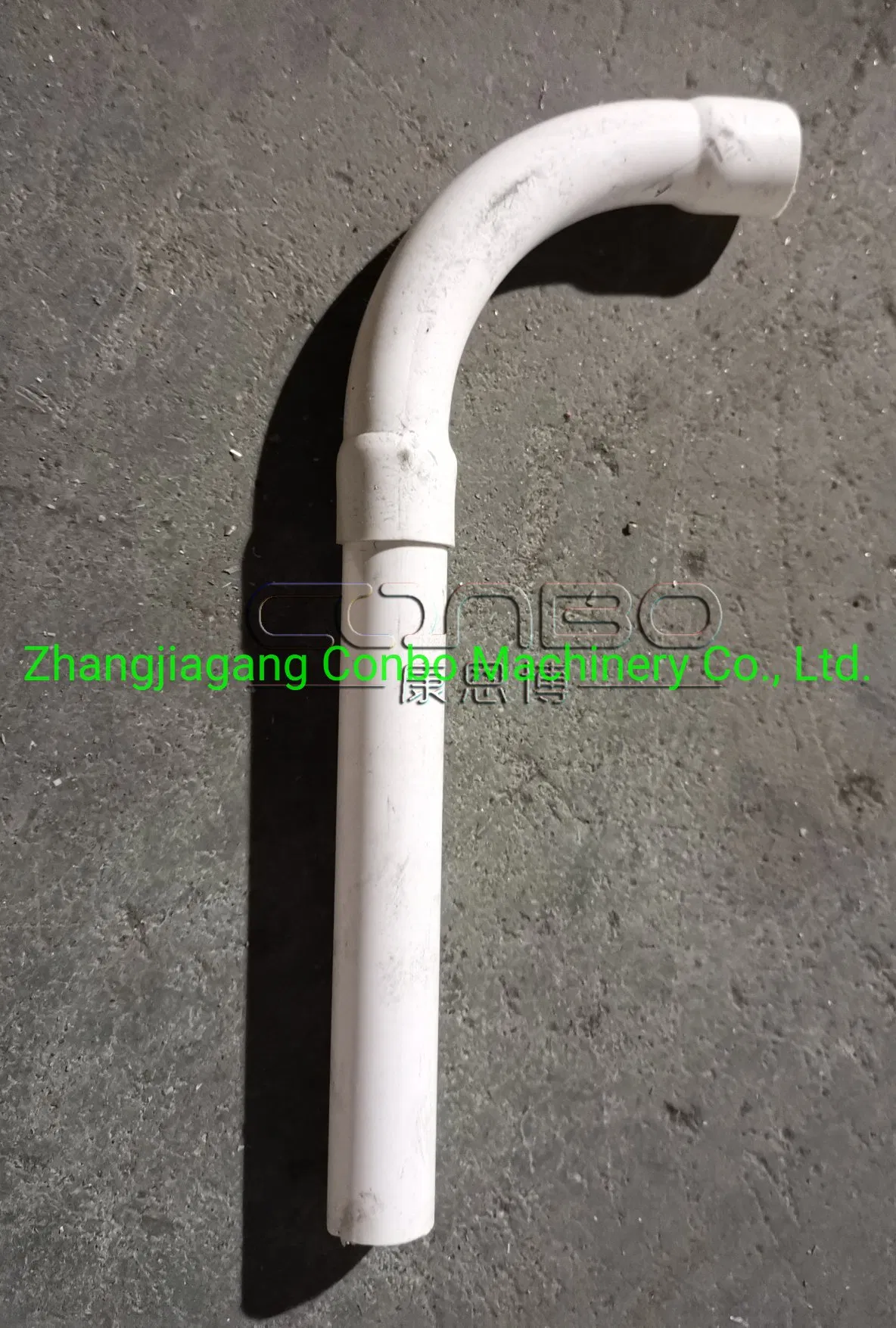

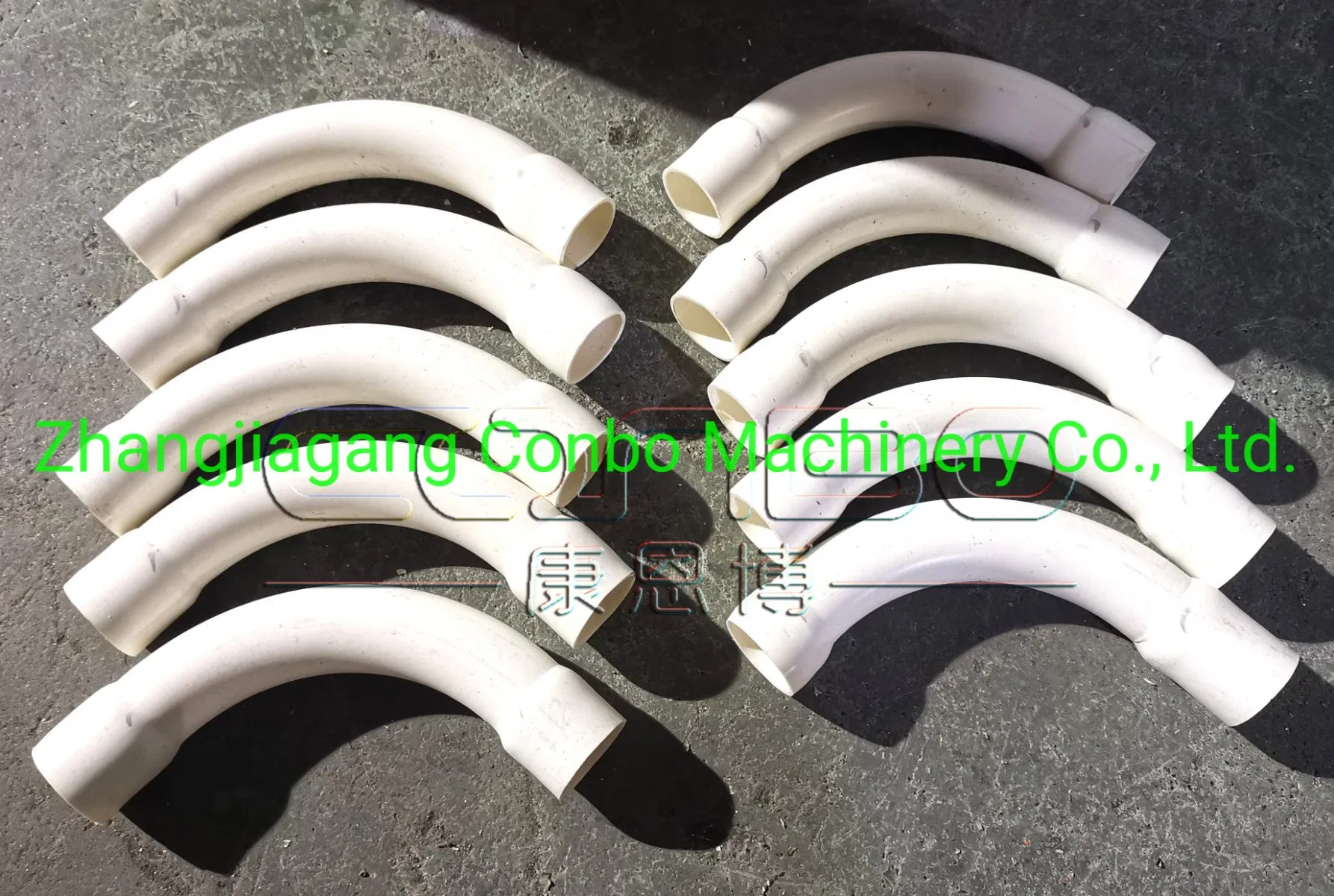

The CB32 PVC Pipe Bending Machine is specifically designed for PVC pipes requiring bending and socketing. Capable of creating precise 90-degree bends, this machine operates as a standalone unit after pipes have been cut to length. It is widely recognized for its ease of operation and high efficiency in processing pipes with OD 20mm, 25mm, and 32mm.
| Category | Feature | Details |
|---|---|---|
| Pipe Standards | Standard | U-PVC1002.1-2006 (or as request) |
| Diameter | OD 20/25/32mm | |
| Model | CB32 | |
| Heating System | Heating Mode | Infrared heating |
| Heating Time | 15 Seconds | |
| Heating Power | 7.5kw * 2 | |
| Performance | OD 20mm Speed | Approx. 620 pcs/hour |
| OD 25mm Speed | Approx. 600 pcs/hour | |
| Dimensions | Overall Size | 1640 x 1450 x 1400mm |
| Weight | 1000 kgs |
| Component | Brand Origin |
|---|---|
| PLC Control System | SIEMENS |
| Touch Screen (HMI) | SIEMENS |
| A/C Contactor / Circuit Breaker | SIEMENS |
| Intermediate Relay | OMRON |
| Pneumatic Cylinder / Valves | AirTac |
| Sensors (Photoelectric/Proximity) | AUTONICS |

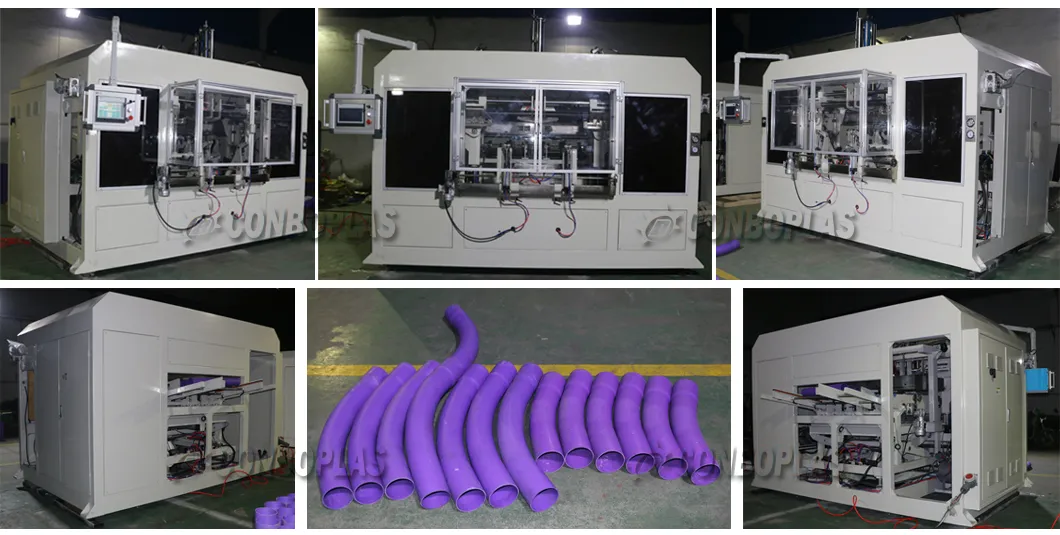

FULLY-AUTOMATIC SYSTEM OPTIONS AVAILABLE

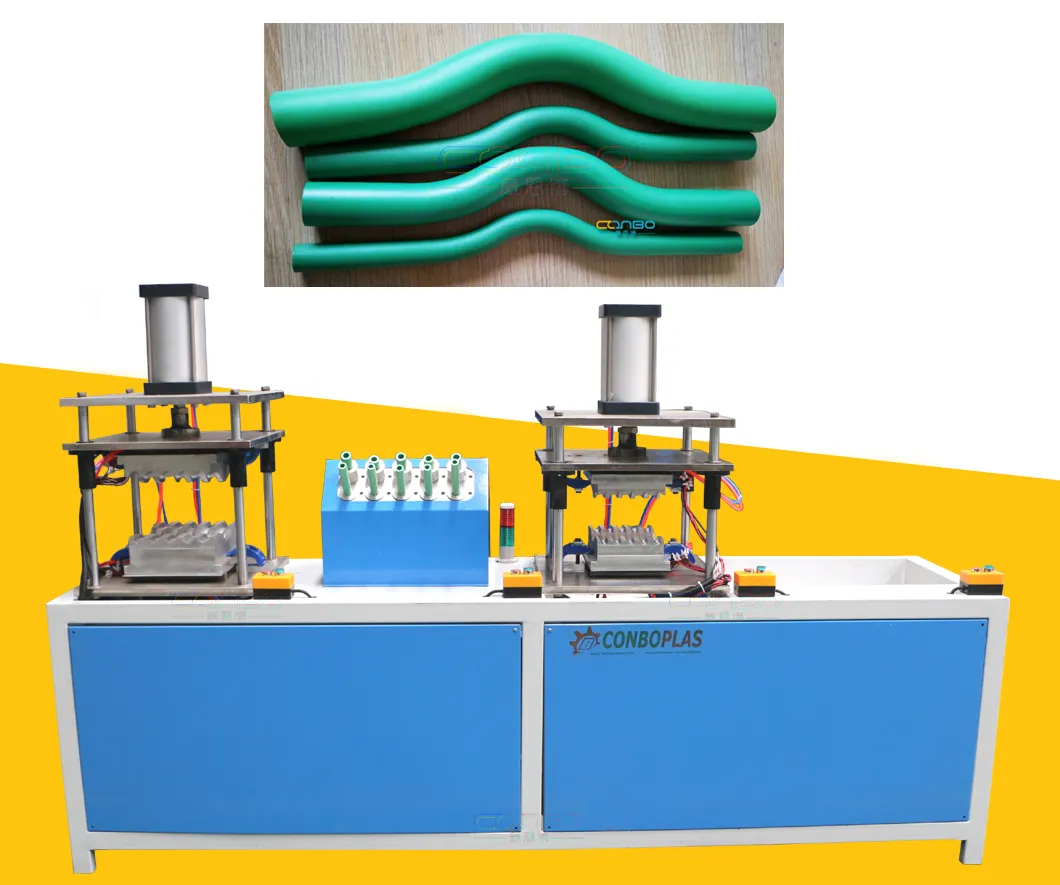

PPR Pipe Bender

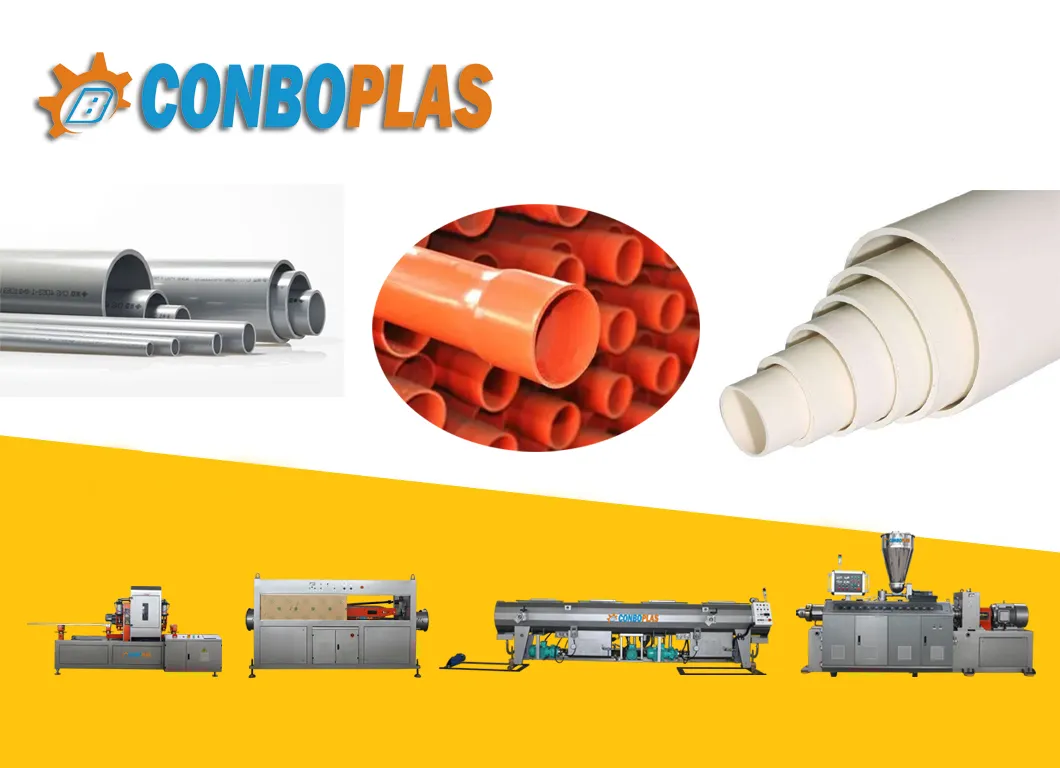

PVC Water/Drainage Line

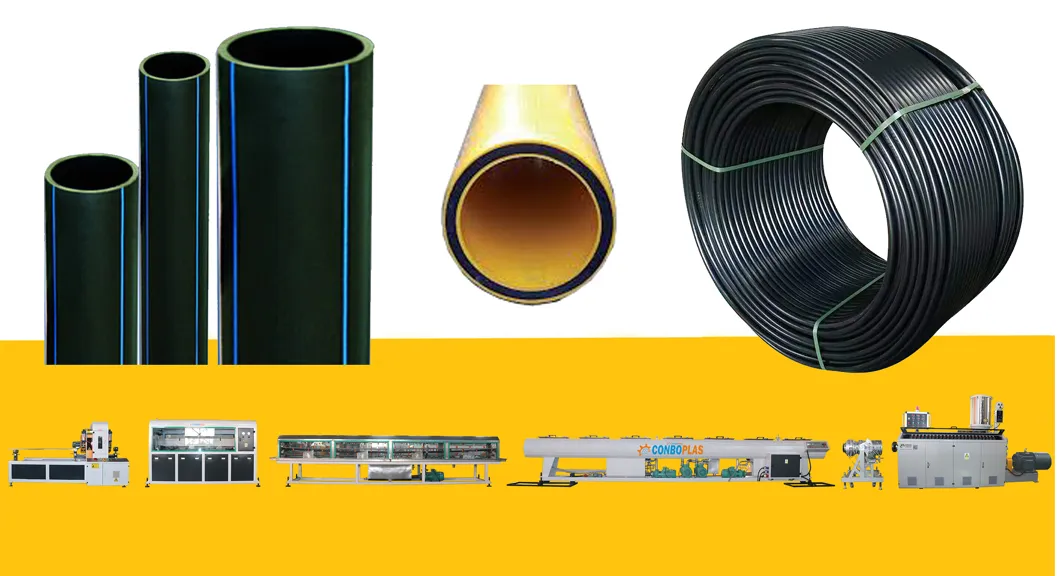

HDPE/LDPE Pipe Line

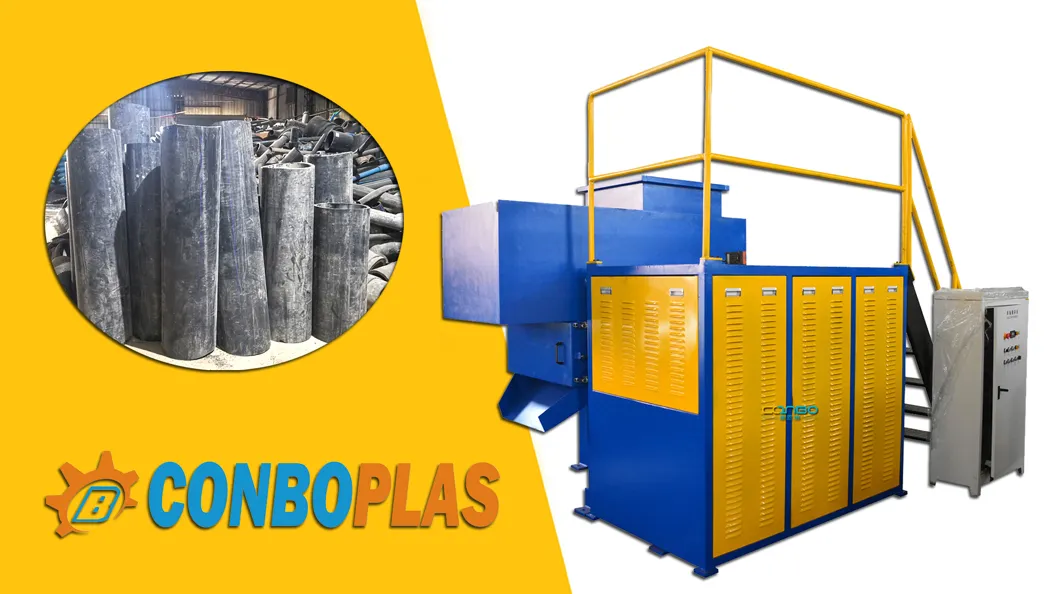

Large Pipe Shredder

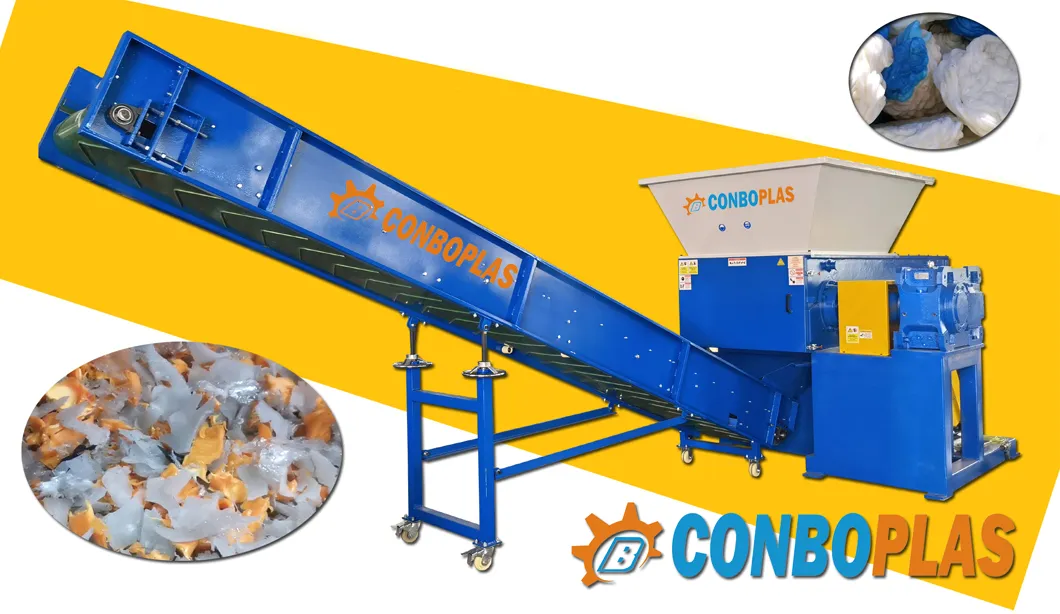

Plastic Lumps Shredder
Industrial Crusher
