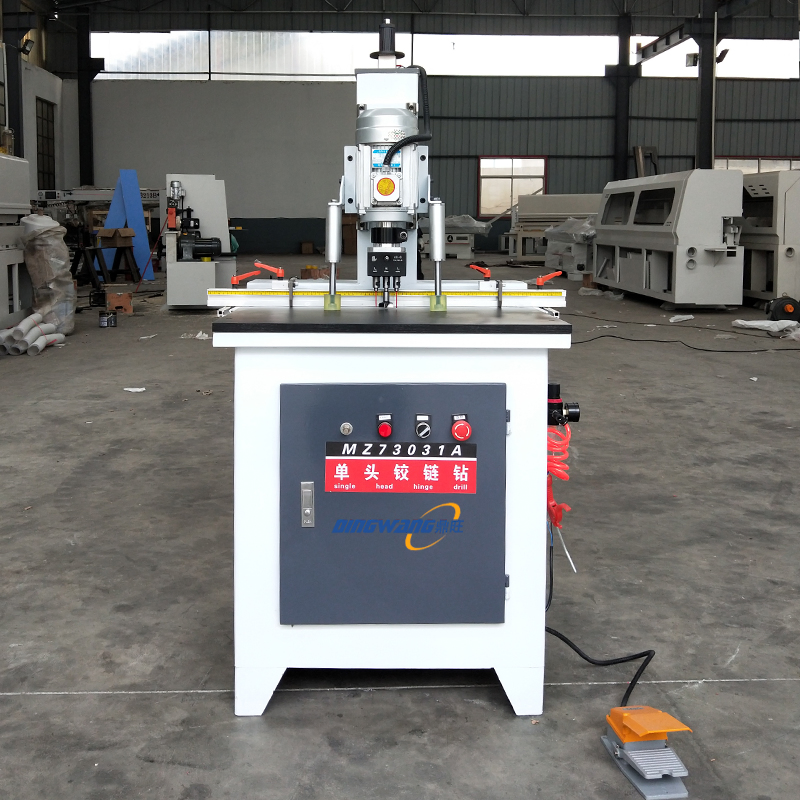

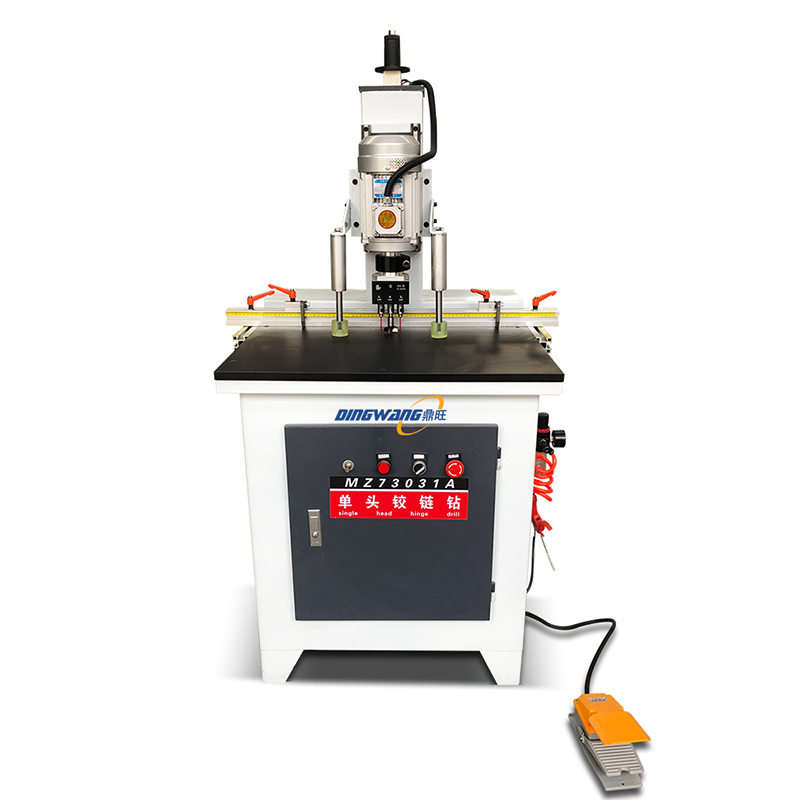

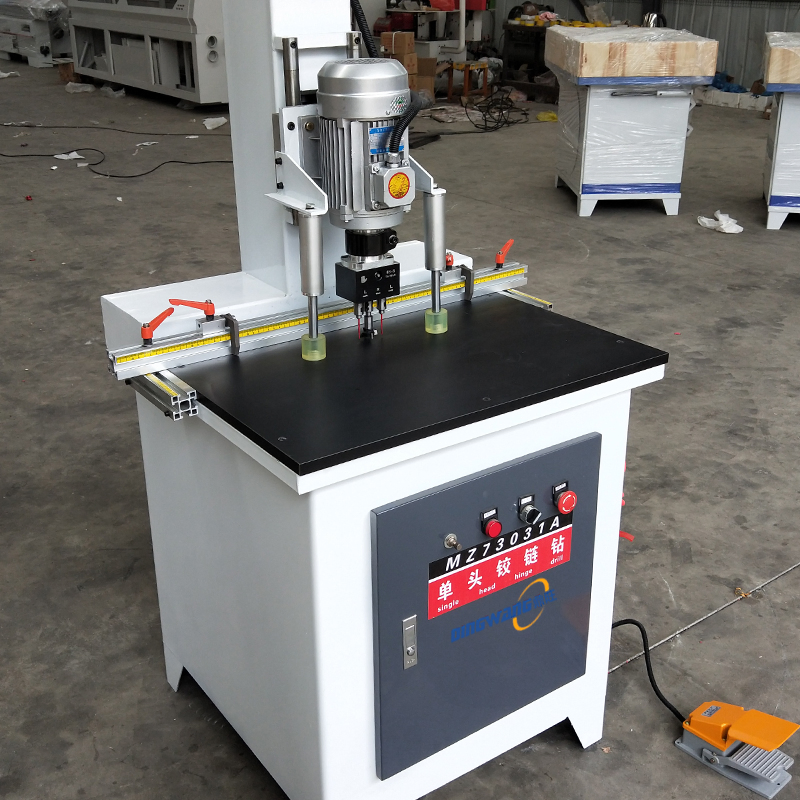

High-Performance Aluminum Alloy Profile Punching and Drilling Tool Single-Spindle Hinge Drilling Machine Heavy-Duty Single-End Hinge Drill
High-Performance Aluminum Alloy Profile Punching and Drilling Tool Single-Spindle Hinge Drilling Machine Heavy-Duty Single-End Hinge Drill
High-Performance Aluminum Alloy Profile Punching and Drilling Tool Single-Spindle Hinge Drilling Machine Heavy-Duty Single-End Hinge Drill
High-Performance Aluminum Alloy Profile Punching and Drilling Tool Single-Spindle Hinge Drilling Machine Heavy-Duty Single-End Hinge Drill
High-Performance Aluminum Alloy Profile Punching and Drilling Tool Single-Spindle Hinge Drilling Machine Heavy-Duty Single-End Hinge Drill
1 / 5
High-Performance Aluminum Alloy Profile Punching and Drilling Tool Single-Spindle Hinge Drilling Machine Heavy-Duty Single-End Hinge Drill
High-Performance Aluminum Alloy Profile Punching and Drilling Tool Single-Spindle Hinge Drilling Machine Heavy-Duty Single-End Hinge Drill
High-Performance Aluminum Alloy Profile Punching and Drilling Tool Single-Spindle Hinge Drilling Machine Heavy-Duty Single-End Hinge Drill
High-Performance Aluminum Alloy Profile Punching and Drilling Tool Single-Spindle Hinge Drilling Machine Heavy-Duty Single-End Hinge Drill
High-Performance Aluminum Alloy Profile Punching and Drilling Tool Single-Spindle Hinge Drilling Machine Heavy-Duty Single-End Hinge Drill

High-Performance Aluminum Alloy Profile Punching and Drilling Tool Single-Spindle Hinge Drilling Machine Heavy-Duty Single-End Hinge Drill

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
MZ73031A
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE
Warranty
1 Year
Air Pressure
0.6-0.8MPa
Drilling Diameter
≤35mm
Drilling Depth
≤50mm
Weight
70kg
Voltage
380V/50Hz / 220V50Hz
Specification
1000*650*1440MM

Vertical Single-head Hinge Drilling Machine

Performance and Features:

  • Used for processing one hinge hole at one time, which has high production efficiency.
  • Adopt a knife calibration device, which is convenient and fast to adjust different hole distances.
  • Adopt high hardness cylindrical guide rail, convenient for adjusting spacing.
  • Fireproof and waterproof table, extremely easy to clean and maintain.

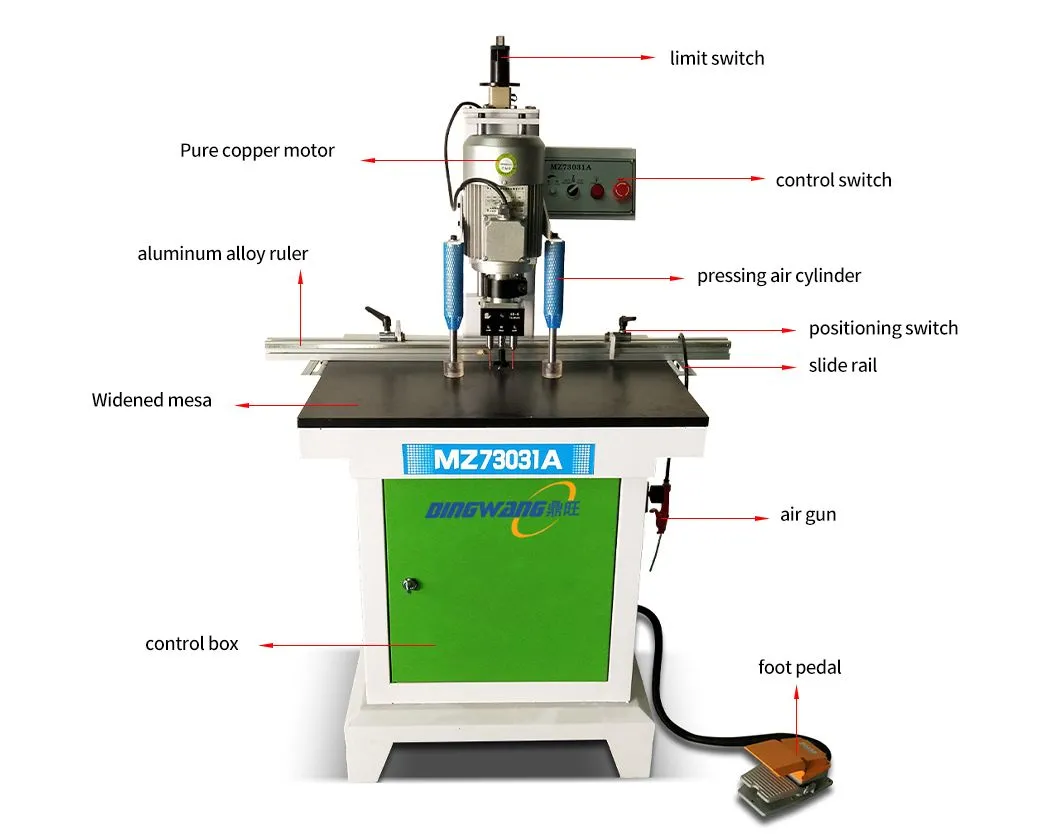

Single-Spindle Hinge Drilling Machine
Technical Parameters
Dimensions1000*650*1440MM Weight70kg
Power1.5 kW Voltage380V/50Hz / 220V50Hz
Spindle Speed2840 r/min Air Pressure0.6-0.8Mpa
Drill Shafts3 × 1 pcs Max Workpiece Length850mm

Product Highlights

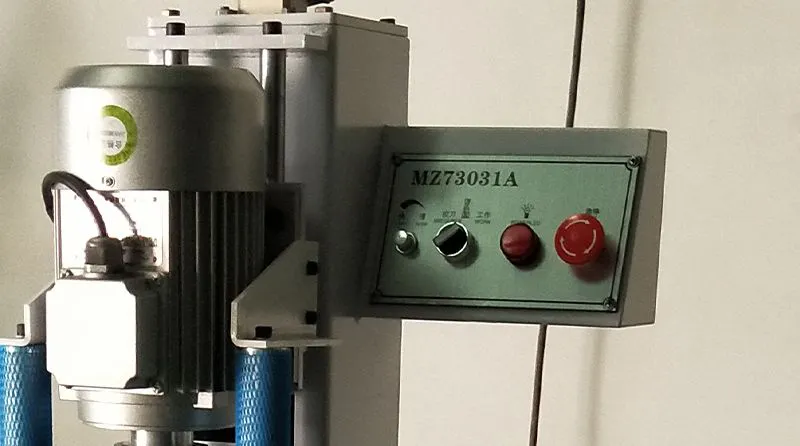

Control Panel

Control Panel

High position setting for ergonomic operation without squatting.

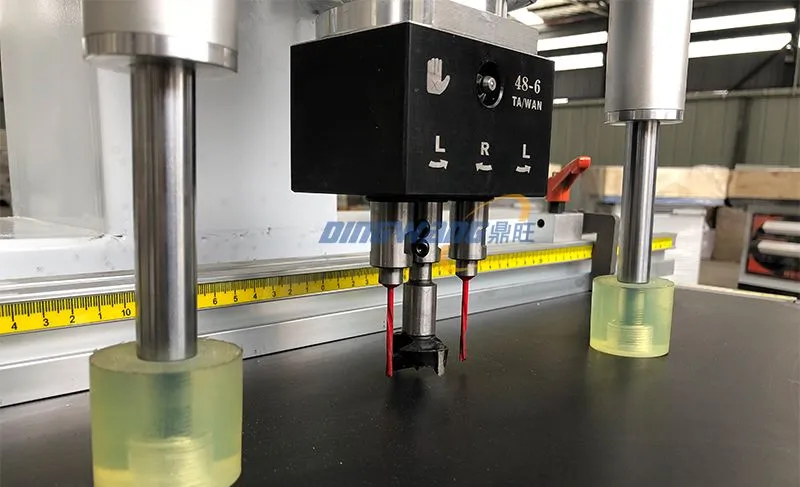

Hinge Drill Set

Hinge Drill Set

Multiple specifications available with low noise and high durability.

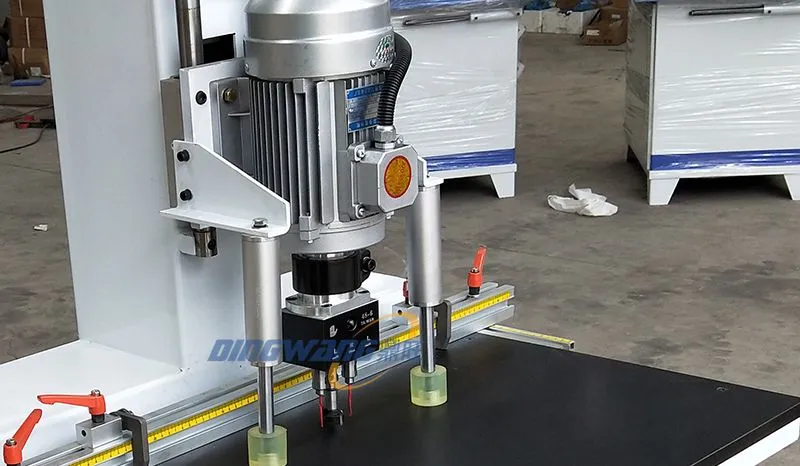

Pure Copper Motor

Pure Copper Motor

Pure copper core ensures smooth and stable long-term operation.

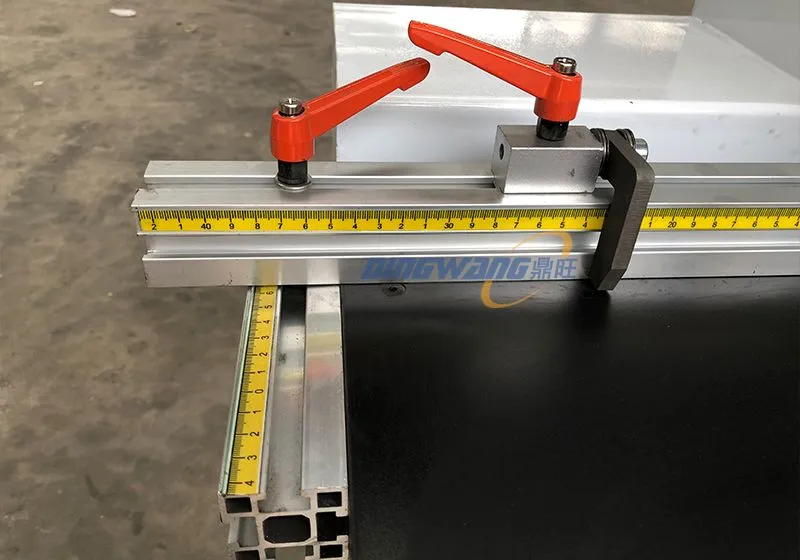

Positioning Baffle

Positioning Baffle

Precise scale ruler for flexible adjustment based on work needs.

Panoramic Display

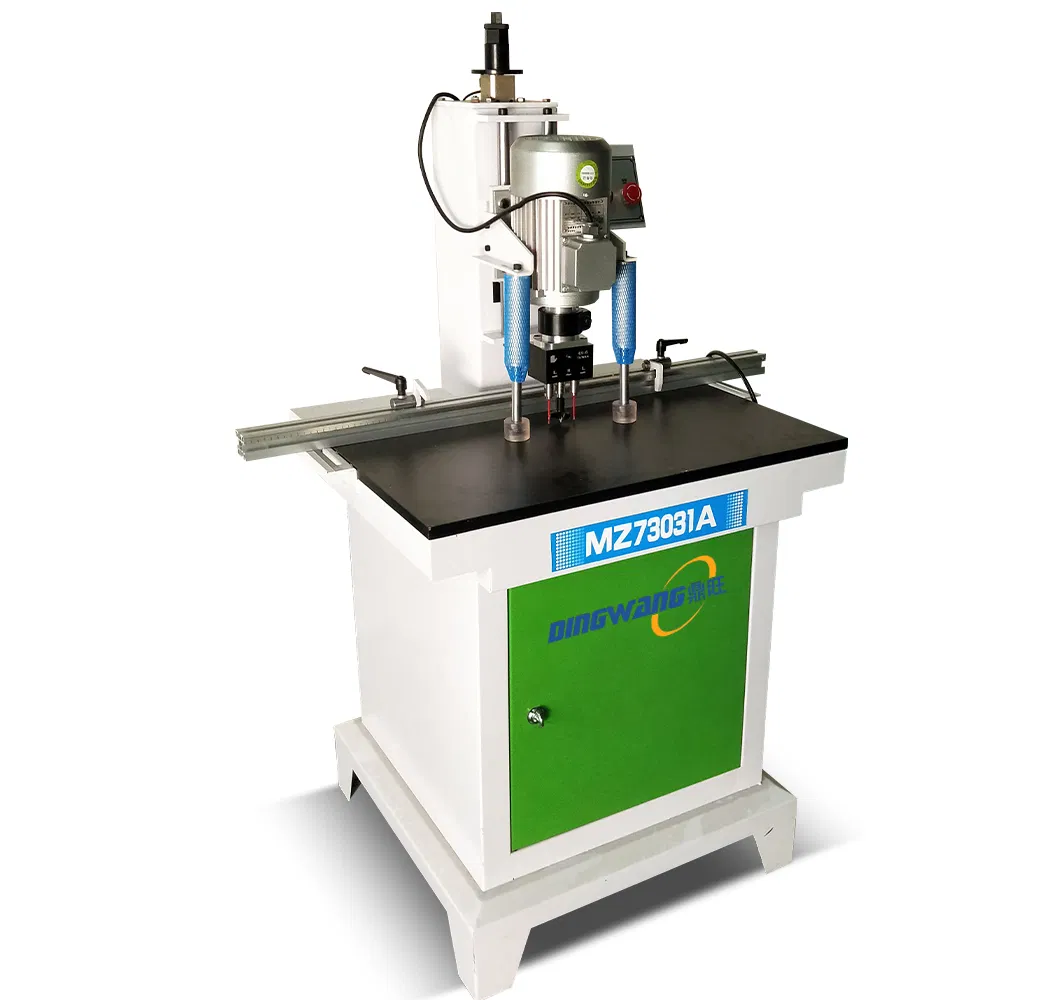

Display 1

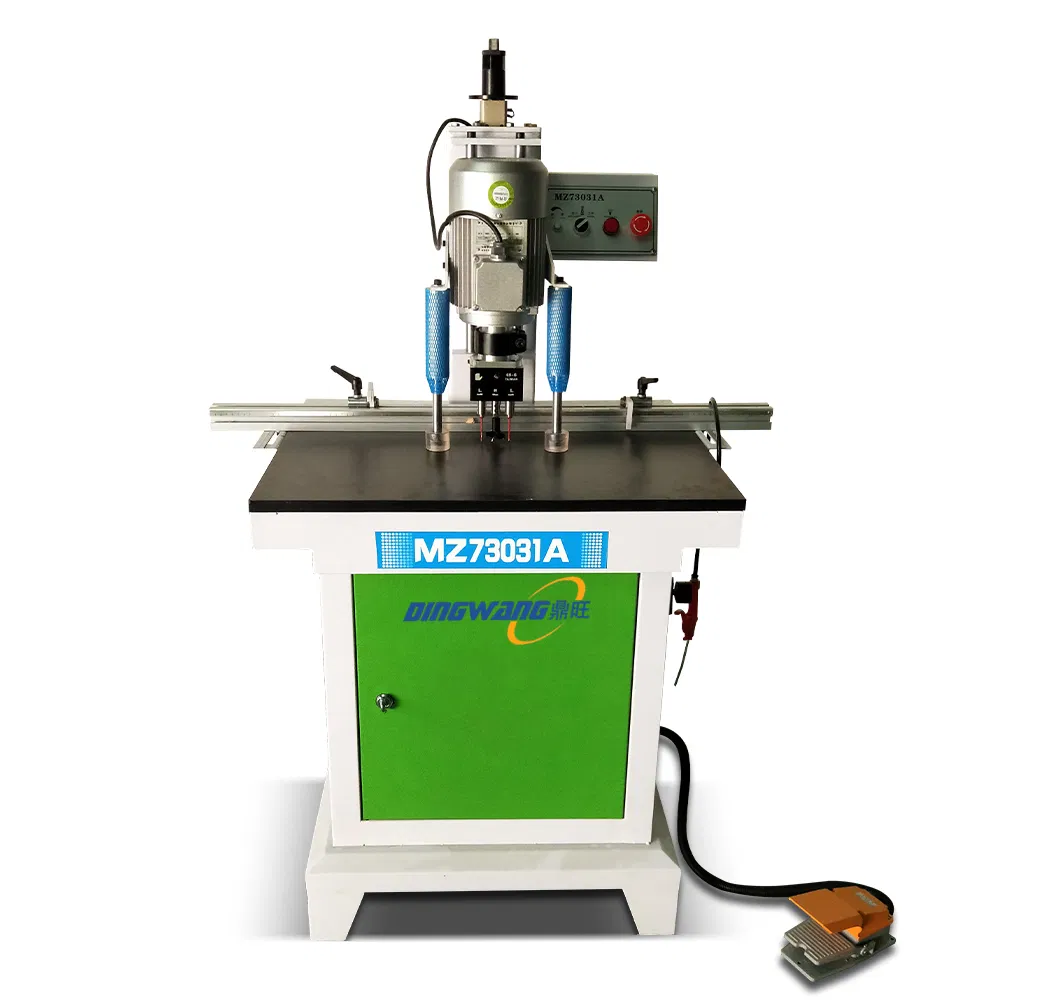

Display 2

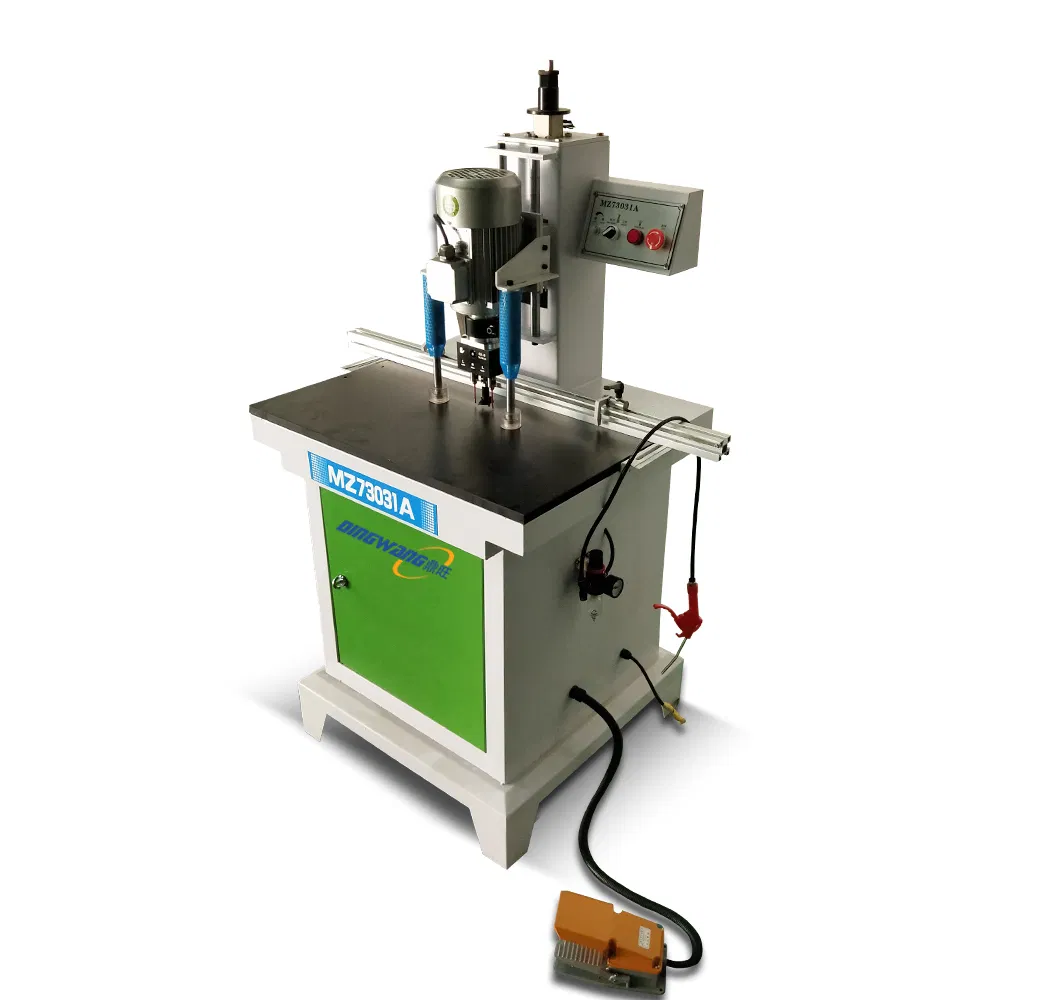

Display 3

Application & Material Suitability

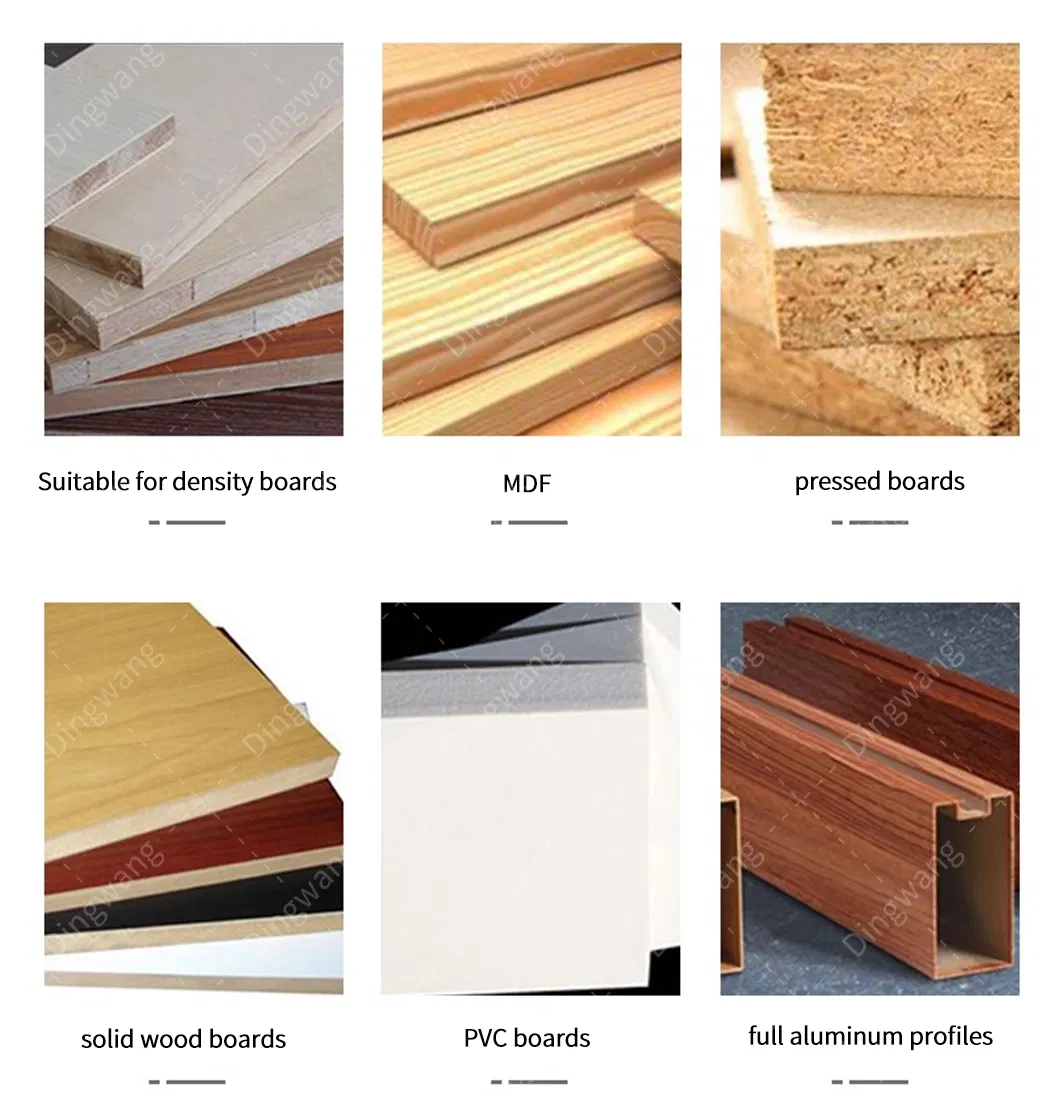

Suitable for a wide variety of boards including: Density boards, MDF, pressed boards, solid wood boards, PVC boards, and aluminum profiles.

Material Suitability

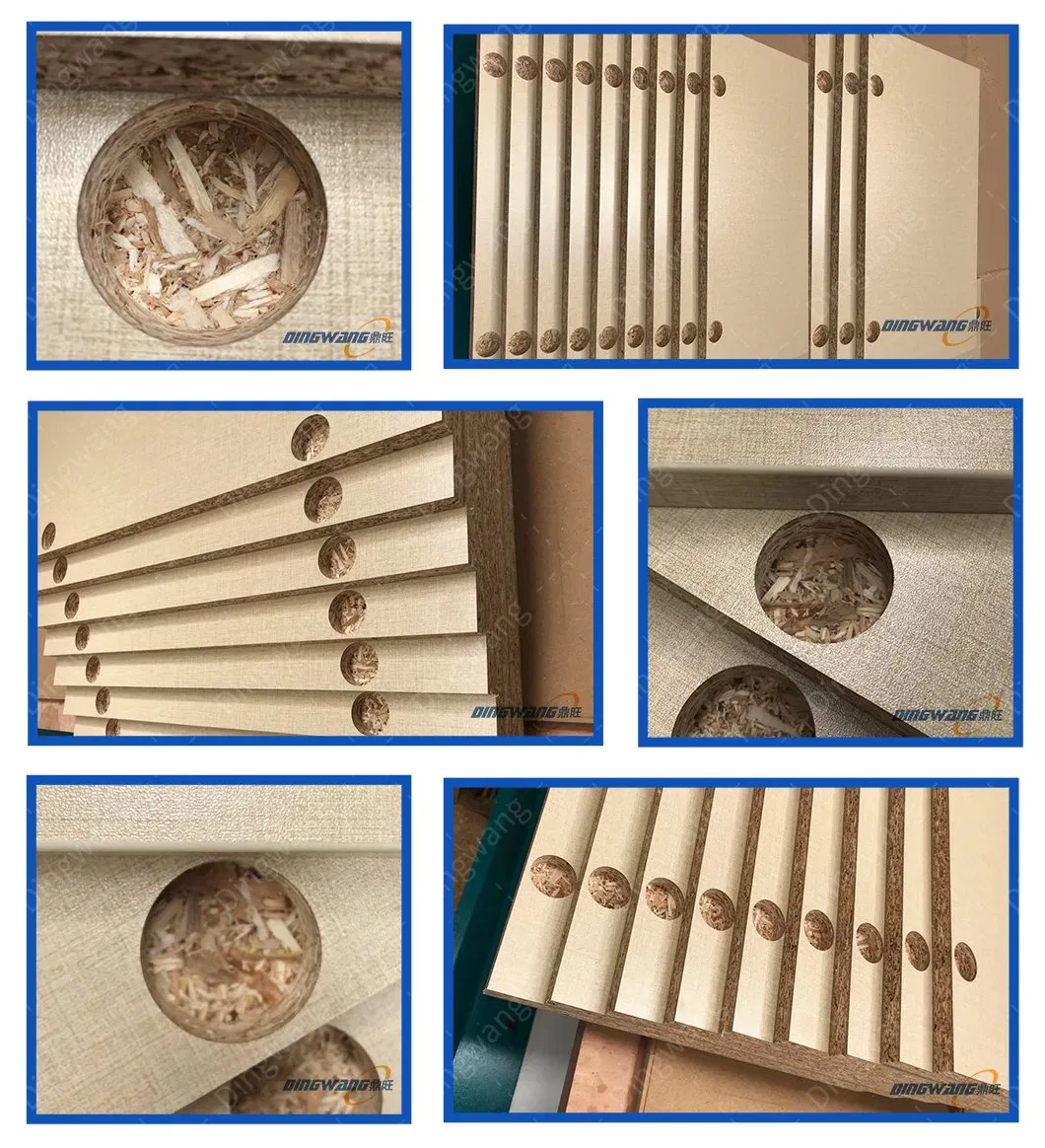

Effect Display

Service & Warranty

1. Delivery and Packaging: Machines are securely packed using stretch film or wooden casing to ensure safe international transit and space optimization.

2. Warranty Policy: We provide a Two-year warranty under normal maintenance conditions. Spare parts are provided for free during the warranty period.

3. Technical Support: 24-hour online support via manual and video illustrations. Lifetime technical guidance for maintenance and fixes.

Factory Shipment

Frequently Asked Questions

What materials can this hinge drilling machine process?
The machine is highly versatile and suitable for density boards, medium density fiberboards (MDF), pressed boards, solid wood boards, PVC boards, and even full aluminum profiles.
How long is the warranty and what does it cover?
The machine comes with a two-year warranty. Under normal usage and maintenance, any component problems will be resolved with free spare parts. Lifetime technical support is also included.
Is it easy for a single operator to use?
Yes, the control panel is ergonomically positioned at a high level so the operator does not need to squat. The knife calibration device also makes adjusting hole distances quick and simple.
Can I request a customized machine?
Absolutely. Our machines can be customized and manufactured according to specific buyer requests and production requirements.
What are the power and air pressure requirements?
The machine operates on 380V/50Hz (Standard) or 220V/50Hz voltage with a 1.5 kW motor. It requires a working air pressure of 0.6-0.8MPa for optimal performance.
How is the machine packed for shipping?
We use professional stretch film or sealed wooden packaging to protect the machine during transportation and to save container space.
