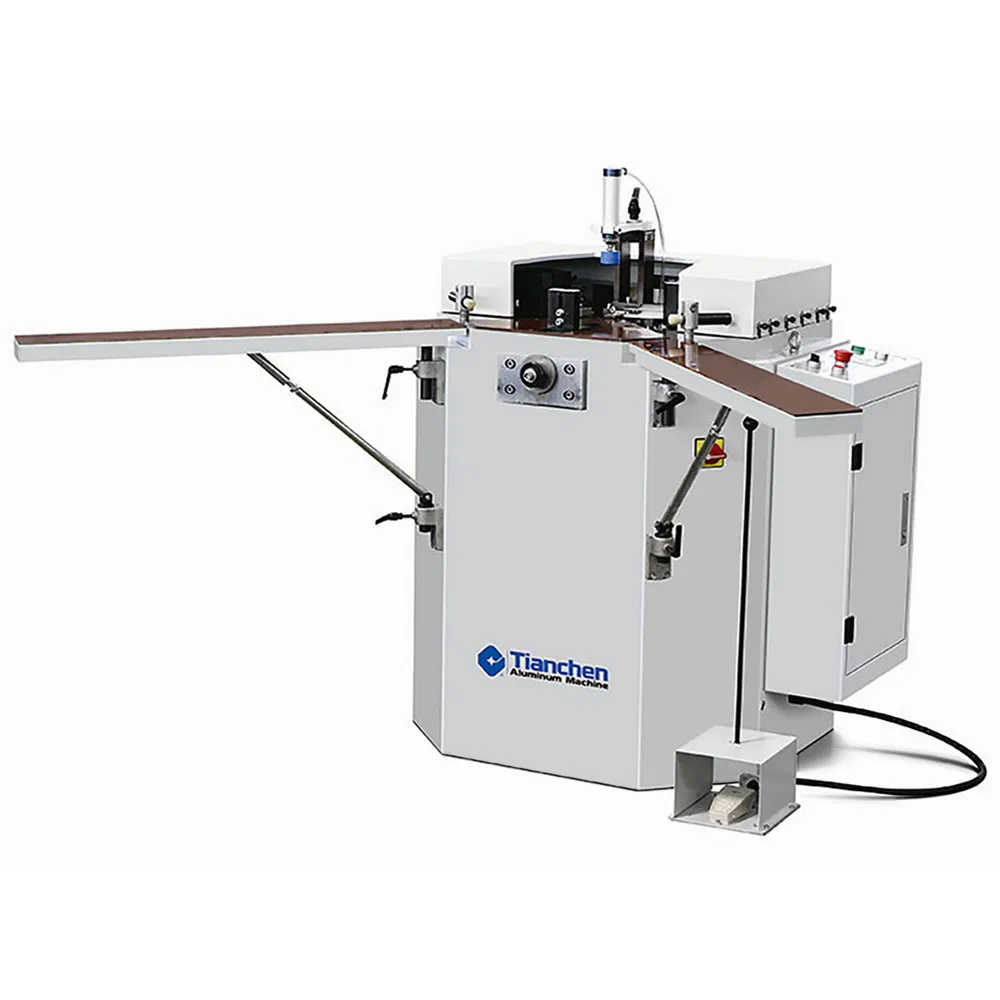

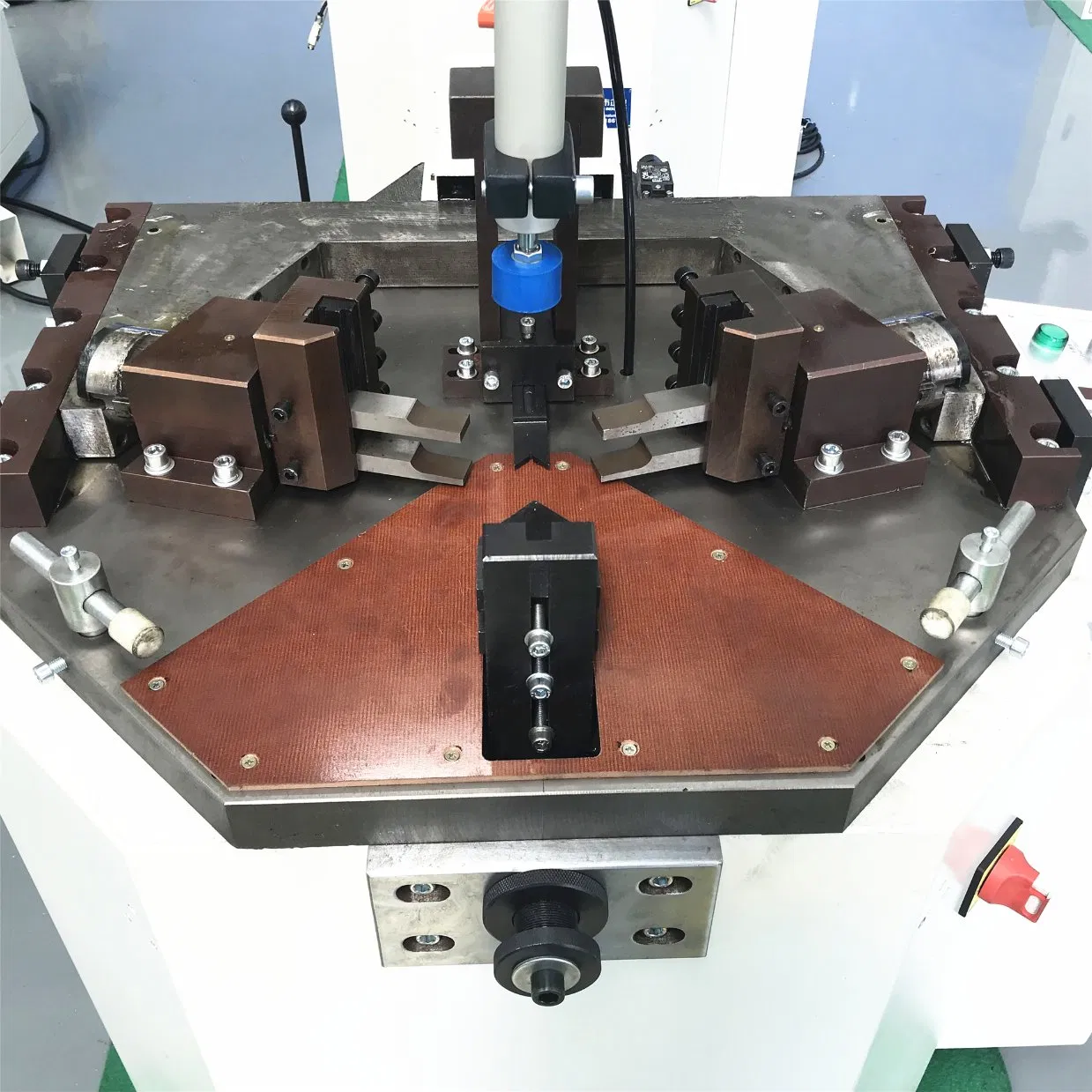

Factory Direct Sale Hydraulic Aluminum Corner Crimping Machine for Aluminium Window Making

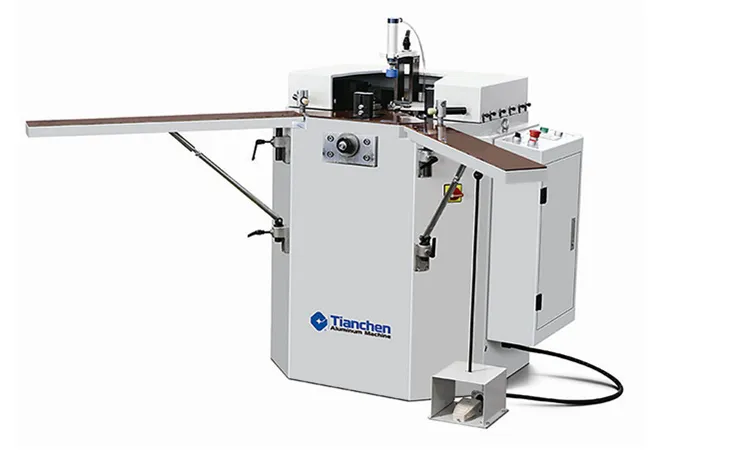

Module: LMB-120
Automatic Grade
Semi-Automatic
Rated Oil Pump Pressure
16MPa
Motor Rotational Speed
1400r/Min
Profile Processing Width
90mm
⚙️

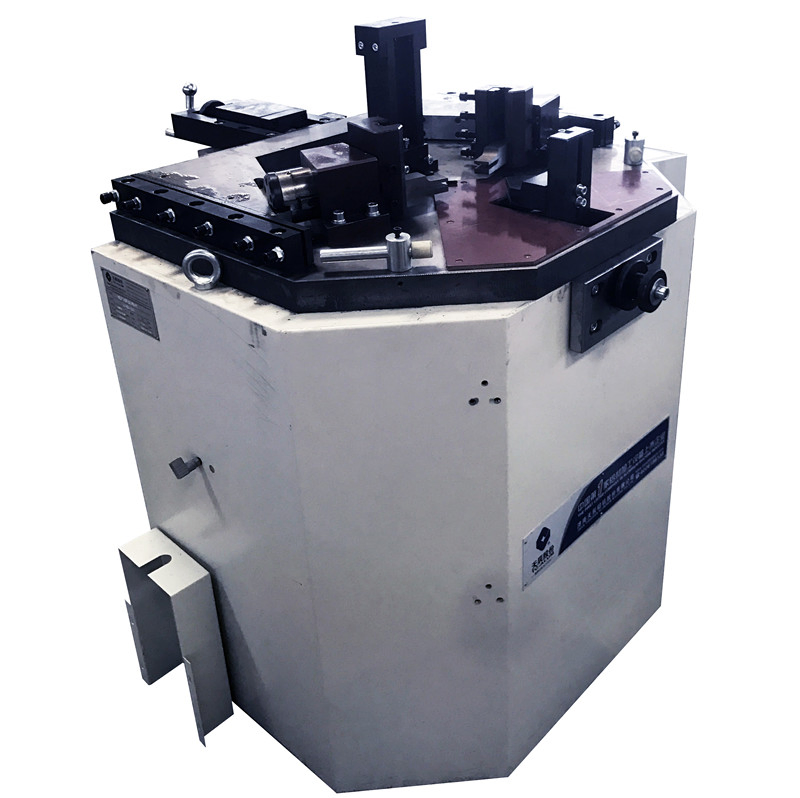

Adopt new mechanical linkage device, realizing completely synchronous operation.
🏗️
The frame is specially jointed by high-quality steel with special processing for maximum durability.
💧
Hydraulic pressure system adopts reliable products ensuring steady and consistent capability.
🔧

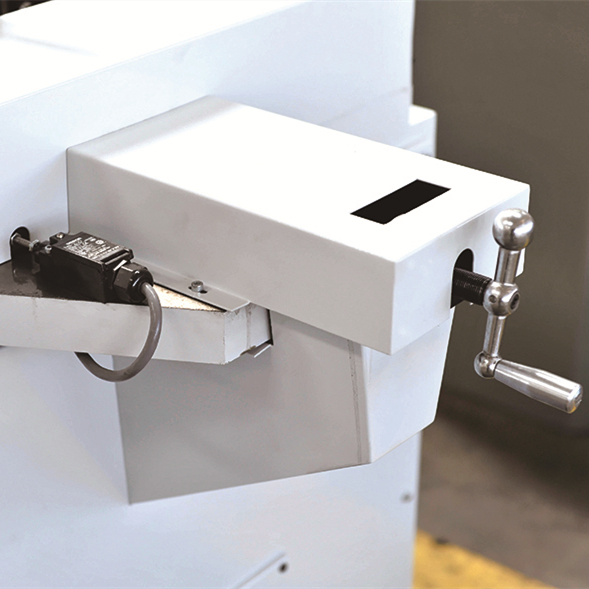

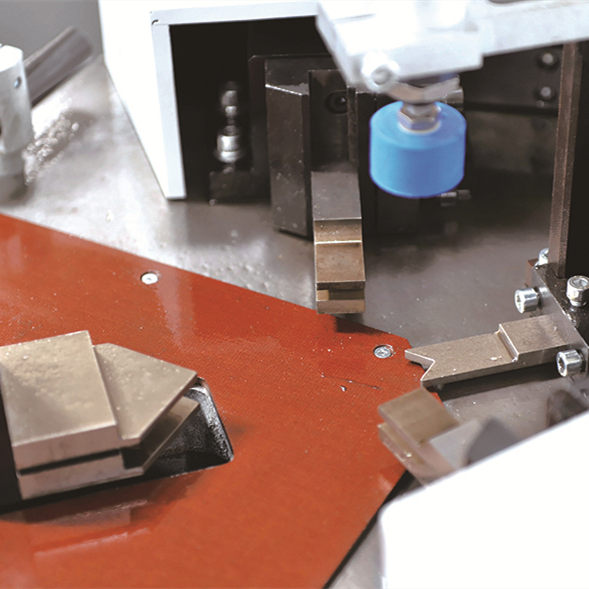

Screw thread regulates the distance between up and down crimping blades for easy adjustment.
🔄
Synchronic feeding structure makes the machine setup and adjustment very simple.
✂️
Collocated with single cutter and multi-point crimping cutters for reliable heat insulation aluminum processing.
| Item |
Specification |
| Motor Power | 1.5kw |
| Rated oil pump pressure | 16Mpa |
| Motor rotational speed | 1400r/min |
| Profile processing width | 90mm |
| General pressure of corner combing | 48kN |
| Contour dimension | 1850*1680*1210mm |
| Weight | About 300kg |
Frequently Asked Questions
What is the primary use of the LMB-120 machine?
The LMB-120 is a hydraulic corner crimping machine specifically designed for high-efficiency production of aluminum windows and doors, including heat insulation aluminum profiles.
Is this machine fully automatic?
The LMB-120 is a semi-automatic grade machine, offering a balance of manual control and automated hydraulic power for precise corner joining.
What is the maximum profile width the machine can process?
The machine supports a profile processing width of up to 90mm.
What kind of maintenance does the hydraulic system require?
The system uses high-quality hydraulic components designed for reliability. Regular checks of oil levels and pump pressure (rated at 16MPa) are recommended to maintain steady performance.
What is the warranty period for this machine?
The machine comes with a 12-month warranty, and technical drawings and customized designs can be provided upon request.
Can the voltage be adjusted for my local power supply?
Yes, the voltage for the 1.5kw motor is customized to meet the specific electrical requirements of the customer's region.
