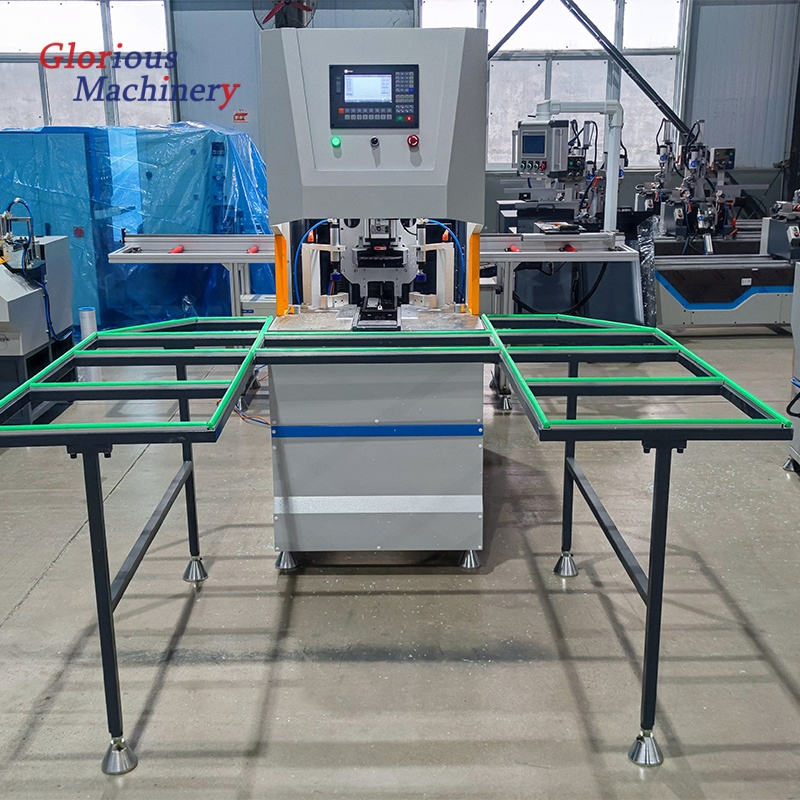

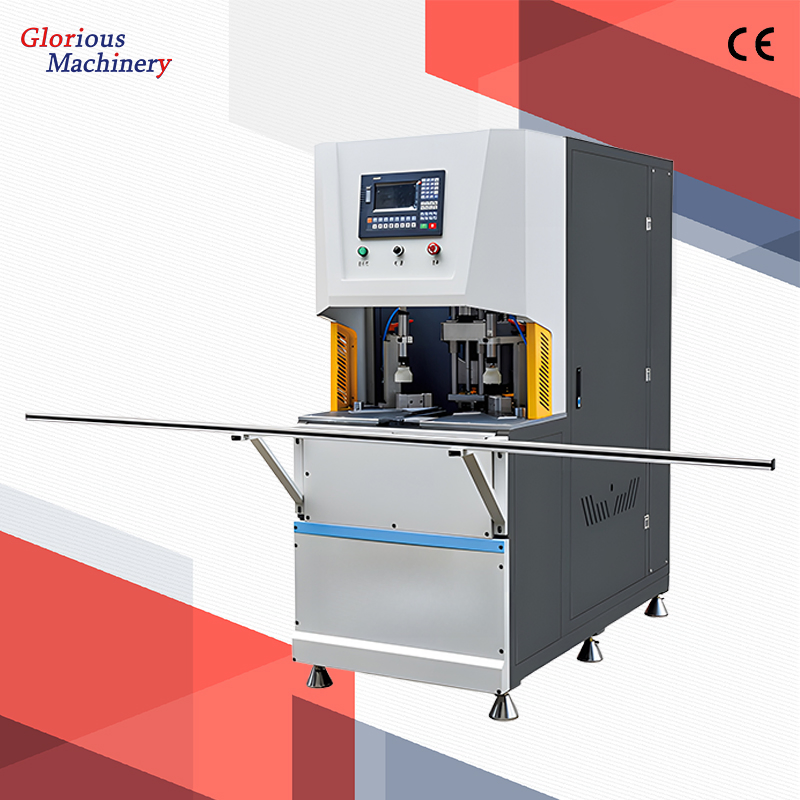

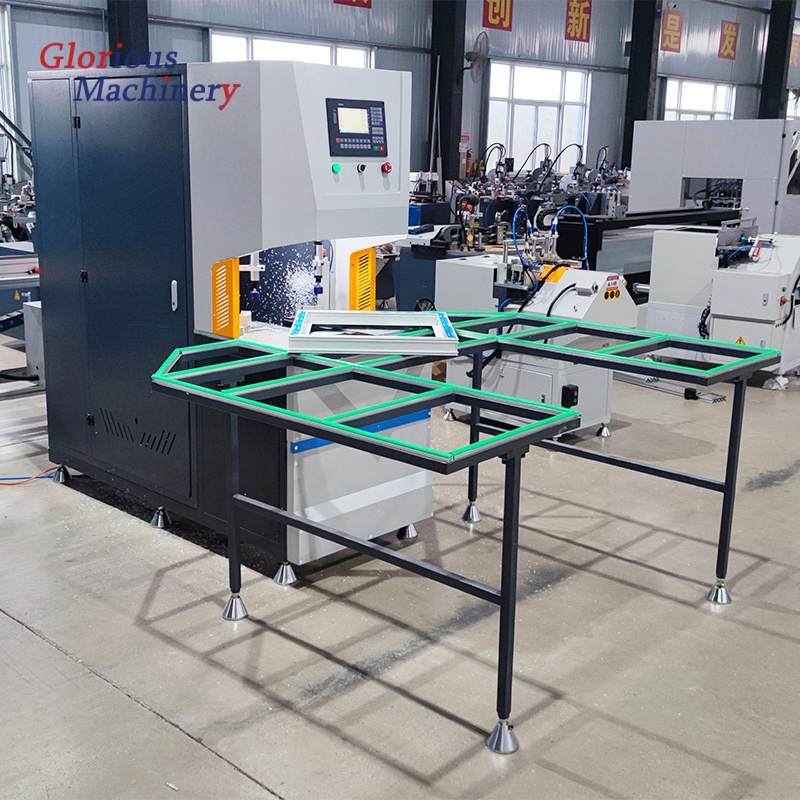

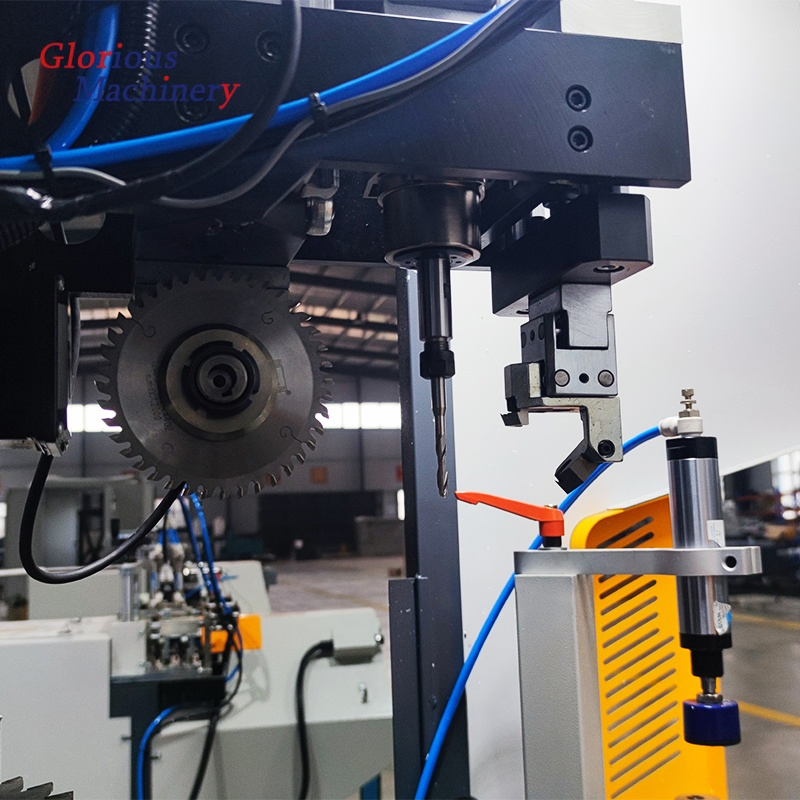

Corner Processing Frame Welding and PVC Line Cleaning Machine UPVC Window
Corner Processing Frame Welding and PVC Line Cleaning Machine UPVC Window
Corner Processing Frame Welding and PVC Line Cleaning Machine UPVC Window
Corner Processing Frame Welding and PVC Line Cleaning Machine UPVC Window
Corner Processing Frame Welding and PVC Line Cleaning Machine UPVC Window
1 / 5
Corner Processing Frame Welding and PVC Line Cleaning Machine UPVC Window
Corner Processing Frame Welding and PVC Line Cleaning Machine UPVC Window
Corner Processing Frame Welding and PVC Line Cleaning Machine UPVC Window
Corner Processing Frame Welding and PVC Line Cleaning Machine UPVC Window
Corner Processing Frame Welding and PVC Line Cleaning Machine UPVC Window

Corner Processing Frame Welding and PVC Line Cleaning Machine UPVC Window

Customization: Available
After-sales Service: Engineers Availabel Service Machinery Oversea
Warranty: One-Year Warranty Period
Send Inquiry

Product Description

📋Basic Info.

Model NO.JQK06-120
ConditionNew
CertificationCE
Automatic GradeSemi-Automatic
CNC or NotCNC
Voltage380V
Product NameWindow CNC Corner Cleaning Machine
FunctionWindow Corner Cleaning
ApplicationPVC Window Door Frame Making
Machine TypeWindow Frame Making Machine
UsageWindow Door Corner Cleaning
Suitable MaterialPVC Window Door Profile
AdvantageHigh Efficiency
Total Power2.5kw
Number of Cutters6 Tools
Height Range30~150mm
Width Range20~120mm
Specification1850*950*2000mm

🛠️Product Description

Corner Processing Frame Welding and PVC Line Cleaning Machine UPVC Window
Product NameCNC Corner Seam Cleaning Machine For PVC Win-door
Machine ModelSQJ(A/B)-(03/05/06)-150
Input Voltage380V/50Hz
Input Power3kW
Working Pressure0.5~0.8MPa
Cutting Height WidthH=20~150mm W=120mm
Blade SpecificationD=200mm d=30mm
Speed2800r/min
Professional Cleaning Function
It is specially used for corner seam cleaning of colored PVC finished windows, and can clean the upper and lower surfaces, outer facade and rubber strip grooves. The outer facade cleaning adopts a high-speed motor to ensure beautiful and efficient weld seam treatment.
High-quality Tools and Stable Structure
The broach blades are made of alloy material, quenched and precisely processed, realizing tool standardization and interchangeability. The moving parts adopt high-precision linear guides to ensure equipment stability and reliability.
Intelligent Control and Industrial Design
Equipped with color touch screen and PLC, it can store hundreds of processing programs and realize circular and linear interpolation for two axes, with easy operation.

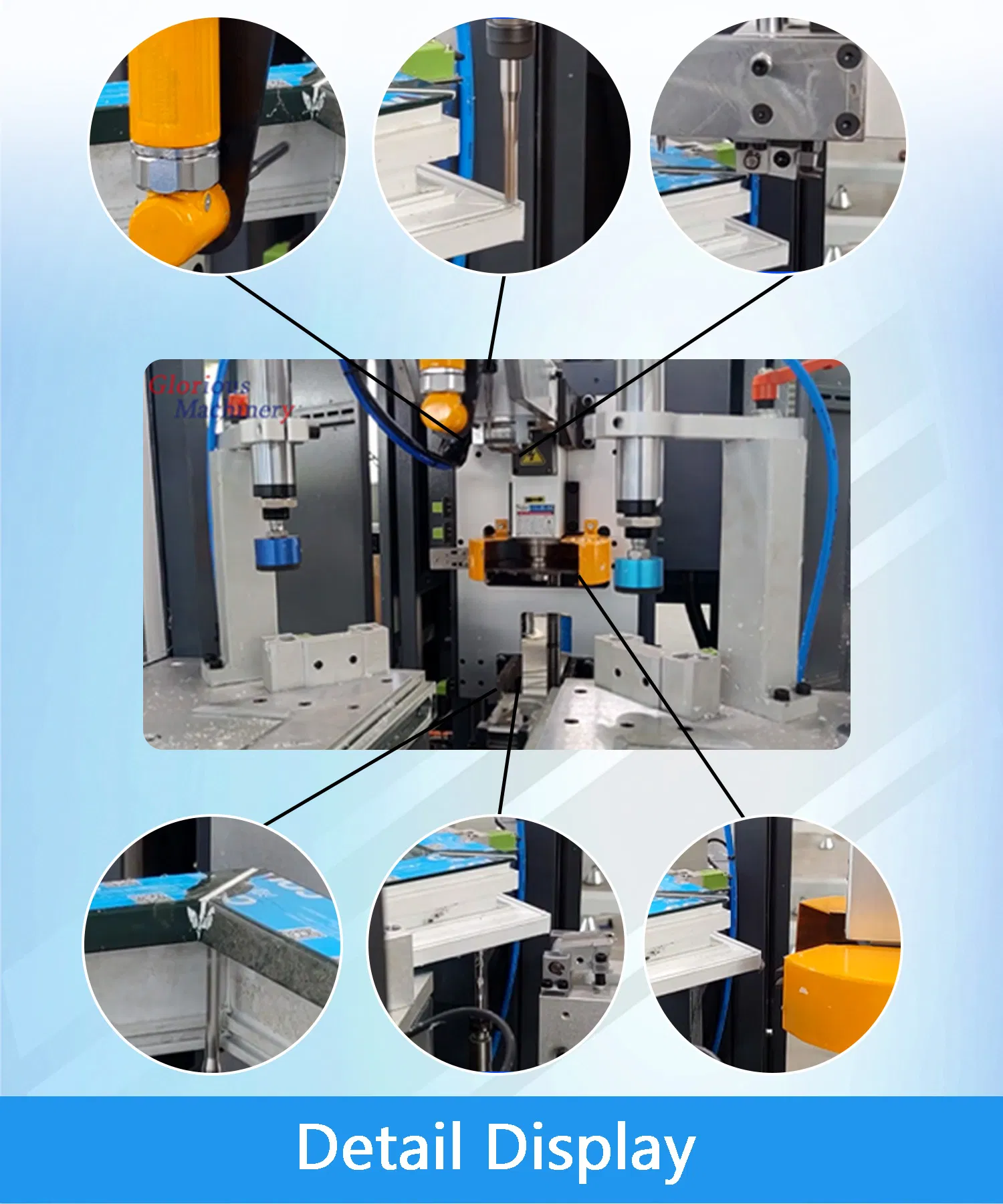

⚙️The Six-Tool Corner Cleaning System

This system utilizes six specialized tools that work in a precise, automated sequence to thoroughly clean every surface of a welded window corner in a single setup.

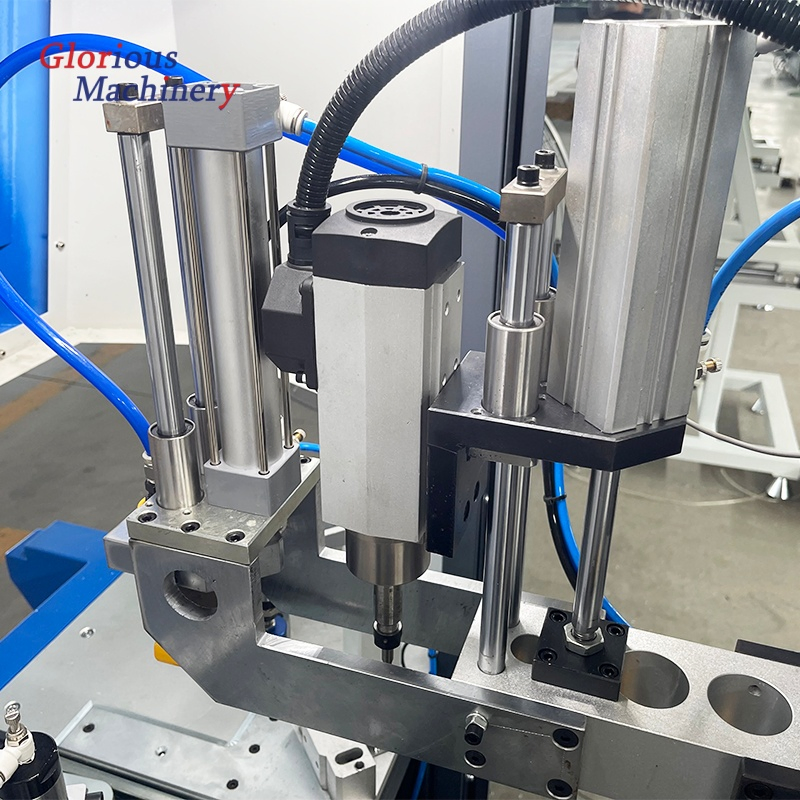

1. Inner Corner Hook Blade: Designed specifically to clean residual weld material from the inner vertical faces and complex angles.
2. Upper Combination Twist Drill: Cleans residual weld material and precisely drills pile yarn holes or sealant grooves.
3. Upper Planer Blade: Precisely scrapes and levels the welded joint on the top horizontal plane.
4. Lower Combination Twist Drill: Responsible for cleaning the lower inner corner and drilling corresponding grooves.
5. Lower Planer Blade: Specialized for cleaning the weld seam on the bottom horizontal plane.
6. Exterior Corner Finishing Disc: Cleans the weld seam on the outer vertical face and bevel.
Six-Tool System

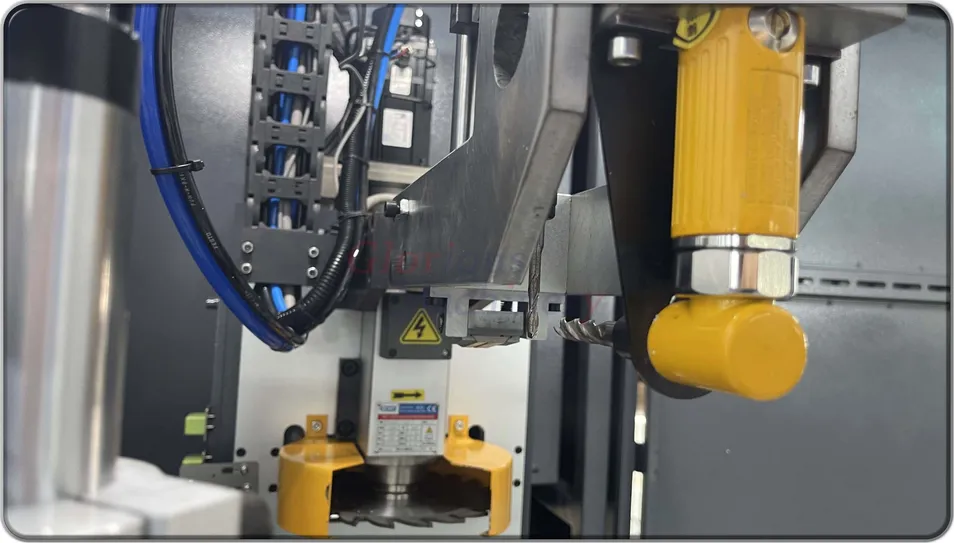

Cutting Tools
Alloy Cutting Tools

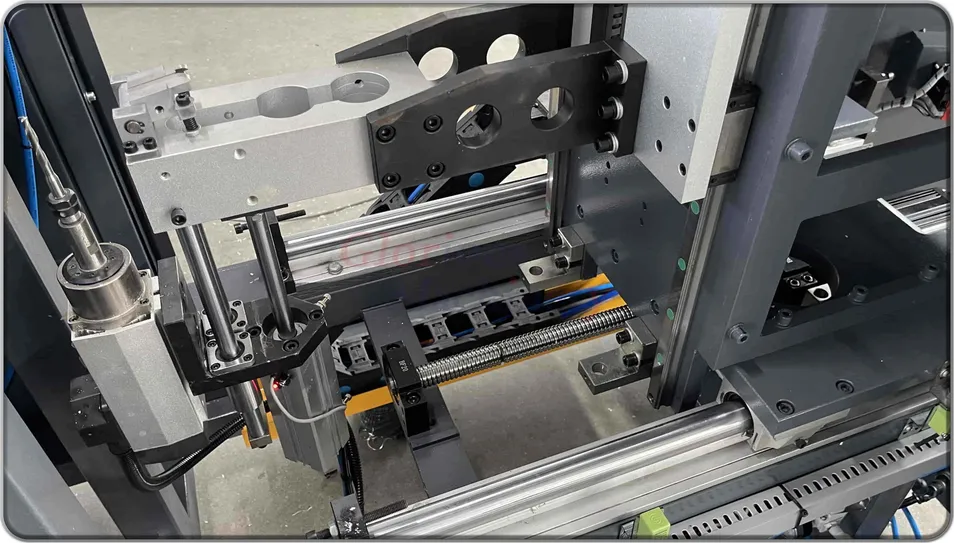

Guide Rail
High-Precision Guide Rail

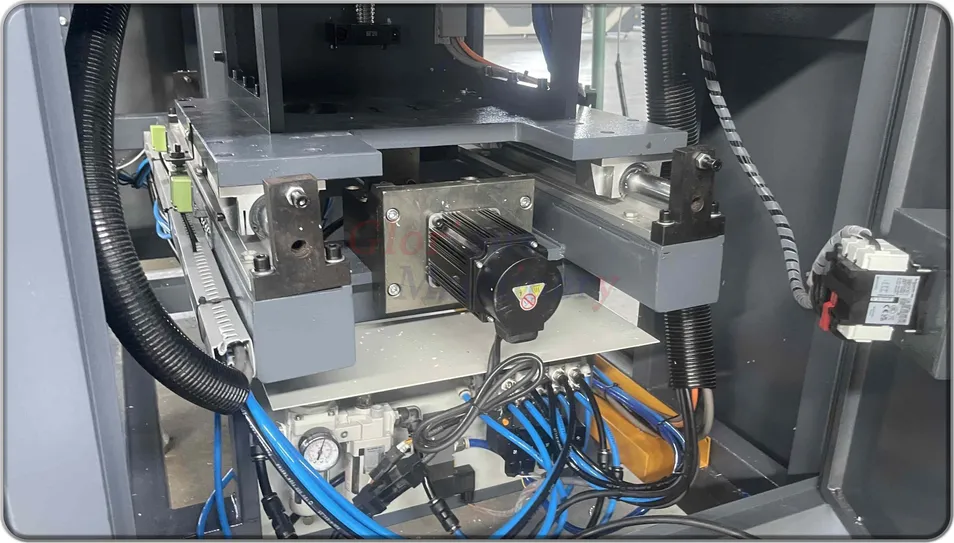

Motor
High-Speed Motor

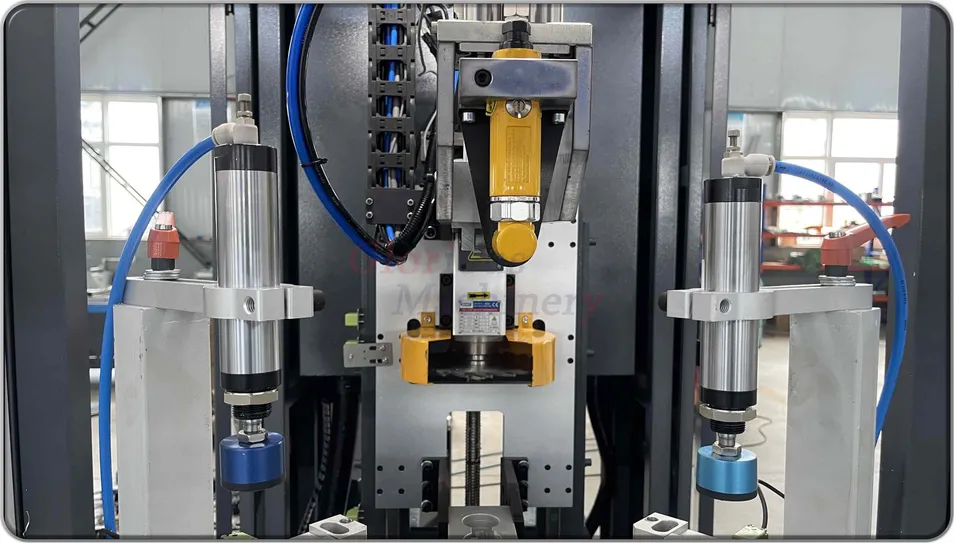

Six-Cutter System
Six-Cutter Seam Cleaning

📏Profile Size & Compatibility

Profile Height (H): 20 – 150mm, covering most common sizes from small interior partitions to large outdoor frames.

Profile Width (W): Up to 120mm, suitable for wide-profile products like large sliding doors.

Processable Products
• Standard Residential Windows & Doors (Casement, Tilt & Turn, Sliding)
• Large & Outdoor Units (Patio doors, Balcony frames, Sunrooms)
• Commercial Applications (Office glazing, Hotel windows)
• Special Shapes (Skylights, Curved windows, Geometric designs)
Processable Products

🎬Operation Video

Frequently Asked Questions

Are you a direct manufacturer or a trading company?
We are a direct professional manufacturer of window and door processing machinery with over 20 years of experience. Our own integrated factory ensures strict control of quality, delivery, and cost.
What kind of after-sales support and warranty do you offer?
We provide a complete after-sales system: 12-month warranty, 24/7 online technical support, complete English documents, and long-term factory-price spare parts supply.
Can the machines be customized with our branding?
Yes, we offer OEM and branding customization. We can print your logo and brand name on the machine based on your vector logo and requirements.
What is the typical lead time for production and shipment?
Standard machines (≤3 units) typically take 15–20 working days; large or bespoke orders require about 30 working days.
How do you ensure the quality of your machinery before delivery?
Strict quality control is applied at every stage: raw material inspection, precision testing during production and assembly, and a full-performance test before shipping.
What are your accepted payment terms?
We accept mainstream international payments, mainly T/T and L/C. Specific terms can be negotiated based on order value and cooperation mode.
