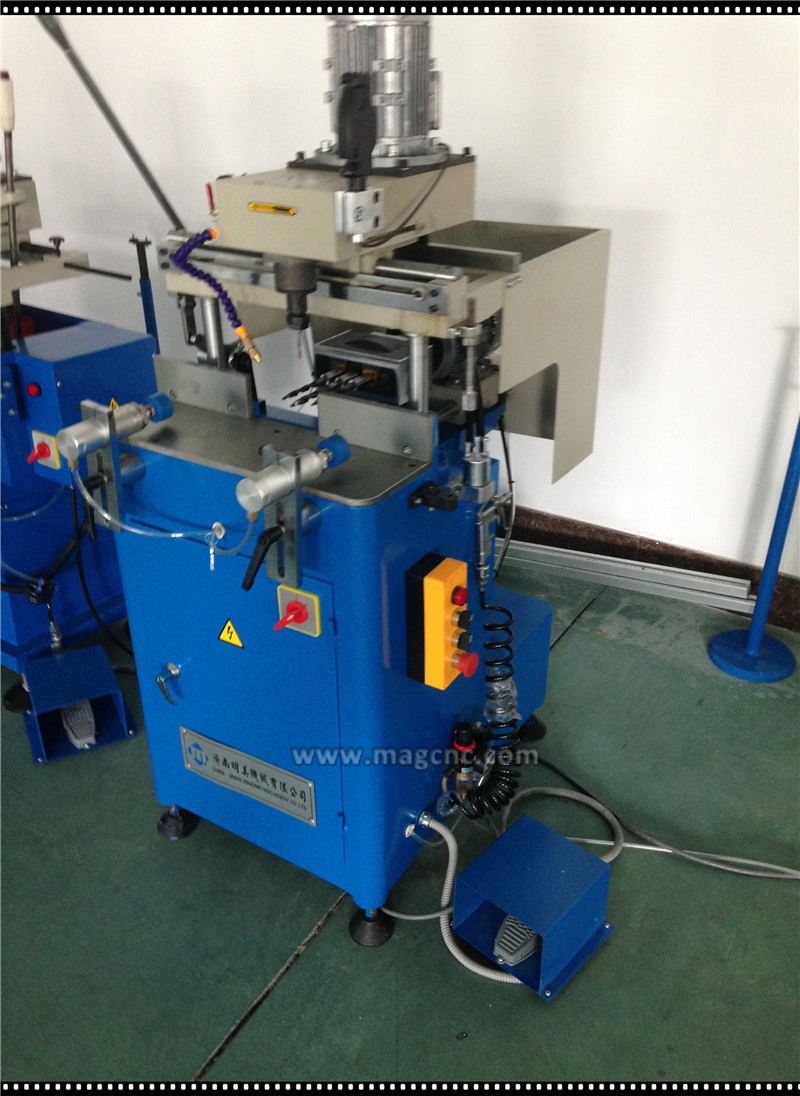

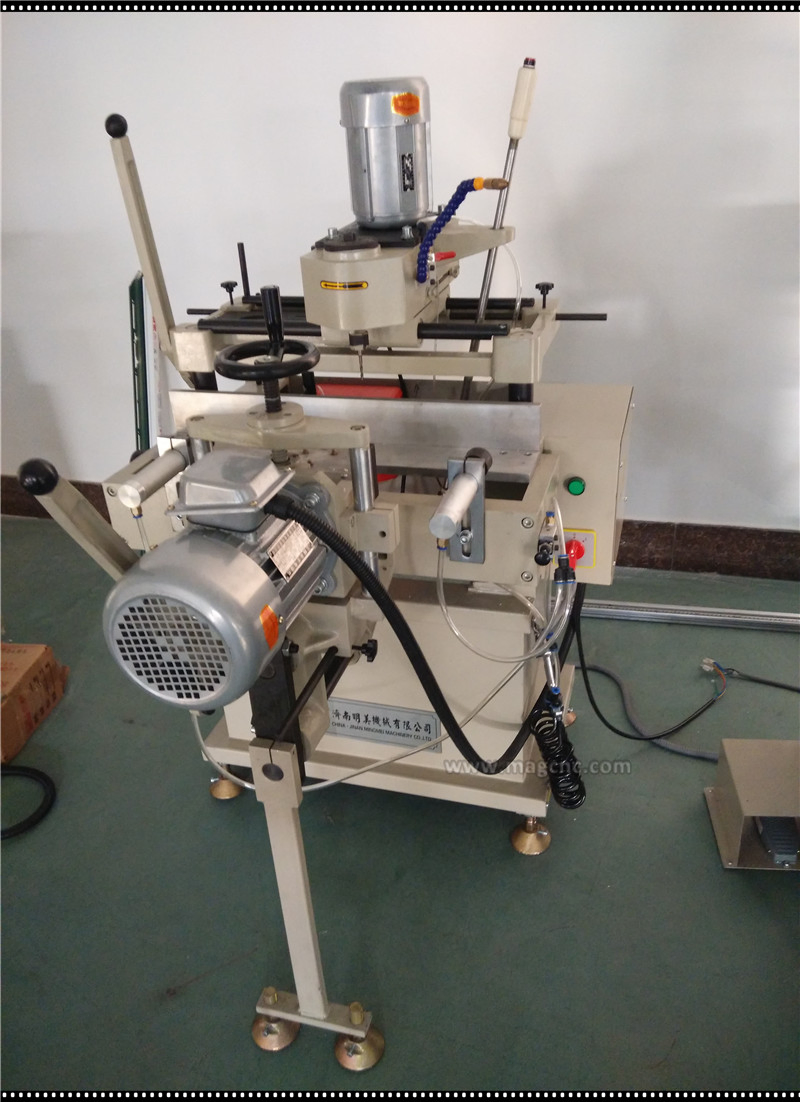

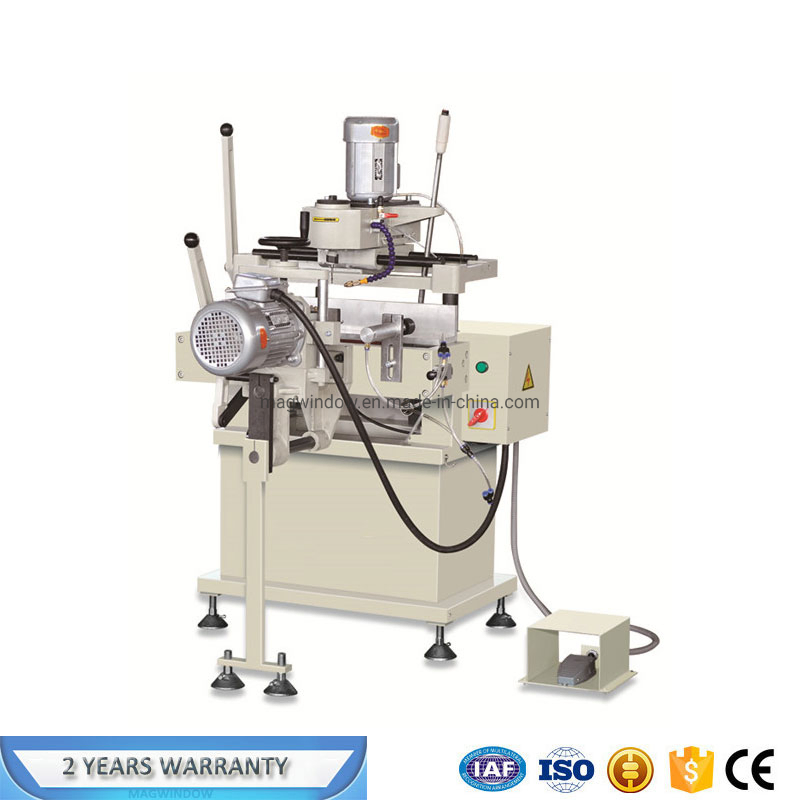

Copy Routing and Drilling Milling Machine for Window Door Making
Copy Routing and Drilling Milling Machine for Window Door Making
Copy Routing and Drilling Milling Machine for Window Door Making
Copy Routing and Drilling Milling Machine for Window Door Making
Copy Routing and Drilling Milling Machine for Window Door Making
1 / 5
Copy Routing and Drilling Milling Machine for Window Door Making
Copy Routing and Drilling Milling Machine for Window Door Making
Copy Routing and Drilling Milling Machine for Window Door Making
Copy Routing and Drilling Milling Machine for Window Door Making
Copy Routing and Drilling Milling Machine for Window Door Making

Copy Routing and Drilling Milling Machine for Window Door Making

Customization: Available
After-sales Service: 24hours Video Service for Technical
Warranty: 1years
Send Inquiry

Product Description

📋
Basic Product Information
Model NO.
LZ3F-290X100
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
Voltage
380V
Power Supply
380V 50Hz
Motor Power
2X0.75kw
Rotary Speed
12000r/Min
Application
Lock Hole, Hinge Hole, Water Slot
Package Size
100cm * 115cm * 160cm
Gross Weight
210.00kg
⚙️
Product Description

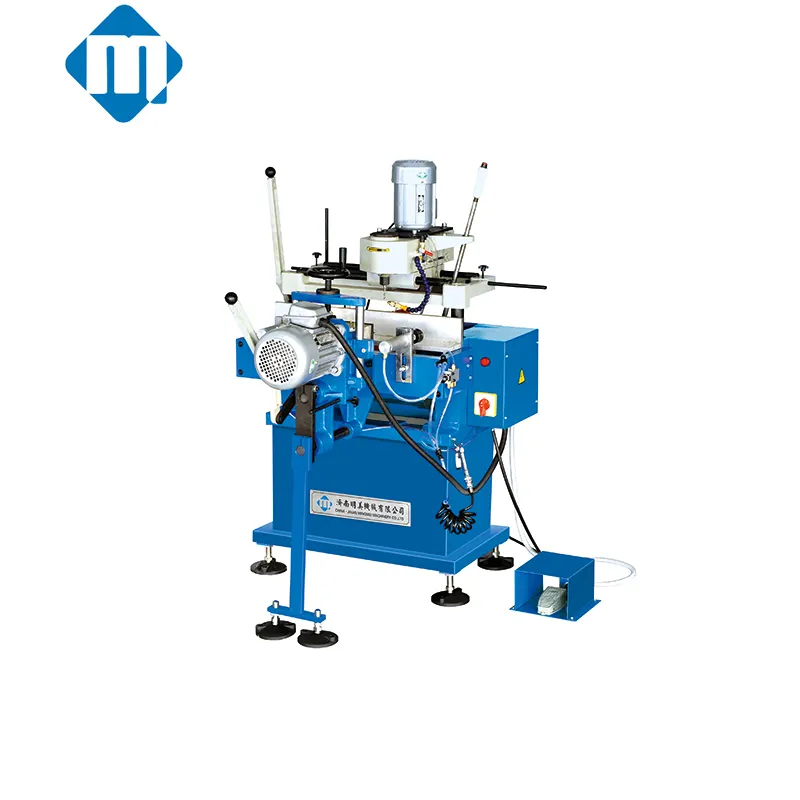

Automatic copy milling machine
  • Used for copy-routing processing various kinds of holes, grooves and water-slots on aluminum windows and doors.
  • Supports two copying methods: copy template and auxiliary positioning.
  • Equipped with a foot switch to control the pressing cylinder, ensuring safe and reliable operation.
  • Features a compact structure and small volume for efficient workspace utilization.
📊
Technical Parameters
Operation Air Pressure0.6~0.8MPa
Input Voltage380V/50Hz
Diameter of Three-hole Drilling HeadΦ10
Centers Distance of Drilling Head21.5 x 21.5mm
Input Power2.2kw
Cutter DiameterΦ5 / Φ8mm
Copy-routing Range235 x 100mm
Overall Dimension1000x 1150 x 1600mm
WeightApprox. 220kg
📷

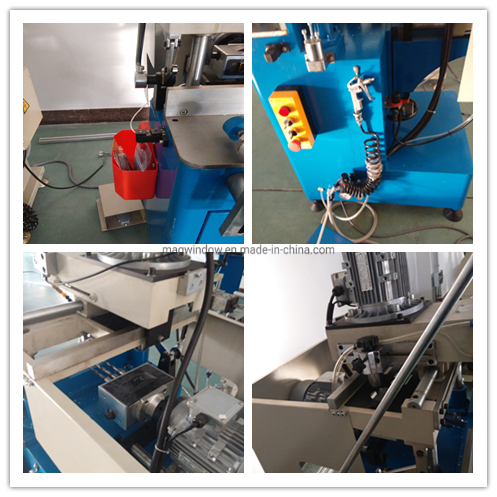

Detailed Photos

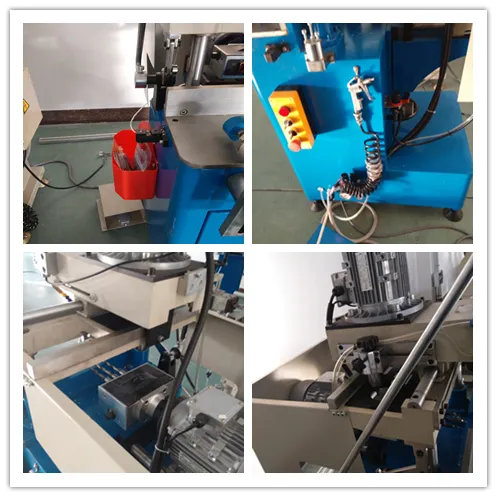

Machine detail 1

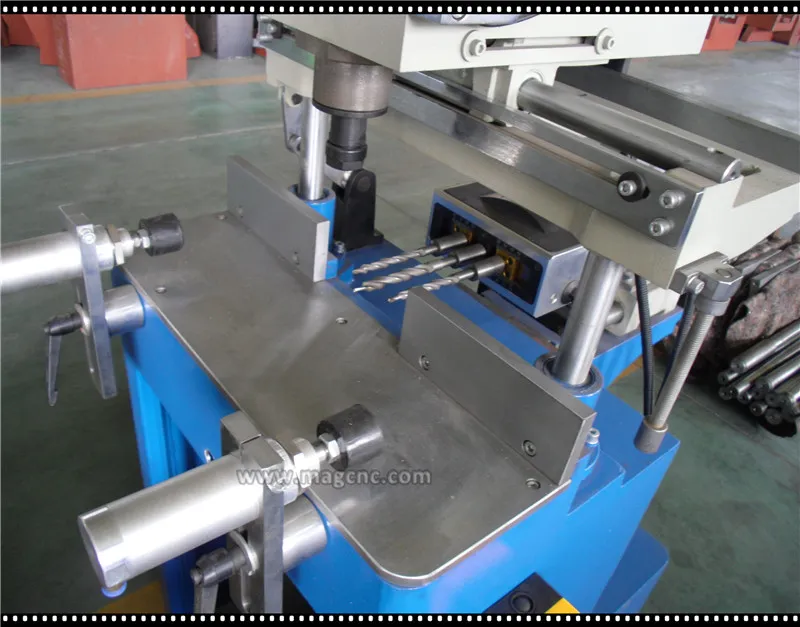

Machine detail 2

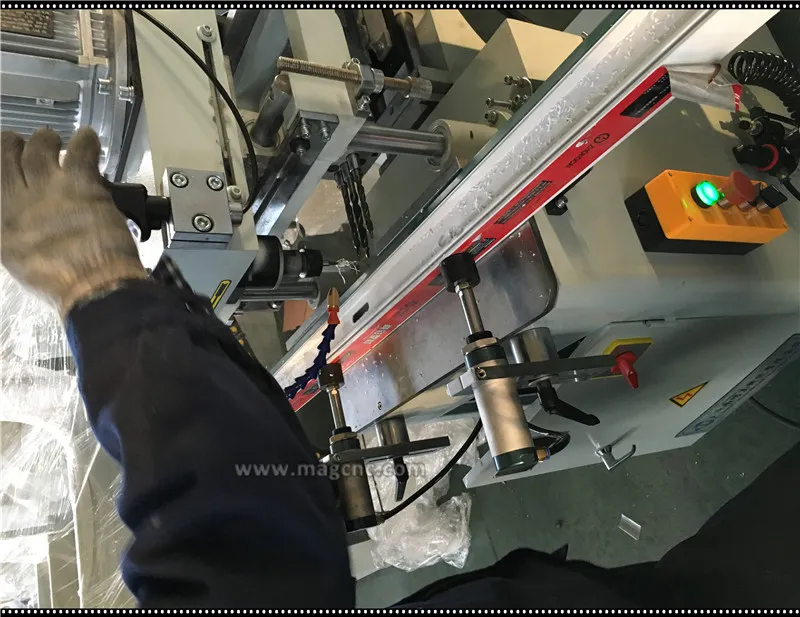

Machine detail 3

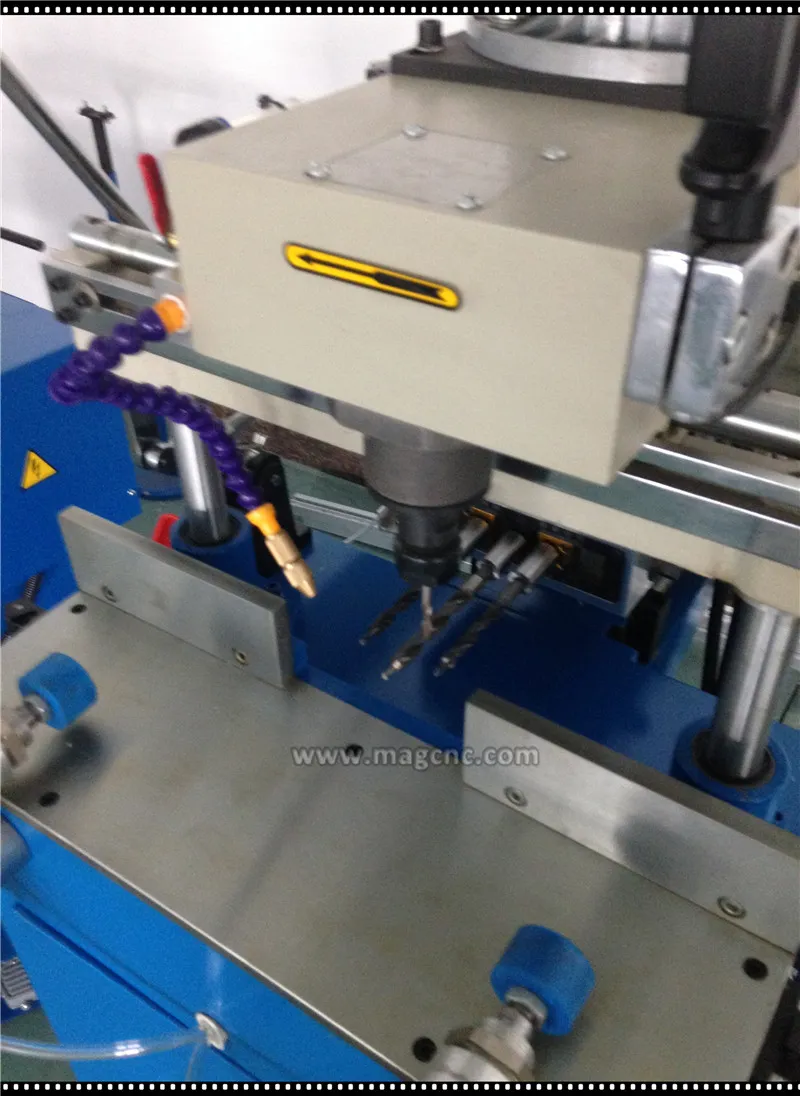

Machine detail 4
Machine detail 5

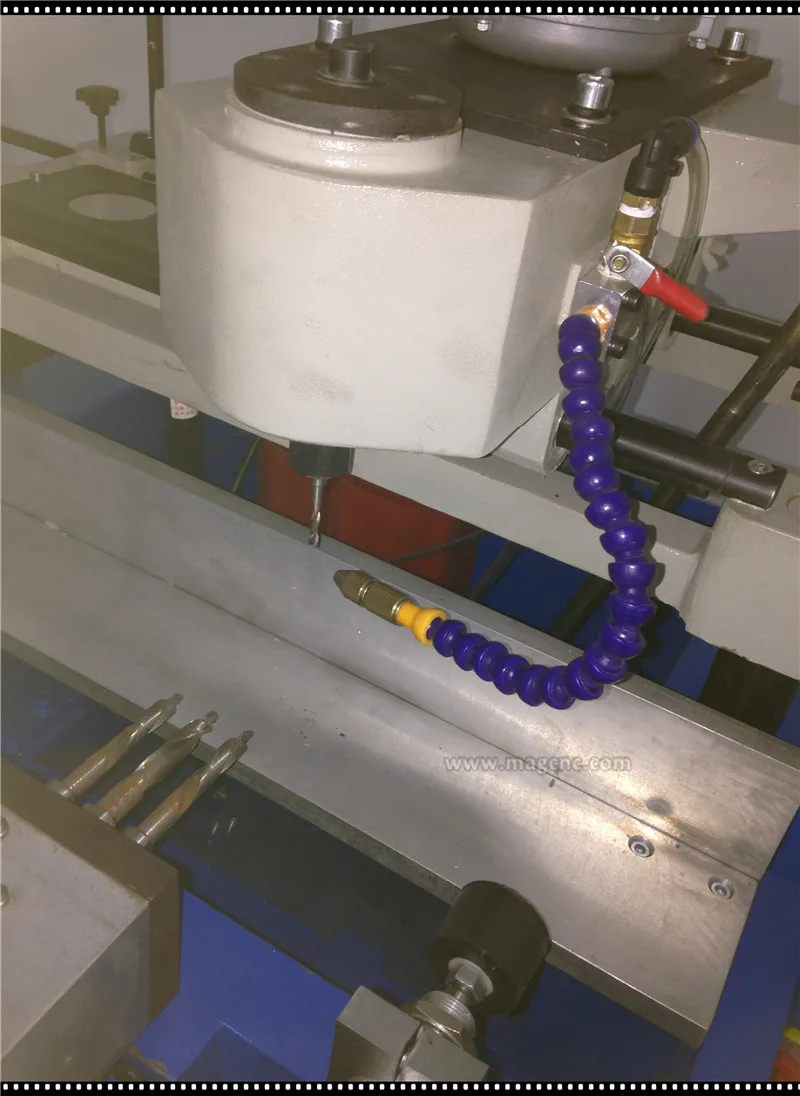

Machine detail 6

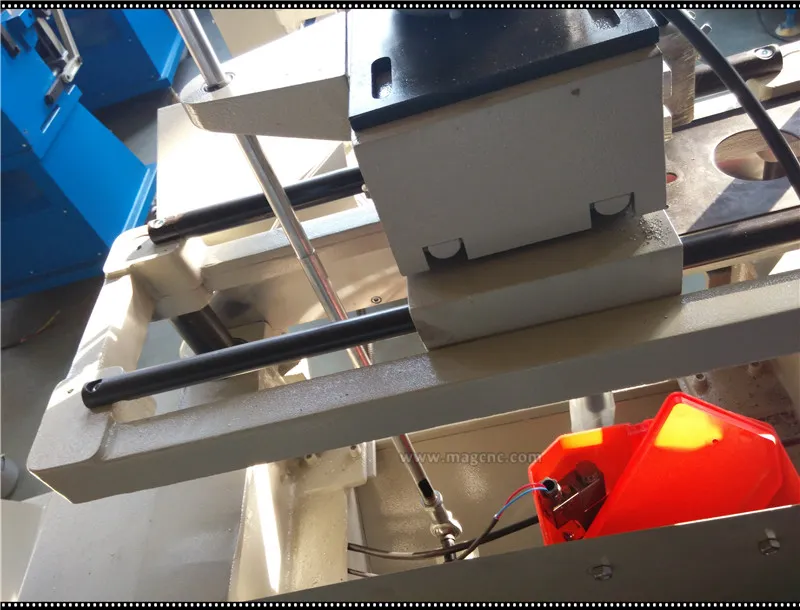

Machine detail 7
🛠️
Service & Warranty

1. High-quality electrical elements and circuit breakers from world-famous brands.

2. International CE standard flexibility and high shielding cables.

3. Warranty: 1 year.

4. Payment: 30% T/T deposit, 70% balance before shipment.

5. Packaging: Film packaging and fumigation-free wooden case (for LCL).

6. Support: 24-hour online service, English manuals, and operating videos provided.

🏢
Industrial Capability

Our group specializes in window machines and related industrial equipment. Products cover window making machines, glass processing equipment, curtain wall processing tools, and CNC machining centers. With multiple production bases, we provide a complete system of building equipment products sold to more than 50 countries and regions.

Factory View
Packaging
Certification
❓
Frequently Asked Questions
Q1: What materials can this copy milling machine process?
A: It is specifically designed for copy-routing various holes, grooves, and water-slots on aluminum window and door profiles.
Q2: What is the warranty period for this equipment?
A: We provide a 1-year warranty on the machine, along with 24-hour online technical support and problem-solving.
Q3: Does the machine require a CNC system?
A: No, this specific model is an automatic copy milling machine (not CNC), utilizing a copy template for precision routing.
Q4: What are the electrical power requirements?
A: The machine operates on a 380V/50Hz power supply with a motor power of 2.2kw.
Q5: How is the machine protected during shipping?
A: The machine is wrapped in film and packed in a fumigation-free wooden case. For full container loads, it is shipped on a tray for security.
Q6: Are training materials provided for new operators?
A: Yes, we provide user-friendly English manuals and operating videos. On-site training can also be arranged if required.
