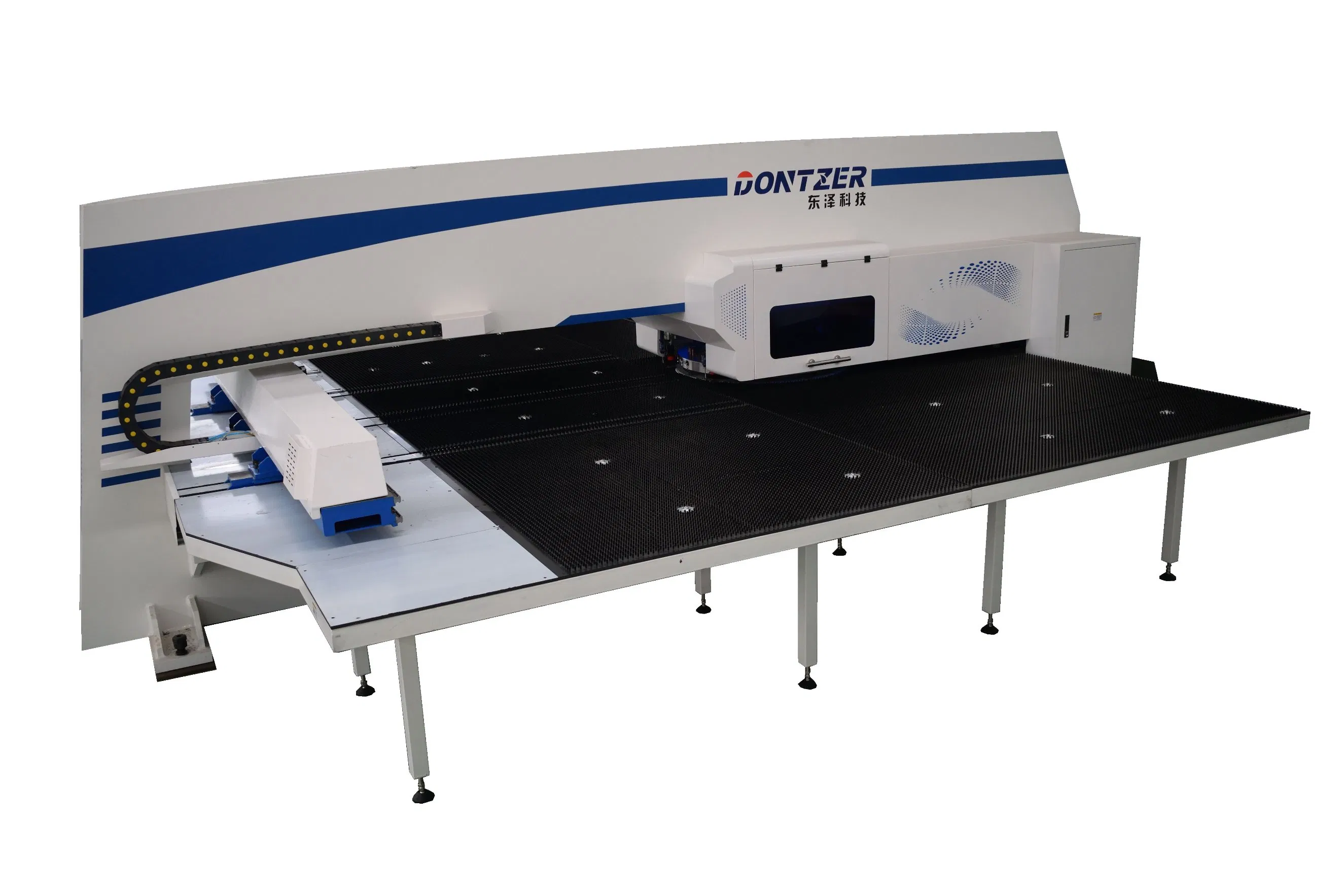

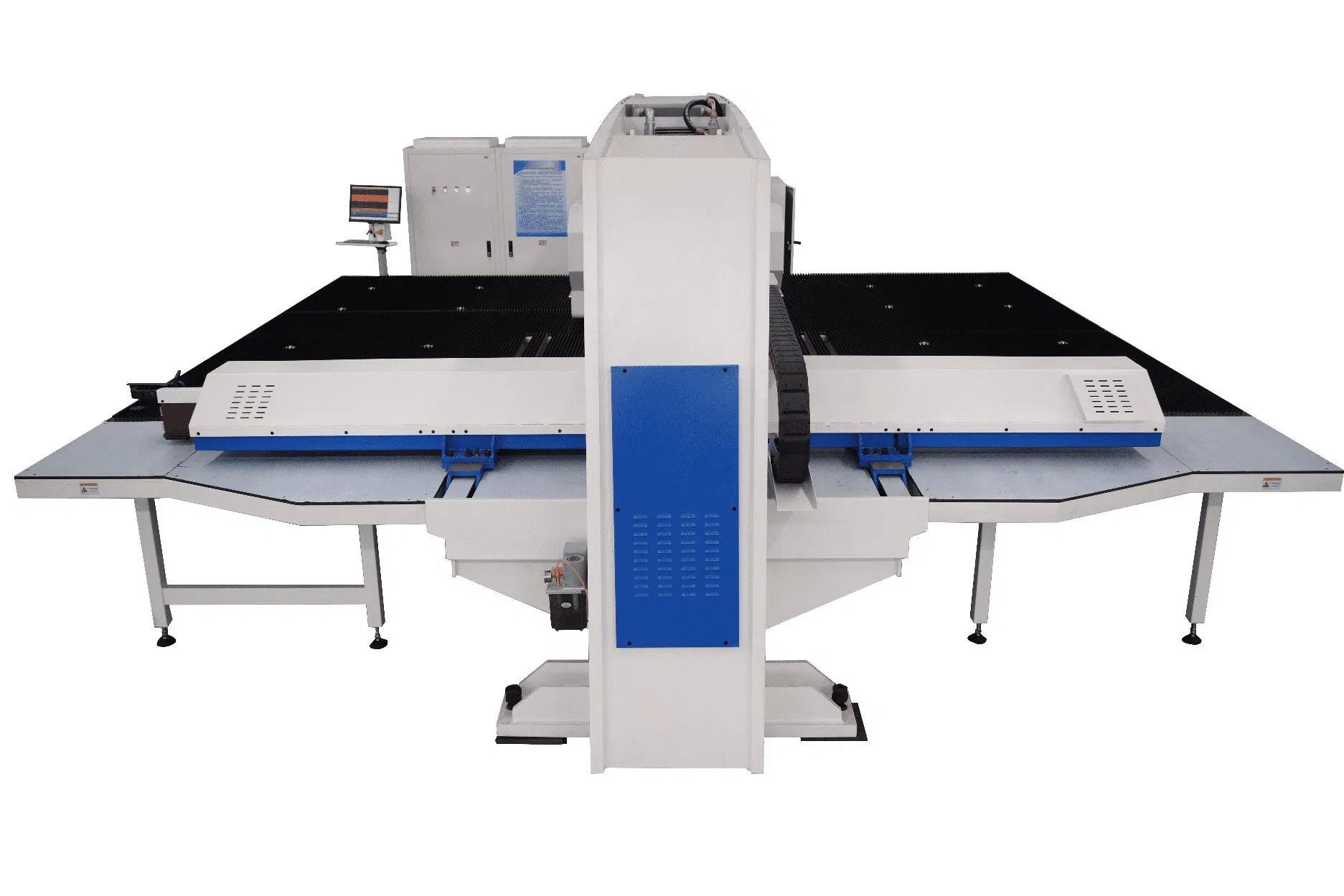

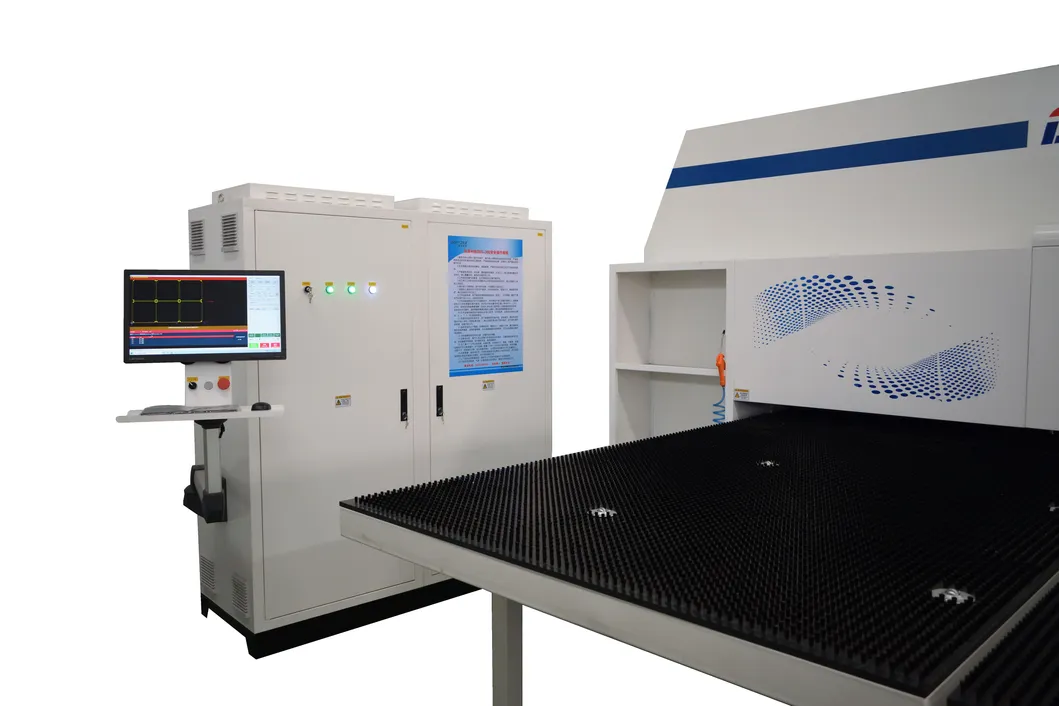

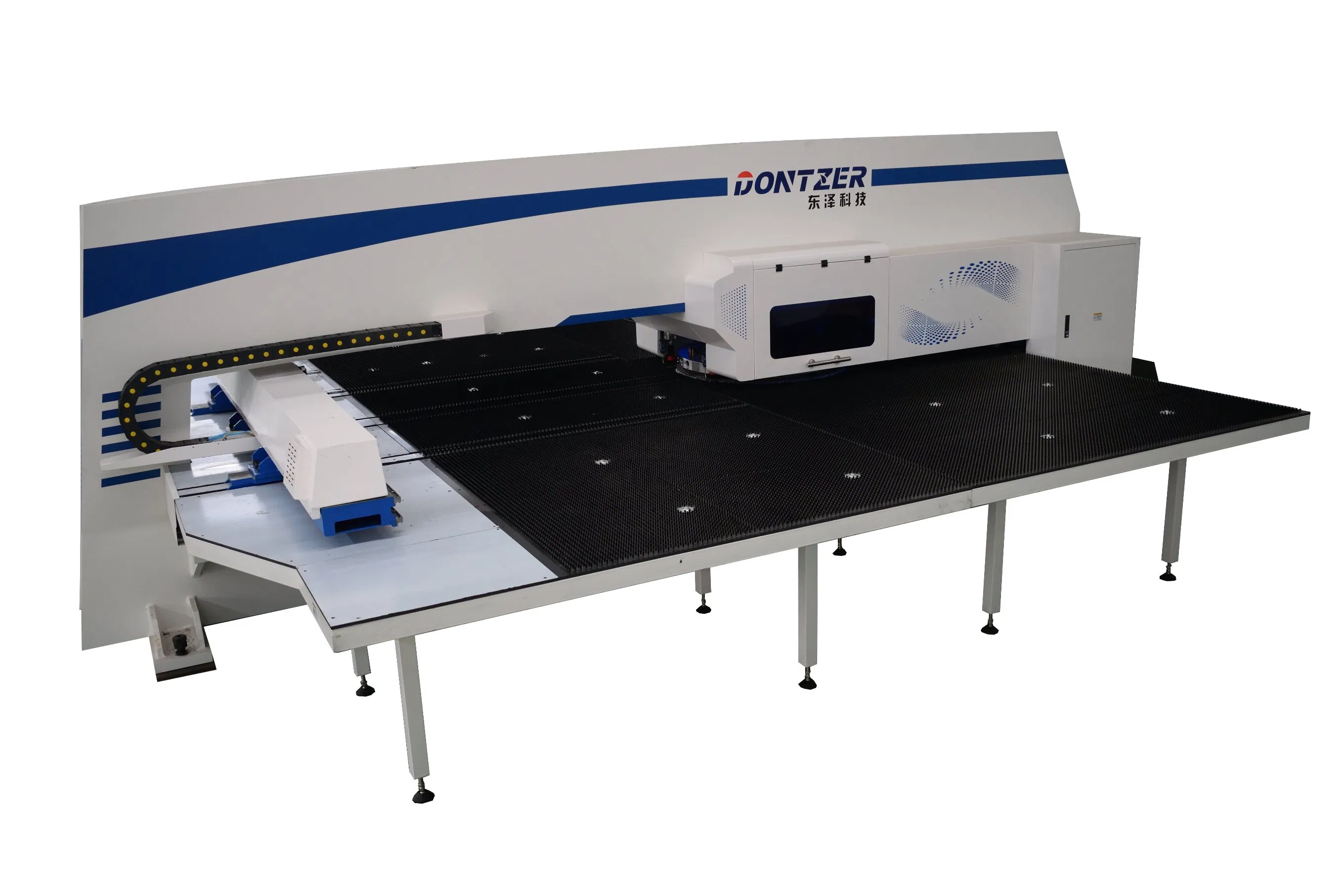

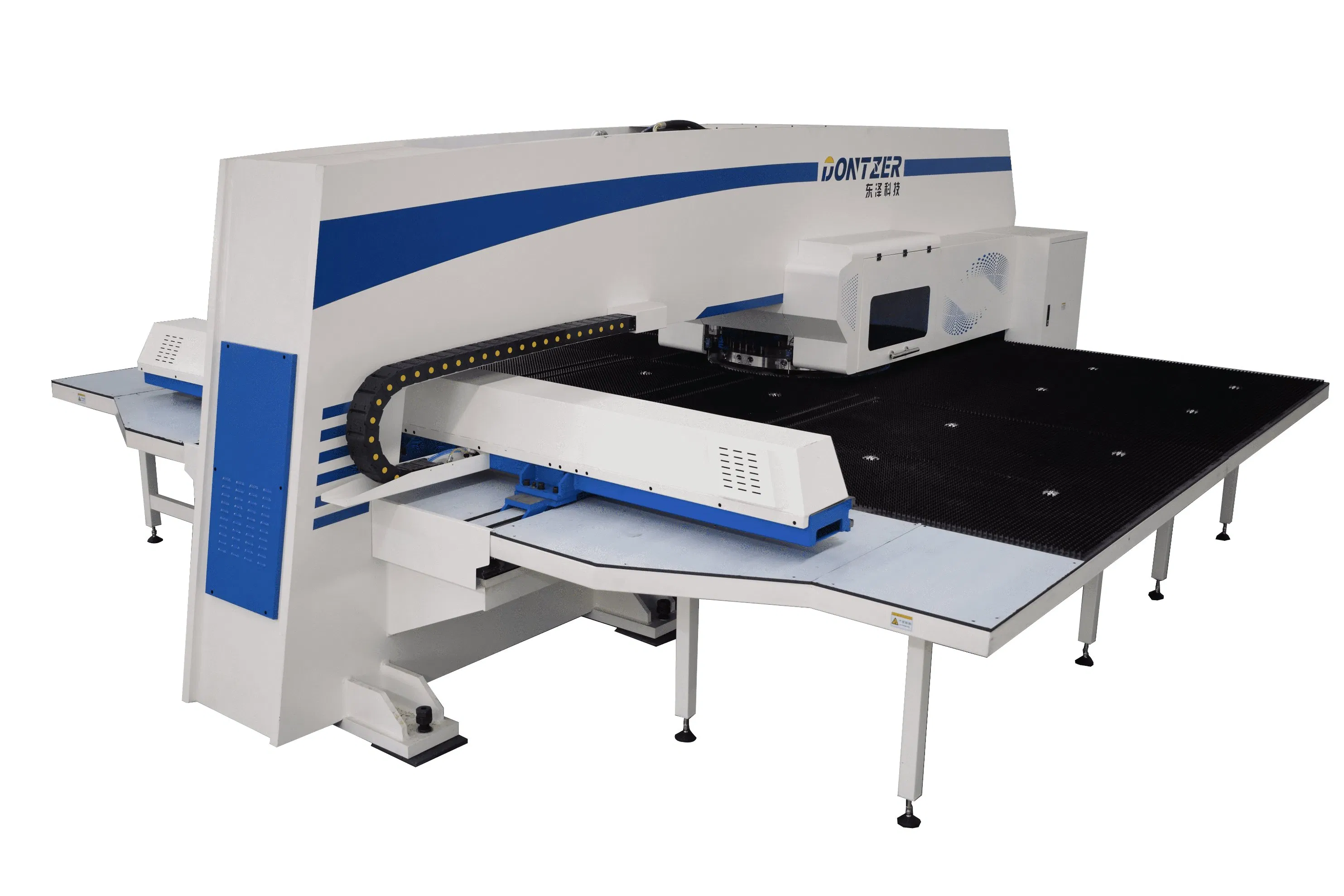

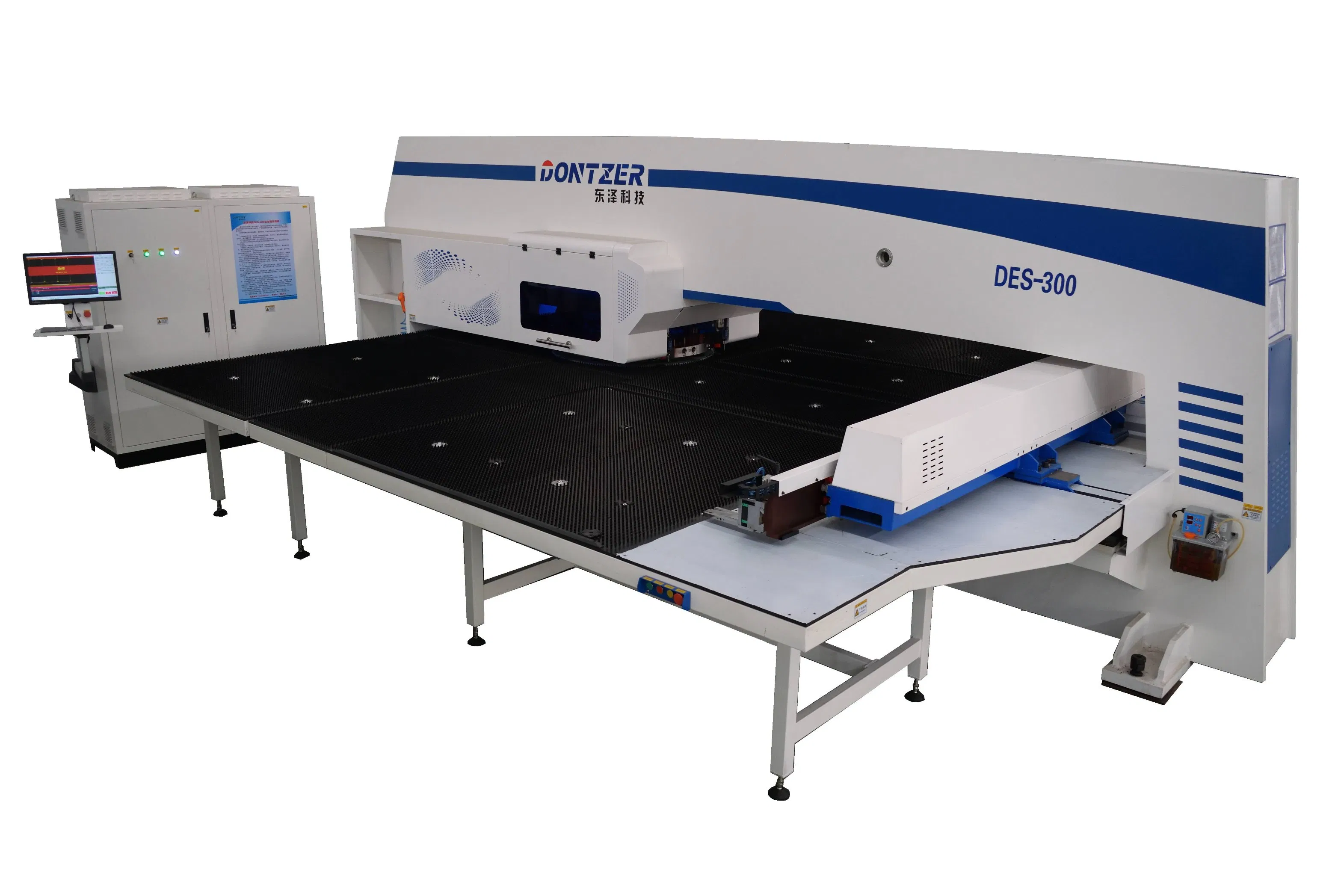

Continuous Punching Day-Night Stamping Stainless Steel Press Aluminum Hole Punch Press / CNC Turret / CNC Perforate Drilling Metal Sheet Hole Machine
📋 Basic Specifications
Type
Turret Punching Machine
Controlling Mode
CNC (Automatic)
Max Processing Sheet
2500* 1250 mm
Precision
High Precision (±0.1 mm)
Max Sheet Thickness
6.35 mm
Max Punch Diameter
88.9 mm
Servo System
Japan Fanuc / Panasonic
Certification
GS, CE, RoHS, ISO 9001
📷 Detailed Component Photos

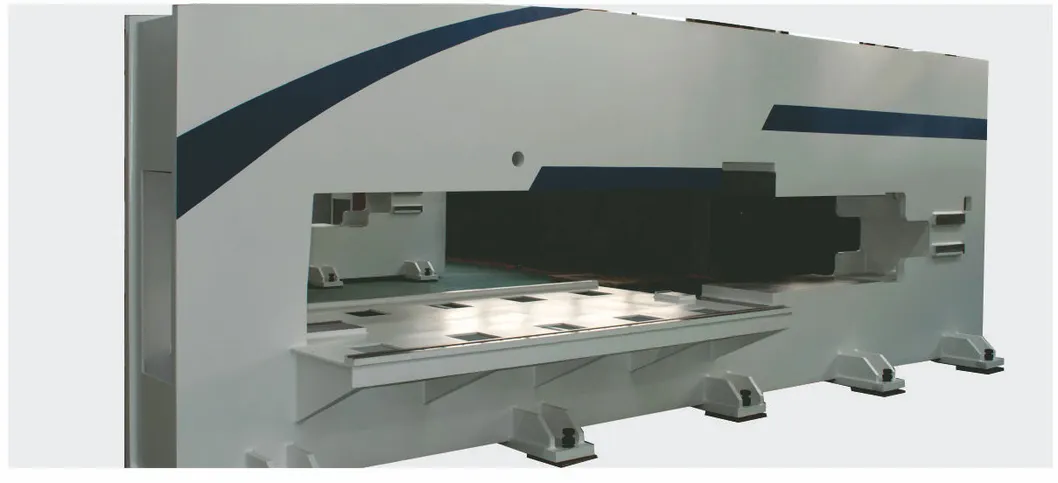

* Steel plate frame
* Tempering fireplace
* One-step clamping

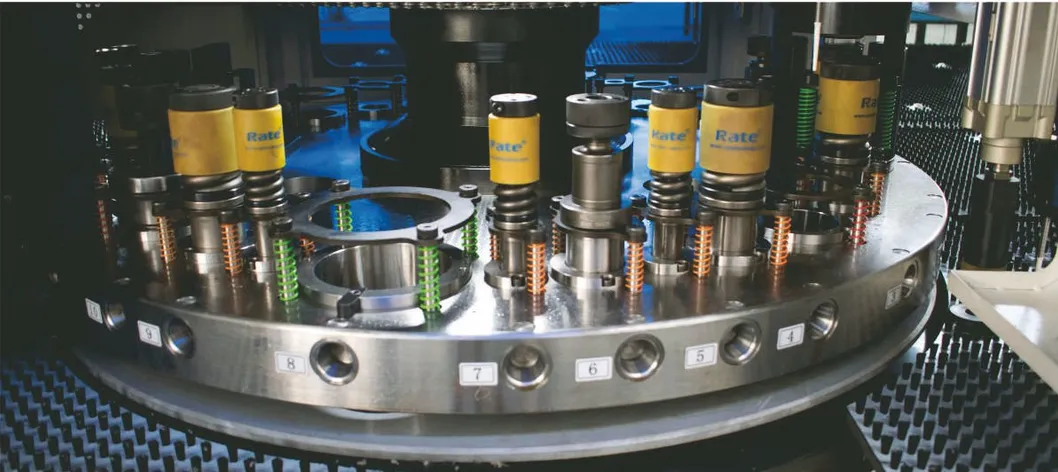

* Thick rotating tower
* Extending mold life
* High accuracy

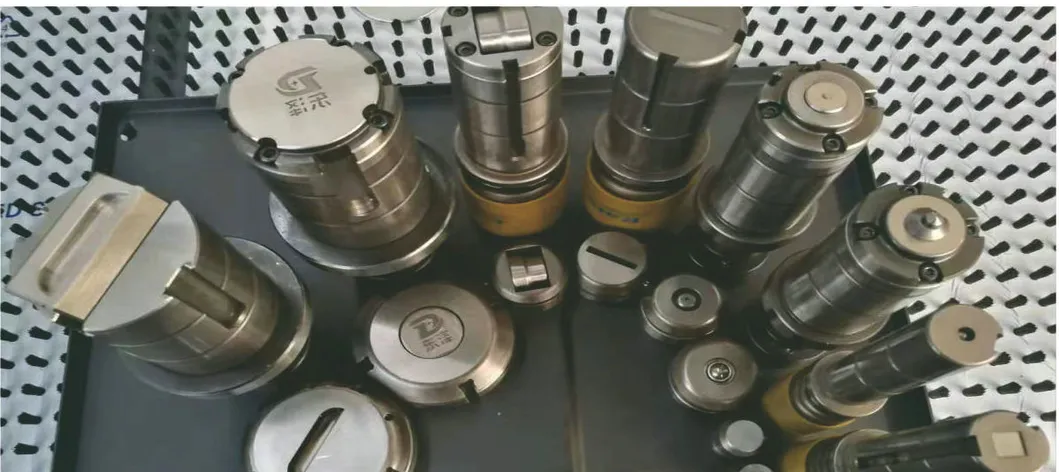

* International standard 85 series mould
* High surface hardness
* Strong anti-abrasion

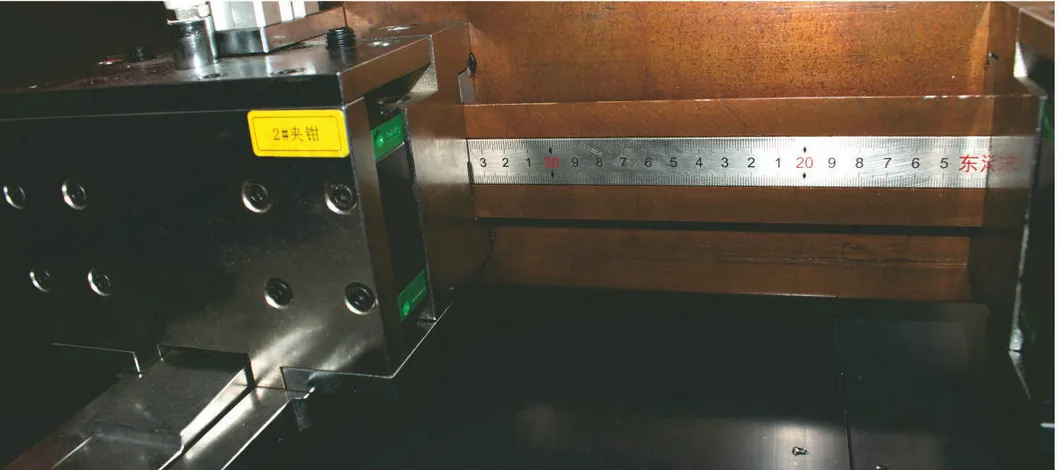

* Tempering clamp slide
* Blackening of clamp surface
* Installing scales
⚙ Technical Parameters
| ITEMS |
UNIT |
SPECIFICATIONS |
| Punch Force | KN | 30 |
| Frame Structure | / | O type |
| Max. Processing Sheet | MM | 2500* 1250 |
| No. Of Clamp | NO. | 3 |
| Max. Punch Diameter | MM | Φ88.9 |
| Punch Pace | HPM | 1800 |
| Max. Punch Hit (25.4mm Pace) | HPM | 400 |
| No. Of Tool Station | No. | 16/24/32 (A,B,C,D) |
| Controlling Axis | N0. | 5 (X/Y/R/T/C) |
| Mould Structure | / | International Standard |
| Accuracy | mm | ±0.1 |
| Outline Dimension | mm | 5200* 5200* 2280 |

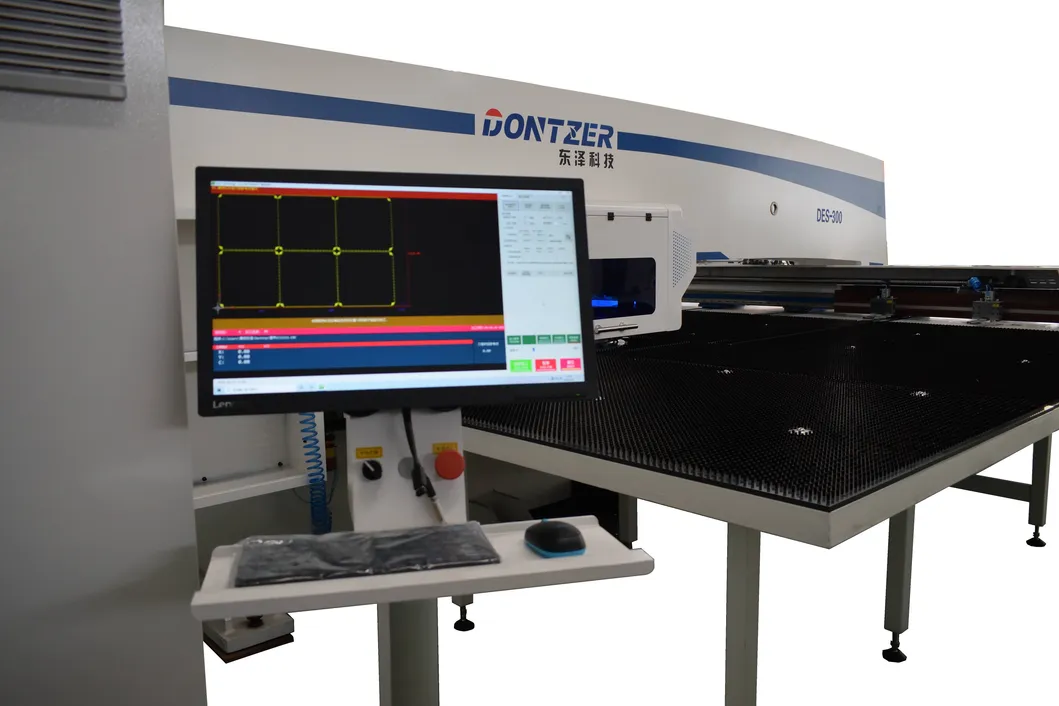

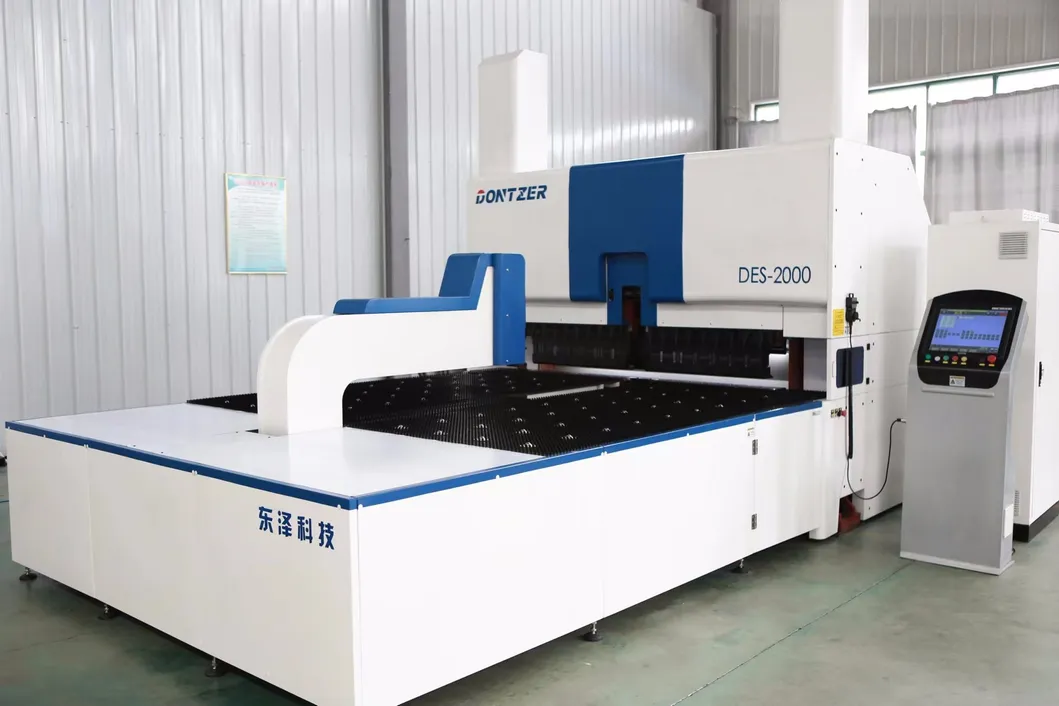

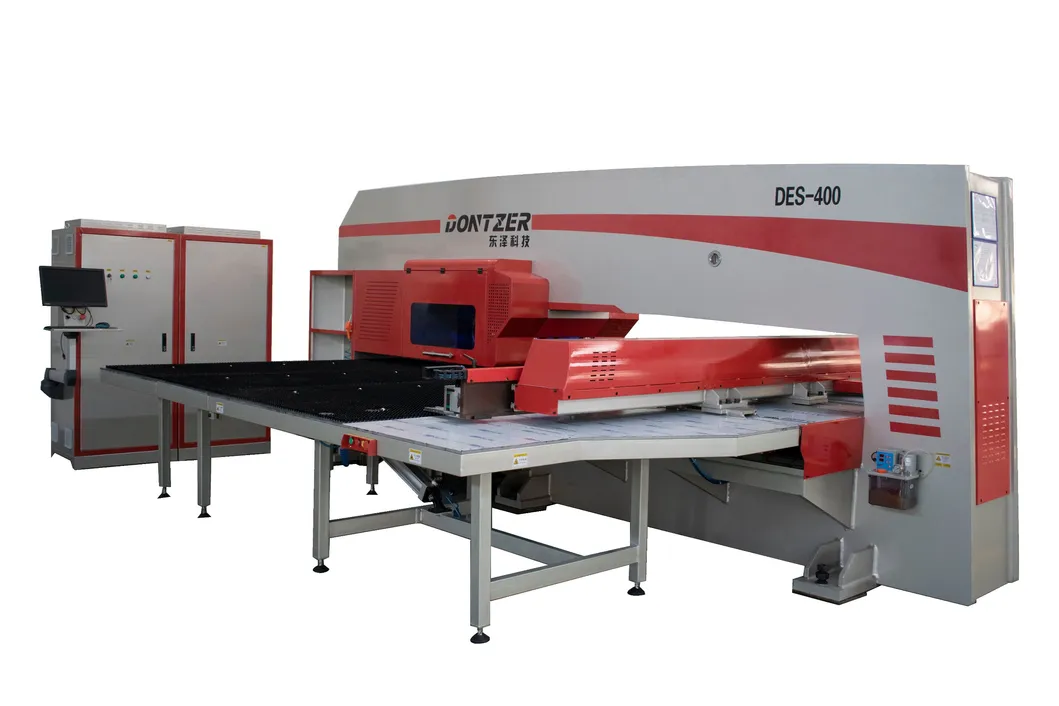

📁 Product Gallery & Categories
📦 Packaging & Delivery
Package Size
1203cm * 235cm * 239cm
❓ Frequently Asked Questions
How about the delivery time?
Generally it's 15-30 days based on the model and specific requirements.
How is the warranty period?
We provide 1 year warranty after installation and lifetime free technical support.
How to choose the suitable machine?
Please advise us of the material type, thickness, dimensions of your metal sheet, and provide a punched drawing.
What control system is used in the machine?
The machine utilizes high-end CNC systems coupled with Japan Fanuc or Panasonic servo units for maximum precision.
Are the moulds compatible with international standards?
Yes, we use the International Standard 85 series mould system, which offers high surface hardness and strong anti-abrasion.
What kind of materials can this machine process?
It is ideal for continuous punching and stamping of stainless steel, aluminum, and other various metal sheets.
