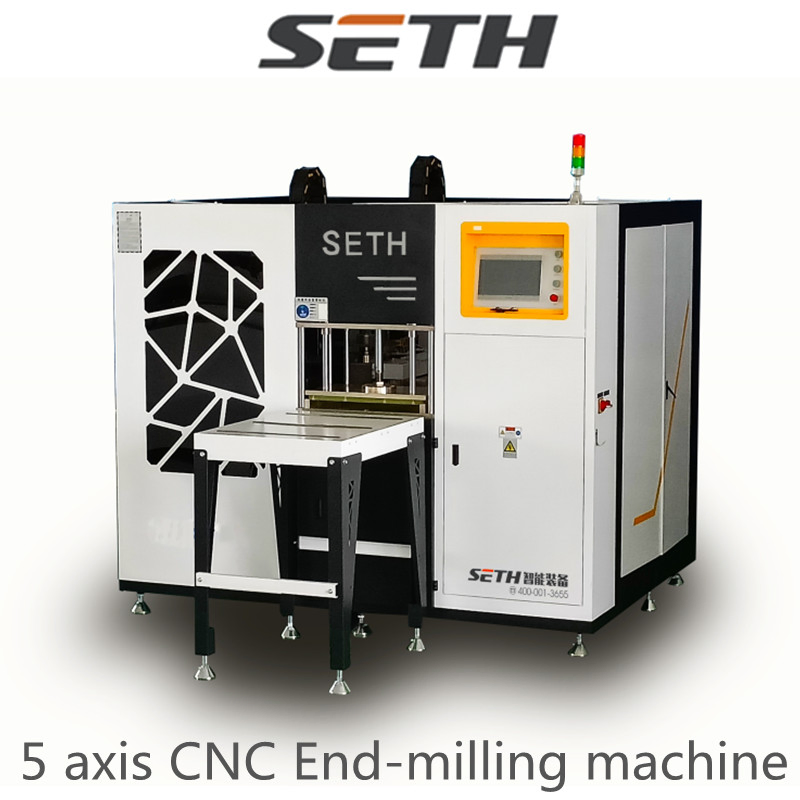

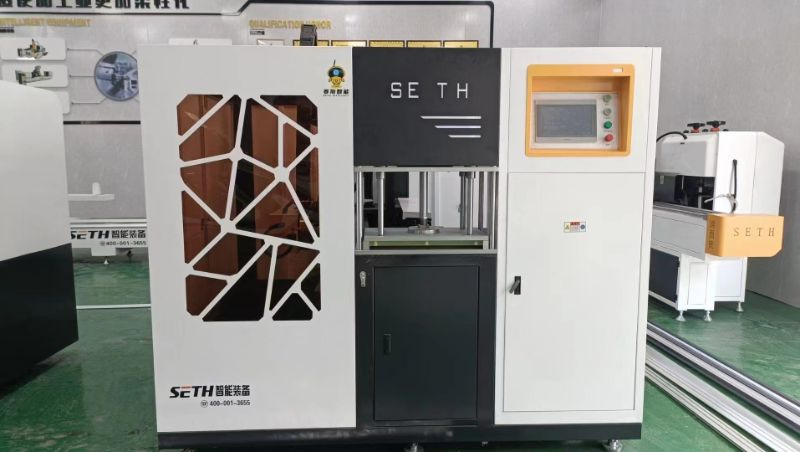

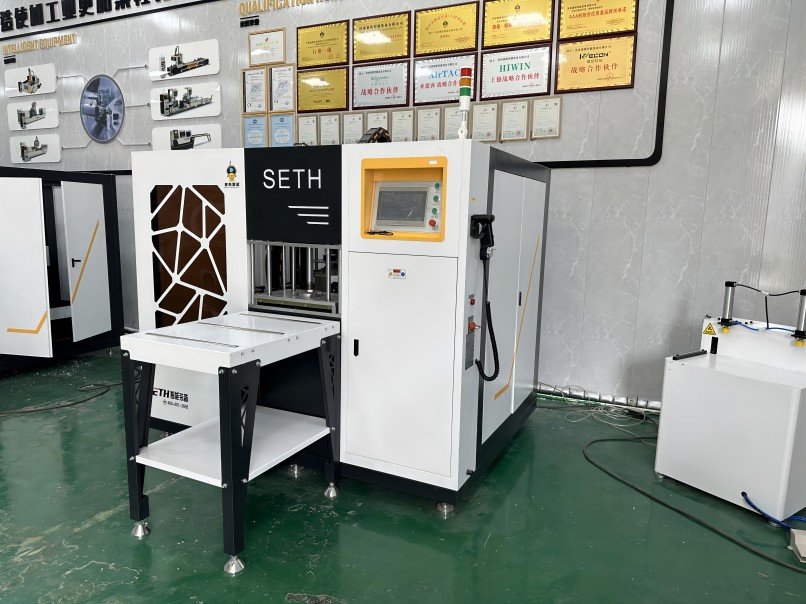

Window-Door Equipment Aluminum Window Machine 5 Axis CNC End Milling Machine for Window Transom Processing
Window-Door Equipment Aluminum Window Machine 5 Axis CNC End Milling Machine for Window Transom Processing
Window-Door Equipment Aluminum Window Machine 5 Axis CNC End Milling Machine for Window Transom Processing
Window-Door Equipment Aluminum Window Machine 5 Axis CNC End Milling Machine for Window Transom Processing
Window-Door Equipment Aluminum Window Machine 5 Axis CNC End Milling Machine for Window Transom Processing
1 / 5
Window-Door Equipment Aluminum Window Machine 5 Axis CNC End Milling Machine for Window Transom Processing
Window-Door Equipment Aluminum Window Machine 5 Axis CNC End Milling Machine for Window Transom Processing
Window-Door Equipment Aluminum Window Machine 5 Axis CNC End Milling Machine for Window Transom Processing
Window-Door Equipment Aluminum Window Machine 5 Axis CNC End Milling Machine for Window Transom Processing
Window-Door Equipment Aluminum Window Machine 5 Axis CNC End Milling Machine for Window Transom Processing

Window-Door Equipment Aluminum Window Machine 5 Axis CNC End Milling Machine for Window Transom Processing

Customization: Available
After-sales Service: Video Instruction, Online
Warranty: 18 Month
Send Inquiry

Product Description

Overview
Product Description
Detailed Photos
Specifications
Packaging & Shipping
FAQ
📊Basic Information
Model NO.
LDXB5-CNC-250
Condition
New
Certification
ISO, CE, SGS
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Operating Pressure
0.6~0.8MPa
Weight
850kg
🔧Product Description

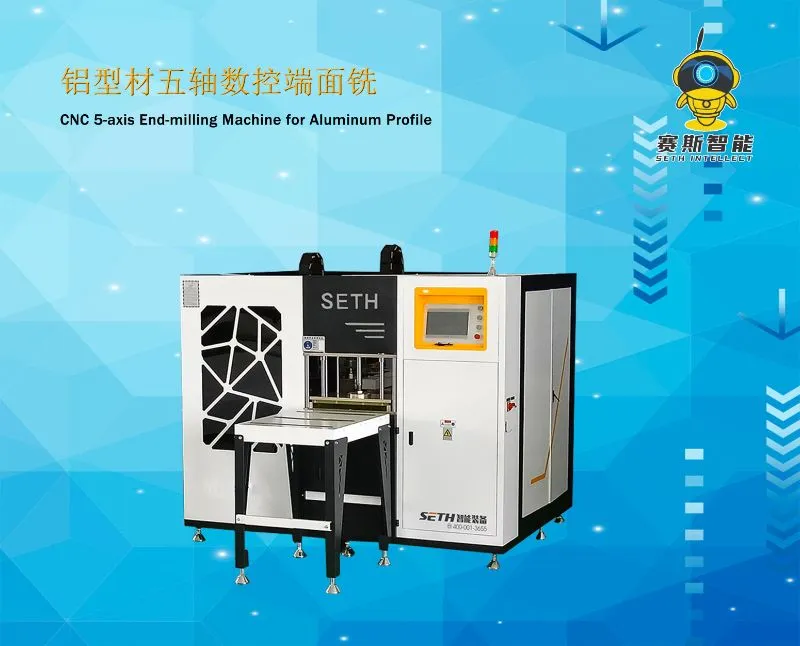

CNC End Milling Machine
  • Suitable for sawing and milling of the end tenon and step surface of the profile in the door and window.
  • 6-axis CNC system control, easy programming, high compatibility, and efficiency.
  • Dual milling motors: one for horizontal milling and one for vertical longitudinal cutting.
  • Vertical slitting saw blade angle is adjustable for wider application range.
  • Controlled by five-axis CNC servo without manual adjustment; supports preset programs for continuous processing of different sections.
  • Adopt precision rack and pinion feed for enhanced stability.
📋Technical Specifications
Power supply380V/50Hz
Total motor power10.00kW
Motor speed2800r/min
Milling cutter diameterФ250mmx32mm
Saw blade specificationφ300-350mm
X axis adjustment stroke0-400mm
Y axis adjustment stroke0-200mm
Z axis adjustment0-200mm
Overall dimension2500x1700x2000mm
📷Detailed Photos

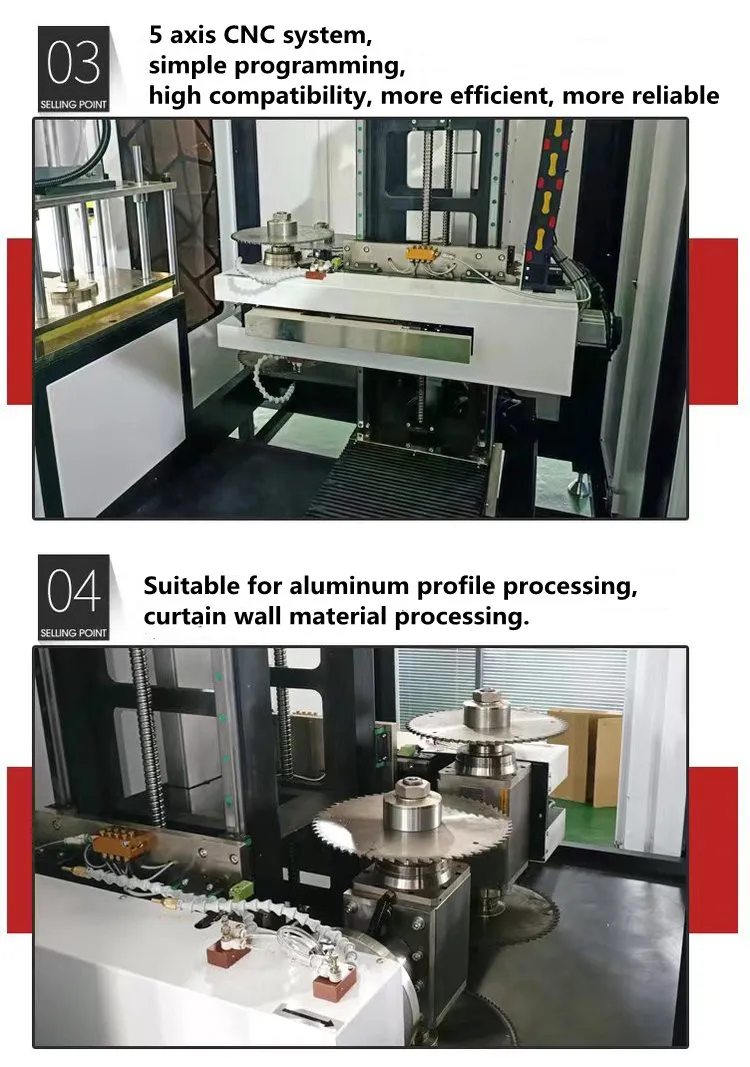

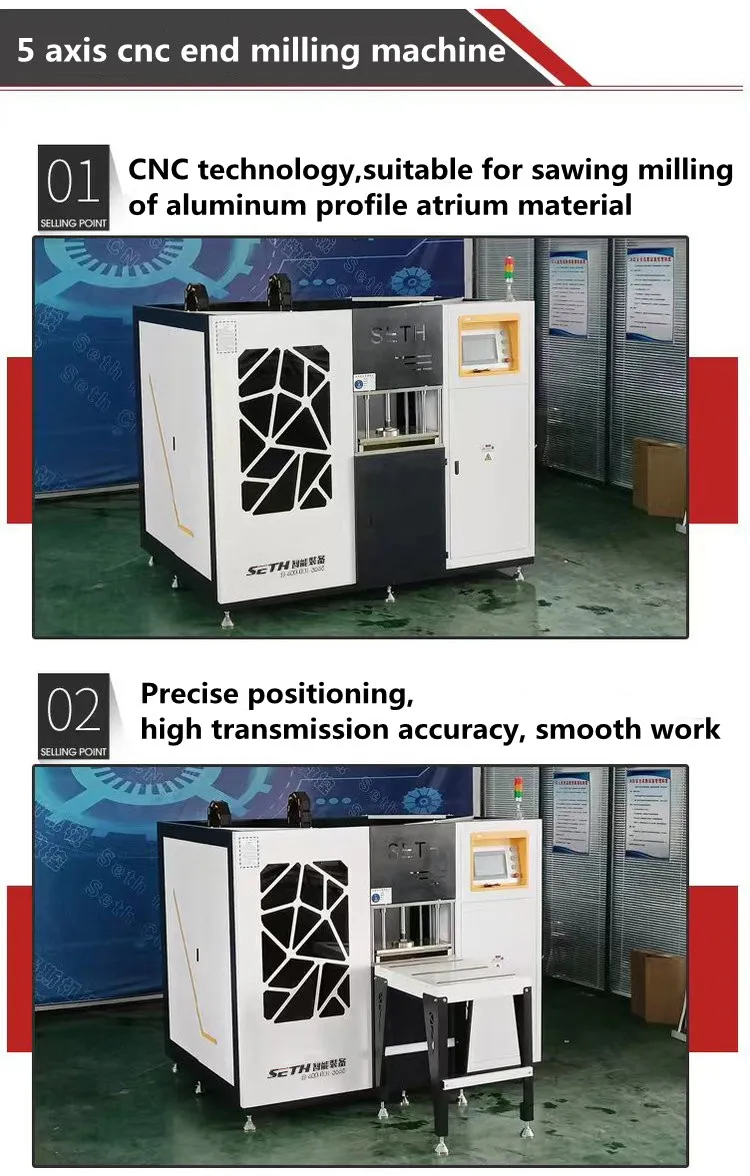

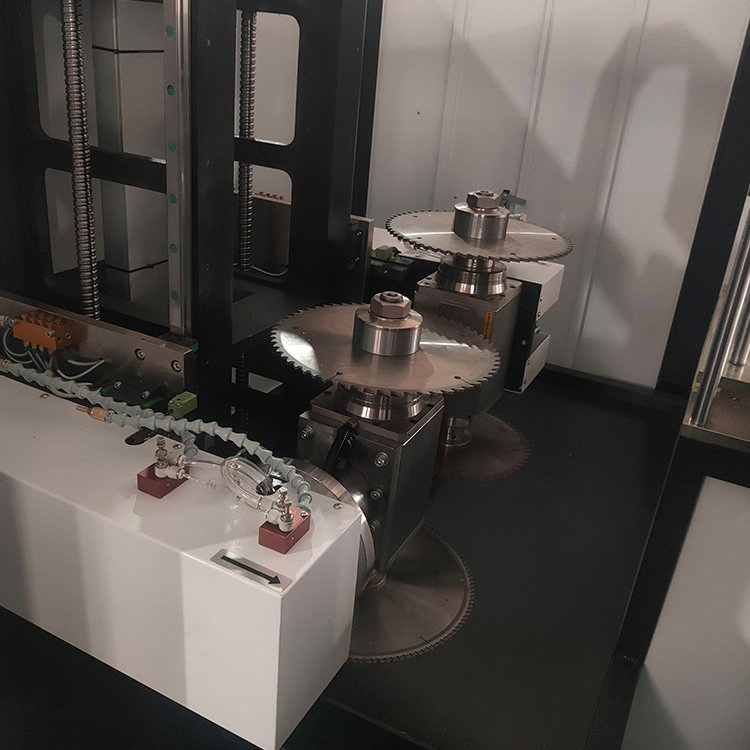

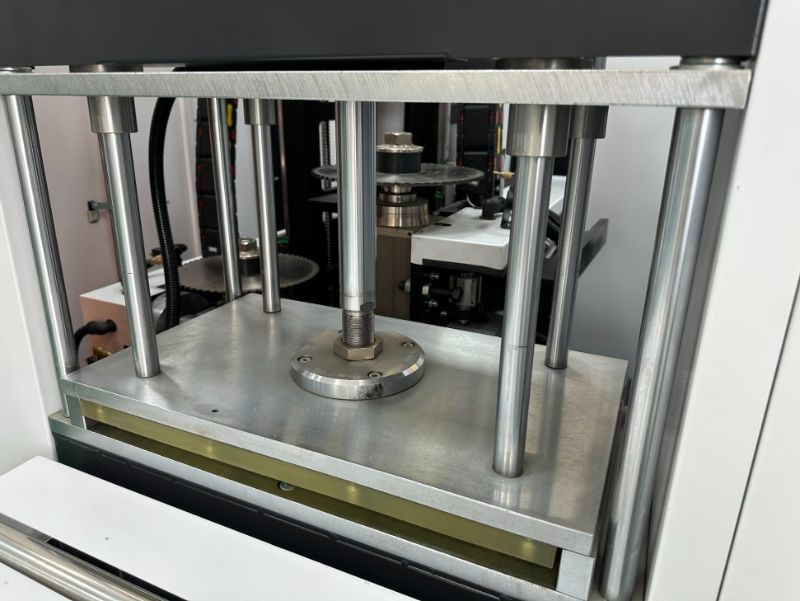

Detailed View 1 Detailed View 2 Detailed View 3
📜Certifications
Certifications
📦Packaging & Shipping

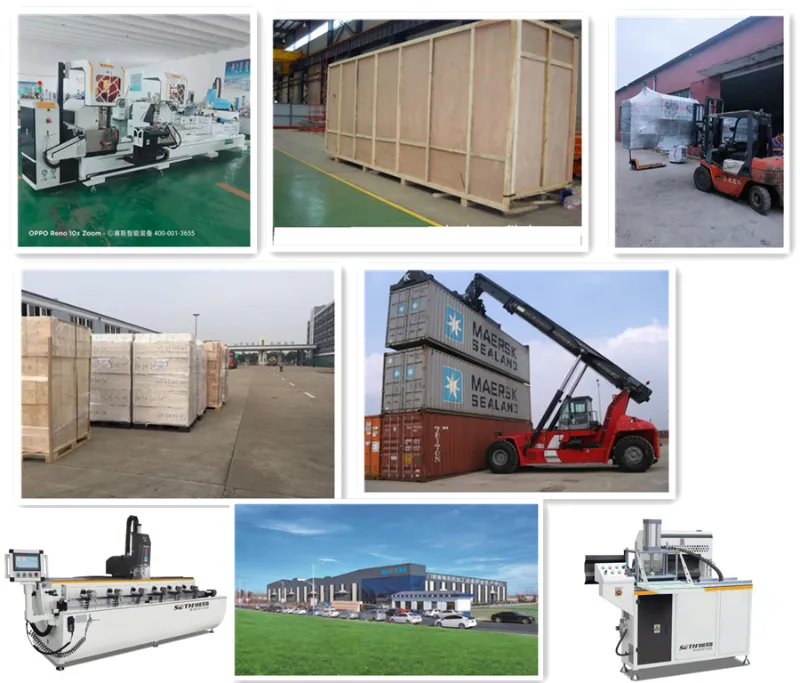

Packaging 1 Packaging 2 Shipping
Transport
🏢Expertise & Capacity
Factory Overview

Specializing in high-end Aluminum & Façade Machinery, our production is powered by a technical expert team with decades of experience in German craftsmanship standards. We have developed a wide range of advanced equipment including 3/4/5 Axis CNC Machining Centers, Double Mitre Saws, and Notching Saws.

Our persistence in innovation has resulted in over 100 patents. We provide strategic solutions for industries including Façade, Windows & Doors, New Energy Vehicles, Aerospace, and Solar energy.

Advantage 1 Advantage 2
🔥Hot Sale Products

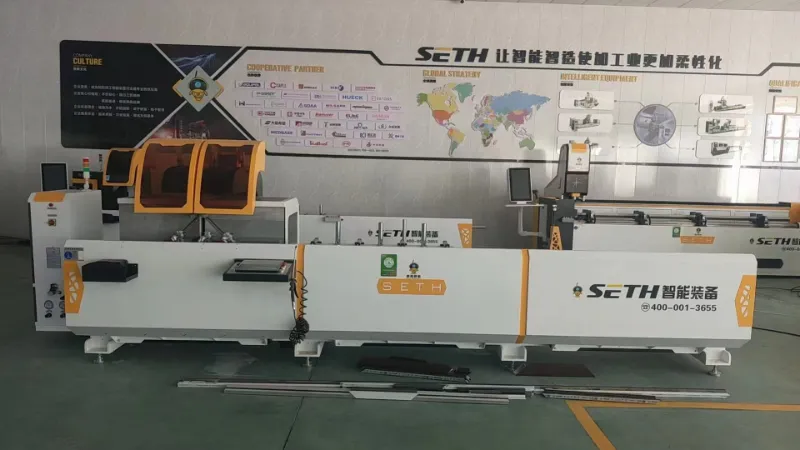

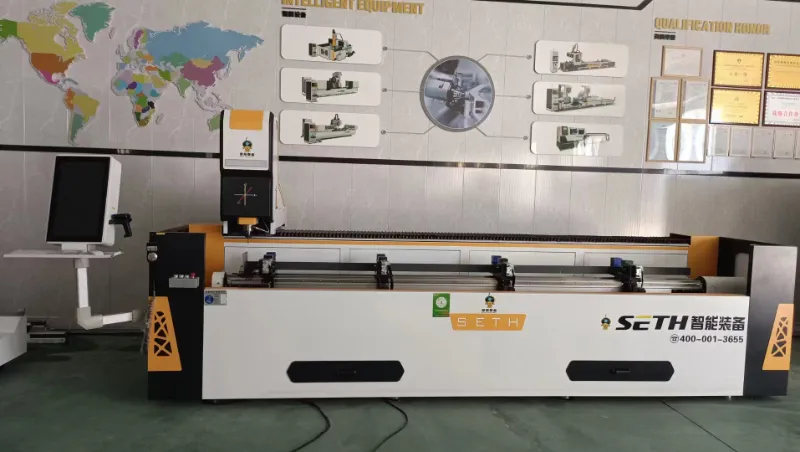

Hot Sale 1 Hot Sale 2 Hot Sale 3
🏛️Exhibition

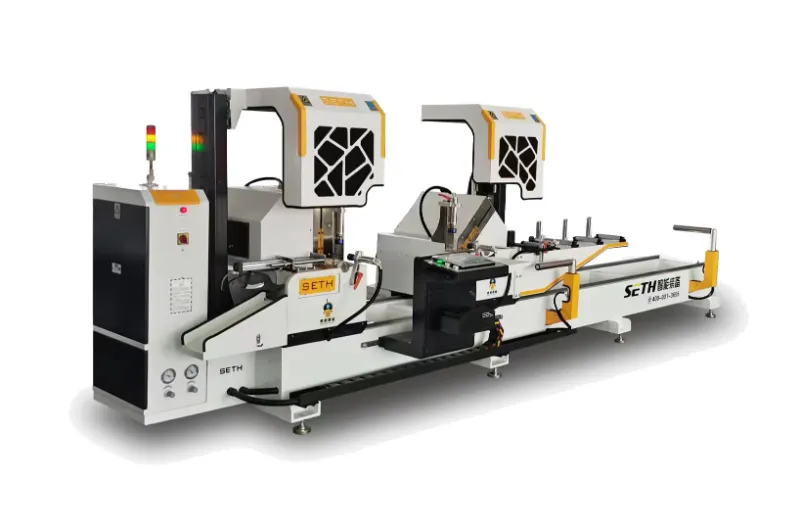

Exhibition 1 Exhibition 2 Exhibition 3
Exhibition 4
❓FAQ
What is the primary application of the LDXB5-CNC-250?
It is specifically designed for sawing and milling end tenons and step surfaces of aluminum door and window profiles, particularly for transom processing.
How does the 5-axis CNC system benefit the user?
The system allows for easy programming and high compatibility. It can automatically adjust for different profile sections without manual intervention, significantly increasing efficiency.
Can the machine handle both horizontal and vertical milling?
Yes, the machine is equipped with two separate milling motors. One is dedicated to horizontal milling, while the other handles vertical longitudinal cutting.
Is the saw blade adjustable for different angles?
The vertical longitudinal cutting saw blade angle is adjustable, which provides a wider range of application for various window and door designs.
What are the power and pressure requirements for operation?
The machine requires a 380V/50Hz power supply and operates at a pneumatic pressure of 0.6 to 0.8 MPa.
What certifications does this equipment hold?
The machinery is certified under ISO, CE, and SGS standards, ensuring compliance with international quality and safety regulations.
