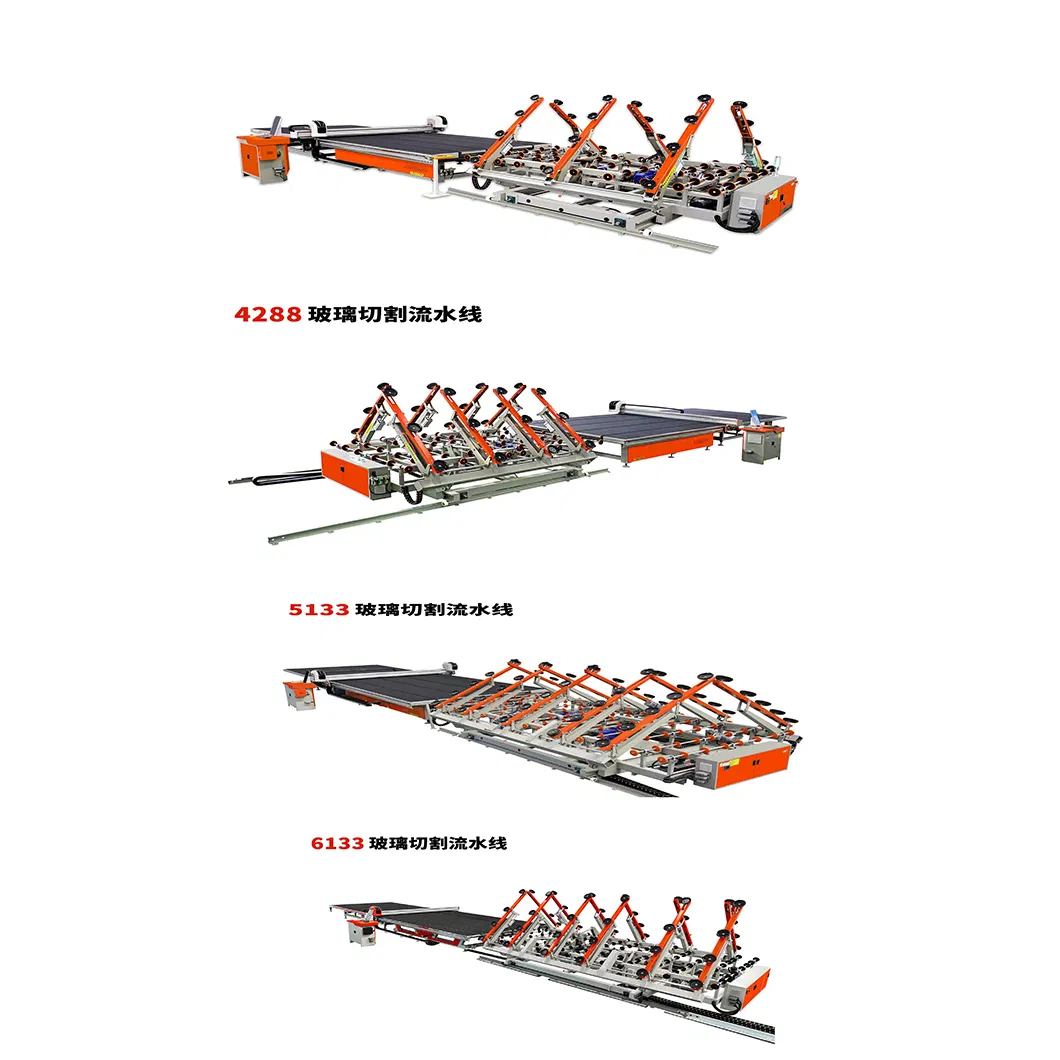

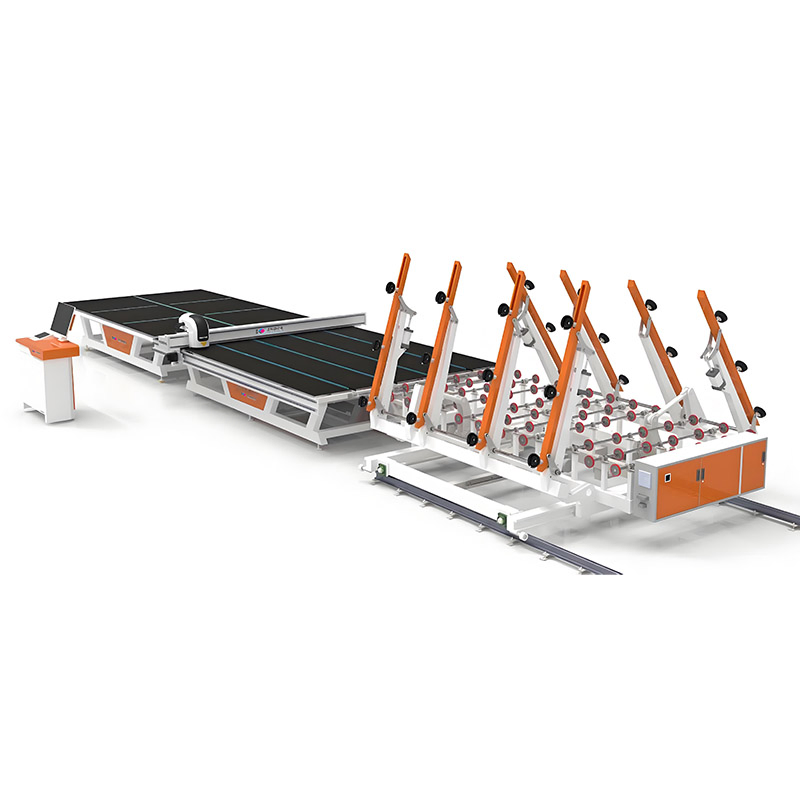

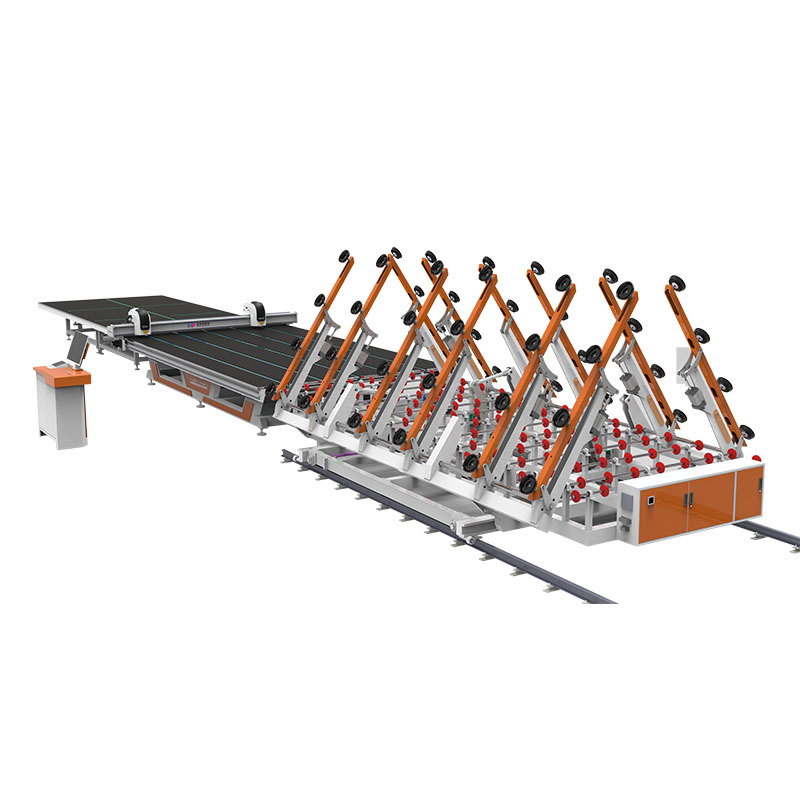

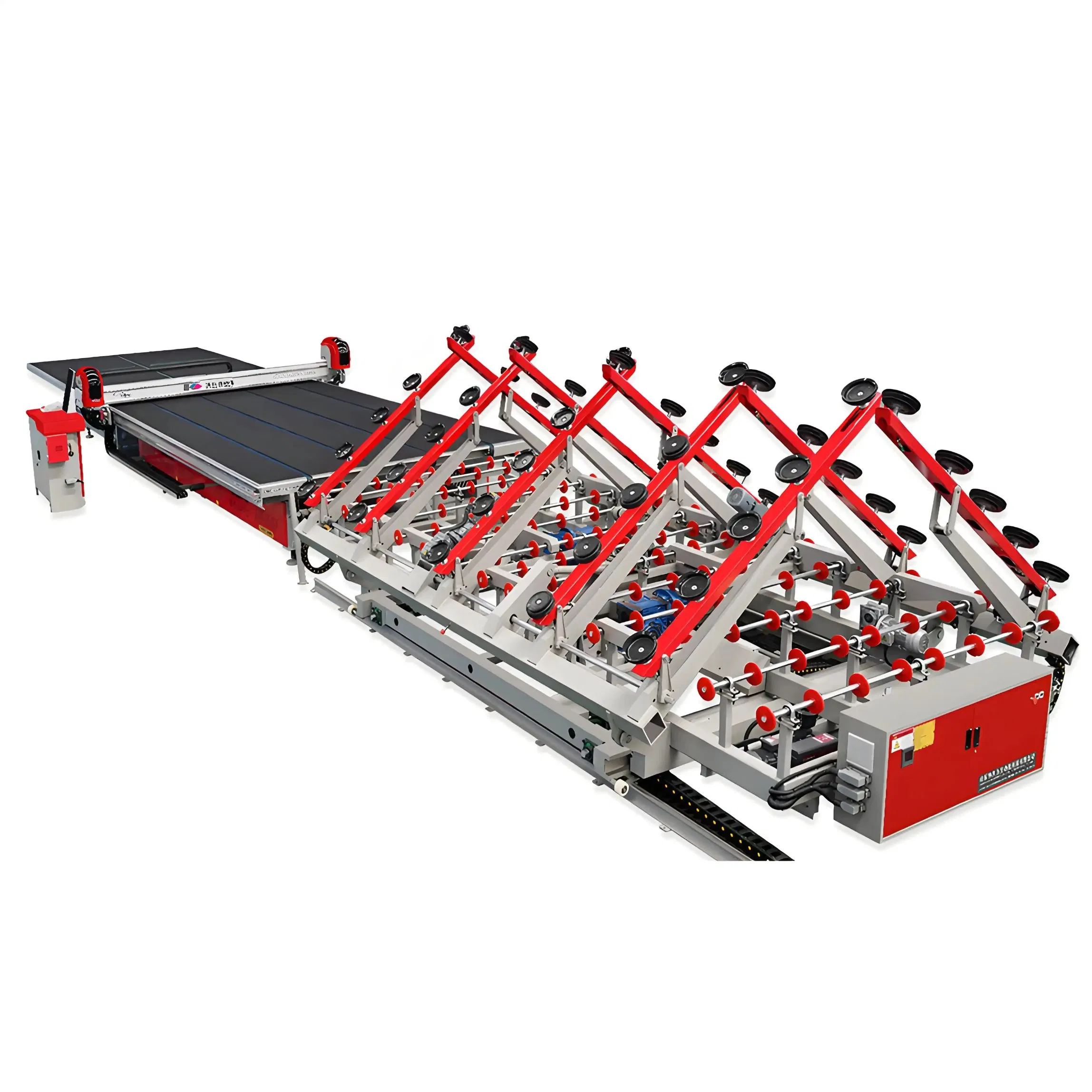

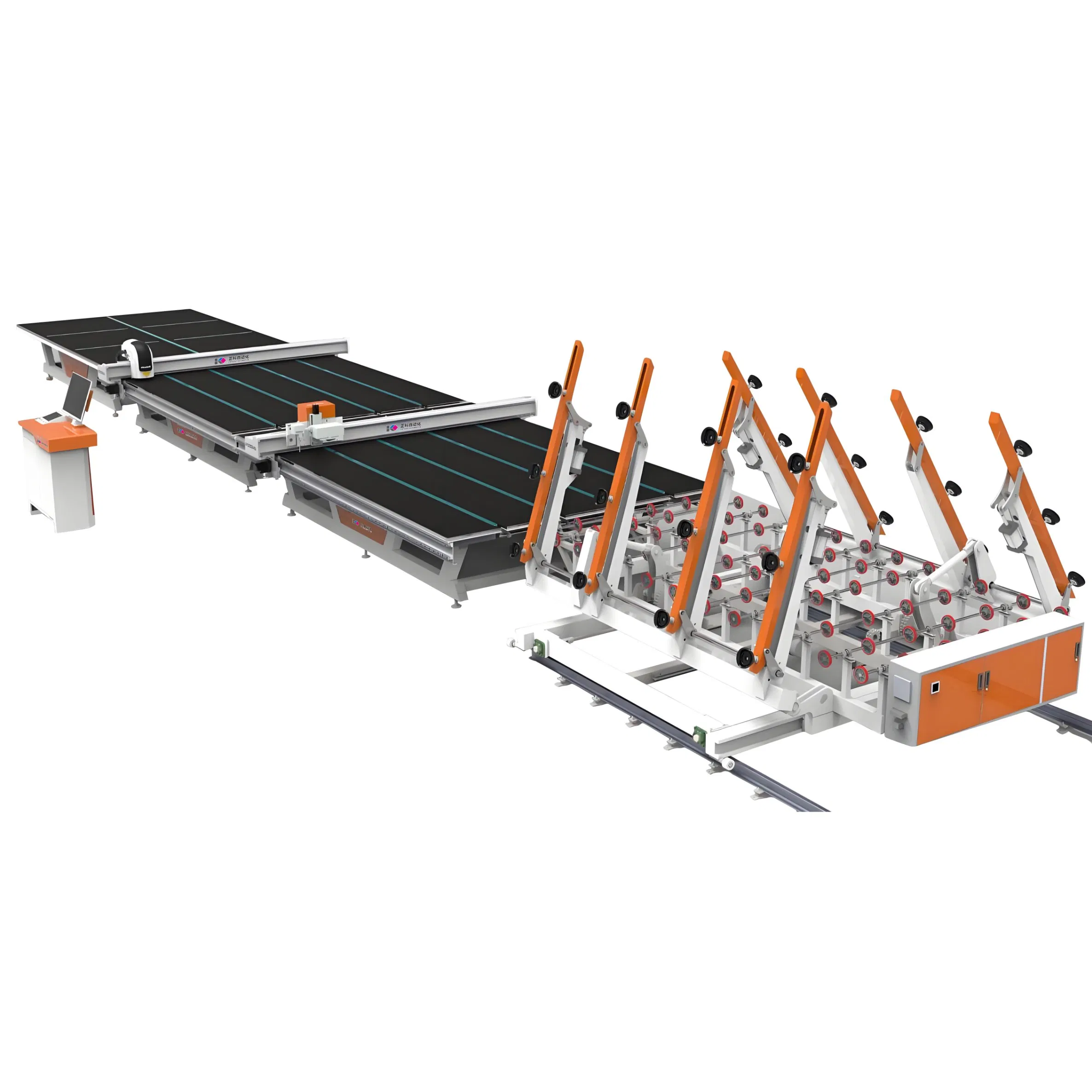

The intelligent glass cutting assembly line consists of three major systems: the loading table, cutting table, and breaking table. This automated process ensures high precision and efficiency in picking, cutting, and air-floating table breaking. It is ideal for straight and irregular cutting of flat glass in construction, decoration, home appliances, and more.
| Model | Max Glass Size | Min Glass Size | Thickness | Dimensions (L*W*H) | Total Power | Air Pressure |
|---|---|---|---|---|---|---|
| 3829 | 3660*2800mm | 50*50mm | 3-19mm | 12700*3800*2400 | 21.75kW | 0.6-0.8Mpa |

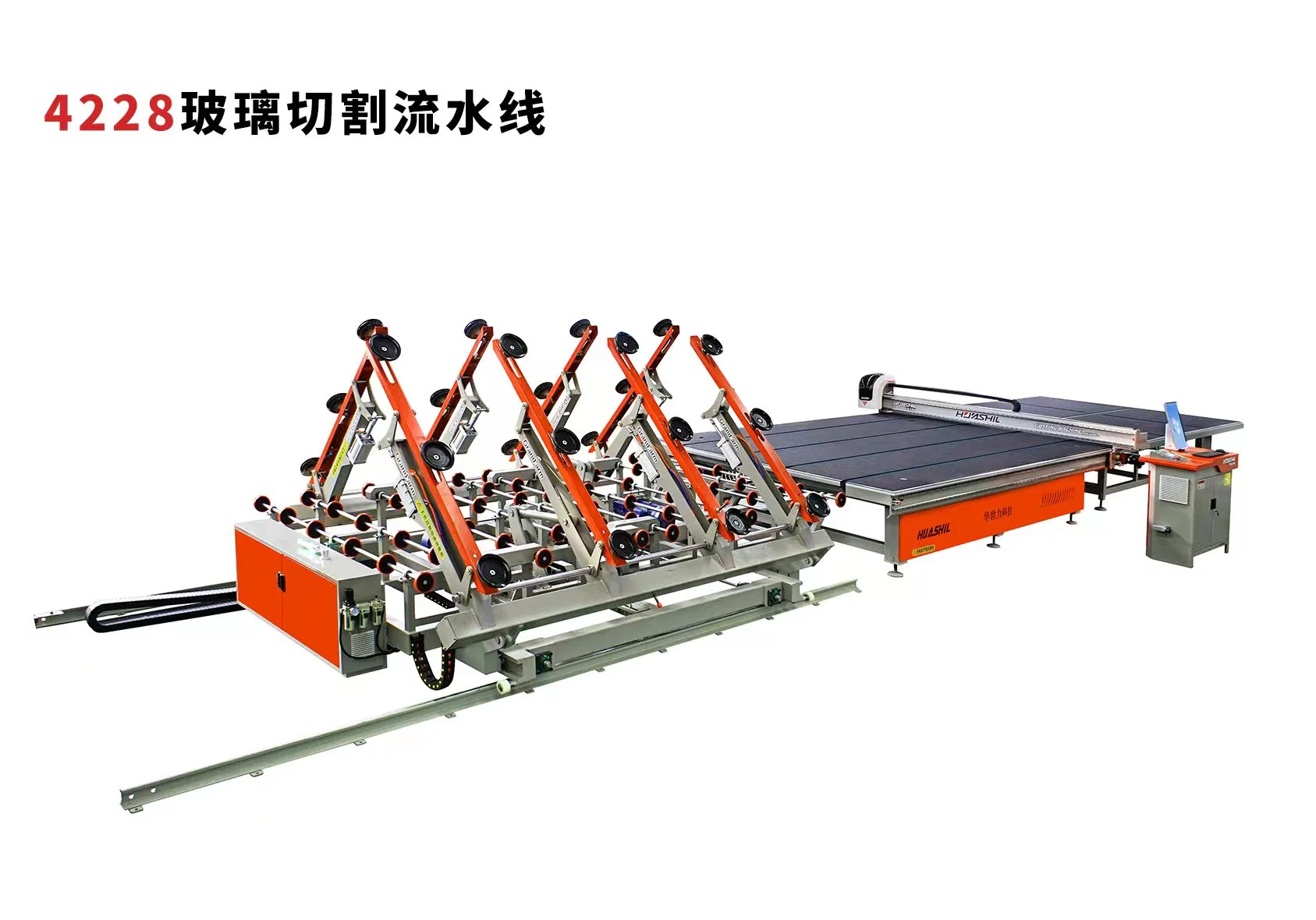

| 4228 | 4220*2800mm | 50*50mm | 3-19mm | 13900*3800*2400 | 22kW | 0.6-0.8Mpa |
| 5133 | 5100*3300mm | 50*50mm | 3-19mm | 17100*4450*2400 | 30kW | 0.6-0.8Mpa |
| 6133 | 6100*3300mm | 50*50mm | 3-19mm | 20140*3900*2400 | 34kW | 0.6-0.8Mpa |
Telescopic arms automatically locate and retrieve glass sheets, finishing the upper plate process efficiently once the suction is firm.
One-button control streamlines loading, cutting, and labeling in a single cycle for maximum productivity.
Features advanced optimization software with an optimization rate up to 99%, reducing waste and ensuring high precision.
Real-time fault detection and alarm system uploads causes immediately to ensure quick troubleshooting and minimal downtime.

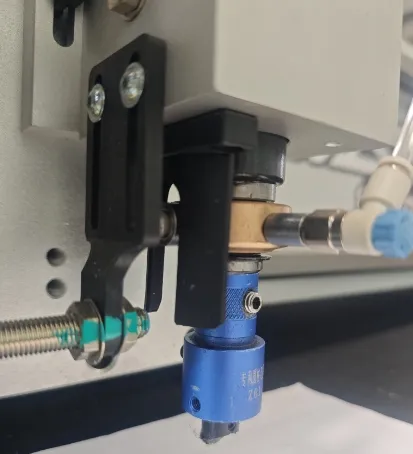

Professional control system for straight and special-shaped cutting. Electromechanical precision pressure valves allow the cutting head to perfectly fit the glass surface, avoiding quality-related cutting issues. Oil is automatically filled via pneumatic pressure control.

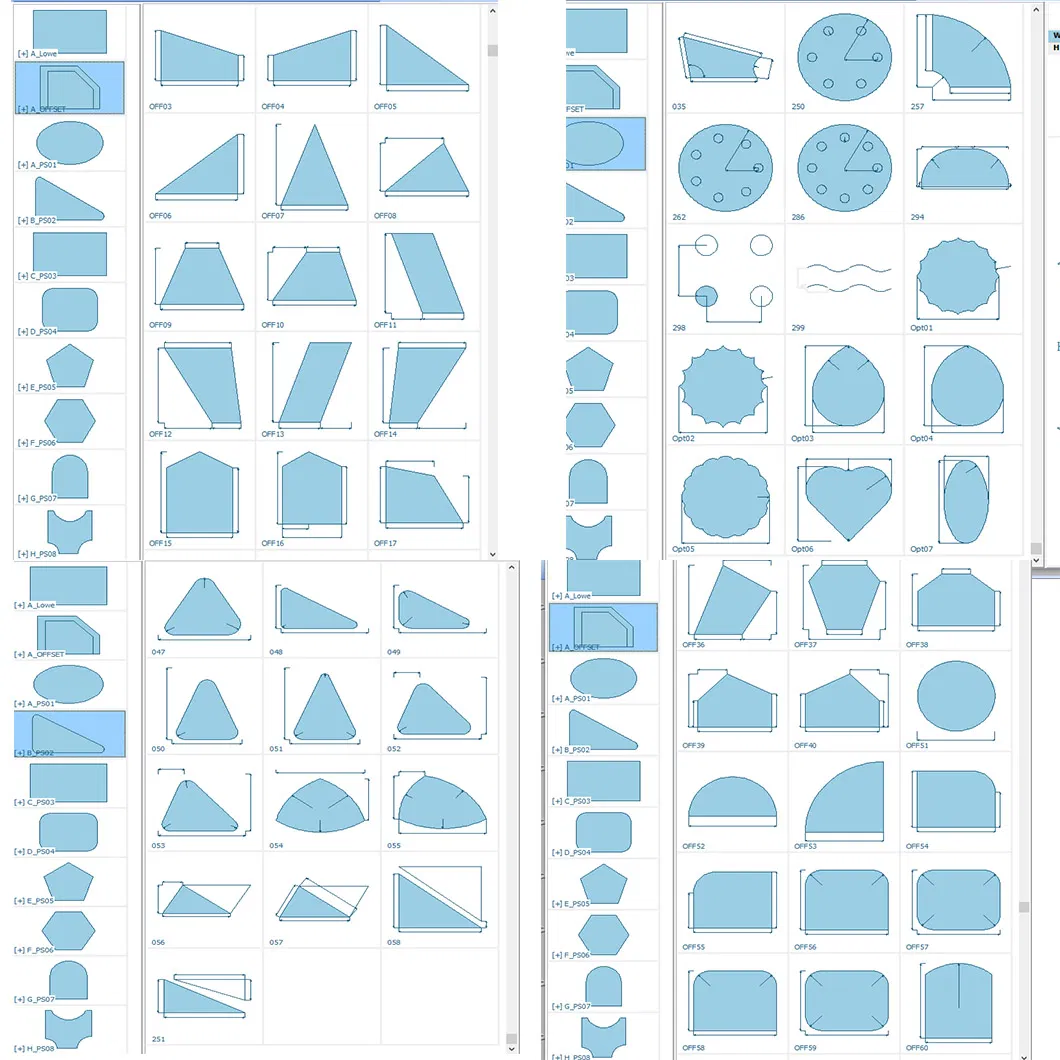

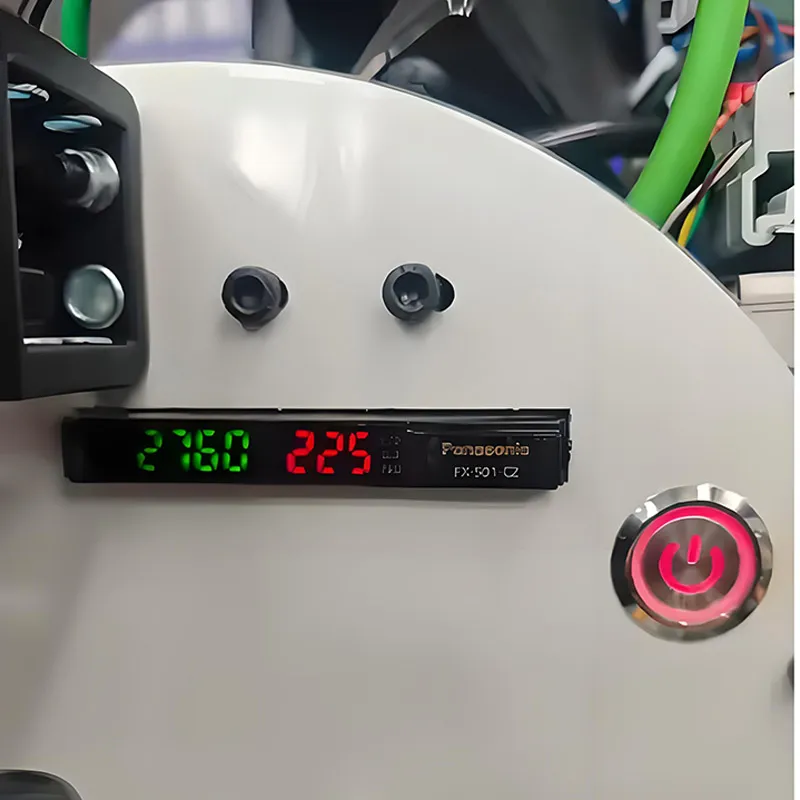

Accurately detects glass position and deflection angles to adjust paths automatically. The intelligent scanner can process various templates to generate profiling graphics for complex shapes.
Compatible with standard G-code and international optimization programs. Designed specifically to reduce waste of original glass sheets while handling diverse processing formats.

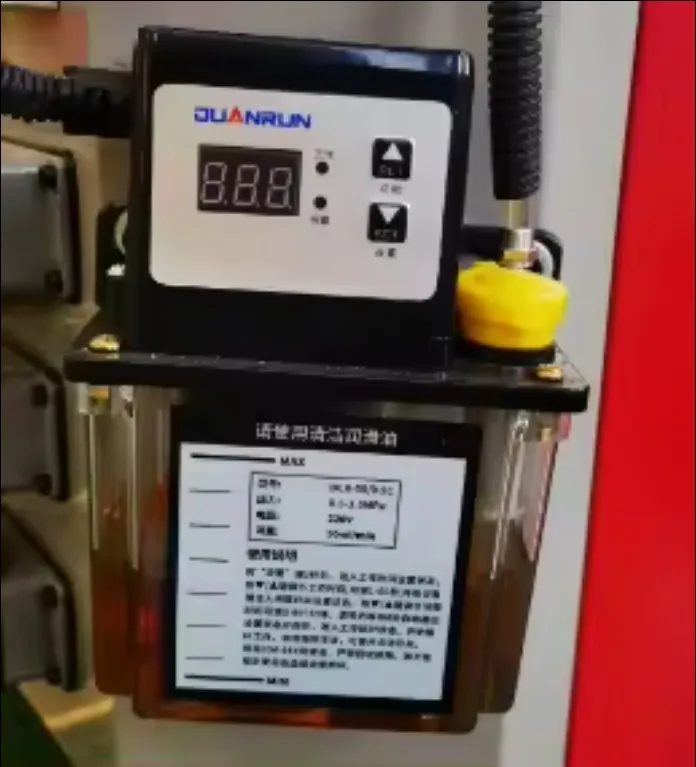

Reduces manual intervention and improves reliability. Features built-in lubrication reminders and simple one-button operation to maintain machine stability.
