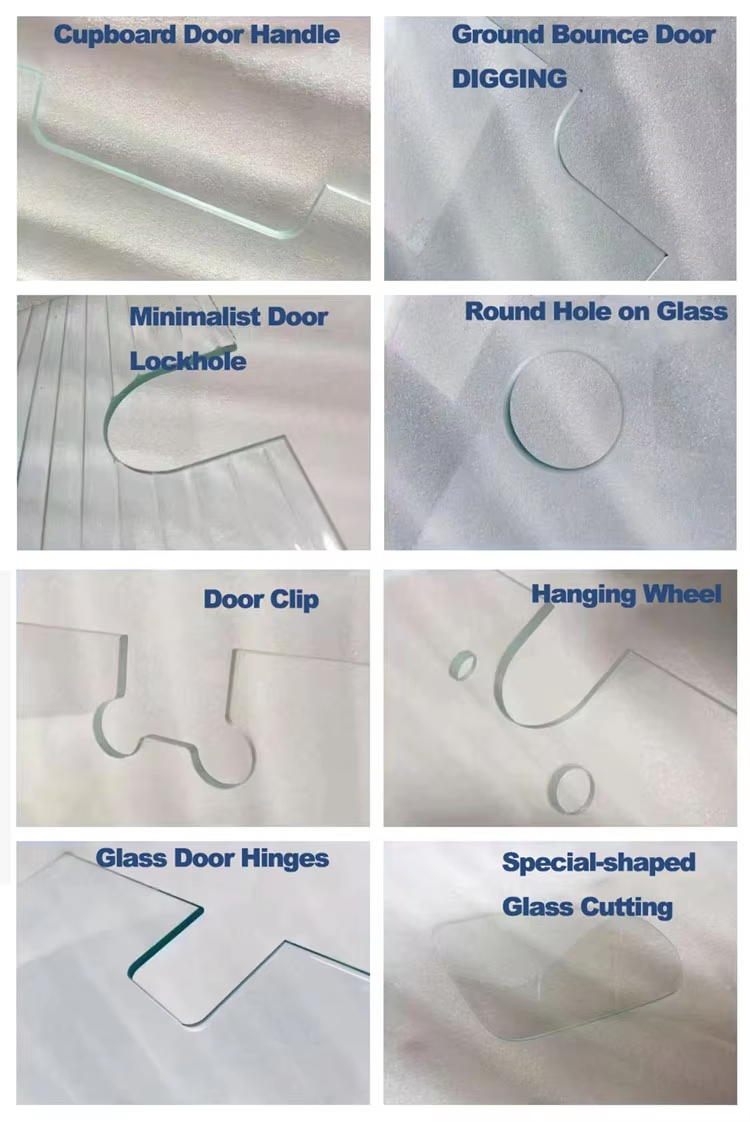

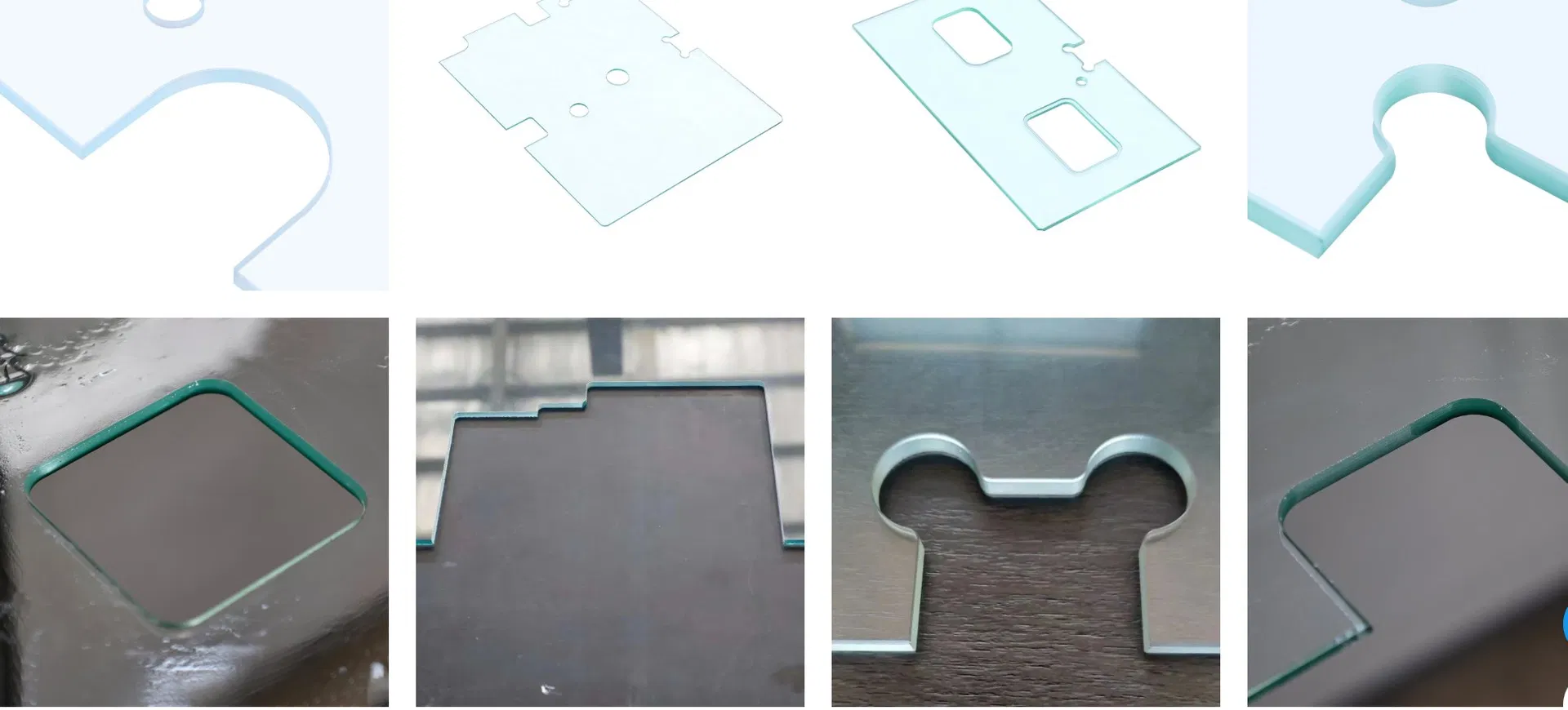

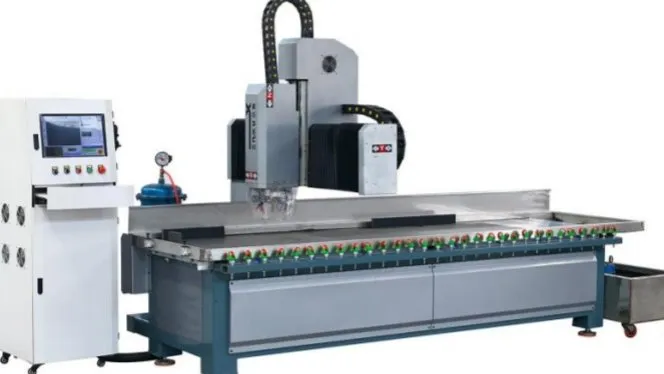

CNC Milling Machine is mainly used to process door hinges, door clamps, lock holes, and more. It is an essential tool for tempered glass factories to process shower rooms, simple doors, and sliding doors. Compared with water jets, it offers lower costs, fewer consumables, and more convenient maintenance and operation.
| Basic Info | |
|---|---|
| Model NO. | ZXX-E1025 |
| Glass Thickness Range | 3 mm - 19 mm |
| Product | Glass Door Hinges Making Machine |
| Function | Drilling, Cutting, Grinding, Milling, Carving, Engraving |
| Power | 9.1kw |
| Weight | 1800kg |
| Structure | Horizontal |
| Situation | New |

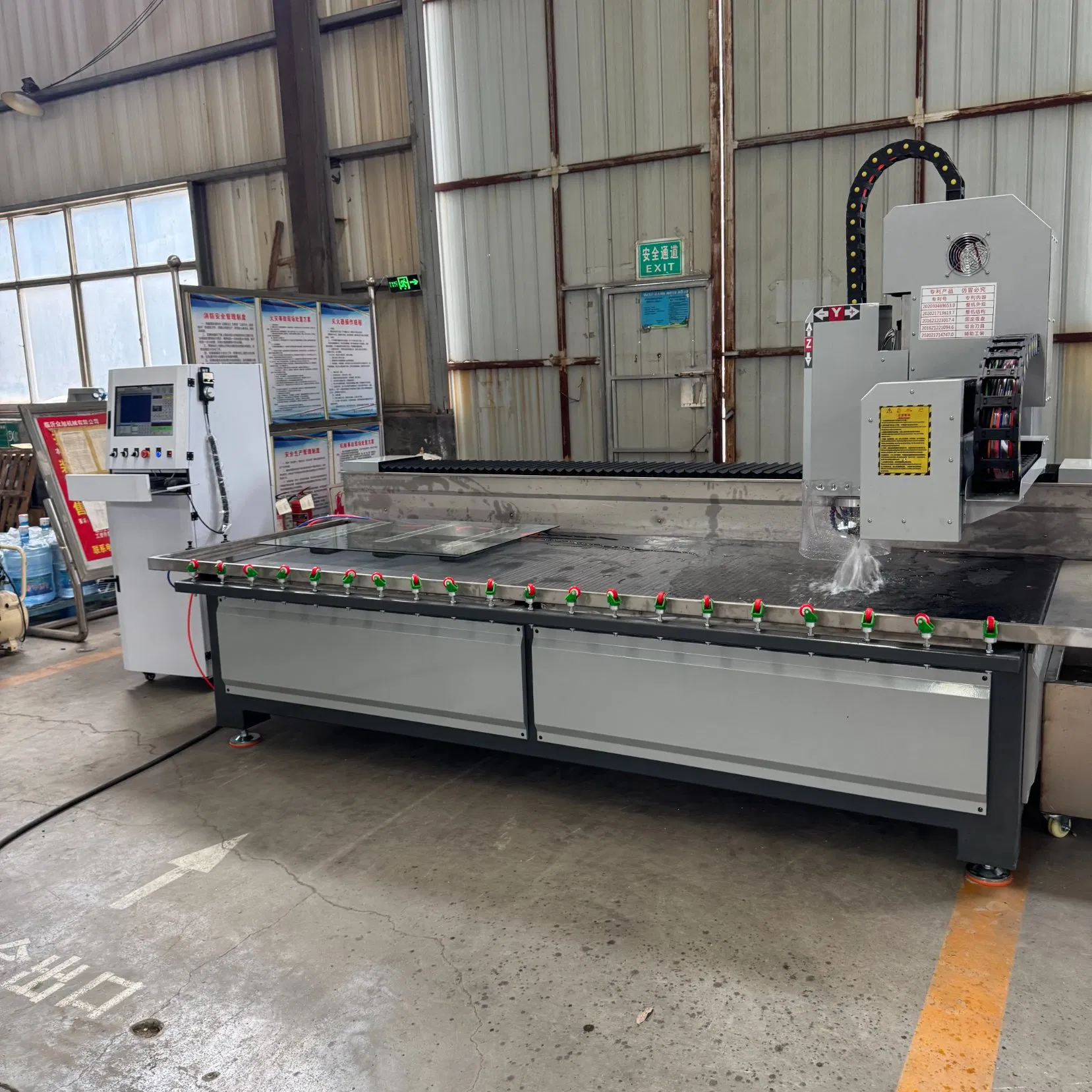

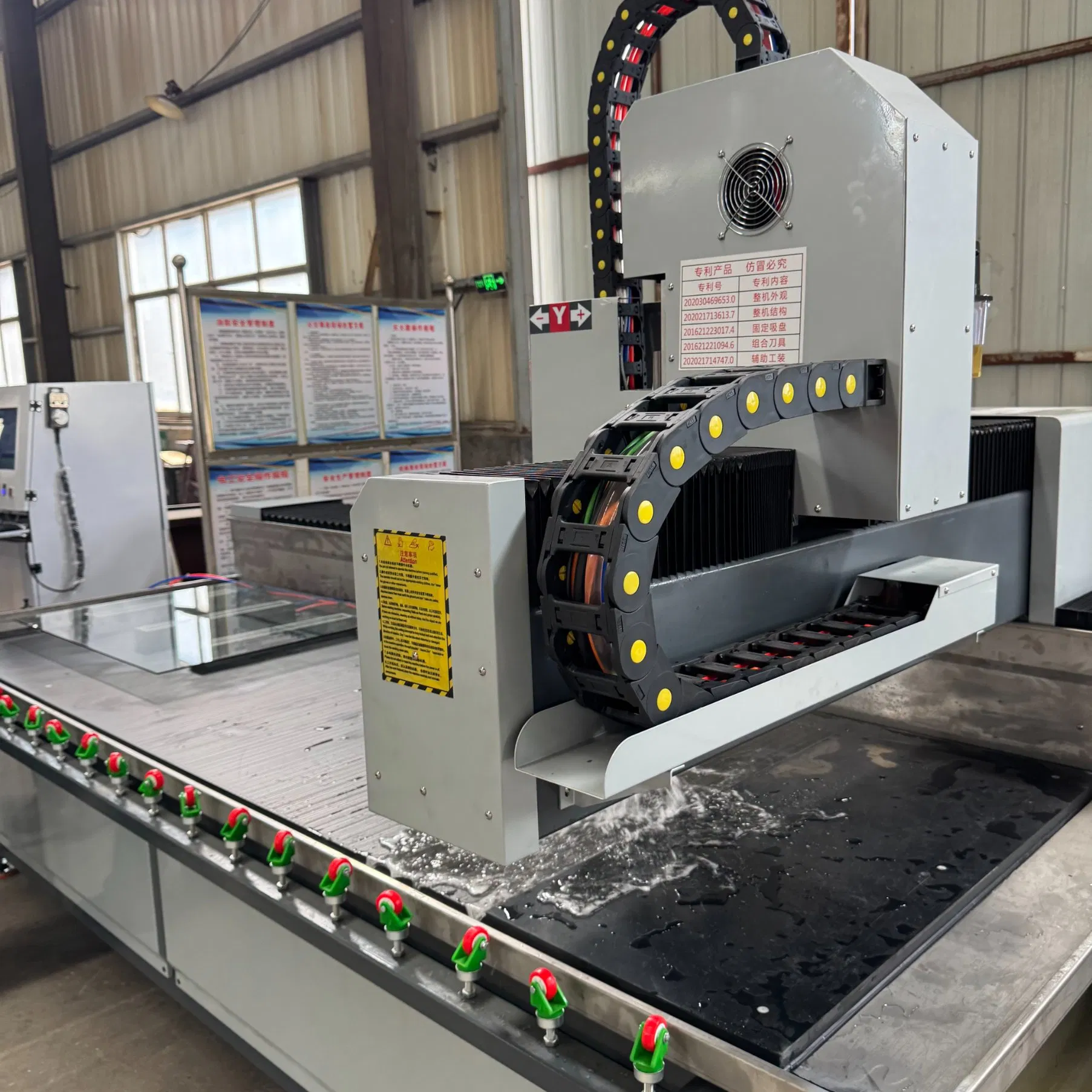

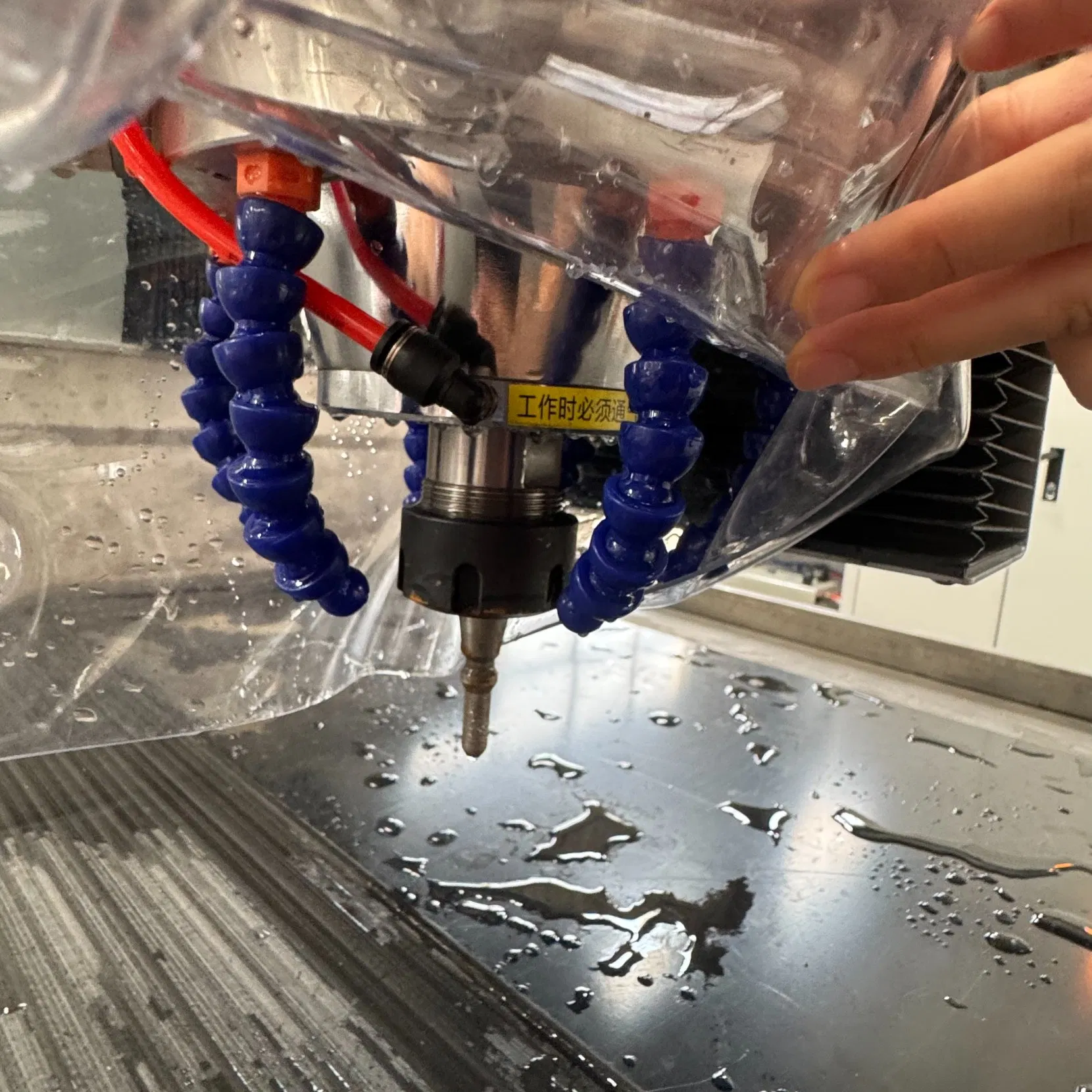

This model adopts a cantilevered three-axis three-wheel drive structure design. The bed is welded with high-quality steel and processed after quenching. The transmission is driven by H-class precision linear guides and pure servo motors, ensuring maximum accuracy and stability.
| Parameter | Details |
|---|---|
| Machine Size | 3500*1500*2200mm |
| Head Stroke Size | 2500*800mm |
| Table Size | 3400*1000mm |
| Main Spindle | 7.5kw (24000 RPM/MIN) |
| Total Power | 13.6kw, 3 phase |
| Milling Speed | 0-1 m/min |
| Accuracy | ±0.2mm |
| Waterproof Design | Half-shielded structure |

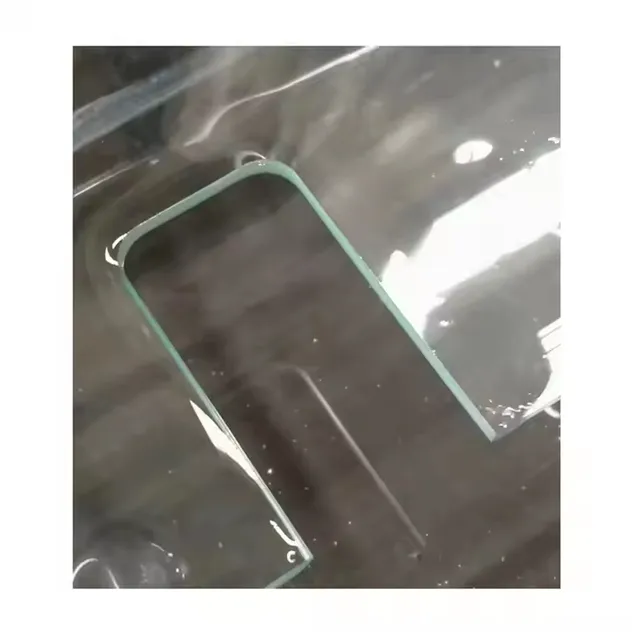

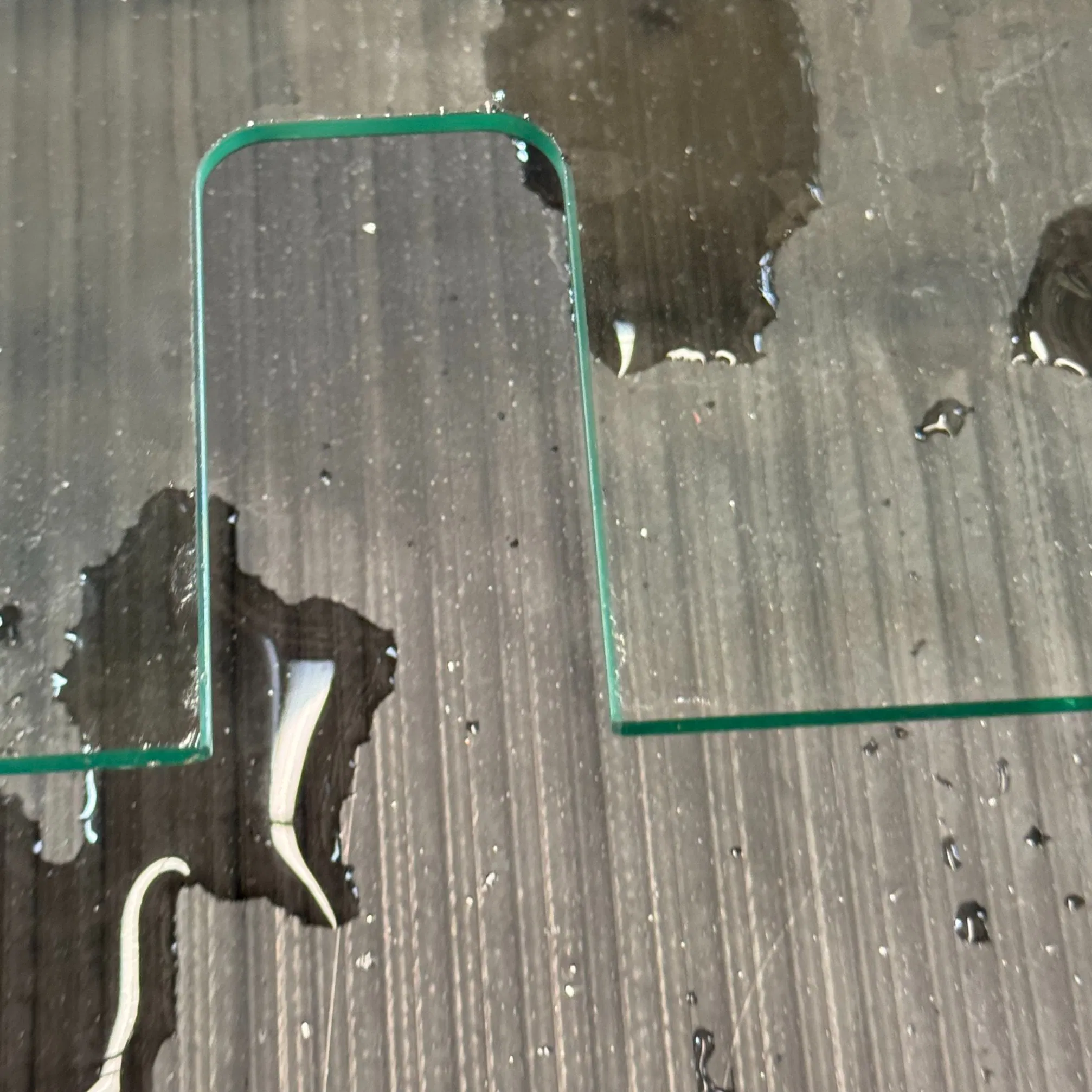

Glass Door Hinges

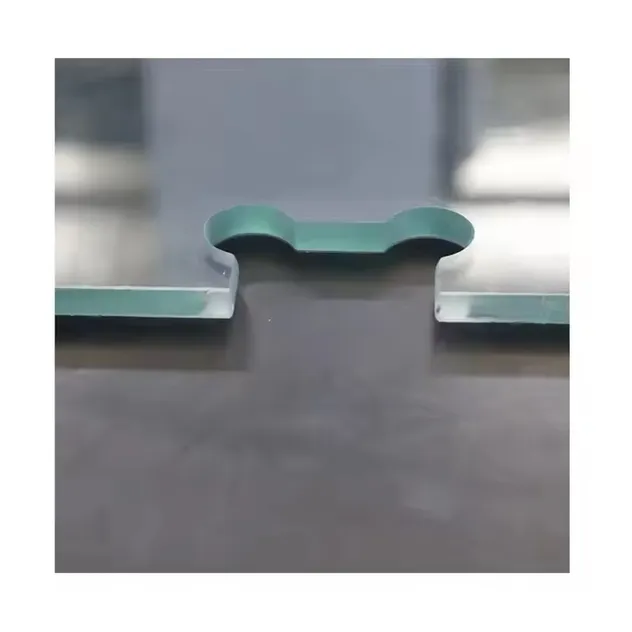

Door Clip

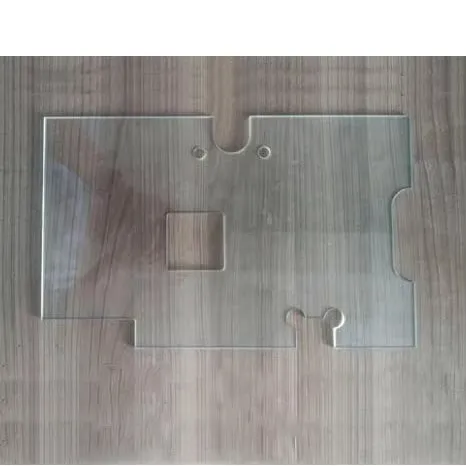

Hanging Wheel
| Commodity | Model/Spec | QTY | Remark |
|---|---|---|---|
| Host & Electrical Cabinet | Standard | 1 set | CHINT Components |
| Computer & Controller | Hand wheel included | 1 set | - |
| Vacuum Pump Assembly | Full set | 1 set | - |
| Cutter Tools | Electroplating/Alloy | 6 pcs | Mixed types |
| Suction Cups | Customized | 4 pcs | 1 set |
