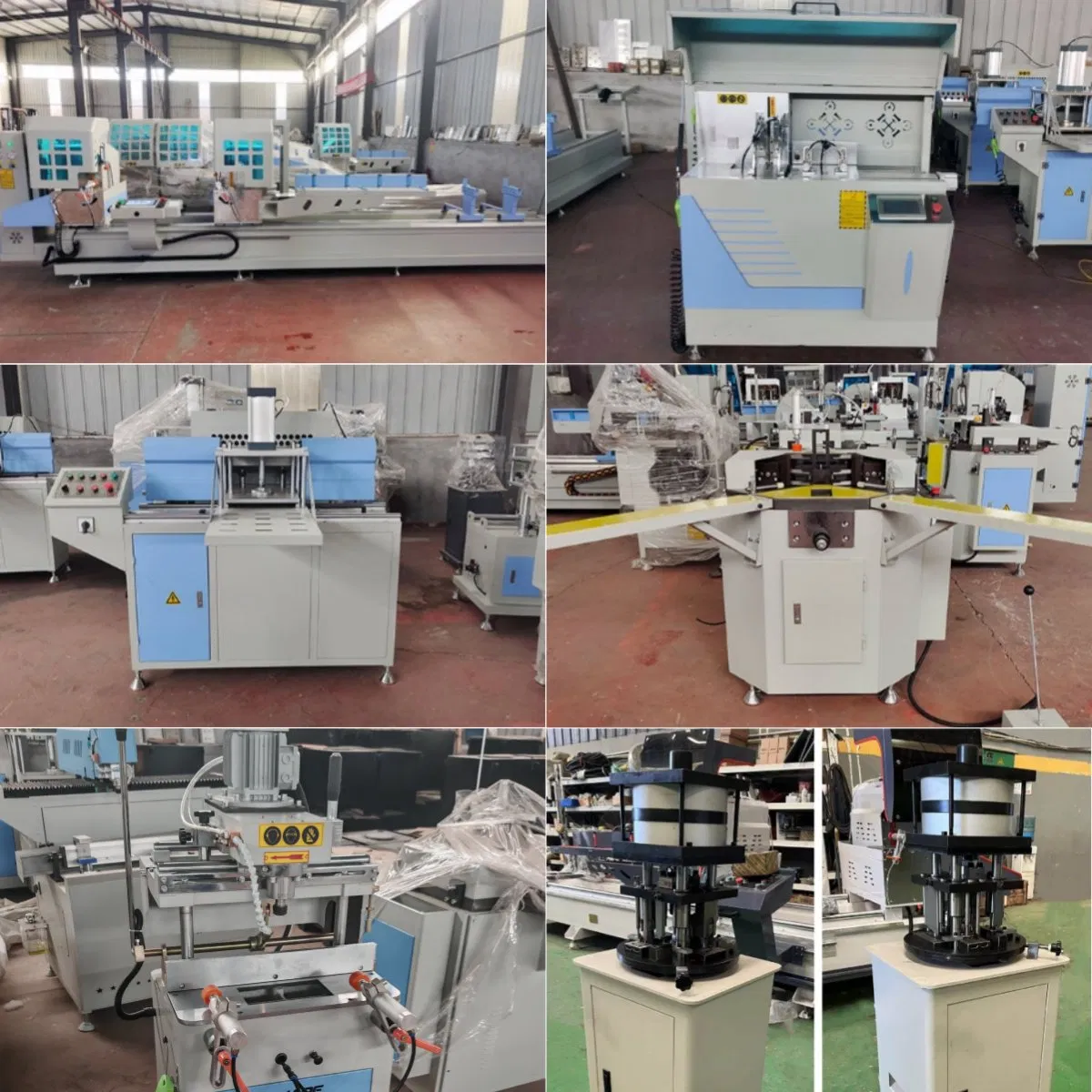

CNC End Milling Aluminium Profile Corner Assembling Machine for Doors and Windows
CNC End Milling Aluminium Profile Corner Assembling Machine for Doors and Windows
CNC End Milling Aluminium Profile Corner Assembling Machine for Doors and Windows
CNC End Milling Aluminium Profile Corner Assembling Machine for Doors and Windows
CNC End Milling Aluminium Profile Corner Assembling Machine for Doors and Windows
1 / 5
CNC End Milling Aluminium Profile Corner Assembling Machine for Doors and Windows
CNC End Milling Aluminium Profile Corner Assembling Machine for Doors and Windows
CNC End Milling Aluminium Profile Corner Assembling Machine for Doors and Windows
CNC End Milling Aluminium Profile Corner Assembling Machine for Doors and Windows
CNC End Milling Aluminium Profile Corner Assembling Machine for Doors and Windows

CNC End Milling Aluminium Profile Corner Assembling Machine for Doors and Windows

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
SR-MCJX
Condition
New
Certification
CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Power
2*2.2kw +0.75kw
Working Pressure
0.5-0.8MPa
Saw Angle
45° 90°
Saw Length
Max 4200mm Min 380mm
Origin
China
📦 Packaging & Delivery
Package Size
585.00cm * 147.00cm * 161.00cm
Gross Weight
1600.000kg
Transport Package
Standard Export Wooden Box
🛠️ Product Description
CNC Machine Banner Product Title Image
Voltage380v, 50hz, three phases
Power2*2.2kw+0.75kw
Saw LengthMax 4200mm, Min 380mm
Saw Angle45° 90°
Pressure0.5-0.8Mpa
🤖 Intelligent CNC System

The CNC system realizes multi-axis linkage control. One clamping can complete end milling, step surface processing, edge cutting, and grooving processes, greatly shortening the processing cycle.

⚡ High Efficiency

Features a high-power motor design capable of processing multiple profiles simultaneously. Efficiency can reach two to three times that of standard equipment.

📱 Automated Operation

Equipped with a touch screen CNC system that automatically calls up processing programs and tool changes without manual intervention.

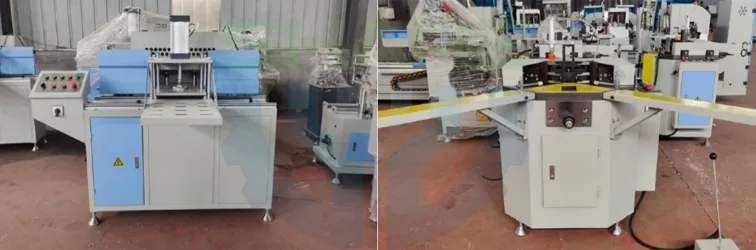

Processing Detail

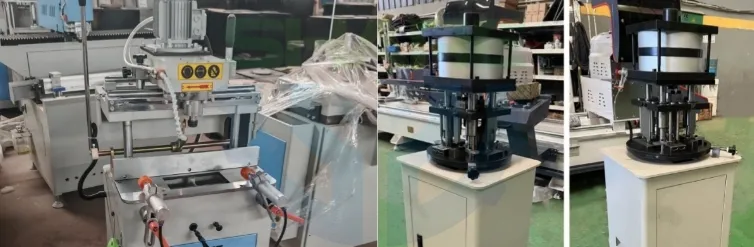

Machine Detail
Control Panel
Divider Feature Graphic Divider Specifications Diagram
Structure Detail
Profile Samples
Internal Mechanism Production Workflow
Component View
Assembly Line
Final Product
❓ Frequently Asked Questions
1. What materials can the SR-MCJX process?
It is primarily designed for building doors, windows, curtain walls, and aluminum profiles. It can also be adjusted for certain plastic mold frame processing.
2. Does the machine support automatic tool changes?
Yes, the machine is equipped with a touch screen CNC system that completes tool change operations automatically without manual intervention.
3. What is the maximum processing length of the saw?
The machine supports a maximum saw length of 4200mm and a minimum length of 380mm.
4. How efficient is this CNC end milling machine?
Due to its high-power motor and multi-axis linkage control, it can process multiple profiles at once, achieving 2-3 times the efficiency of standard equipment.
5. What cutting angles are available?
The machine supports both 45° and 90° saw angles for versatile profile assembly.
6. What are the electrical and pressure requirements?
The machine operates on a 380V, 50Hz three-phase power supply and requires a working pressure between 0.5-0.8MPa.
