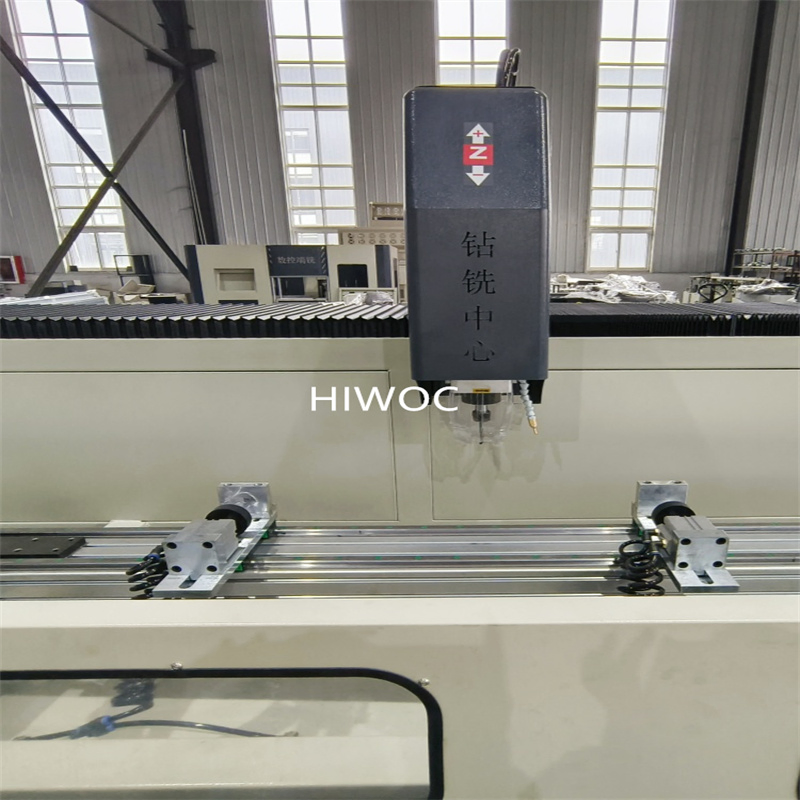

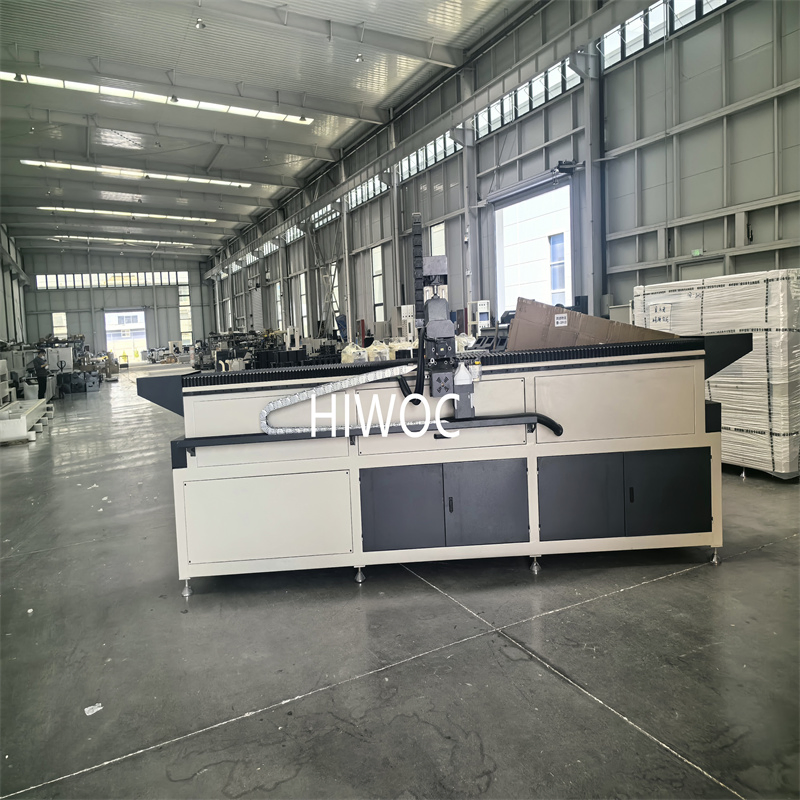

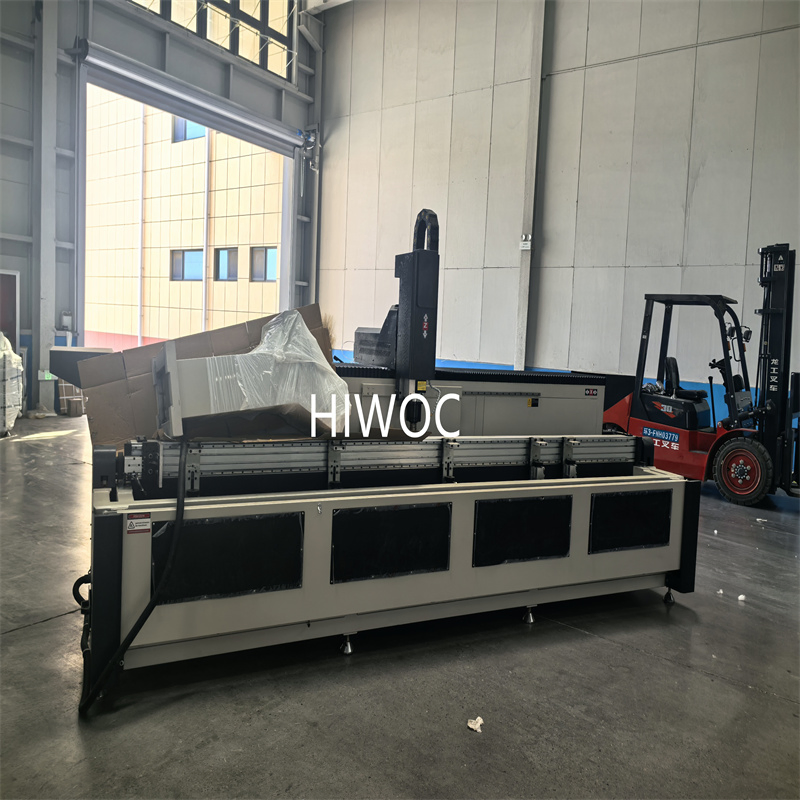

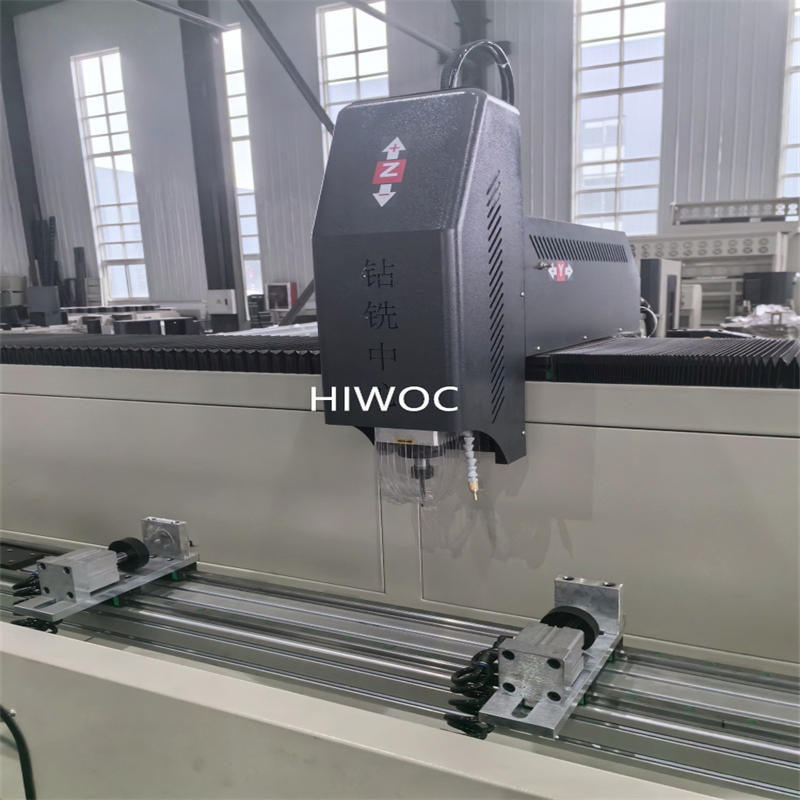

CNC Drilling and Milling Machine for Aluminum Profiles Door and Window Hinge Drilling and Milling Machine
CNC Drilling and Milling Machine for Aluminum Profiles Door and Window Hinge Drilling and Milling Machine
CNC Drilling and Milling Machine for Aluminum Profiles Door and Window Hinge Drilling and Milling Machine
CNC Drilling and Milling Machine for Aluminum Profiles Door and Window Hinge Drilling and Milling Machine
CNC Drilling and Milling Machine for Aluminum Profiles Door and Window Hinge Drilling and Milling Machine
1 / 5
CNC Drilling and Milling Machine for Aluminum Profiles Door and Window Hinge Drilling and Milling Machine
CNC Drilling and Milling Machine for Aluminum Profiles Door and Window Hinge Drilling and Milling Machine
CNC Drilling and Milling Machine for Aluminum Profiles Door and Window Hinge Drilling and Milling Machine
CNC Drilling and Milling Machine for Aluminum Profiles Door and Window Hinge Drilling and Milling Machine
CNC Drilling and Milling Machine for Aluminum Profiles Door and Window Hinge Drilling and Milling Machine

CNC Drilling and Milling Machine for Aluminum Profiles Door and Window Hinge Drilling and Milling Machine

Customization: Available
After-sales Service: Online Guidance
Warranty: Two Years
Send Inquiry

Product Description

Basic Information
Model NO.
SKX-CNC-3000
Condition
New
Certification
CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Input Power
7.5 Kw
Production Capacity
500 Piece
Product Description

Aluminum Profile CNC Drilling Milling Machine SKX-CNC-3000

  • Used for drilling holes, milling grooves, processing round holes and special-shaped holes, and plane engraving of aluminum alloy profiles.
  • Adopted advanced CNC Control system for precise operation.
  • High-speed electric spindle ensures high precision, safety, and reliability.
  • X-axis features high-precision helical gear and rack; Y and Z axes utilize high-precision ball screw transmission for steady movement.
  • Automatic G-code transformation via programming software for high efficiency and low labor intensity.
  • Workbench can turn 180° (-90°, 0°, +90°), allowing three-sided processing with a single clamping.

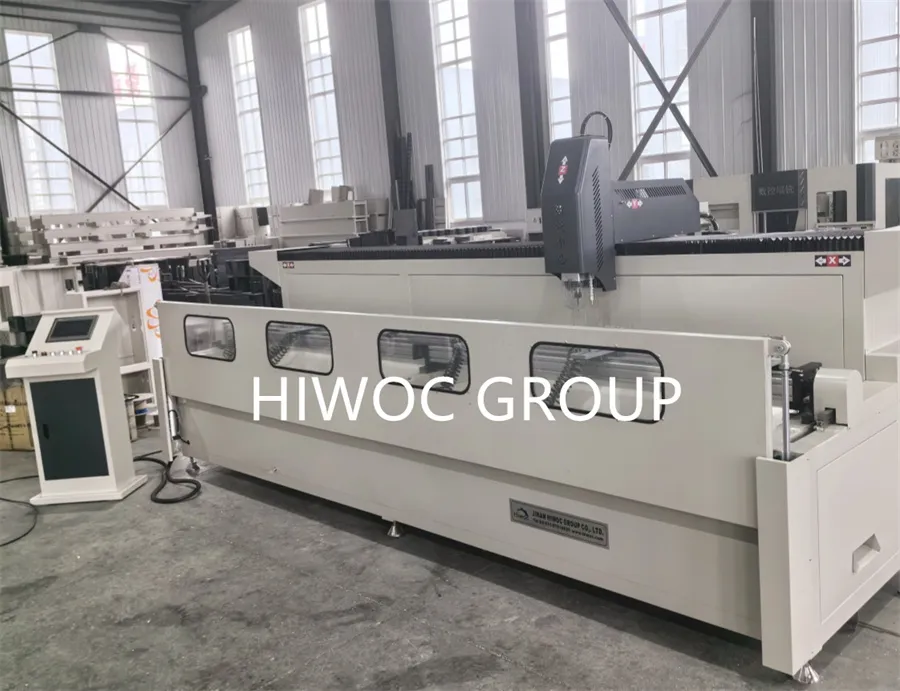

CNC Drilling and Milling Machine
Specifications
TypeCNC
Input Power3Kw / 0-18000RPM
Voltage380V/3PH/50Hz (Customizable)
Main Axis Rev18000rpm
X Axis Journey3000mm
Y Axis Journey300mm
Z Axis Journey280mm
Processing Range300*300mm
Handle TypeER25*8mm
Air Pressure0.6~0.8Mpa
Dimensions4470x1970x2200mm
Weight1400kgs

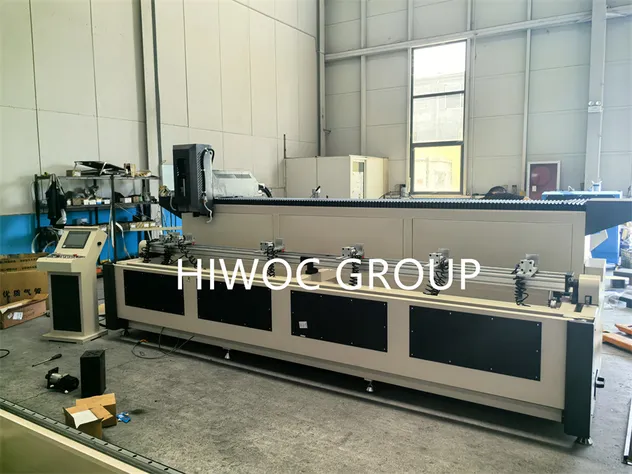

Specification Detail 1

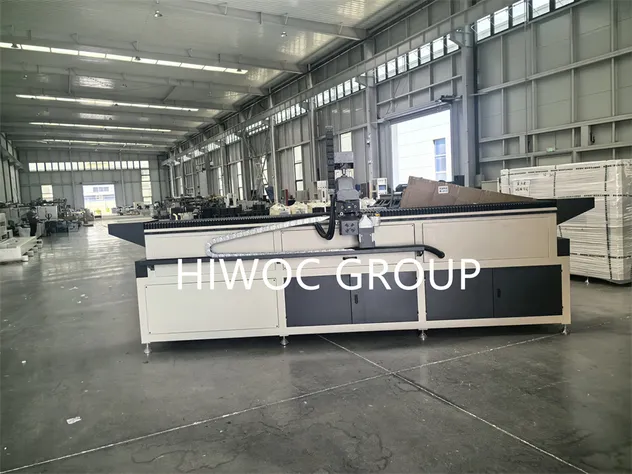

Specification Detail 2

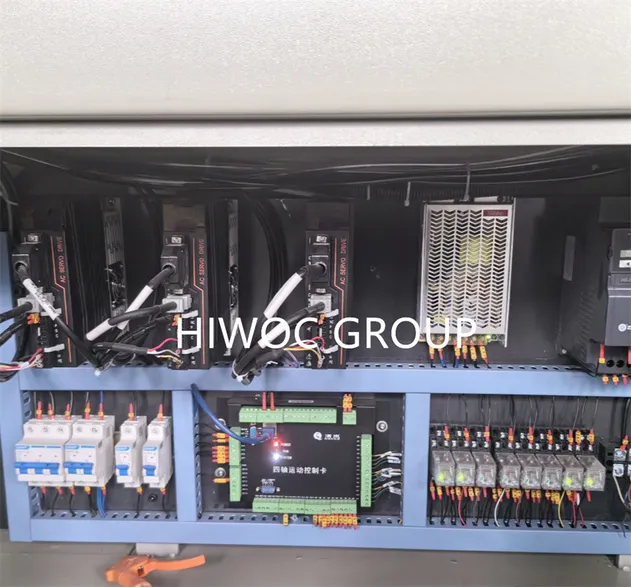

Specification Detail 3

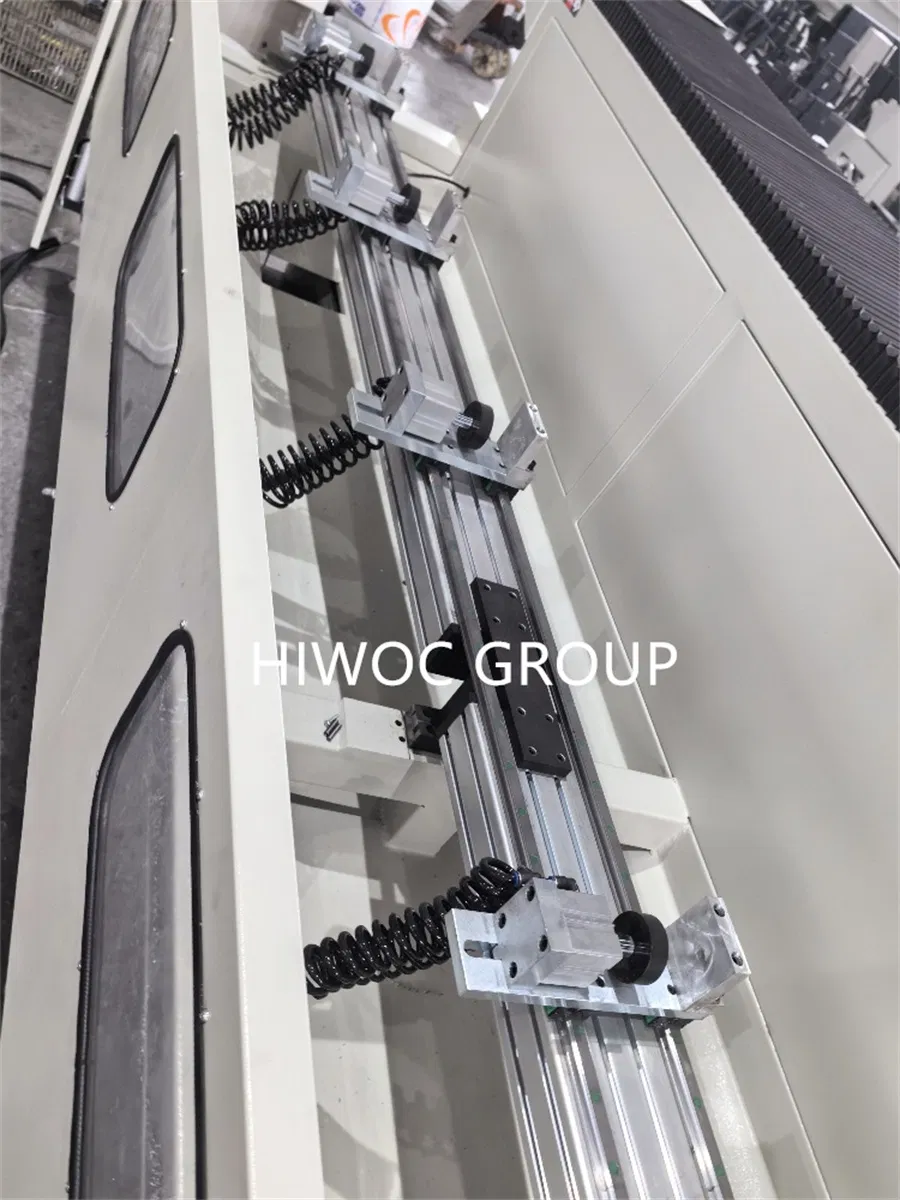

Machine Structure 1

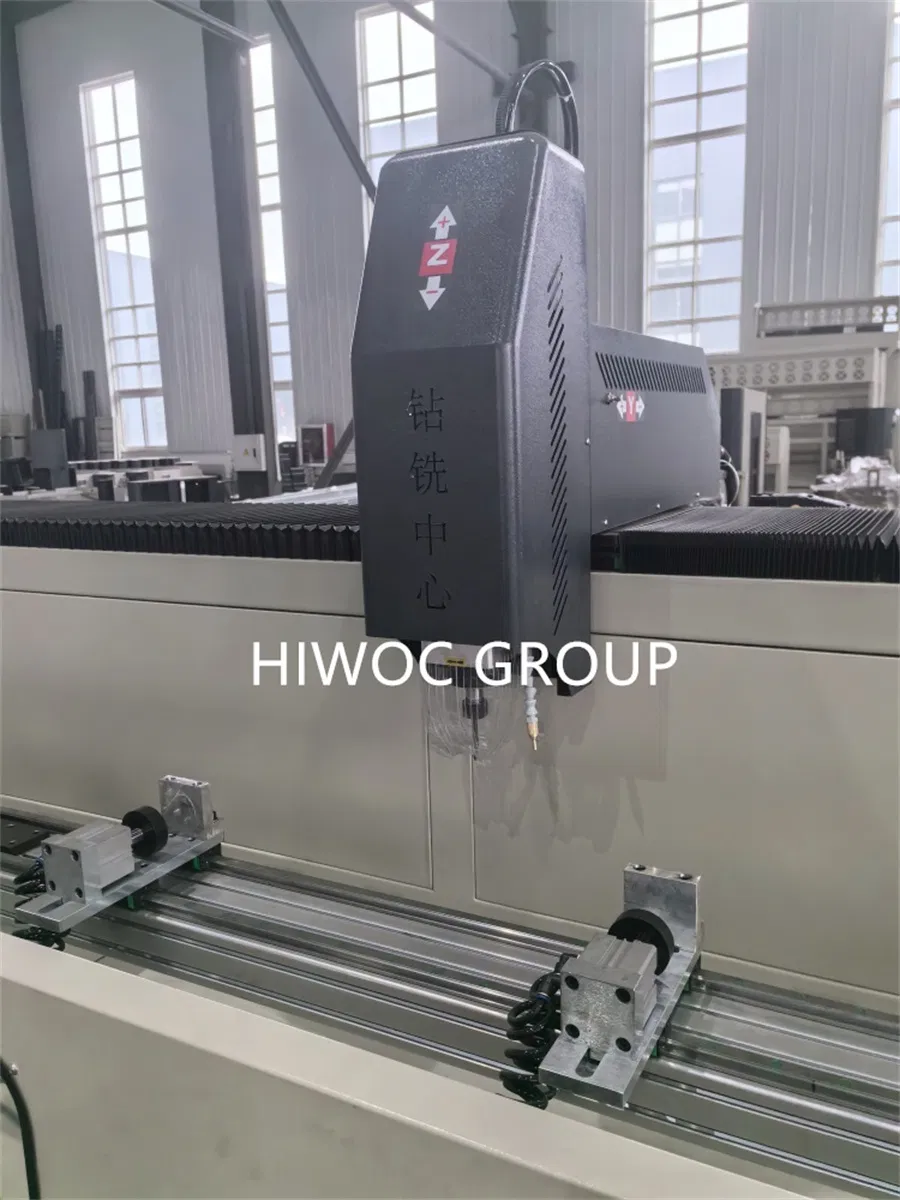

Machine Structure 2

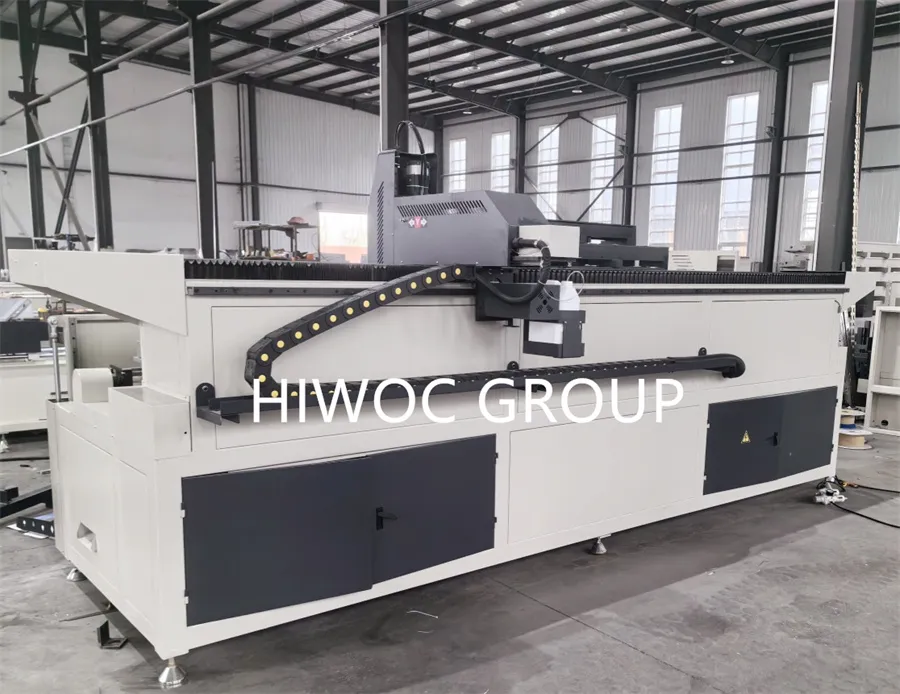

Machine Structure 3

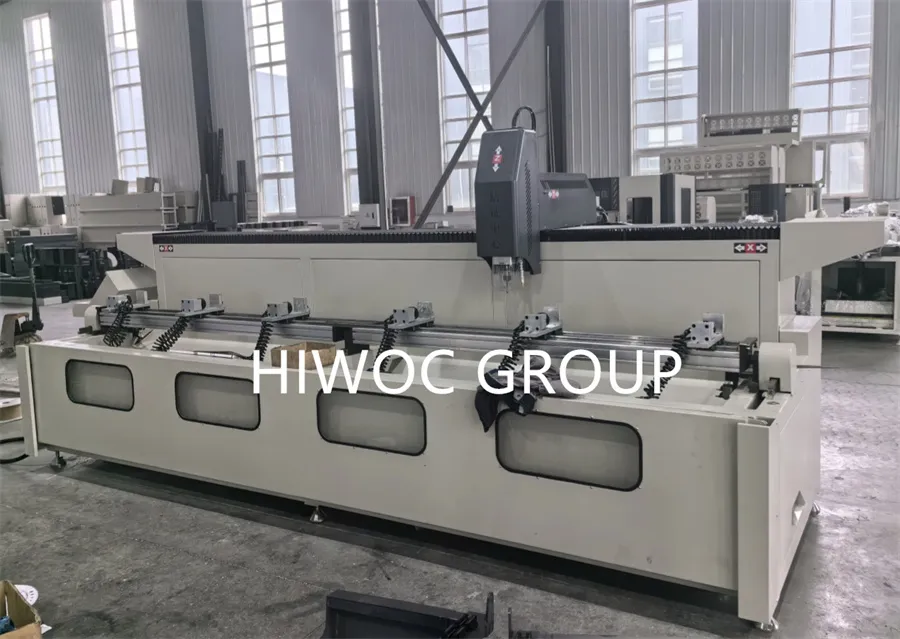

Machine Structure 4

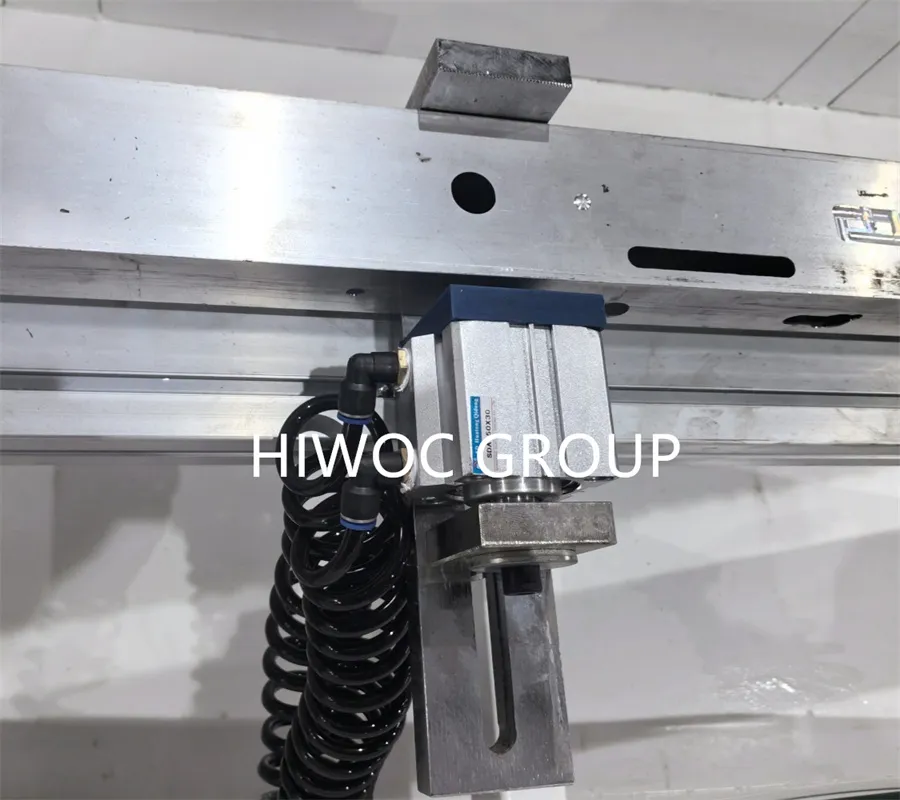

Machine Structure 5

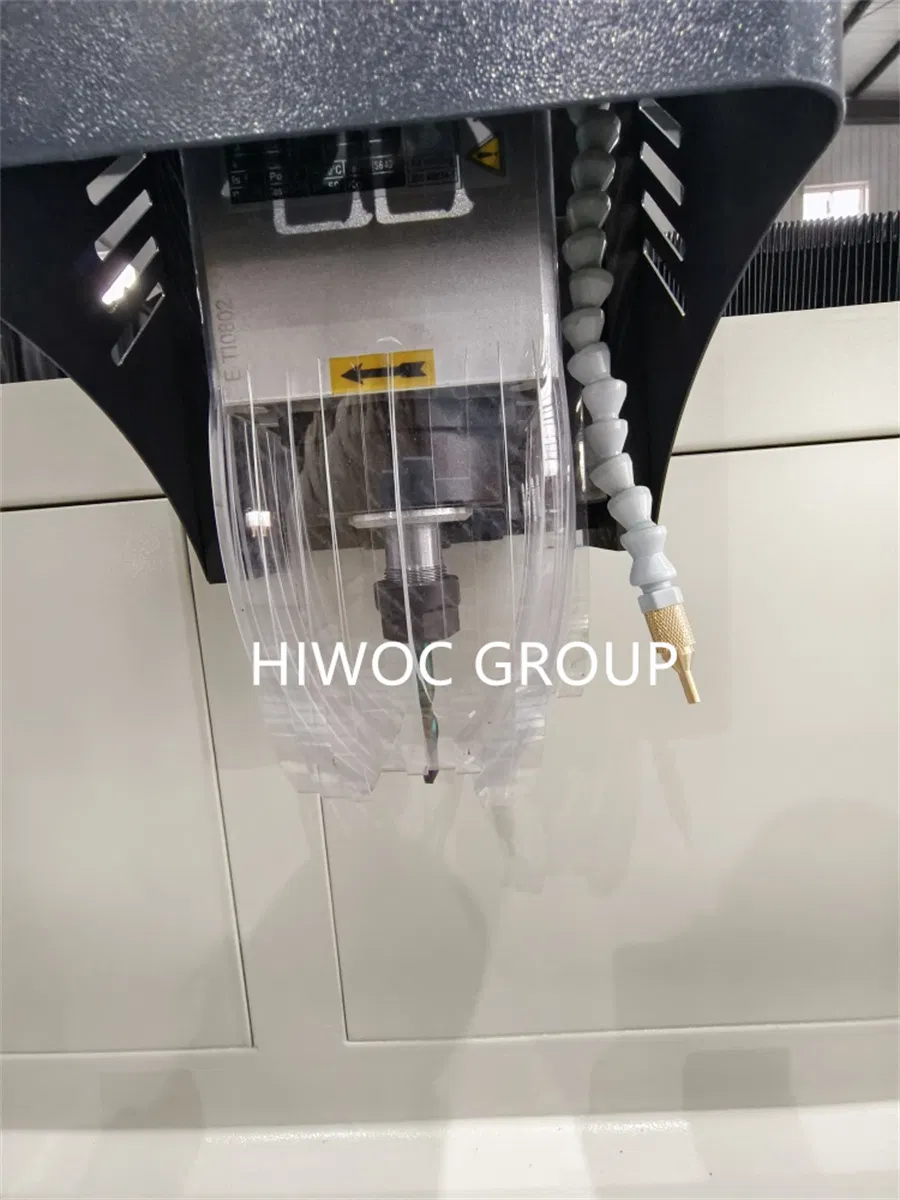

Machine Structure 6
Company Profile

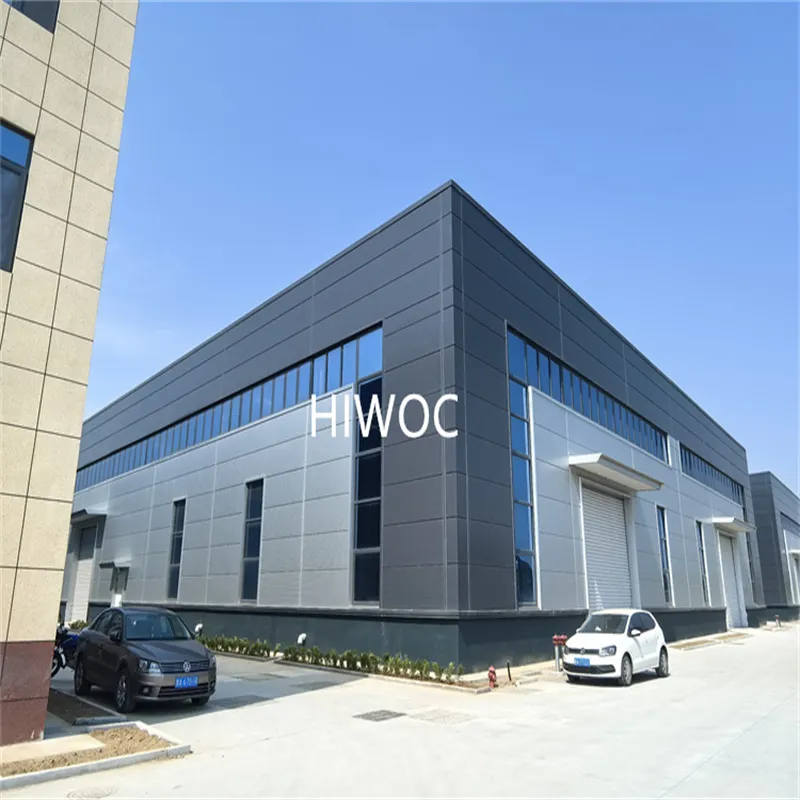

Workshop

We specialize in the production of UPVC window door machines, aluminum window door machines, curtain wall making machines, and insulating glass machines. Our operations integrate research and development, production, sales, and maintenance services.

Since starting our dedicated export team in 2015, we have served customers in 35 countries with a reputation for quality and excellent service. Our core values of "quality, integrity, innovation, and service" guide us in meeting customer demands.

Why choose us?

  • OEM/ODM capabilities
  • Competitive pricing & bulk discounts
  • Fast shipping & customs clearance support
  • Turnkey project solutions
Quality Control
Production Line
Packing & Delivery

Standard Delivery: Specialized plywood wooden cases for export or full container transportation are provided to ensure equipment safety. Various transportation methods are available to meet diverse global needs.

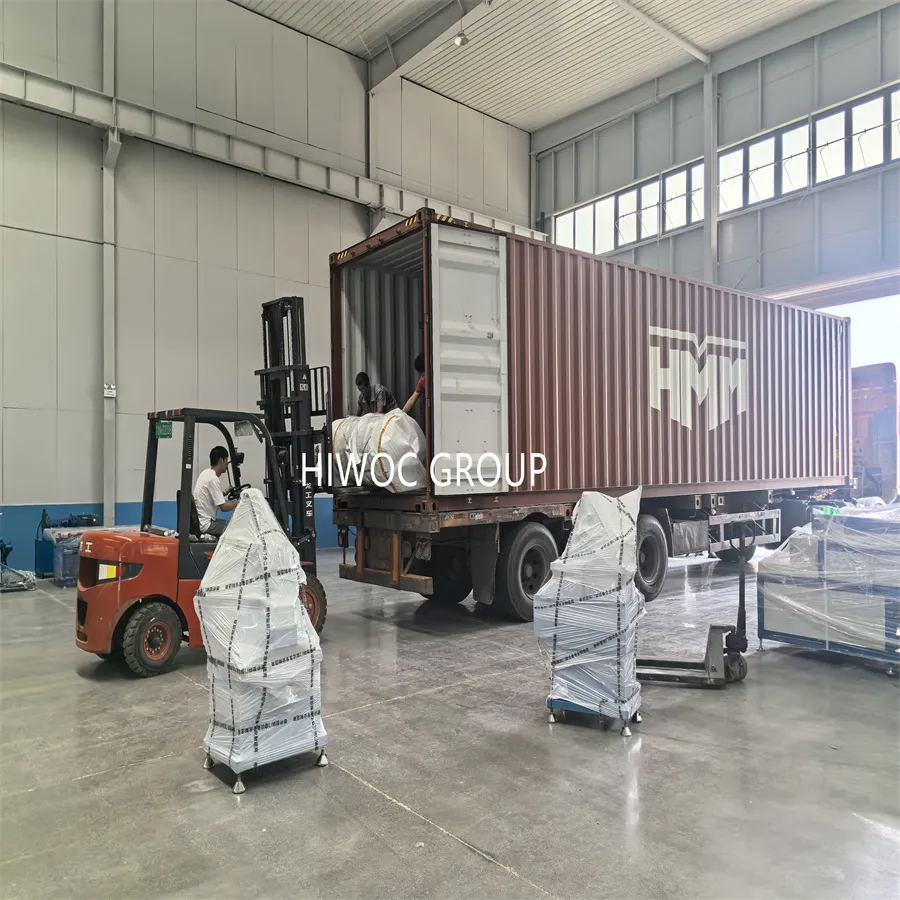

Packing 1

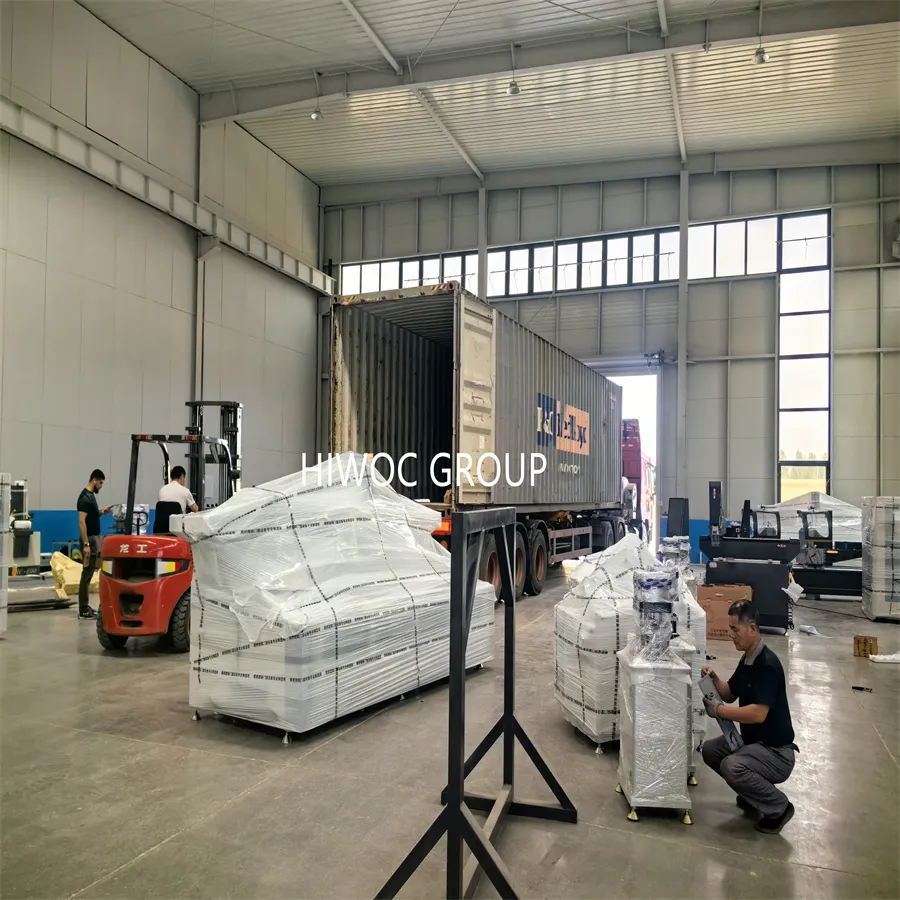

Packing 2

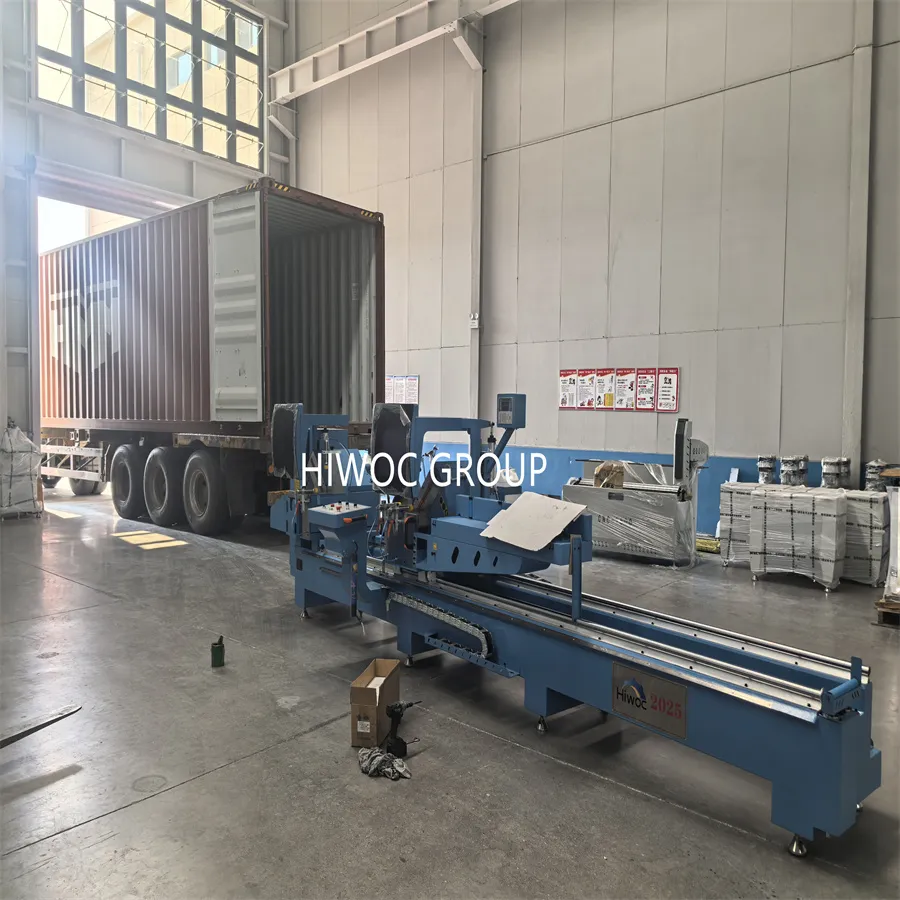

Packing 3

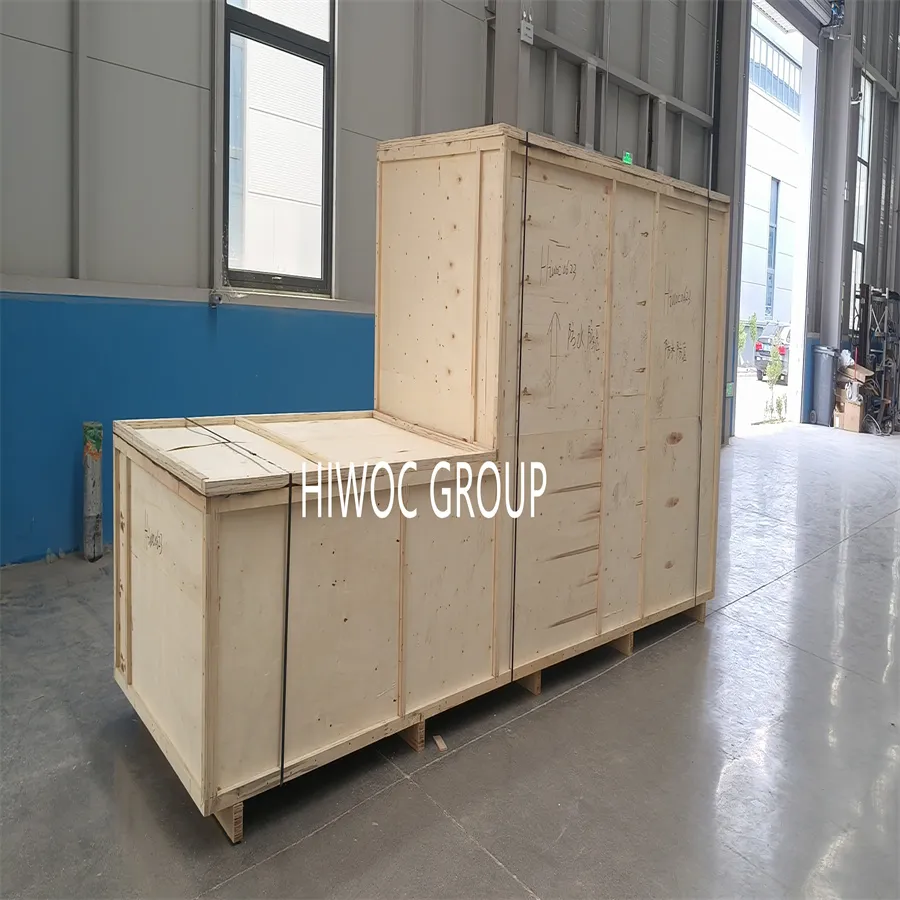

Packing 4
Cooperation
Frequently Asked Questions
What materials can this CNC machine process?
The SKX-CNC-3000 is specifically designed for processing aluminum alloy profiles, including drilling, milling, and engraving.
How many sides of the profile can be processed at once?
Thanks to the 180° turning workbench (-90°, 0°, +90°), the machine can process three sides of the material with a single clamping.
Is the machine easy to operate for new users?
Yes, it uses professional programming software that automatically transforms designs into G-code, significantly reducing operation difficulty and labor intensity.
Can the voltage be customized for different countries?
Yes, while the standard is 380V 50Hz 3 Phase, we can customize the machine voltage according to your specific local requirements.
What kind of maintenance does the spindle require?
The high-precision electric spindle is designed for reliability. Regular cleaning and following the standard lubrication schedule will ensure long-term stability and precision.
What is the lead time and packing method?
We use professional export-grade plywood cases for protection. Lead times vary by order volume, but we support fast shipping and turnkey project solutions.
