Zhixing Machine
Zhixing Machine
| Model NO. | DX03B-160 | Condition | New |
|---|---|---|---|
| Certification | CE | Automatic Grade | Semi-Automatic |
| Voltage | 380V | Product Name | Aluminum End Milling Machine |
| Total Power | 2.2kw | Saw Blade Size | φ115 ~ 200mm |
| Worktable Size | 350*135mm | Material | Aluminum Window Door Profile |

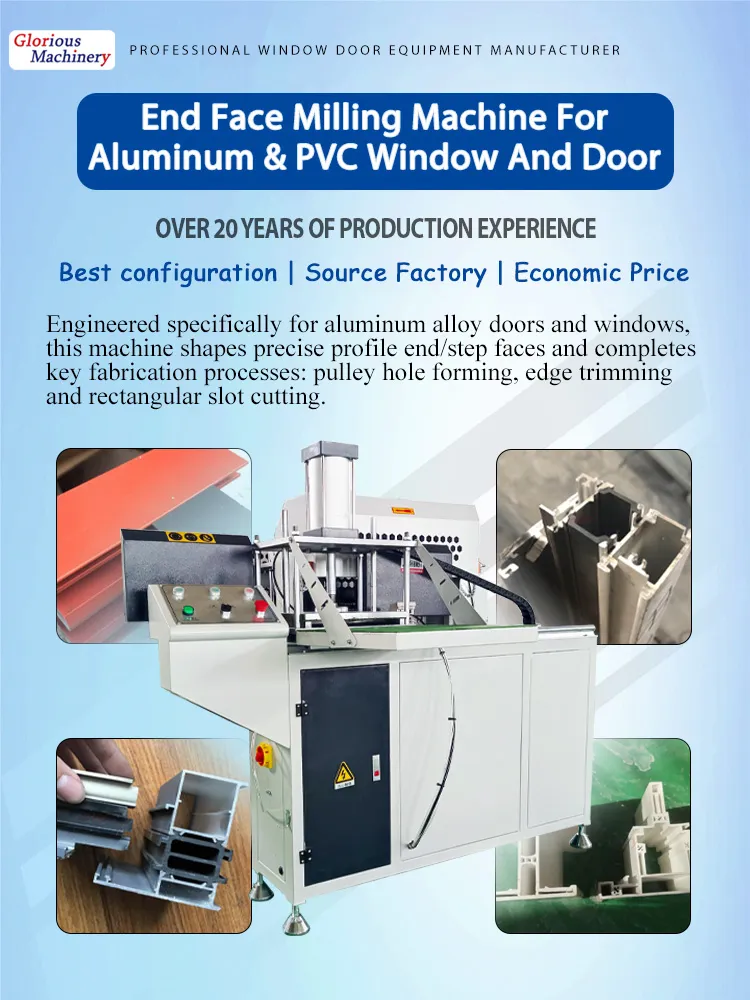

Designed for end face processing of aluminum and plastic door/window profiles. Suitable for milling end steps, rectangular grooves, and tenons within -55° to 55°.
Handles profiles with a maximum width of 120mm and height of 60mm. Ideal for various sizes of aluminum and plastic profiles.
All required shapes can be completed in a single milling operation, ensuring high efficiency and stable quality.
| Parameter | Specification |
|---|---|
| Milling Cutter Speed | 2800 r/min |
| Weight | 200kg |
| Working Air Pressure | 0.5 ~ 0.8MPa |
| Dimension (L*W*H) | 740*700*1550mm |
| Spindle Power | 2.2kW |
| X/Y/Z-axis Speed | 0-10m/min |

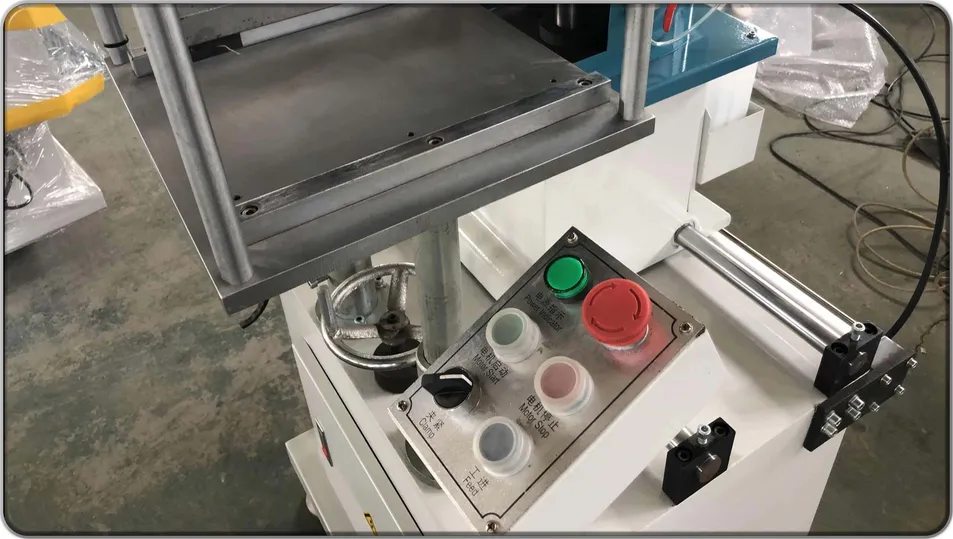

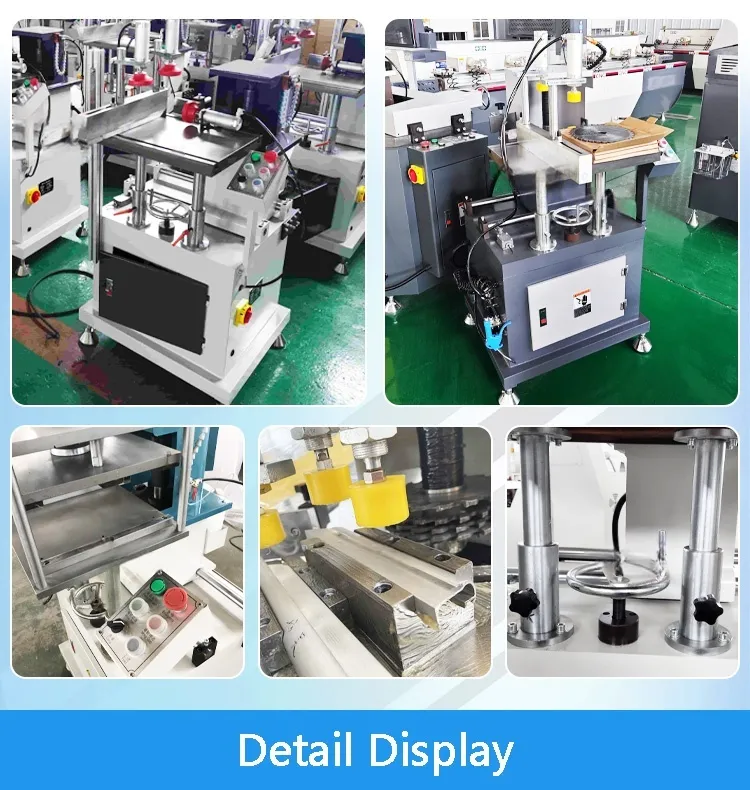

Control Panel: One-key operation with emergency stop.

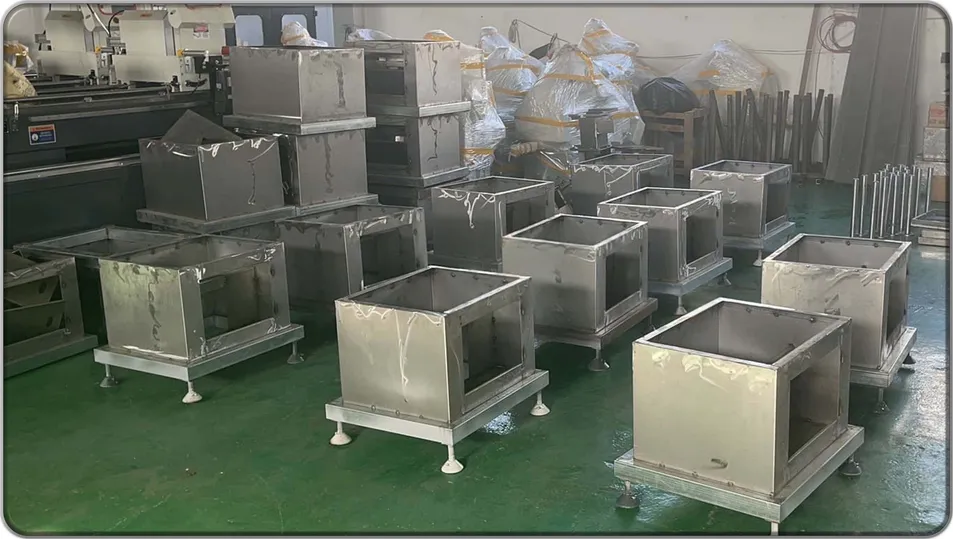

Frame: High-rigidity welded scientific design.

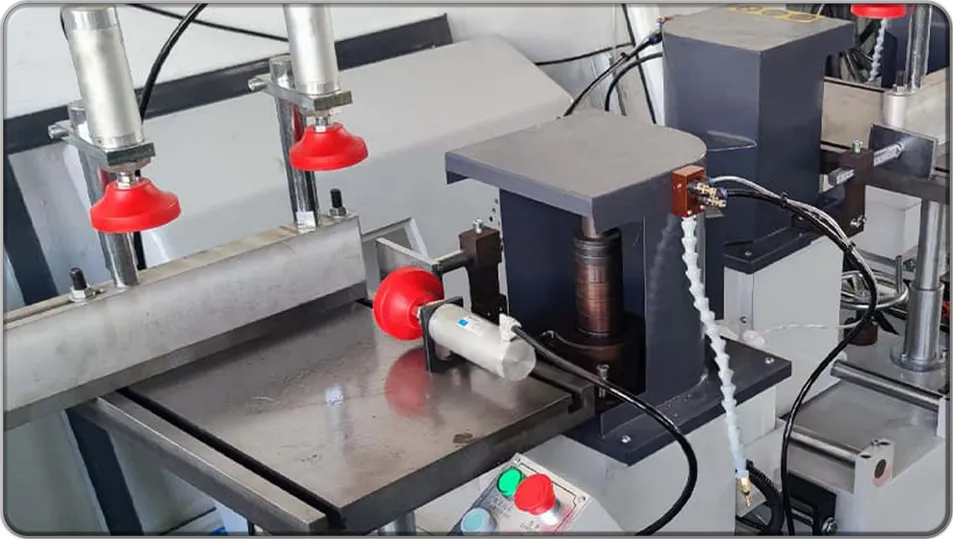

Machining: High repeat precision single-blade cut.

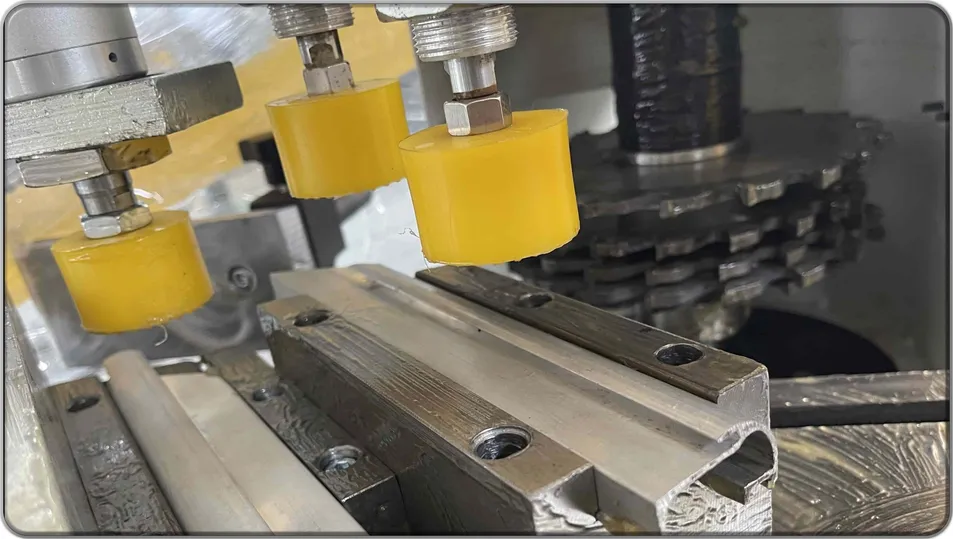

Fixture: Stable clamping adjustable from -55° to 55°.

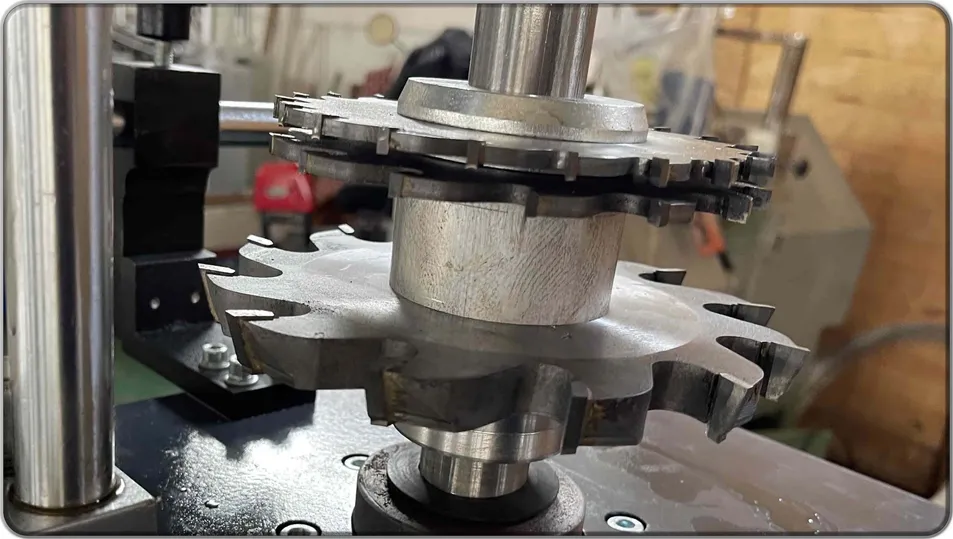

Saw Blade: High-performance alloy wear-resistant blade.

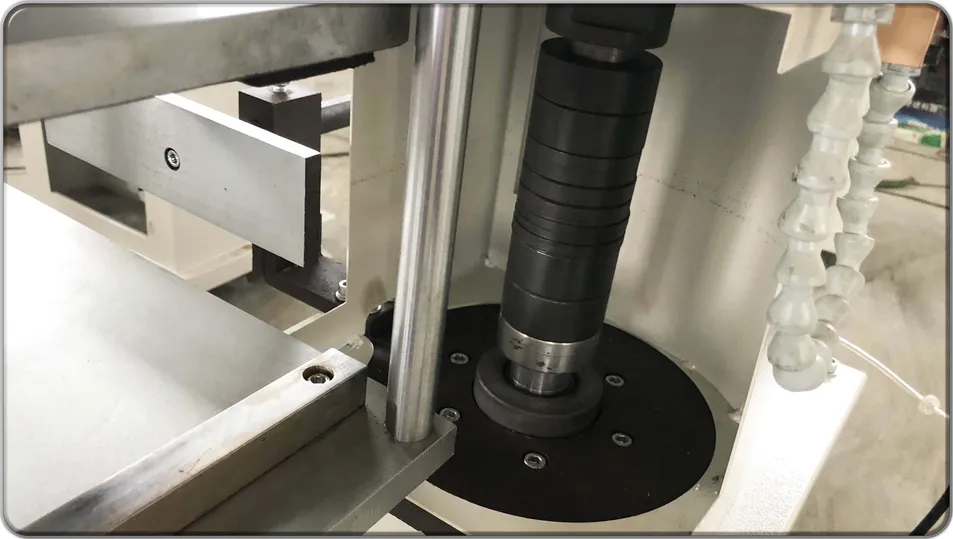

Spindle: Compact structure for smooth operation.
Max. Processing Range: Specifically designed for aluminum and V-PVC profiles up to 120mm×120mm.
Compatible Materials: Aluminum Alloys (6063-T5, 6061-T6) V-PVC Profiles Light Alloys
Industries: Window & Door Fabrication, Curtain Wall Systems, Industrial Framing, and Specialized LED/Furniture manufacturing.

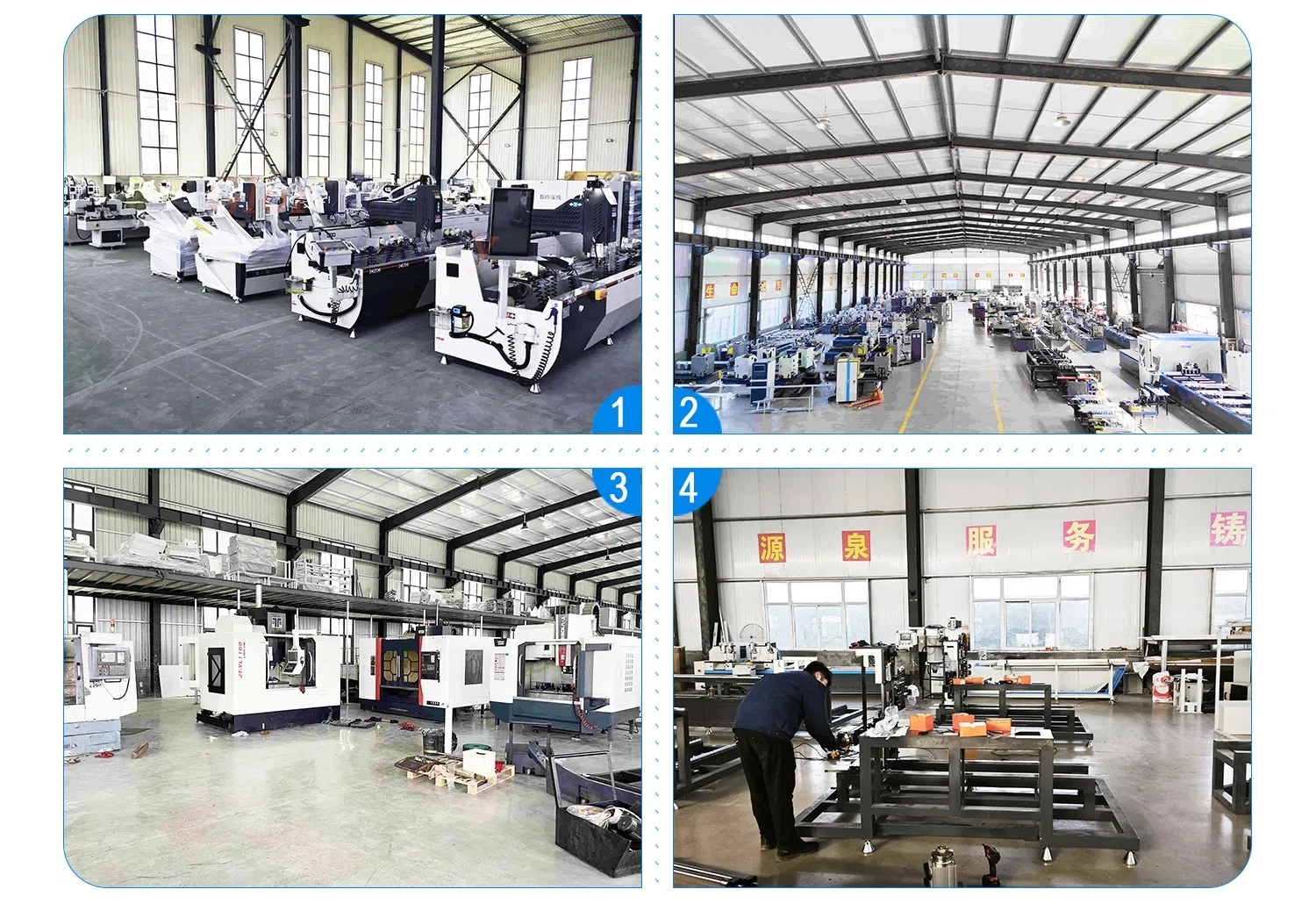

We are an innovative manufacturing enterprise with independent R&D, professional design, and large-scale production capabilities. We focus on middle and high-end aluminum & PVC window and door processing equipment, providing global customers with practical and reliable mechanical solutions.
